Product Description
Product Description

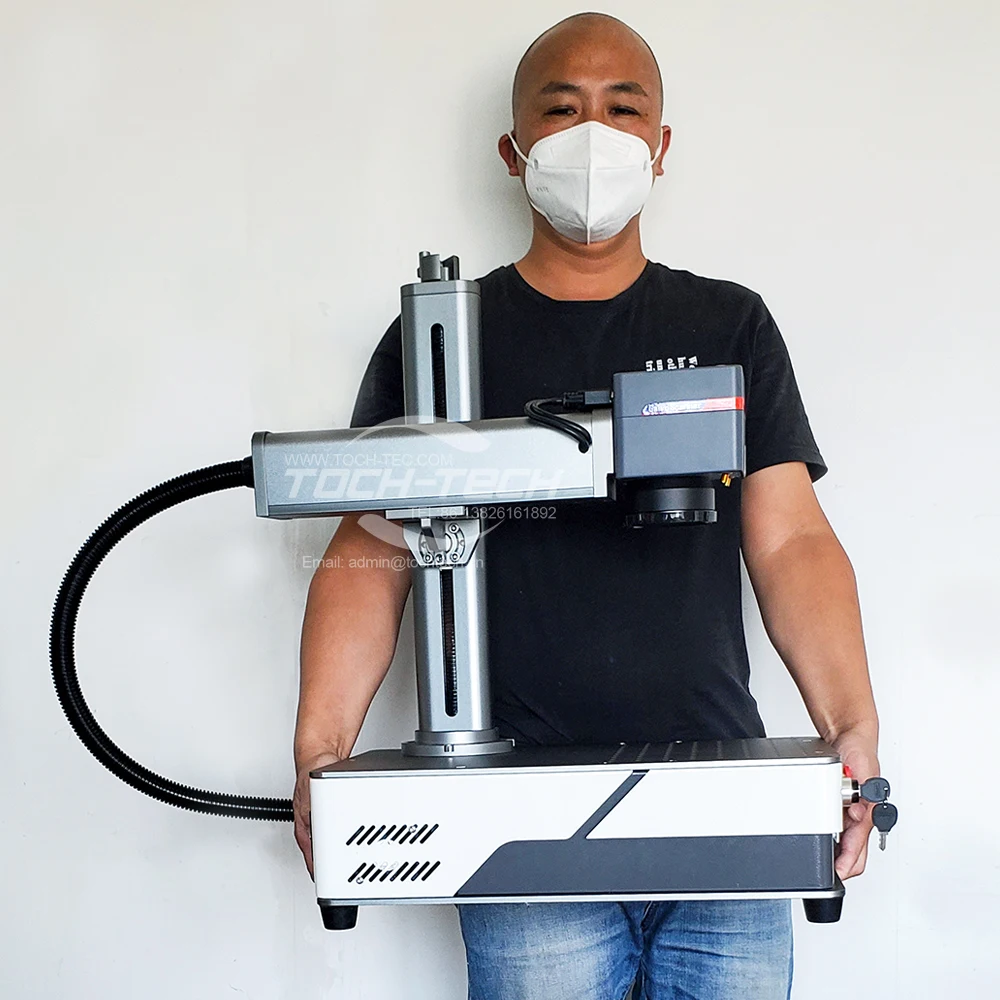

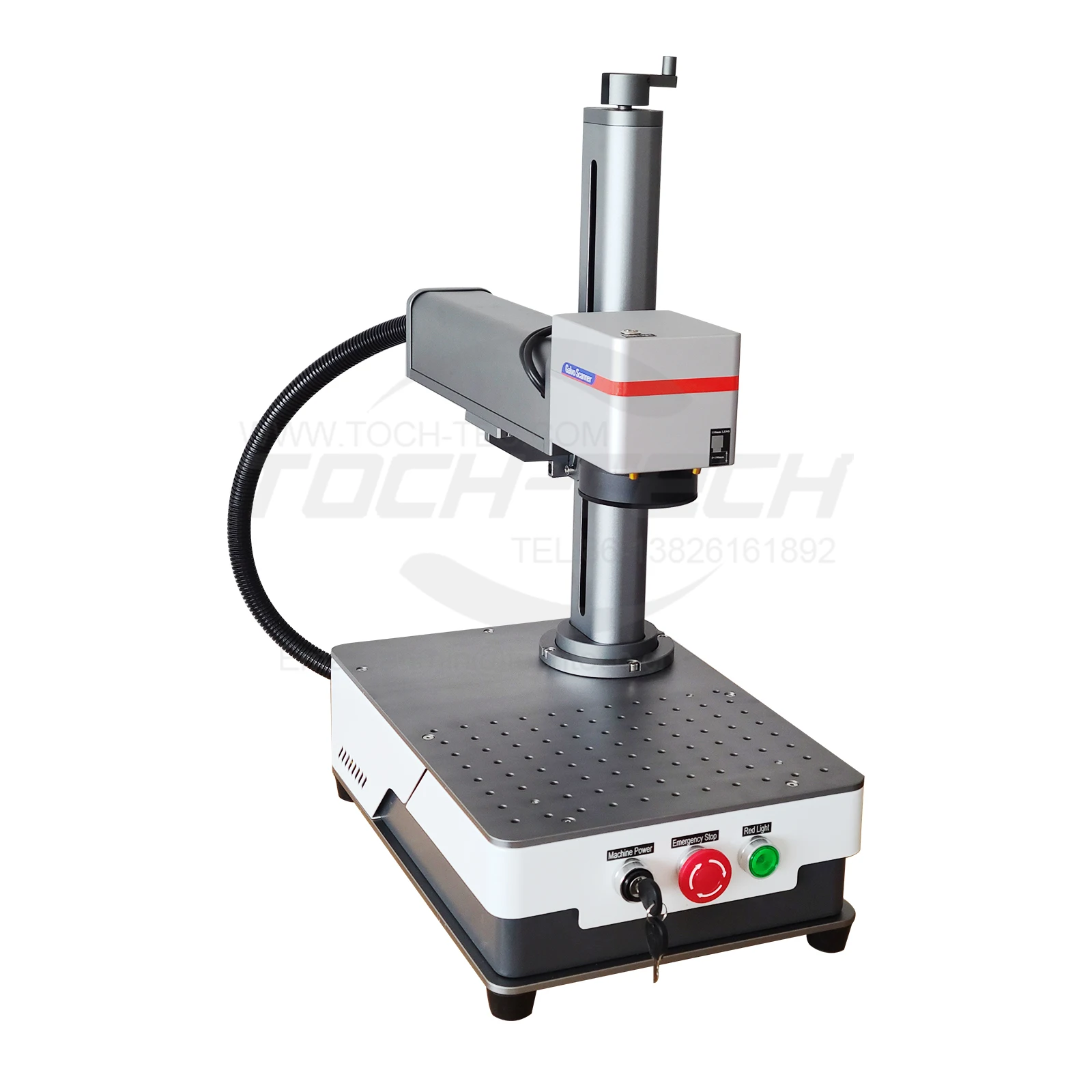

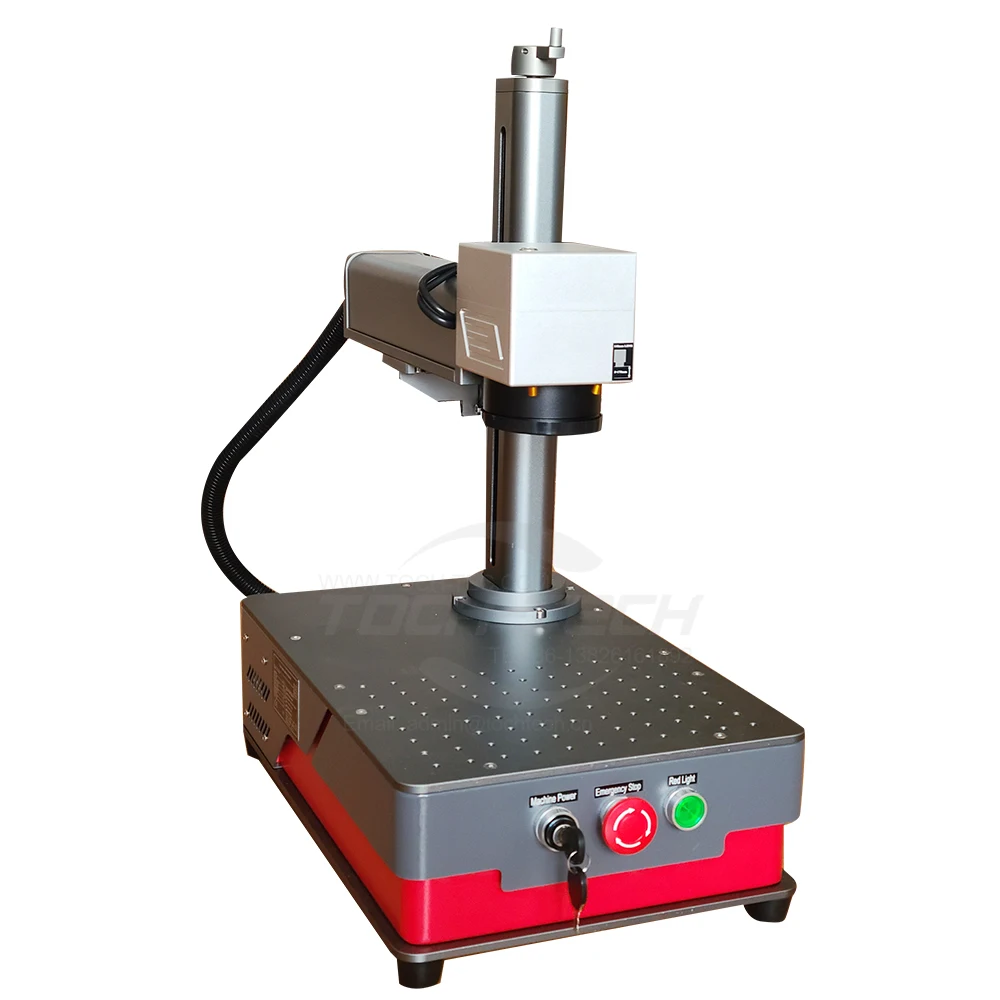

Portable mini handheld Mobile Type Laser Marking Machine
1. Applied materials: This mini laser marking machine is suitable for all kinds of metal materials, such as: stainless steel, iron, copper, aluminum, silver, etc., as well as some non-metallic materials, such as: PC, ABS and PVC PC+ABS.
2. Application industries: This small laser marking machine widely used in 3C, auto parts, electronic components, integrated circuits (PC), electrical appliances, precision instruments, all-in-one products, building materials, clocks and watches, jewelry, craft gifts and many other industries.
3. Functions: laser marking / printing / engraving on all metal material and some plastic material. This fiber laser marking machine is suitable for marking custom logo, text, symbol, pattern, barcode, 2D code, serial number, etc.
4. Main Features:

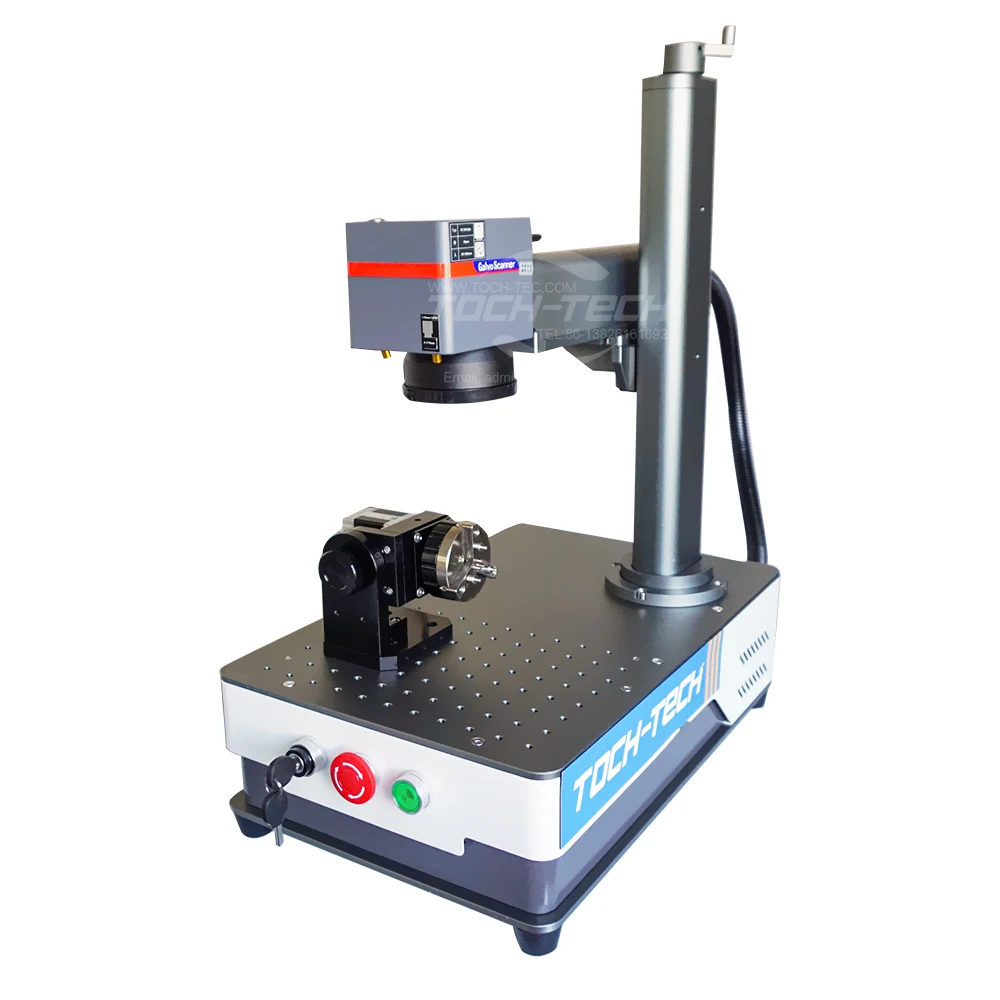

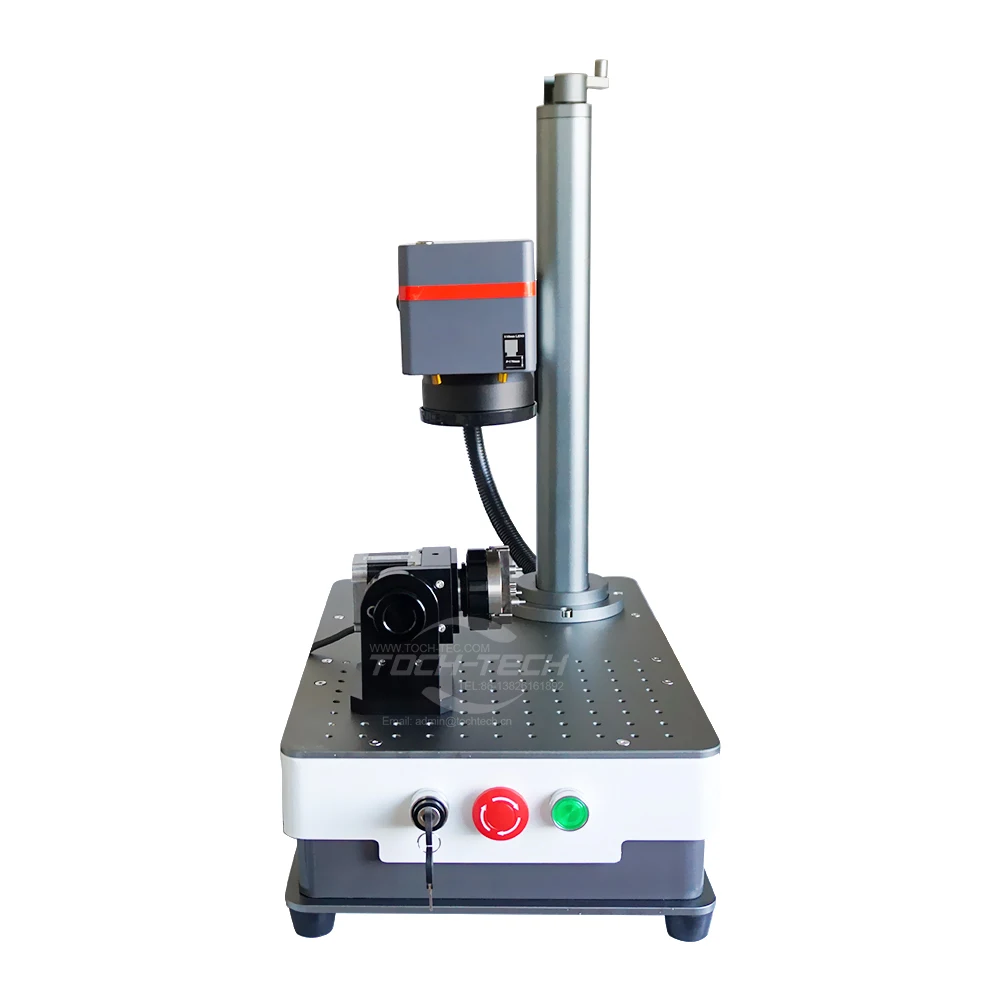

Laser marking machine can mark on flat surface or round surface with rotary jig, like rings inside and outside, pipes, bottles,etc.
Working area: 110*110mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm for option.
Fiber Laser source: China top brand Raycus and JPT for option. Lifetime is up to 100000+ hours.
High speed galvo scanner head: china famous brand " sino-galvo".
Red light preview shows the marking position before laser marking.
double red pointer help to adjust the focus distance. Easy to marking on different workpiece.
Permanent marking on products, can’t be erased.
No consumables, free maintenance.
High precision, fast marking. Air cooling, small size,low power consumption.
Laser marking machine can mark on flat surface or round surface with rotary jig, like rings inside and outside, pipes, bottles,etc.
Working area: 110*110mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm for option.
Fiber Laser source: China top brand Raycus and JPT for option. Lifetime is up to 100000+ hours.
High speed galvo scanner head: china famous brand " sino-galvo".
Red light preview shows the marking position before laser marking.
double red pointer help to adjust the focus distance. Easy to marking on different workpiece.
Permanent marking on products, can’t be erased.
No consumables, free maintenance.
High precision, fast marking. Air cooling, small size,low power consumption.
Laser Power | 20W/30W/50W |
Wavelength | 1064nm+/-4nm |
Laser Source | Raycus JPT/Max |
Minimum Line Width | 0.02mm |
Pulse Width | 110~150ns |
Single Pulse Energy | 0.75mj |
Dutput Beam Diameter | 7±1 |
M2 | <1.6 |
Frequency Adjustment | 30~60KH2 |
Marking Speed | s7000mm/s |
Power Adjustment | 10-100% |
Marking Range | 110×110mm/150×150mm/175×175mm/200x200mm |
Focus System | Double red light pointer assist for focal adjustment |
Cutting Thickness | 0~0.5mm |
Cooling Method | Air cooling |
Electricity Demand | 220V±10%(110V±10%)/50HZ60 HZ compatible |
Size & Weight | 62*44*40cm,gross weight 25KG |
How to Choose The Different Laser Watt?
Here is difference between 20w, 30w and 50w:
Here is difference between 20w, 30w and 50w:
1. If marking same content on same materials, 50w marking speed is faster than 20w/30w.
2. If marking same depth on same material, 50w marking time is shorter than 20w/ 30w.
3. The 20W machine is mainly used for surface marking of plastic, stainless steel, aluminum and so on.
4. If clients want to engrave deeply, then a 30W machine will be a better choice. For all materials, aluminum is the easiest to achieve deep engraving.
5. If you want to do deep marking on brass,silver, or gold or cut it, you need to choose the 50watt 60watts or more power. As you know, these materials are high-reflective materials.
2. If marking same depth on same material, 50w marking time is shorter than 20w/ 30w.
3. The 20W machine is mainly used for surface marking of plastic, stainless steel, aluminum and so on.
4. If clients want to engrave deeply, then a 30W machine will be a better choice. For all materials, aluminum is the easiest to achieve deep engraving.
5. If you want to do deep marking on brass,silver, or gold or cut it, you need to choose the 50watt 60watts or more power. As you know, these materials are high-reflective materials.
Hubei Toch Technology CO.,Ltd is a professional manufacturer of industrial laser equipment, located in China "Optics Valley"-Wuhan City. Since 1995, Toch Technology focused on the development and production of various types of laser machinery . Our products include: laser cutting machine, laser marking machine, laser welding machine, laser cutting machine,laser cleaning machine and so on. More than 20 series, 300 types. and we can supply OEM&ODM service . Toch Technology has been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates,and so on.
RAQ
1. who are we? We are based in Hubei, China, start from 2019,sell to North America(20.00%),Southern Europe(15.00%),Northern
Europe(15.00%),Eastern Europe(15.00%),Western Europe(15.00%),Domestic Market(5.00%),Mid East(5.00%),Africa(5.00%),South
America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality? Always a pre-production
sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? laser cleaning
machine,laser marking machine,laser cutting machine,laser welding machine.
4. why should you buy from us not from other suppliers? 20 Years Manufacturer for lasers.
5. If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
1. who are we? We are based in Hubei, China, start from 2019,sell to North America(20.00%),Southern Europe(15.00%),Northern
Europe(15.00%),Eastern Europe(15.00%),Western Europe(15.00%),Domestic Market(5.00%),Mid East(5.00%),Africa(5.00%),South
America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality? Always a pre-production
sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? laser cleaning
machine,laser marking machine,laser cutting machine,laser welding machine.
4. why should you buy from us not from other suppliers? 20 Years Manufacturer for lasers.
5. If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
mike@tochtech.cn
www.toch-tech.com
Mobile/Whatsapp: 0086 13769067413
www.toch-tech.com
Mobile/Whatsapp: 0086 13769067413
Похожие товары
Лазерный резак Reci 50 Вт 400*400 мм с датчиком управления M2 водяной насос моторизованный по оси Z сертификат CE

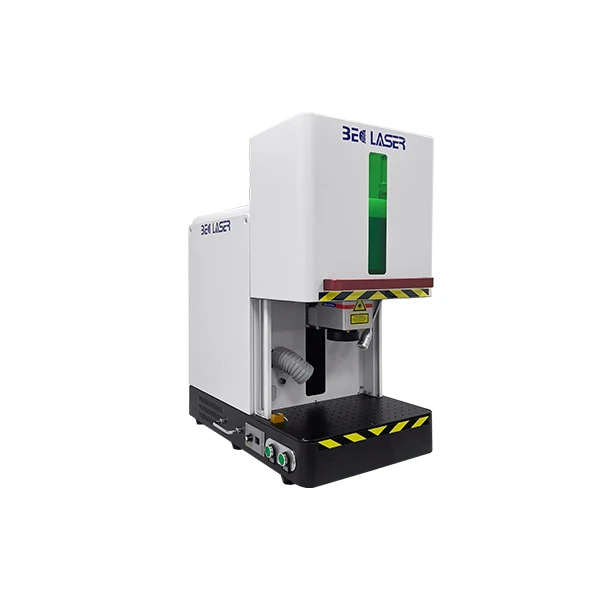

BEC прилагается волоконно-лазерная маркировочная машина класса 1 защитный корпус Электрический подъемник двери маркировка гравировка резки ювелирных изделий по металлу

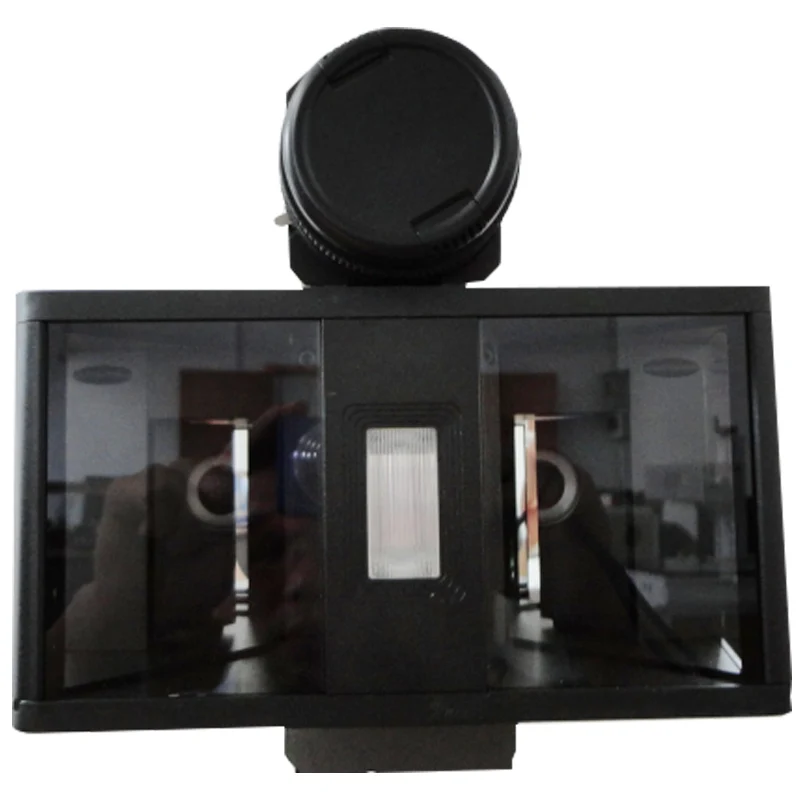

3d-камера 360 градусов для 3D лазерной гравировки стерео камера
859 625,52 ₽
29% скидка! 1390 Co2 лазерная резка 80 Вт 100 Вт 130 Вт двойные направляющие трехфазный двигатель и привод с точной синхронностью
88 166,72 ₽

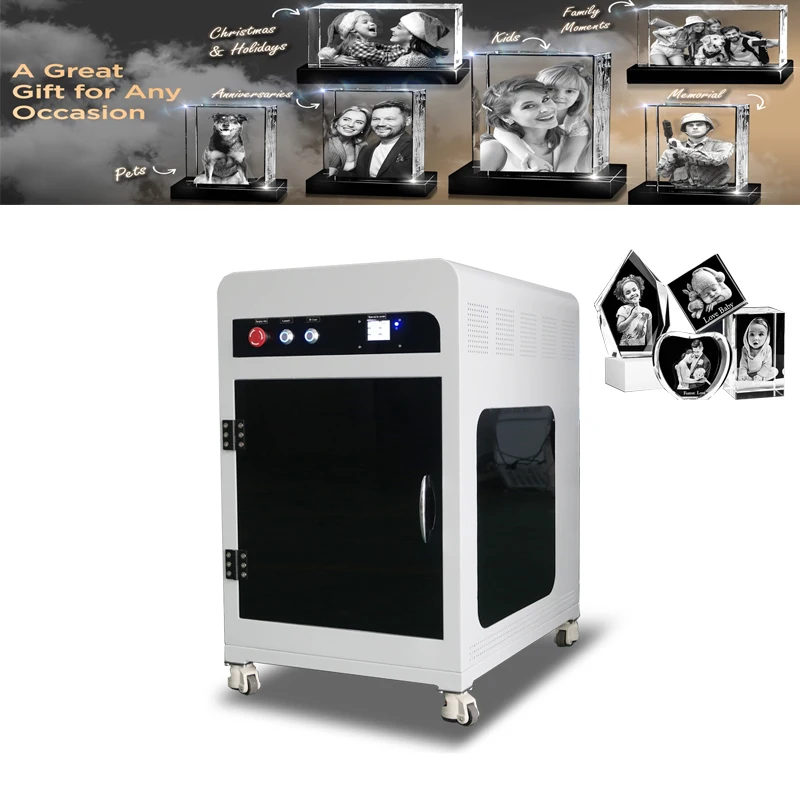

3d фото кристалл куб акриловый Лазерный Гравировальный принтер для стекла Гравировка
Машина для малого бизнеса 4060 лазерный резак с охладителем S & A CW3000, сотовая кровать, линейная направляющая, воздушный насос, датчик воды
89 268,81 ₽

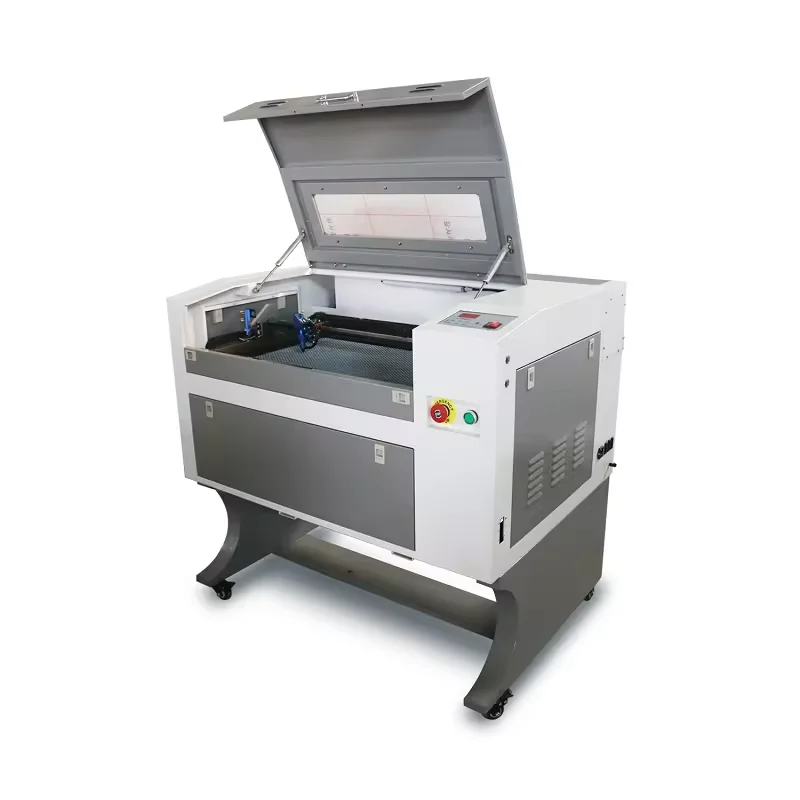

Лазерный гравер для 4060, 80 Вт
