Factory supply KN-2200B CE USA 510K Cleared Reasonable price Optical Colposcope for clinical diagnosis of vagina, and early cervix cancer screening
Product Description

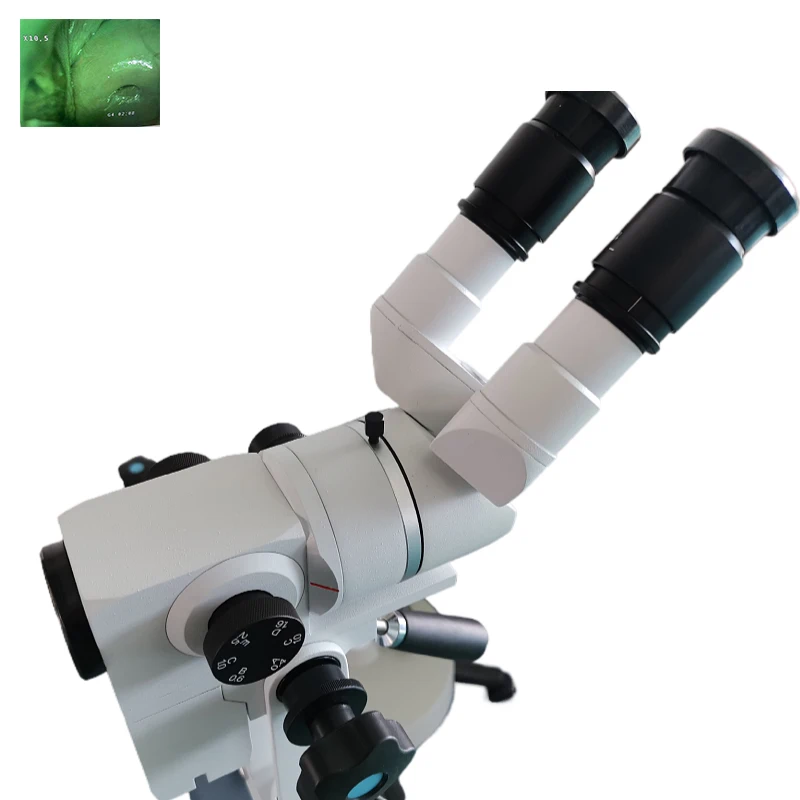

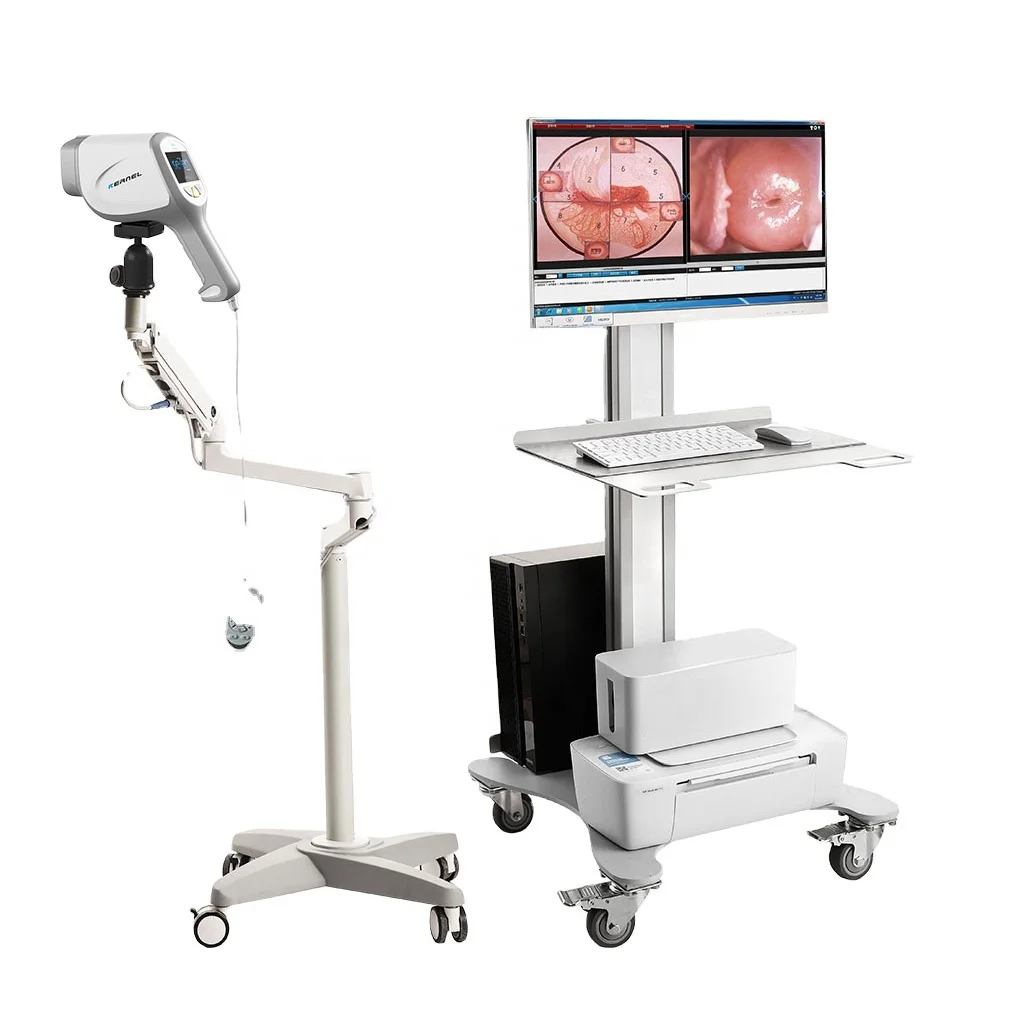

Equipped with stereoscopic microscope, video system, powerful LED lighter and ergonomic stand, whereby meets highest quality and functional standards.
Premium optical system allows to obtain three-dimensional image of the examined area excluding color or size geometric distortion.
The colposcope video system provides output to HD LCD monitor or Lap-top and simultaneous connection to a PC with the software package which is developed by ourselves.
Compatible with all types gynecological examination chairs
The best user experience in one system!
Application
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part
Compatible with all types gynecological examination chairs
The best user experience in one system!
Application
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part
Optimum image quality
through use of the latest technologies offering a perfect view of small structures — color-neutral and as bright as during examinations under natural light conditions.
through use of the latest technologies offering a perfect view of small structures — color-neutral and as bright as during examinations under natural light conditions.
Reliable diagnosis of cervical cancer
thanks to the Green filter method, which makes anomalies in the region of vessel growth easier to detect.
thanks to the Green filter method, which makes anomalies in the region of vessel growth easier to detect.
Optimum integration
through intuitive operation and digital connection to existing practice software.
through intuitive operation and digital connection to existing practice software.
Detailed images
Ultra-long depth of field,large field of view,super-stereoscopic,realistic color reduction,unique light path design,for
pre-cancerous,pathological changes before the point of blood vessels,colunar epithelial and some small lesions to provide true 3D
visual Effects.
High-eye point Wide-field eyepiece,45 degree and 0 degree eyepiece optional,suitable for different heights of inspection beds,making clinical operation more comfortable.
Up to 30times of optical amplification,with high-quality amplification effect can be clearly observed a variety of small pathological cells,can be used to accurately locate biopsy of live lesions,help to improve the diagnosis of various cervical diseases,pre-cancerous screening accuracy,reduce missed diagnosis.
1/3'' Sony CMOS
2.1 Million pixels
Image size:1920*1080
Horizontal resolution:1080p/60
CCD interface Type:USB 3.0
CCD Objective focal length:65mm
Standart complet set:Optical eyepiece system
1/3 Sony HD CCD with 2.1 Million effective pixels
LED Light source Comfortable stable 5-wheel base
Software for saving and printing
USB interface
Footswitch for image capturing and video record.
5-step zoom
5-step magnification (17-30х) provides larger magnifying range and more selection on magnification to meet the requirement of your practice, from lowest magnification for an overview to high magnification for precise and close inspection and treatment.
LED illumination
LED coaxial illuminator provides pure white color light similar to the sun light to show the real color. The bulb life can be over 10000 hours/10 years for lasting perfomance. It isn`t only avoids the trouble of changing bulbs, but also saves your cost for the spare bulbs and electric charge.
1/3 Sony HD CCD with 2.1 Million effective pixels
LED Light source Comfortable stable 5-wheel base
Software for saving and printing
USB interface
Footswitch for image capturing and video record.
5-step zoom
5-step magnification (17-30х) provides larger magnifying range and more selection on magnification to meet the requirement of your practice, from lowest magnification for an overview to high magnification for precise and close inspection and treatment.
LED illumination
LED coaxial illuminator provides pure white color light similar to the sun light to show the real color. The bulb life can be over 10000 hours/10 years for lasting perfomance. It isn`t only avoids the trouble of changing bulbs, but also saves your cost for the spare bulbs and electric charge.
Specification

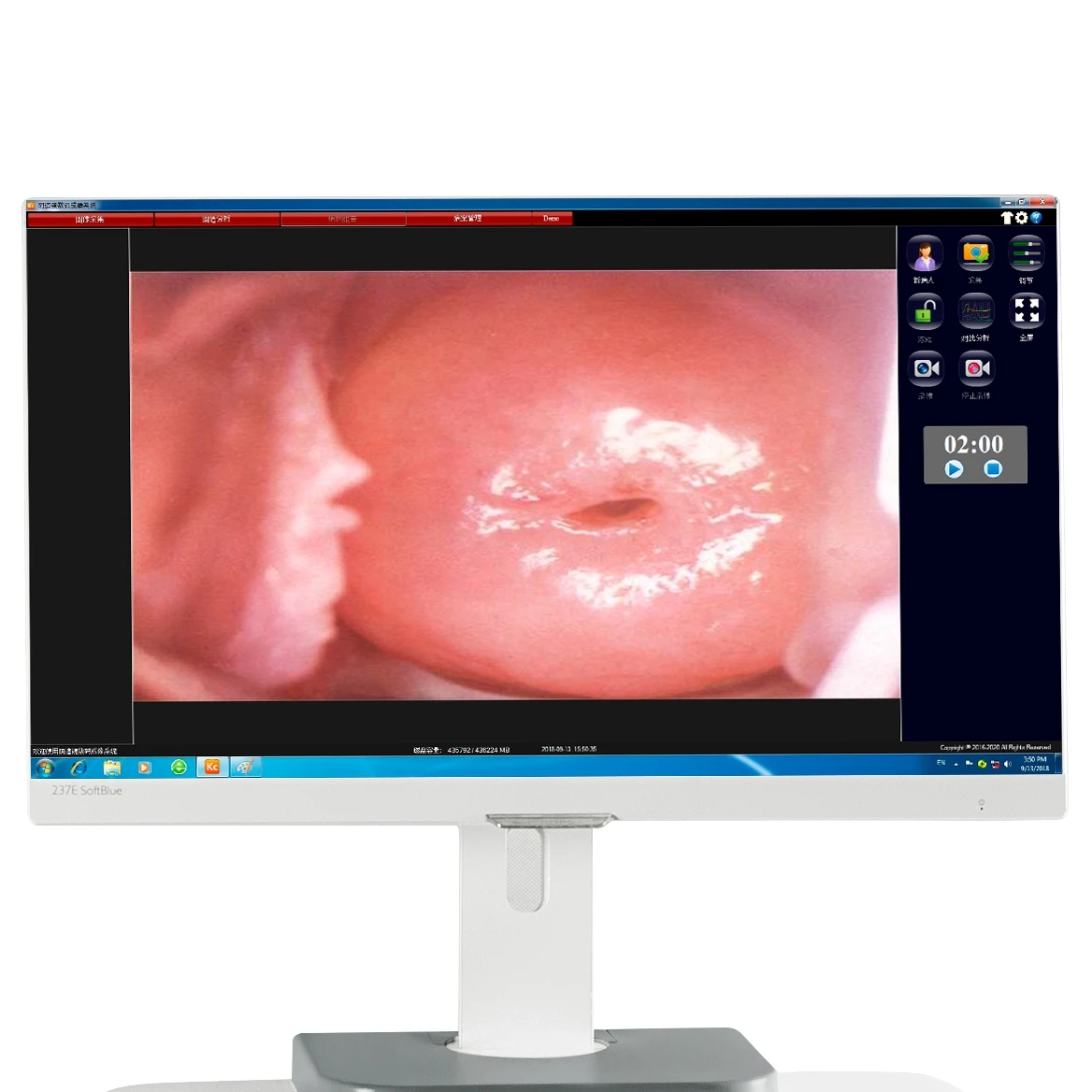

Powerful software management
All of our colposcope come with multifunctional operate software
>>>>8 operating languages:Chinese,English,Spanish,Russian,Turkish,Italian,France,Vietnamese
>>>>Capture Images,Take Videos,Acetic Acid ,Iodine test timer ,Case report,175 Clinical disgnostic data bases comparison.
>>>>8 operating languages:Chinese,English,Spanish,Russian,Turkish,Italian,France,Vietnamese
>>>>Capture Images,Take Videos,Acetic Acid ,Iodine test timer ,Case report,175 Clinical disgnostic data bases comparison.
With foot switch and software two ways of capturing, recording, and can realize dynamic, static, full screen image capture, 100 color images can be collected at each check each inspection is able to collect 100 color images. | |
With dynamic and static image comparison function, can be compared with standard image, and the collected images can be zoomed in, zoomed out, negatively imaged, marked, text annotated, partial magnified , area perimeter calculated etc, which is more convenient for doctors to identify the diseased tissue. | |
Professional case database (up to 175),satisfied cases images can be added,suitable for clinical contrast.The professional clinical diagnosis knowledge database provides a large number of editable clinical terms. With RCI automatic assessment system to make the inspection more objective and accurate. | |
Built-in 19 standard case report template,convenient for editing and printing. It can display 1-6 pictures in the same screen . The report template can be designed, modified, and output in PDF format. Provides evidence for prevention of medical disputes. | |
Search cases via case number,name, bar code, date of birth and date of examination ;Image display,data modification,save,re-examination and video reply to the retrieved cases.Convenient for hospital information management, improve management efficiency. |
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | Kernel |
Model Number | KN-2200B |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Free spare parts |
Material | Metal |
Shelf Life | 1years |
Quality Certification | CE ISO FSC USA 510K |
Instrument classification | Class I |
Safety standard | GB/T 32610 |
Product name | KN-2200B medical optical colposcope |
Brand | KERNEL |
Color | White |
Eyepiece | 12.5x, Optional: 20x |
Observation Angel | 45°eyepiece: 0-135° 0°eyepiece: -45-90° |
Double Eyepiece Focal length | 45°eyepiece: 125mm 0°eyepiece: 160mm |
Focusing | Fine tuning, manual |
Eyepiece Adjustment Range | 55 ~ 75mm |
Objective Focal length | 300mm,optional:250mm |
Horizontal resolution | 1080P |
① Optical System
Ultra-long depth of field, large field of view, super-stereoscopic, realistic color reduction, unique light path design, provide
true 3D visual Effects.

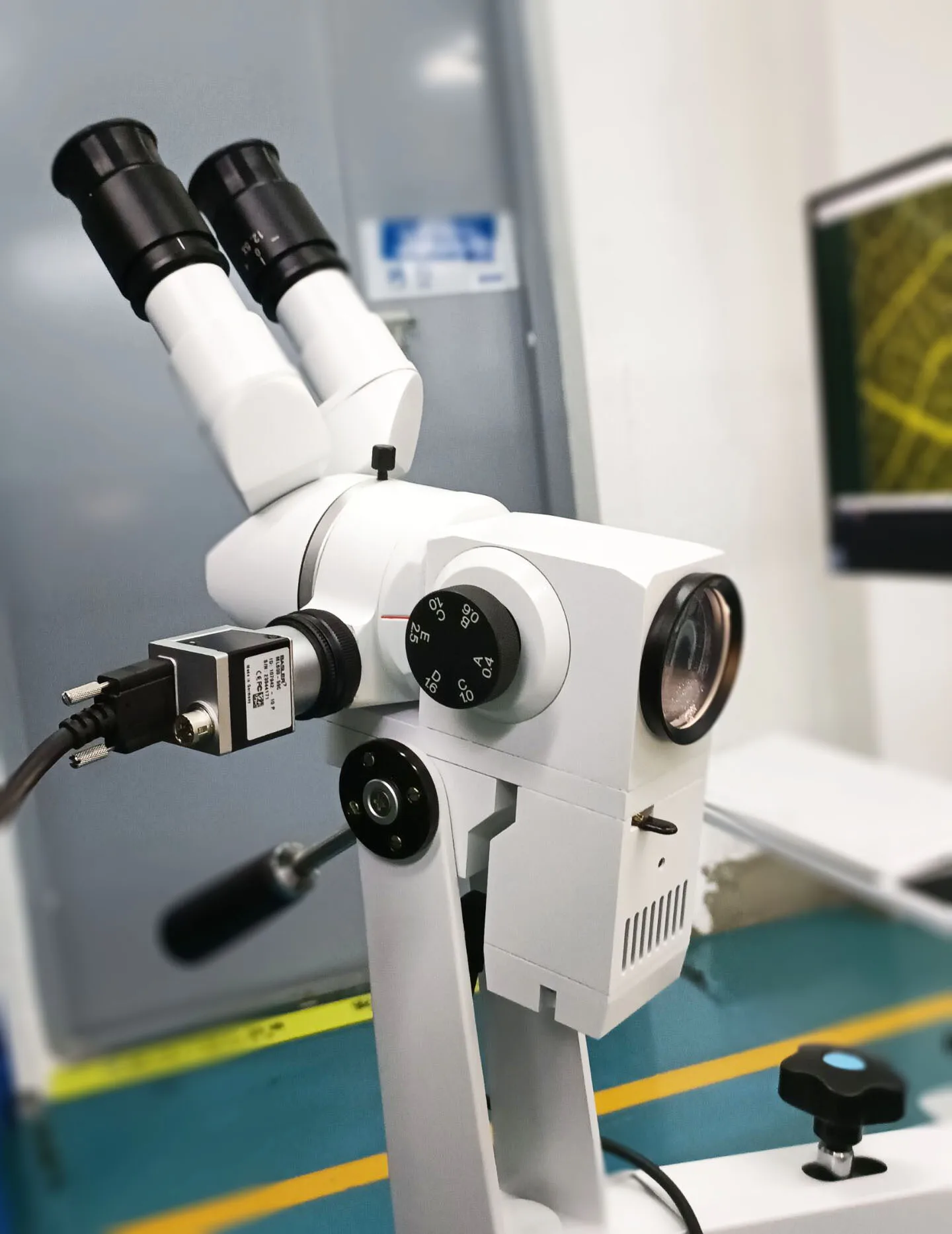

② Binocular eyepieces
High-eye point, Wide-field eyepiece, 45° and 0° eyepiece options, suitable for different heights of inspection beds.
③ Five- step Zoom
Up to 30 times of optical amplification, with high-quality amplification effect can be clearly observed a variety of small
pathological cells, can be used to accurately locate biopsy of live lesions.
④ Light Source
Energy-saving LED light source, with high brightness, LED light source, high Color rendering index.

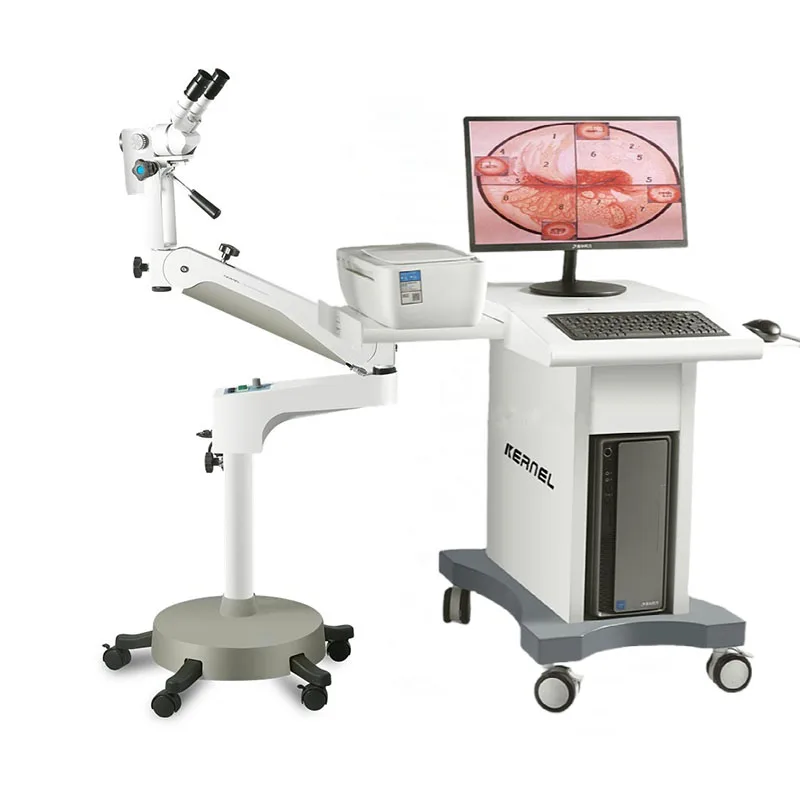

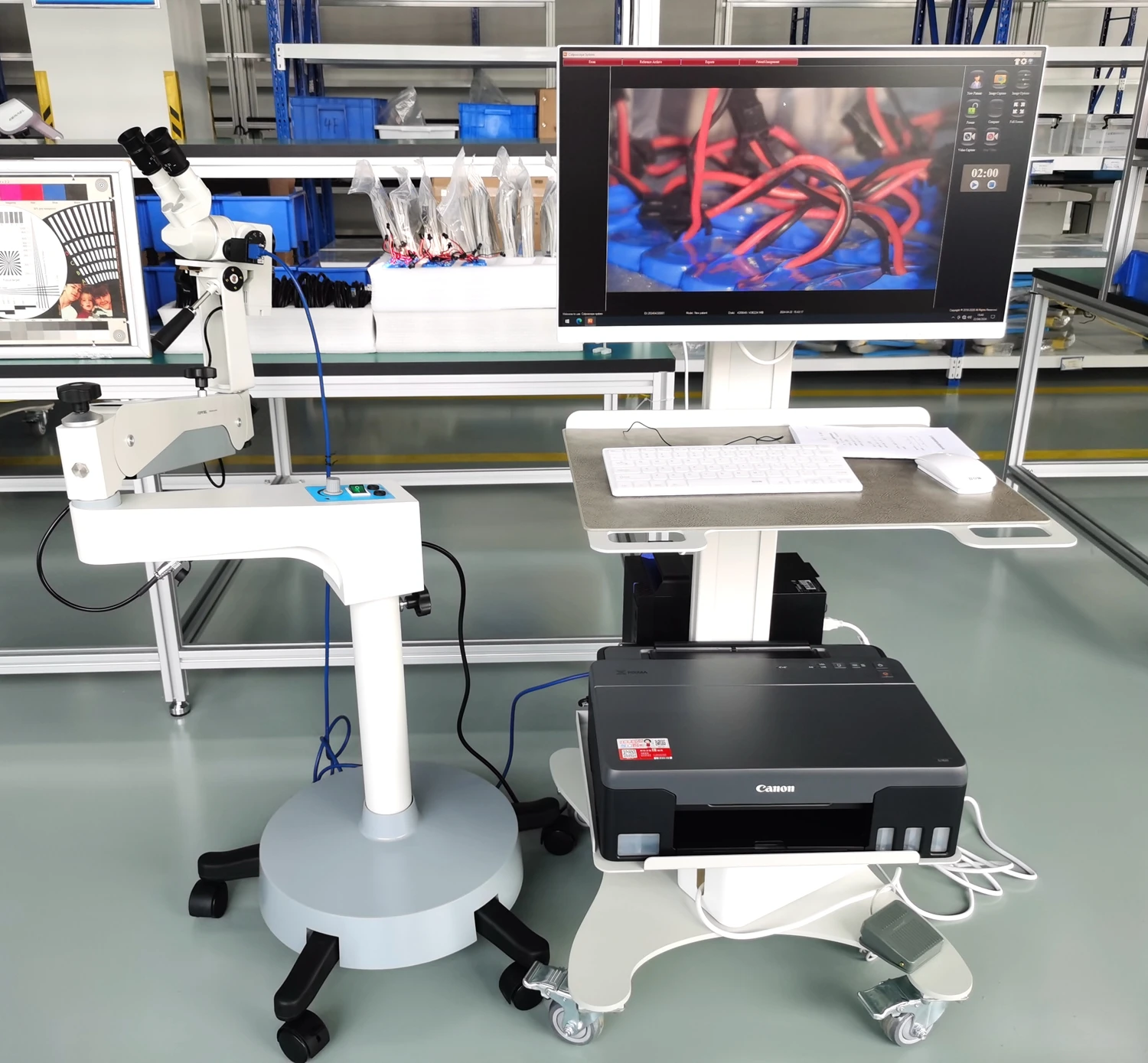

⑤ ABS integrated Trolley
The overall streamlined design of the trolley, flexible operation, reasonable layout, small footprint, ergonomic. Monitor can be adjusted up and down, more flexible viewing angles.
⑥ swing arm
Ultra-long depth of field, large field of view, super-stereoscopic, realistic color reduction, unique light path design, provide
true 3D visual Effects.
② Binocular eyepieces
High-eye point, Wide-field eyepiece, 45° and 0° eyepiece options, suitable for different heights of inspection beds.
③ Five- step Zoom
Up to 30 times of optical amplification, with high-quality amplification effect can be clearly observed a variety of small
pathological cells, can be used to accurately locate biopsy of live lesions.
④ Light Source
Energy-saving LED light source, with high brightness, LED light source, high Color rendering index.
⑤ ABS integrated Trolley
The overall streamlined design of the trolley, flexible operation, reasonable layout, small footprint, ergonomic. Monitor can be adjusted up and down, more flexible viewing angles.
⑥ swing arm
⑦ Computer
⑧ HD display
⑨ printer
Packaging
Company Profile
Certificate
Contact us
Related Products
Похожие товары

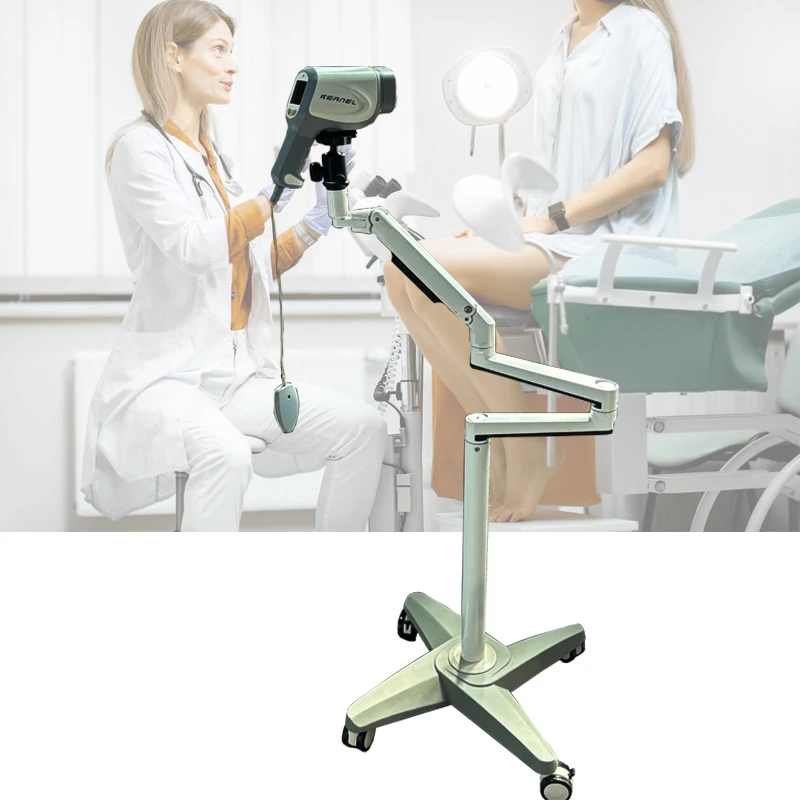

Медицинский гинекологический кольпоскоп с косточками CE, оптический кольпоскоп для медицинского вагинального обследования
Кольпоскоп ядра KN-2200A медицинское диагностическое оборудование для гинекологического обследования цифровой электронный кольпоскоп цена
Ядро кольпоскопио KN-2200A портативный цифровой кольпоскоп для гинекологического осмотра женщин
248 414,26 ₽ - 383 422,01 ₽
Кольпоскоп серии 2,1 миллионов KN-2200, для гинекологии

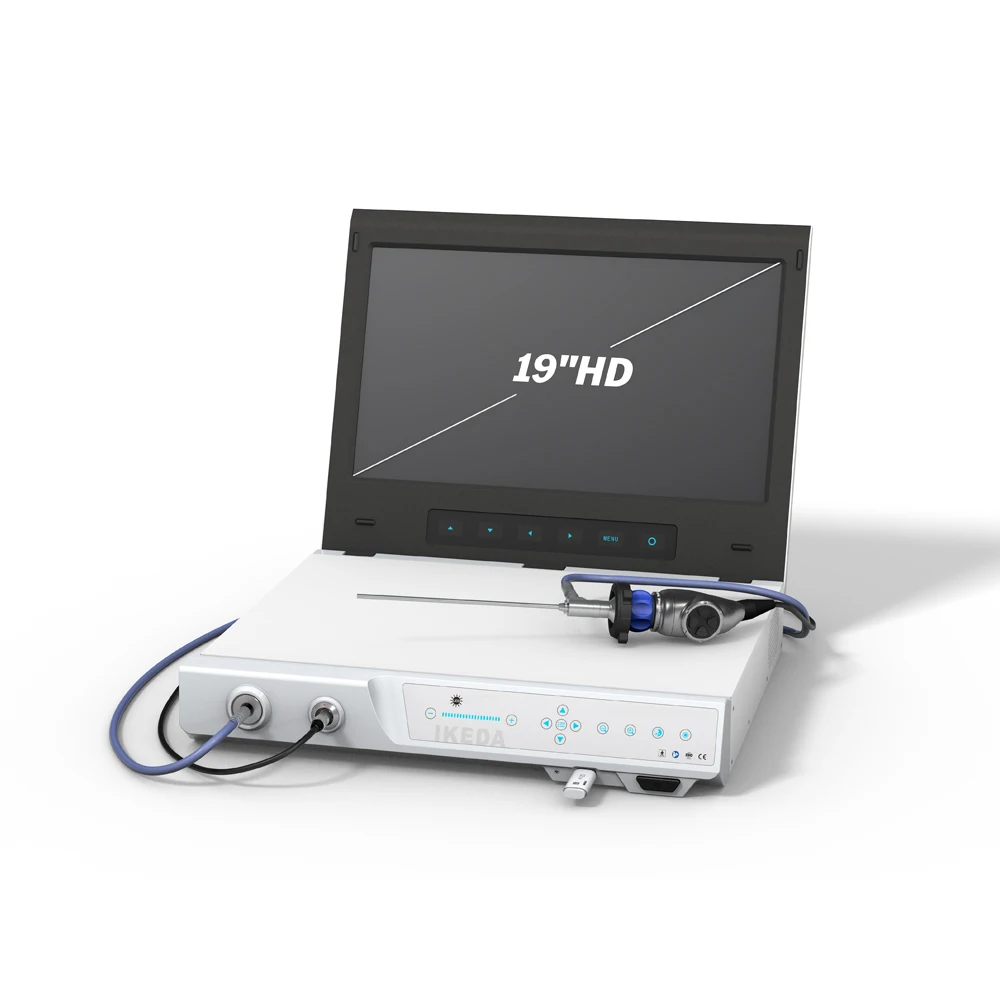

Продукт IKEDA, высококачественная медицинская универсальная диагностическая видеоэндоскопическая камера для хирургического лапароскопического эндоскопа

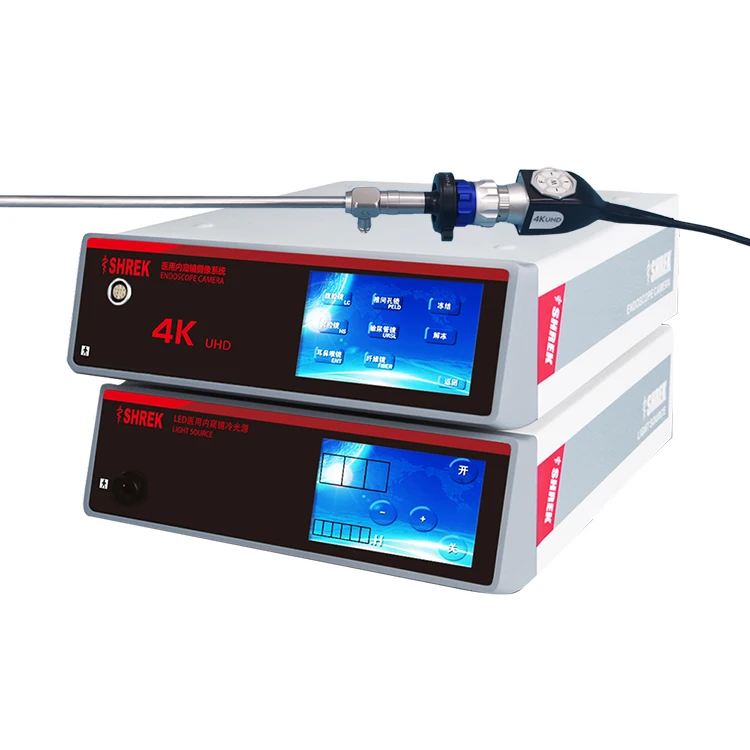

Модуль камеры для медицинской камеры uhd 4k endoscopi laparoscopy

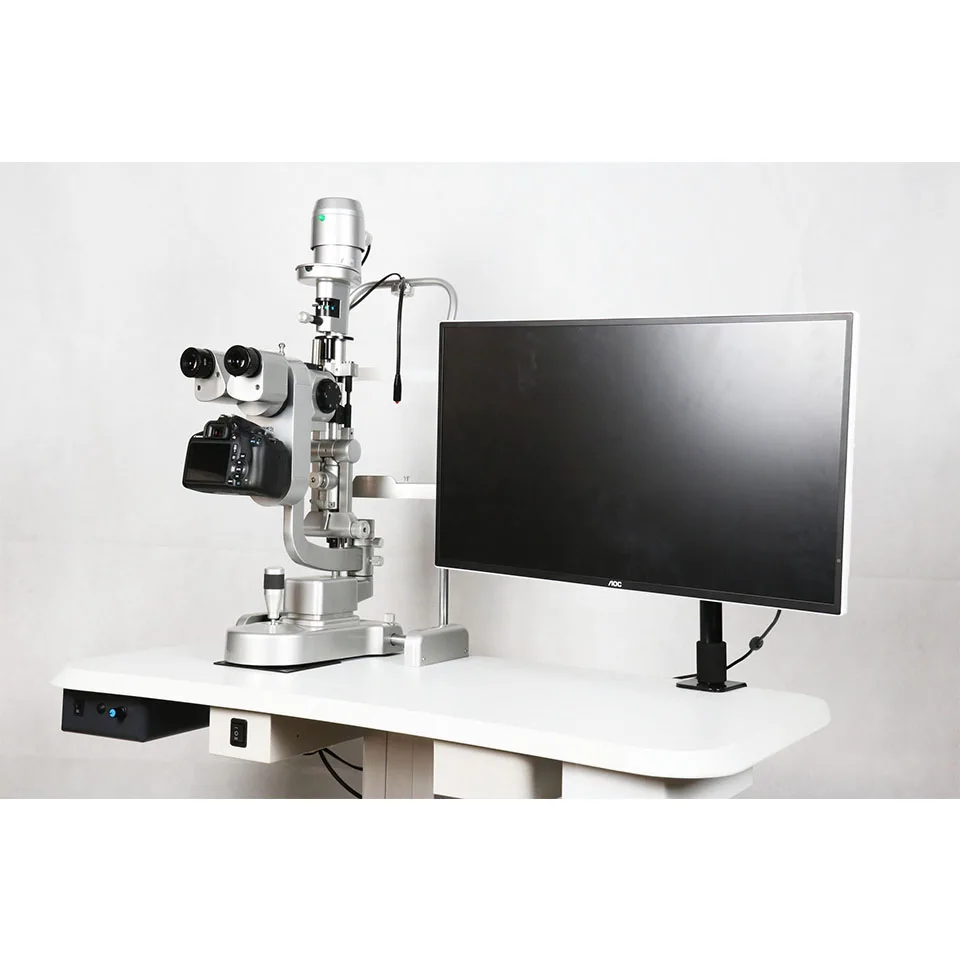

Лидер продаж, китайская офтальмологическая цифровая щелевая лампа с камерой, компьютером и программным обеспечением
