DD25 дизельный молот направляющий шток
3 012 380,00 ₽
Гидравлический молотковый сваебойный аппарат для солнечной установки
- Категория: >>>
- Поставщик: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.Xuzhou Ltd.
Сохранить в закладки 1601118699006:
Описание и отзывы
Характеристики
Product Overview

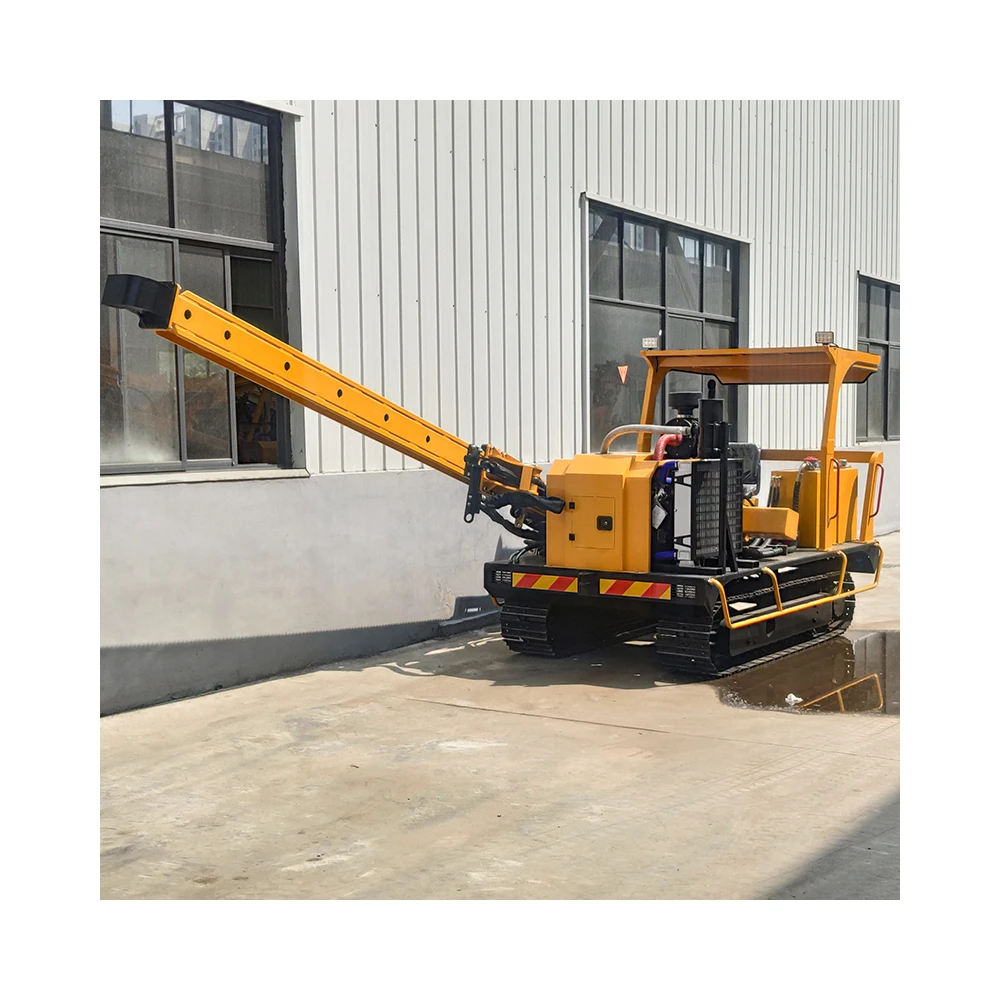

HXR5 series widely used for solar post installation. The machine has undertaken about 15 years testing in domestic market and foreign market with continuous orders from old customers . It has been ungraded to the 6th version for the best. It has multiple functions: ramming, DTH impact drilling, Screw pile, as well as extraction. With these functions, the machine can meet the requirement for most projects.
FEATURES AT A GLANCE
No | Item | Data |
1 | Working Dimension (mm) | 3500*2200*7500 |
2 | Transportation Dimension (mm) | 6500*2200*2700 |
3 | Chassis Dimension | 2550*1700*5300 |
4 | Vehicle Weight (Ton) | 4.5-5.2 |
5 | Engine Power (KW) | 96kN |
6 | 113.4Flow Rate of Hydraulic System (L/min) | 60kN |
7 | Hydraulic System Pressure (Mpa) | 20 |
8 | Piling Height (m) | 5.5 |
9 | Impact Power (J) | 1400, 1960 |
10 | Hydraulic Hammer Type | Imported from South Korea |
11 | Drilling Depth (m) | 4 m |
12 | Drilling Diameter (mm) | 50-300 |
13 | Max. Climbing Ability (°/%) | 30°/57.7% |
14 | Max. Walking Speed (km/h) | 3.8 |
15 | Left and Right Sliding Stroke (mm) | ≤500 |
16 | Max. Adjustment Angle of Sliding Guide Frame | left 30 / right 8 |
17 | Front and Rear Adjustment Angle of Sliding Guide Frame | Front 75 / Back 15 |
18 | Hydraulic Tank Capacity (L) | 80 |
19 | Diesel Tank Capacity (L) | 80 |
OUR SOLAR PILE DRIVER PILING MACHINES DETAILS:

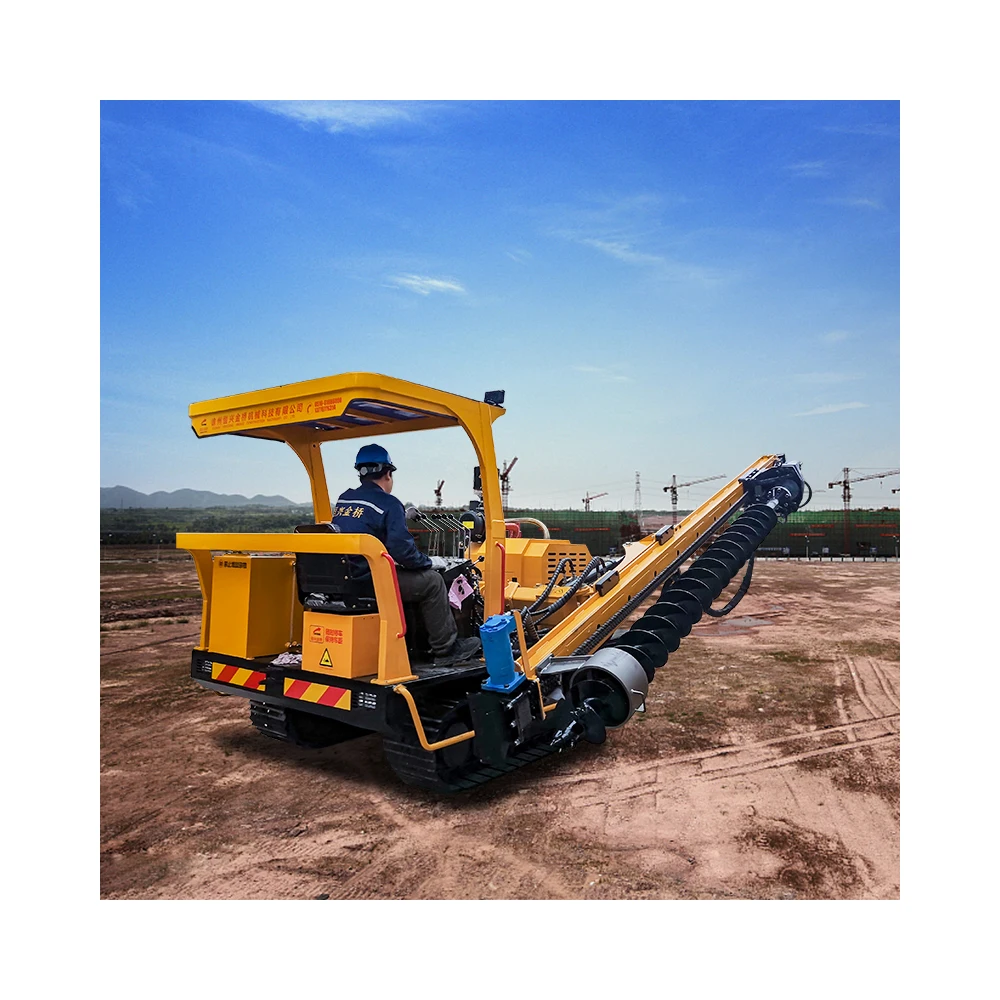

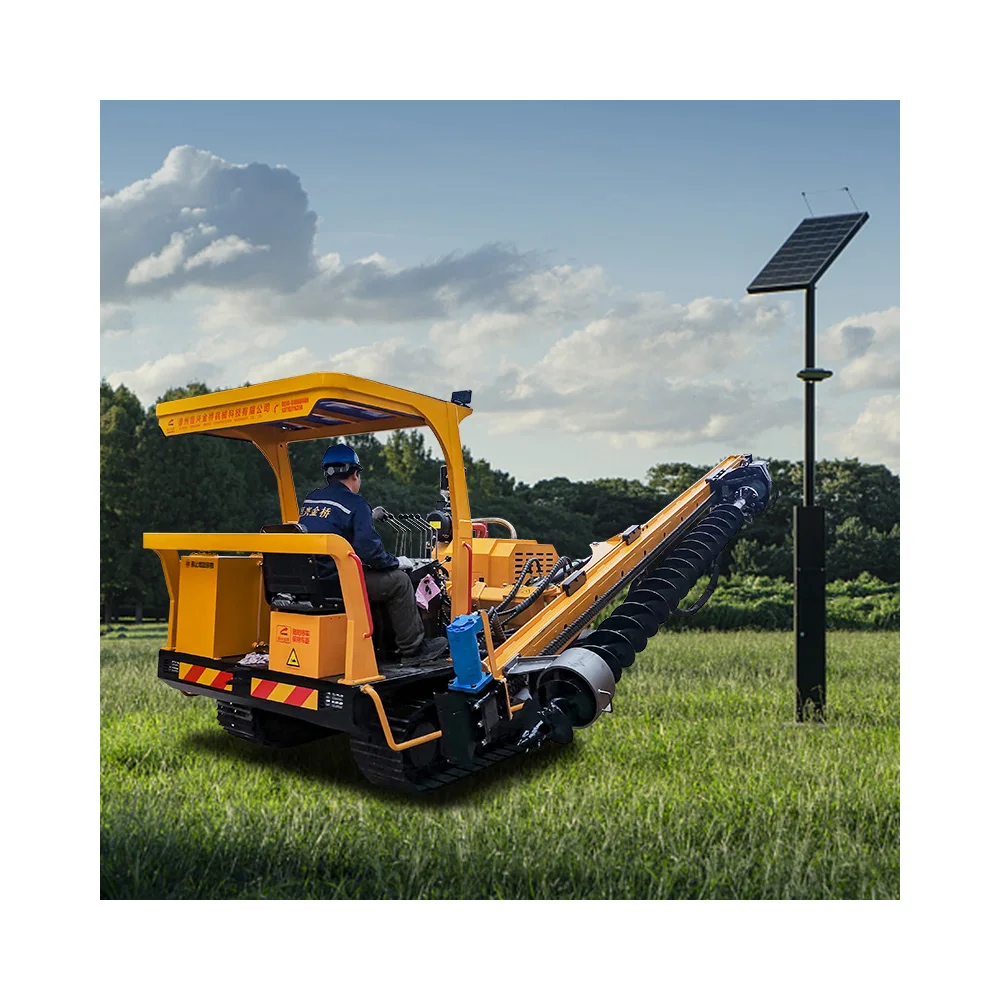

HXR5 series widely used for solar post installation.The machine has 5 functions: ramming, DTH impact drilling, Screw pile, as well as extraction. With these functions, the machine can meet the requirement for most projects.

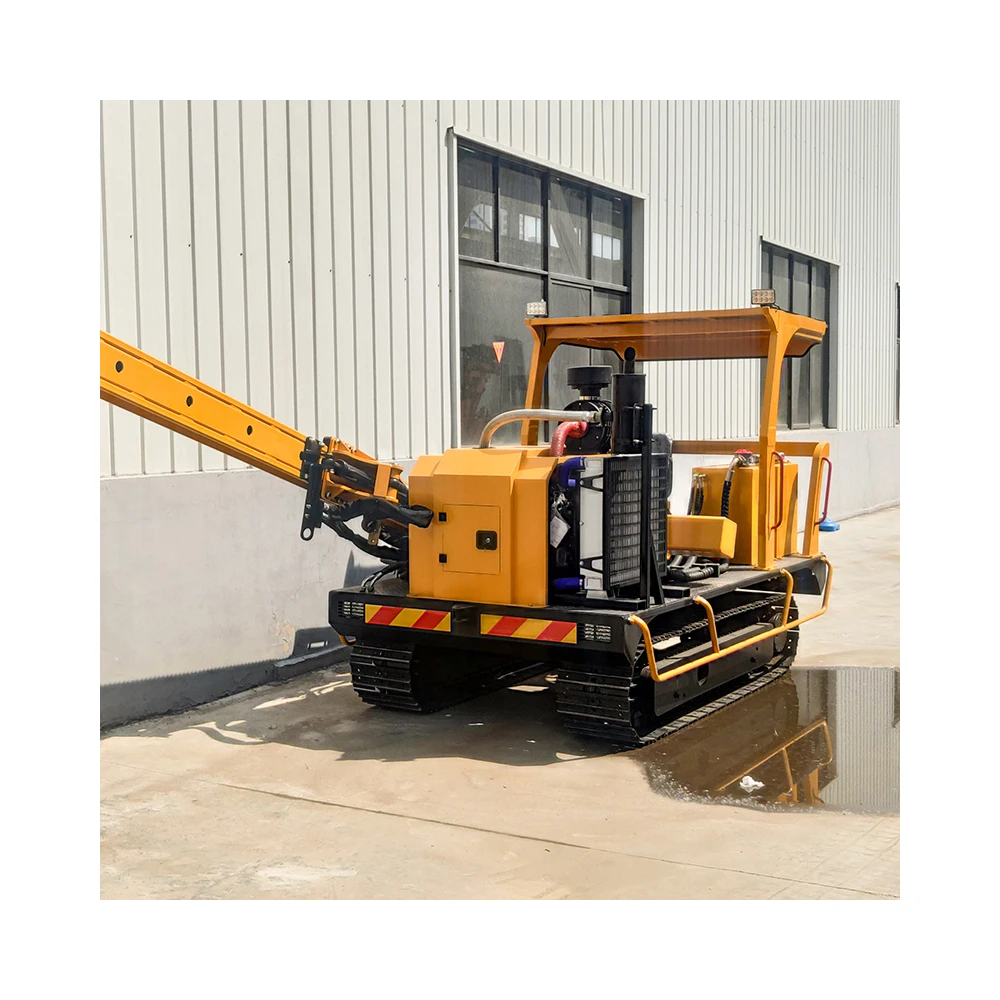

1.You can see we adopt chain drive, max stoke of hammer can reach to 6 m. Drive head for hammer can be customized to different project. such as C channel,H,I,Z shape,etc.
2.Brand Hydraulic double (Duplex pump)gear pump.high flow make the machine more powerful.
3.Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with
smooth movement, adjustable gap and increased lifetime
4.The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.
5.The engine is70 KW Turbocharging, very powerful.(FAWDE Xichai brand, Weichai brand and Cummins brand)
6.The oil intake and return filter is added into the hydraulic oil to reduce the oil impurity.
1.You can see we adopt chain drive, max stoke of hammer can reach to 6 m. Drive head for hammer can be customized to different project. such as C channel,H,I,Z shape,etc.
2.Brand Hydraulic double (Duplex pump)gear pump.high flow make the machine more powerful.
3.Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with
smooth movement, adjustable gap and increased lifetime
4.The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.
5.The engine is70 KW Turbocharging, very powerful.(FAWDE Xichai brand, Weichai brand and Cummins brand)
6.The oil intake and return filter is added into the hydraulic oil to reduce the oil impurity.
High Quality HXR5 Solar Piling Machine Crawler Solar Pile Driver Photovoltaic Ground Screw For Power PV Station
Product Show
certificate
Customer feedback
Similar Products:
High Quality HXR5 Solar Piling Machine Crawler Solar Pile Driver Photovoltaic Ground Screw For Power PV Station
Our Company
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter. We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.
Over the years, we keep strengthening our independent research and development ability. Meanwhile, we actively join the China Construction Machinery Association (CCMA) to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
We has always followed our survival principle that “strives for the survival by quality, development through reputation”, and our service tenet “your demand is our demand”. Through continuous technological innovation we try to build our global brand.
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
Over the years, we keep strengthening our independent research and development ability. Meanwhile, we actively join the China Construction Machinery Association (CCMA) to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
We have enjoyed a good reputation among customers for many years based on our reliable quality and perfect services.
We has always followed our survival principle that “strives for the survival by quality, development through reputation”, and our service tenet “your demand is our demand”. Through continuous technological innovation we try to build our global brand.
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
High Quality HXR5 Solar Piling Machine Crawler Solar Pile Driver Photovoltaic Ground Screw For Power PV Station
FAQ
1. Why choose us?
Ans: As a manufacturer,Everstar/HXjinqiao industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Ans: Everstar/HXjinqiao industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying solar pile drivers, guardrail pile drivers,wheel loaders,forklift trucks,excavator, water well drilling rigs and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Ans: Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
Ans: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Ans: Usually it will take 7 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Everstar/HXjinqiao industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales Service ?
Ans: We provide operation manuals, videos and online technical support for machine installation and operation.
Ans: As a manufacturer,Everstar/HXjinqiao industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Ans: Everstar/HXjinqiao industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying solar pile drivers, guardrail pile drivers,wheel loaders,forklift trucks,excavator, water well drilling rigs and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Ans: Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
Ans: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Ans: Usually it will take 7 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Everstar/HXjinqiao industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales Service ?
Ans: We provide operation manuals, videos and online technical support for machine installation and operation.
High Quality HXR5 Solar Piling Machine Crawler Solar Pile Driver Photovoltaic Ground Screw For Power PV Station
