Погрузка 10/12/14/16 тонн грузовой кран грузовик пересеченной местности
27 002,00-32 001,00 $
Многофункциональный 4*2 16 тонный грузовик с краном установленный на грузовике кран автокраны производитель
- Категория: >>>
- Поставщик: Changfeng (hubei) Vehicle Co. Ltd.Changfeng Ltd.
Сохранить в закладки 1601119451211:
Описание и отзывы
Характеристики
product photos
Product Overview

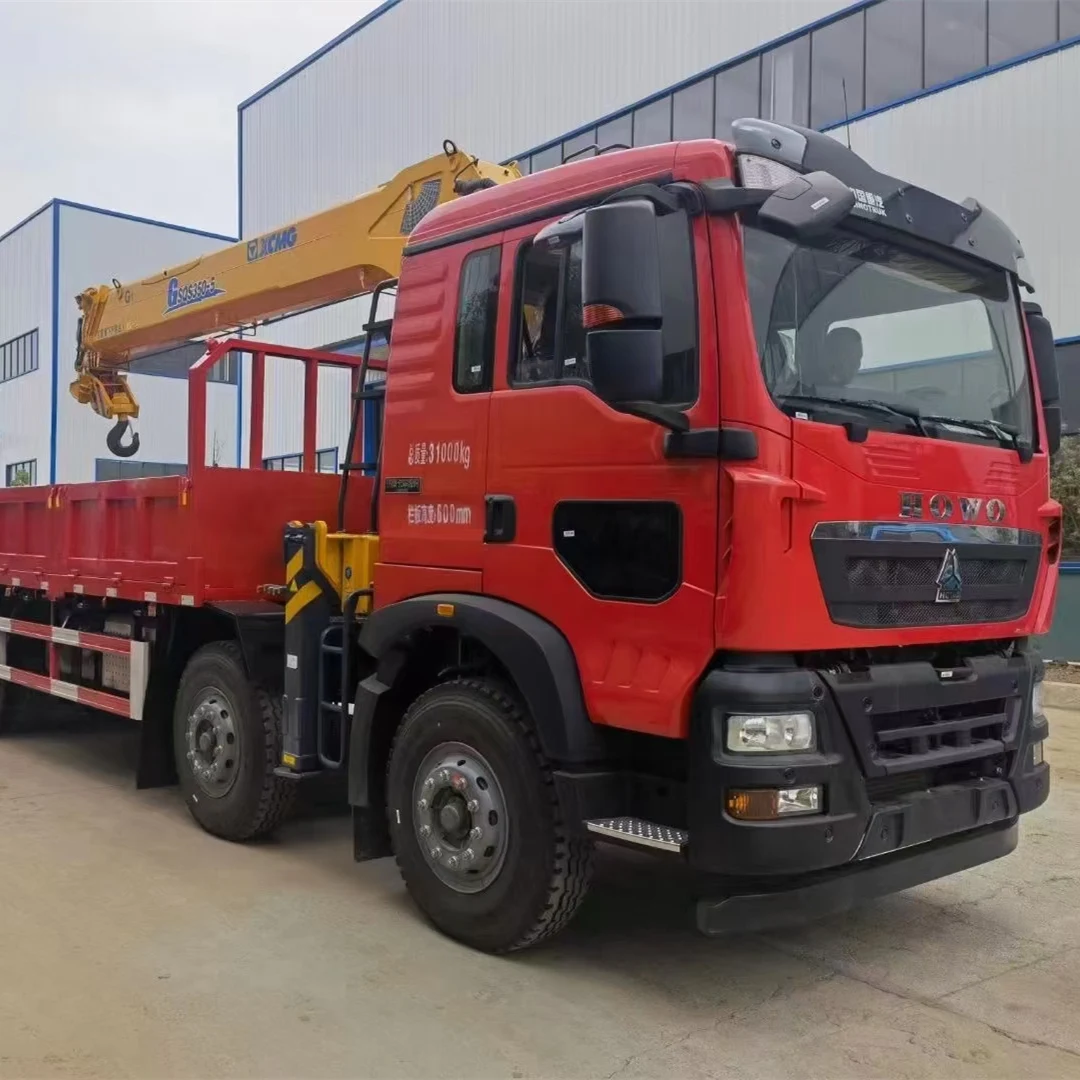

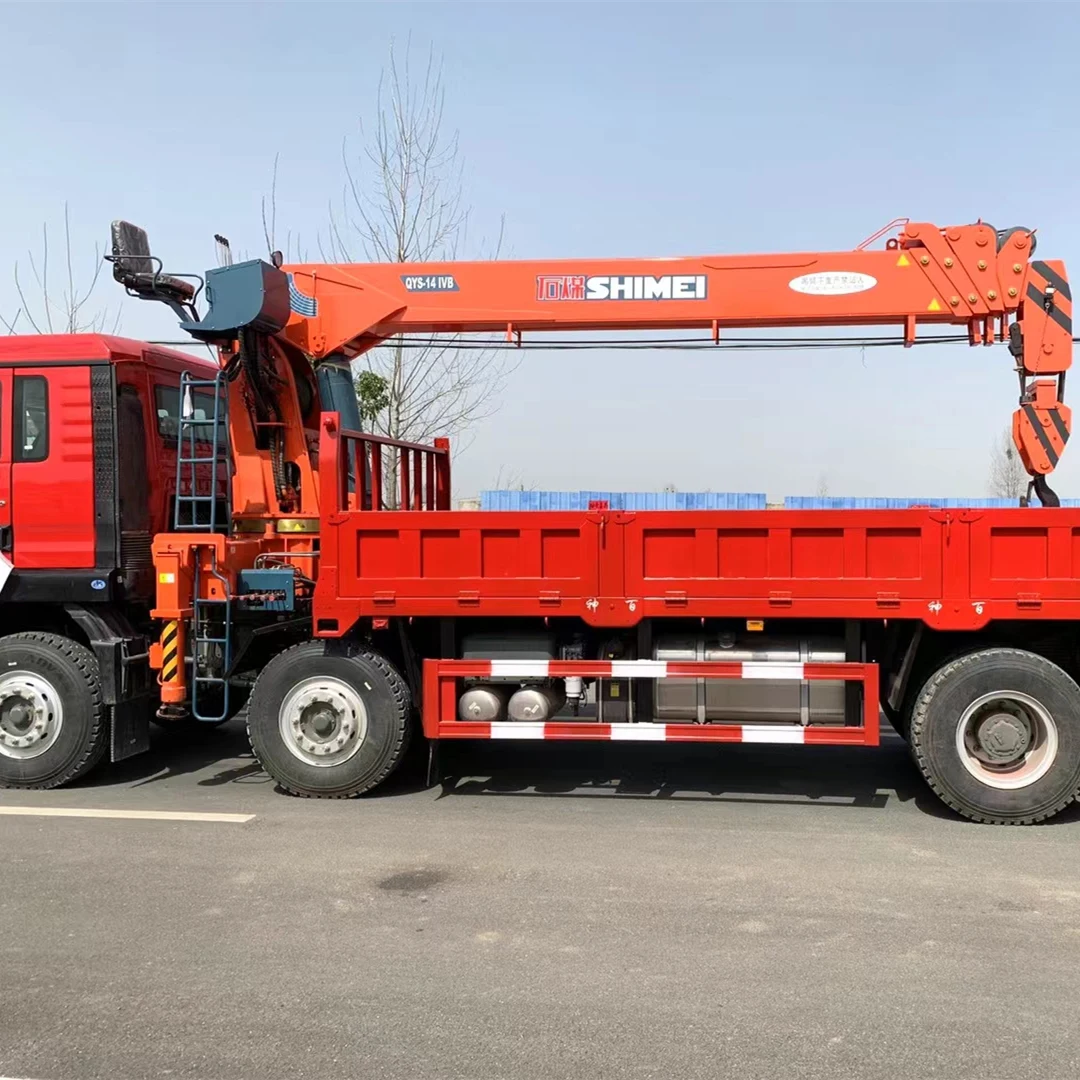

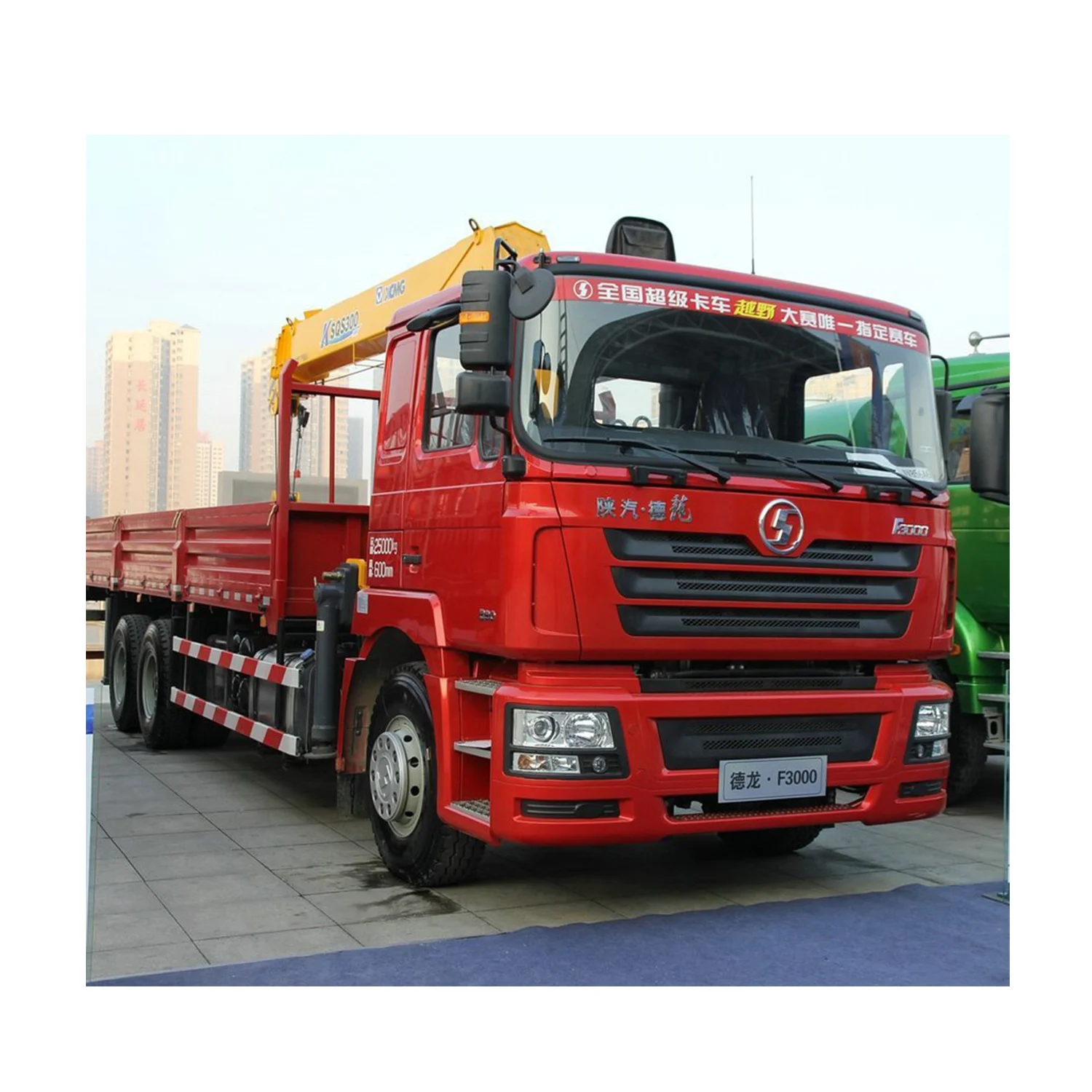

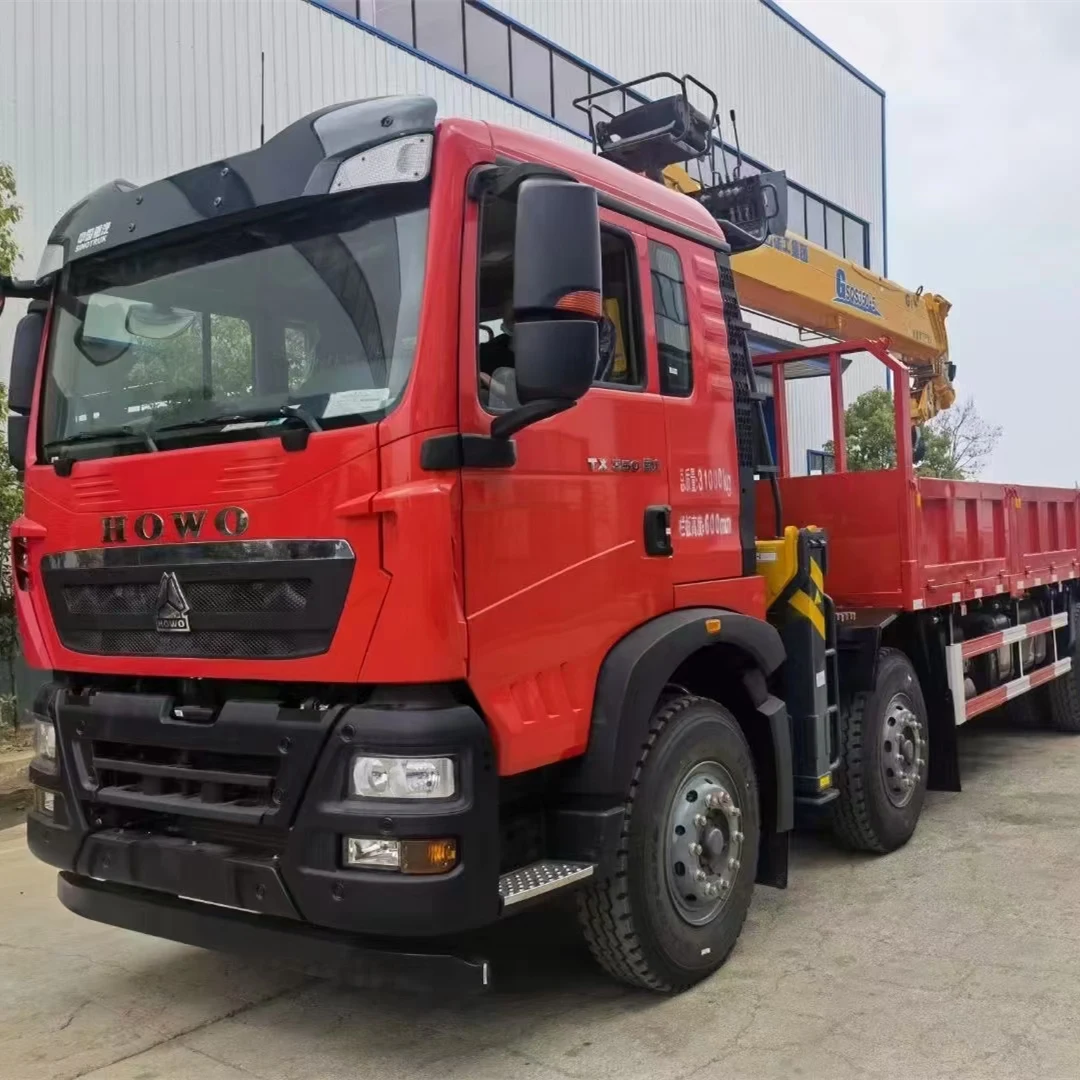

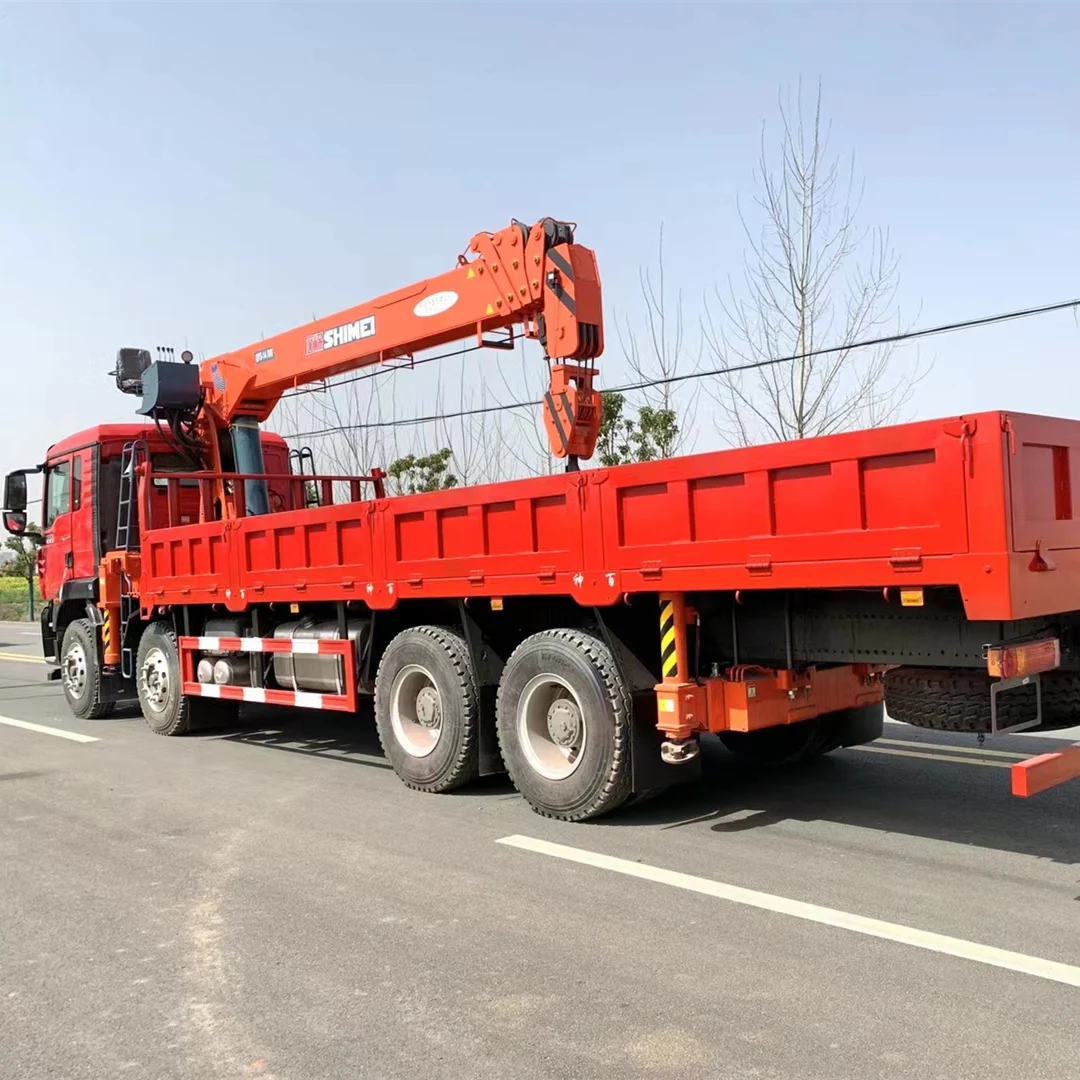

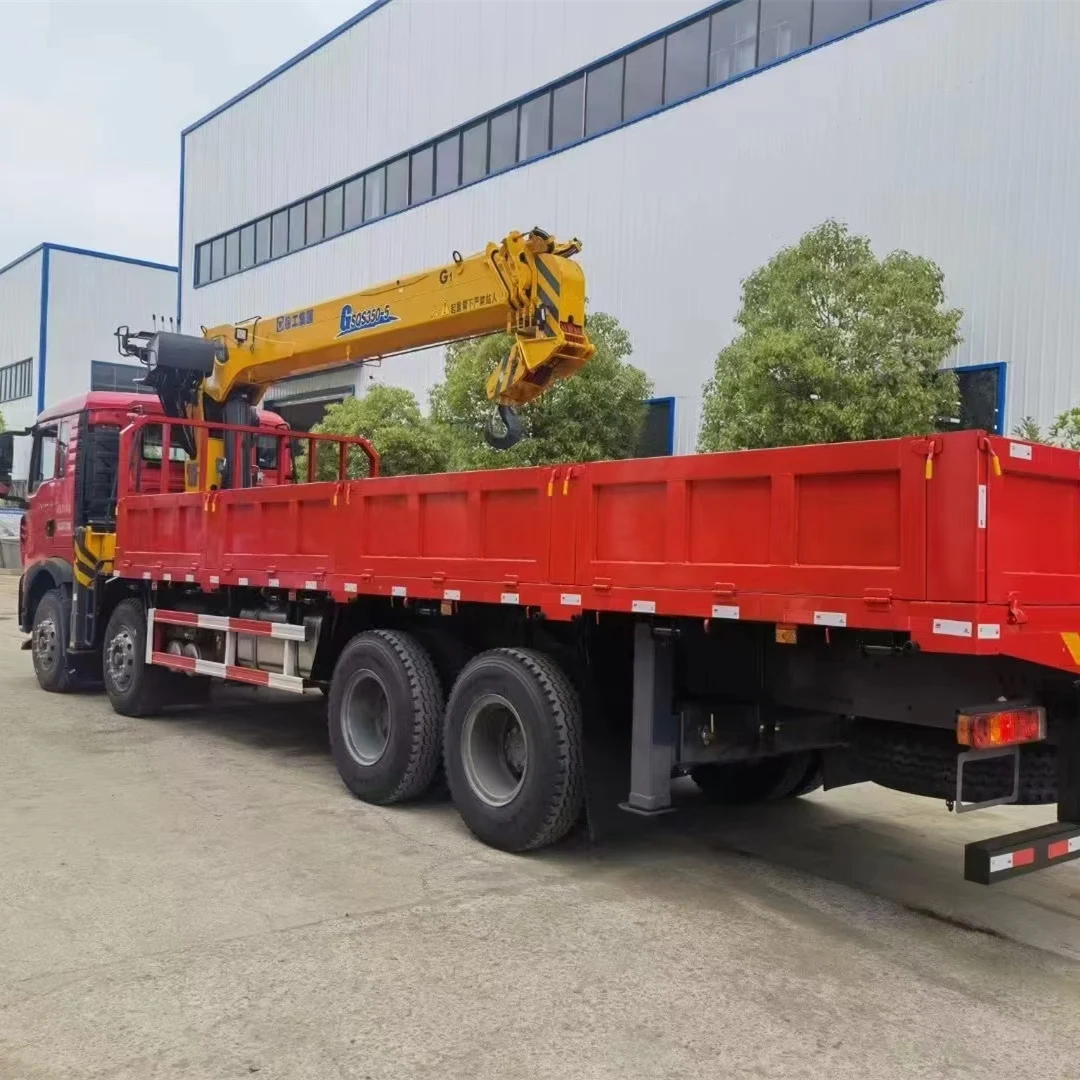

Multifunctional 4*2 12 Ton Truck With Crane Lorry-mounted Crane Truck Mounted Cranes Manufacturer
It is widely used for the lifting and transportation of infrastructure materials and other equipment in municipal construction, coal mining engineering, landscaping, and other fields. The on-board crane can be operated left and right, can rotate 360 degrees in both directions, and can also rotate in all directions. Adopting military quality production, reliable quality, long service life, and fast working speed The relevant models include 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, 30 tons, 80 tons, and 140 tons. Cranes are available for selection, including straight arm or folding arm cranes. Truck with crane is a transportation vehicle that combines a truck with a chassis. It is composed of boom, turntable, frame, support legs, and other parts. The mechanical action of the on-board crane is achieved through the actions of mechanisms such as amplitude modulation, extension, rotation, and winding, and the lifting operation is achieved through the combination of different actions.
PRODUCT SPECIFICATIONS
Product name | SINOTRUCK HOWO 8×4 12 tons 16 tons,20 tons crane truck truck mounted crane | |
Chassis brand | SINO TRUCK HOWO （optional：ISUZU , SINOTRUCK HOWO,FAW SHACMAN,DONGFENG,JAC,FOTON） | |
Wheelbase | 4700 to 5800 +1350+1350 mm | |
Drive form | 8*4 4*2 | |
drive type | Right hand drive/ left hand drive | |
Steering gear | Hydraulic Power Steering | |
Overall Dimensions | 12000mm*2500*3800 | |
Gargo box Dimensions | 6800 8000*2500*550 mm | |
Engine | ||
Engine brand | CUMMINS/WEICHA/YUCHAI | |
Emission Standard | Euro 2 3 4 5 6 | |
Rated power | 270 to 480HP | |
Engine Fuel | Diesel Oil | |
Gearbox | FAST 8 or 10 Forward gears, 1 Back gear | |
Brake | Dual-circuit, pneumatic brake Hand parking brake Engine exhaust brake | |
Tires model | 11.00R22.5 12.00R22.5 | |
The number of Tire | 12+1 (spare tire) | |
Front axle | 7 T*2 | |
Rear axle | 10 T 13 T*2 | |
CAB | HOWO HW76 Flat Cabin & single-sleeper Optional air conditioning | |
Fuel tank | 300L | |
GARGOBOX | ||
Material | Q355B | |
Thickness | Side 2mm,floor 4 mm | |
Dimensions | 6800 8000*2500*550 mm | |
CRANE | ||
BRAND | XMMG, SANY Palfinger , Zoomlion , Shimei Wuyi | |
Capacity | 12 tons 16 tons,20 tons crane | |
Crane type | straight arm Telescopic boom (optional folding arm) | |
Paint color | As the customer required | |
Warranty | One year | |
Company Profile
Customers
Product packaging
PROJECT SHOW
FAQ
Q1. Is your company a factory or trading company? A: We are a leading manufacturer of special trucks, tankers, trailers, and spare
parts in China. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
Q2. What is your terms of payment?
A: T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the
balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you customize the product according to my requirements?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q6. What is the price of your product?
A: We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: What service can I get from you?
A: We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and
technical support to guide you repair your product. If need, we will also supply original spare parts and you just need to pay the
freight.
parts in China. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
Q2. What is your terms of payment?
A: T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the
balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you customize the product according to my requirements?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q6. What is the price of your product?
A: We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: What service can I get from you?
A: We provide lifelong tracking service and one year free warranty for all of our products.Meanwhile we provide free training and
technical support to guide you repair your product. If need, we will also supply original spare parts and you just need to pay the
freight.
Похожие товары

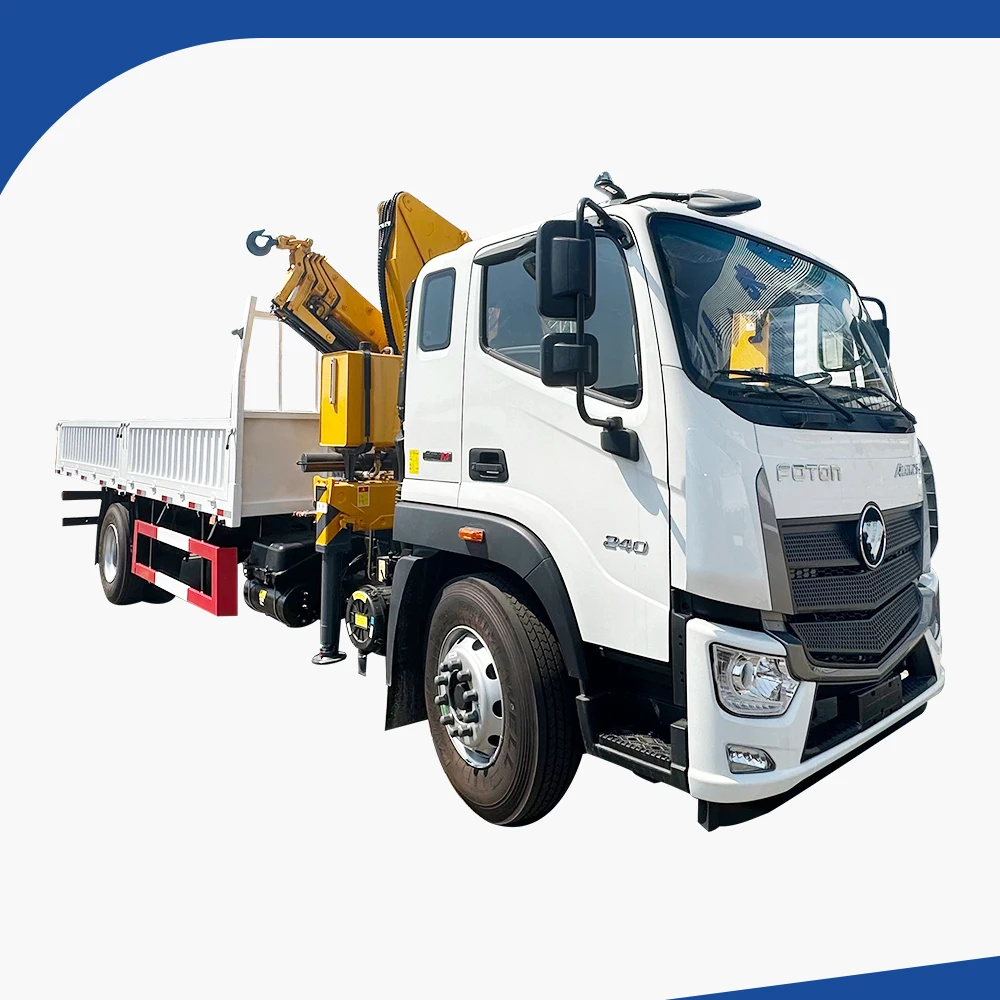

Строительный сельскохозяйственный кран Multi Arm Foton Cargo 25 тонн 8 10 4x2 6x4 автокраны
4 500,00-7 000,00 $
Shacman Delong F3000 290 л.с. 6x4 подъемные Грузовые Краны для грузовиков
37 000,00-37 900,00 $
Грузовик SHACMAN 6x4 6x6 внедорожный, б/у, 380 400 420 430 HP
346 081,20-576 802,00 ₽

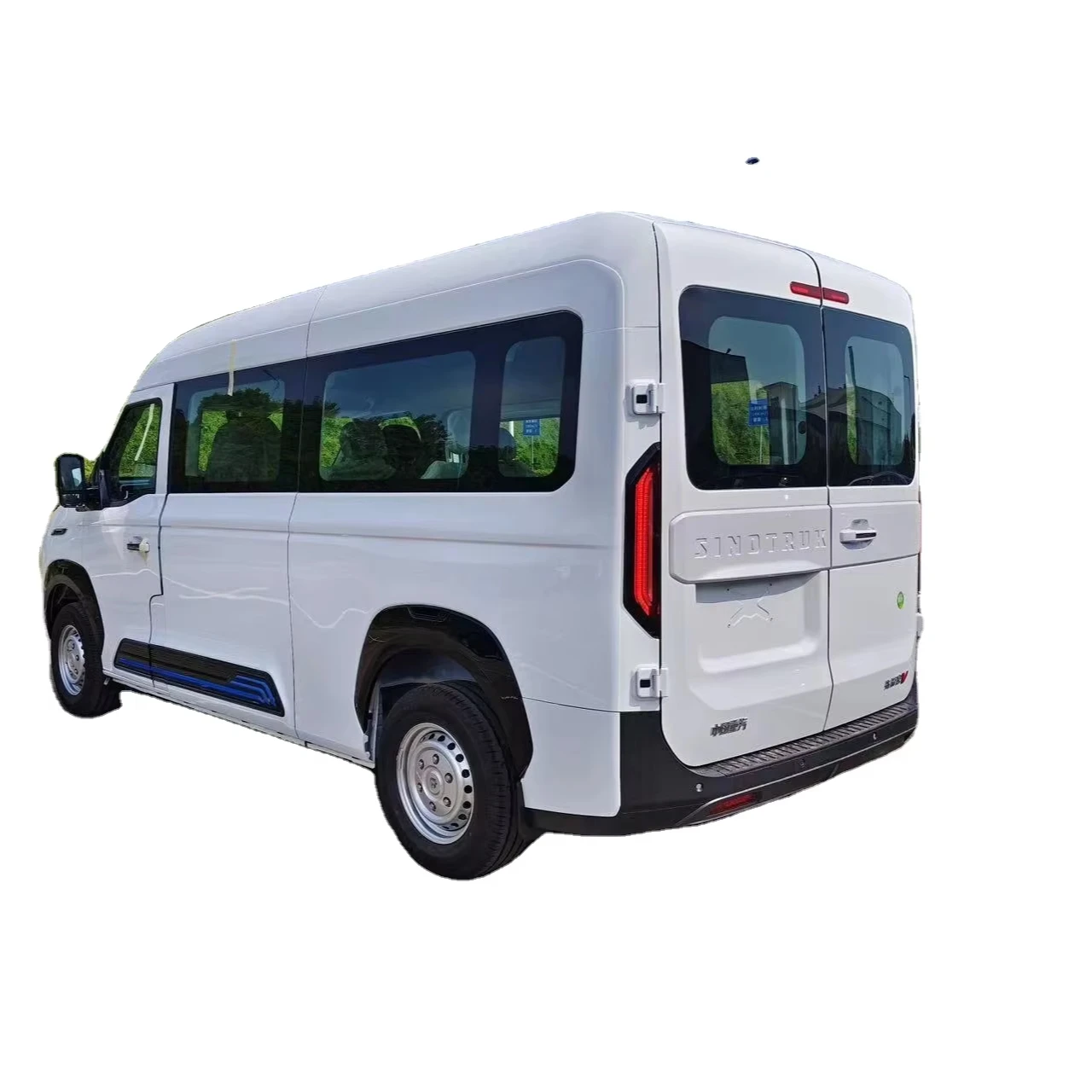

Китайский грузовой фургон с колесной базой 6 МТ 3100 SINOTRUK VGV City Logistics Van-многофункциональная версия для продажи фургона
