Переносной передвижной 20 футов T75 контейнер цистерна 21000 литров криогенный транспортировочный для LOX LIN LAr LCO2 LN2O

Сохранить в закладки 1601120297676:


Цена:4 530 844,70-4 649 453,20 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Movable Portable 20 feet 21000 liters LOX/ LIN/ LAr /LCO2 /LN2O T75 tank container Cryogenic transport tank

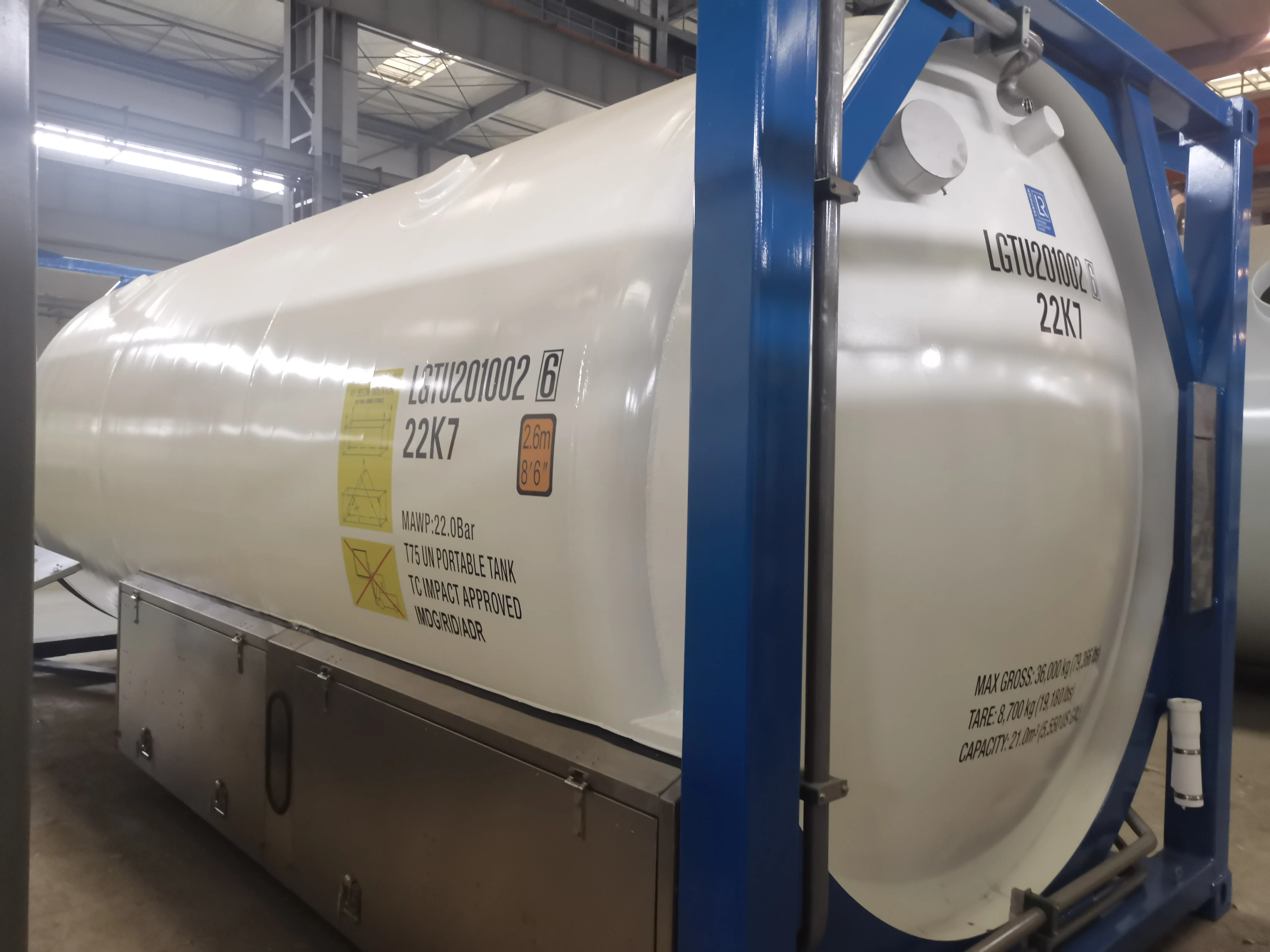

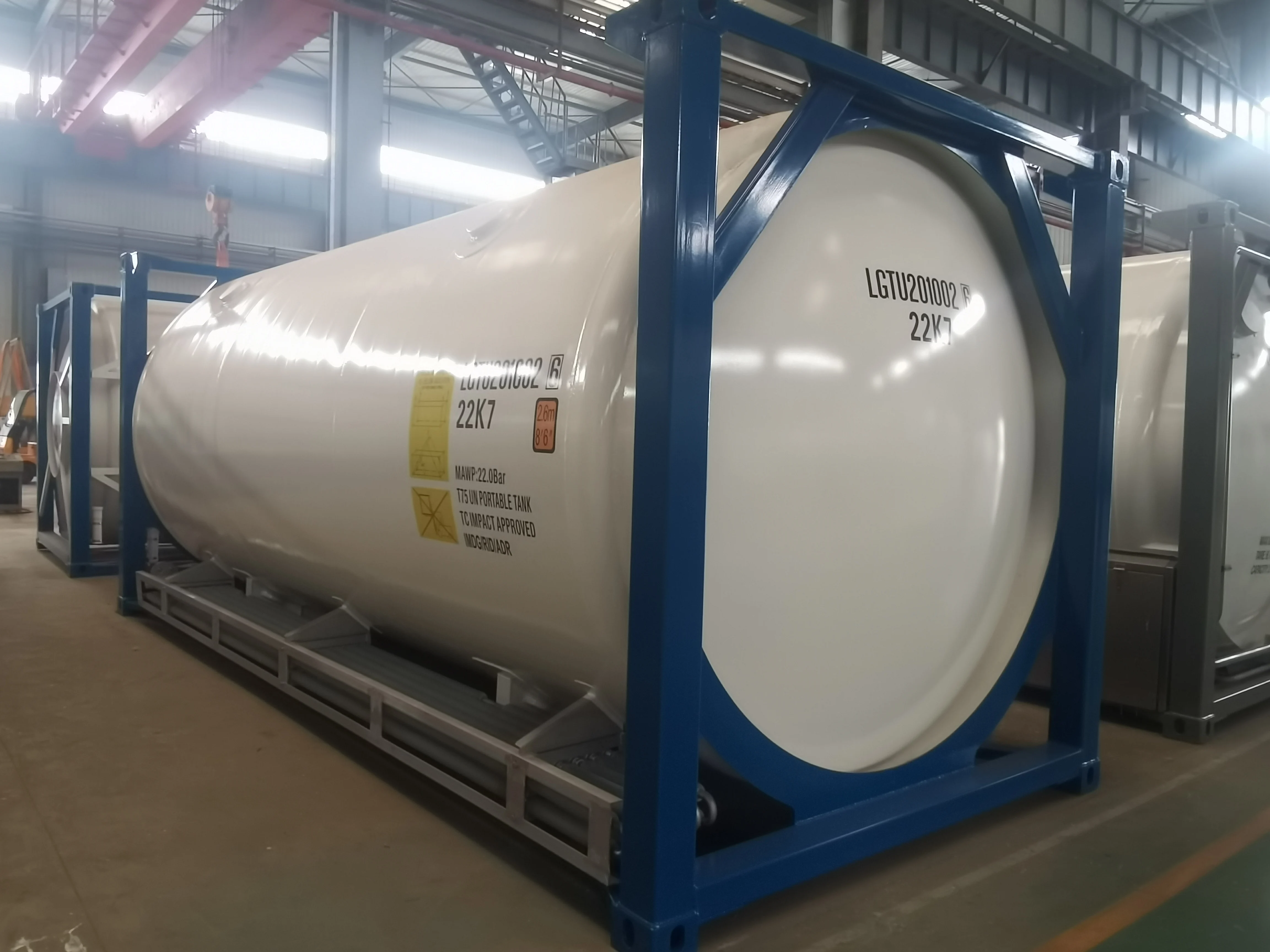

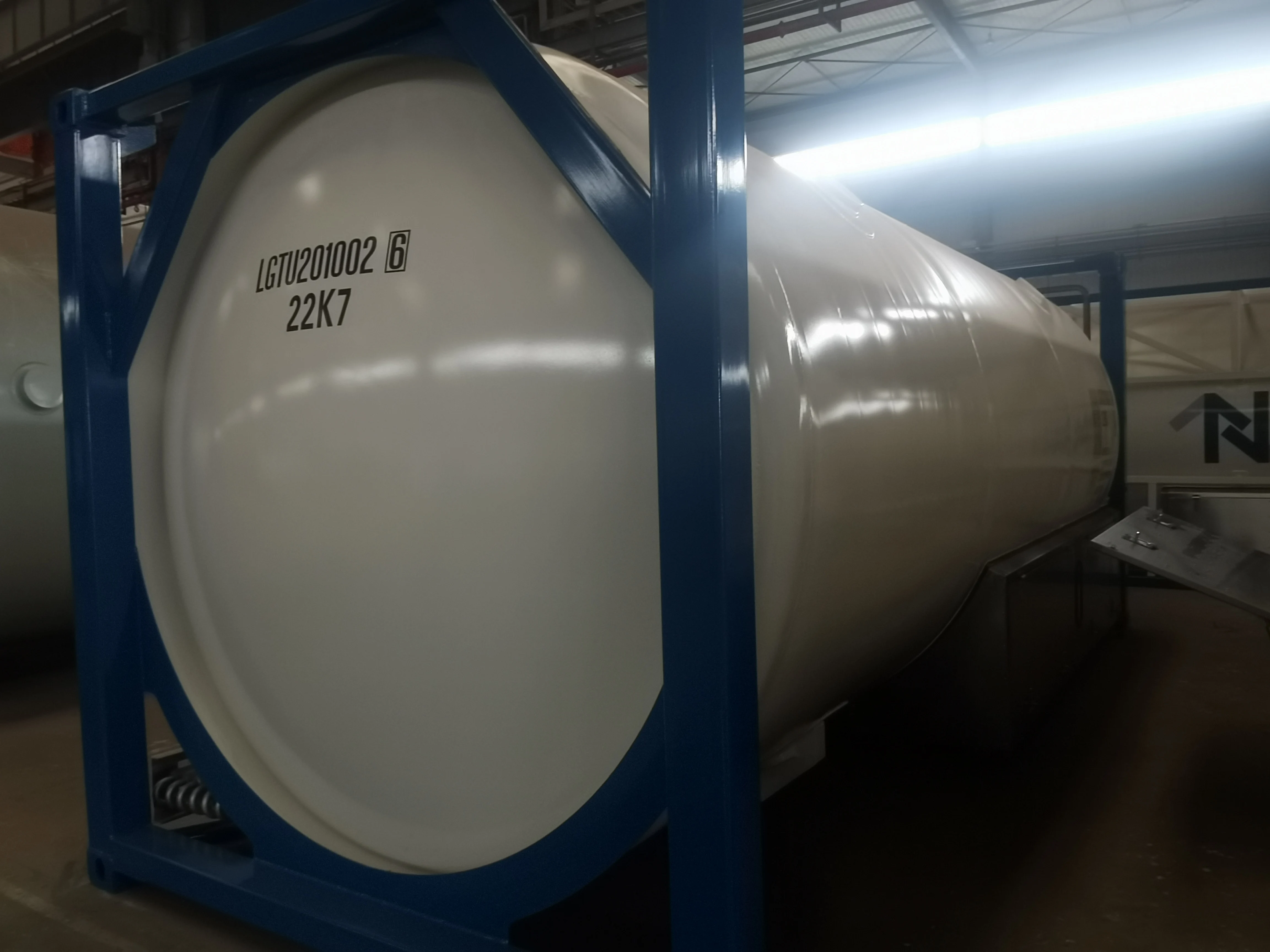

Product show








Specification


Design codes and regulations
ASME VⅢ DIV 1--2019Ed+MA44
T75 UN PORTABLE TANK,IMDG,TIR,UIC,CSC,TC,DOT
CFR49,RID/ADR,ISO 1496-3,FRA,CGA 341
UN tank instruction
T75
TARE(kg)
9200
MPGM(kg)
36000
Stacking Load(kg)
192000
Contents
UN1073
LOX
UN1977
LIN
UN1951
LAR
UN2187
LCO₂
UN2201
LN₂O
Type of insulation
High vacuum multi -layer
MAX .Filling rate
0.95
Design temperature MAX./MIN(℃)
-196/+50
Material of frame
Q355D(GB/T1591)
Outer size (L×W×H)
6058×2438×2591
Full capacity(±1%) (m³)
21
Static evaporation rate(%/d)
LIN ≤0.34
Seal-off vacuum degree(pa)
≤0.08
Paint and package
Vessel extemal Frame Extemal
M.A.W.P(MPa)
2.20/-0.02
Design life (Year)
20

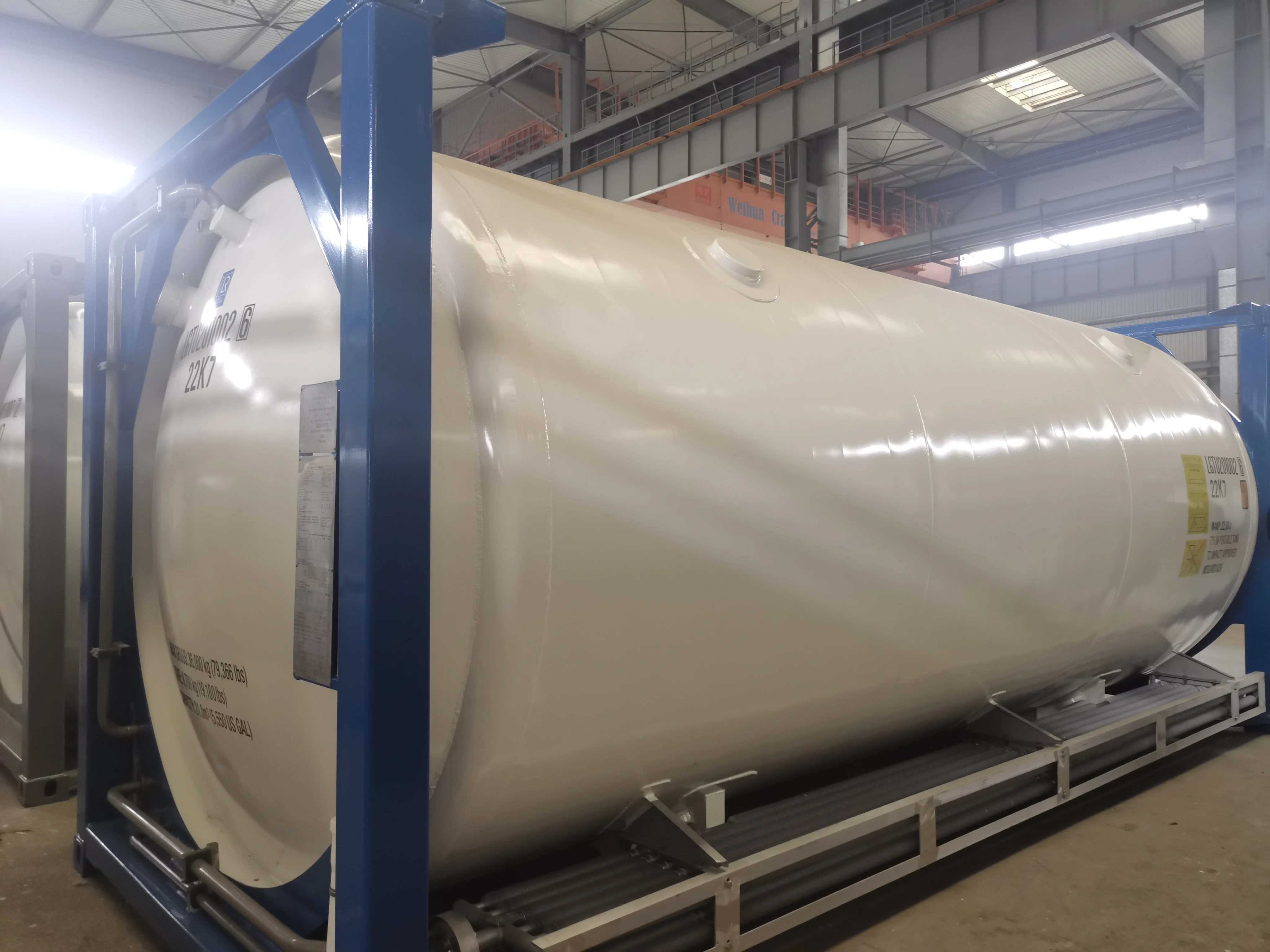

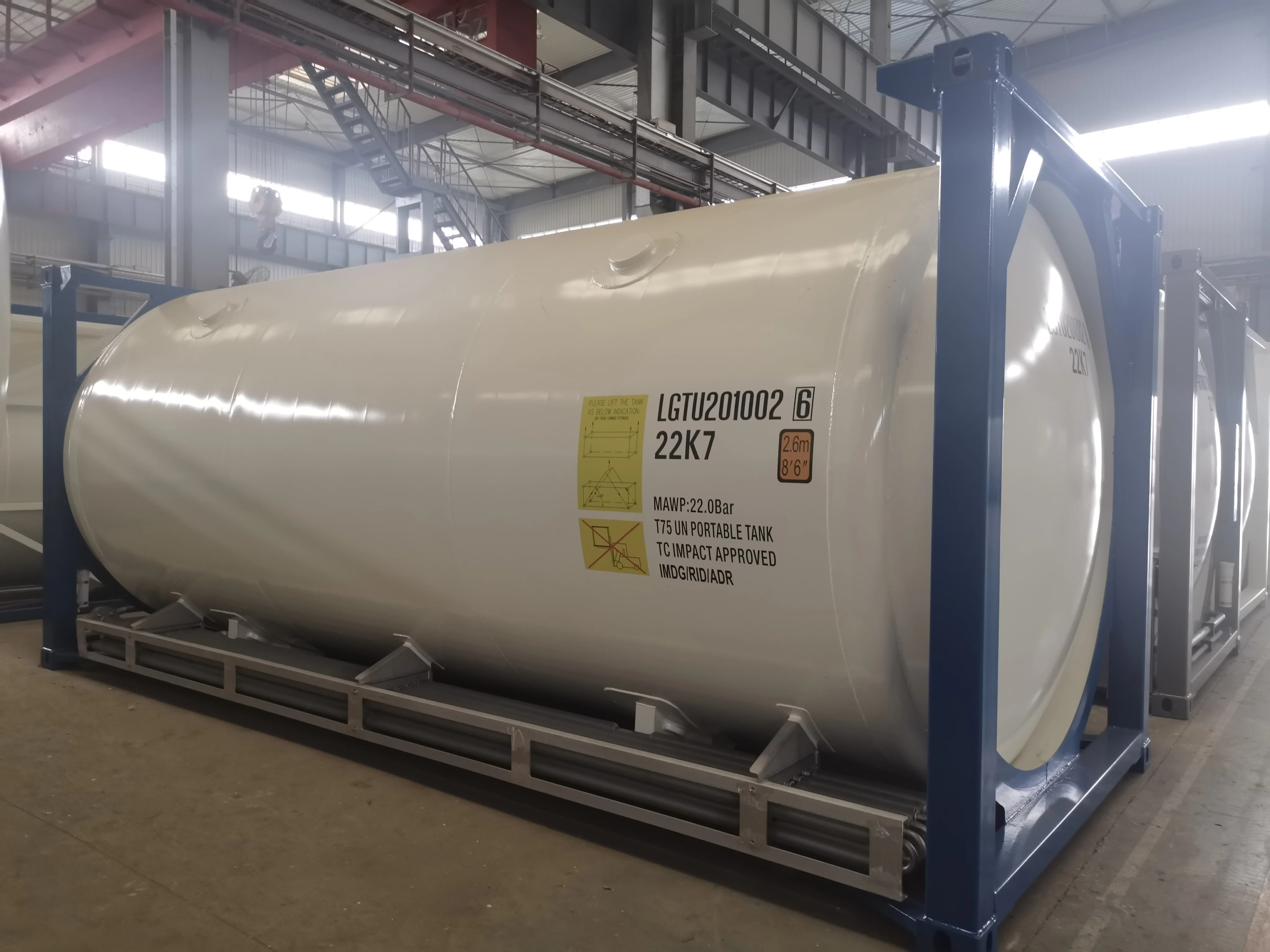

Product Details






Production workshop






Company profile


Henan Lishixin Logistics Equipment Co., Ltd is specialized in the R & D, mass production and sales of kinds of the 20FT, 30FT, 40FT ISO Storage Tank Containers and Storage Tanks as well as other special logistic Transportation equipments. Based on rich transportation advantages and resource of Central China, Lishixin is committed to supply high quality and cost-effective transportation equipment for clients all over the world.

Main Products:
ISO storage tank containers(Liquid tank containers,Powder Tank containers, Cryogenic tank containers, CNG Tank Container, Cryogenic Liquid Gas Storage Tanks), Cryogenic Tank Semi Trailer etc. Other logistic transportation equipments.


Certificates and customer visits




FAQ


Q: What kinds of tank containers could you provide?
A: 20ft ISO tank container, like standard liquid tanks, electrical heating tanks, reefer tanks, food grade tanks, baffle tanks,
swap tanks, gas tanks, H2O2 tanks, AHF tanks, bitumen tanks, different types of lining tanks, etc, and 10ft tanks, offshore tanks, IBC/SBC ,etc.

Q: Do you have the certificates to meet us the transportation ways of the Land Truck, Sea Boat and Railway?
A:Yeah,of course, but the price will be very different by different transportation ways; So kindly please let me know your exact transportation ways before the quoting; And also the certificates will be ready after the tank container passed all kinds of the testing &inspection.

Q: Can I have the drawings of this ISO storage tank containers?
A:Yeah, the existing simple similar drawings of the tank container for your reference only for the beginning, will make the more precise drawings after getting the down payment, and will send this drawing to you for your confirmation before production.

Q: Can I make the discharging valves at the bottom?
A:Yes,the discharging valves can be at the bottom or at the top, you can choose as your actual request.

Q:Are your 20ft iso tank container brand new?
A:Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
