XD 063 офсетная печатная машина 20 Па трехфазный одноступенчатый вакуумный насос
- Категория: >>>
- Поставщик: Wenling Shiqiao Vacuum Machinery Factory
Сохранить в закладки 1601122649296:
Описание и отзывы
Характеристики
Product Description
1. High utmost vacuum rate, it can be less than 0.5mbar
2. High deflating speed
3. Low noise while working, lower than 67db
4. Strong capacity in deflating the vapor
5. Protecting environment; an oil fog clearer is set in the vacuum pump, and no oil fog in the exhaust air
6. Compact structure, scientific and reasonable design, and it is easy to install in the industry system
2. High deflating speed
3. Low noise while working, lower than 67db
4. Strong capacity in deflating the vapor
5. Protecting environment; an oil fog clearer is set in the vacuum pump, and no oil fog in the exhaust air
6. Compact structure, scientific and reasonable design, and it is easy to install in the industry system
Model | XD-063 | Power | 2.2KW | Inlet Diameter | G1 1/4 |
Pumping Speed | 63m³/h 37.05CFM | Motor Speed | 1440r/min | Outlet Diameter | G1 1/4 |
Ultimate Pressure | 20Pa | Oil Capacity | 2L | Weight | 56KG |
Operation:
The pump should be placed on the flat position horizontally. The pump has screw holes used for fixing the pump at the bottom cushion block.

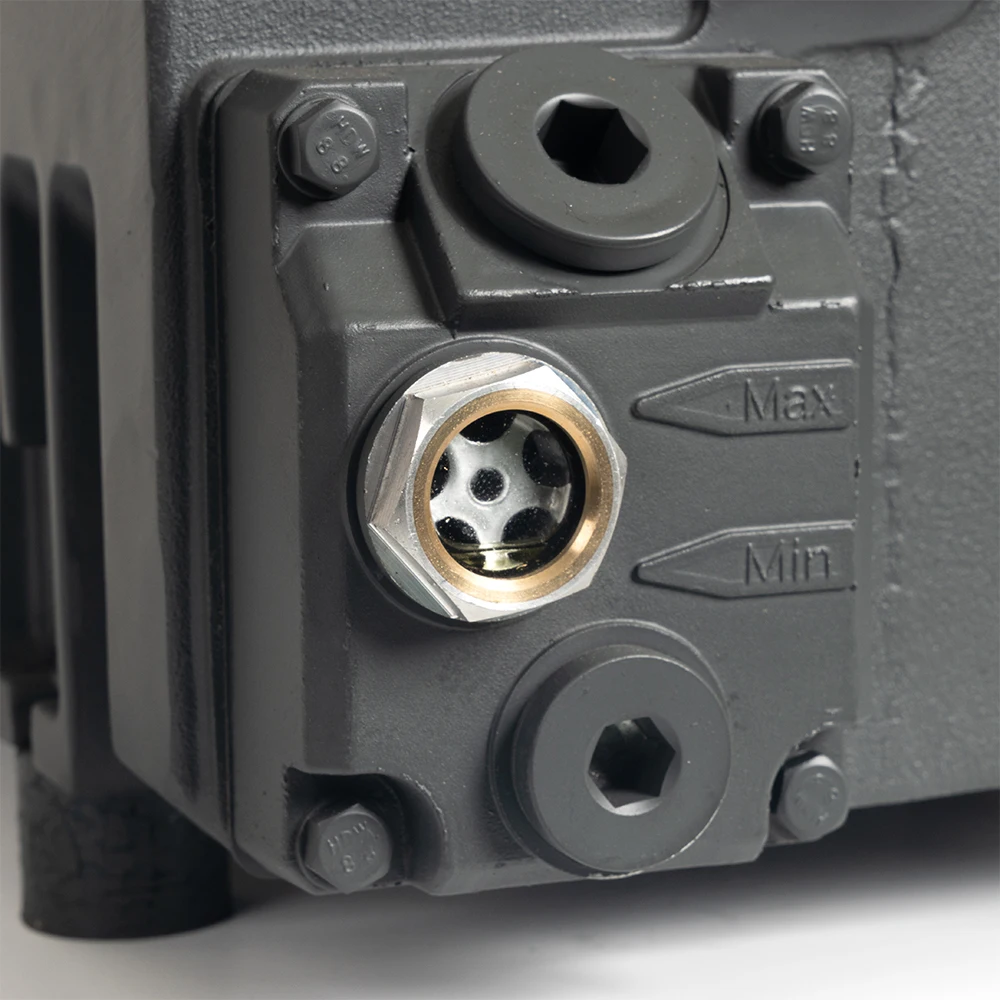

Please check the oil level before starting the pump. Fill oil to the oil window 3/4 position.
Electrical wiring should be carried out by a professional electrician, Vacuum pump standard 380v50hz three-phase motor, please look at the motor nameplate. After completion of three phase asynchronous motor wiring must rotate to check the motor, running in the direction shown by the arrow .
Inlet pipe cross section size should not be less than the suction mouth size and link length as short as possible. Otherwise it will affect the efficiency.
If the pumped gas have impurities, steam or foreign matter, you need to install a vacuum filter on pump air inlet. You also can join an exhaust pipe if necessary, the exhaust pipe need to slope down. The oil level must be check after start-up, please insure the oil level in the oil window 3/4 place. When the pump is operating at high temperature, do not touch!
The pump should be placed on the flat position horizontally. The pump has screw holes used for fixing the pump at the bottom cushion block.
Please check the oil level before starting the pump. Fill oil to the oil window 3/4 position.
Electrical wiring should be carried out by a professional electrician, Vacuum pump standard 380v50hz three-phase motor, please look at the motor nameplate. After completion of three phase asynchronous motor wiring must rotate to check the motor, running in the direction shown by the arrow .
Inlet pipe cross section size should not be less than the suction mouth size and link length as short as possible. Otherwise it will affect the efficiency.
If the pumped gas have impurities, steam or foreign matter, you need to install a vacuum filter on pump air inlet. You also can join an exhaust pipe if necessary, the exhaust pipe need to slope down. The oil level must be check after start-up, please insure the oil level in the oil window 3/4 place. When the pump is operating at high temperature, do not touch!
Maintenance:
Factory configuration oil - CV - AH200 high vacuum oil, must use the ISO VG 100 viscosity grade of vacuum pump oil, vacuum pump operation must ensure that the oil level in the oil window height of 1/2-3/4, regularly check the oil level and oil pollution, oil change
We are a factory,a manufacturer
History: More than 20 years experience of vacuum pumps.
Technology: A group of professional technical engineers and a strong team.
Management: Scientific ERP management and strict quality sontrol system.
Marketing network: America,Europe,Asia,Africa,etc.
Products: TRD series double-stage vacuum pump,XD series single-stage vacuum pump,N series vacuum pump,VT series oilfree vacuum pump,oilfree scroll vacuum pump,vacuum station,etc.
Innovation: Continuously diversify products range to satisfy.
Mission: Survive by quality,Development by credit,Efficiency by management.
Technology: A group of professional technical engineers and a strong team.
Management: Scientific ERP management and strict quality sontrol system.
Marketing network: America,Europe,Asia,Africa,etc.
Products: TRD series double-stage vacuum pump,XD series single-stage vacuum pump,N series vacuum pump,VT series oilfree vacuum pump,oilfree scroll vacuum pump,vacuum station,etc.
Innovation: Continuously diversify products range to satisfy.
Mission: Survive by quality,Development by credit,Efficiency by management.
Q1.How long for production?
A1.25 working days for 20 GP, 35 days for 40HQ.
Q2.What color available?
A2.Colour is option. Change color no need to additional charges.
Q3.How can i get a sample to check your quality?
A3.After price confirmation,you can require for samples to check our quality. If you need the samples, we will charge for the sample cost .But the sample cost can be refundable if your order is large enough.
Q4.How long can I expect to get the sample?
A4.3-5 working days for preparing samples.
Q5.How long shipping time?
A5.Depending on your desired arrival place.
Q6.How can i know more detail about you produce?
A6.Welcome to inquire us!
A1.25 working days for 20 GP, 35 days for 40HQ.
Q2.What color available?
A2.Colour is option. Change color no need to additional charges.
Q3.How can i get a sample to check your quality?
A3.After price confirmation,you can require for samples to check our quality. If you need the samples, we will charge for the sample cost .But the sample cost can be refundable if your order is large enough.
Q4.How long can I expect to get the sample?
A4.3-5 working days for preparing samples.
Q5.How long shipping time?
A5.Depending on your desired arrival place.
Q6.How can i know more detail about you produce?
A6.Welcome to inquire us!
