PYSUN Plug and play Балконная электростанция набор 820 Вт модуль 800 инвертор с монтажным кабелем 5 м для хранения полный комплект розетки

PYSUN Plug and play Балконная электростанция набор 820 Вт модуль 800 инвертор с монтажным кабелем 5 м для хранения полный комплект розетки

Категория: >>>
Поставщик: Suzhou Joylive Intelligent Technology Co. Ltd.

Цена:64 337,95 ₽ - 137 771,96 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

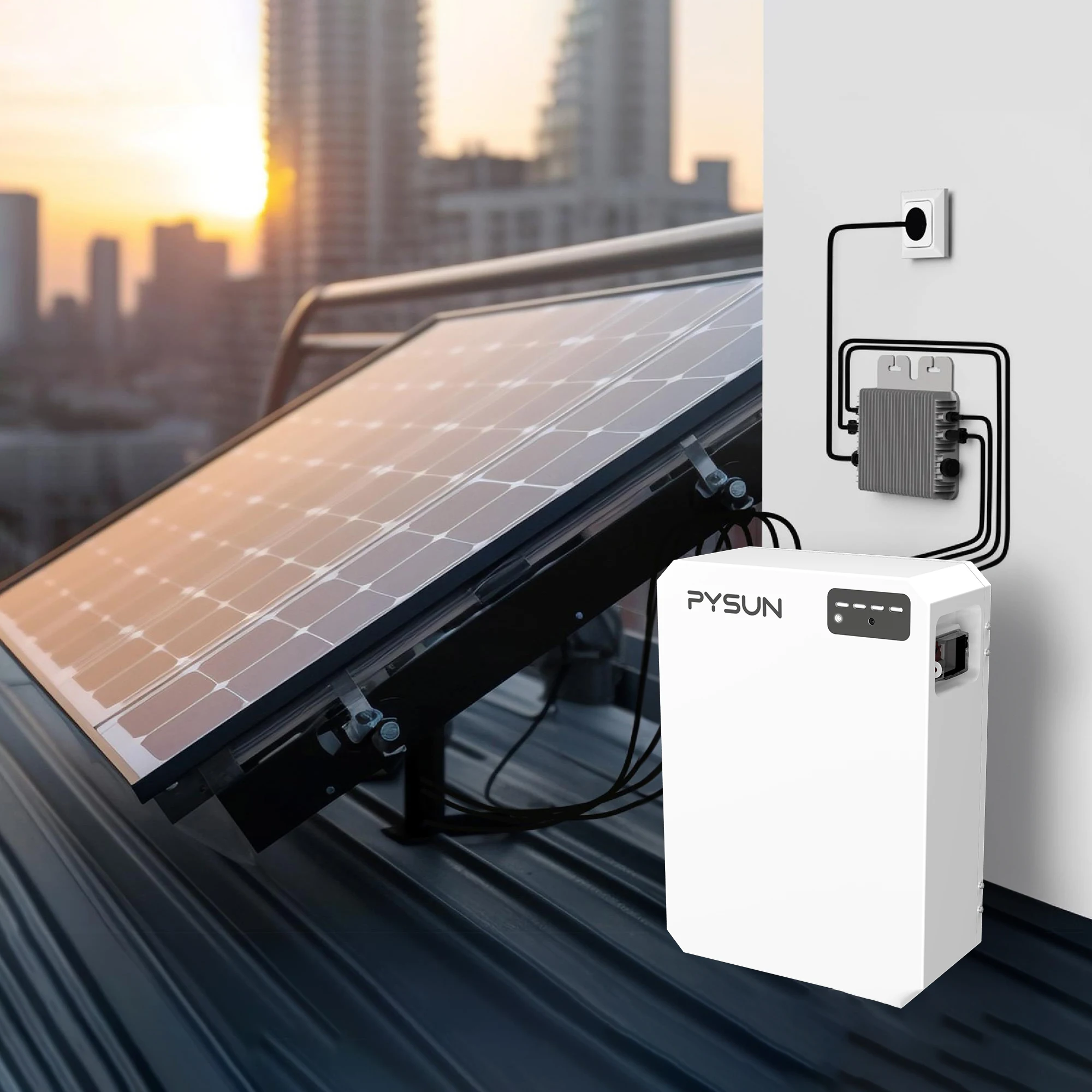

With the PYSUN 600/800 watt Solar Balcony Power Plant, you can immediately generate your own electricity.

Packing List: Solar panels, Micro inverter, Battery, Cables and Mounting bracket.

Real-time Monitoring: See how much electricity generate and how much costs you save through the system.

Help environment and Save money: Depend on the location and orientation, the balcony power plant produces between approx. 650-850 kWh per year. Save up to 340 euros per year on electricity costs.

Self-installation: can be carried out by hand, without the need for an electrician.

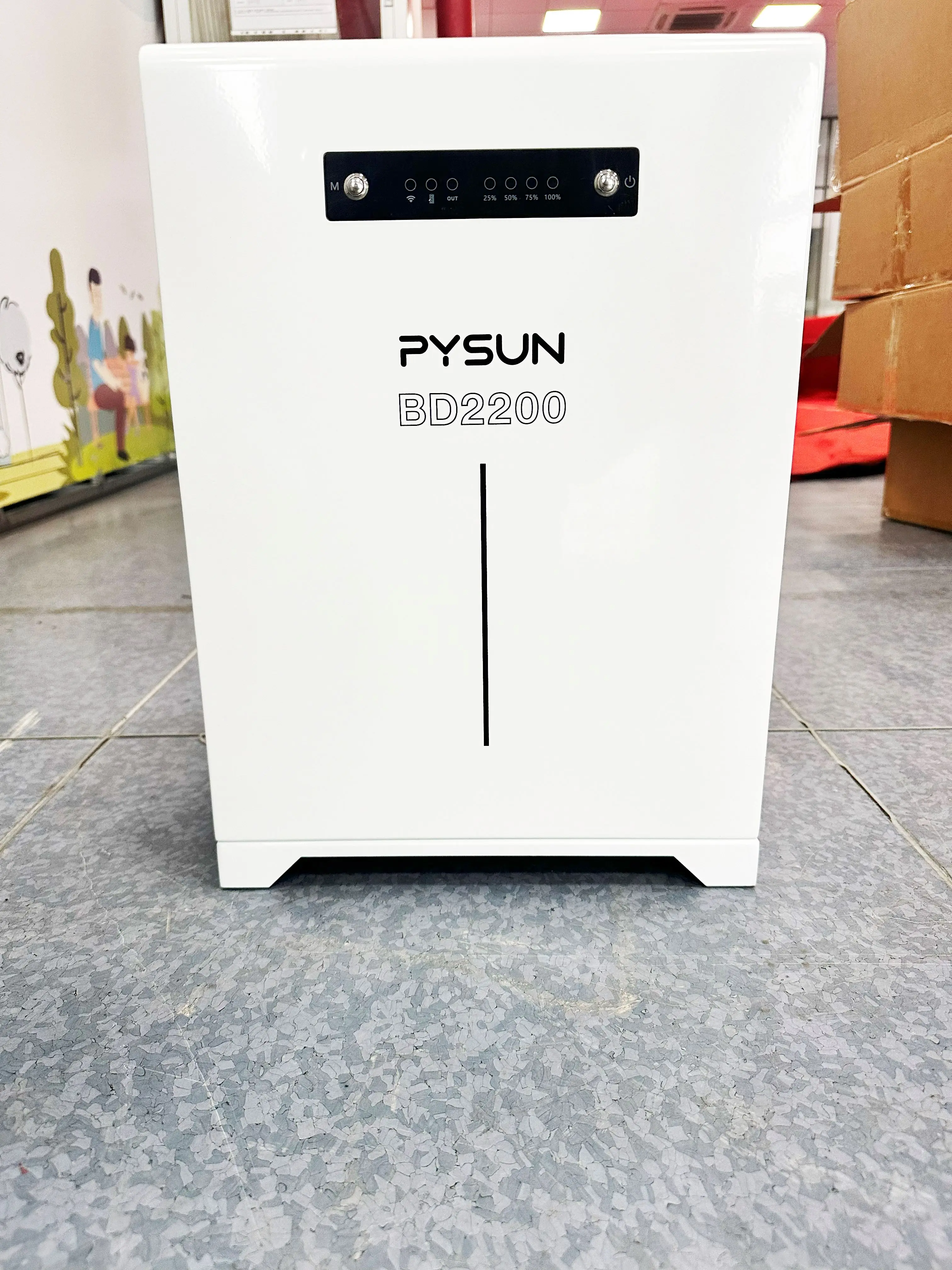

Solution 1: DC Battery(BD2200) Compatible with 99% of inverters

Features	Descriptions
Battery
Battery Type	LFP
Capacity	2150Wh
Lifecycle	6000 cycles to 80%
Battery Voltage Platform	3.2V
Single Cell Capacity	24Ah
Pack Type	14 in series 2 in parallel
Input
Port Type	Two sets of MC4 (Female connector is positive, male connector is negative)
Input Voltage Range	Min 12V to Max 60V
Charging Current	Max 23A
Mppt Input Power	750W * 2
Output
Port Type	Two sets of MC4 (Female connector is positive, male connector is negative)
Output Voltage Range	Min 25V to Max 52V
Rated Output Current	16A
Rated Output Efficiency	96%
Output Power	400W * 2

Solution 2: New system IDH800 Micro Hybrid Inverter+Battery BH2800

PV Input \| PV	Model: BH2800
Recommended. PV Module	600W×2
MPPT Voltage Range	22V-55V
Starup Voltage	24V
Max. Input Voltage	60V
Max. DC Short Circuit Current	20A×2
PV Overvoltage Protection Category	II
Output \| AC
Max. Continuous AC Output Power	800VA
Rated AC Output Voltage	230V
Max. Continuous Output Current	3.48A
Nominal Frequency	50Hz/60Hz
Power Factor @ full load	＞0.99
THD @ rated power	＜3%
AC Overvoltage Protection Category	III
Max. efficiency	97.30%
Input /Output \| Battery
Nominal Capacity	54Ah
Nominal Energy	2.7648kWh
Nominal Voltage	51.2V
Working Voltage Range	44.8V~57.6V
Max Charge / Discharge Current	54A
Battery Data
Battery Type	LiFePO4
Cycle Life	6000 Cycles
Protection Class	IP65
Battery Voltage	40Vdc~60Vdc
Max Charge / Discharge current	30A/20A
Max Charge / Discharge power	1000W/1000W
Dimension (WDH)	521.5mm×255.5mm×130mm
Weight	23.5kg
General Data
Operating Ambient Temperature Range	-40℃~+65℃
Relative Humidity Range	0-100%
Communications	WIFI
Protection Class	IP65
Cooling	Natural convection
Dimension (WDH)	244mm×315mm×39mm
Weight	4.5kg

Solution 3: Compatible with original system PV hub IDS1000 +Battery BH2800

PV Input \| DC	Model：BDS-1000
Recommended. PV Module	750W×2
MPPT Voltage Range	22V-55V
Starup Voltage	24V
Max. Input Voltage	60V
Max. Input Currnet	15A ×2
Min. Input Voltage	20V
Max. DC Short Circuit Current	20A×2
Battery Discharge to BDS \| DC
Max. Input Power	1000W
Max. Input Current	20A
Rated Voltage	51.2V
BDS Charge to Battery \| DC
Max. Output Power	1000W
Max. Output Current	30A
Rated Voltage	51.2V
Output to Microinverter
Recommended. Microinverter Power	Less than 1000W
Max. Output Current	20A
Nominal Voltage Range	22V-60V
Efficiency
Peak Efficiency	97.3%
MPPT Efficiency	＞95%
Protection
Overvoltage Protection	Integrated
Overcurrent Protection	Integrated
Short Circuit Protection	Integrated
Temperature Protection	Integrated
General Data
Operating Ambient Temperature Range	-40℃~65℃
Relative Humidity Range	0-100%
Dimensions(WHD)	180mm×244mm×31mm
Weight (Not including battery)	2.2kg
Communication Method	WIFI
Protection Class	IP65

Main Products

Suzhou Joylive Intelligent Technology Co., Ltd. was established in 2016 and is committed to "Smart Home Energy" solutions. The main products include household energy storage systems, inverters, battery packs, portable power station, EV charger stations, and villa lifts, etc. Our mission is to provide the safe, reliable, efficient and economical green energy solutions to the home users worldwide.

Our household energy storage system adopts safer LiFePO4 battery technology. In the structural design, it adopts high

protection level, anti-mistouch design and the other technologies which greatly improve the safety of the products.

Meanwhile, the users can check the operation status and power consumption of the equipment at any time via the App.

With EMC, IEC62109,VDE4105,G99, EN50549, UN38.3, NRS097 and other international certificates, the high-quality

operation and safety performance are ensured.Other advantages such as fast charging, easy installation, and long battery

life. Welcome inquiry!

Our portable power station product covers battery capacities from 300Wh to 5000Wh, and battery life from 1000+ cycles

to 6000+ cycles based on different types. The product integrates USB-A, USB-C, 220V AC sockets, solar charging, cigarette

lighter, and DC5521 various interfaces.

Customization is welcomed. If you have any interest on our products, or any question, please don’t hesitate to contact us.

Joylive, all for the joyful life!
