Jinan Tianhong Mechanical Equipment Co., Ltd.
UV laser marking machine
Quality
——Quality is the guarantee of corporate development!
Responsibility
——Fast after—sale service is our Responsibility!
Innovation
——Innovation is the movice force of enterprise development
1.UV laser is a kind of cold light, mainly used in super precise marking and engraving, particularly suitable for food,pharmaceutical packaging material marking, micro punching, glass high-speed dividing, silicon wafer complex graphics cutting, etc.
2.Without heat effect, the effect of laser marking and cutting is precise, smooth and steep. Except copper, 355nm UV laser could be absorbed by many materials, so it is suitable for manufacture more material type.
3.The higher the peak power is, the wider the adapting range of materials is. This implement perfect printing in some relatively hard material.
4.High efficiency of the photoelectric conversion and long service life. Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.
Technical Parameter
Model | TH-3A/5A |
Laser Power | 3w/5w |
Working area | 110x110mm |
Wavelength | 355nm |
Beam Quality M2 | <0.8mm |
Min Line Width | <0.01mm |
Min Character | <0.12mm |
Marking Speed | ≤10000mm/s |
Marking Depth | ≤0.4mm |
Repeat Precision | ±0.001mm |
Power Supply | 220V(±10%)/50Hz |
System Composition | Control System, Industrial Computer, Working Table |
Working Environment | Clean and Dust Free |
Operating Temperature | 10℃-35℃ |
Weight (kg) | 150 |
Applicable materials:
The machine employs the imported UV laser and imported high-speed galvanometer as its central devices. It is widely used for metal or nonmetal's surface marking to make up for the lack of IR Laser'sprocessing ability. The main applicable materials are electronic products shell marking, battery charger,data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking,PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material's marking, etc.

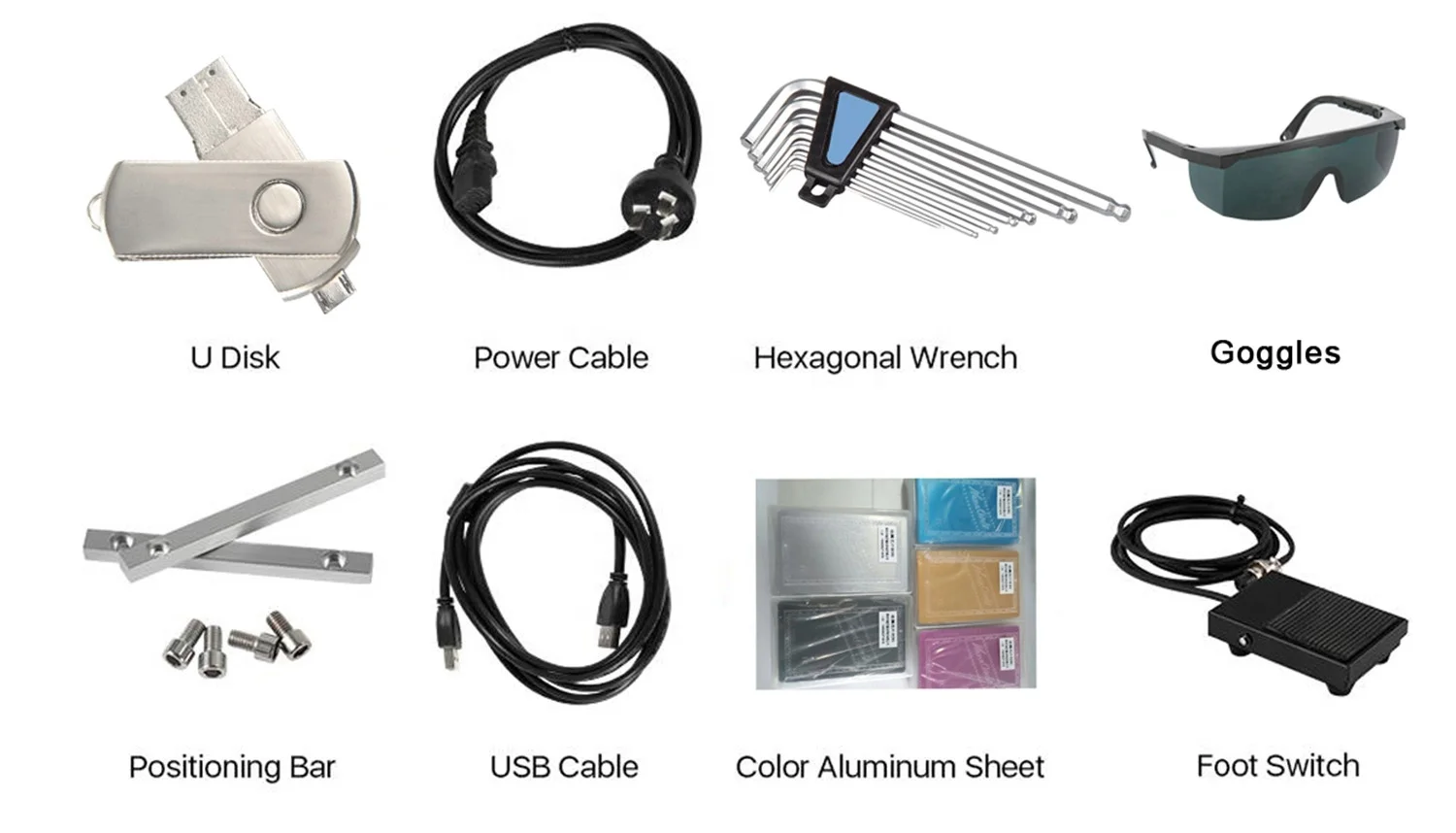

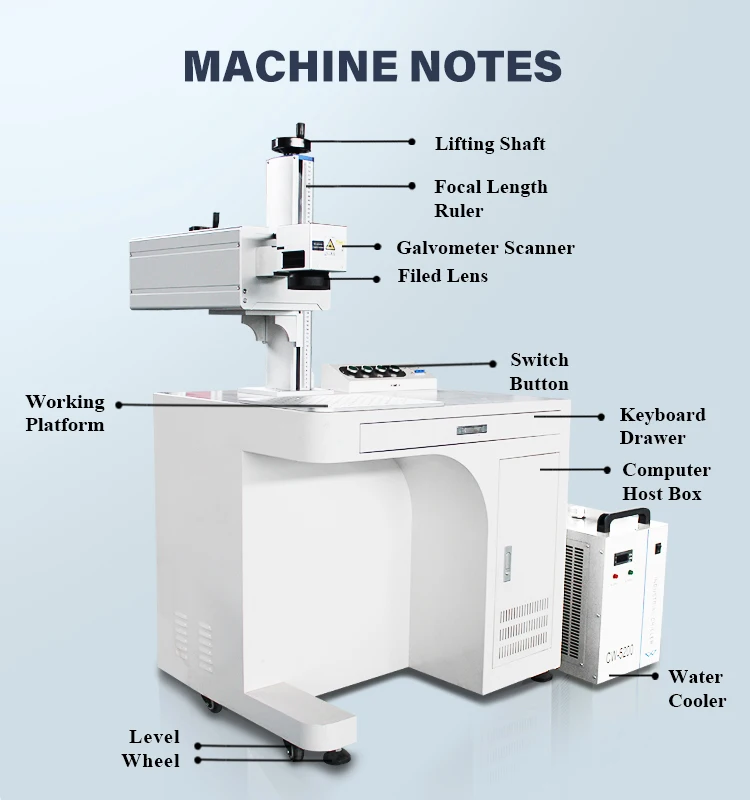

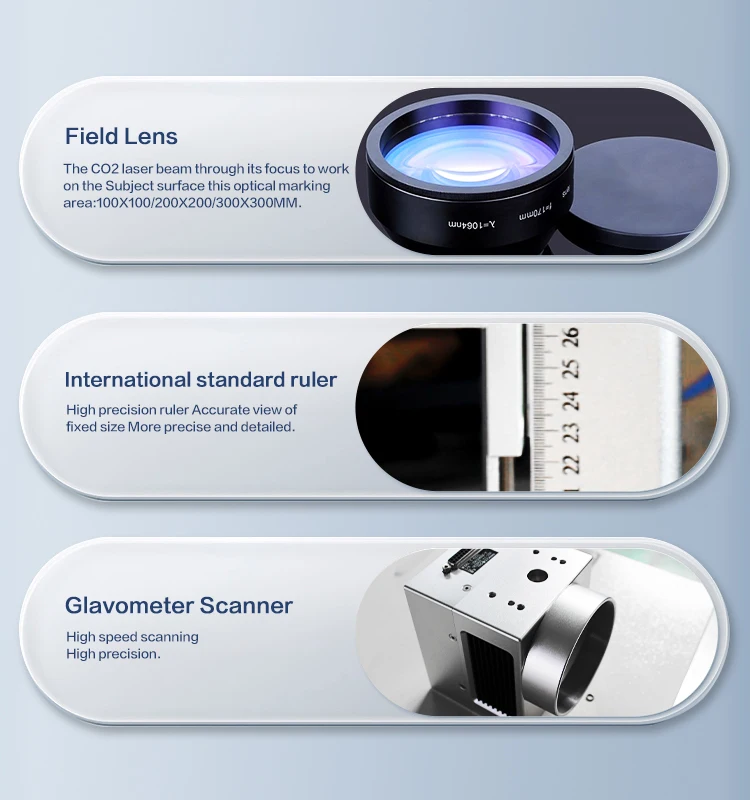

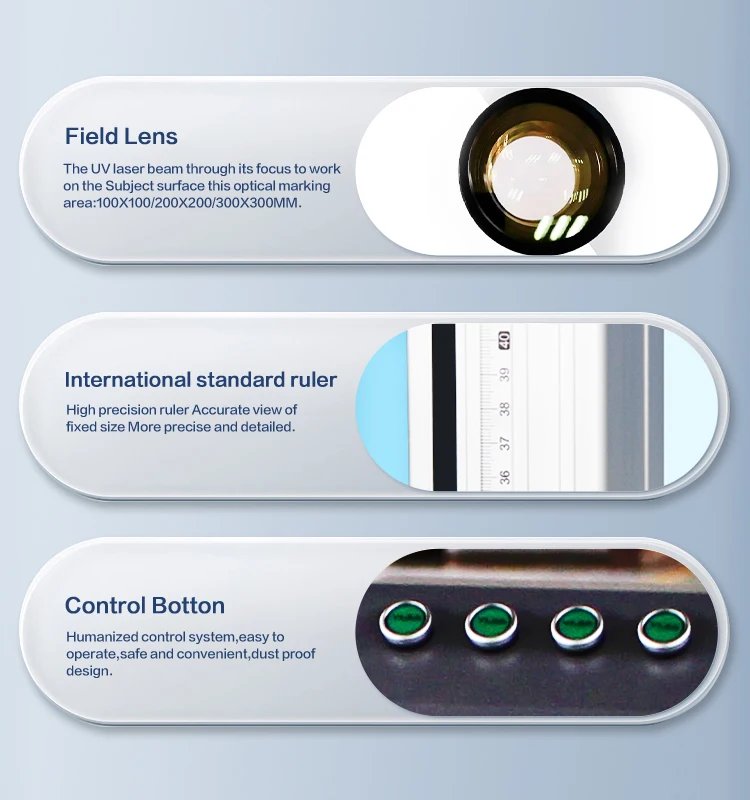

Machine parts:

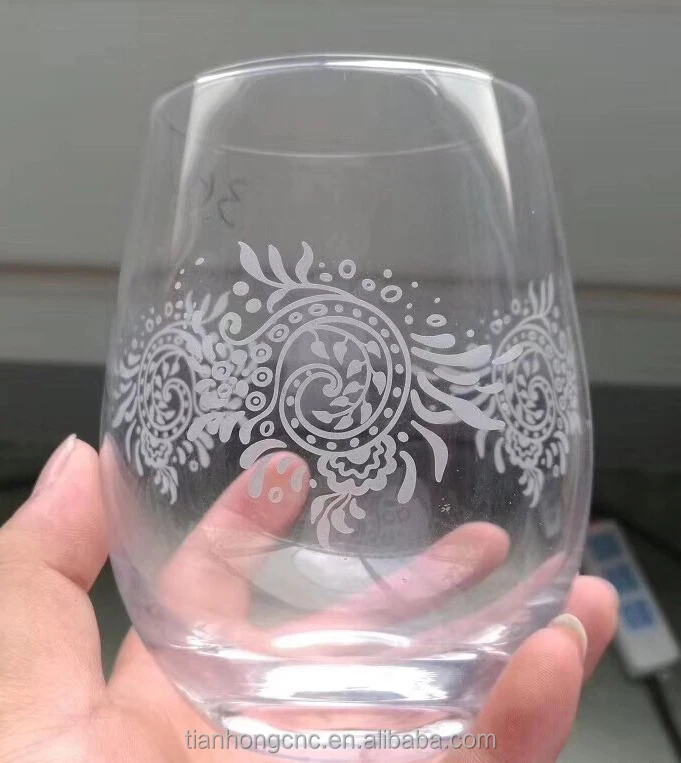

Machine samples:
Packaging Details :
1.Whole film packaging machine;
2.Anti-collision package edge;
3.Fumigation-free plywood wooden box with iron binding belt.
Sea Transportation
Land Transportation
Air Transportation
Delivery Details:
5 Days after payment.
Shipping:
Jinan Tianhong Mechanical Equipment Co.,Ltd.
Jinan Tianhong Mechanical Equipment Co., Ltd. located in the beautiful Spring City- Jinan,is professional CNC Machine company with manufacturing,r& and marketing. Jinan Tianhong CNC Machine Co., Ltd is a dedicated to the research, development productionand sales of laser equipment,and sincerely provides customers with a full set of laser solutions.
Various CNC products of Jinan Tianhong such as marking, engraving and cutting machines. Widely used in advertising, handicrafts, plexiglas, mold manufacturing, automobile industry, textile machineryelectronics and many other industries to play an outstanding performance, Tianhong CNC equipment pursues the"high quality, customer first"business purpose, making Tianhong CNC in the international. The market has a good reputation and many loyal customers. The products are exported to North America, South Ameriuca, Europe, Middle East and South Asia and other countries and regions!
Adheringto the development concept of"making high quality products and creating world brands",in the business tenet of creating maximum value foR users, we are willing to win-win with people of insight from all walks of life.
The company’s management strictly comply with the international ISO9001 quality system.
In order the ensure the product’s quality and prevent the substandard goods move into the next process, from the initial storage of raw materials to product leave the factory, the process need pass incoming inspection, process inspection and final inspection. Within controlling the producing process efficiently, we can control the products’ quality efficiently, make sure that all manufactured products are qualified.
Customer Visiting :
1) 24 Hours online service.
2) 2 years warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas and also remote assistance.
4) Inquiry and consulting support.
5) Training how to instal the machine, training how to use the machine in our factory. We provide food and accommodation.
6) XQ Mechanical Equipment Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually.
(1) This is the first time I use this kind of machine, is it easy operate? Online service (remote computer assistance Teamveiwer or similar) possibility?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
Yes,free remote assistance.
(2)Can you recommend a MACHINE to me,thanks?
Yes, In order to recommand you the suitable machine, please tell me your special requirements (including size,working area, process materials thickness etc...)
(3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
We welcome new and old costomers from all walks of life to cotact us for future business relationships and achieving mutual success!And if you have any question,don't hesitste to contact us.
