Products Overview


Small scale industrial concrete manual interlocking brick hollow concrete block making machine
The machine is a small block production equipment which can produce hollow block, porous block, solid concrete brick etc. There is a vibrator on the upper mold and two vibrators on the lower mold. The exciting force in three different directions makes the block quality good. This kind of manual block making machine uses spring to cushion and pressurize, which reduces wear.

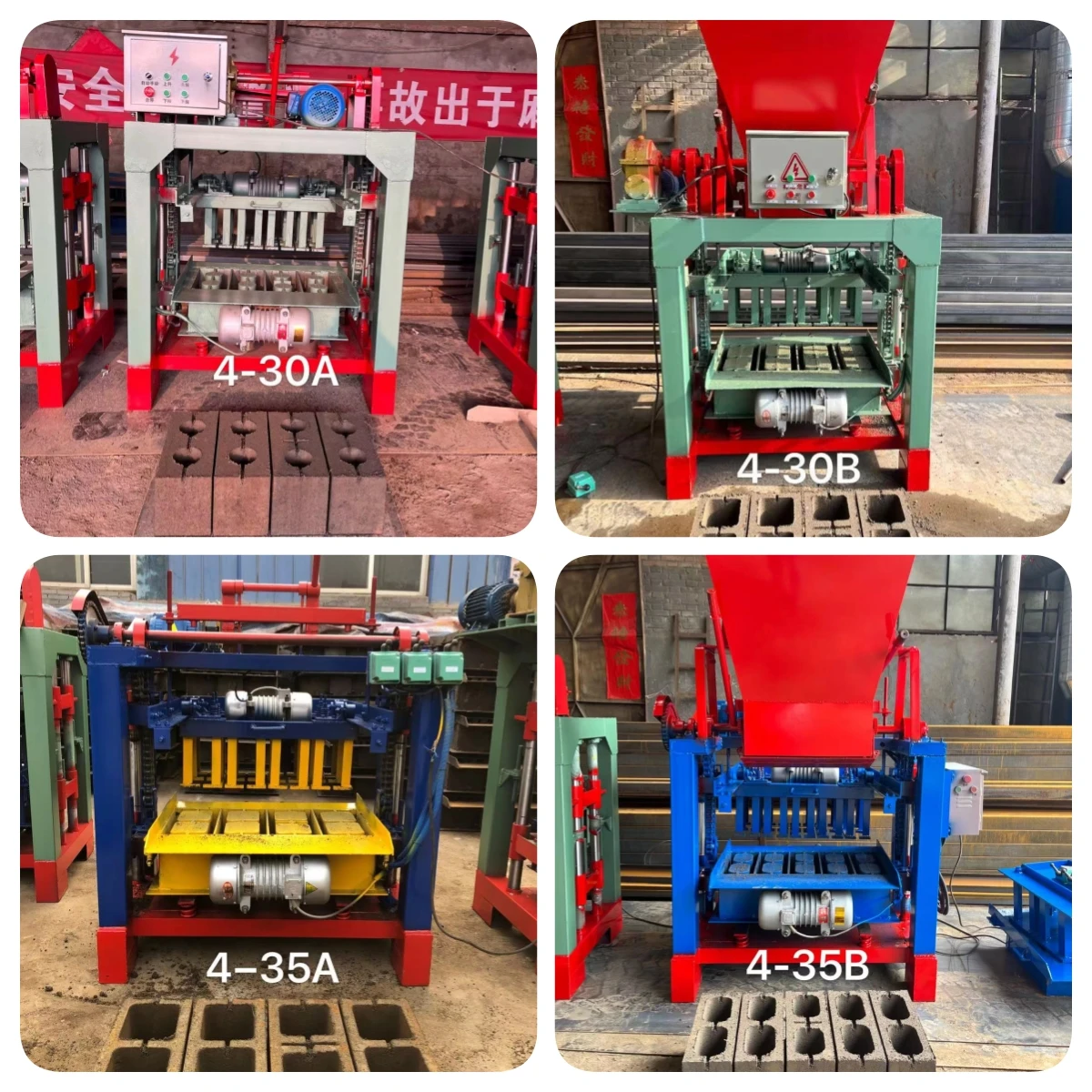

Two Types of Brick Making Machines
There are two types of our brick making machines, one is normal type without hopper; the other is semi-automatic machine with hopper.

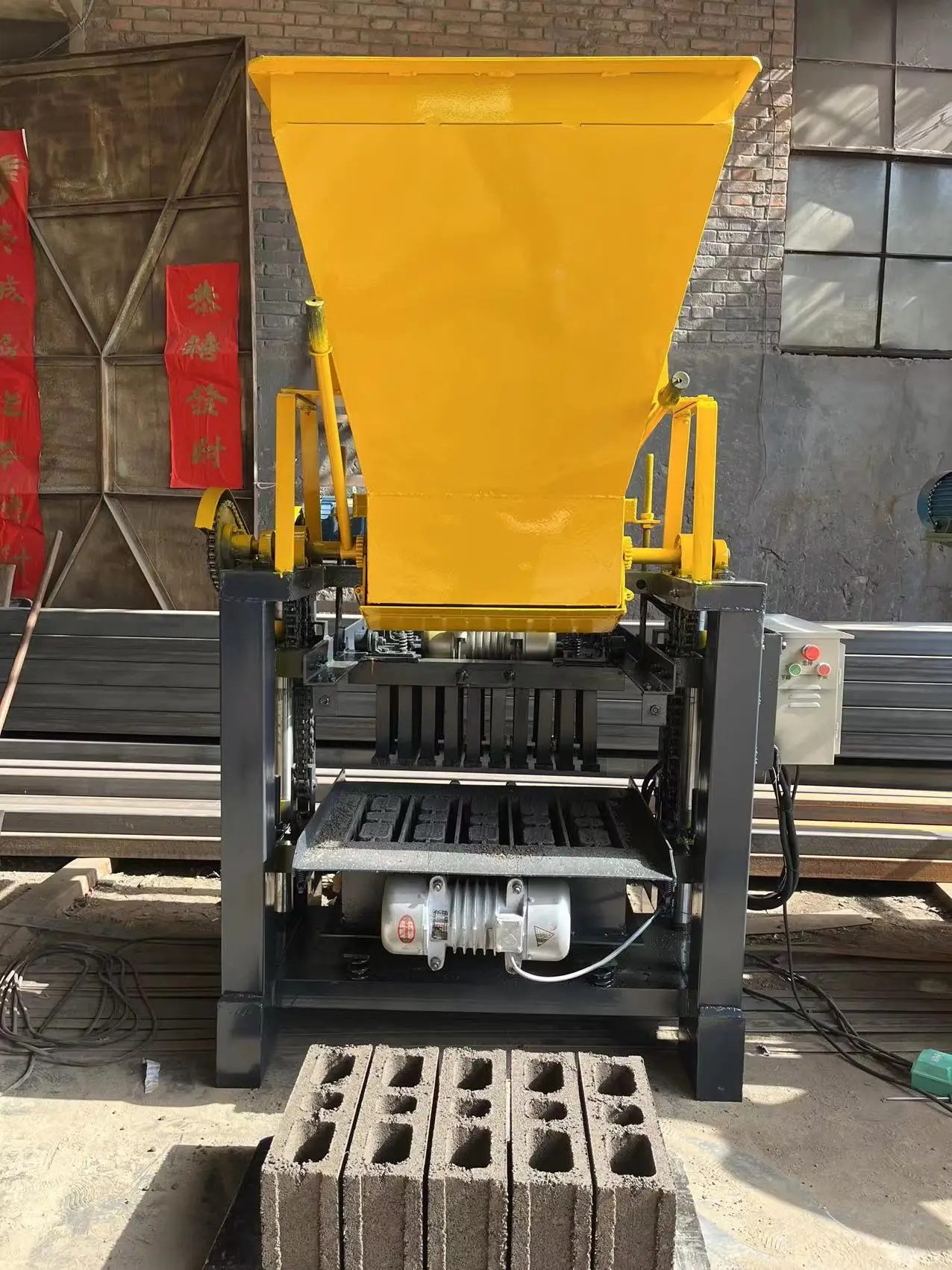

Without hopper

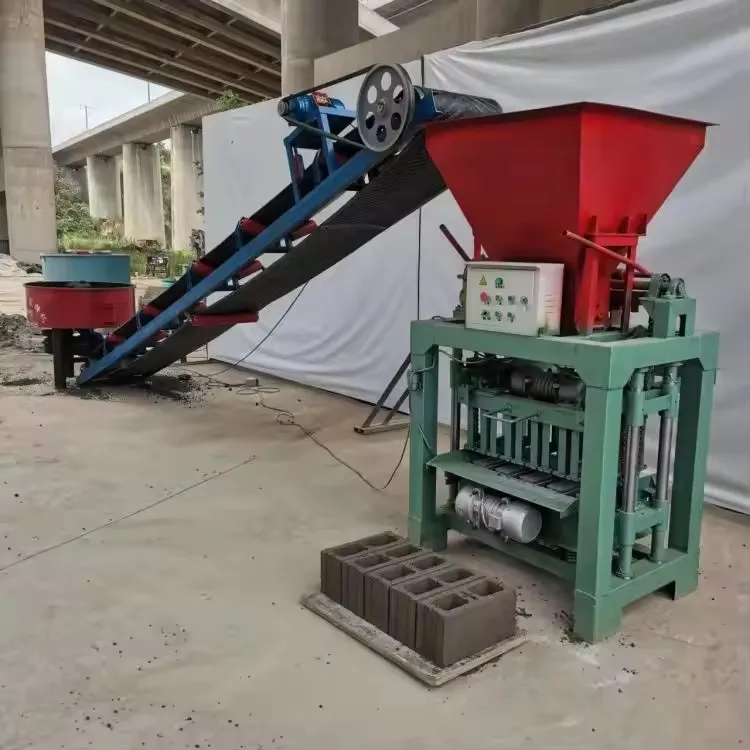

With hopper.

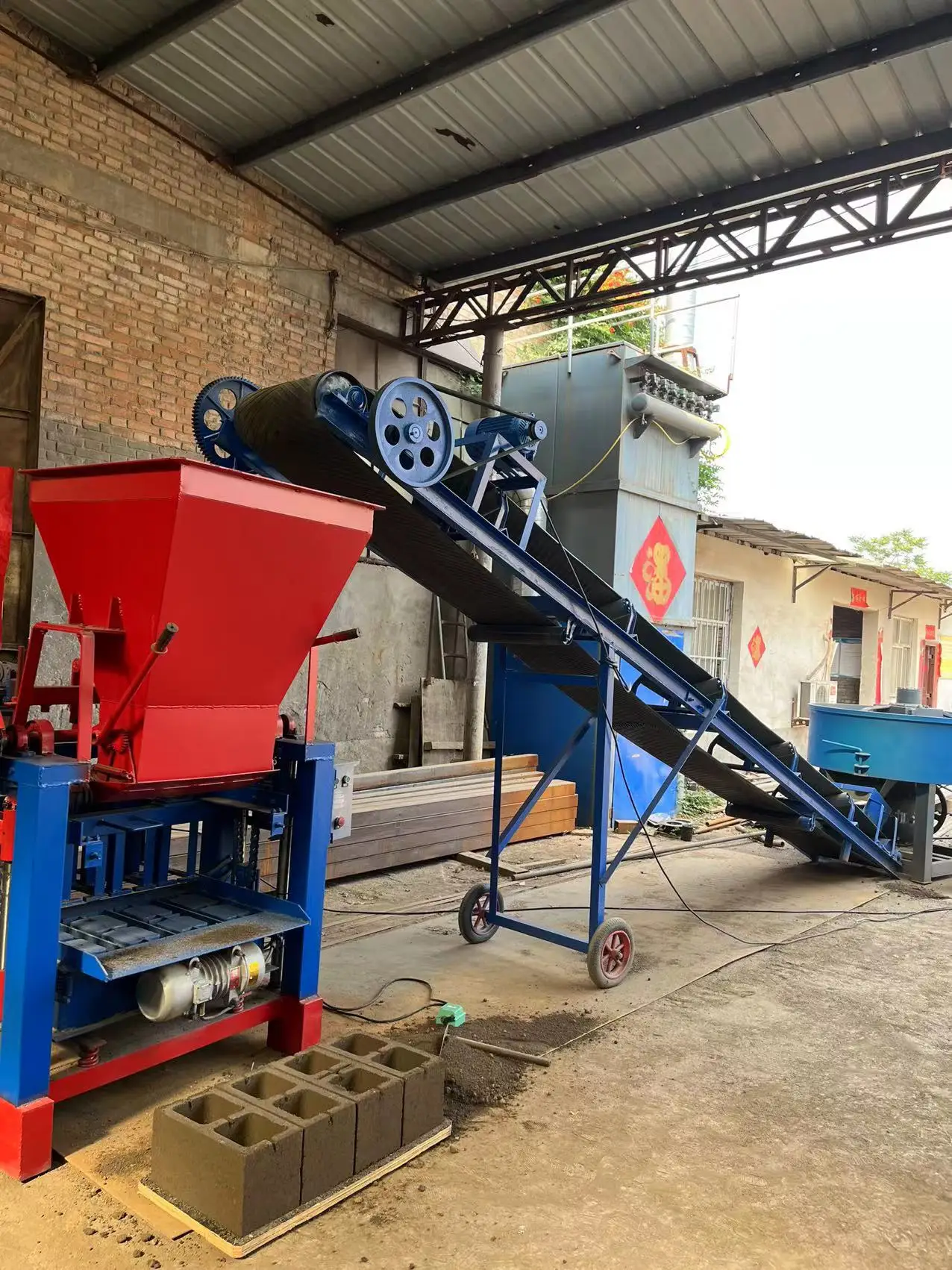

4-35B can be used with conveyor belts to realize semi-automatic operation, which is more convenient to use and saves manpower and time.
Video display:




Features of Small concrete brick making machine
1, The manual mud brick machine has the advantages of simple structure, compactness, convenient operation, convenient maintenance, small hardness, high output, less investment and quick effect.
2, The raw materials are abundant and can be seen everywhere. It is very convenient to invest and build factories.
3, Fast product forming, high density and high pressure

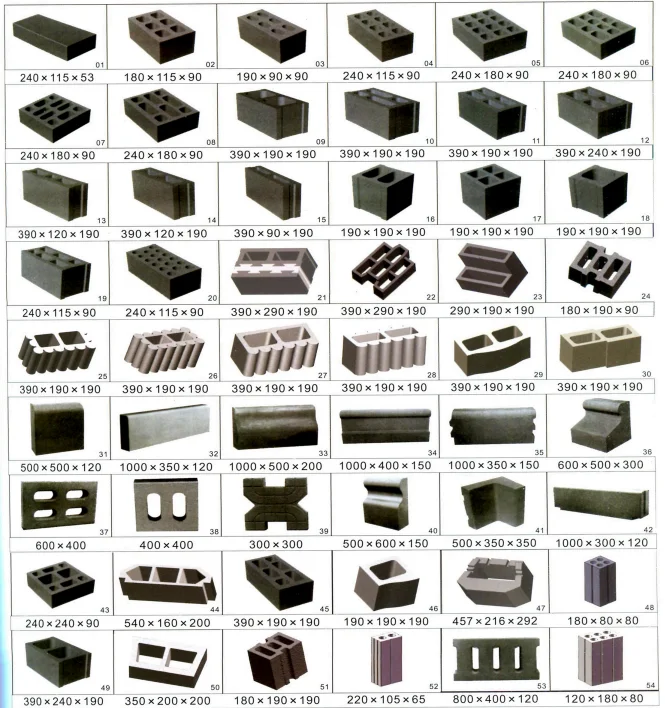

4, One machine has multiple functions, and different molds can be replaced

The building block machine, through mould and by application of fly ash and other industrial waste, can produce all kinds of hollow block.solid block, which are widely used in the construction of municipal works, buildings, garden sand roads and its productivity is very high.




Specification


Model
4-35B
Dimensions
140*140*230cm
Pallet size
850*550*30cm
Total Weight
800kg
Molding time
35s
Standard brick specifications and output
240*53*115mm  10000-12000 pieces
Hollow brick specifications and output
390*190*190mm  2000-2400 pieces
Number of operators
1-2
Transfer method
Electric
Power
5.5kw




Our brick making machine supports customized service, if necessary, please provide the exact size of the block you need, block picture, capacity per 8h you want. Click on the picture below, our salesman will contact you.




Machine Structure




1,Usage and features
This machine can be constituted a simple production line with mixer.

2,Features
The small stationary concrete block making machine adopts both mechanical and electric methods meanwhile to complete its work. It is easy to operate the machine and do the maintainance.
The block machine adopts the way of platform vibration to feed materials. Because of the vertical vibration, the block will be made at a high speed as well as in the form of high density.

3,Machine structure
The concrete block making machine is made up of the machine frame, lifting system, vibration system, mould assembly, electrical control and etc.

4,Machine frame
The frame of the host machine adopts dragon frame structure. It is made of the steel of the right temper so that the host machine is stable, vibration-proofing, and reliable.

5,Lifting system
The lifting system is compose of cycloid pin motor, reducer, lifting arm, hanging pin, positioning pin, and etc.

6,Vibration system
The vibration system of this machine can be divided into two parts. The down platform vibrator adopts two sets of high-speed attached vibration motor with the power of 3kw for each. The up vibrator adopts a high-speed attached vibration motor with the power of 1.5kw. While molding, both the down platform vibrator and the up vibrator vibrate at the same time, making the concrete firm and compressed.


Details Images


Travel column
Accurate positioning, mold balance and stability, increase block density
Lower mold box
Customized mold replacement according to customer requirements


Upper mold head
The pressure head moves longitudinally, which is convenient for feeding, maintenance and washing
Control cabinet
The control cabinet is simple in structure and easy to operate


Vibration motor
Durable, pure copper core vibration motor
Lift motor
The upper mold is driven by the chain, saving time and labor


Product Application


Block material:
Crushed stone powder, sand, stone, cement, can add a large amount of fly ash, slag, steel slag, coal gangue, ceramsite and various kinds of construstion wastes.

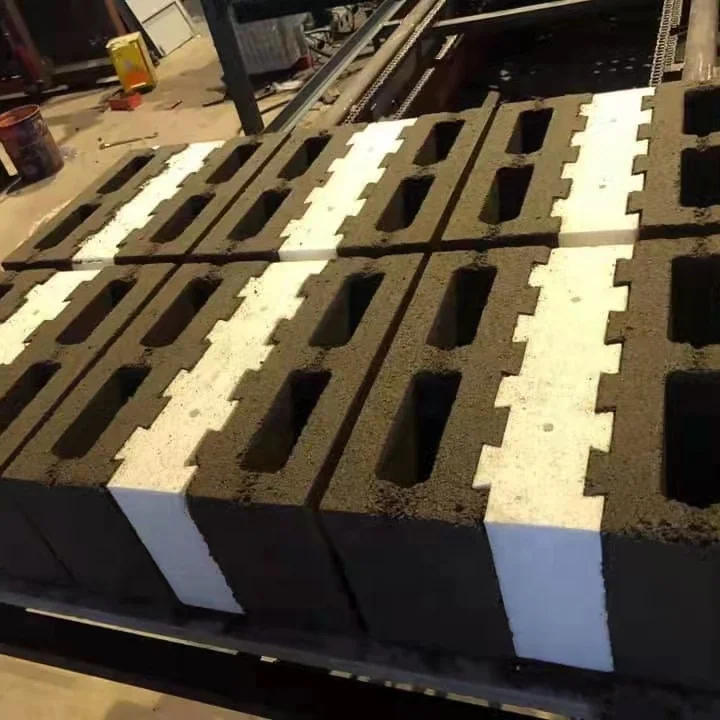

Finished product

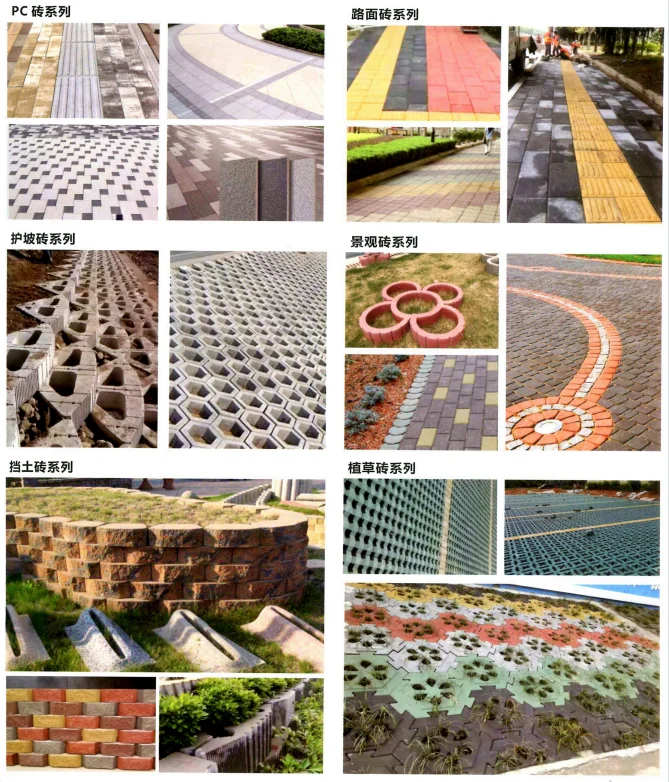

Product Application




Company Profile




Zhengzhou Hokang Machinery Co., Ltd.
Zhengzhou Hokang Machinery focusing on the planning, R&D and production of intelligent production lines for downstream packaging,it has senior planning engineers, structural engineers, electrical engineers and senior assembly, commissioning, and after-sales service teams.we have software professional technical personnel, a team of university teachers, a production line planning engineering team of manufacturing enterprises, and a marketing team. Our team has provided a complete set of solutions for a number of manufacturing enterprises in the production line digital manufacturing system and the entire back-end packaging line, realizing the perfect connection between the production information management system at the executive level of the enterprise workshop and flexible production!

The following are some live pictures of our factory. We produce machines of various specifications on a daily basis. The products are mostly customized products, which can provide private customized services for each customer and meet the internal needs of customers.If you need, you can visit our factory. We will try our best to provide you with factory and product explanations. We welcome your arrival !
