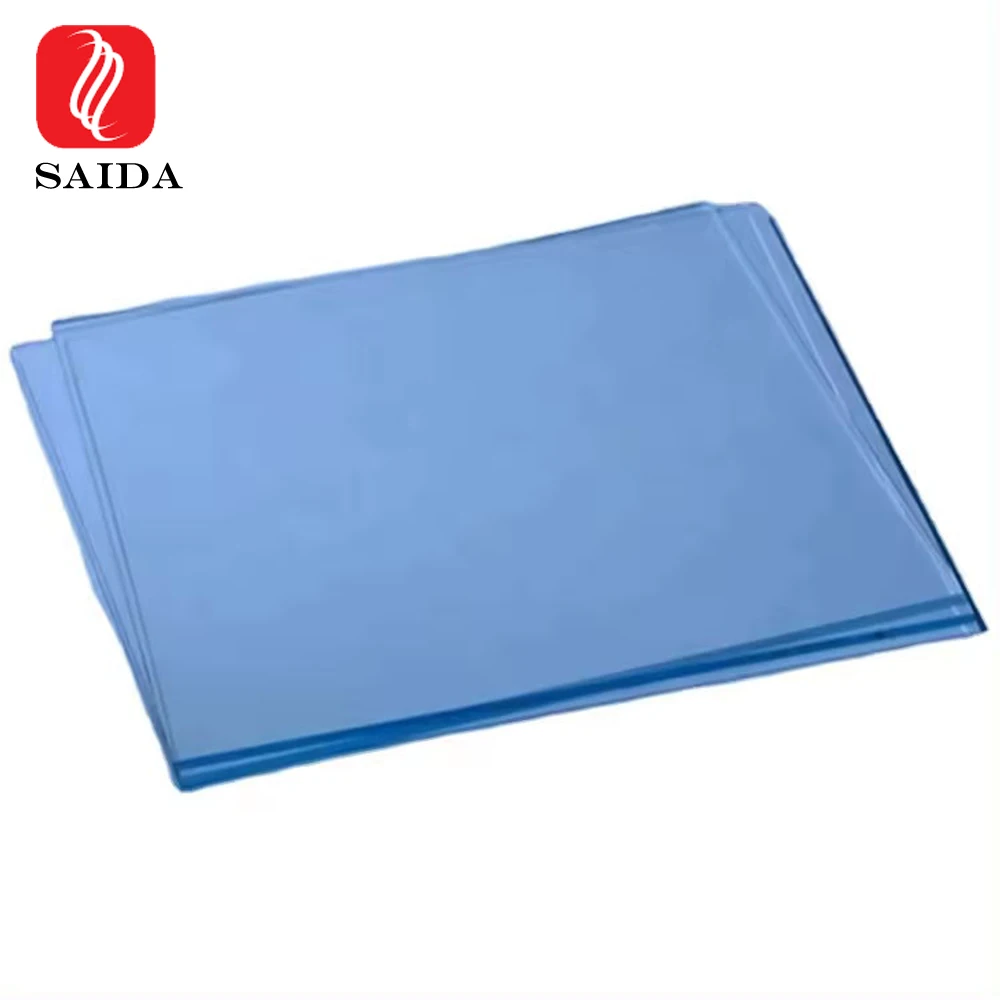

Хорошее качество низкая цена на стекло для окна
10,00 $
0 4 мм 2 2 мм 7 10 Ом ИО/с покрытием из закаленного стекла закаленное стекло для оконной панели с ИО/АР/АФ
- Категория: >>>
- Поставщик: Dongguan Saida Glass Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1601123737655:
Описание и отзывы
Характеристики
Product Introduction

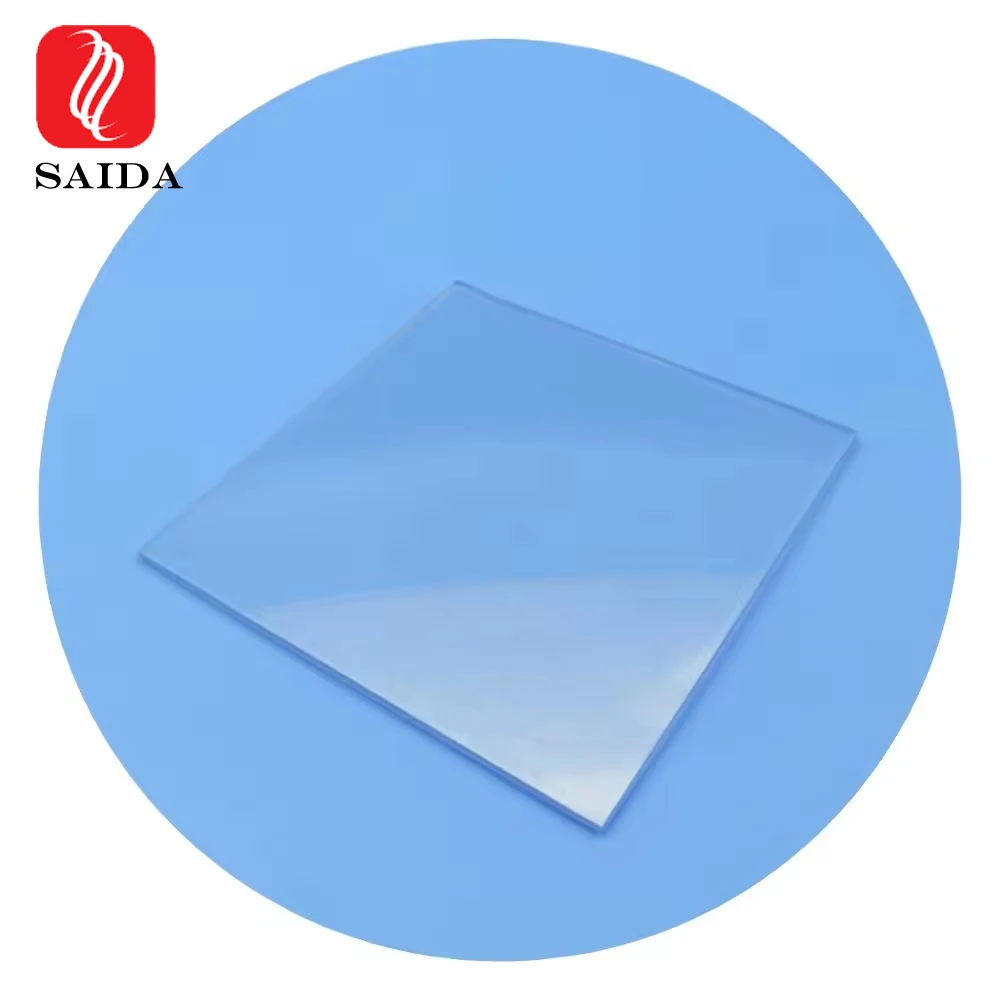

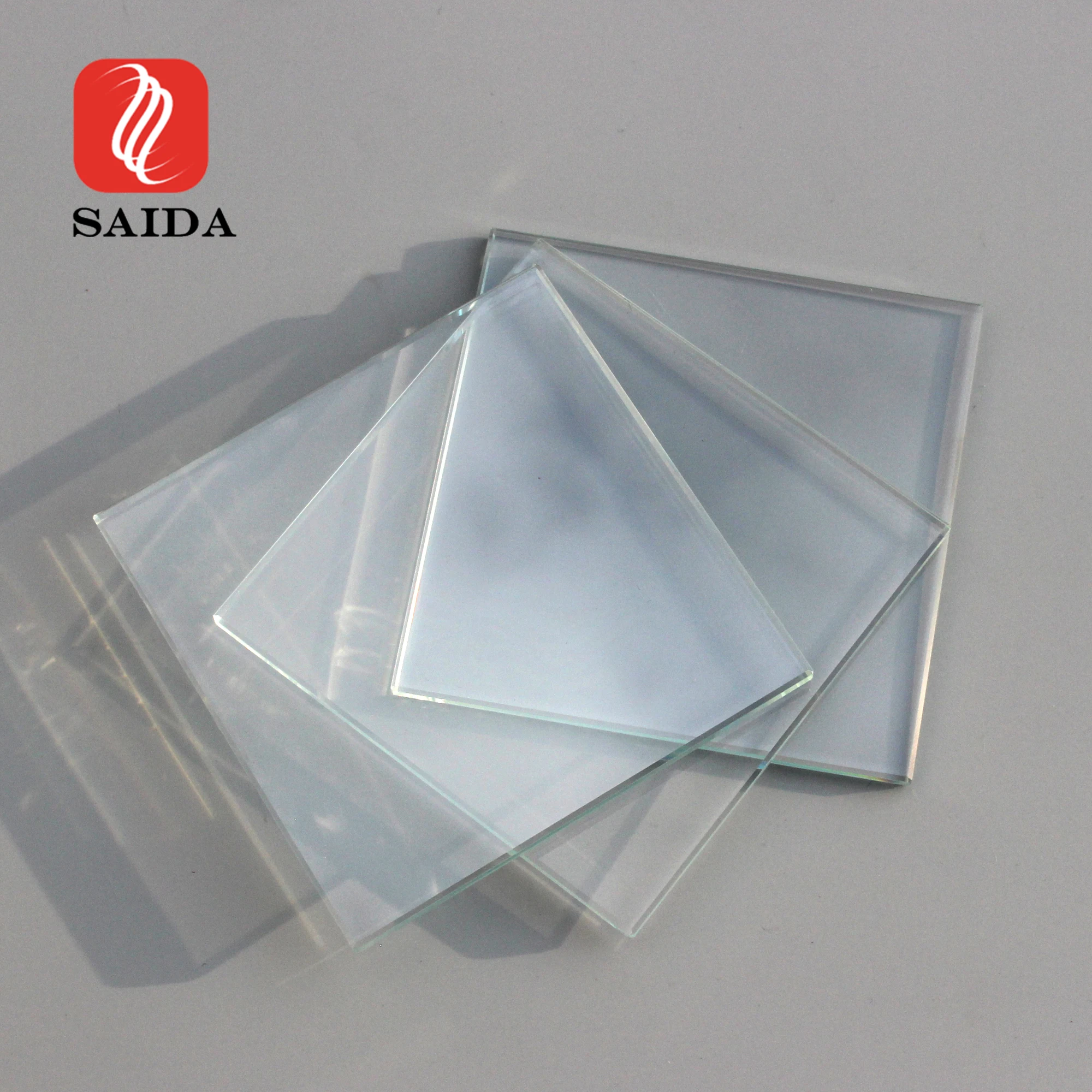

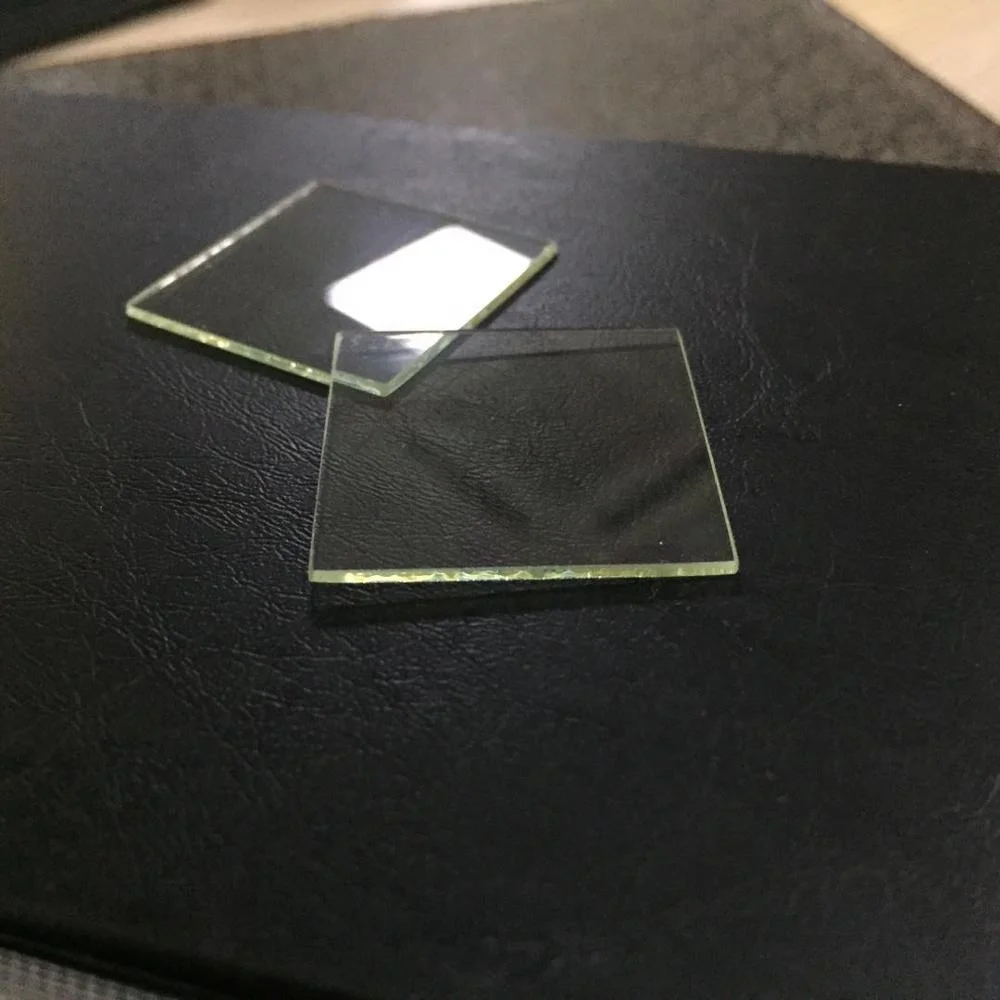

ITO Conductive Glass
1. ITO conductive glass is manufactured by depositing silicon dioxide (SiO2) and indium tin oxide (commonly referred to as ITO) thin films on the basis of soda-lime or borosilicate glass by using a magnetron measurement method.
2. ITO is a metal compound with good transparent and conductive properties. It has the characteristics of forbidden bandwidth, high light transmittance and low resistivity in the visible spectrum region. It is widely used in affirmative display devices, solar cells, and special functional window coatings. Laboratory equipment and other optoelectronic devices.
2. ITO is a metal compound with good transparent and conductive properties. It has the characteristics of forbidden bandwidth, high light transmittance and low resistivity in the visible spectrum region. It is widely used in affirmative display devices, solar cells, and special functional window coatings. Laboratory equipment and other optoelectronic devices.

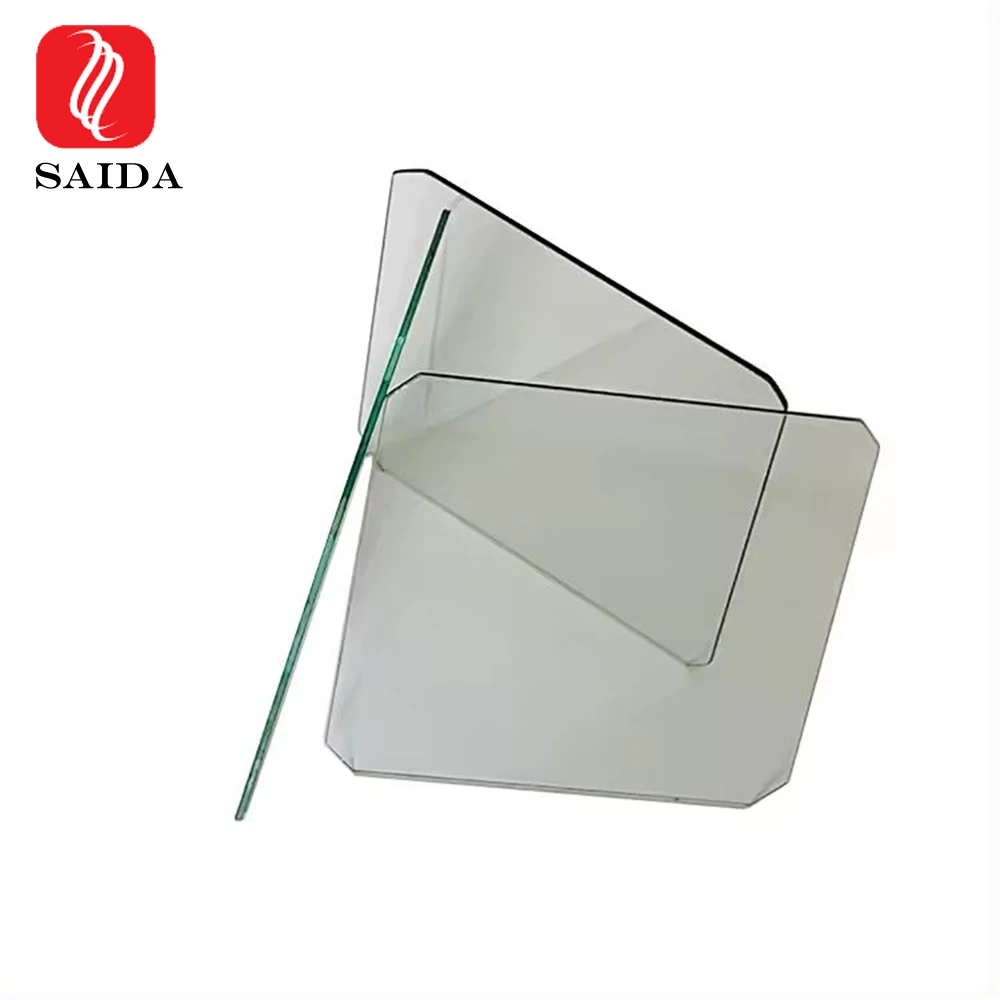

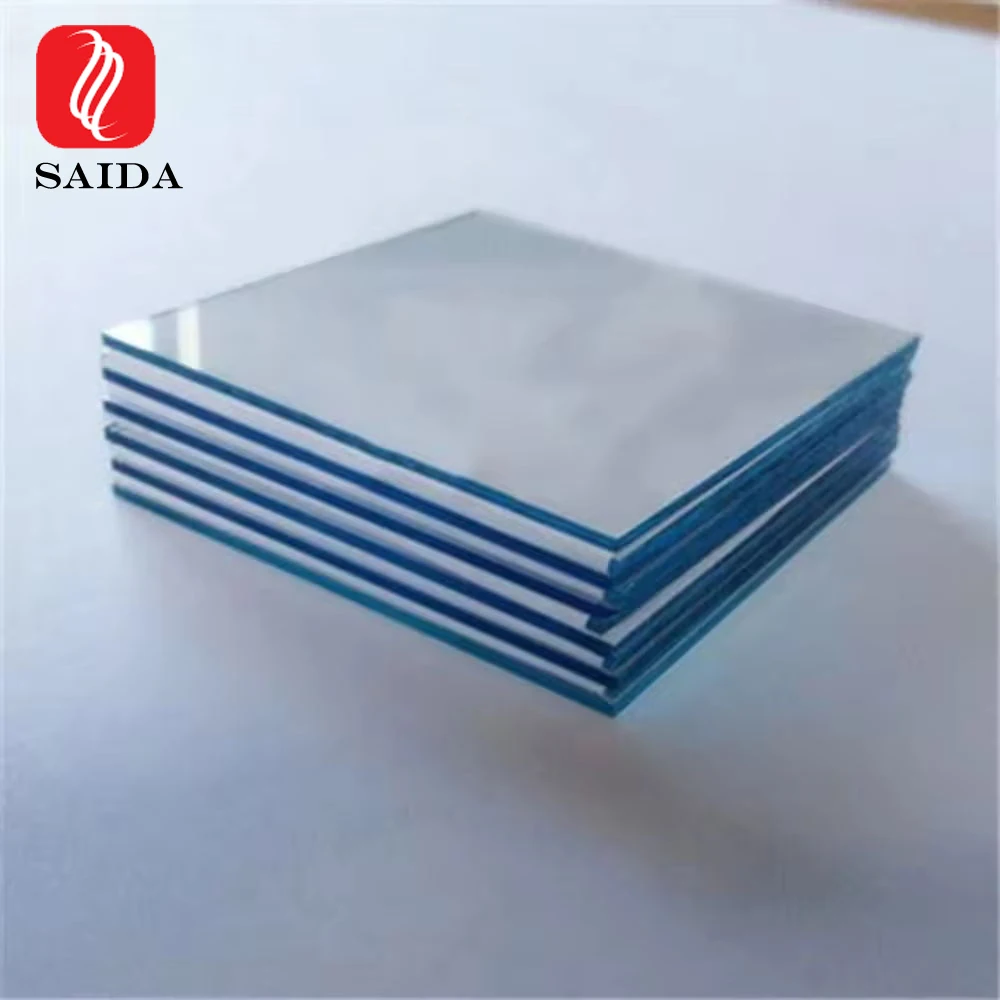

FTO Conductive Glass
1. FTO conductive glass is fluorine-doped SnO2 transparent conductive glass (SnO2: F), referred to as FTO.
2. SnO2 is a wide band-gap oxide semiconductor that is transparent to visible light, with a band gap of 3.7-4.0eV, and has a regular tetrahedral gold red structure. After being doped with fluorine, the SnO2 film has the advantages of good light transmittance to visible light, large ultraviolet absorption coefficient, low resistivity, stable chemical properties, and strong resistance to acid and alkali at room temperature.
2. SnO2 is a wide band-gap oxide semiconductor that is transparent to visible light, with a band gap of 3.7-4.0eV, and has a regular tetrahedral gold red structure. After being doped with fluorine, the SnO2 film has the advantages of good light transmittance to visible light, large ultraviolet absorption coefficient, low resistivity, stable chemical properties, and strong resistance to acid and alkali at room temperature.
Parameter Information
The Performance Specifications of ITO Conductive Glass | ||||||||
Specification | Sheet resistance （Ω/□） | Transmittance % | Etching Time | ITO Coating thickness | ||||
500Ω | 350-500Ω | ≥90 | ≤30s | 120ű30Å | ||||
150Ω | 100-150Ω | ≥87.0 | ≤30s | 150ű30Å | ||||
100Ω | 80-100Ω | ≥87.0 | ≤40s | 230ű50Å | ||||
80Ω | 60-80Ω | ≥86.0 | ≤45s | 300ű50Å | ||||
60Ω | 40-60Ω | ≥85.0 | ≤60s | 350ű50Å | ||||
50Ω | 40-50Ω | ≥84.0 | ≤65s | 400ű50Å | ||||
40Ω | 30-40Ω | ≥85.0 | ≤70s | 500ű100Å | ||||
30Ω | 20-30Ω | ≥80.0 | ≤100s | 650ű100Å | ||||
20Ω | 10-20Ω | ≥85.0 | ≤140s | 950ű100Å | ||||
17Ω | 15-20Ω | ≥85.0 | ≤160s | 1050ű100Å | ||||
15Ω | 10-15Ω | ≥85.0 | ≤180s | 1350ű150Å | ||||
10Ω | 7-10Ω | ≥84.0 | ≤240s | 1850ű200Å | ||||
7Ω | 5-7Ω | ≥82.0 | ≤350s | 2200ű300Å | ||||
5Ω | 3-5Ω | ≥77.0 | ≤400s | 3500ű300Å | ||||
ITO Glass Maximum Size | 1250*750mm | |||||||
ITO Glass Thickness | 0.2、 0.3、 0.4、0.5、0.55、0.7、0.8、 0.9、 1.0、1.1、1.2、 1.5、1.8、2.0 3.0mm etc. | |||||||
ITO Resistance Value | 3－4ohm/sq; 4－6ohm/sq; 5－7ohm/sq; 7－10ohm/sq; 10－15ohm/sq; 15－20ohm/sq; 20－30ohm/sq; 30－40ohm/sq; 40-60ohm/sq; 70-120ohm/sq; | |||||||
The Performance Specifications of FTO Conductive Glass | ||||||||
Specification | Sheet resistance （Ω/□） | Transmittance % | Etching Time | ITO Coating thickness | ||||
15Ω （1.1mm) | 10-15Ω | ≥78.0 | ≤30s | 350ű50Å | ||||
15Ω (2.2mm) | 10-15Ω | ≥85.0 | ≤30s | 350ű50Å | ||||
10Ω (2.2mm) | 6-10Ω | ≥84.0 | ≤40s | 450ű50Å | ||||
8Ω (2.2mm) | 8Ω | ≥84.0 | ≤45s | 450ű50Å | ||||
FTO Glass Thickness | 1.1、1.6、2.2、3.2、 4.0mm | |||||||
FTO Resistance Value | 7-8ohm/sq; 6-10ohm/sq; 12-14ohm/sq; 10-15ohm/sq; 14-15ohm/sq; 15-20ohm/sq | |||||||

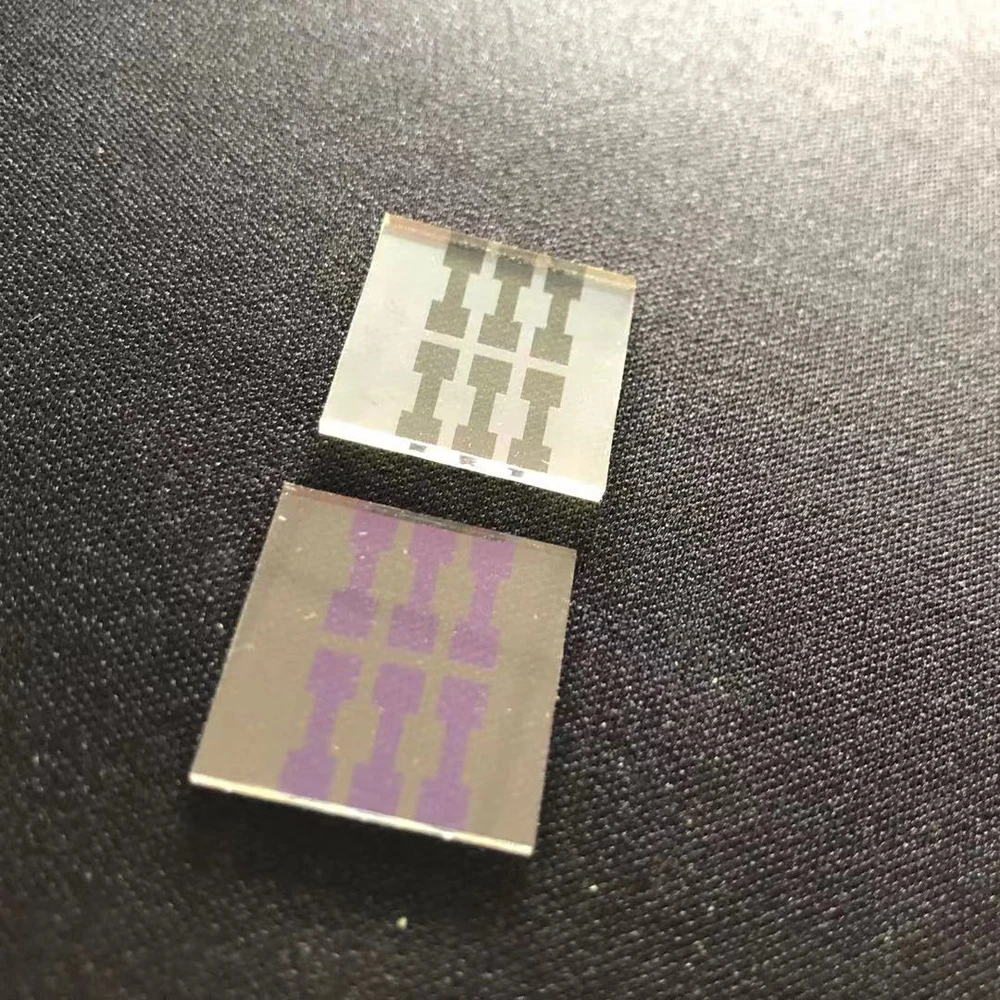

How to distinguish the conductive side of ITO glass?
The side where the current flows is the conductive surface of the ITO glass. If you need to test the sheet resistance of the

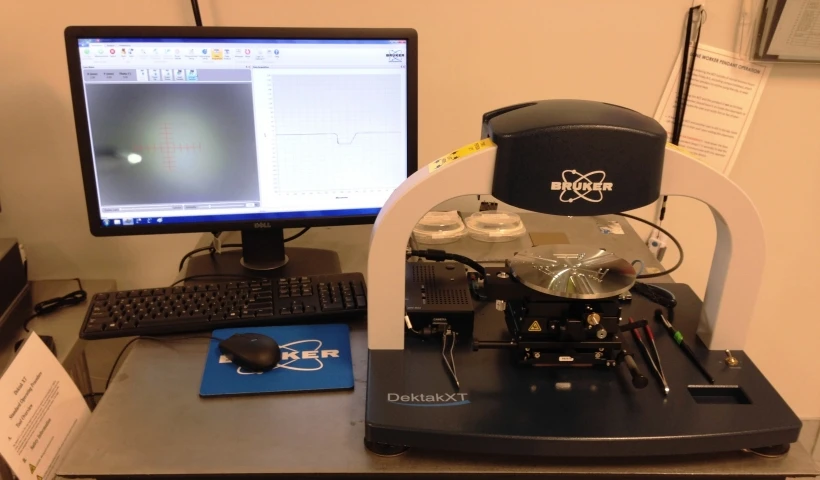

conductive glass, you must use a four-probe tester.
The side where the current flows is the conductive surface of the ITO glass. If you need to test the sheet resistance of the
conductive glass, you must use a four-probe tester.
Our Factory
Saida Glass was founded in 2011, which is located in Dongguan, near to Shenzhen and Guangzhou port. With over Ten years'
experience in glass deep processing, specialized in customized glass, we work with many large-scale global enterprises such as
Lenovo, HP, TCL, Sony, Glanz, Gree, CAT and other companies.
We have 3,500 square meters production base, 30 R&D staff with twelve years' experience, 120 QA staff with seven years'
experience. Our products passed ASTMC1048 (the US), EN12150 (EU), AS/NZ2208 (AU) and CAN/CGSB-12.1-M90 (CA). Thus, 98% of customer are satisfied with our one-stop services.
We have been engaged in export for seven years. Our major export markets are North America, Europe, Oceania and Asia. We are offering glass deep processing services to SEB, FLEX, Kohler, Fitbit and Tefal.
experience in glass deep processing, specialized in customized glass, we work with many large-scale global enterprises such as
Lenovo, HP, TCL, Sony, Glanz, Gree, CAT and other companies.
We have 3,500 square meters production base, 30 R&D staff with twelve years' experience, 120 QA staff with seven years'
experience. Our products passed ASTMC1048 (the US), EN12150 (EU), AS/NZ2208 (AU) and CAN/CGSB-12.1-M90 (CA). Thus, 98% of customer are satisfied with our one-stop services.
We have been engaged in export for seven years. Our major export markets are North America, Europe, Oceania and Asia. We are offering glass deep processing services to SEB, FLEX, Kohler, Fitbit and Tefal.
Automatic Production Line
Advanced Vacuum Magnetic Sputtering Equipment
Strict Inspection Standard
100% Inspection before Package
Customer Visiting & Feedback
Packaging
Apply protecive film on each side
500pcs or more per vacuum package
1000pcs or more per box
Payment & Shipping
