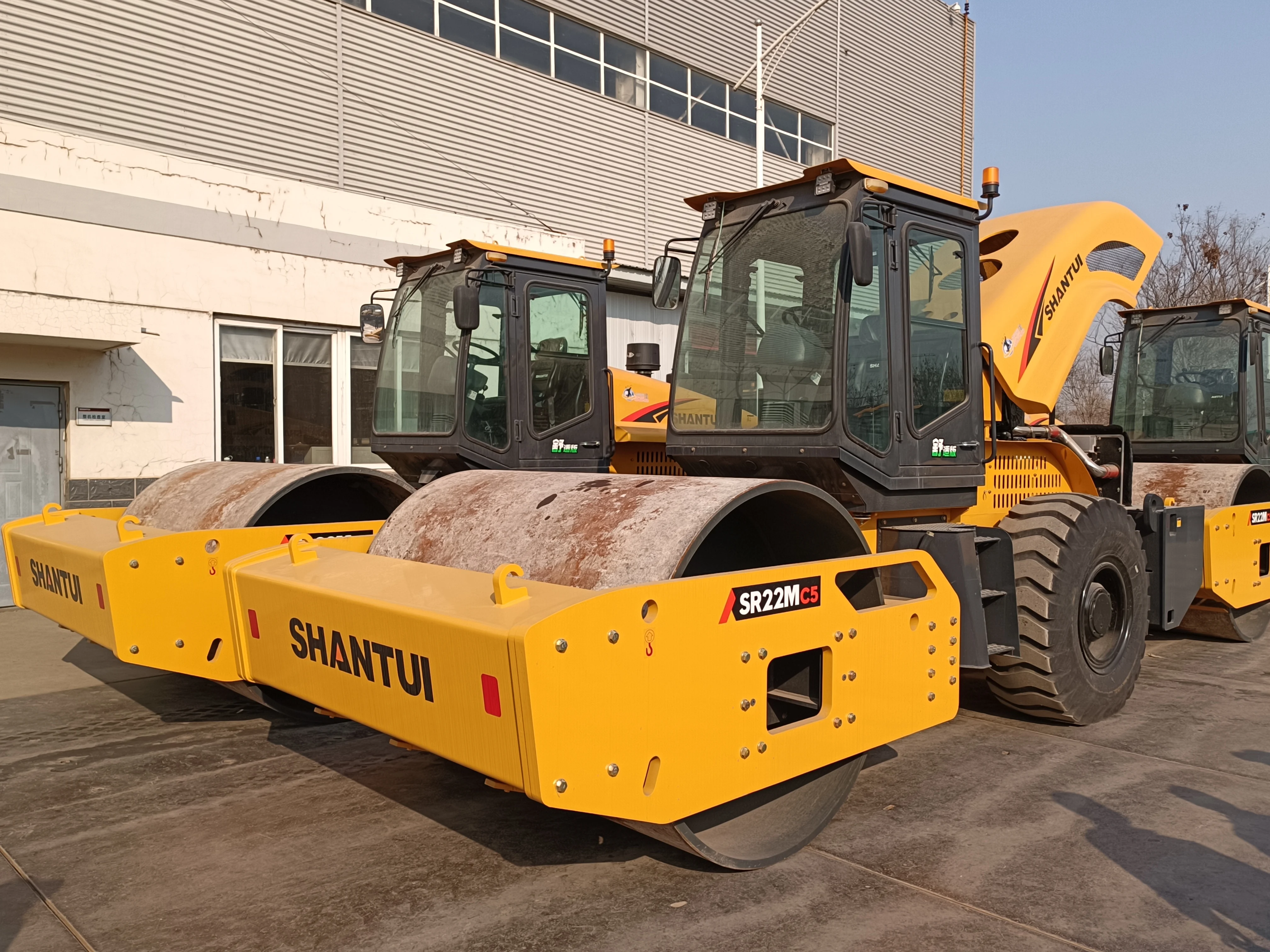

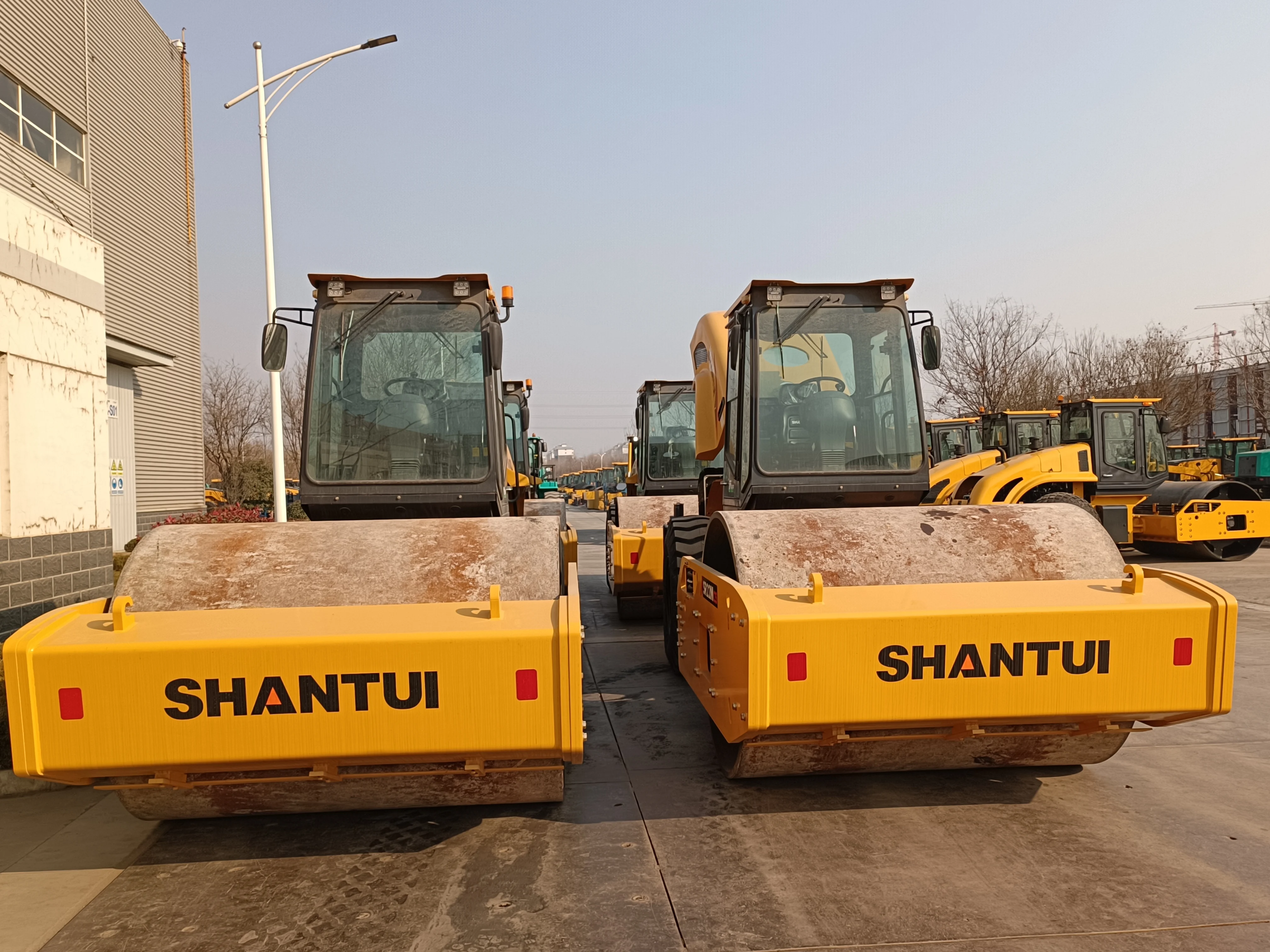

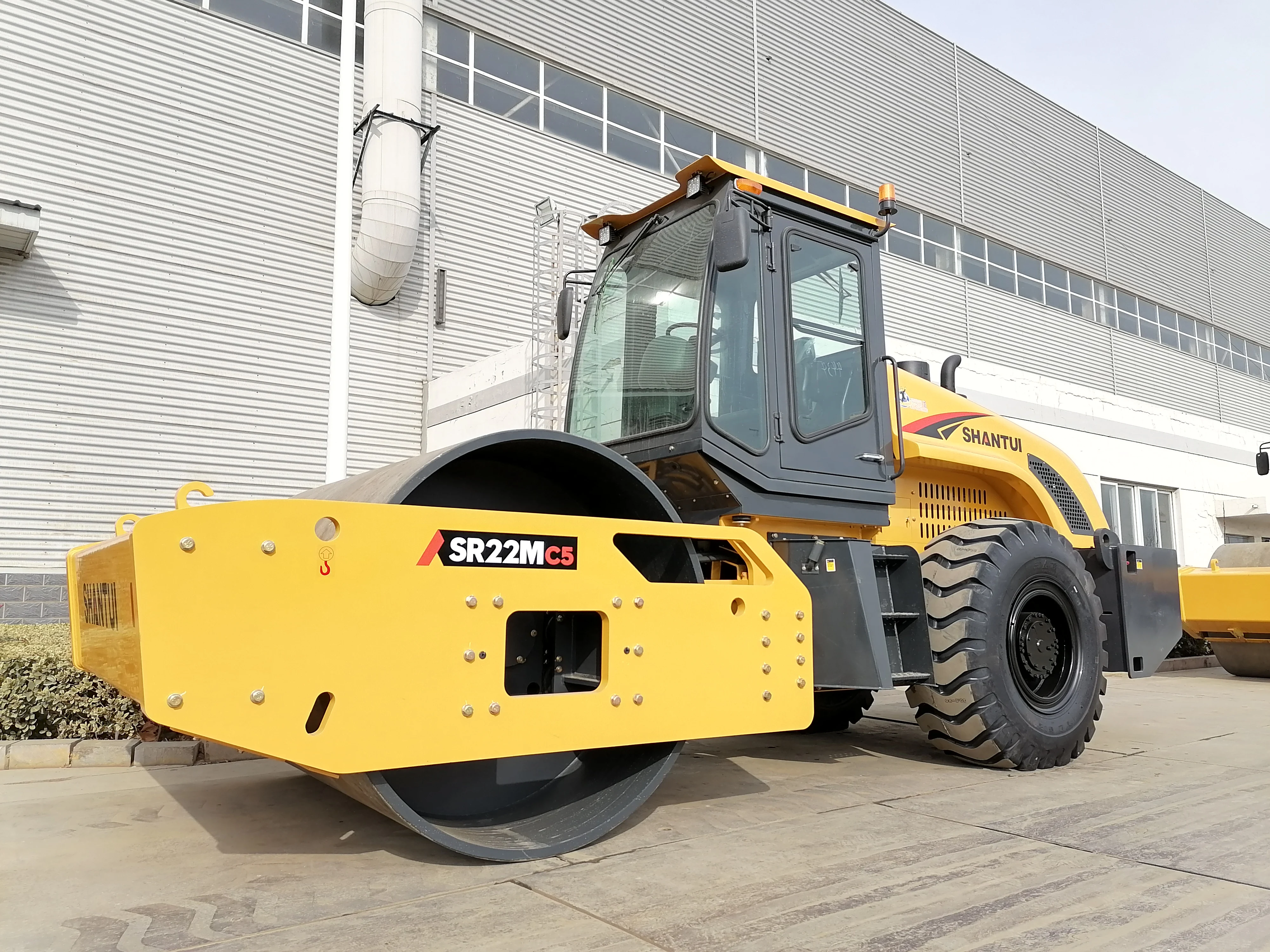

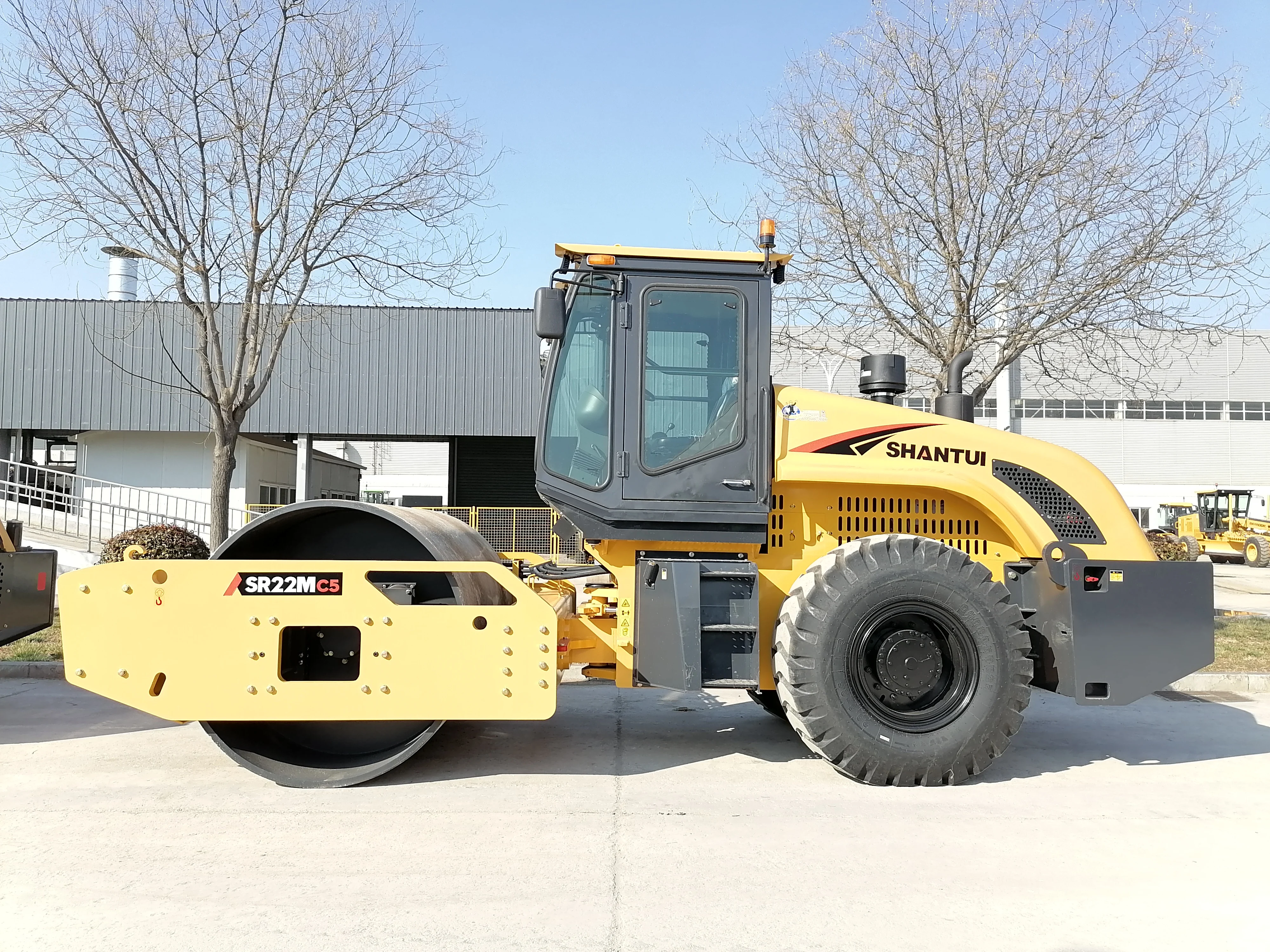

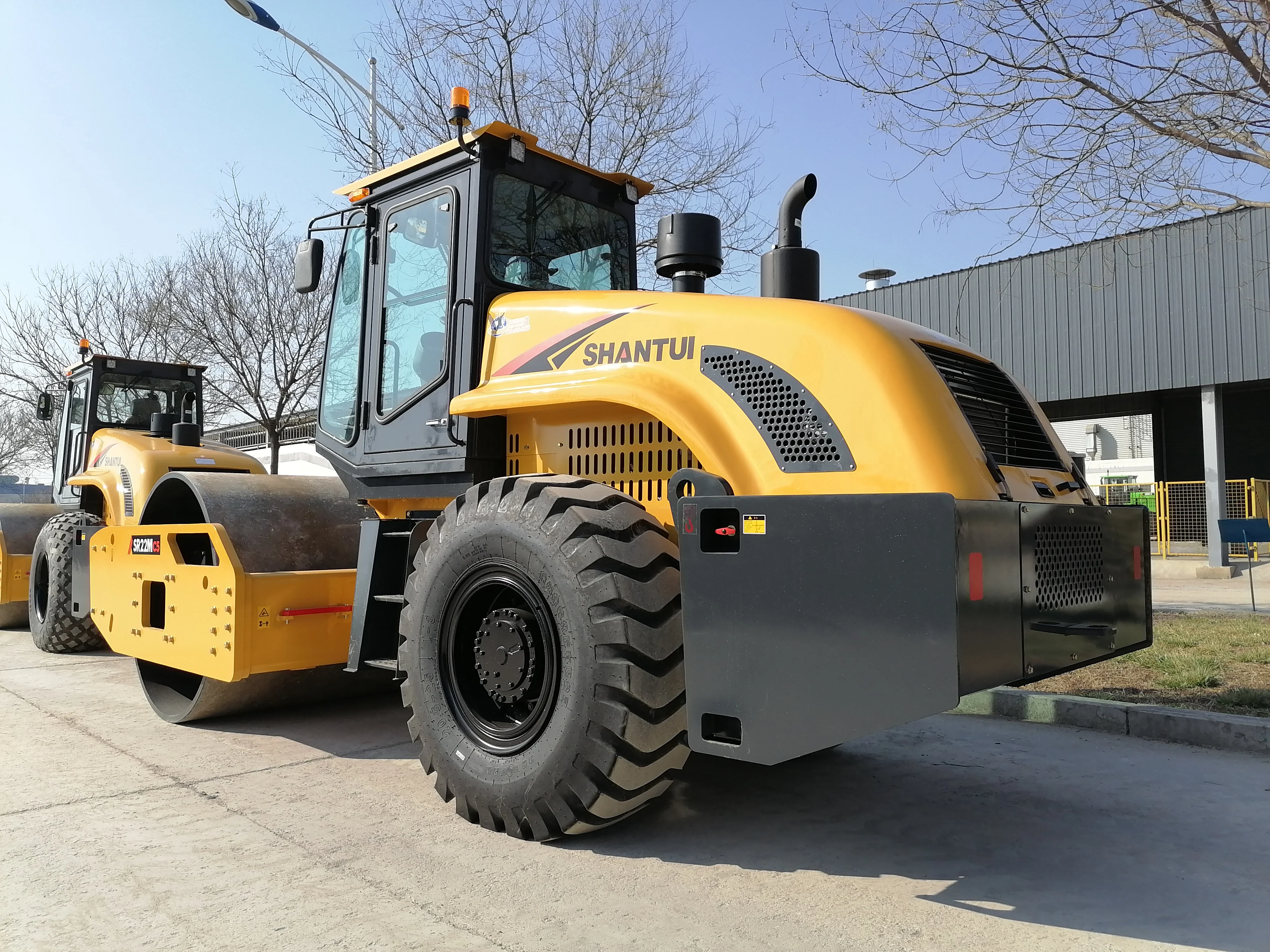

22ton одинарный барабанный Вибрационный дорожный роликовый SR22M C5
- Категория: >>>
- Поставщик: Liebty Machinery Technology (Hangzhou) Co. Ltd.Liebty Ltd.
Сохранить в закладки 1601123754237:
Описание и отзывы
Характеристики
Contact
Sales Manager: Ryann Huang
Company: Liebty Machinery Technology (Hangzhou) Co.,Ltd
Address: Room 208, Building 3, No.1866, Binxing Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China
WhatsApp/WeChat/mobile: +86 19858195297
E-mail: ryann@liebty.com
E-mail: ryann@liebty.com
Company: Liebty Machinery Technology (Hangzhou) Co.,Ltd
Address: Room 208, Building 3, No.1866, Binxing Road, Changhe Street, Binjiang District, Hangzhou, Zhejiang, China
Product Description
1. High safety and comfort
● The whole machine adopts three-level shock absorption, special sealing, low vibration and low noise;
● The cab dashboard, seat and control box are arranged in combination with ergonomics for comfortable operation;
● Fully hydraulic drive, four-speed stepless speed change, simple operation.
2. High flexibility and usability
●The fuel filter element and hydraulic filter element are arranged on the same side of the machine, which is easy to maintain;
● Easy maintenance, daily maintenance can be done conveniently by opening the hood;
● The pipes for draining water from the water tank and draining oil from the oil pan are led to the outside of the machine body
for easy maintenance;
● Intelligent combination instrument with automatic fault detection function, with all-weather, all-round fault diagnosis and
alarm system.
3. Working performance
● Weichai WP6 engine has good fuel economy, strong parts versatility and low maintenance cost;
● Suction-type large-area radiator, effectively extending the service life of the engine and hydraulic components;
● Shantui's proprietary technology steel wheels, bearing independent lubrication, long life.
4. Operating cost
● Exclusive matching technology can achieve high work efficiency and reasonable fuel economy, and comprehensive fuel
consumption can be reduced by 8%~10%;
● Imported core electric hydraulic components, high quality and reliability, reducing downtime.
● The whole machine adopts three-level shock absorption, special sealing, low vibration and low noise;
● The cab dashboard, seat and control box are arranged in combination with ergonomics for comfortable operation;
● Fully hydraulic drive, four-speed stepless speed change, simple operation.
2. High flexibility and usability
●The fuel filter element and hydraulic filter element are arranged on the same side of the machine, which is easy to maintain;
● Easy maintenance, daily maintenance can be done conveniently by opening the hood;
● The pipes for draining water from the water tank and draining oil from the oil pan are led to the outside of the machine body
for easy maintenance;
● Intelligent combination instrument with automatic fault detection function, with all-weather, all-round fault diagnosis and
alarm system.
3. Working performance
● Weichai WP6 engine has good fuel economy, strong parts versatility and low maintenance cost;
● Suction-type large-area radiator, effectively extending the service life of the engine and hydraulic components;
● Shantui's proprietary technology steel wheels, bearing independent lubrication, long life.
4. Operating cost
● Exclusive matching technology can achieve high work efficiency and reasonable fuel economy, and comprehensive fuel
consumption can be reduced by 8%~10%;
● Imported core electric hydraulic components, high quality and reliability, reducing downtime.
Product Parameters
Parameter name | SR22-C5 |
Performance parameters | |
Operating weight (Kg) | 22000 |
Exciting force (KN) | 420/310 |
Vibration frequency (Hz) | 29/35 |
Nominal amplitude (mm) | 2.0/1.0 |
Gradeability (%) | 50 |
Engine | |
Engine model | WP6 |
Rated power/rated speed (kW/rpm) | 147/2000 |
Overall dimensions | |
Overall dimensions of machine (mm) | 6463*2352*3162 |
Driving performance | |
Forward speed (km/h) | F1:0-4.2 ,F2:0-5.3,F3:0-6.7 , F4 0-10 |
Reversing speed (km/h) | R1:0-4.2 ,R2:0-5.3,R3:0-6.7 , R4 0-10 |
Chassis System | |
Fuel tank (L) | 300 |
Working device | |
Compacting width（mm） | 2170 |
Details Images
Why Choose Us
Company Profile
FAQ
Похожие товары
Двухтонный дорожный каток многофункциональный для оптовых продаж 3-тонный 4-Тонный асфальтовый уплотненный двойной стальной диск
756 719,60-814 928,80 ₽

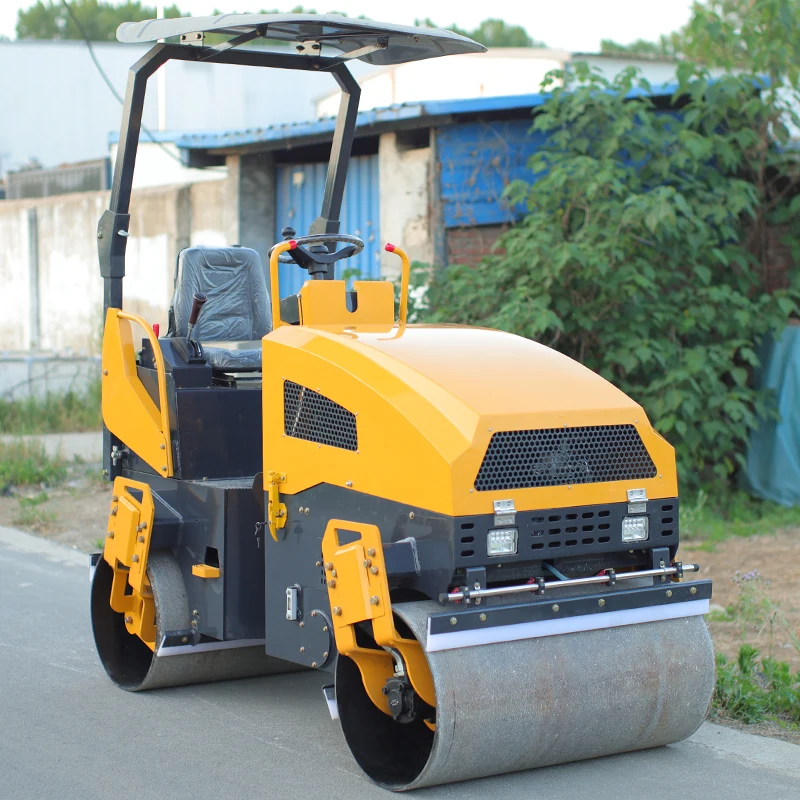

Дорожный каток 1 т
617 017,52-686 868,56 ₽

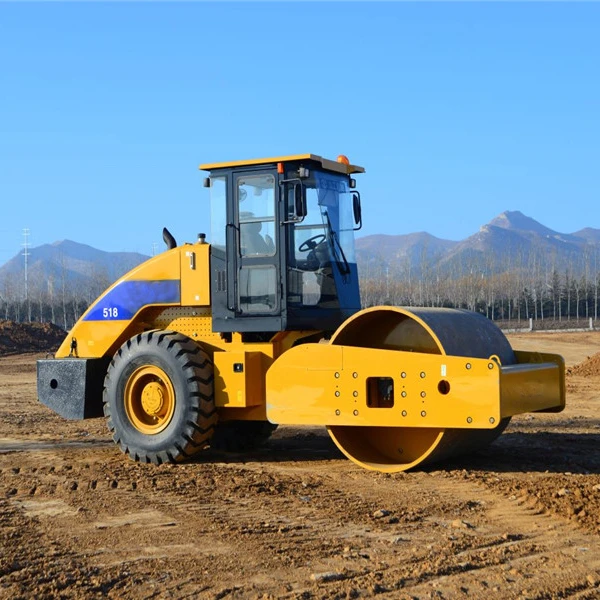

Лучшая машина 10Ton дорожный каток SEM510
4 507 386,00-4 969 682,00 ₽

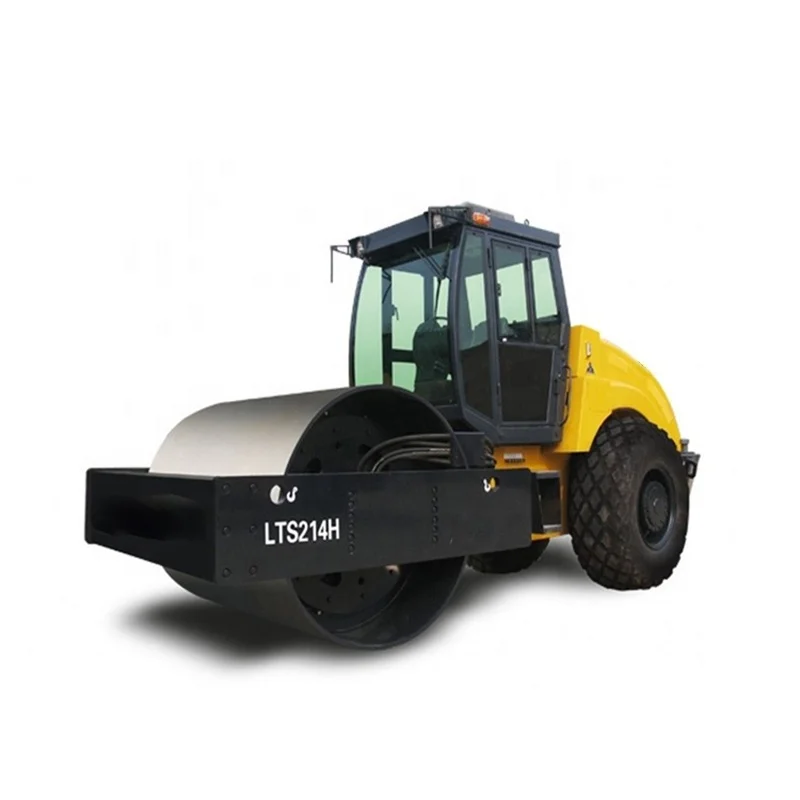

4-Тонный дорожный каток LUTONG LTS204H однобарабанный по лучшей цене
1 397 020,80-1 746 276,00 ₽

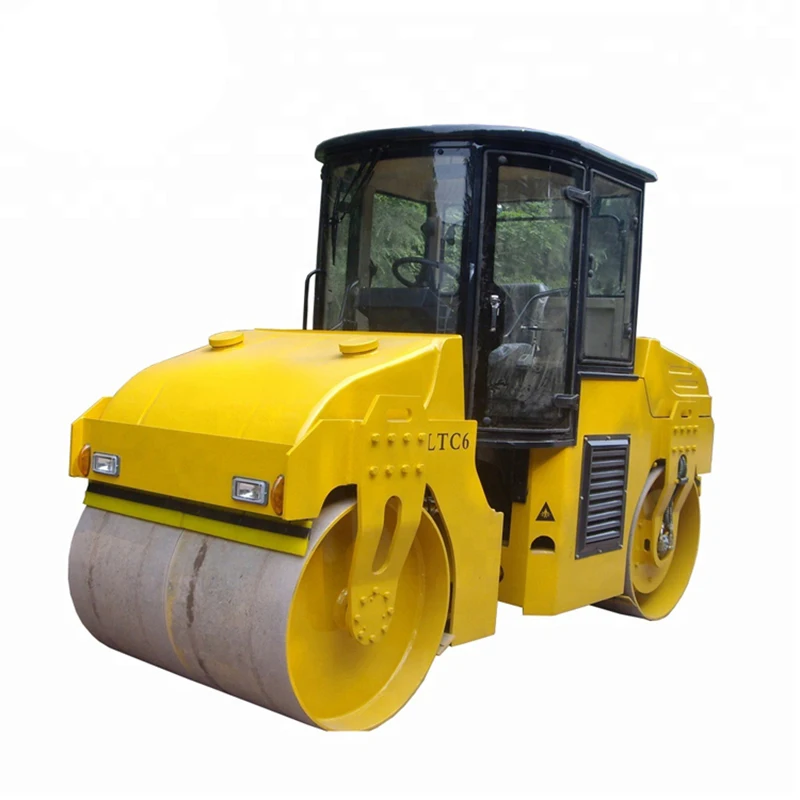

Компрессор дорожная строительная техника официально Lutong мини-дорожный каток LTC6 панель управления малым дорожным катком по лучшей цене

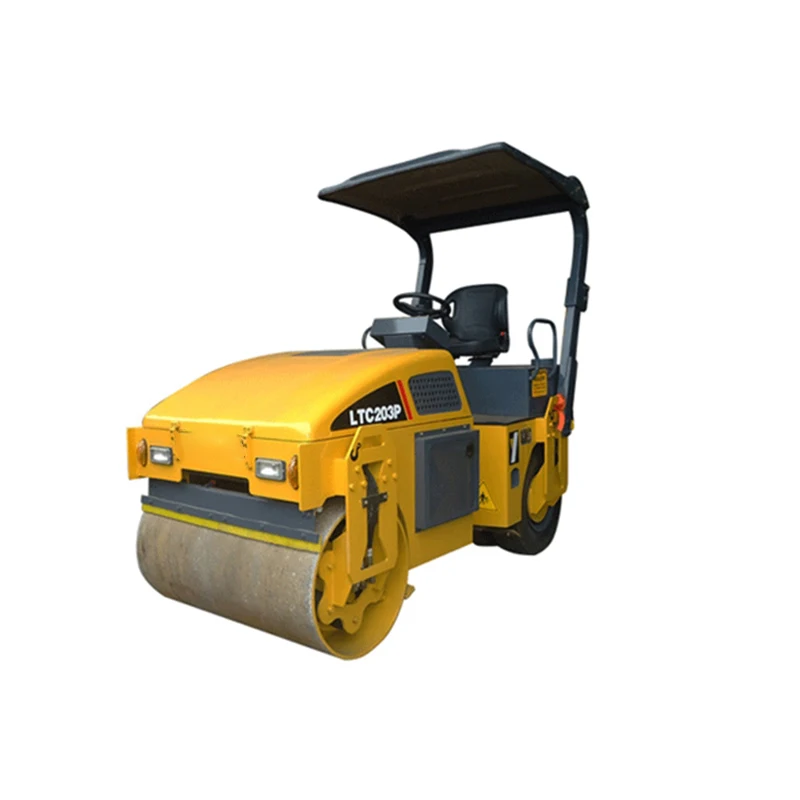

LUTONG меньший двойной барабанный дорожный каток LTC203P для продажи дорожной техники
