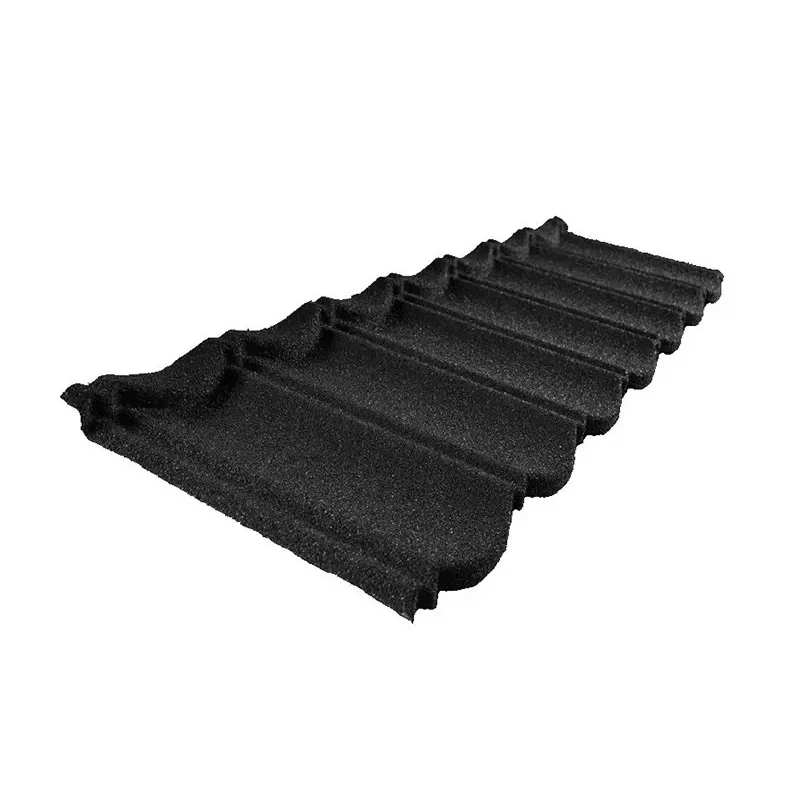

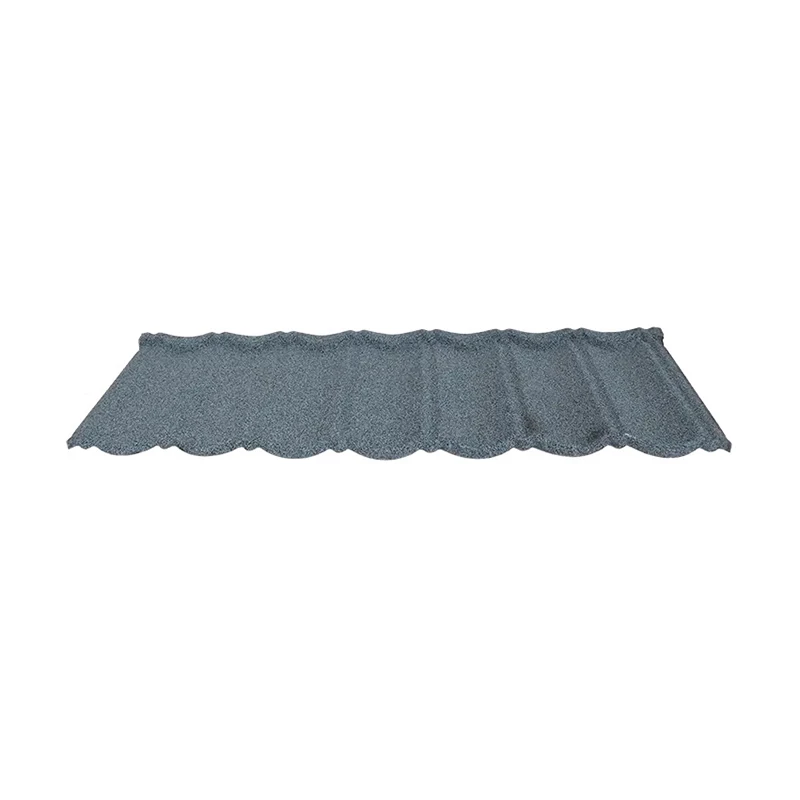

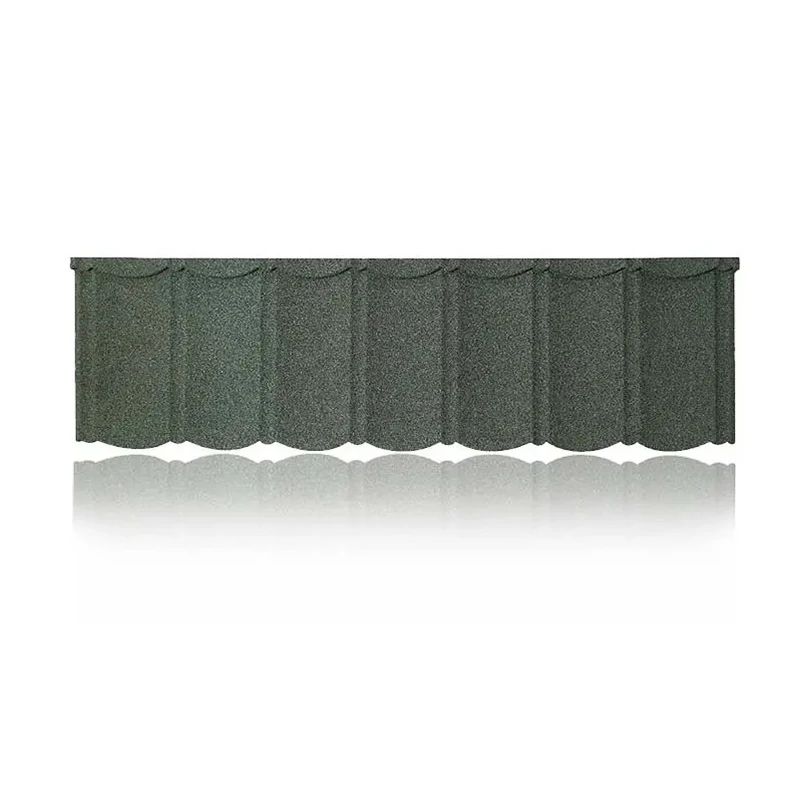

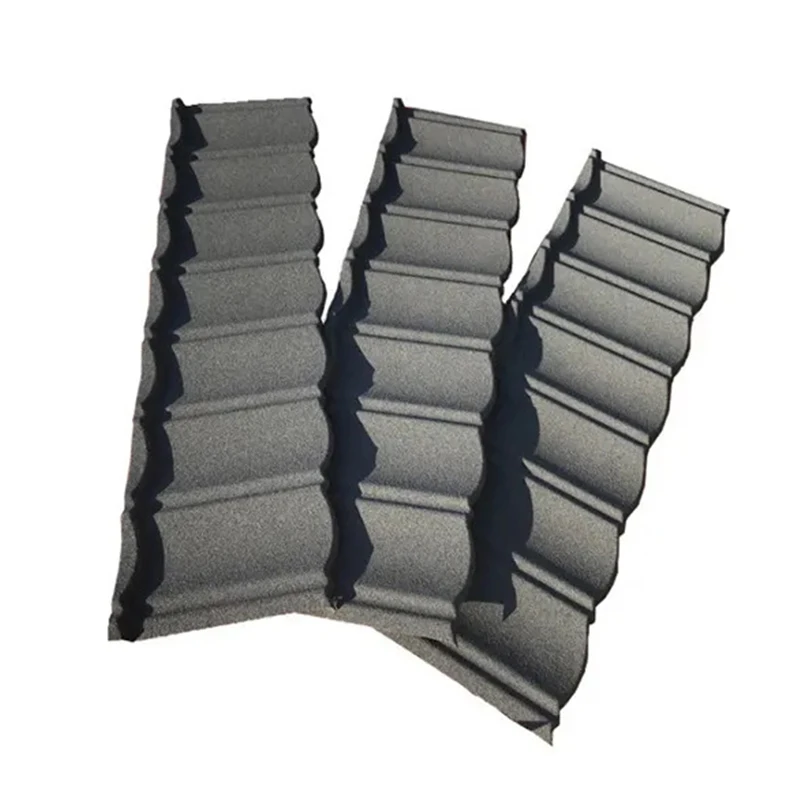

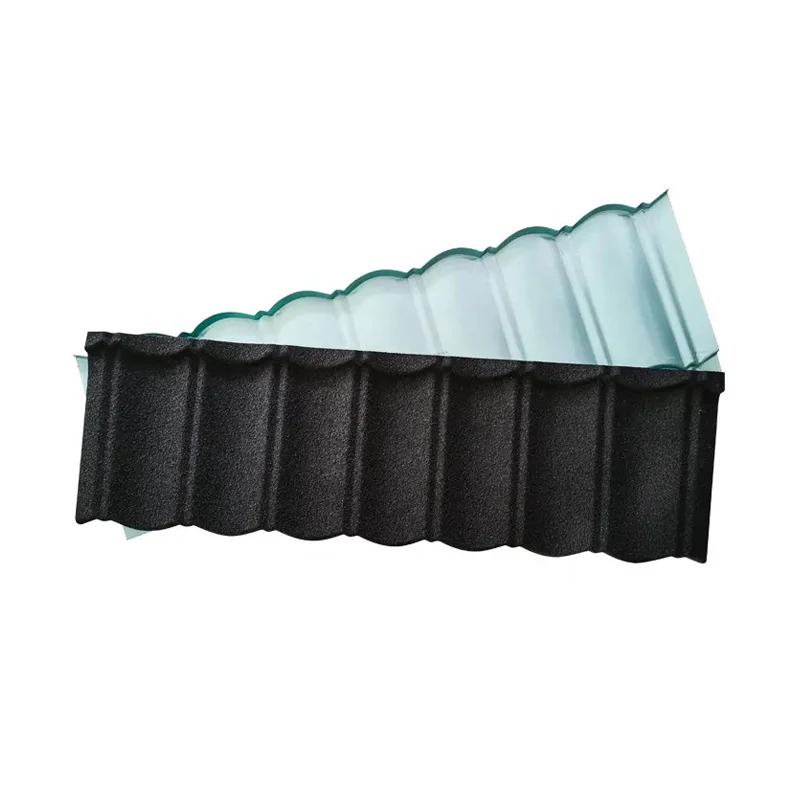

Металлическая кровельная плитка с каменным покрытием

Сохранить в закладки 1601124679067:


Цена:99,37 ₽ - 386,42 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description






































































Product Type



Roma Stone Coated Roof Tiles



Length



1300mm



Width



420mm



Thickness



0.35mm, 0.4mm



Stone coating thickness



2mm



Weight



2.7kg/pc



Coverage Area



0.47m2



Color



Red, Green, Blue, Black, Grey, Brown etc.



Material



Zinc Aluminum Steel + Stone Chips



Application



Hotel/villa/school/factory/apartment etc



Design Style



Residential



Place of Origin



China



Brand Name



Yunda



Model Number



color stone - roma



Type



Plain Roof Tiles



Features



Waterproof, Fireproof, Windproof






20230412 1Color stone metal tile has weather resistance, moisture resistance, salt spray resistance, impactresistance, acid resistance, alkaline resistance, heat resistance, non-combustible properties.   Theproduct is made of aluminized zinc steel plate as the base material, and has multi-layer protectivefilm treatment, can withstand cold, hail, storm, rain and snow, and extreme heat, earthquake andother severe weather and natural disasters attack, will not therefore crack, aqinq, fire burning,wind lift, has a long service life.20230412 2





Detailed Images


20230412 320230412 4


Stone Coated Steel Roof Tiles is made of aluminum zinc plated steel plate as the base material,fingerprint resistant coating, color sand, acrylic resin. We offer Bond TileClassic Tile,Shingle TileRoman Tile,Milano Tile,Wood Tile,Spanish Tile Wave Tile,Interlocking Tile,Fish Scale.


20230412 5





Technology


20230412 6


Features
1. Waterproof
After using metal tiles, there is no need to worry about roof leakage. Metal tiles are roofing materials that can be safely used
in places where the rainy season lasts for a long time.
2. Convenience
Light weight, large area, simple accessories, easy to install and shorten construction time.
3. Wind resistance
The unique lap joint design makes the colored stone metal roof extremely adaptable to strong winds and sandstorms. It is also very
safe to use in typhoon or hail and strong wind areas.
4. Affordable
The coverage area of each colored stone metal tile is 6 times that of traditional tiles, and the weight is light, which makes
installation, handling and storage more time-saving and efficient. On the roof of the old building, there is no need to remove any
roofing materials, and the construction can be carried out directly, which minimizes the cost of waste disposal.


20230412 720230412 8








Company Information


20230412 10


Shandong Yunda New Material Co.,Ltd established in 2015 and located in Jinan city. With advanced automatic equipment, strong productive ability and a 16,000 square meter warehouse, our inventory of steel material allows Yunda to serve many industries through supplying stone color metal tile, nails, steel wire , accessories and other metallic and non-metallic materials .Shandong Yunda has introduced high-end energy-saving prefabricated building component production equipment with German technology, which has a high degree of intelligence and advanced process equipment. It is a professional roofing system supplier integrating research and development, production, sales and service. We focus on the production of stone color metal tile and other high-quality environmental protection building materials . Armed with 4 automatic production lines, the annual output is up to 5 million square meters now. At preferential prices , Shandong Yunda can supply bond tile, classic tile, shingle tile, rainbow tile, roman tile, milano tile, spanish tile, wood tile and other types of stone colour metal tile and accessories in 24 kinds of standard colors. Together with the tiles, other steel material including nails, steel wire had been exported to many countries and areas in Africa, South America, South-east Asia, Middle Asia, Europe and other areas.


20230412 9
































































  Test Report of the Stone Coated Steel Roof Tile



Testing Item



Technical Indicators and Test Results



Inspection Unit



Water resistance



After 24h test without anomolies



China's national building material testing center



Heat resistance



No abnormalities after 90℃*5h test



China's national building material testing center



Low temperature resistance



After -40℃*24h without anomalies



China's national building material testing center



Alkaline resistance



After 48h test without anomalies



China's national building material testing center



Acid resistance



After 48h test without anomalies



China's national building material testing center



Resistace salt spray



After 240h test without anomalies



China's national building material testing center



Cycle of freezing and thawing



After 20times test without anomalies



China's national building material testing center



Article weathering



After 1000h test without anomalies



China's national building material testing center





20230412 11





Material Introduction


Yunda New Material colored stone tiles use high-quality galvanized steel plates and basalt particles as raw materials, which have strong anti-corrosion properties and effectively prolong their service life.


1. Aluminum-zinc steel sheet (PPGL) is plated with 55% aluminum, 43.4% zinc and 1.6% silicon as protection coating .
2. Above the aluminum-zinc plating layer is fingerprint coating. It makes better appearance and also increase lifespan of the
tiles.
3. Colored stone granules is the surface decoration layer of metal tiles as well as the protection layer. It is made of basalt
particles which treated by high-temperature sintered ceramic process. The stone chips has more than 20 basic colors for optional
and customized is available as well. It creates an excellent aesthetic appearance on your roofs and with great protection on your
buildings as well. (Withstand ultraviolet radiation, reduce noise caused by rain water)
4. Acrylic resin is the key bonding material between the steel sheet and color stone chips, and also serves as a protective layer
on the surface to prevent rainwater from leaking into junction gaps, and extend the life span of color gravels.





Packaging & Shipping


20230412 12





FAQ


Q: Can I get a sample to check the quality?


A: Yes, free sample is provided, you just need to pay for the postage and it will be refunded in your mass order.





Q:Can I go to your factory to visit?


A:Of course, we welcome customers from all over the world to visit our factory.





Q:What product information do I need to provide?


A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.





Q:Does the product have quality inspection before loading?


A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed. we accept the third party inspection absolutely.





Q:How do we trust your company?


We specialise in steel business for years as golden supplier on Alibaba, headquarter locates in Jinan, Shandong province, you are


welcome to investigate in any ways, by all means, you could place an order in Alibaba with trade assurance which could secure your payment.





Q : Do you have MOQ request ?


A : Our MOQ is usually 1x20ft container.
