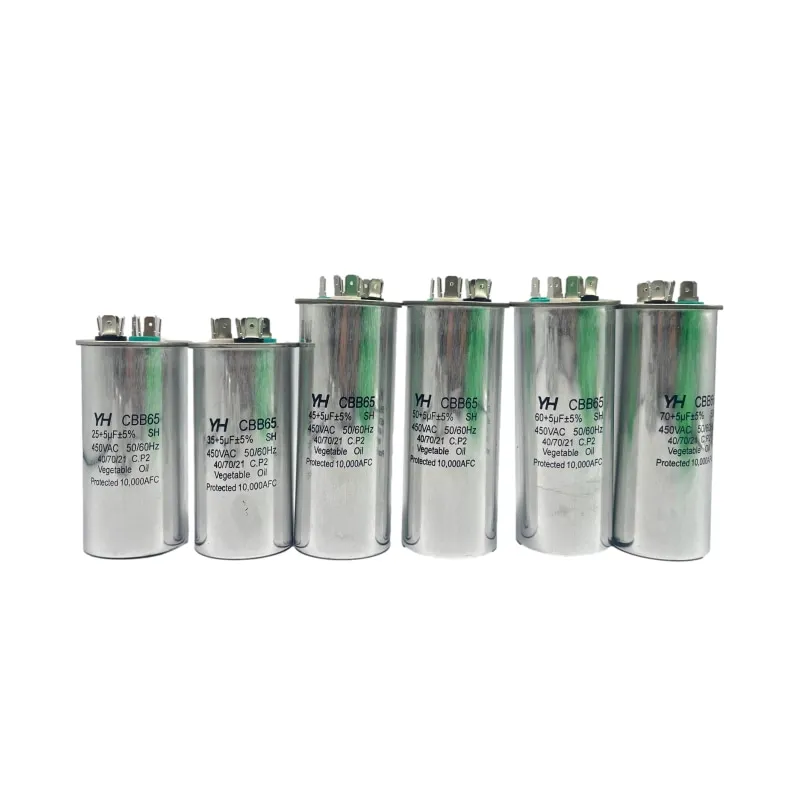

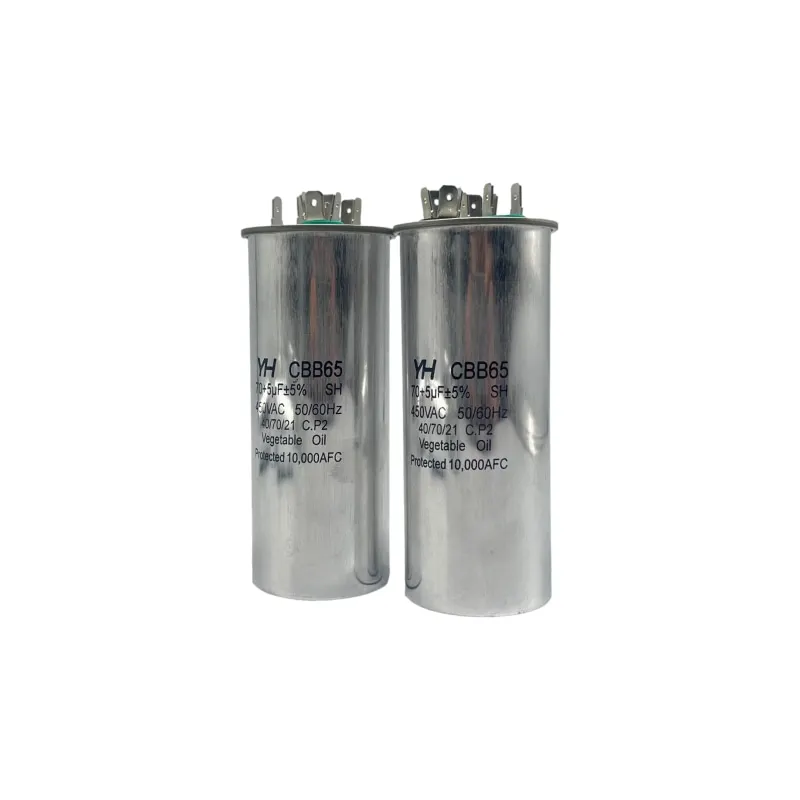

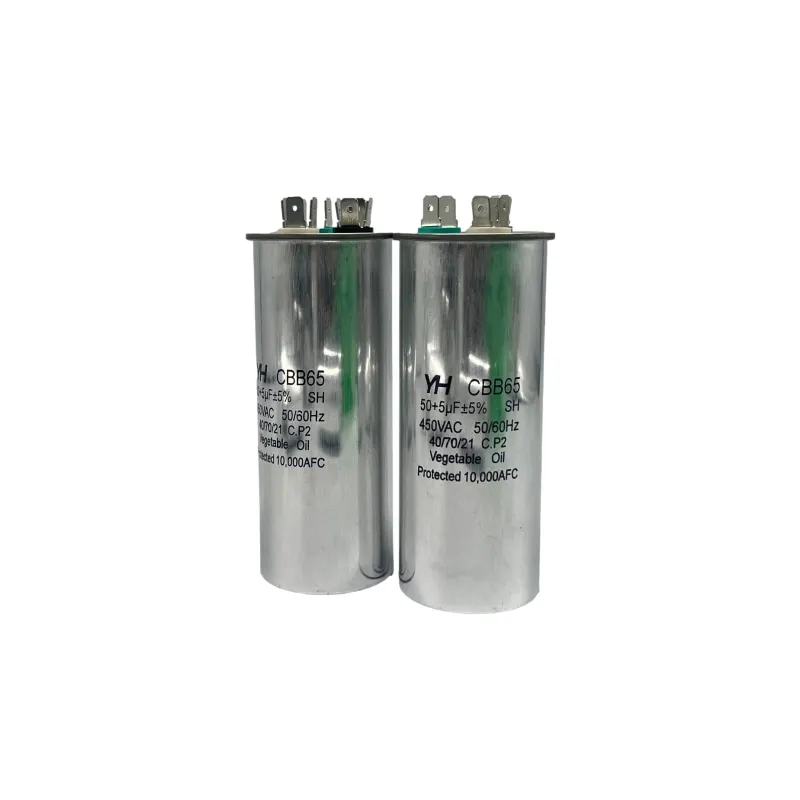

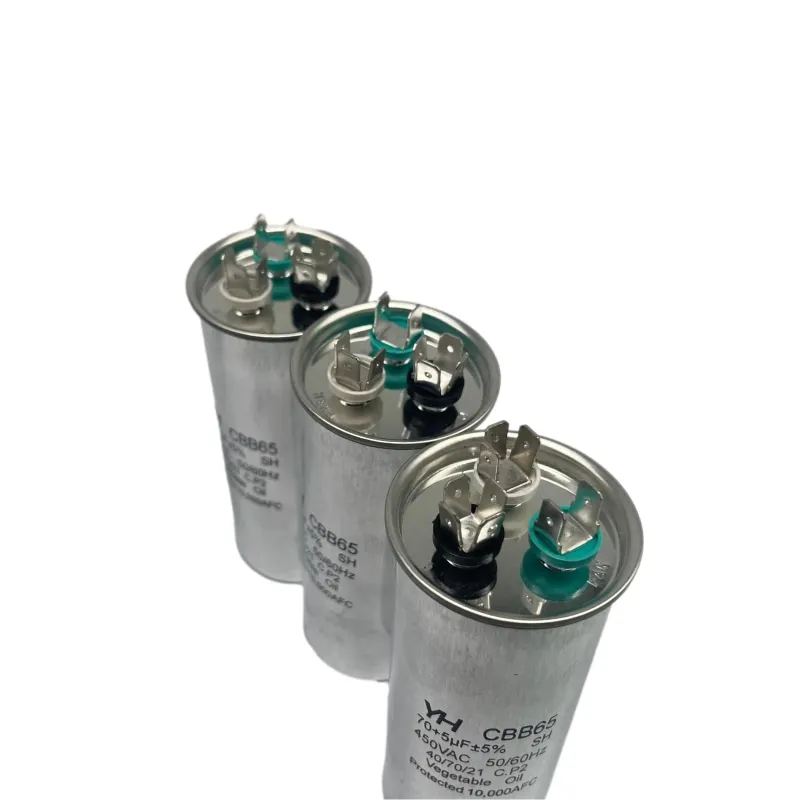

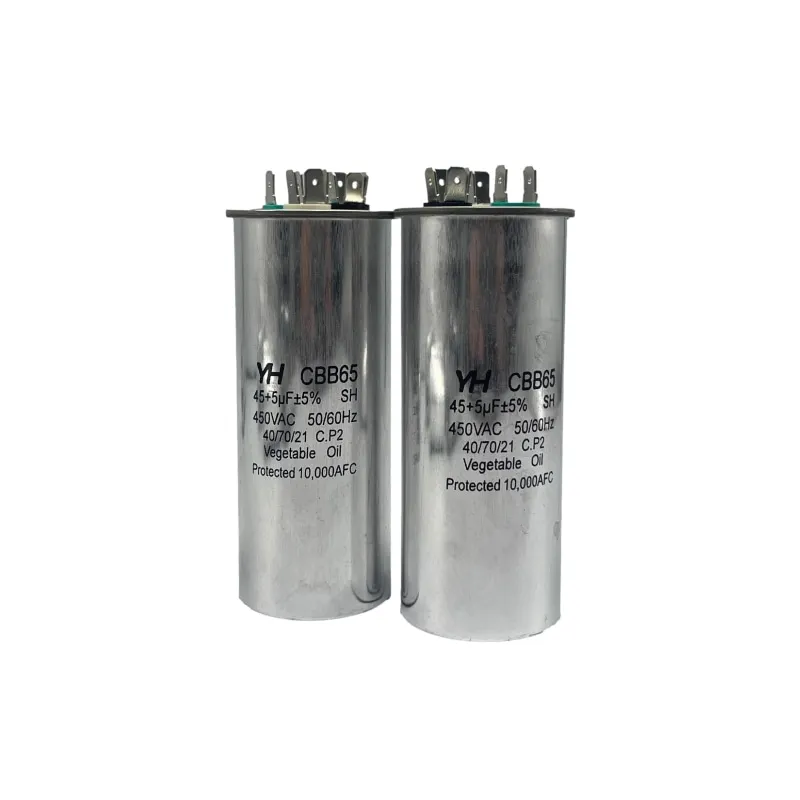

CBB 65 45uf Сплит конденсатор кондиционера
- Категория: >>>
- Поставщик: Xingtai Zunnan Electromechanical Equipment Co. Ltd.Xingtai Ltd.
Сохранить в закладки 1601124897497:
Описание и отзывы
Характеристики
Product Description
The capacitor has advantages of low dissipation,high insulation resistance ,good self-healing character,anti-striking
current,strong over-carrier capacity and steady electric performance ,and reliable safety with inner anti-explosion devicemetc.
current,strong over-carrier capacity and steady electric performance ,and reliable safety with inner anti-explosion devicemetc.
It is applied in air conditioning,refrigerator,motor,compressor,it is helpful for motor‘s starting and running.
Specification
TP CBB65-1 metalized polypropylence AC capacitor | ||
Ambient temperature | -40-+85℃ | |
Rated Voltage | 250-500VAC | |
Capacitance Range | 2-100uf | |
Test Voltage | T-T:1.75Un/2s T-C:2200VAC/2s | |
Capacitance Tolerance | ±5%,±10% | |
Dissipation Factor | tg<=0.002(100Hz,20℃) | |
Operating Frequency | 50/60Hz | |
Executing Standard | IEC60652,UL810,EN60252,VDE0560-8,GB/T3667,1-2005 | |
Outline Dimensions | ||||||||||||
Capacitance Range | 250-300VAC | 370-400VAC | 440-500VAC | |||||||||
D(mm) | H(mm) | D(mm) | H(mm) | D(mm) | H(mm) | |||||||
1-100uf | 30-50 | 55-125 | 30-60 | 55-125 | 30-60 | 55-135 | ||||||
TP CBB65-2 metalized polypropylence AC capacitor | ||||||||
Ambient temperature | -40-+85℃ | |||||||
Rated Voltage | 370-450VAC | |||||||
Capacitance Range | 1+1 -80+15uf | |||||||
Test Voltage | T-T:1.75Un/2s T-C:2200VAC/2s | |||||||
Capacitance Tolerance | ±5%,±10% | |||||||
Dissipation Factor | tg<=0.002(100Hz,20℃) | |||||||
Operating Frequency | 50/60Hz | |||||||
Executing Standard | IEC60652,UL810,EN60252,VDE0560-8,GB/T3667,1-2005 | |||||||
Outline Dimensions | ||||||||||||
Capacitance Range | 370-400VAC | 440-450VAC | 440-500VAC | |||||||||
D(mm) | H(mm) | D(mm) | H(mm) | D(mm) | H(mm) | |||||||
1+1 -80+15uf | 30-60 | 50-140 | 30-60 | 50-150 | 30-60 | 55-135 | ||||||
TP CBB65-Oval metalized polypropylence AC capacitor | ||||||||
Ambient temperature | -40-+85℃ | |||||||
Rated Voltage | 250-500VAC | |||||||
Capacitance Range | 5-100uf | |||||||
Test Voltage | T-T:1.75Un/2s T-C:2200VAC/2s | |||||||
Capacitance Tolerance | ±5%,±10% | |||||||
Dissipation Factor | tg<=0.002(100Hz,20℃) | |||||||
Operating Frequency | 50/60Hz | |||||||
Executing Standard | IEC60652,UL810,EN60252,VDE0560-8,GB/T3667,1-2005 | |||||||
Outline Dimensions | ||||||||||||||||||
Capacitance Range | 250-300VAC | 370-400VAC | 440-500VAC | |||||||||||||||
L(mm) | B(mm) | H(mm) | L(mm) | B(mm) | H(mm) | L(mm) | B(mm) | H(mm) | ||||||||||
1-100uf | 31.5-45 | 51.5-70.5 | 50-125 | 31.5-47.6 | 51.5-90 | 50-125 | 31.5-47.6 | 51.5-90 | 50-1 | |||||||||
Application
Product packaging
Company Profile
Xingtai Zunnan Electromechanical Equipment Co., Ltd. is a company specializing in the production and processing of refrigeration parts, electromechanical parts, water pump parts, washing machine parts, and other products, with a complete and scientific quality management system.. Welcome friends from all walks of life to visit, guide, and negotiate business.
Exhibition
FAQ
1. who are we?
We are based in Hebei, China, start from 2021,sell to South America(20.00%),North America(20.00%),Eastern Asia(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Refrigeration fittings,Mechanical and electrical accessories,wash machine accessories,Water pump accessories
4. why should you buy from us not from other suppliers?
Xingtai Zunnan Electromechanical Equipment Co., Ltd. is a company specializing in the production and processing of refrigeration parts, electromechanical parts, water pump parts, washing machine parts, and other products, with a complete and scientific qua
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Hebei, China, start from 2021,sell to South America(20.00%),North America(20.00%),Eastern Asia(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Refrigeration fittings,Mechanical and electrical accessories,wash machine accessories,Water pump accessories
4. why should you buy from us not from other suppliers?
Xingtai Zunnan Electromechanical Equipment Co., Ltd. is a company specializing in the production and processing of refrigeration parts, electromechanical parts, water pump parts, washing machine parts, and other products, with a complete and scientific qua
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
