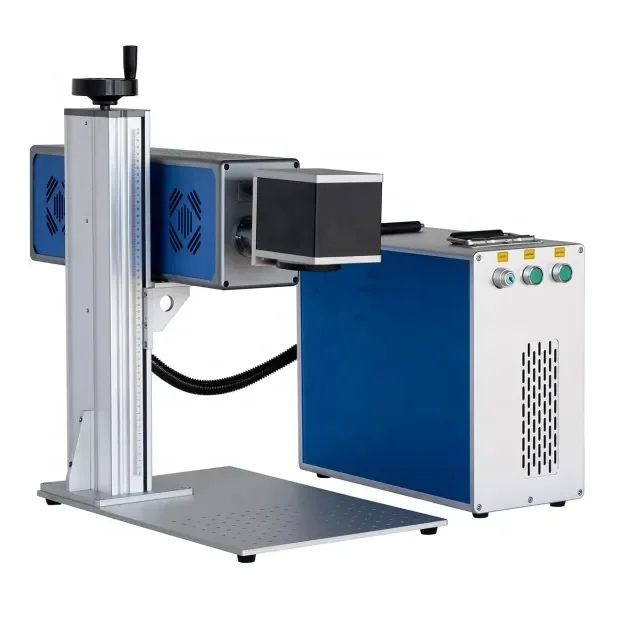

Лазерная маркировочная машина 30 Вт Synrad CO2 с высокоточным гальванометром и импортным объективом ZnSe

Лазерная маркировочная машина 30 Вт Synrad CO2 с высокоточным гальванометром и импортным объективом ZnSe

Категория: >>>
Поставщик: Liaocheng Ray Fine Technology Co. Ltd.Liaocheng Ltd.

Цена:5 000,00-5 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Machine features:

1.High-quality machine shell, widened column, all-aluminum manufacturing.
2.High-precision galvanometer, can be equipped with imported ZnSe field lens, the marking effect is more delicate and accurate.
3.The hollow body design is conducive to the heat dissipation of the CO2 laser RF tube and prolongs the service life of the
machine.
4.Fast delivery,easy to transport,could place on desk. Save your budget from delivery cost.
5.CO2 laser marking machines are mainly used for marking organic materials such as wood, paper, acrylic and leather. However, the
machine can also engrave on non-metal materials such as glass, leather, paper, acrylic and plastic.

Laser Source: The machine uses a (synrad) brand laser source.
Galvanometer: famous brand CO2 galvanometer, using the lens imported from the United States ZnSe materials and 6X laser beam expander.
More stable: We have widened the 17mm lifting column, making the machine stronger and more stable.
Components: All use of high-quality AC contactors, switches, power lines, sockets.

1.High-quality machine shell, widened column, all-aluminum manufacturing.
2.High-precision galvanometer, can be equipped with imported ZnSe field lens, the marking effect is more delicate and accurate.
3.The hollow body design is conducive to the heat dissipation of the CO2 laser RF tube and prolongs the service life of the
machine.
4.Fast delivery,easy to transport,could place on desk. Save your budget from delivery cost.
5.CO2 laser marking machines are mainly used for marking organic materials such as wood, paper, acrylic and leather. However, the machine can also engrave on non-metal materials such as glass, leather, paper, acrylic and plastic.

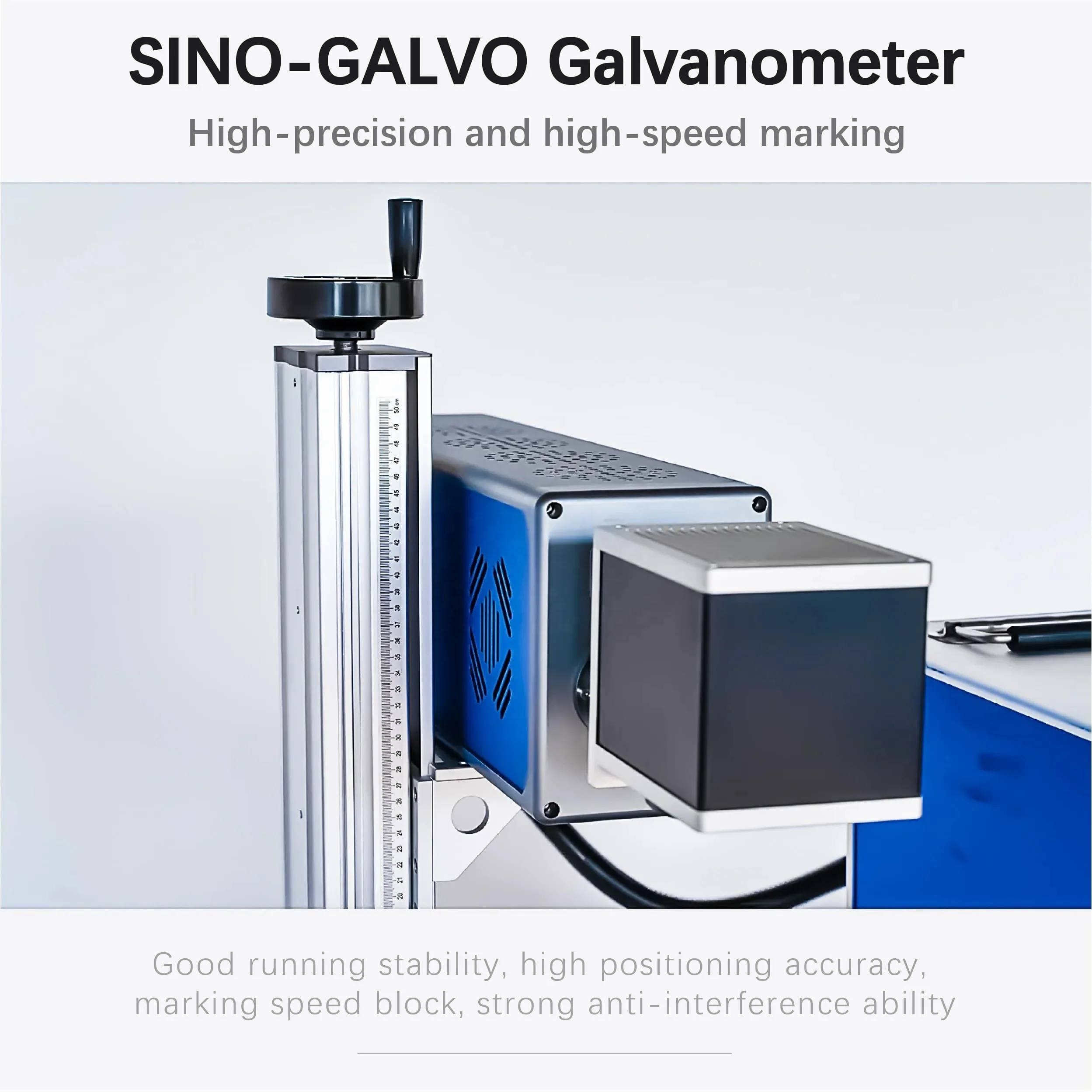

SINO-GALVO Galvanometer
High-precision and high-speed marking
Good running stability,high positioning accuracy,marking speed block, strong anti-interference ability

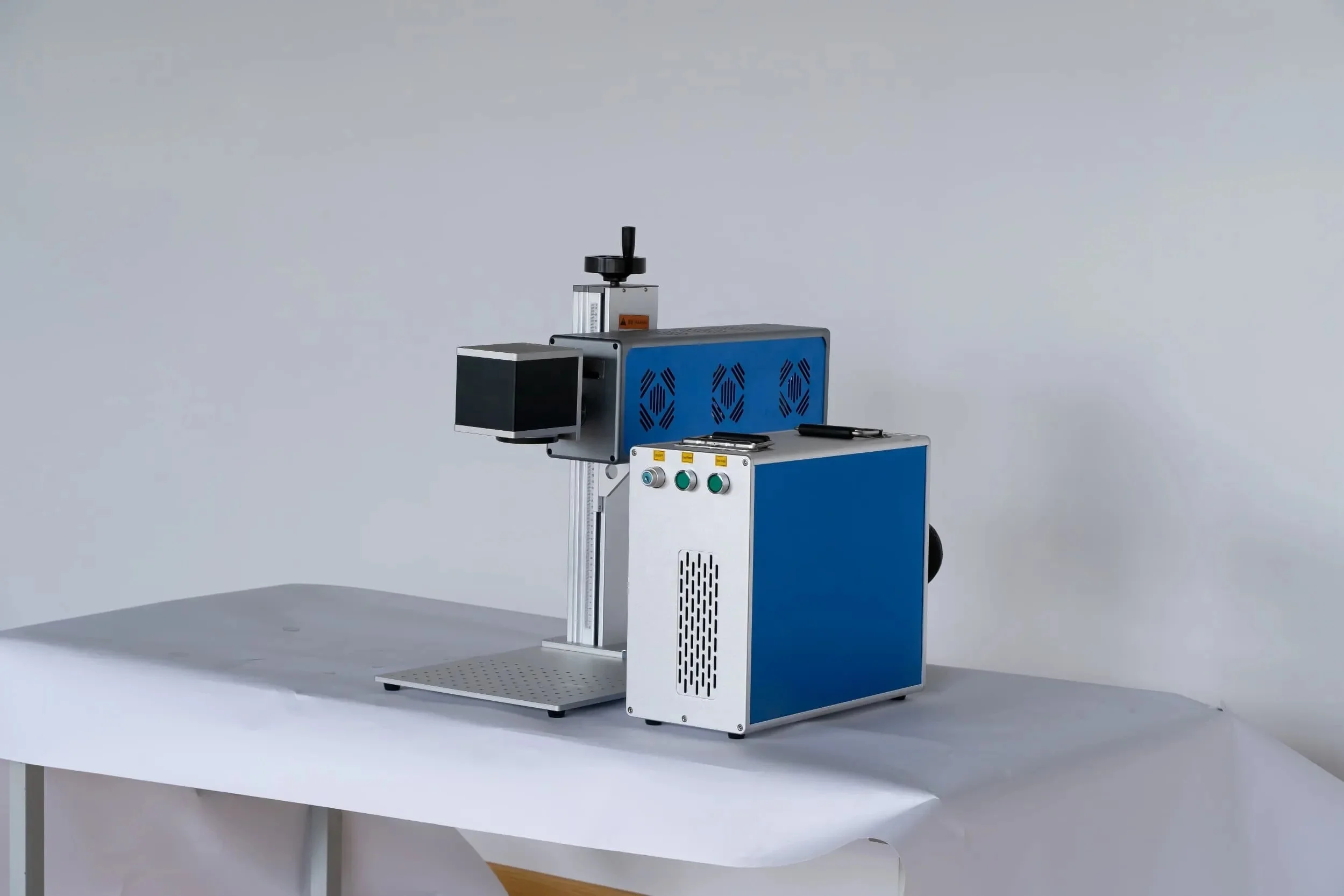

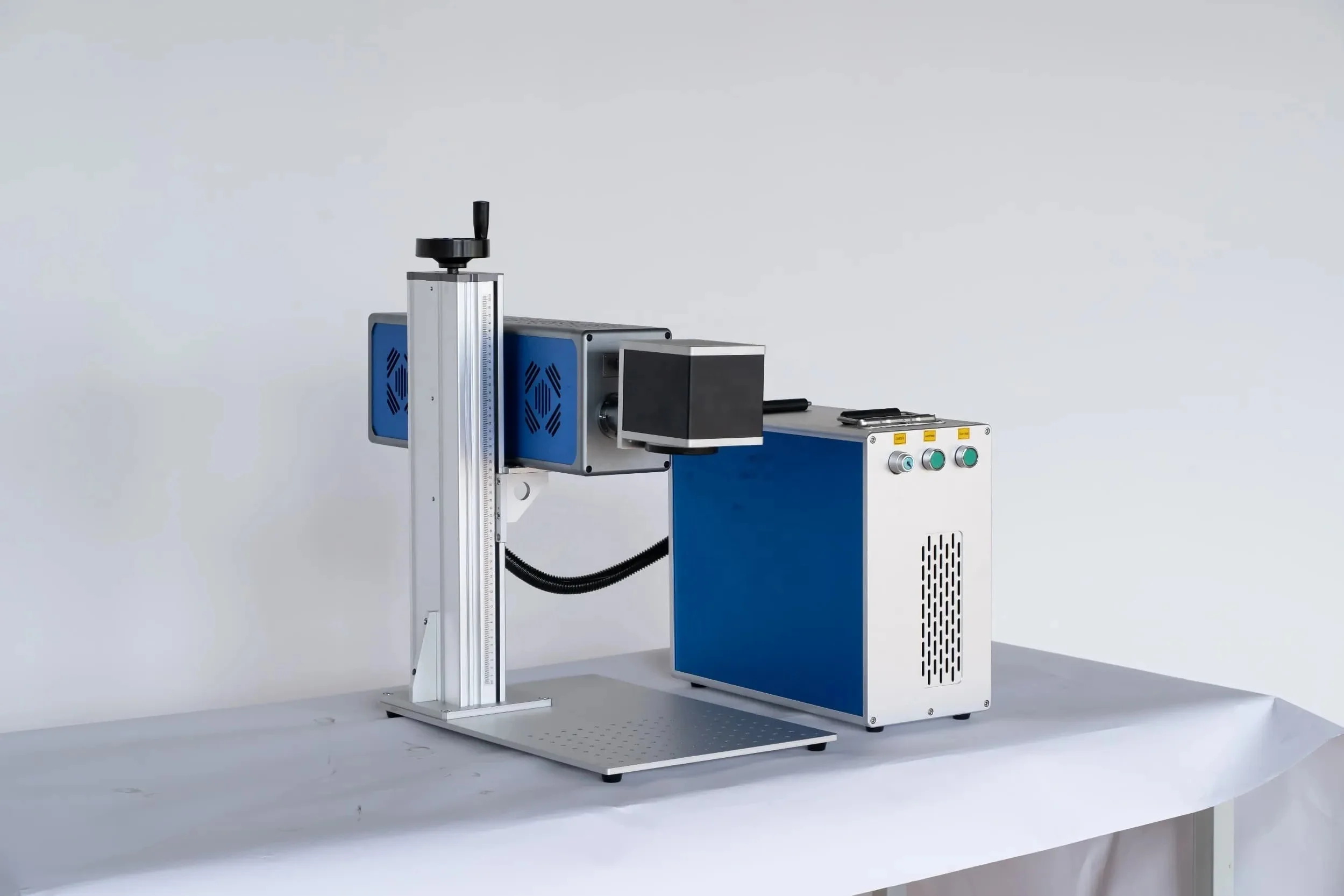

Real Image of the machine：novel color style design; high quality anodized aluminum case, split portable design, easy to transport;
Manual wheel Z-axis lifting system.

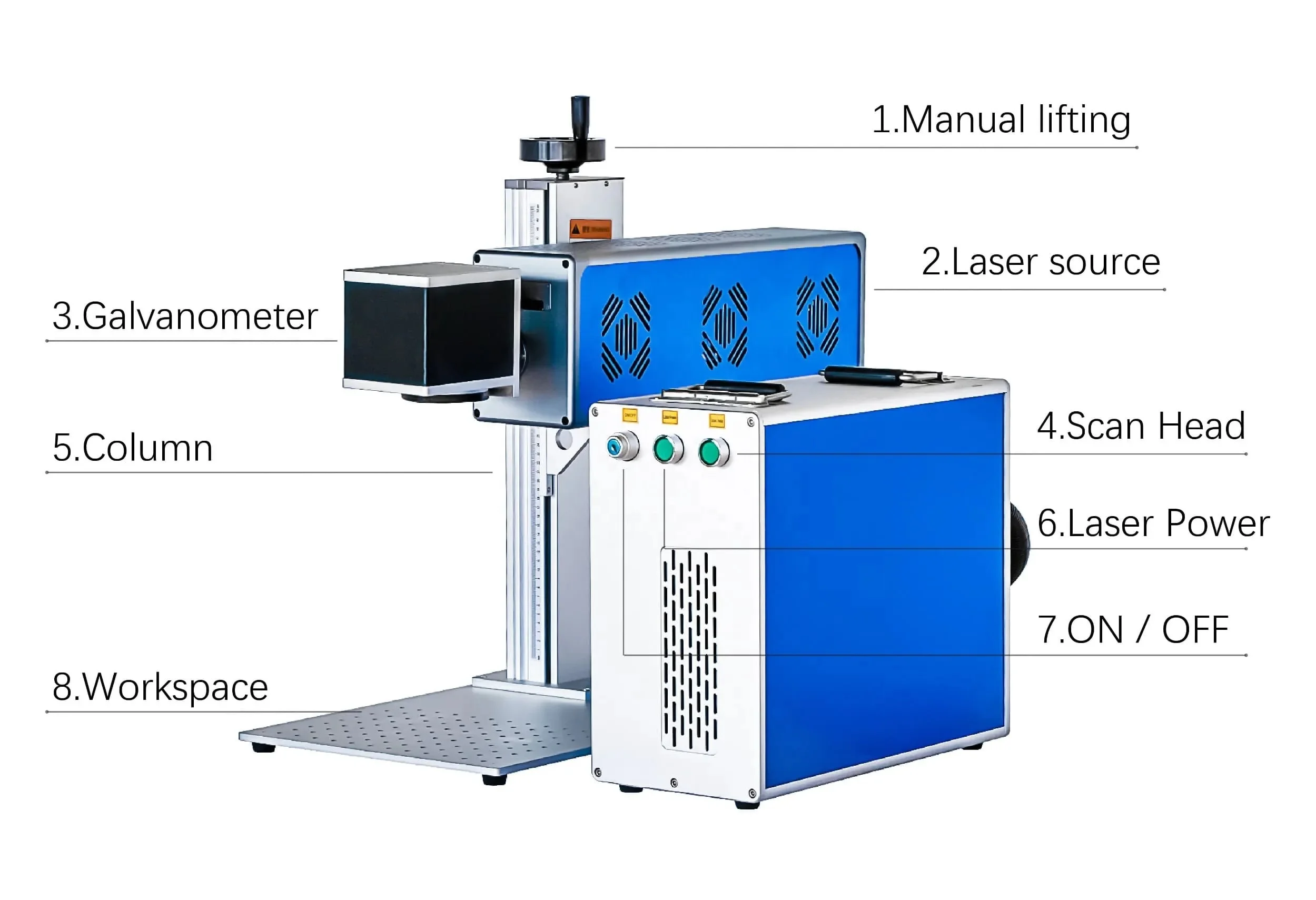

Configuration of the machine

SynradLaser source
- Superior beam quality, power stability and rugged reliability
- Industry leading compact size with integrated RF power supply
- High performance at wavelengths 10.6 µm
- Wide power range with constant wave (CW) or pulse width modulation (PWM) control
- High quality laser processing on a wide range of materials

EZCAD Control card
Genuine EZCAD control system compatible
with win7/8/10.
Stable motion control, laser control is correspondingly fast.

Galvanometer
- Superior beam quality, power stability and rugged reliability
- Industry leading compact size with integrated RF power supply
- High performance at wavelengths 10.6 µm
- Wide power range with constant wave (CW) or pulse width modulation (PWM) control
- High quality laser processing on a wide range of materials

Field Lens
Working near the focal plane of the objective lens can effectively reduce the detector size.
Improve the ability of the edge beam incident into the detector.
The standard is 110*110mm, and other models can be selected.

How to choose the field lens?
With Same Lens,The Higher Power,The Deeper Engrave
With Same Power,The Smaller Lens,The Deeper Engrave
Bigger Lens Engrave Bigger Area ,Smaller Lens Engrave Deeper Depth
Recommended:
20w Choose 70mm*70mm, 110mm*110mm
30w Choose 70mm*70mm, 110mm*110mm, 175mm*175mm
50w Choose 70mm*70mm, 110mm*110mm, 175mm*175mm,200mm*200mm,300mm*300mm.

Other Optional Accessories

Company Profile

key attributes

Model	RF-C-30W
Laser output power	30W
Laser source band	Synrad/DAVI
Laser wavelength	10.6μm
Laser beam quality	<1.2
Beam diameter(mm)	1.8mm±0.2mm
Beam divergence angle	<7.5±0.5mrad
Cooling type	Air cooling
Marking area	110110mm-300300mm(optional)
Marking depth	0-3.0mm
Power consumption	≤1000W
Graphic Format Supported	AI, PLT, DXF, BMP, JPG,PNG,Dst, Dwg, LAS, DXP
Certification	CE
Supply voltage	AC110V 60HZ / AC220V 50HZ
Weight	6.2KG/6.6KG

Application

Packing and Shipping

1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, Ruler, Envelope.

Shipping list	Name			QUANTITY
		1	Fiber Laser Marking Machine	1 set
		2	Inner Hexagon	1 pcs
		3	Foot Switch	1 pcs
		4	Power Cable	1 pcs
		5	USB Flash Drive	1 pcs
		6	Goggles	1 pcs
		7	Ruler	1 pcs
		8	Envelope	1 pcs

Our Service：

1 .Software is on update for free whole life.
2.Main parts be changed free of charge if there is any problem during the warranty period.
3.We will provide the consumable parts at an agency price.
4.We have user manual instruction and videos for software Installation, operation and machine's using and maintenance.
5.We will supply 24 hours online after service, and free technical support.
6.We debug the machine before shipment and carry out 12 hours working test to ensure the quality of the machine.
7.We offer the service, from you got the machine, including how to install the machine, how to use machine, how to let machine work,and so on.
