Интерфейс USB3.0 Tenveo VHD620A NDI 20x Zoom AI отслеживающая камера PTZ live streaming Конференц камера
- Категория: >>>
- Поставщик: Sz Tenveo Video Technology Co. Ltd.Sz Ltd.
Сохранить в закладки 1601125465405:
Описание и отзывы
Характеристики
Product Description
* FHD PTZ Conference Camera. Capture every detail and provide an immersive experience, 20x optical zoom with USB 3.0, HDMI, RJ45, SDI
* Smooth PTZ rotation. 350(±175) horizontally and 180(±90) vertically
* Multiple connections choices-USB 3.0, HDMI, RJ45, SDI . Effective distance-using recommended: USB-15m/49.21ft, HDMI-30m/98.42ft.
*Auto-tracking and auto-framing function: To locate the person in the image quickly.
*Optional NDI
Advantages
Product Parameters
Model No. | TEVO-VHD620A | |
Image Sensor | 1/2.8''SONY CMOS | |
Effective pixels | 2.07MP | |
Lens | f=4.6mm ~ 92mm | |
Aperture | F1.8 ~ F3.6 | |
Video Format | 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97 | |
Optical zoom | 20X optical zoom | |
Horizontal Angle | 62.3° ~ 3.46° | |
Vertical Angle | 36.1° ~ 1.29° | |
Diagonal Angle | 69.5° ~ 3.86° | |
Backlight Compensation | Support | |
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | |
Digital Zoom | 8X | |
PTZ Parameter | ||
Pan/Tilt Rotation | ±175°， -90°~+90° | |
Pan Control Speed | 0.1°/s～100°/s | |
Tilt Control Speed | 0.1-80°/Sec | |
Preset Number | 255 presets by Pelco D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller) | |
SNR | >50dB | |
Focus | Auto/Manual | |
General Parameter | ||
Operation Systems | Windows 7/8.1/10/11; Andriod, Mac OS 10.10 or higherLinux(Require to support UVC) | |
Input Voltage | DC 12V | |
Input Current | 1.0A(max.) | |
Power Consumption | 13W(max.) | |
Store Temperature | -10℃~+60℃ | |
Store Humidity | 20%~90% | |
Working Temperature | -10℃~+50℃ | |
Working Humidity | 20%~80% | |

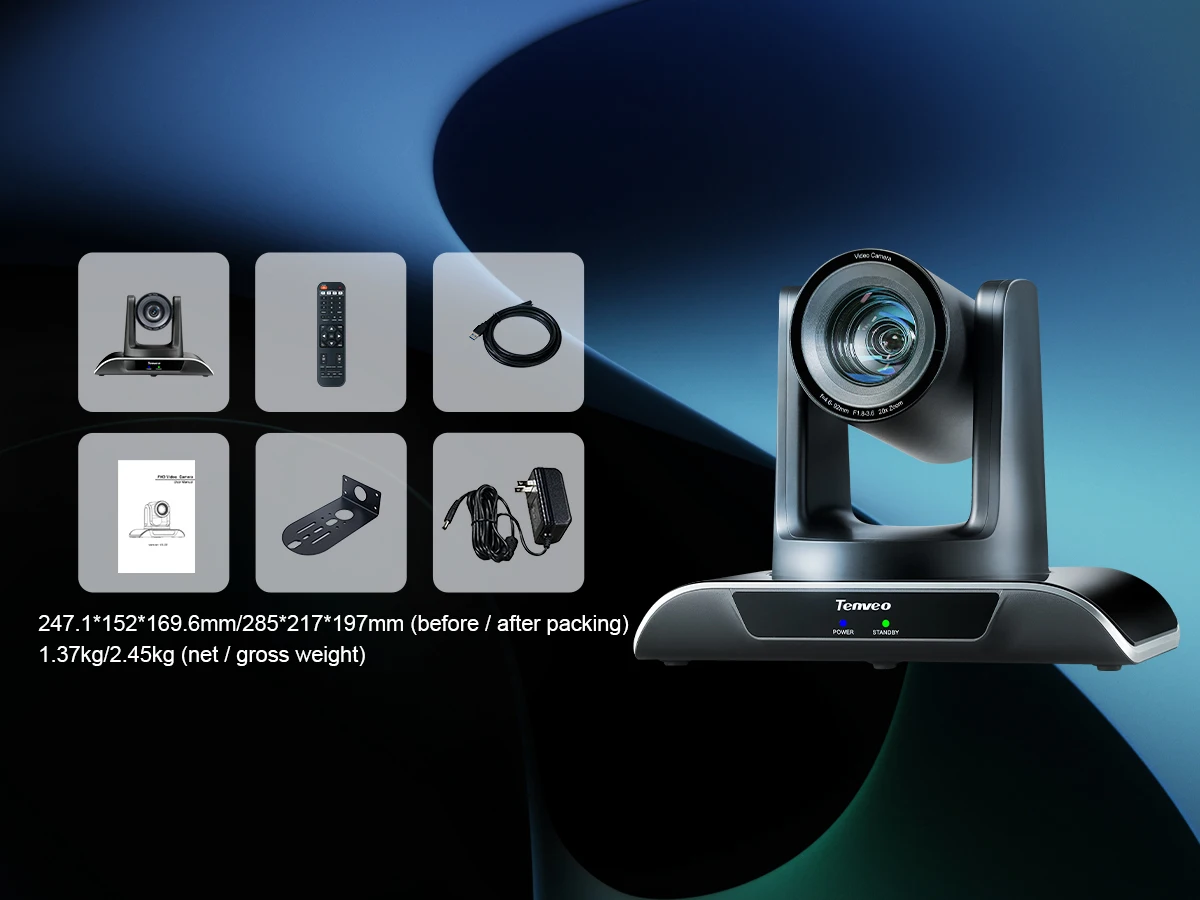

Dimension | 260*217*197mm(After Packing) | |
N.W./G.W. | 1.5kg/2.5kg | |
Accessory | 1*camera, 1*USB cable, 1* powder adapter, 1*wall mount, 1* manual | |
Warranty | 3 years | |
I/O Interface | ||

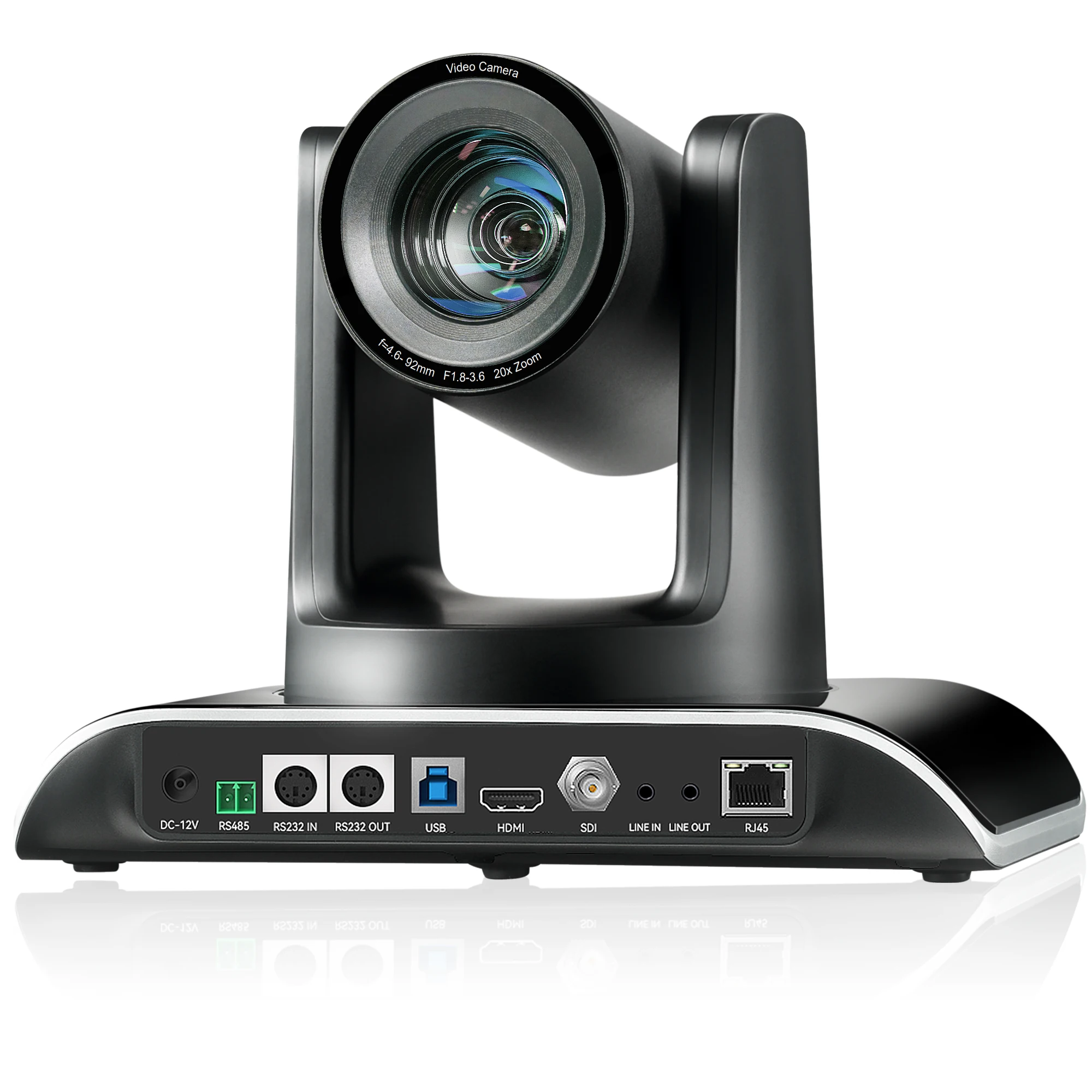

Video interfaces | USB 3.0, HDMI, RJ45, SDI | |
Video Compression Format | H.264, H.265, MJPG, YUV2 | |

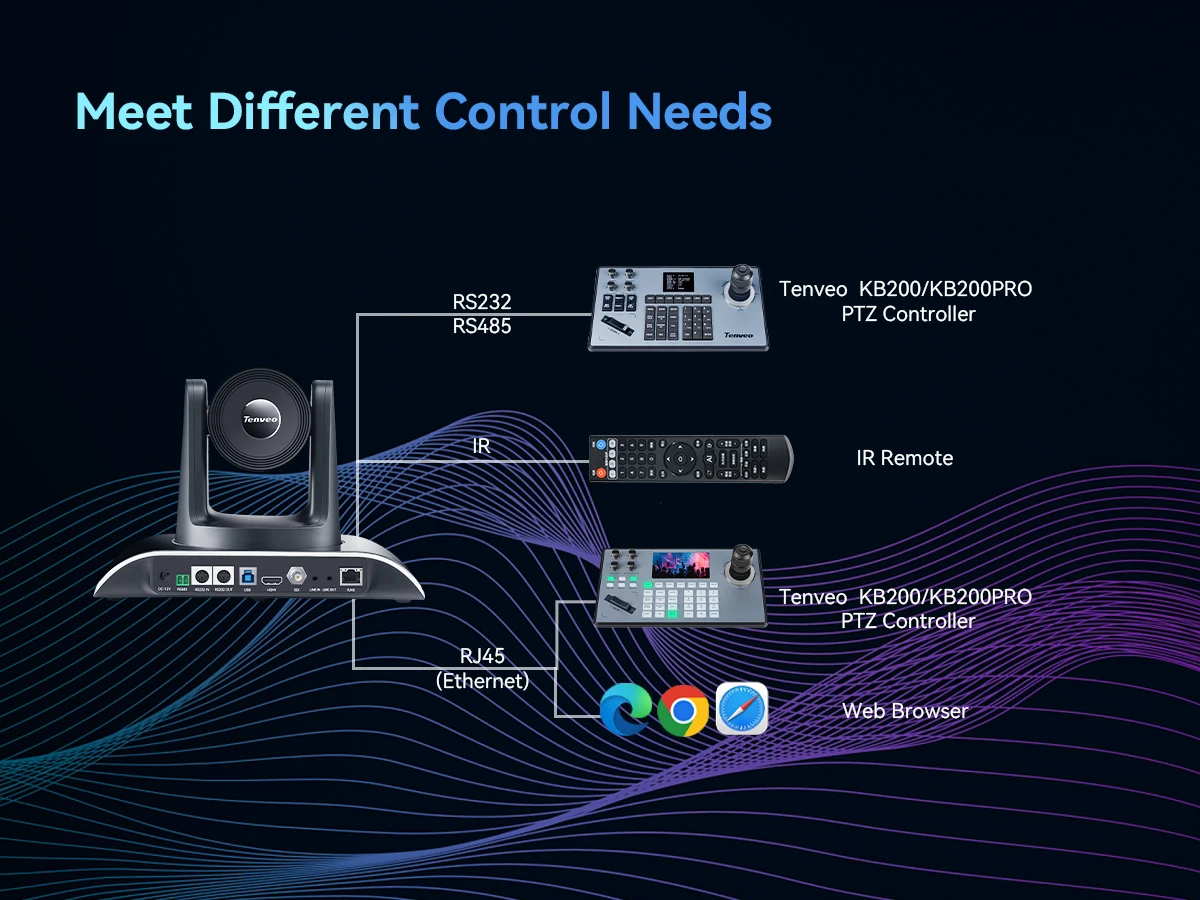

Control Protocol | VISCA/Pelco-D, Pelco-P; Baud Rate: 9600/4800/38400/2400 | |
Control Interface | RS232(Input & Output), RS485, Type-C(UVC1.1) | |
Digital Noise Reduction | 2D&3D Noise Reduction | |
Exposure | Auto/Manual | |
PoE | Support | |
IPC Features | ||
Video Encoding Format | H.264/H.265/MJPG | |
Video Stream | Main Stream, Sub Stream | |
Main Stream Resolution | 1920x1080, 1280x720, 1024x576 , 940x540,etc. | |
Sub Stream Resolution | 1280x720, 1024x576, 720x480, 720x408,etc. | |
Video Bit Rate | 32Kbps ~ 102400Kbps | |
Bit Rate Type | Variable Rate, Fixed Rate | |
Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps | |
Audio Compression | AAC | |
Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps | |
Network Protocol | NDI |HX2,SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. | |
Application Scenarios & Installations
Product Packaging & Shipping
Company Profile
FAQ
Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,label,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,label,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
Contact us
Contact: Jia H Zhu
Company name: Sz Tenveo VideoTechnology Co., LTD
Tel: +86 17791936576
Tel: +86 17791936576
Email: info@tenveo.com
Website: www.tenveo.com
Address: Longhua District, Shenzhen, China
Похожие товары
Все в одном динамик трансляция и конференц-камера ip-360 камера Конференц-камера
Оригинальное приспособление Logitech RoomMate CollabOS для поддержки Конференц-камер и периферийных устройств помещений
109 658,71-114 427,00 ₽
Новое поступление 15 6 дюймовый моторизованный монитор система для конференций
23 245,41-26 821,62 ₽
Новое поступление 15 6 дюймовый моторизованный монитор система для конференций
23 245,41-26 821,62 ₽

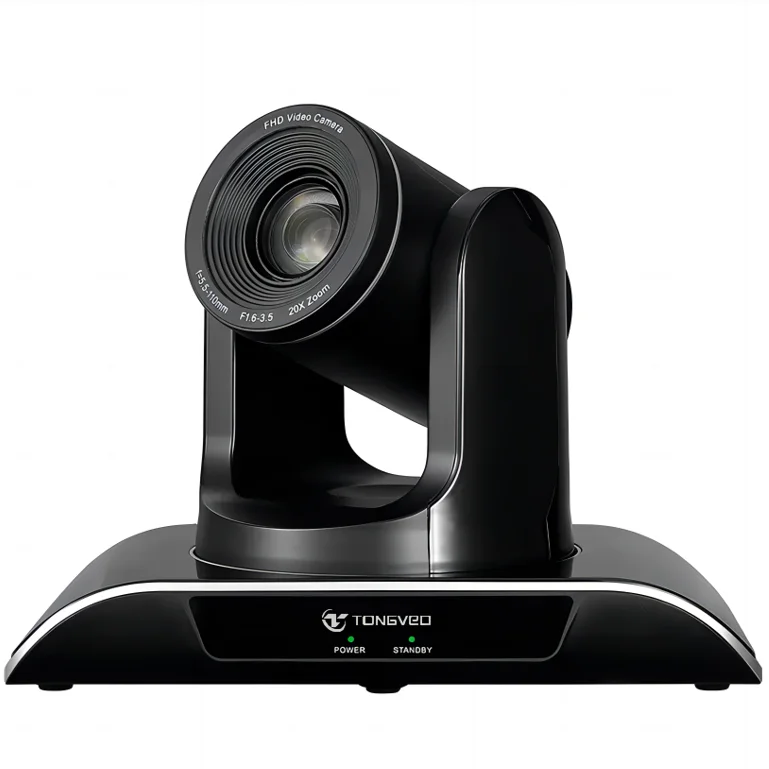

Камера видеоконференцсвязи TONGVEO Pro с 20-кратным увеличением
22 530,17-29 682,60 ₽
USB-камера для видеоконференций концентратор и громкая связь совместим с системой микрофона конференц-зала
78 557,55-90 478,27 ₽

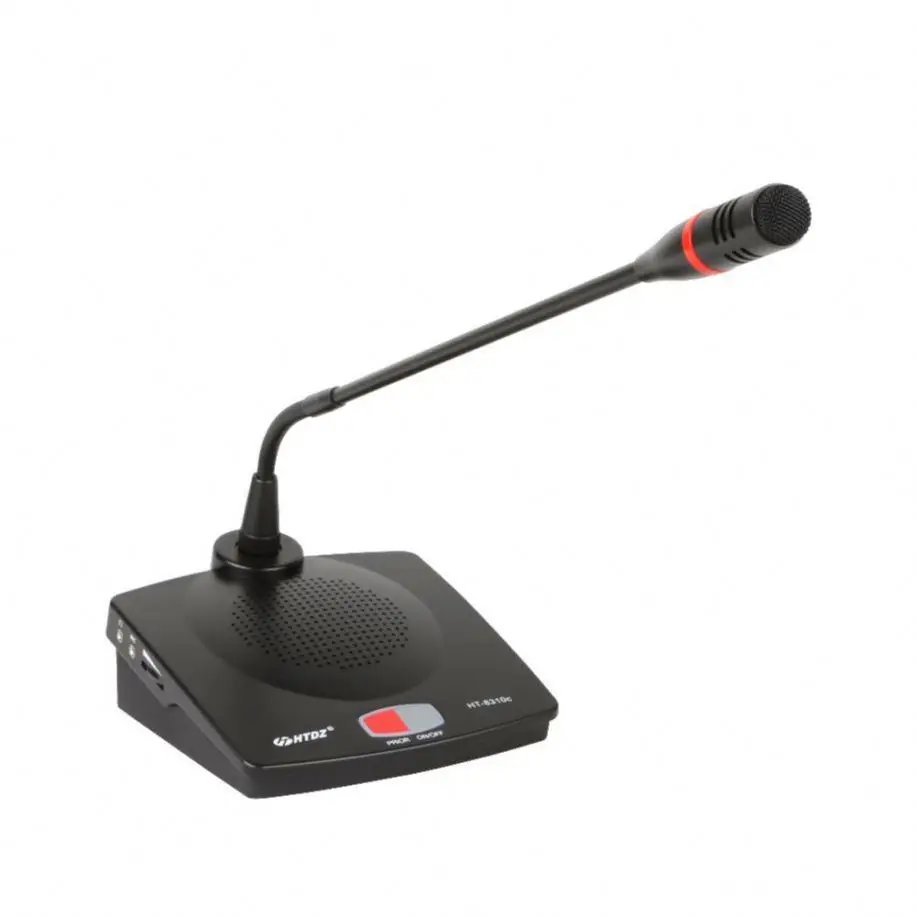

Проводной микрофон для конференц-связи с блоком делегата записью USB
