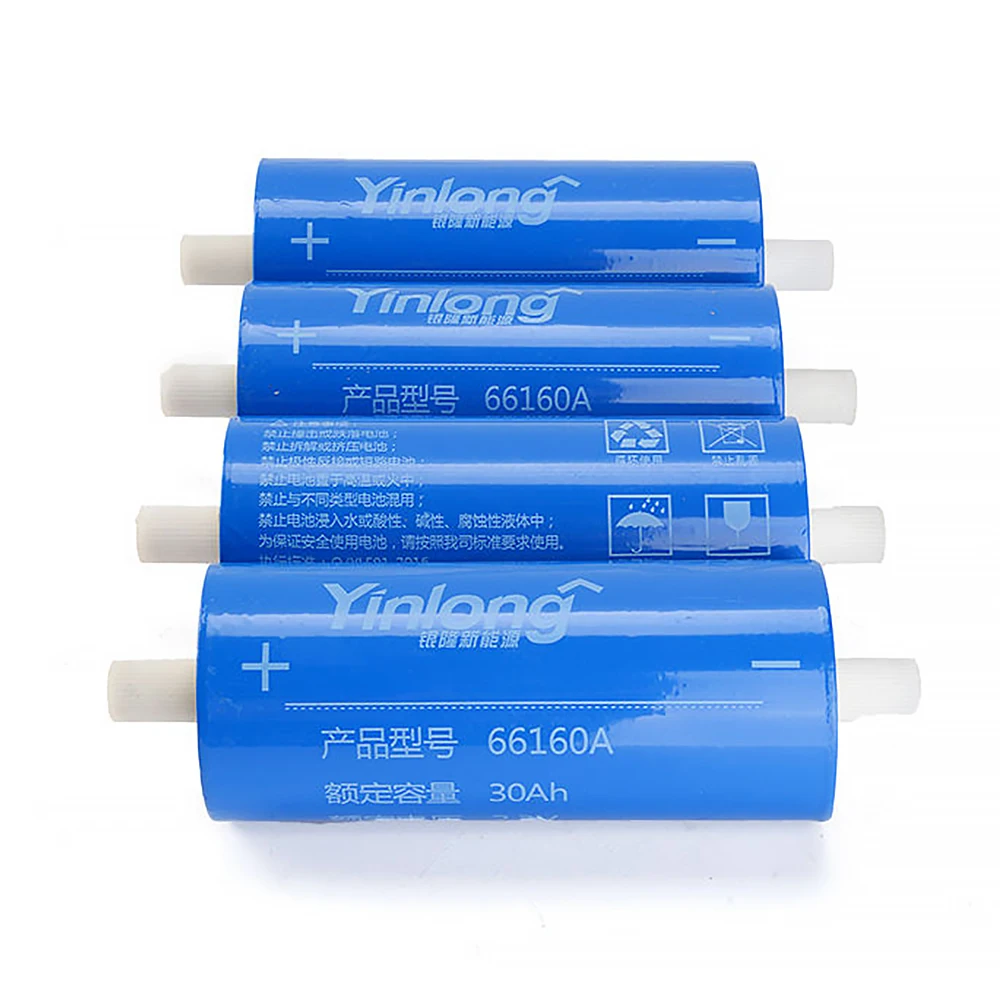

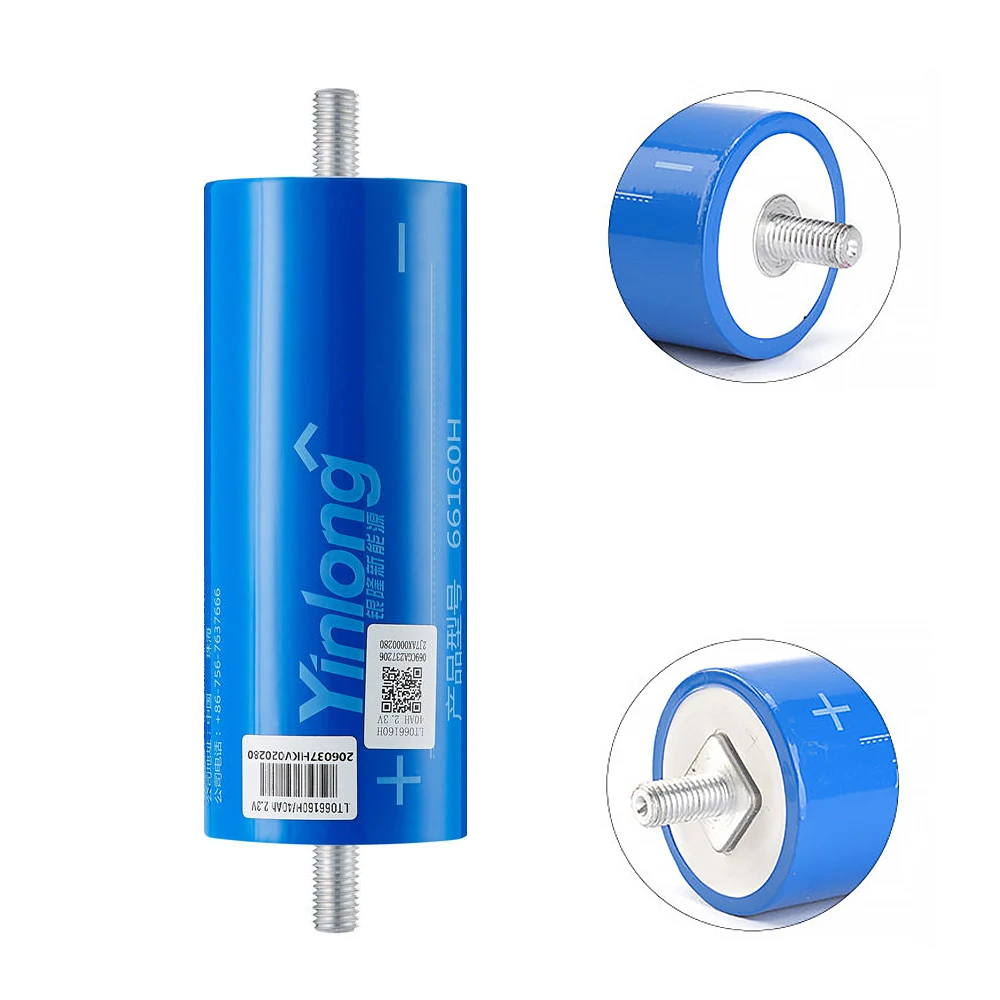

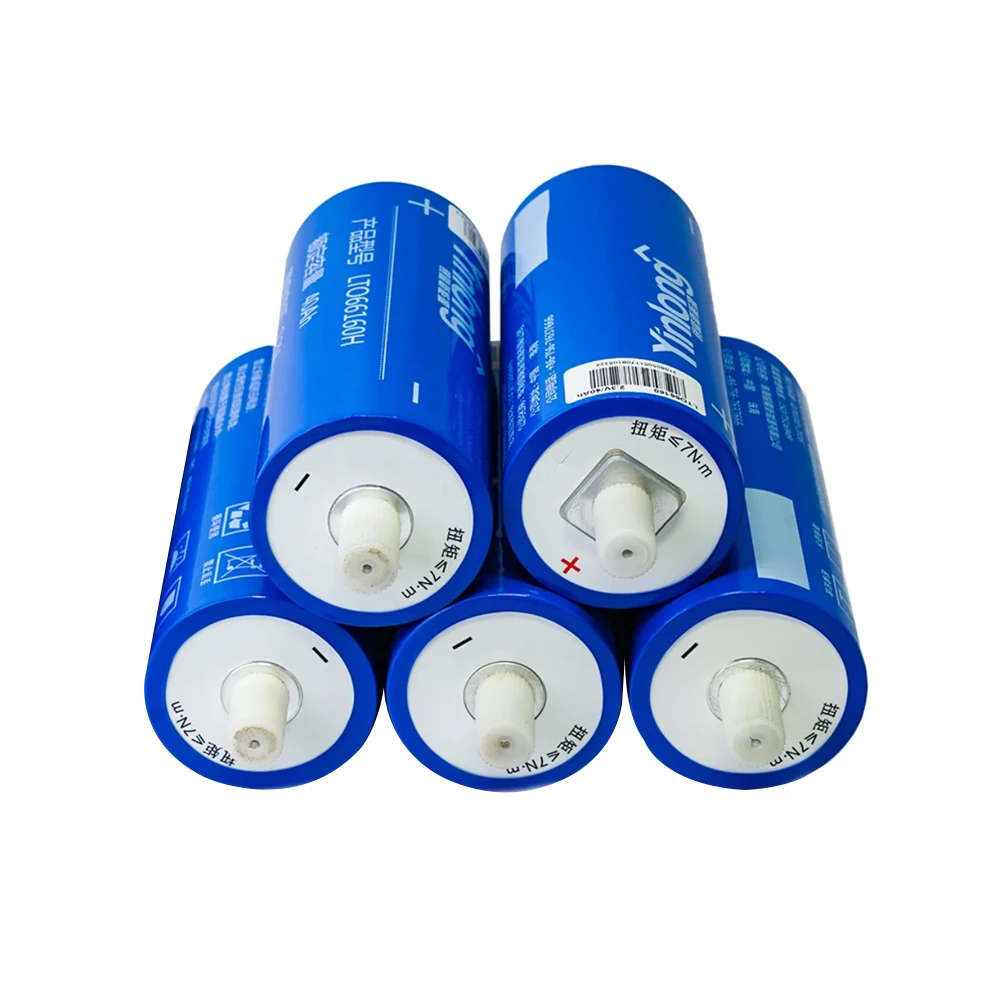

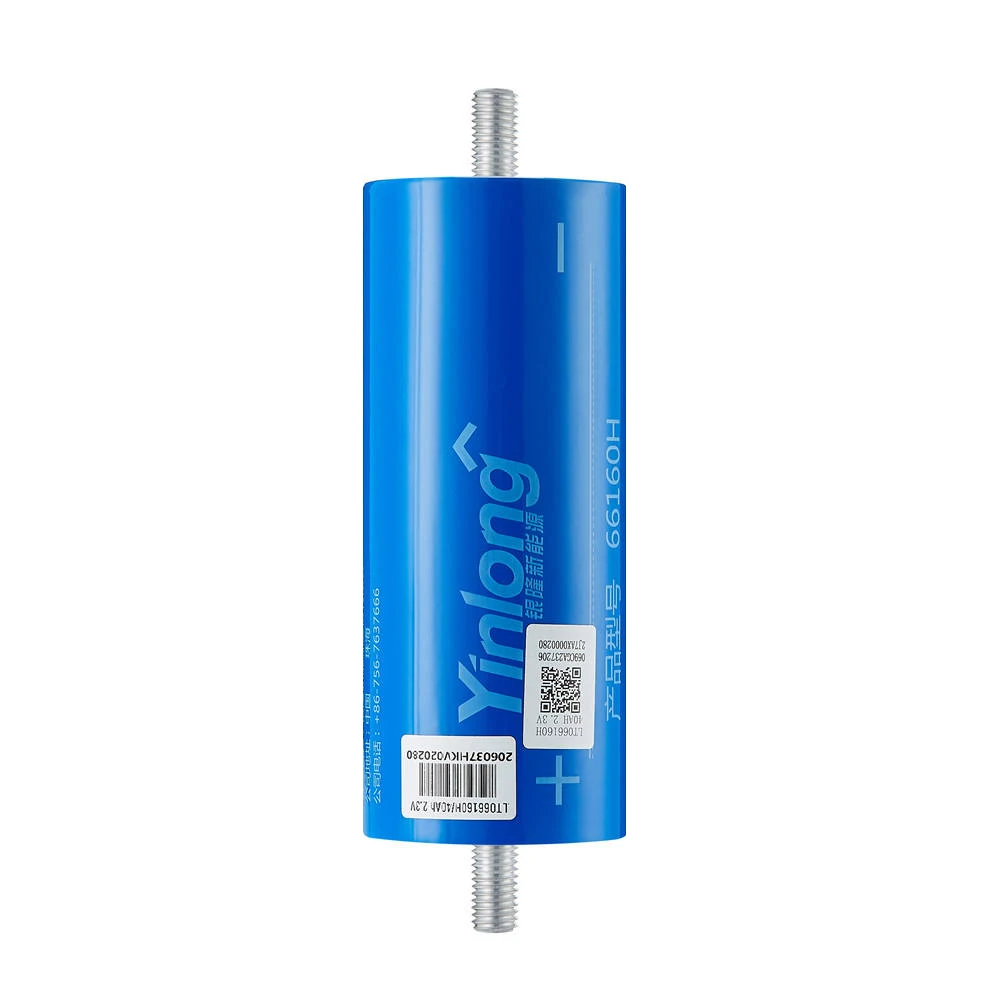

Yinglong 66160h LTO 40Ah Lithium iron Titanate Battery
Brand
Yinglong
Capacity
30AH 35AH 40AH 45AH
Operating Voltage
1.5V~2.9V
Maximum Charge Voltage
2.9V
Charging Current
10C
Max. Continuous Discharging Current: 20C
Internal Impedance
≤1.0mΩ (Internal resistance measured at AC 1kHz after 50% charged.)
Standard Charge Method
Constant Current and Constant Voltage (CC/CV) ; 1C /25±2℃
Maximum Charge Current
Standard 1C ; Max 6C (25±2℃)
Standard Discharge
Continues 1C ; Max 10C (10S) T = 25℃
Maximum Working Temperature
-40~+60℃
Cycle Life
16000th cycle ≥80% of 1st Capacity

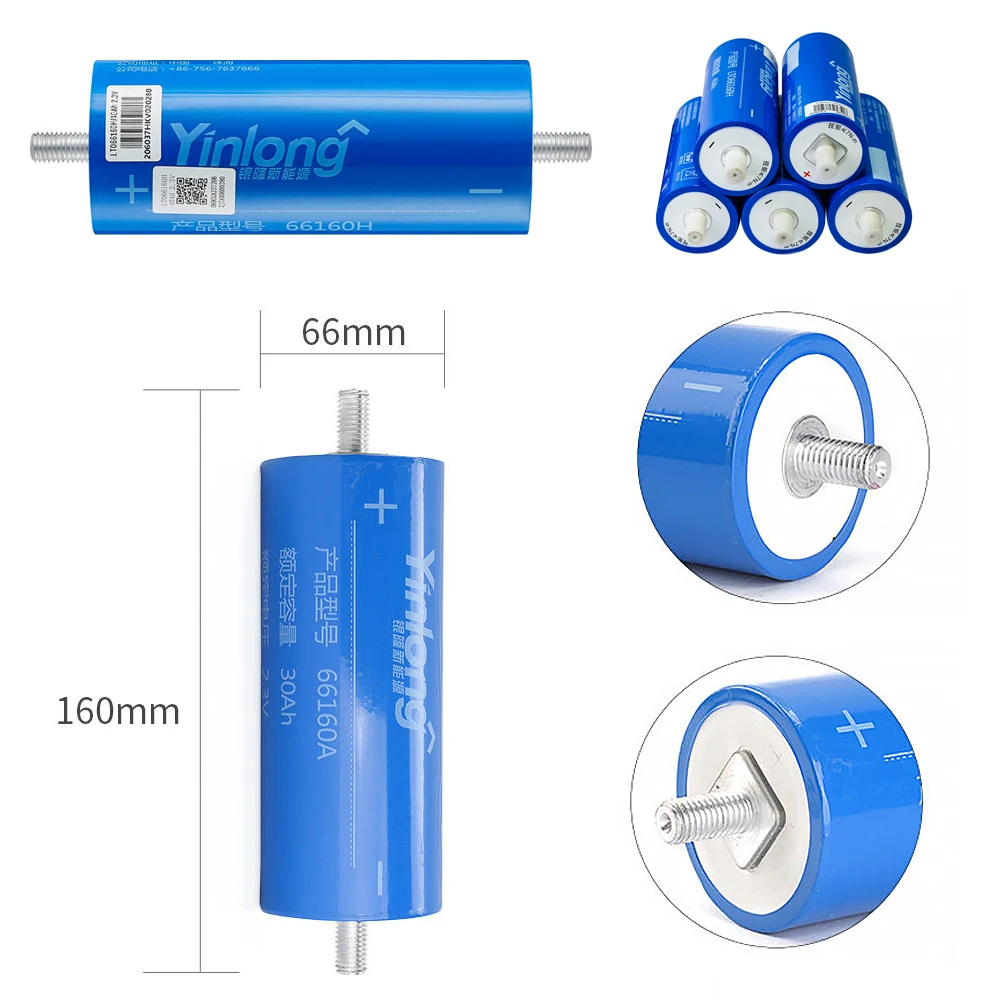

Cell Size
66mm*160mm ; 209mm includng the pole nut
Cell Weight
≤1.25Kg
Usage
Electric Car, Electric Bike, Various EV Applications
Guarantee Period of Quality
The guarantee period of quality extend for 12 months after shipping. Blue Whale,Ltd would replace battery which due to the manufacturing problems and it is not abnormal use, if the battery appears during the abnormal situation
