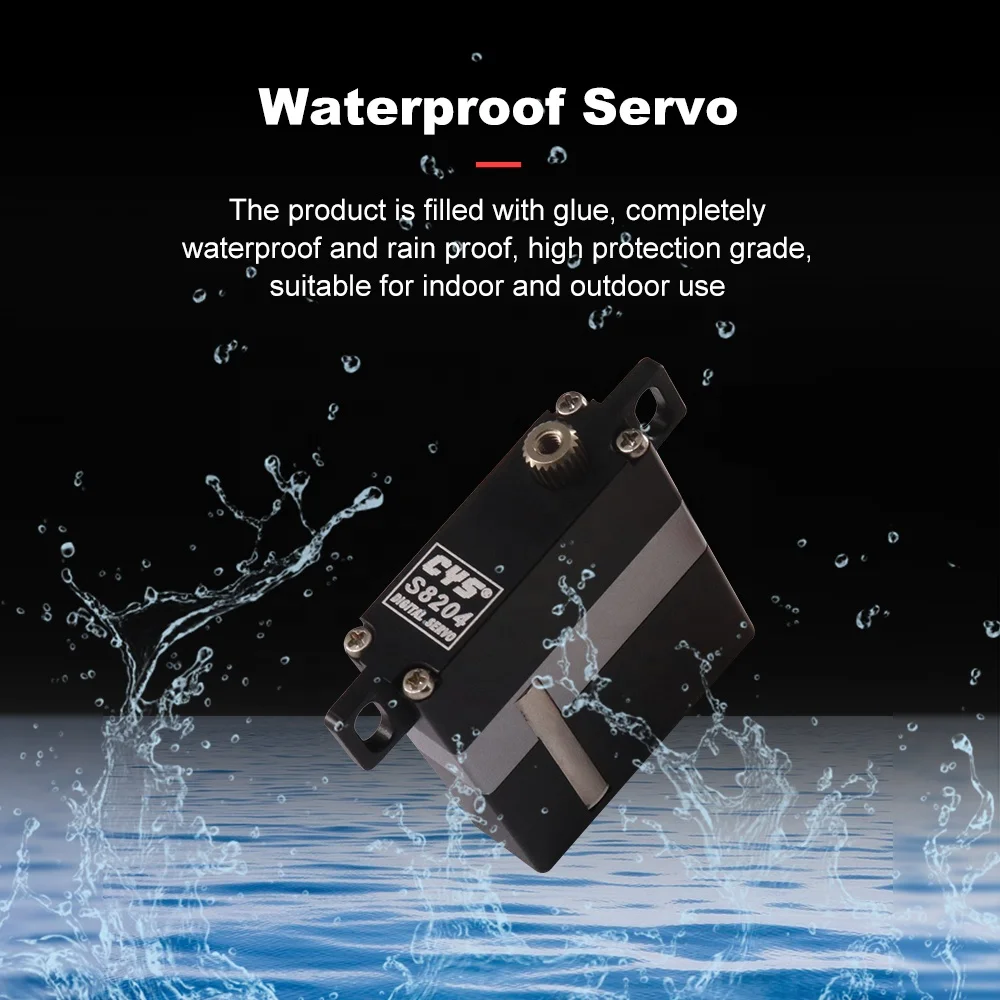

Игрушечный двигатель полностью металлический сервопривод 6 кг

Сохранить в закладки 1601125570740:


Цена:20,00-26,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

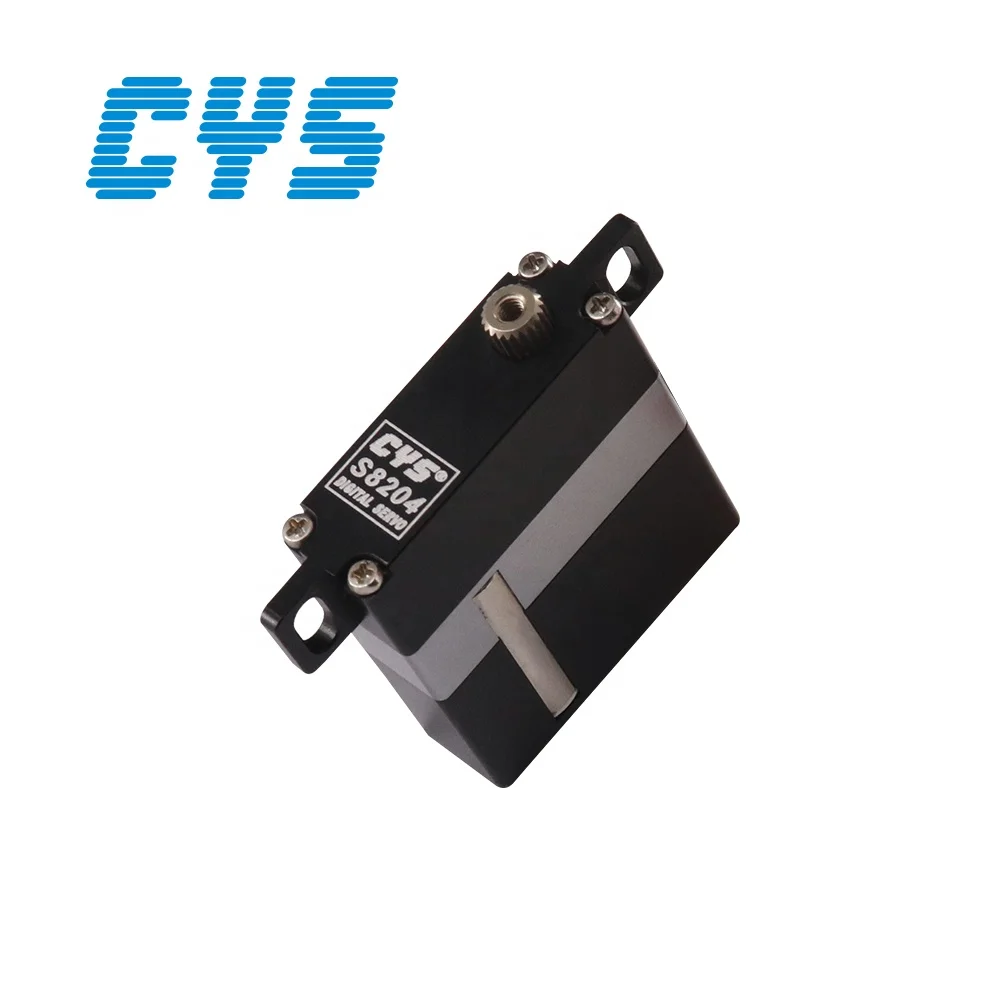

High Operating Speed 6 kg.cm Stall Torque Full Metal Gear Super Slim Digital Coreless Motor Servo with Flat Shape for Fixed Wing









Product Paramenters




















































































Item No.


CYS-S8204


Control Type


Digital


Gear Type


Titanize


Weight


28g±1g

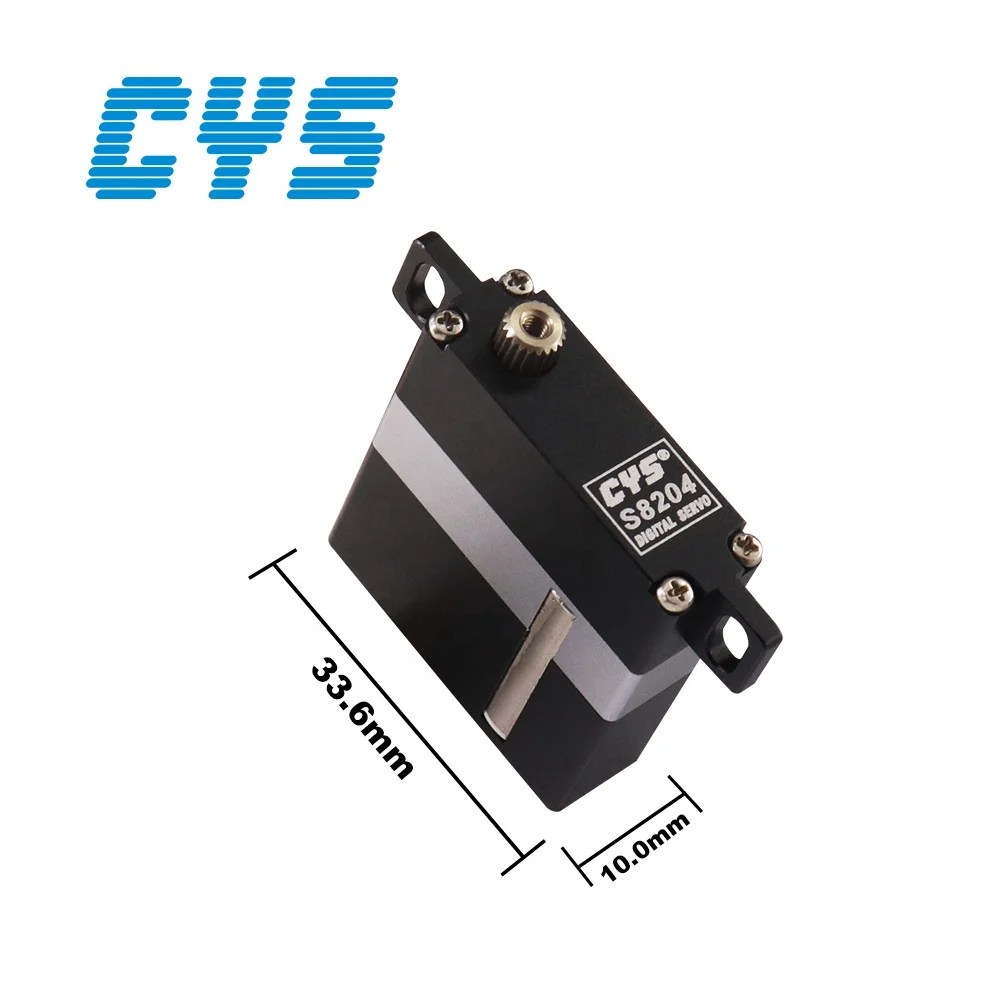

Size


33.6x10x30mm


Control System


(+)Pulse Width Control 1500μsec Neutral


Operating Voltage


6.0V-7.4V


Operating Temperature Range


-10 °C ~ +50 °C


Operating Speed @ 6.0V-7.4V


0.12 sec/60° - 0.10 sec/60° at no load


Stall Torque @ 6.0V -7.4V


4.5 kg.cm - 6.0 kg.cm


Current Drain (6.0V)


20mA/idle and 100mA no load operating


Current Drain (7.4V)


20mA/idle and 120mA no load operating


Stall Current


1.6A/1.8A


Dead Band Width


3μsec


Bearing Type


Double Ball Bearing


Motor Type


Coreless


Horn Gear Spline


25T


Cable/Plug


250mm/JR


Wire Information


Brown(N) Red (P) Orange(S)

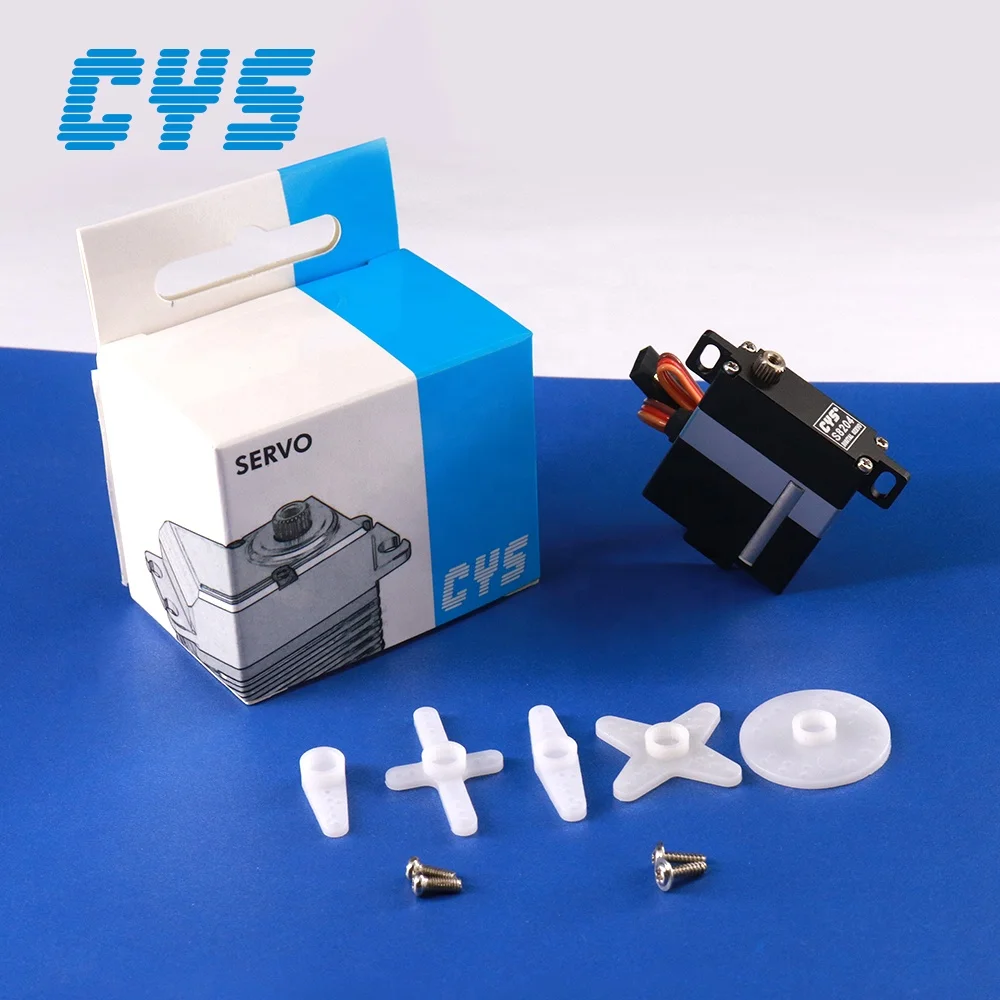

Details Images
