Солнечные панели для камеры с низким энергопотреблением 20 Вт 30 А · ч
5 482,42 ₽ - 6 140,32 ₽
Умная солнечная энергетическая система 12 В выход все в одном комплект 100 W60AH солнечные изделия комплекты для камеры видеонаблюдения радио
- Категория: >>>
- Поставщик: Shandong Xiyuan Solar Energy Co. Ltd.
Сохранить в закладки 1601126264650:
Описание и отзывы
Характеристики
Product Description
Product Name | all in one 100w60ah dc 12v output solar power system |
Solar panel | 100w 18v mono solar panel |
Solar panel size | 830*670*30mm |
Solar panel weight | 5.5kg |
Battery type | Ternary lithium polymer battery (inside all-in-one bracket) |
Battery capacity | 12V 60ah |
Max pulse discharge current | 40A |
Battery weight | 3.8kg |
Solar controller type | PWM (inside all-in-one bracket) |
System voltage | 12V |
USB output | 5V/2A |
Solar controller size | 190*170*135mm |
U-type hoop | 8-14 U-type hoop |
Package size | 900*725*285mm |
Package weight | 22kg |
Low cost solar power system
This solar system is equipped with 100W solar panel, 60AH lithium battery and PWM charge controller. Default output of this system is 12V DC(24VDC, 48VDC optional). So, this product provide power to devices such as ip camera, wifi camera, 4G camera, network switch, sensor, street light and so on.
We also provide other solar systems, like 360WH, 480WH, 720WH, 960WH, 1440WH, 2160WH and so on. Feel free to contact us if you have any requirements about power issue.
Here are what included in this kit:
1) 100w solar panel -- 1 piece
2) 12v 60ah ternary lithium battery -- 1 piece (Inside all-in-one bracket)
3) PWM solar charge controller -- 1 piece (Inside all-in-one bracket)

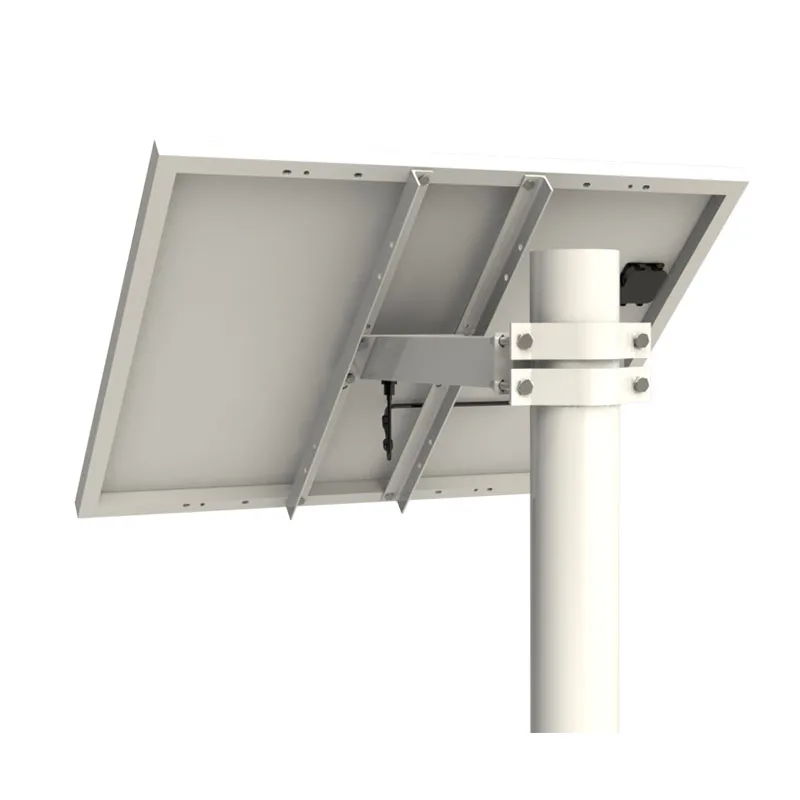

4) All-in-one solar panel bracket -- 1 piece
5) U shape clamp -- 2 pieces (To install bracket to pole)
6) DC cable with connector -- 1 piece
DC output solar solutions
- Long standby tiem for 12V loads
- Suitable for environment without electricity and network
- Low power consumption and long endurance Peak power tracking technology
- High conversion rate of solar controller
- Suitable for environment without electricity and network
- Low power consumption and long endurance Peak power tracking technology
- High conversion rate of solar controller
- OEM/ODM service supported
Advantages of our solar power system
- No wiring: we collect power from the sun, no need wiring from other power supply
- No electric bill: green energy from the sun
- Green power: No pollution, no noise
- Plug and play: complete the installation and it runs easily
- Application scenarios: Suitable for all kinds of outdoor environment without power supply
- Waterproof: The system is waterproof

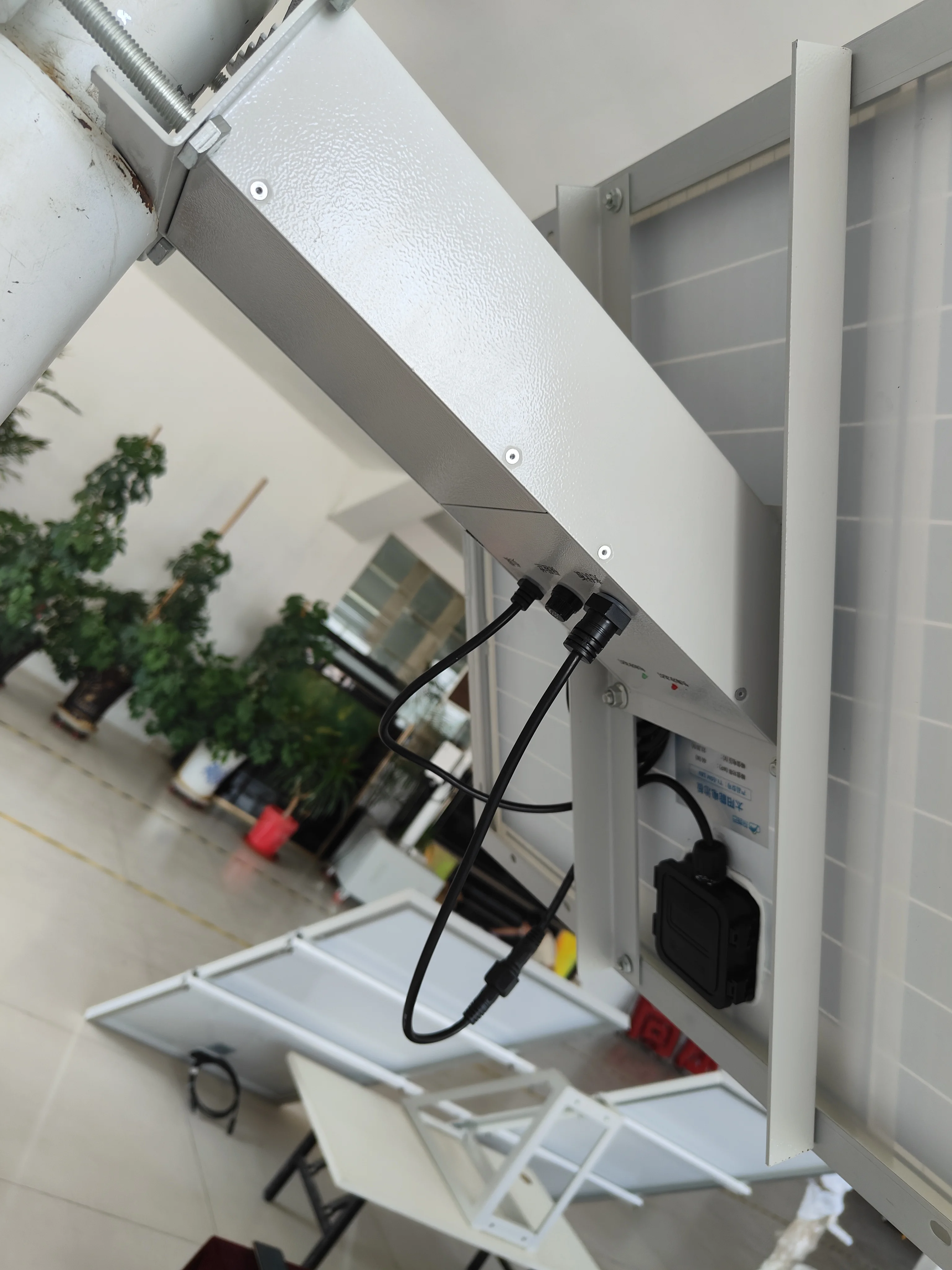

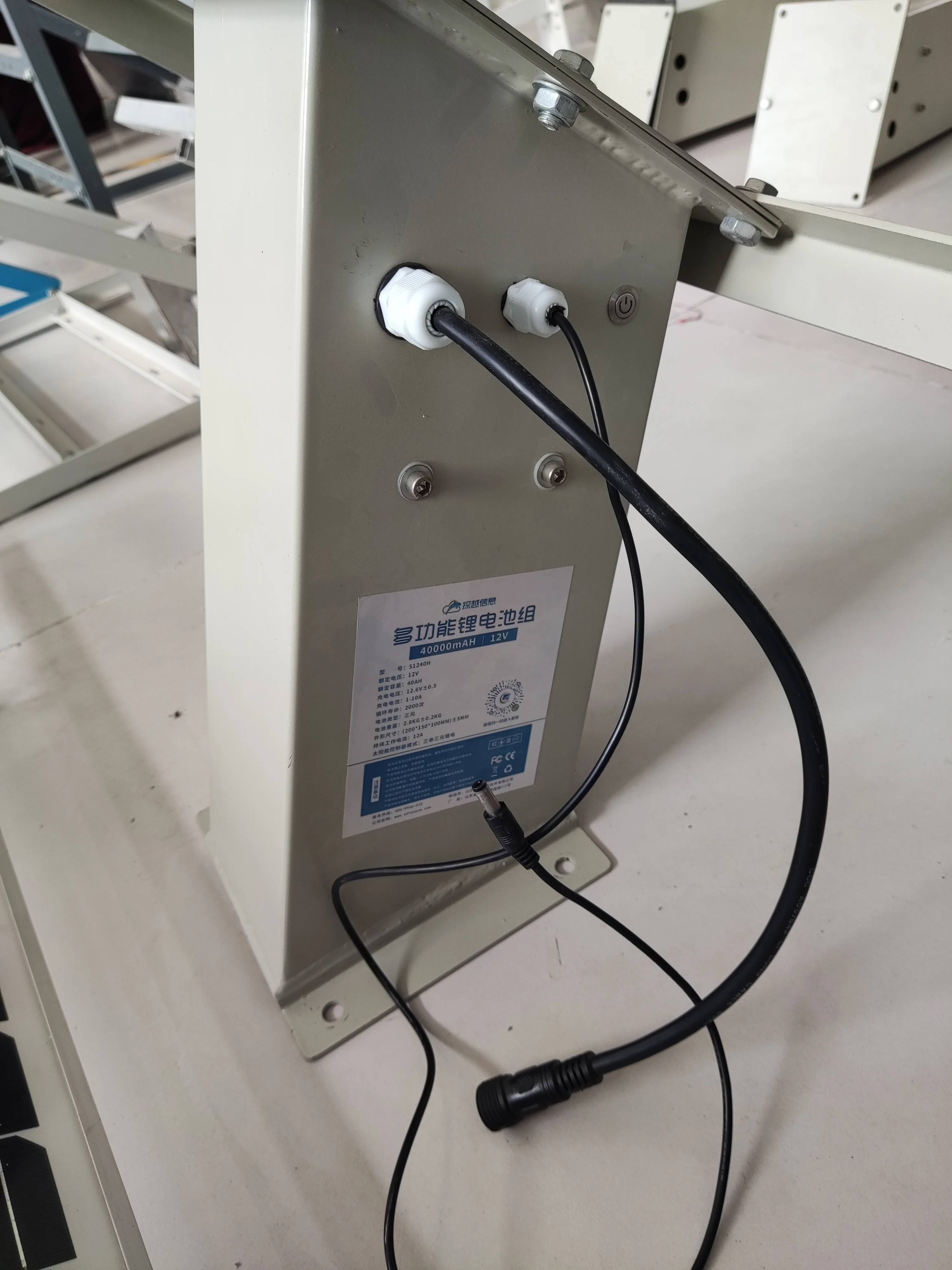

Details Images
Part 1: High efficiency solar panel
- A grade solar cell with efficiency rate
- Toughened glass withstand 5400Pa wind and rain impact
- PPF backboard waterproofing and sealing
- IP65 junction box
- Toughened glass withstand 5400Pa wind and rain impact
- PPF backboard waterproofing and sealing
- IP65 junction box
Solar panel specifications | ||
Max power voltage(Vmp) | 18.2V | |
Max power current(Imp) | 5.99A | |
Open circuit voltage(Voc) | 21.4V | |
Short circuit current(Isc) | 6.2A | |
Module efficiency STC | 22% | |
Power tolerance | 0~3% | |
Max system voltage | 1000V | |
Cell type | 210mm | |
Number of cells | 33pcs | |
Dimension | 830*670*30mm | |
Weight | 5.5kg | |

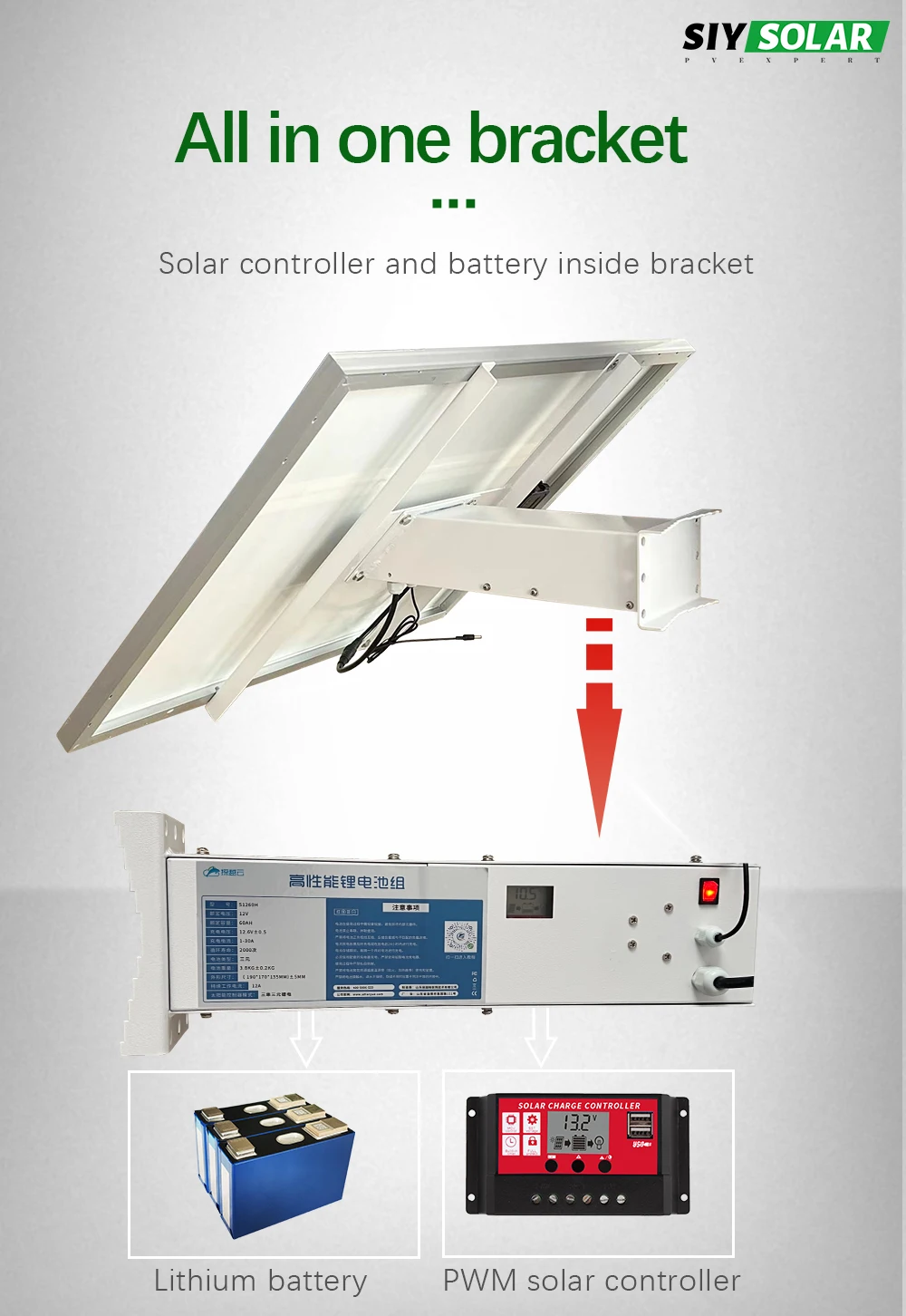

Part 2: All in one solar bracket
- 10A PWM solar charge controller inside
- 12v 60ah lithium battery inside
- LCD real time display
- Intelligent charge management
Lithium battery specifications | ||
Rated capacity | 60Ah | |
Operating voltage | 7.8V ~ 12.6V | |
Overcharge protection voltage | 12.83V | |
Standard cycle life | ≥2500 | |
Solar controller specifications | ||
System voltage | 12V DC | |
Rated charge current | 10A | |
Rated discharge current | 10A | |
Maximum solar voltage | ＜50V | |
Floating charge current | 12.6V | |
Product Usage
Wide application scenarios
Our solar power system provides power for different application scenarios, such as CCTV camera, wifi bridge, wireless access point, smart weather station, smart hydrological monitoring station and other IoT devices.
Packing&Shipping
Company Introduction
Shandong Xiyuan Solar Energy Co., Ltd. is located in the Economic Development Zone of Zibo City, Shandong Province. It is a high-tech enterprise integrating R&D and production. The products involve monocrystalline/polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, off grid solar systems, on grid solar ystems, etc. Our products are widely used in all walks of life in the society. The sales network covers China and is exported to overseas.
The company adheres to the tenet of "customer first, pioneering and innovative", adheres to customer-centricity, keeps improving, pioneering and innovating, and is committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to come to visit, to realize win-win business opportunities and common development.
The company adheres to the tenet of "customer first, pioneering and innovative", adheres to customer-centricity, keeps improving, pioneering and innovating, and is committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome friends from all walks of life to come to visit, to realize win-win business opportunities and common development.
FAQ
How can i get product price list?
Contact us by email, trade manager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptable for bulk order.
What is the product warranty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your inquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
Contact us by email, trade manager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptable for bulk order.
What is the product warranty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don't know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your inquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, PayPal, Money Gram, L/C and Alibaba Trade Assurance Order.
Похожие товары
4 Вт Солнечная Панель зарядное устройство для видеонаблюдения камера U-Ring видео дверной звонок 4/3/Plus/2 система
438,60 ₽ - 1 151,31 ₽
4G солнечная Камера уличная охотничья камера для дикой природы Водонепроницаемая Солнечная видеонаблюдения 4g sim-карта
5 043,83 ₽ - 8 223,63 ₽
Солнечные детали TecDeft небольшой размер 15 Вт мини-солнечная панель 5 В 12 пользовательская солнечная для наружных домашних IP-камер умная охотничья камера
3 947,35 ₽ - 4 714,89 ₽
4 Мп уличная Солнечная камера Wifi Водонепроницаемая беспроводная PIR человеческое Обнаружение цвета ночного видения наблюдения CCTV солнечные камеры
2 182,01 ₽ - 3 059,20 ₽

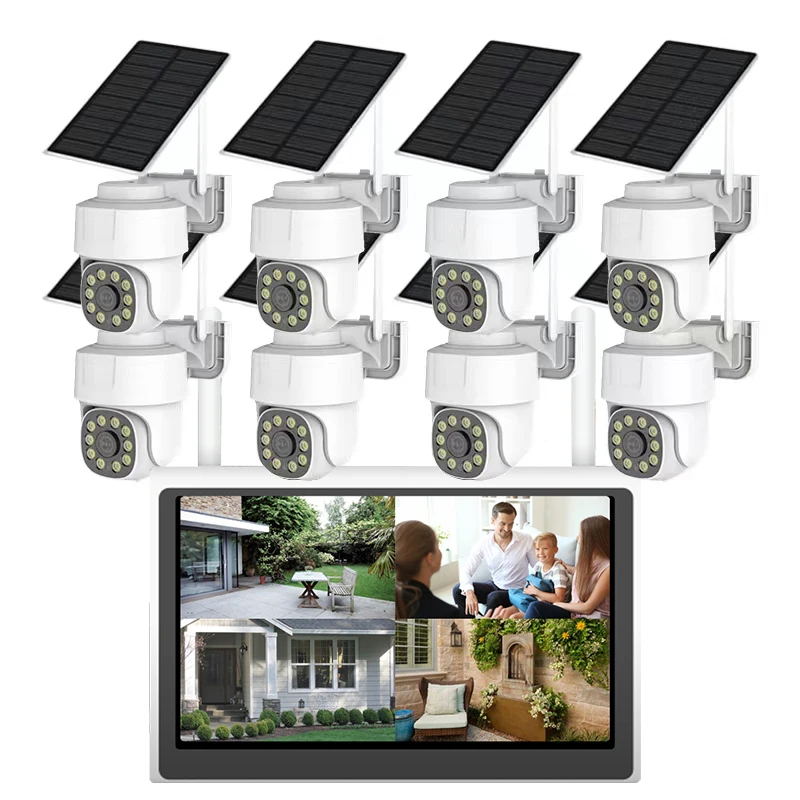

Беспроводная уличная PTZ Солнечная система безопасности 3MP ночного видения 8-канальная камера видеонаблюдения Wi-Fi NVR комплекты
38 063,35 ₽ - 41 588,55 ₽

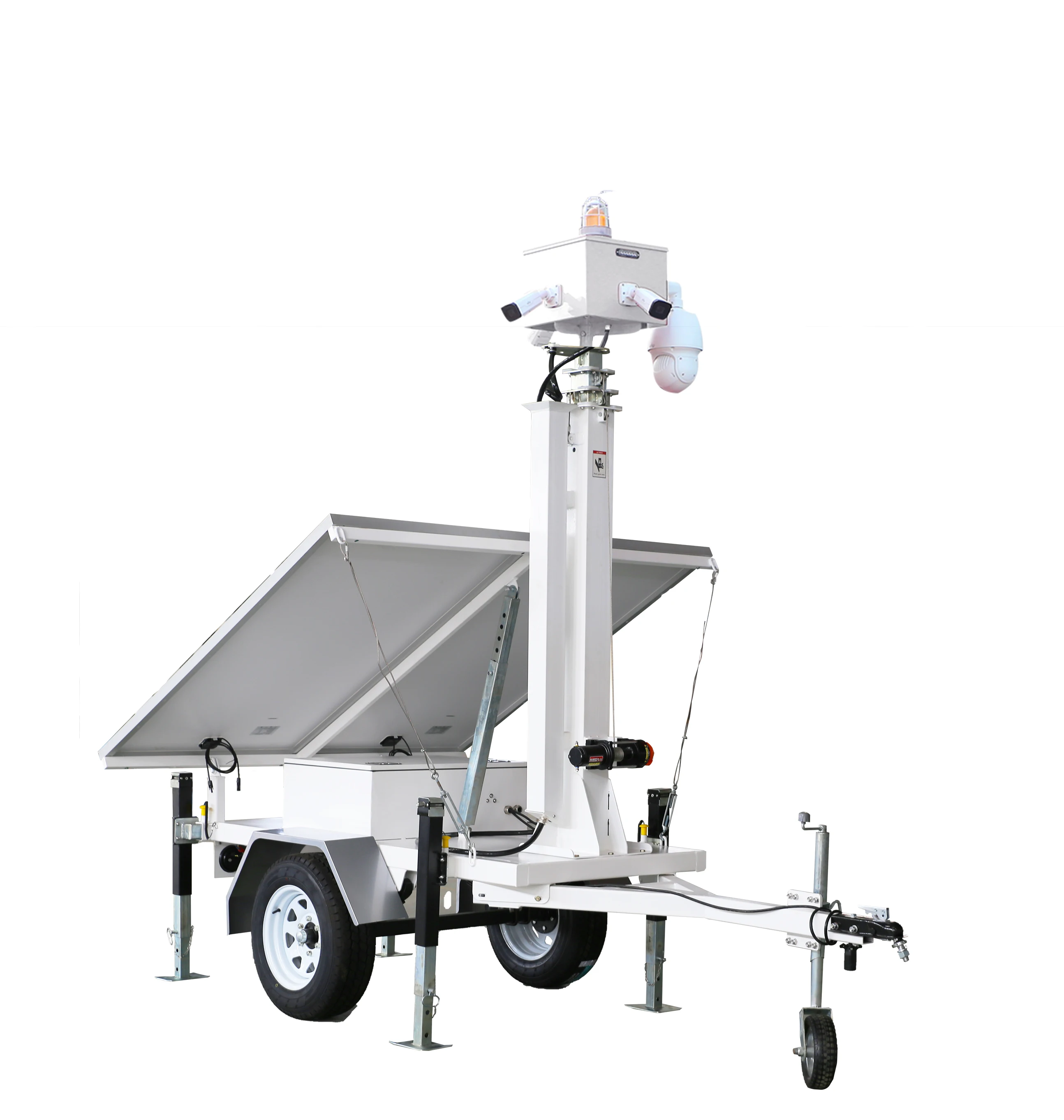

Мобильная солнечная башня видеонаблюдения для общественной безопасности освещение HD-камера 4G сеть Wi-Fi мобильный прицеп наблюдения на солнечной батарее
