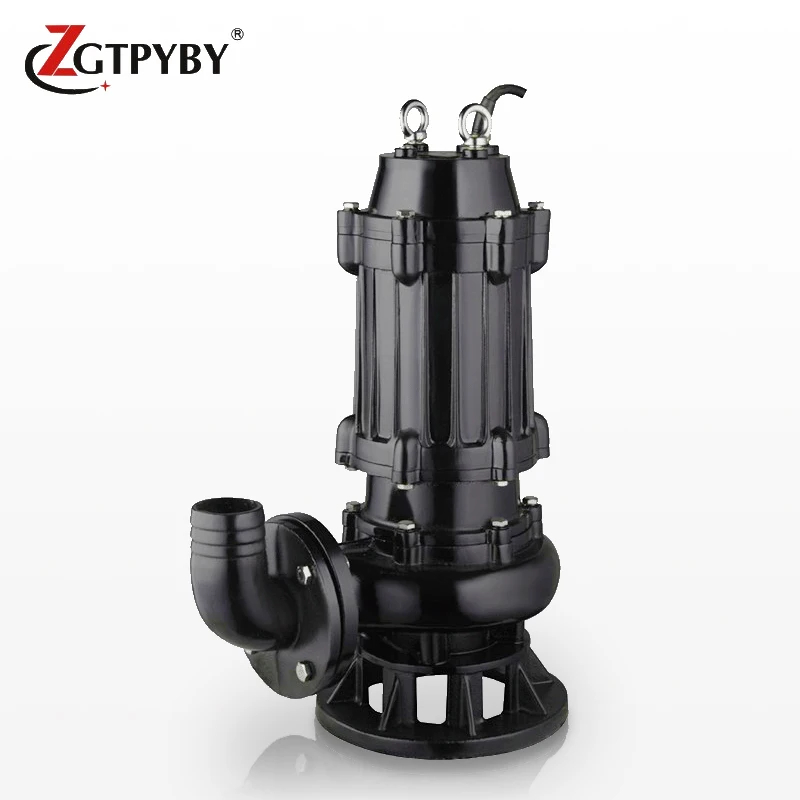

Гидравлический погружной насос
68 880,25 ₽
Электрический погружной шламовый насос с большой емкостью большая мощность для очистки сточных вод
- Категория: >>>
- Поставщик: Hebei Dehuike Pump Industry Co. Ltd.
Сохранить в закладки 1601126467757:
Описание и отзывы
Характеристики
Product Description

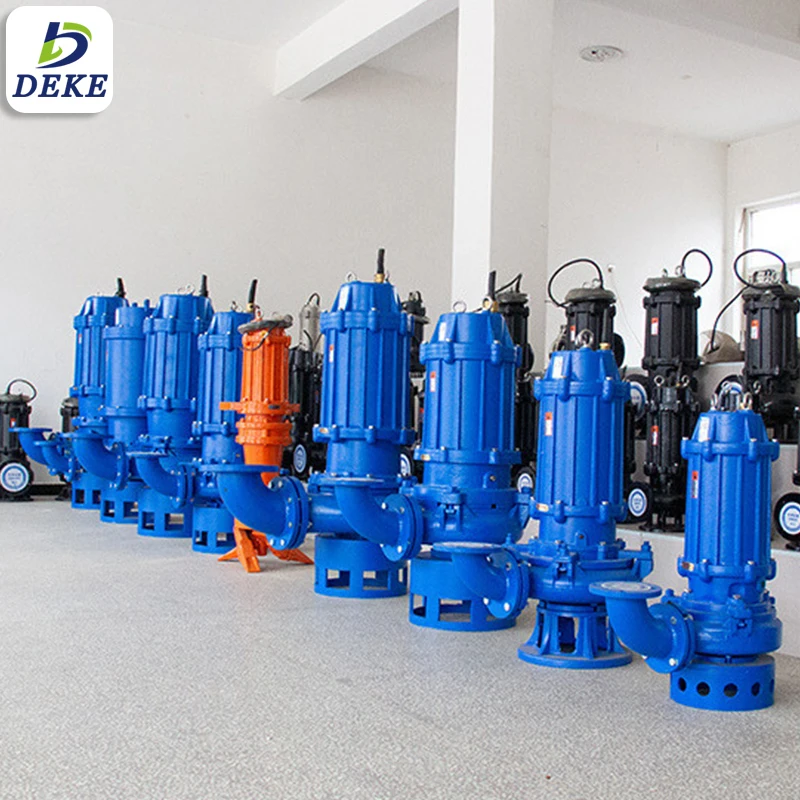

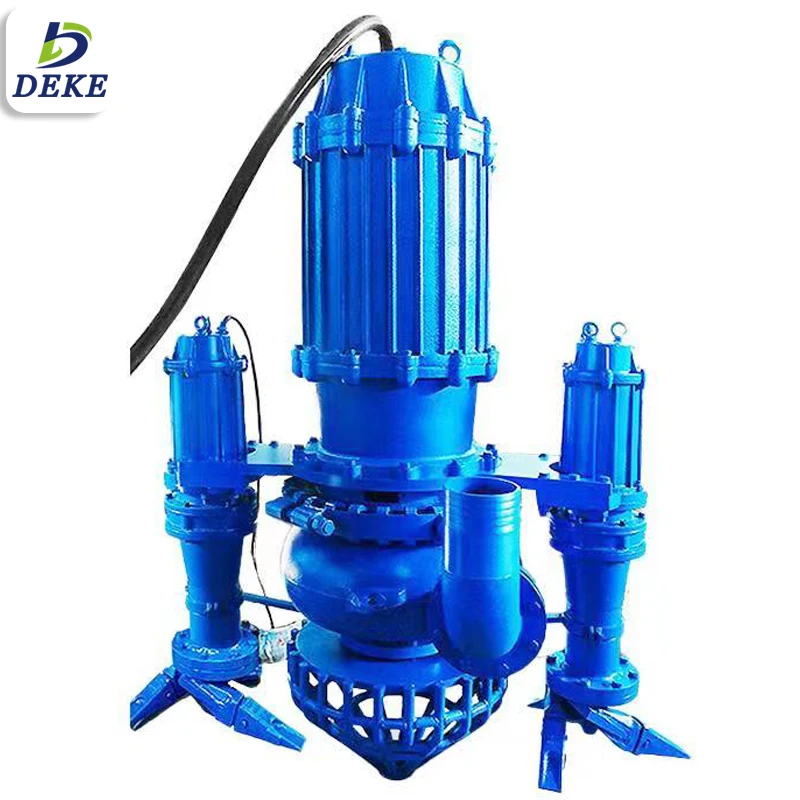

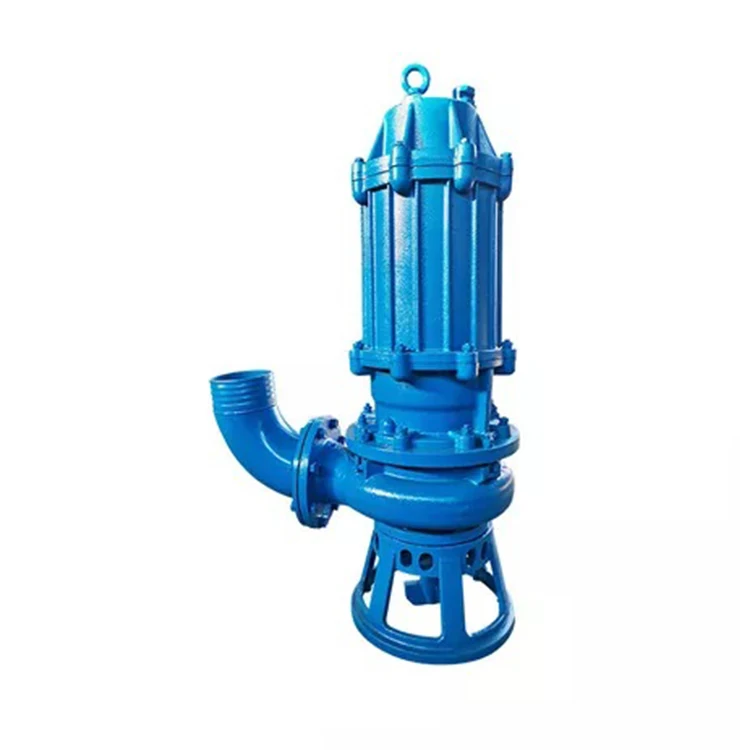

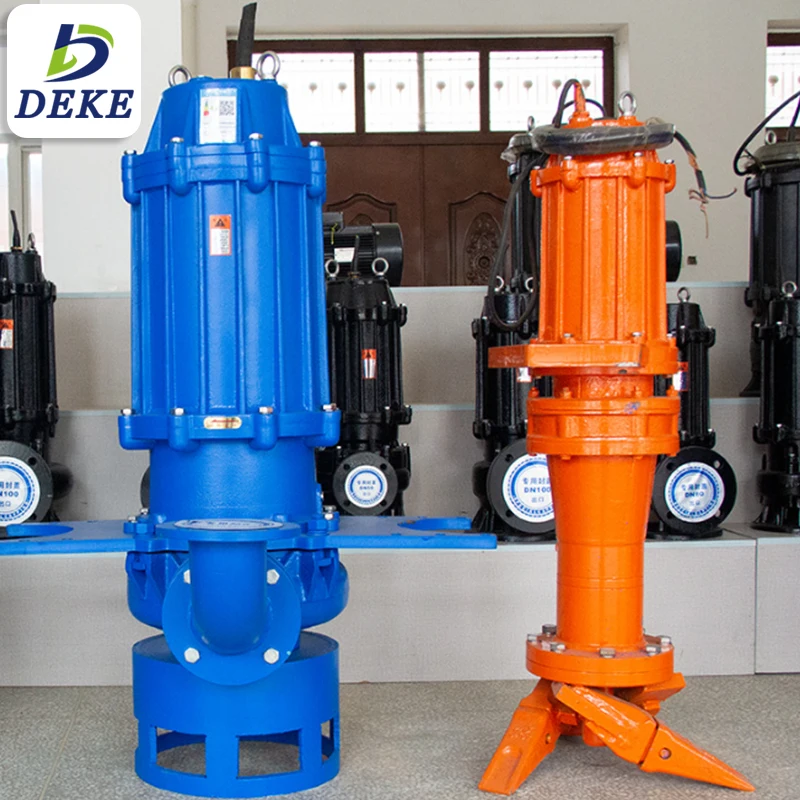

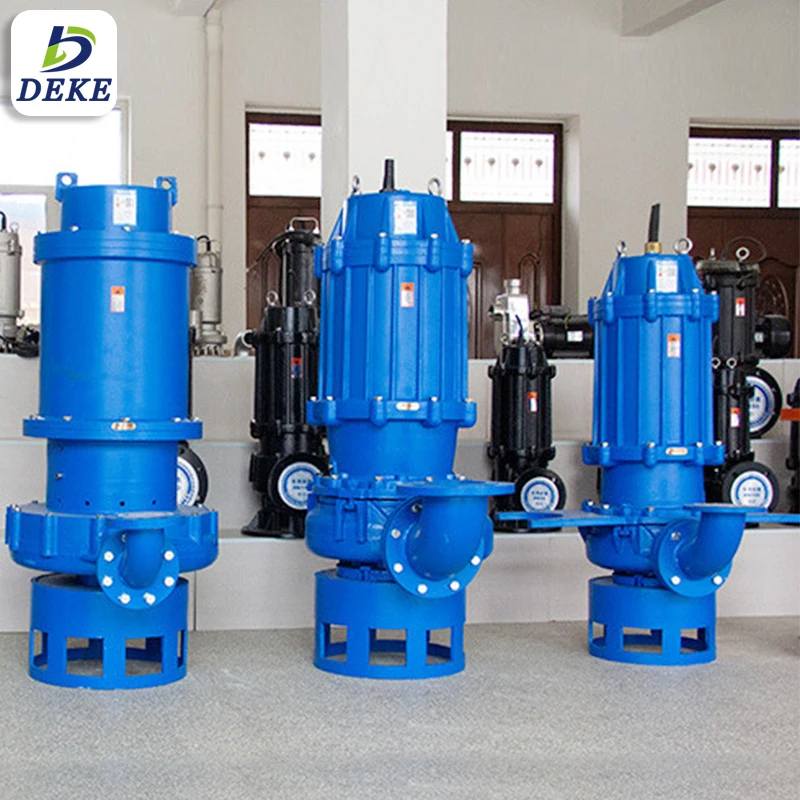

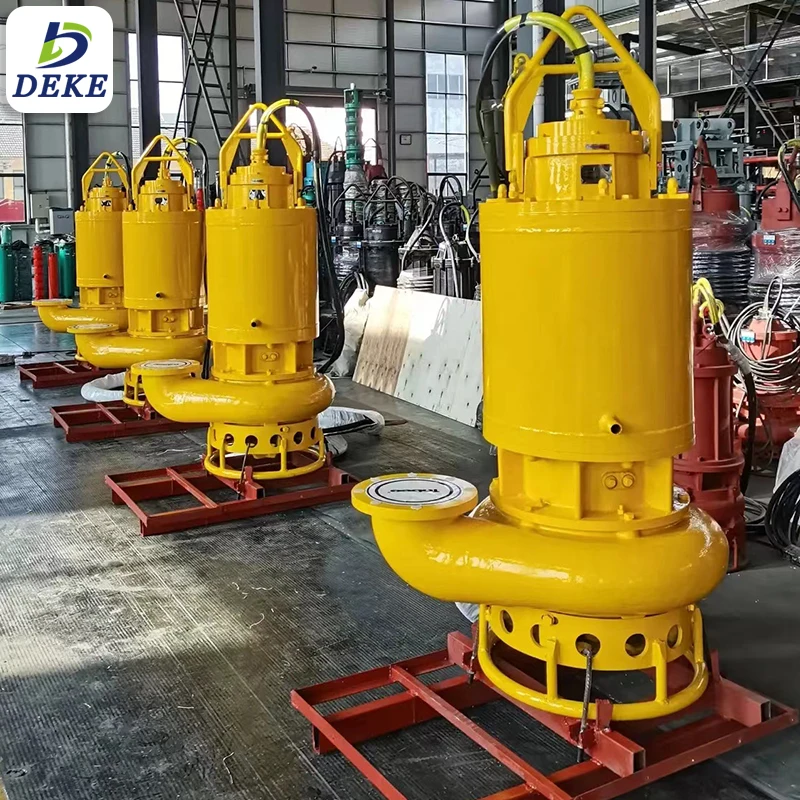

DNSQ Submersible Slurry Pump series are heavey duty,electro-submersible slurry pumps designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and industry.
DNSQ pumps feature a rugged construction using the highest quality materials to ensure reliable performance and excellent service life. The high quality electric motors incorporate multiple protection features to detect the ingress of water or excessive temperatures to shut off the pump and prevent damage.
Pumps are available in 72 different models in sizes ranging from 80mm to 400mm (3.15-16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour (100-10560USGPM) and heads up to 64 meters (210ft).Pumps can pass solids up to 60mm(2.4 inches) in diameter enabling them to transfer dense slurries with large abrasive particles.
DNSQ pumps feature a rugged construction using the highest quality materials to ensure reliable performance and excellent service life. The high quality electric motors incorporate multiple protection features to detect the ingress of water or excessive temperatures to shut off the pump and prevent damage.
Pumps are available in 72 different models in sizes ranging from 80mm to 400mm (3.15-16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour (100-10560USGPM) and heads up to 64 meters (210ft).Pumps can pass solids up to 60mm(2.4 inches) in diameter enabling them to transfer dense slurries with large abrasive particles.
Specification
Model | Outlet Dia(mm) | Capacity (m³/h) | Head (m) | Power (Kw) | Speed (r/min) | Max.Dia.of Solid (mm) | Pump Weight (kg) |
DNSQ45-15-5.5 | 80 | 45 | 15 | 5.5 | 1460 | 13 | 100 |
DNSQ30-30-7.5 | 80 | 30 | 30 | 7.5 | 1460 | 13 | 114 |
DNSQ50-26-11 | 80 | 50 | 26 | 11 | 1460 | 13 | 165 |
DNSQ75-25-15 | 100 | 75 | 25 | 15 | 1460 | 13 | 220 |
DNSQ150-18-18.5 | 150 | 150 | 18 | 18.5 | 980 | 32 | 550 |
DNSQ200-12-22 | 150 | 200 | 15 | 22 | 980 | 45 | 580 |
DNSQ60-46-30 | 150 | 60 | 46 | 30 | 980 | 21 | 700 |
DNSQ150-30-30 | 150 | 150 | 30 | 30 | 980 | 21 | 550 |
DNSQ300-20-37 | 200 | 300 | 20 | 37 | 980 | 28 | 775 |
DNSQ200-30-45 | 150 | 200 | 30 | 45 | 980 | 36 | 1000 |
DNSQ500-15-45 | 250 | 500 | 15 | 45 | 980 | 46 | 1100 |
DNSQ250-35-55 | 150 | 250 | 35 | 55 | 980 | 36 | 1140 |
DNSQ600-15-55 | 250 | 600 | 15 | 55 | 980 | 46 | 1140 |
DNSQ350-35-75 | 200 | 350 | 35 | 75 | 980 | 28 | 1550 |
DNSQ500-20-75 | 200 | 500 | 20 | 75 | 980 | 25 | 1550 |
DNSQ400-40-90 | 200 | 400 | 40 | 90 | 980 | 28 | 1550 |
DNSQ600-30-110 | 200 | 600 | 30 | 110 | 980 | 28 | 1970 |
DNSQ1000-18-110 | 300 | 1000 | 18 | 110 | 980 | 50 | 1970 |
DNSQ500-45-132 | 200 | 500 | 45 | 132 | 980 | 28 | 2000 |
DNSQ1000-22-132 | 300 | 1000 | 22 | 132 | 980 | 50 | 2000 |
DNSQ650-52-160 | 200 | 650 | 52 | 160 | 980 | 28 | 2650 |
DNSQ1400-28-160 | 350 | 1400 | 28 | 160 | 980 | 38 | 3330 |
No. | Name | Materiual | NO. | Name | Materiual |
1 | Bolt(M8*20) | 21 | Bearing cover | Gray iron(GG20) | |
2 | Spring washer(Φ6) | 65Mn steel | 22 | Bearing | |
3 | Washer | Low-carbon steel(A3) | 23 | Oil chamber | Gray iron(GG20) |
4 | Lifting bolt(M12) | 24 | Mechanical | ||
5 | Cable gland | Gray iron(GG20) | 25 | O-ring | Nitrile Rubber |
6 | Cable holder | Gray iron(GG20) | 26 | Framre plate | Gray iron(GG20) |
7 | O-ring | Nitrile Rubber | 27 | FPL liner | 27% chromr white iron |
8 | Motor casing | Gray iron(GG20) | 28 | Pump casing | 27% chromr white iron |
9 | Besring | 29 | Impeller | 27% chromr white iron | |
10 | Stator | 30 | Impeller bolt | ||
11 | O-ring | Nitrile Rubber | 31 | Suction piate | 27% chromr white iron |
12 | Motor casing | Gray iron(GG20) | 32 | Bolt (M12) | |
13 | Bolt(M12) | 33 | Washer(Φ12) | ||
14 | Spring washer(Φ6) | 65Mn steel | 34 | Washer inlet bracket | Gray iron(GG20) |
15 | Washer | Low-carbon steel(A3) | 35 | Washer | Low-carbon steel(A3) |
16 | O-ring | Nitrile Rubber | 36 | Frame | |
17 | Rotor | 37 | Sand suction piate | Low-carbon steel(A3) | |
18 | Bolt(M6) | 38 | Mixing impeller | 27% chromr white iron | |
19 | Spring washer(Φ6) | 39 | Draw-in bolt | ||
20 | Washer | A3 steel |
Product Details
You one-stop engineer whatelse can we supply？
Application
About US
Deke Pump Co.,Ltd. is one over 30 years experienced pump manufacturer (established at 1985) in mining and mineral, power plant,dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.;Deke Pump Co.,Ltd. is the pump factory has its own pump selection & design, research and development team to assure provide you efficient, energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in selection & design, use and maintenance program.
Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump, irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The application covers many fields, such as mining and mineral processing, dredger, tailings transportation, mining, steel, desulfurization pump, boiler feed water, construction, irrigation,water conservancy facilities, sewage treatment, drainage and water supply.
Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump, irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The application covers many fields, such as mining and mineral processing, dredger, tailings transportation, mining, steel, desulfurization pump, boiler feed water, construction, irrigation,water conservancy facilities, sewage treatment, drainage and water supply.
Customer and exhibitions
FAQ
1. What information is needed to offer a split casing pump?
Liquid:___
Capacity:___ m3/hr
Head: ___ m
PH:___
Specific of gravity:___
Voltage:___V, Frequency:___hz
2. Can I use hydraulic to drive the pump?
Yes, the pump can be driven by hydraulic power pack and excavator.
If excavator, please advise the model.
3. What is the maximum submerged depth of the pump?
30m.
4. What is the solids size that can be pumped?
It depends on the pump model. The max. solids size is 60mm.
5. What is the delivery time?
10-15 days.
Liquid:___
Capacity:___ m3/hr
Head: ___ m
PH:___
Specific of gravity:___
Voltage:___V, Frequency:___hz
2. Can I use hydraulic to drive the pump?
Yes, the pump can be driven by hydraulic power pack and excavator.
If excavator, please advise the model.
3. What is the maximum submerged depth of the pump?
30m.
4. What is the solids size that can be pumped?
It depends on the pump model. The max. solids size is 60mm.
5. What is the delivery time?
10-15 days.
