Высококачественная большая оцинкованная стальная рама, сельскохозяйственная полиэтиленовая пленка, туннельная теплица для сада, Солнечная теплица
657,90 ₽ - 1 315,79 ₽
Добро пожаловать чтобы узнать о лучших подгонянных ценах многопролетная тепличная сельскохозяйственная теплица
- Категория: >>>
- Поставщик: Henan Dorisun Agricultural Technology Co. Ltd.
Сохранить в закладки 1601126581298:
Описание и отзывы
Характеристики
Product Description
Performance of multi span greenhouse.
1. Ventilation system: By setting ventilation openings in the front and back, it can effectively ventilate and cool down, while ensuring the circulation of air inside the greenhouse.
2. Shade system: The external sunshade system can block excessive sunlight, protect crops from strong light damage, and the internal sunshade system helps maintain the heat inside the greenhouse at night.
3. Heating and cooling system: The wet curtain fan cooling system uses the principle of water evaporation to reduce indoor temperature, while the heating system meets the heating needs of the greenhouse through heating equipment.
4. Irrigation and fertilization system: Effectively circulate irrigation water and nutrient solution to crops, supporting their growth.
2. Shade system: The external sunshade system can block excessive sunlight, protect crops from strong light damage, and the internal sunshade system helps maintain the heat inside the greenhouse at night.
3. Heating and cooling system: The wet curtain fan cooling system uses the principle of water evaporation to reduce indoor temperature, while the heating system meets the heating needs of the greenhouse through heating equipment.
4. Irrigation and fertilization system: Effectively circulate irrigation water and nutrient solution to crops, supporting their growth.
Specification
Product Name | Agriculture greenhouse frame multispan vegetables growing tunnel multi span film greenhouse | Customizable |
Steel Structure | Hot-galvanized steel pipe | / |
Greenhouse film | 150 micron, 180 mircon and 200 mircon | √ |
Insect net | 40 mesh，also can custom | √ |
Exteral&internal shading system | The gear rack drives the shading system. | √ |
Cooling system | It consists of cooling fans and cooling pad | √ |
Heating system | Hot water heating,hot air heating,electric heating | √ |
Ventilation system | Side ventilation and roof ventilation | √ |
Drip irrigation system | It can be customized according the greenhouse length and width | √ |
Micro-sprinkler system | It can be customized according the greenhouse length and width | √ |
Seedling bed | Movable seeding bed | √ |
Hydroponics | It can be reused, no need to add more nutrients, convenient and affordable. | √ |
Film-rolling system | Electrodynamic type,chain type,manual type | √ |
Application | Vegetable,Flower,Fishing,Seeding,Fruit,Breeding,Research,Restaurant and so on | √ |
Details Images

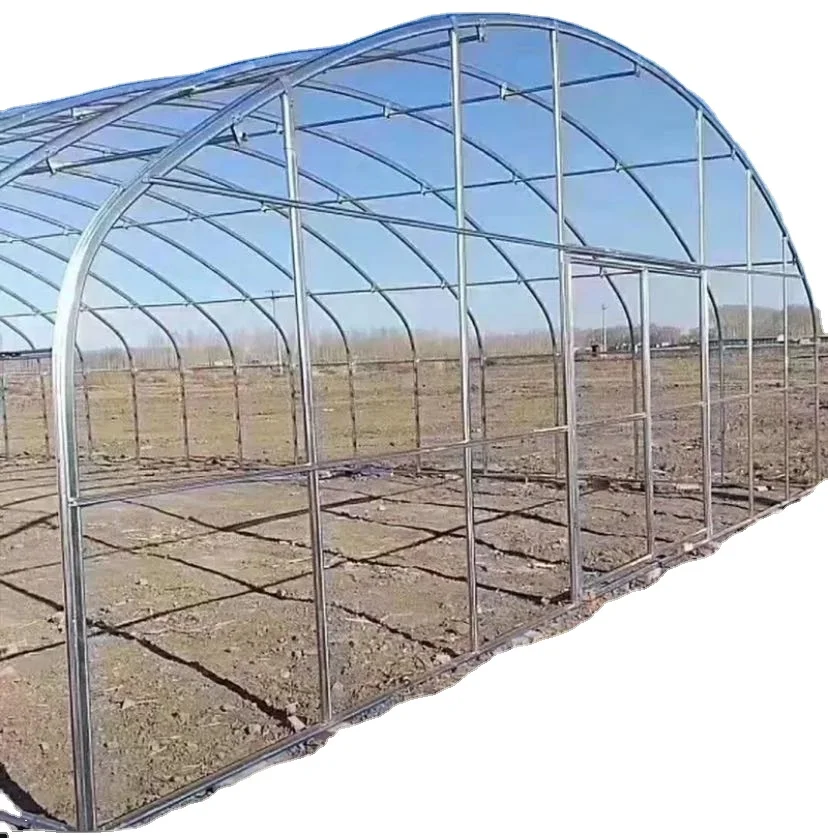

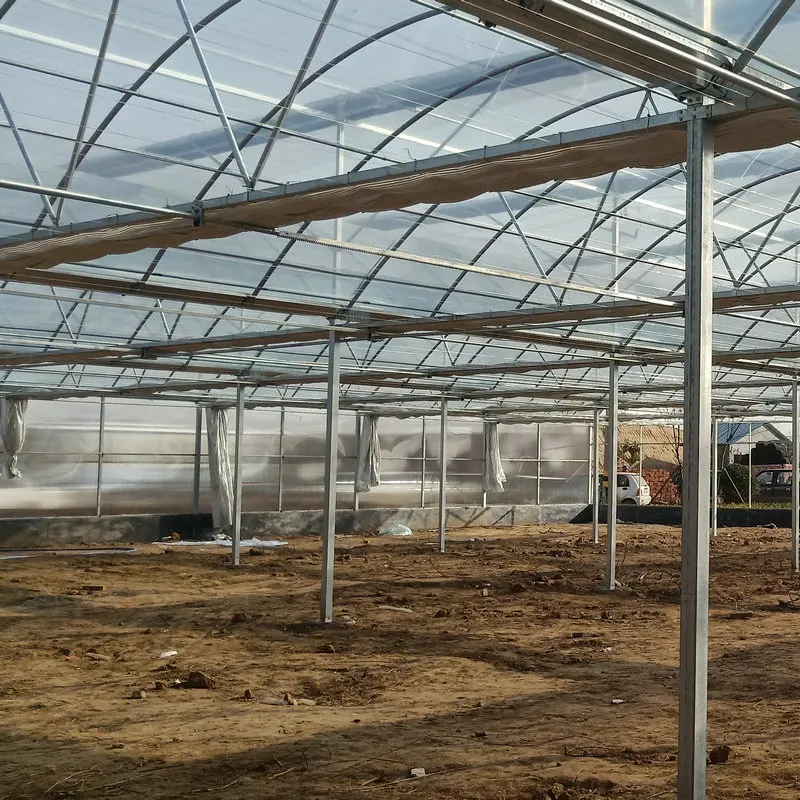

Hot galvanizing steel pipe frame
(1)Hot-dip galvanized pipe and arch pipe:
The distance is 32 mm, the thickness is 1.5 mm, and between the two arches is 1 m.
(2)Main column/pillar:
(2)Main column/pillar:
hot-dip galvanized steel pipe, 100 mm x 50 mm x 2.5 mm. The distance between two pillars is 4 m.
(3)Boom:
(3)Boom:
32 x 1.5 mm.
(4)Horizontal bar:
32 x 1.5 mm, boom: 32 x 1.5 mm.
Covering
Clear PE film as the covering material,which cover the greenhouse with the film. And it's very stable.
Our Film includes 150 micron, 180 micron and 200 micron, anti-UV, anti-drip, anti-fog, life time 4-8 years.
Ventilation system: electric film roller
Electric film drum is a commonly used accessory for greenhouse ventilation. It is both labor-saving and easy to use, and is very popular among greenhouse users.
According to the different installation positions of greenhouse film rolls, they can be divided into side rolls and top rolls.
Colling system: fan and colling pad
(1)Fan model: 1.38 x 1.38 x 0.4 m (length * width * thickness);
(2)The number of fans is the number of arches * 2;
(3)Size of colling pad: (width of greenhouse -2 m) x 1.5 m (length * height);
(4)The thickness is 100 mm and 150 mm, and 100 mm is commonly used.
Multi span greenhouse supply heating is generally achieved through boiler heating, which transports hot water to achieve heating.
There are two types of heat dissipation: radiators and heaters
There are two types of heat dissipation: radiators and heaters
irrigation system
Irrigation systems are divided into micro sprays and droppers.
Micro spraying can better assist with changes in green house temperature and humidity, and has a high moisturizing effect on plant stems and leaves;Drip irrigation helps plants soak their roots faster and more efficiently, without causing more water waste. In practical applications, it has a significant water-saving effect.

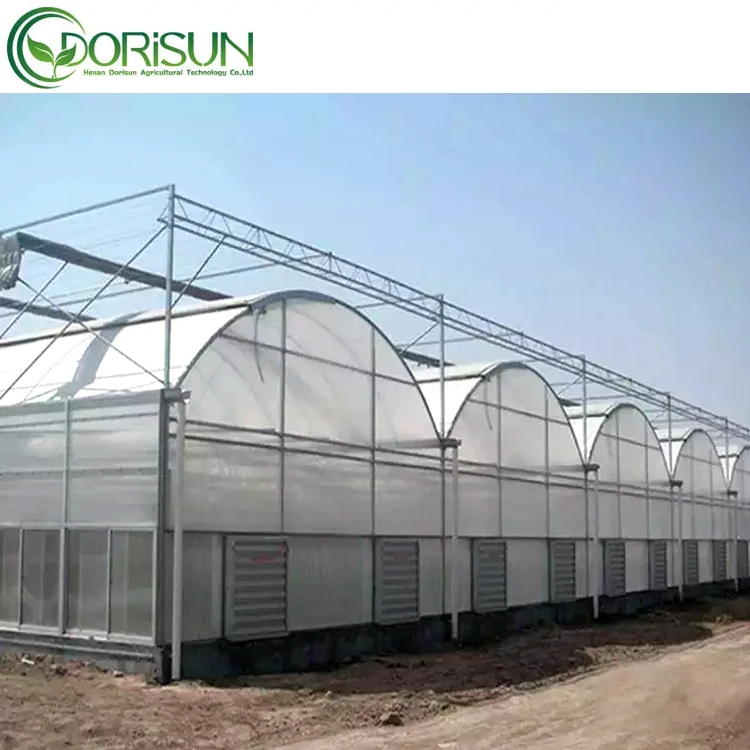

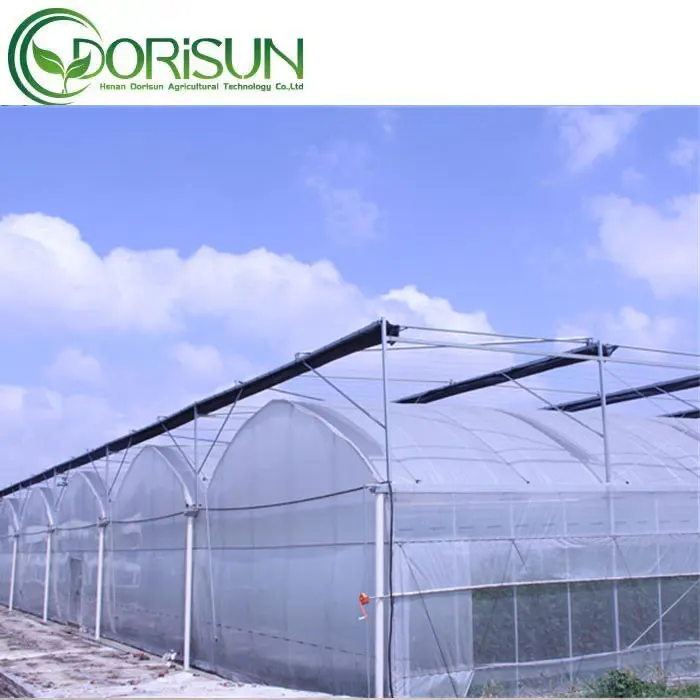

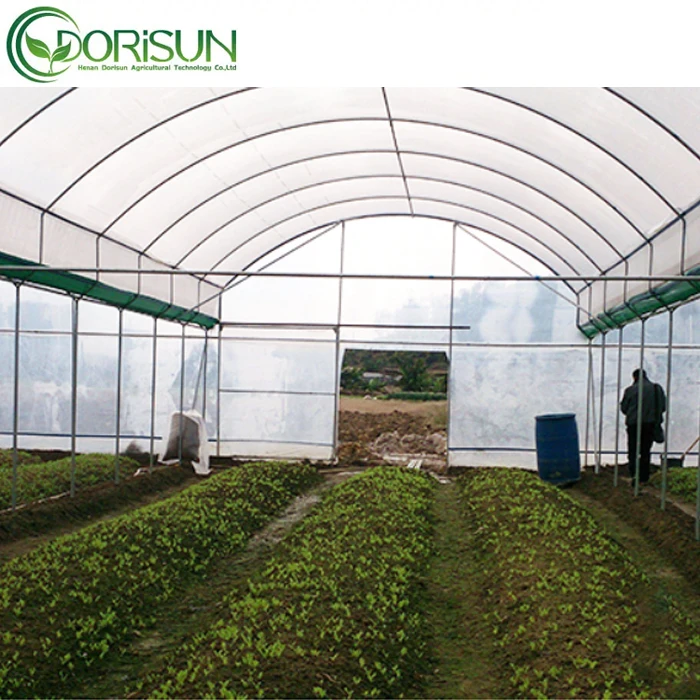

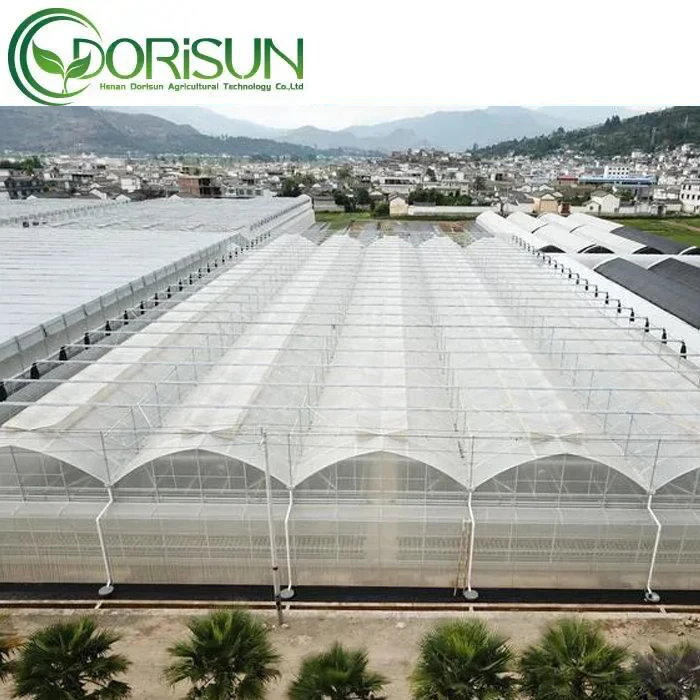

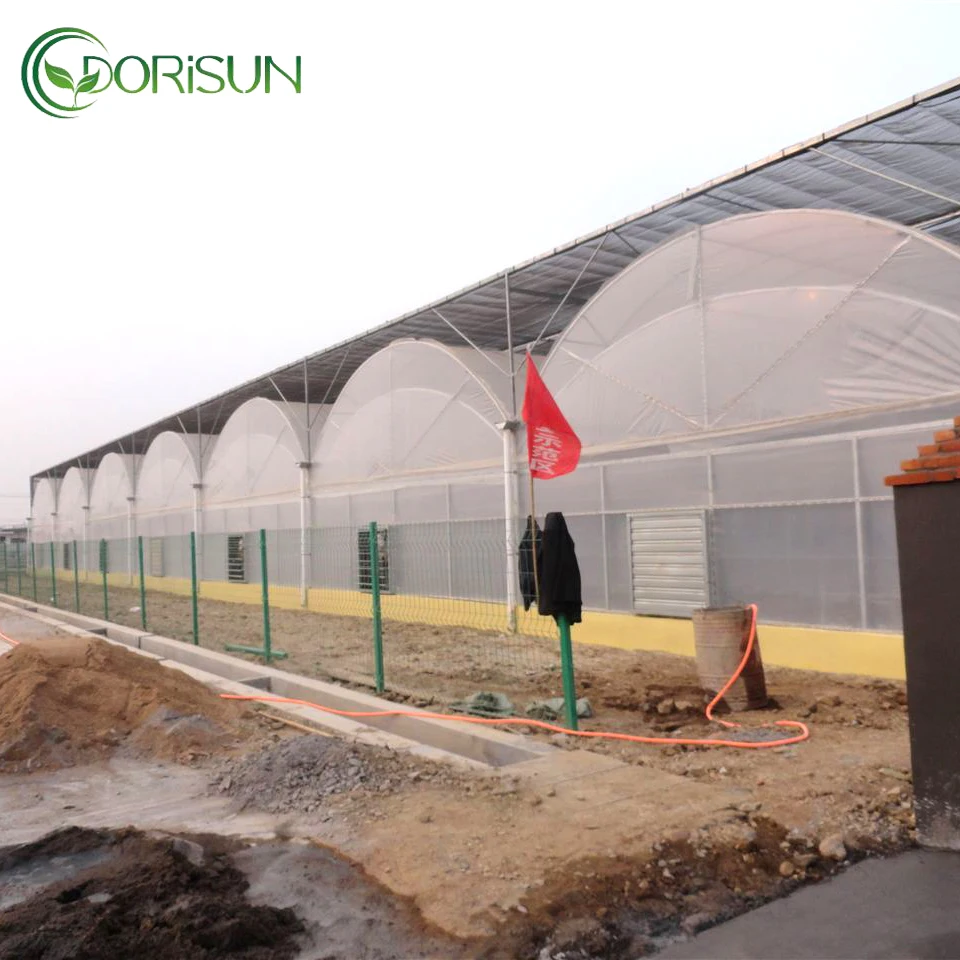

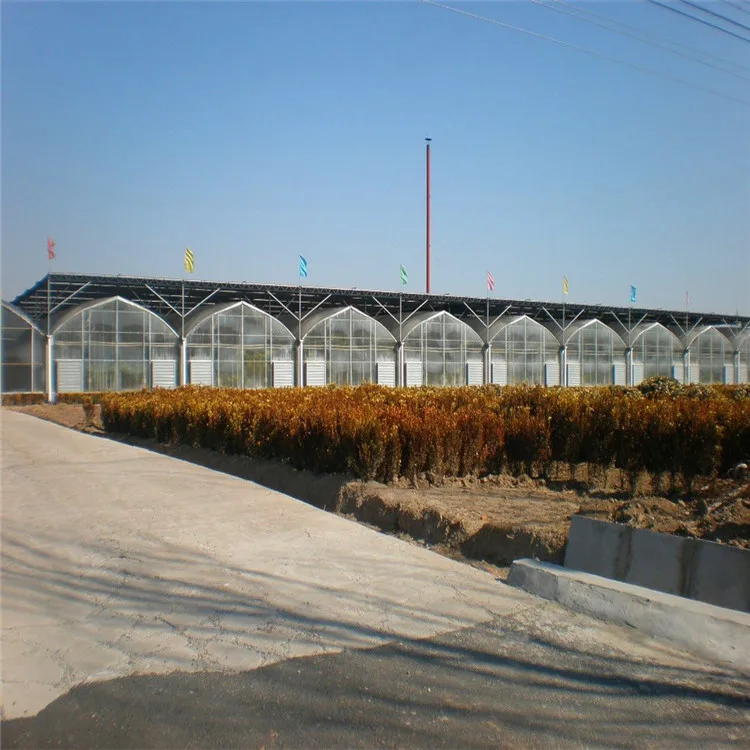

Project Show
Packing & Delivery
Company Profile
Our company is a professional company engaged in import and export trade. With over ten years of import and export experience, our products are exported to more than 50 countries worldwide.
Our company mainly produces various greenhouse and rolling table systems, accepting customization and design of different sizes.Our company provides professional 24-hour online after-sales service. Ensure that you can easily install the product and use it as soon as you receive it, and your other issues will be promptly resolved.
Our factory has strong production and research capabilities. Welcome to inquire about large amounts of funds and discounted prices.
