Оптовая продажа с фабрики 4 тонны Авто порта Power гидравлический домкрат ремонтный комплект
5 721,39-6 229,96 ₽
Гидравлический домкрат 250 тонн 200
- Категория: >>>
- Поставщик: Gaode Equipment Co. Ltd.Gaode Ltd.
Сохранить в закладки 1601126641308:
Описание и отзывы
Характеристики
Features of YDC series of light weight hydraulic jack:
* Small dimension and light weight.
* High strength, good sealing performance, safe, reliable.
* The jack matched with different accessories, it can be used for different anchors in the pre-tension or post tension prestressed project.
* In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
* Easy to use with reasonable price ..
* High strength, good sealing performance, safe, reliable.
* The jack matched with different accessories, it can be used for different anchors in the pre-tension or post tension prestressed project.
* In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
* Easy to use with reasonable price ..
We also can customized tonnage and stroke, if you want to know the price and discount, please contact us!
Model | Tonnage | Tension force (KN) | Stroke (mm) | Central diameter (mm) | Dimension (mm) | Tension area (mm²) | Rated oil pressure (Mpa) | Number of max. Tension strands |
YDC650 | 65 | 650 | 200 | Φ60 | Φ190*345 | 12638 | 51 | 3 |
YDC1100 | 110 | 1100 | 200 | Φ80 | Φ230*356 | 20488 | 54 | 5 |
YDC1500 | 150 | 1500 | 200 | Φ90 | Φ270*356 | 30242 | 50 | 7 |
YDC2000 | 200 | 2000 | 200 | Φ114 | Φ296*372 | 35796 | 56 | 9 |
YDC2500 | 250 | 2500 | 200 | Φ128 | Φ348*373 | 48356 | 52 | 12 |
YDC3000 | 300 | 3000 | 200 | Φ142 | Φ375*385 | 57796 | 52 | 14 |
YDC3500 | 350 | 3500 | 200 | Φ158 | Φ416*385 | 70765 | 49 | 17 |
YDC4000 | 400 | 4000 | 200 | Φ158 | Φ424*385 | 76302 | 53 | 19 |
YDC4500 | 450 | 4500 | 200 | Φ190 | Φ473*390 | 87606 | 53 | 22 |
YDC5000 | 500 | 5000 | 200 | Φ193 | Φ480*395 | 93965 | 53 | 24 |
YDC5600 | 560 | 5600 | 200 | Φ193 | Φ510*400 | 107156 | 52 | 27 |
YDC6500 | 650 | 6500 | 200 | Φ205 | Φ538*400 | 124580 | 52 | 31 |

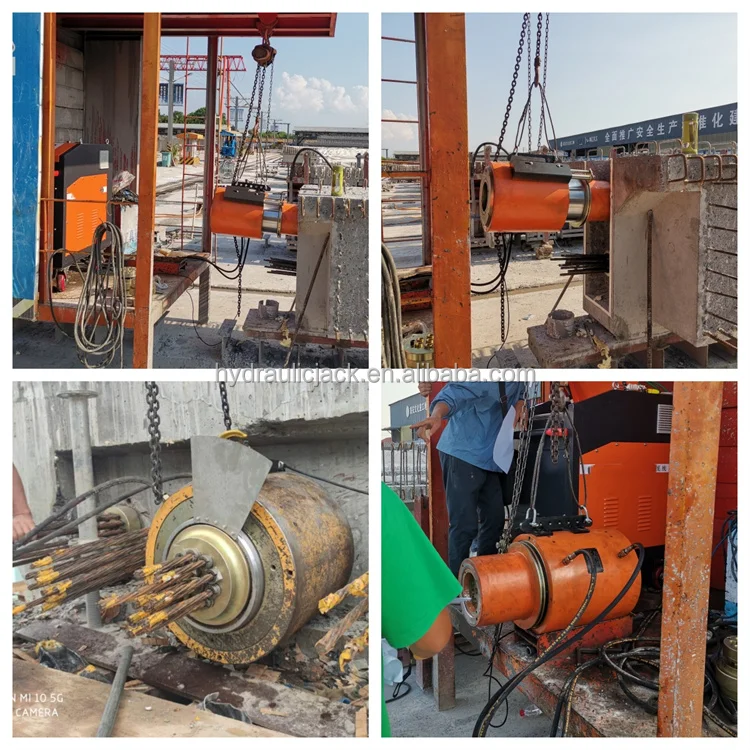

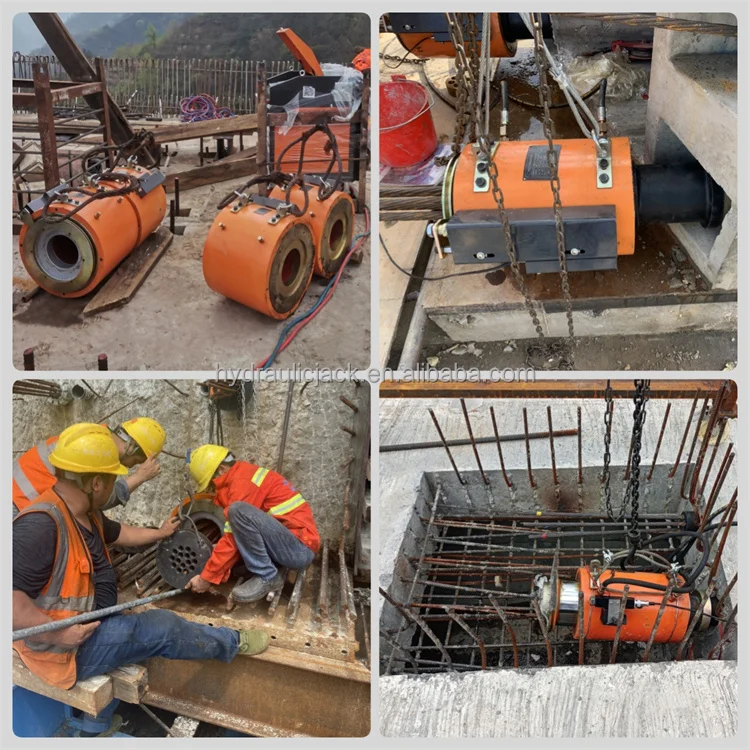

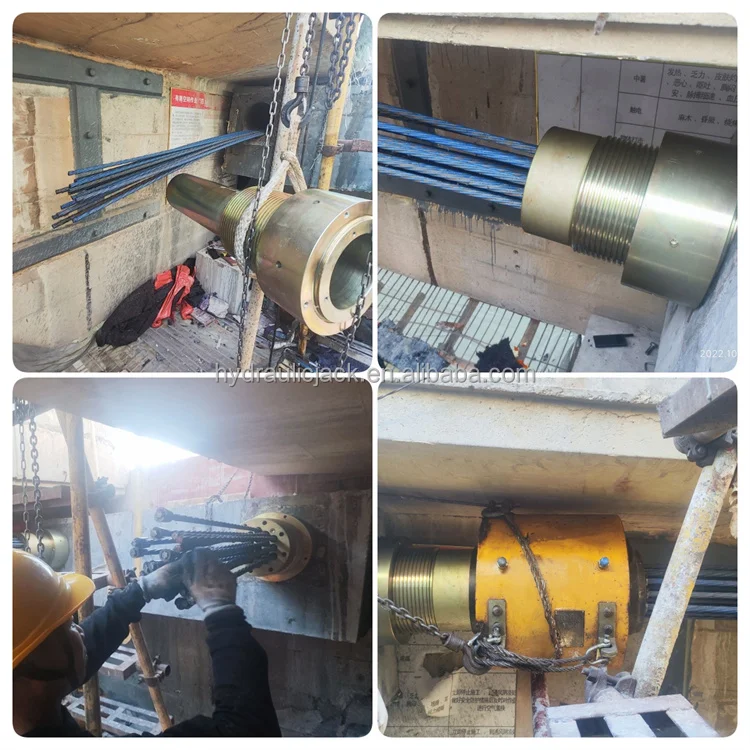

1. It is widely used for the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering matched with prestressed anchorage and strands.
2. It is suitable for stressing mono strands or multi strands, the specification is Φ15.24 andΦ12.7.
3. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
4. Easy to use with reasonable price .
5. Jack is used for prestressing workshop.
2. It is suitable for stressing mono strands or multi strands, the specification is Φ15.24 andΦ12.7.
3. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
4. Easy to use with reasonable price .
5. Jack is used for prestressing workshop.
If the model you need is not in the form, please contact us. We can customize according to your project!
Related Products
We can also provide:

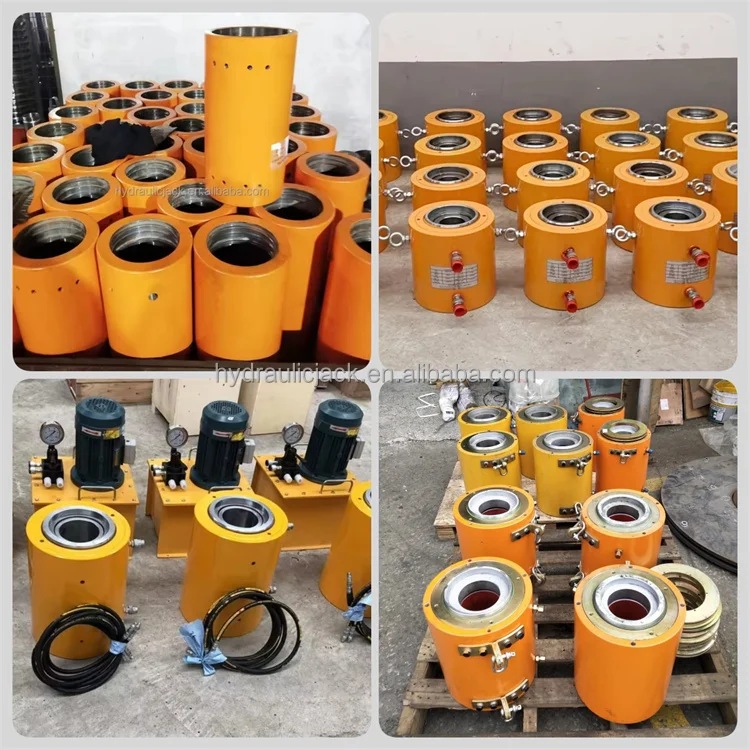

Post tension jack with pump: The equipment can be used to tighten various steel strand anchors, and has a matching hydraulic oil pump.
PC strand: 12.7 mm and 15.2mm prestressed concrete wire strand.

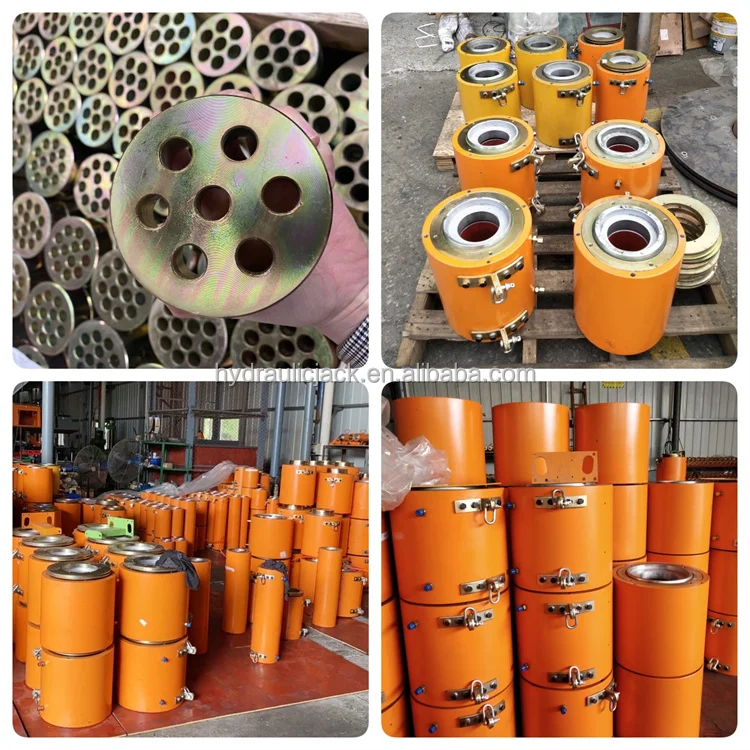

Prestressed anchor: Anchor head, bearing plate, anchor wedge, spiral reinforcement, metal corrugated ducts, PC strands. Good tensile performance, continuous stability, high efficiency coefficient, convenient operation.
PC strand pusher machine: PC strand pusher machines are widely used in prestressing jobs. The operation is simple and the maintenance is convenient, saving manpower and improving work efficiency.
Grout pump: The equipment can be used for grouting of prestressed Bridges.
Duct making machine: The machine can produce bellows for bridge prestressing and small, efficient, easy to operate.
All the machines can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.
PC strand: 12.7 mm and 15.2mm prestressed concrete wire strand.
Prestressed anchor: Anchor head, bearing plate, anchor wedge, spiral reinforcement, metal corrugated ducts, PC strands. Good tensile performance, continuous stability, high efficiency coefficient, convenient operation.
PC strand pusher machine: PC strand pusher machines are widely used in prestressing jobs. The operation is simple and the maintenance is convenient, saving manpower and improving work efficiency.
Grout pump: The equipment can be used for grouting of prestressed Bridges.
Duct making machine: The machine can produce bellows for bridge prestressing and small, efficient, easy to operate.
All the machines can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.
Похожие товары
Гидравлический домкрат ENERPAC такого же качества RR-5020 мощностью 50 т ход 511 ММ гидравлический цилиндр двойного действия
173 167,27-207 749,87 ₽
Механический винтовой домкрат прочный 40 тонн рукоятка
2 048,42-2 168,92 ₽
Chead регулируемые стальные строительные леса U head Jack

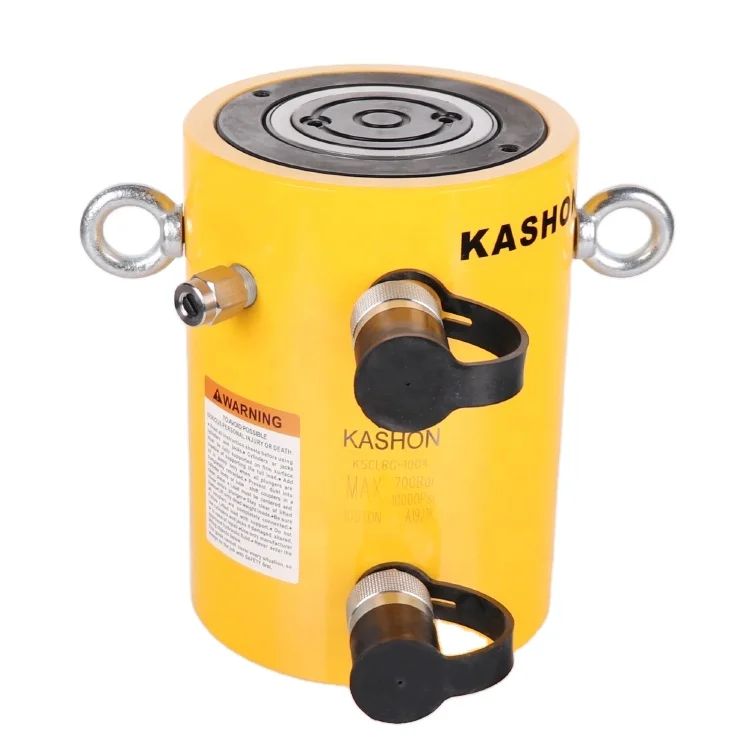

CLRG-1004 10000 Psi Двойное действие 100 тонн мм ход гидравлического домкрата
57 837,70-59 042,65 ₽

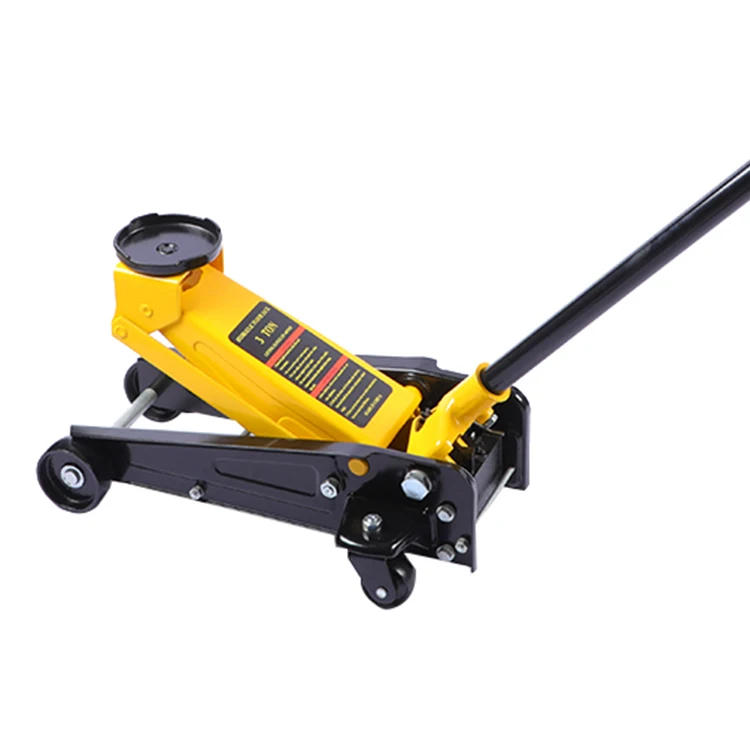

QY - Moving безопасный Автомобильный Домкрат Гидравлический сертификат CE и GS 3T Напольный домкрат K460 Быстрый гидравлический
1 771,28 ₽

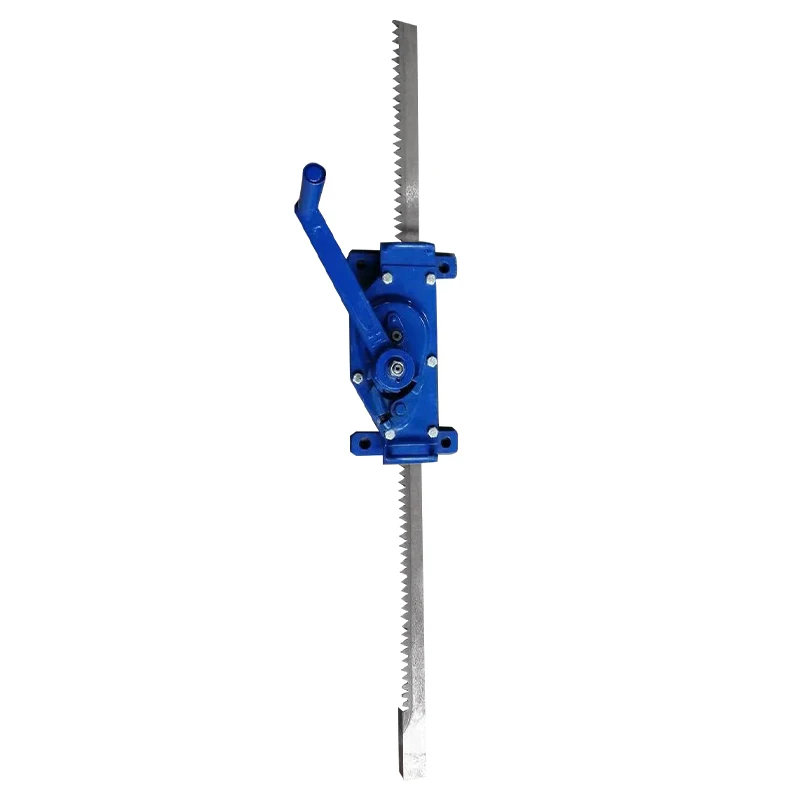

Механический зубчатая шестерня стали Джек

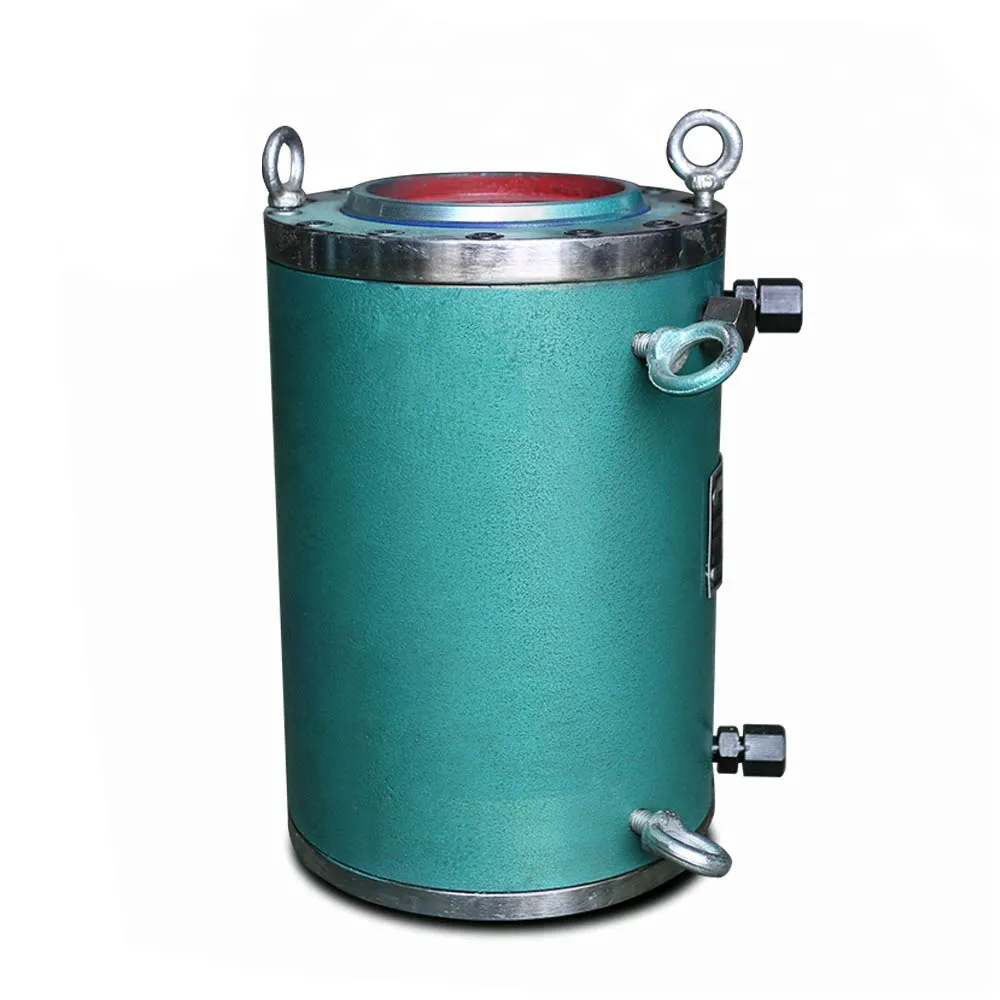

Электрический домкрат для натяжения гидравлический с центральным отверстием полый цилиндр
