Новая технология, машина для изготовления бетонных блоков без поддонов, цена/машина для укладки
273 483,50 ₽

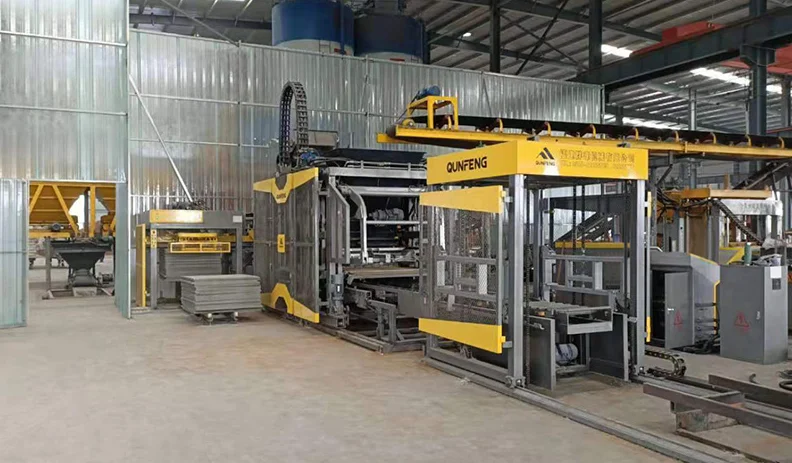

Заводское производство различные популярные продукты высокопроизводительное оборудование для паллетирования блочная система машина
- Категория: >>>
- Поставщик: Fujian Qunfeng Machinery Co. Ltd.
Сохранить в закладки 1601126675792:
Описание и отзывы
Характеристики

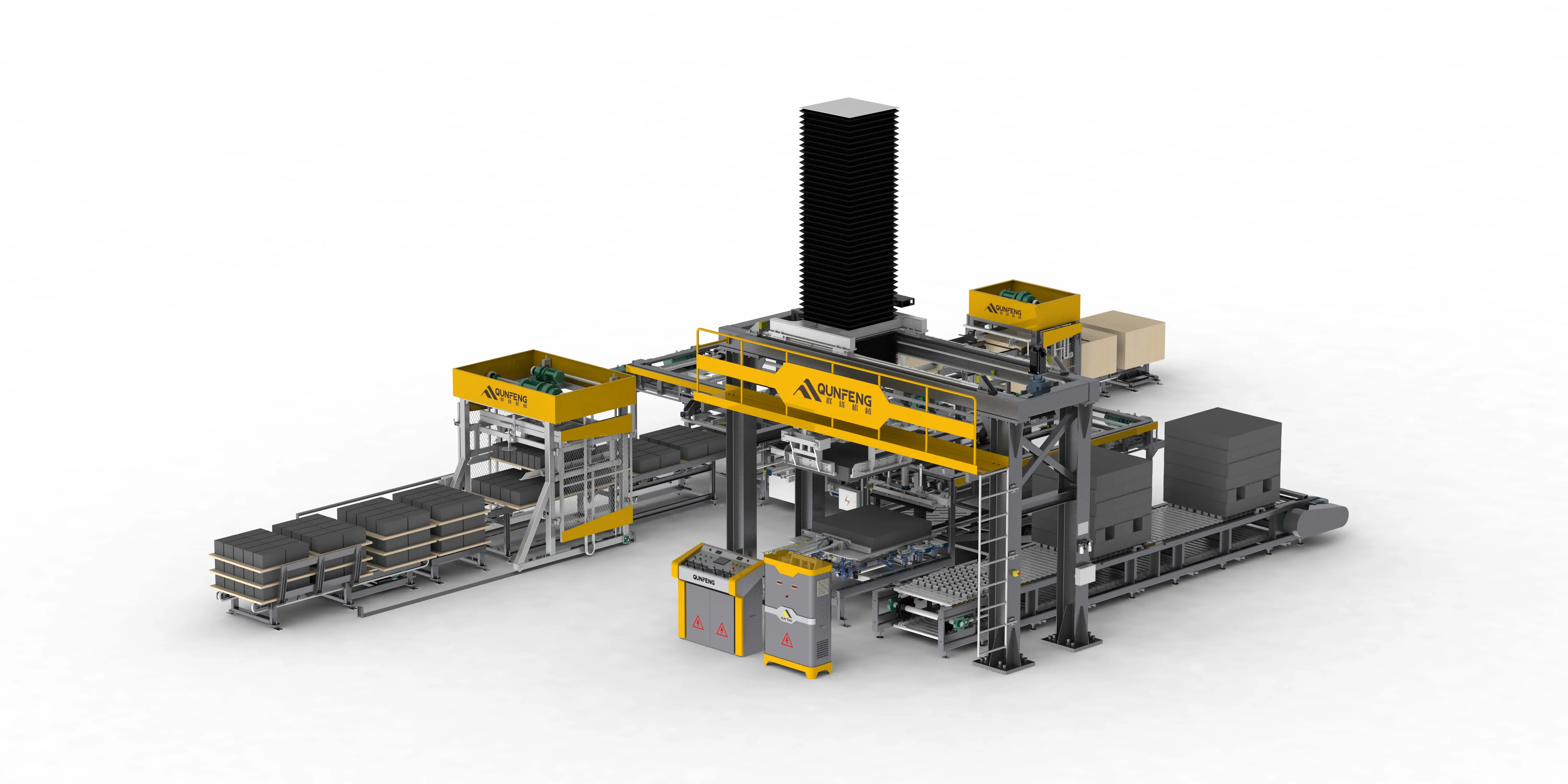

Independent cuber system is a special cuber system developed by us aiming at the high labor intensity and low production efficiency of the finished bricks in the present simple block production line. In general, the system is placed independently near the curing field to cuber the cured blocks, but it can be also connected directly with block production line to realize online cuber (in this situation, it is recommended to adopt the automatic mode)
QMD1200G Technical data | ||
Pallet size（mm） | （850-1250）×（680-950） | |
Palletizing size of cured products（mm） | 1200×1200 | |
Maximum Weight for Each Pallet with Blocks（kg） | ≤400 | |
Cuber cycle （s/layer） | 13-18 | |
Unloading Height (mm) | ≤800 | |
Collecting Pallet Height （mm） | ≤750 | |
Power（kw） | 58.4 | |
Occupation of land（mm） | 19500×9800×6500 | |
Product Description
Main technical features：
1.Independent Cuber System is specially researched and developed for solving the problem that cured blocks in simple production line require manual cuber, which is of heavy labour intensity but low production efficiency,. Normally, this system is separately placed near the curing field to cuber the cured blocks, but it can be also connected directly with block production line to realize online cuber (in this situation it is suggested to adopt automatic mode): It is composed of automatic block unloading machine, chain conveyor , brick pusher, pallet collector, automatic turntable, cuber and non-tray conveyor.
2.This cuber system can separate and regroup different block types, and finally form the required square stacks for cross stacking, and automatically generate fork brick hole positions according to the needs. After stacking, blocks can be output by tank chain conveyor and can be packed manually or packed by automatic baling machine.The whole system adopts PLC+ touch screen control. Real-time and fast data exchange is realized through Ethernet, and unmanned automatic operation is realized with high-end intelligent sensors. In case of failure, the machine will stop automatically, alarm and display the location of the fault, and the fault can be easily removed without professional technicians.
2.This cuber system can separate and regroup different block types, and finally form the required square stacks for cross stacking, and automatically generate fork brick hole positions according to the needs. After stacking, blocks can be output by tank chain conveyor and can be packed manually or packed by automatic baling machine.The whole system adopts PLC+ touch screen control. Real-time and fast data exchange is realized through Ethernet, and unmanned automatic operation is realized with high-end intelligent sensors. In case of failure, the machine will stop automatically, alarm and display the location of the fault, and the fault can be easily removed without professional technicians.

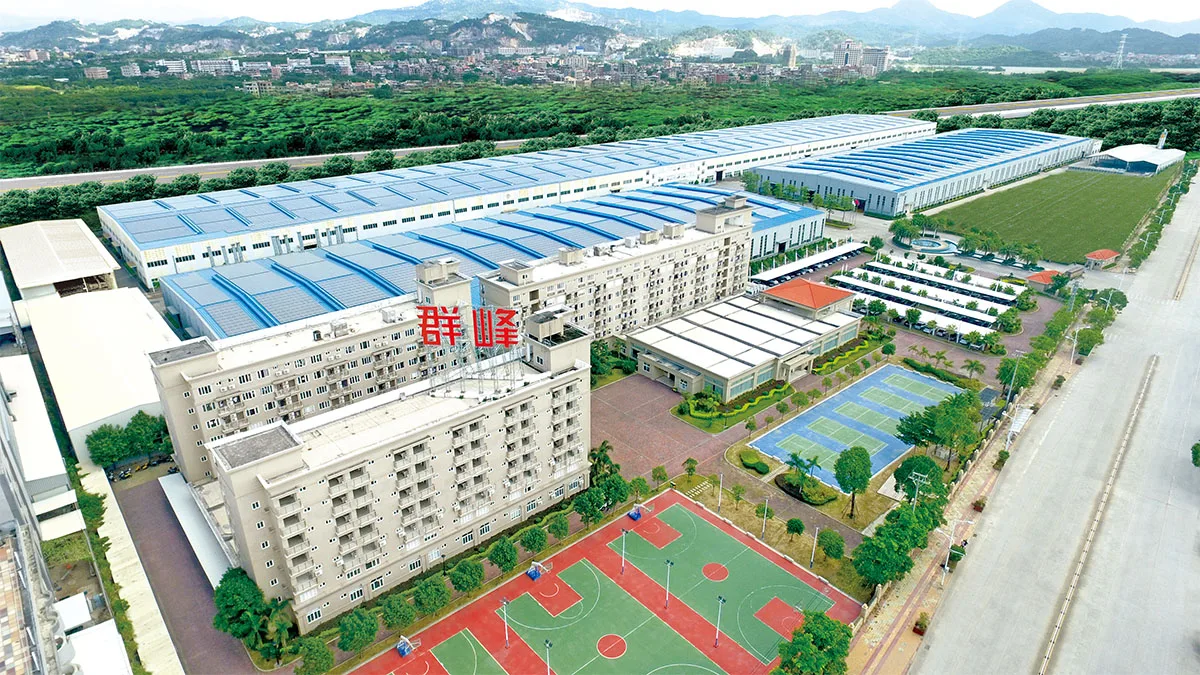

About Us
Fujian Qunfeng Machinery Co., Ltd. is committed to the research, development, manufacture, distribution and service of building material machines such as the concrete block making line, AAC block production line, cement block moulding machine and construction waste treatment machinery.
With continuous endeavor in striving for perfection in development and production, our company provides global construction industry with facility foundation for improving their core competitiveness by perfectly combing the theory of “intelligent technology” with the theory of “high efficiency and environmental friendly”.
Honors and Awards
During more than 20 year’s scientific research and forge ahead, Qunfeng always keeps a strong sense of social responsibility and has received high praise and support from government and society with its spirits of “Integrity, Innovation, Efficiency and Cooperation”.
Qunfeng has adopted different types of certifications including quality management system, environmental management system, OHSMS, IPMS, safety production standardization management and national weapons and equipment quality management.
Qunfeng has adopted different types of certifications including quality management system, environmental management system, OHSMS, IPMS, safety production standardization management and national weapons and equipment quality management.

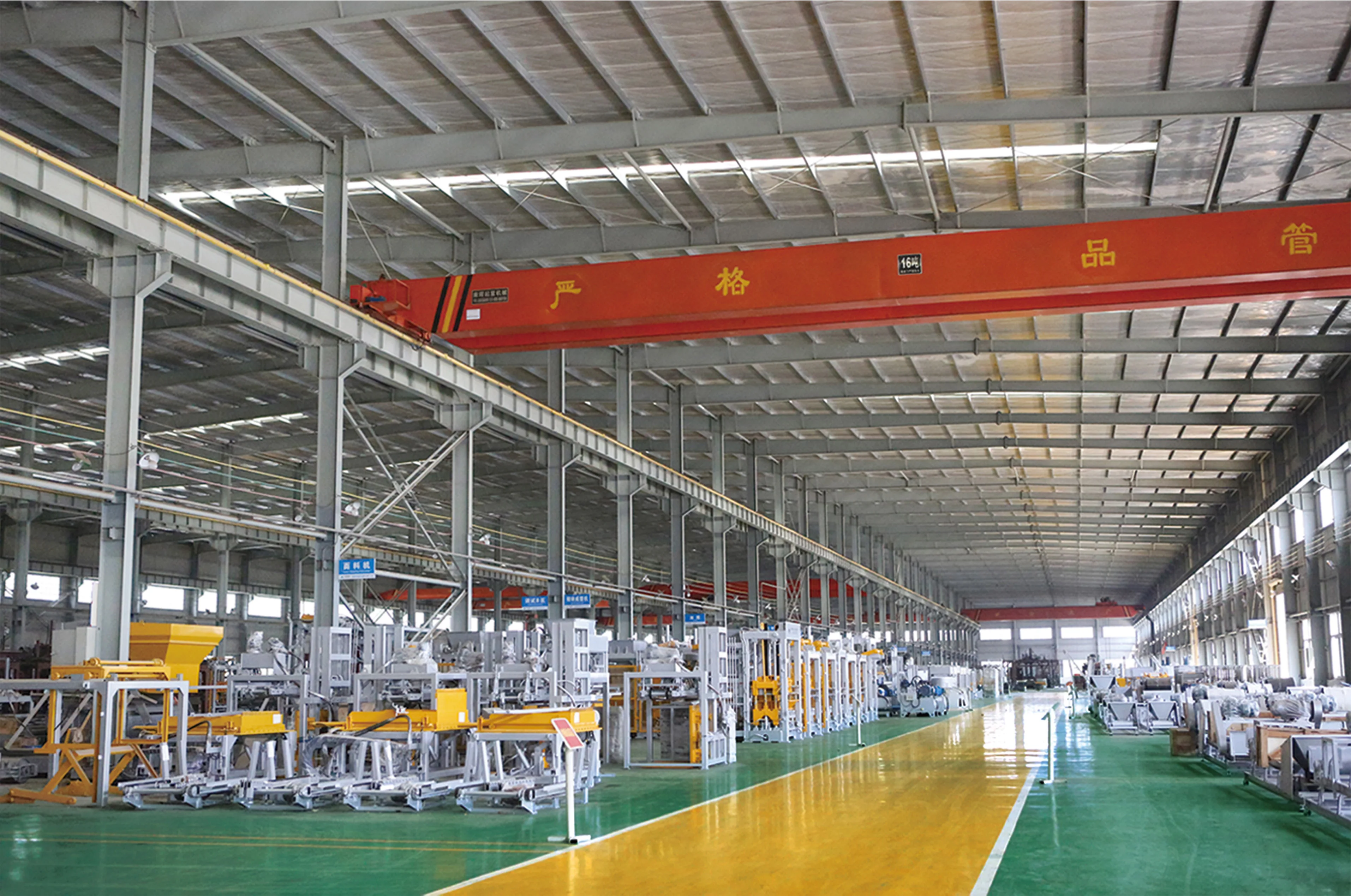

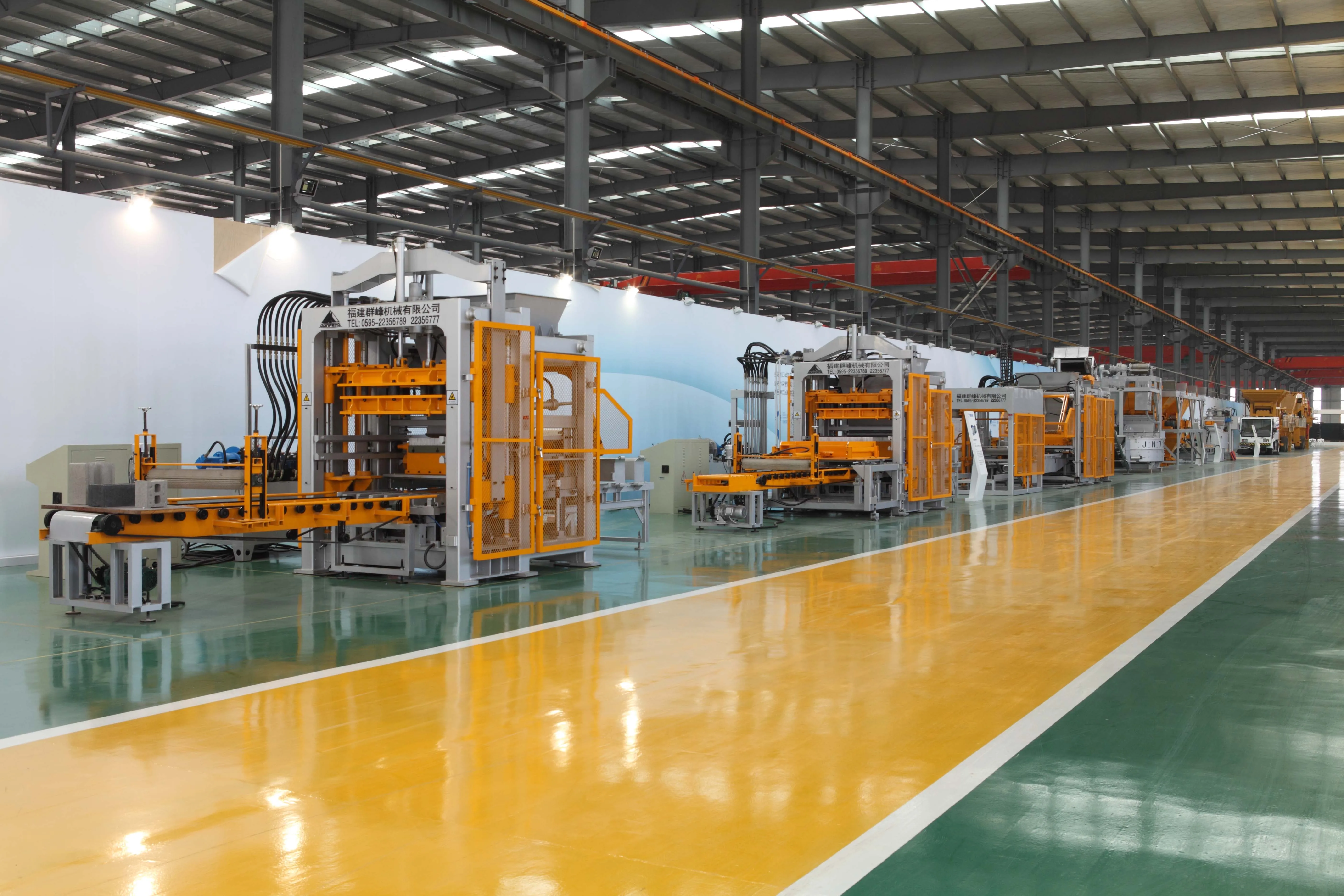

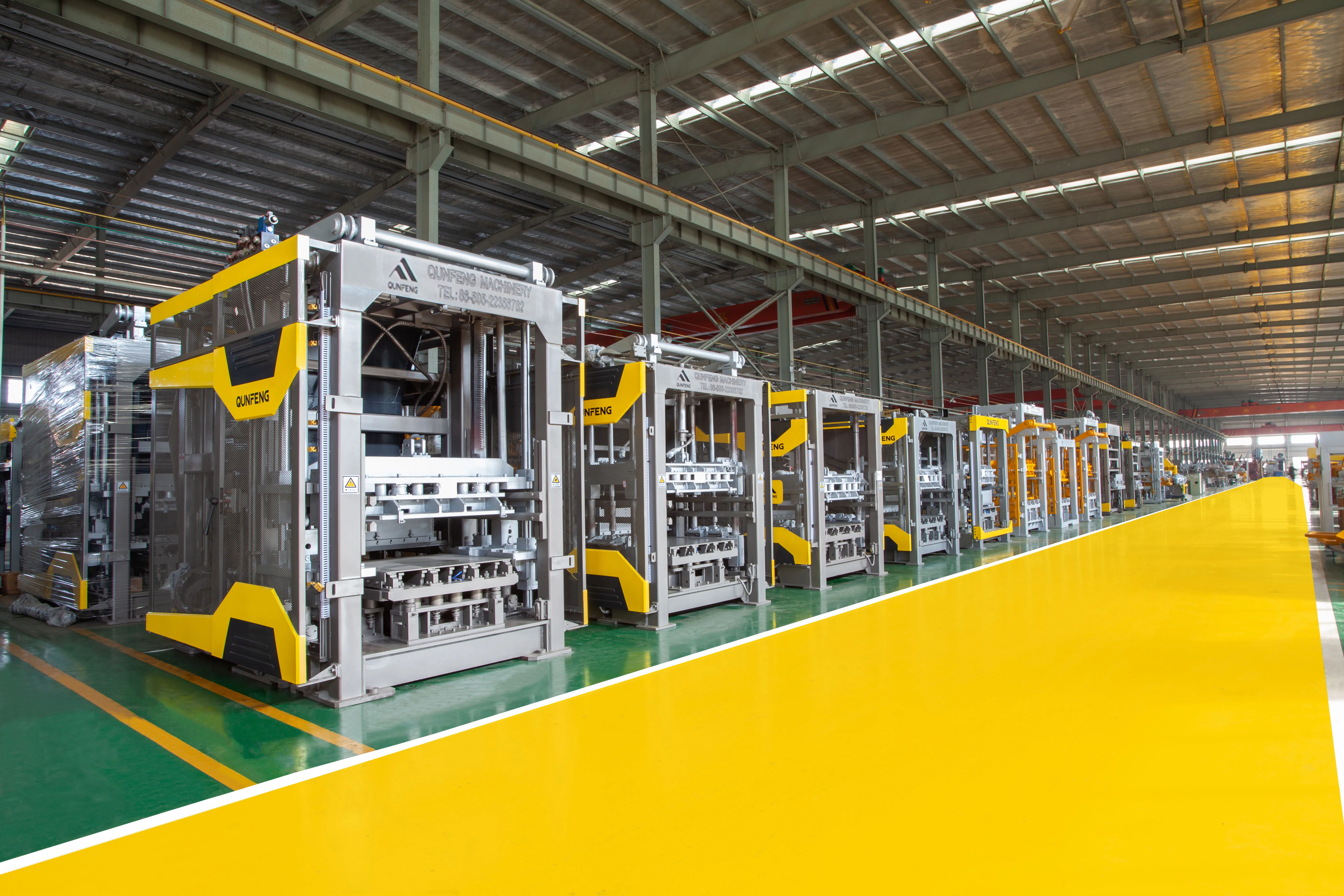

Production workshop

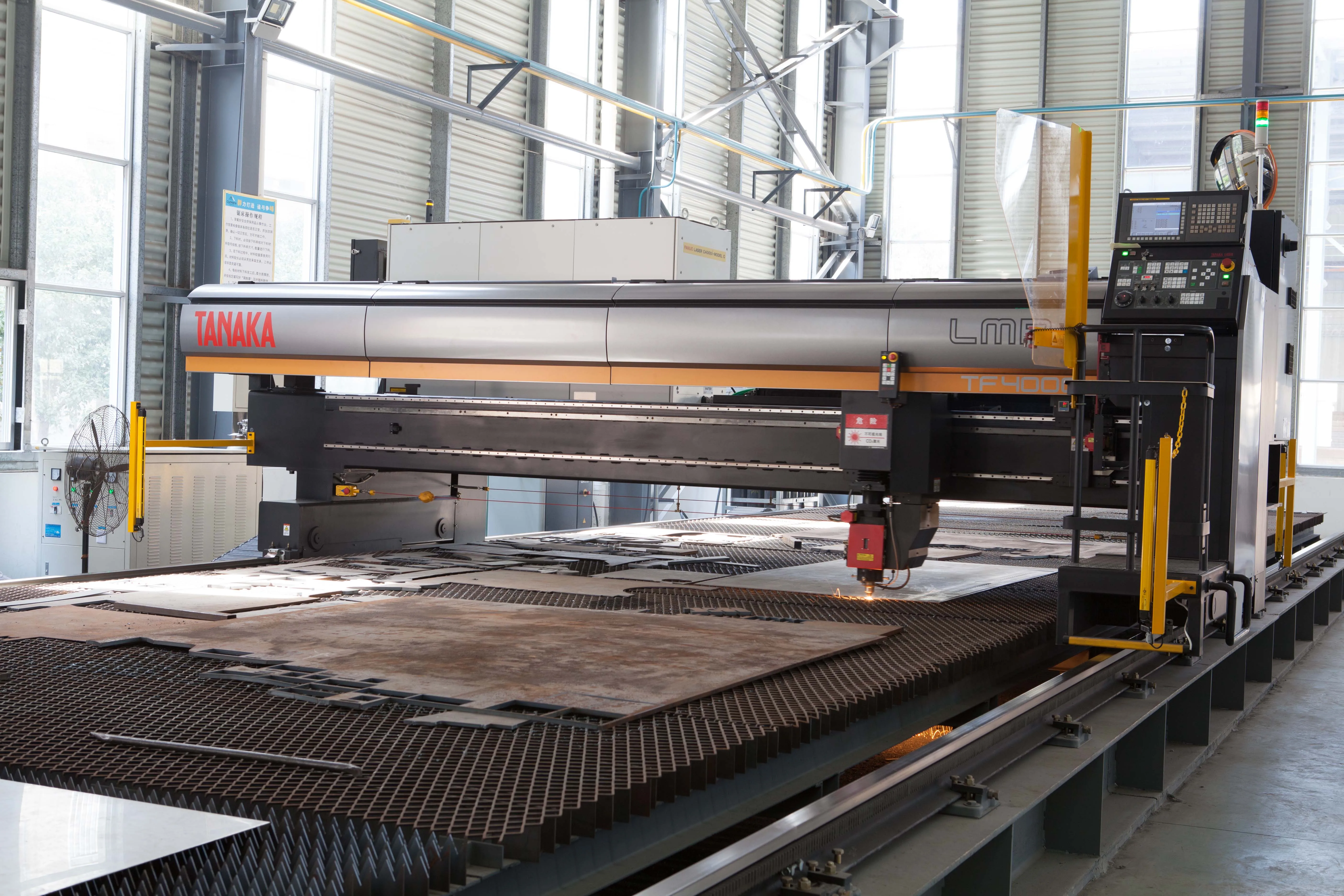

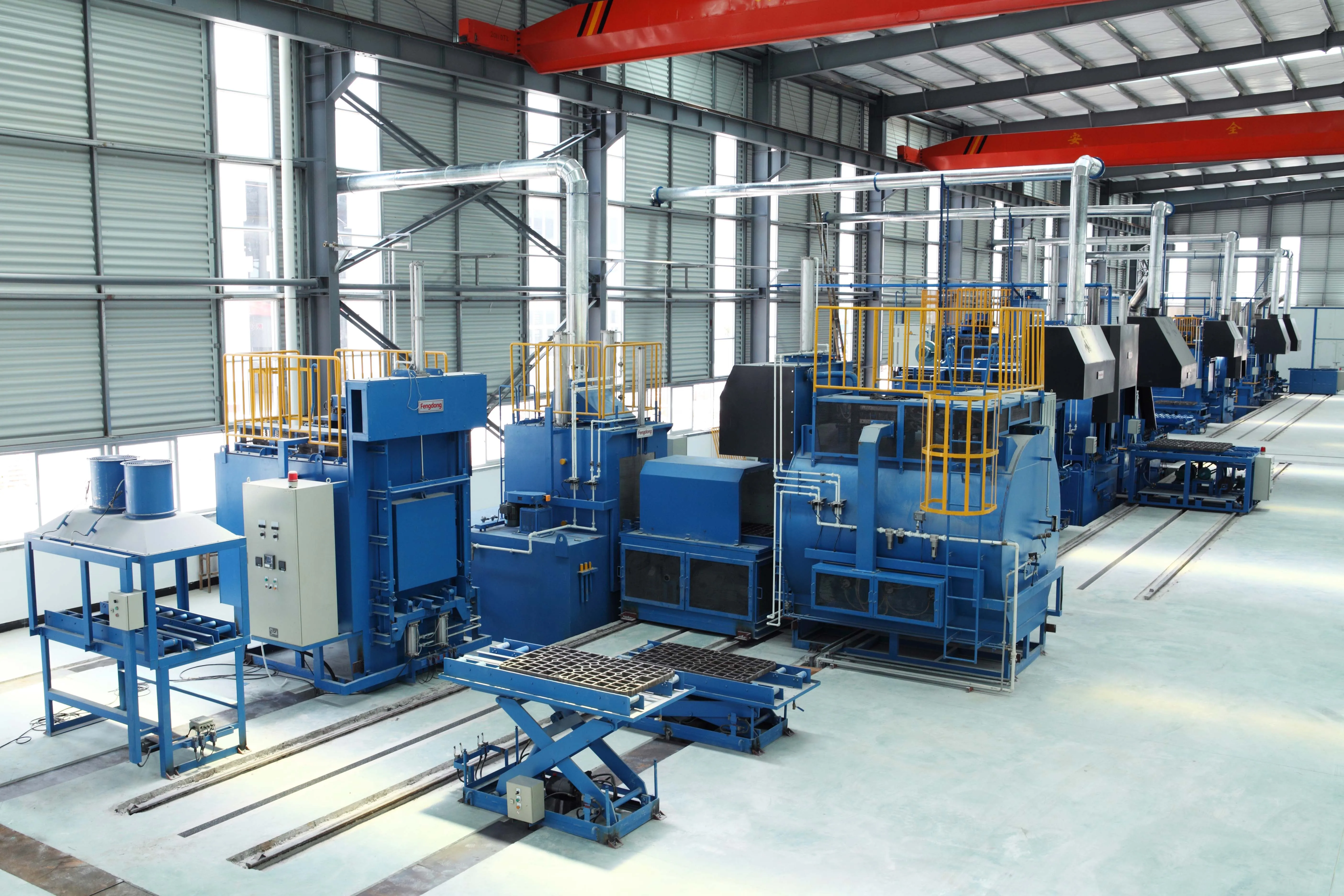

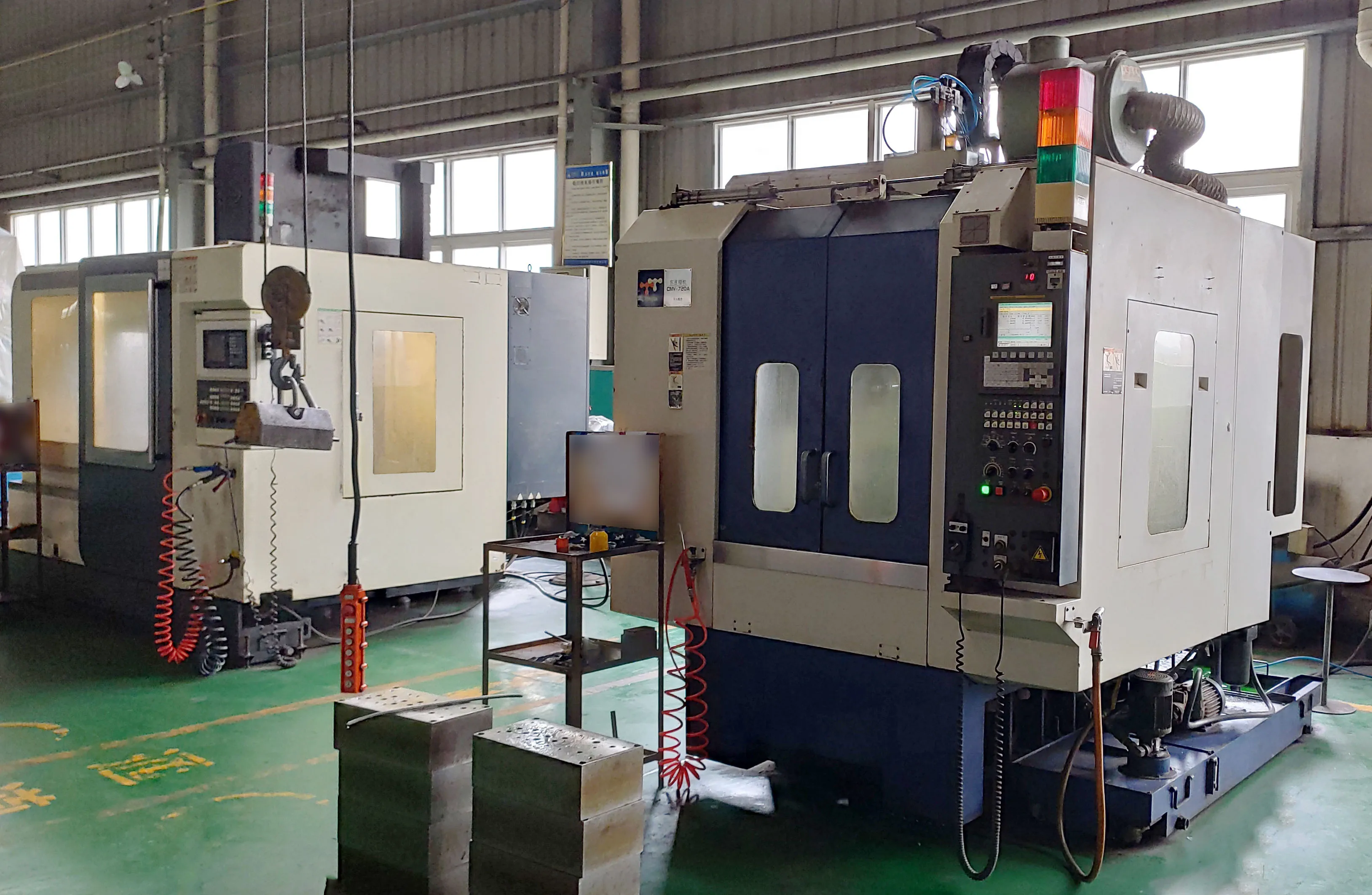

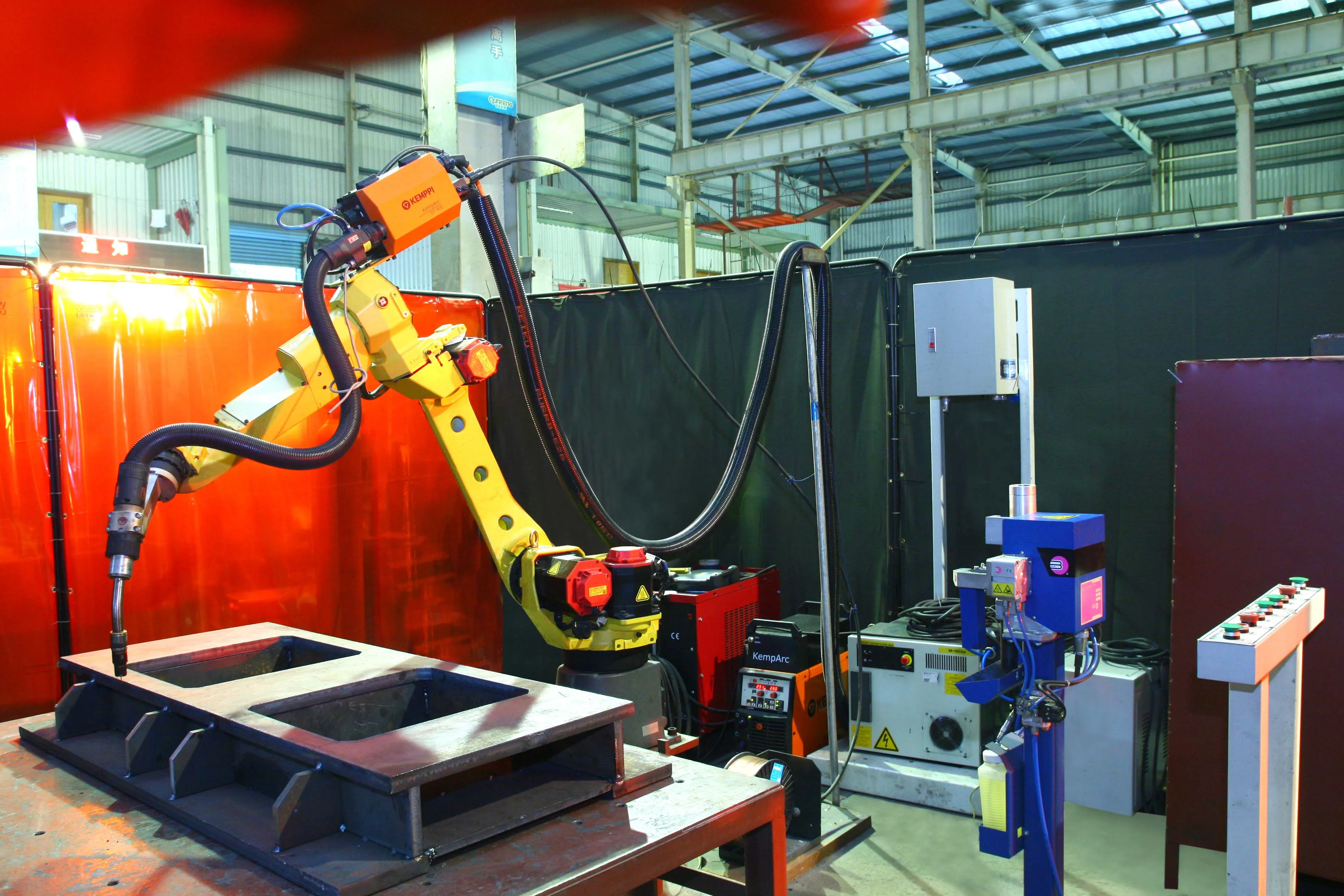

Processing Equipment
Our Team
FAQ
What is the advantage about your company?
We always take promote city development with intelligent technology.
As our main repsonsibility/Our technical R&D taskforce consists of about 100 professionals in fields such as mechanical, hydraulic, electronic and building material. We have set up two research institutions and established a good strategic partnership with most renowned Chinese universities and research institutions. We have actively participated in the drafting and rectification of more than a dozen national and industrial standards for products. We have won more than 200 patents for invention, utility and design as well as three provincial technical achievement appraisals.
As our main repsonsibility/Our technical R&D taskforce consists of about 100 professionals in fields such as mechanical, hydraulic, electronic and building material. We have set up two research institutions and established a good strategic partnership with most renowned Chinese universities and research institutions. We have actively participated in the drafting and rectification of more than a dozen national and industrial standards for products. We have won more than 200 patents for invention, utility and design as well as three provincial technical achievement appraisals.
Why should I choose your products?
Qunfeng Machinery is committed to the research, development, manufacture, distribution and service of building material machines such as the concrete block making line, AAC block production line, cement block moulding machine and construction waste treatment machinery. With continuous endeavor in striving for perfection in development and production, our company provides global construction industry with facility foundation for improving their core competitiveness by perfectly combing the theory of “intelligent technology” with the theory of “high efficiency and environmental friendly”.
Any other good service your company can provide?
The service concept of the "butler style service" company is to provide tracking services such as factory data analysis, process planning, and raw material analysis before equipment sales. In equipment sales, comprehensive services in civil engineering, process, training, and management are provided. After equipment sales, it is a one-stop and endless service model.
