EPEVER HP-AHP20SA Series 3500W 5500W
High Frequency Hybrid Solar Inverter With MPPT
The HP-AHP20SA series is a cost-effective product. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings.
Technical Specifications
Model | HP3542-AH0650P20SA | HP5542-AH1050P20SA | ||
Utility input | Utility Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | ||
Utility Frequency | 45Hz~65Hz | |||
Maximum Utility Charging Current | 60A | 100A | ||
Switch Response Time | Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms | |||
Inverter output | Inverter Rated Power (@30℃) | 3500W | 5500W | |
3-second Transient Surge Output Power | 7000W | 8500W | ||
Inverter Output Voltage | 220/230VAC±3% | |||
Inverter Frequency | 50/60Hz±0.2% | |||
Inverter Frequency | Pure sine wave | |||
Load Power Factor | 0.2~1(VA ≤ Rated output power) | |||
THDu (Total Harmonic Voltage Distortion) | ≤3% (48V resistive load) | |||
Maximum Load Efficiency | 92% | 92% | ||
Maximum Inverter Efficiency | 94% | 94% | ||
Solar controller | PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) 440V (At 25℃) | ||
MPPT Voltage Range | 85~400V | |||
PV Maximum Input Power | 4000W | 6000W | ||
PV Maximum Charging Current | 60A | 100A | ||
MPPT Maximum efficiency | ≥99.5% | |||
Battery | Battery Rated Voltage | 48VDC | ||
Battery Work Voltage Range | 43.2VDC~60VDC | |||
Battery Maximum Charging Current | 60A | 100A | ||
Others | No-load Losses | ＜0.7A | ＜1.0A | |
Test condition: No PV and utility, AC out is on, fan stops@48V input | ||||
Standby Current | ＜0.15A | |||
Test condition: No PV and utility, AC out is off, fan stops@48V input) | ||||
Work Temperature Range | -20℃~+50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately) | |||
Storage Temperature Range | -25℃~+60℃ | |||
Enclosure | IP20 | |||
Relative Humidity | < 95% (N.C.) | |||
Altitude | ＜4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | |||
Mechanical parameters | Dimension (Length x Width x Height) | 534mm × 288mm × 163mm | 590mm × 288mm × 163mm | |
Mounting size (Length x Width) | 512mm x 245mm | 568mm x 245mm | ||
Mounting hole size | Φ9mm/Φ10mm | Φ9mm/Φ10mm | ||
Net Weight | 12.0Kg | 15.0Kg | ||
Product Features:
>Pure sine wave output>Supports battery or non-battery modes
>Built-in BMS-Link module for secure battery charge and discharge control
>PFC technology reduces the demand on the power grid capacity
>Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%
>Supports Dual PV inputs to Improve PV utilization
>Supports Dual PV inputs to Improve PV utilization
>RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
>AC output supports parallel operation, standard configuration of 12 units in parallel
>AC output parallel operation supports single-phase and three-phase settings
Product Description
Recommend Products
Application
Company Profile
BEIJING EPSOLAR TECHNOLOGY CO.,LTD.founded in 2007, is a research, development and manufacturing enterprise focusing on photovoltaic off-grid controller, inverter, control inverter, photovoltaic energy storage inverter and photovoltaic power generation solutions.And set up a branch office in Shenzhen.
In 2019 we established subsidiary.HUIZHOU EPEVER TECHNOLOGY CO., LTD.passed ISO9001: 2015, ISO14001:2015 and ISO45001:2018.It is a cross-industry fast growing enterprise of green energy, integrating product design, research and development,production, sales and service.Manufacture solar charge controllers, off-grid inverters, inverter chargers, solar power system and other solar power units.
Our products comply with international standards CGC-SOLAR, CE, ROHS, FCC,ETL, and UL certificates.
Widely used in solar power station system, communication power supply system, monitoring power supply system,off-grid hybrid power supply system, RV power supply system, street lamp power supply system and other application scenarios. It have been sold to more than 120 countries and regions around the world, and get the user's praise and recognition.
Research & Development
Production & Manufacturing
Quality Management
Office
Workshop
Warehouse
Certifications
Exhibition
Похожие товары

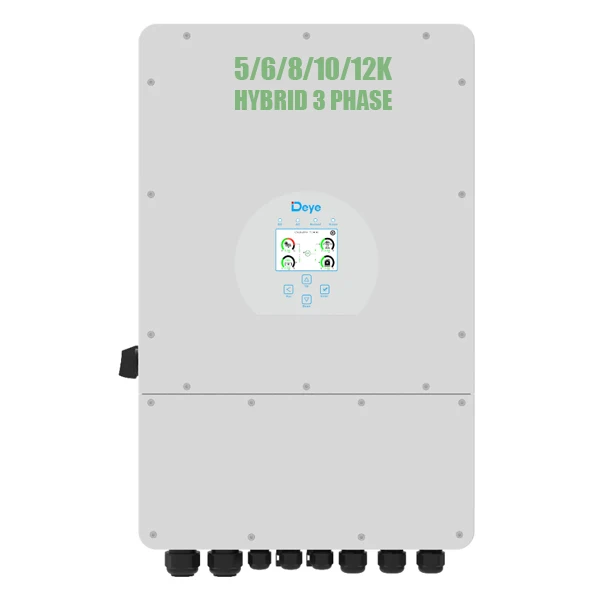

Гибридный солнечный инвертор Deye 5 кВт 6 8 10 12 инверторный генератор
Экономичный солнечный инвертор Deye мощностью 20 кВт 15 трехфазный 16 18K-SG05LP3-EU-SM2
1 999,00 $
Солнечный солнечный инвертор Deye 20 кВт включенный вне сети 15 SUN-14 16 18 k-sg05lp3-eu-sm2 трехфазный мощности
1 999,00 $

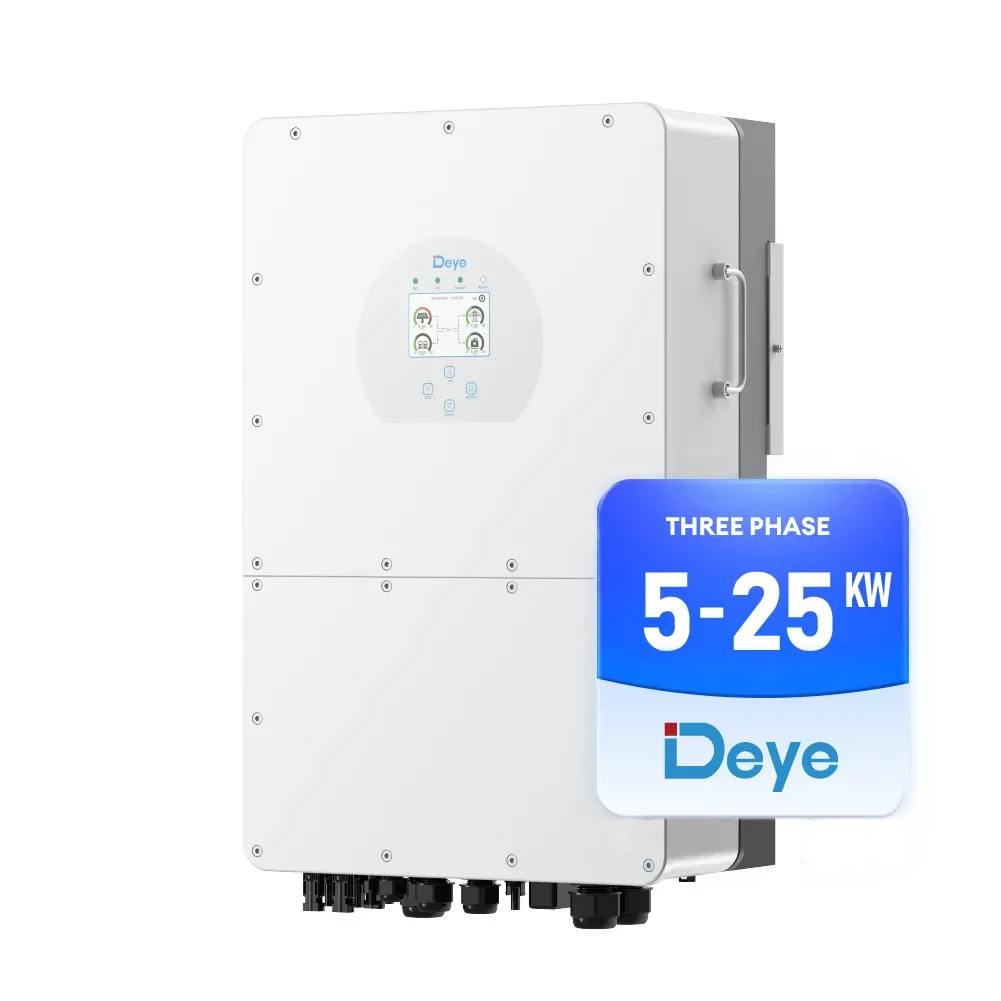

Гибридный инвертор Deye 8 кВт 5 12 15 20 25 гибридный солнечный 3 фазы
2 099,00-2 300,00 $

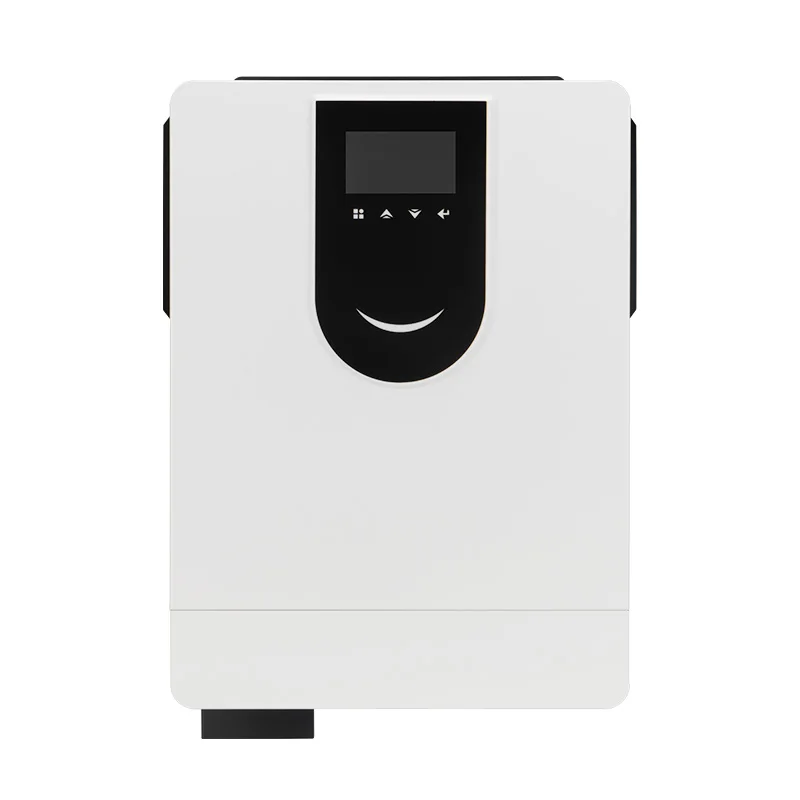

Гибридный инвертор SOLARDANCE 10 2 кВт 48 В
322,32-329,69 $

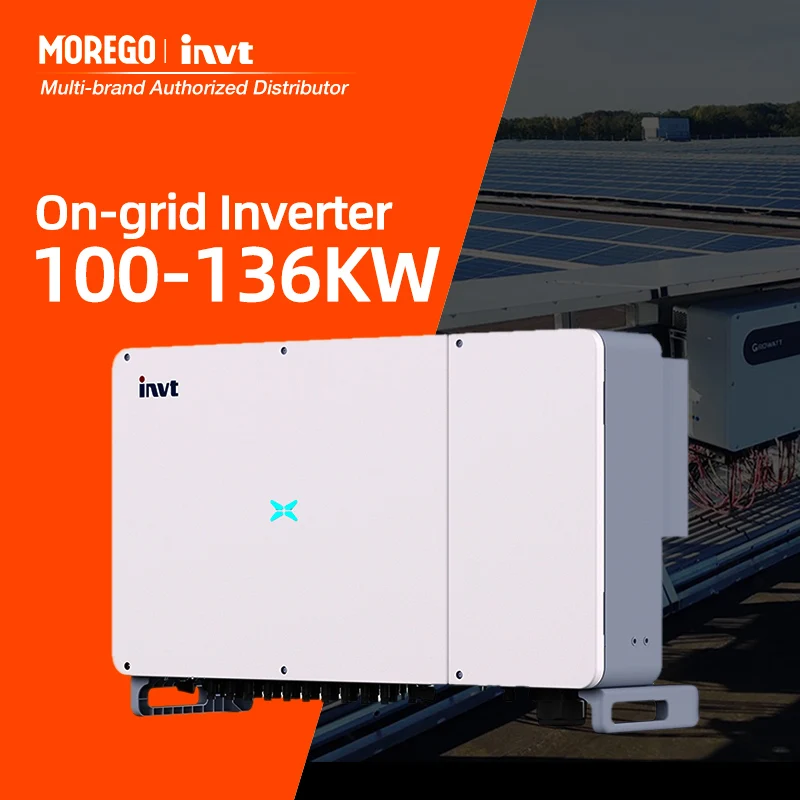

Invt трехфазный высокоэффективный и мощный 100 кВт 110 136 внутрисетевой солнечный инвертор для солнечной системы
