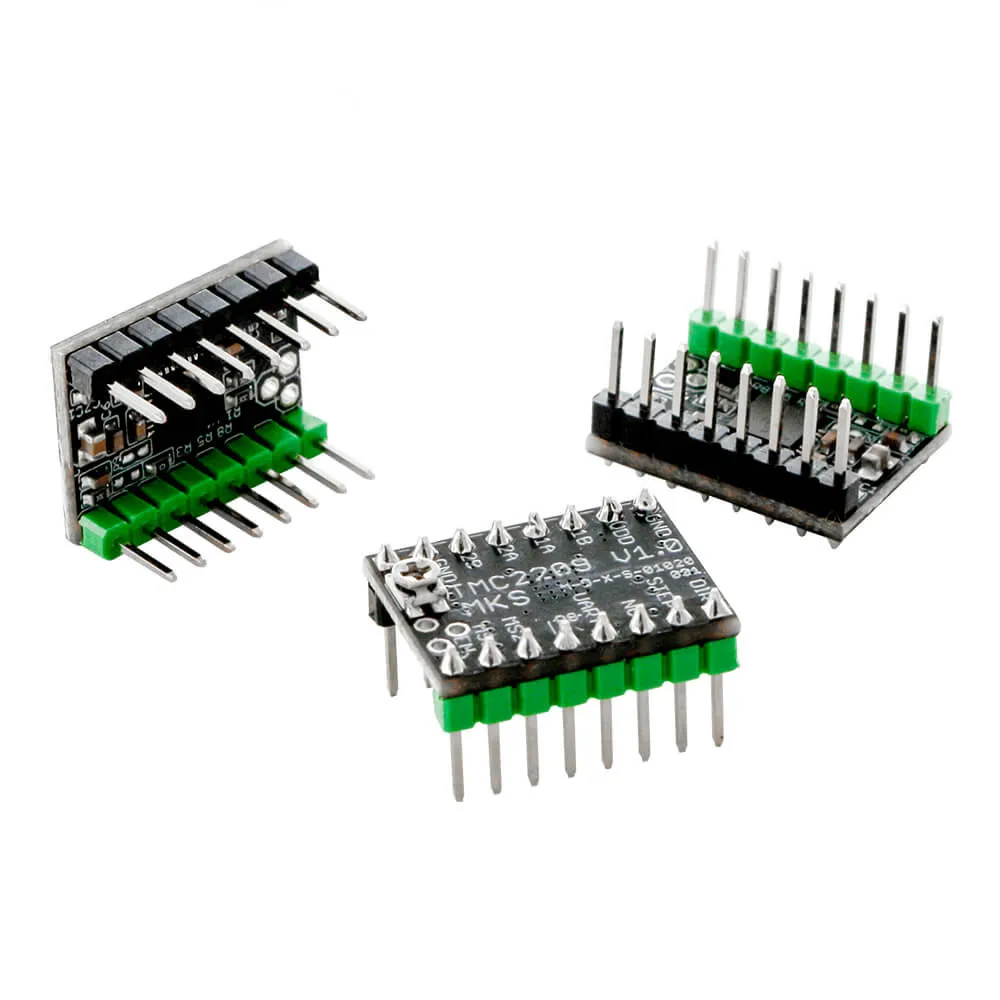

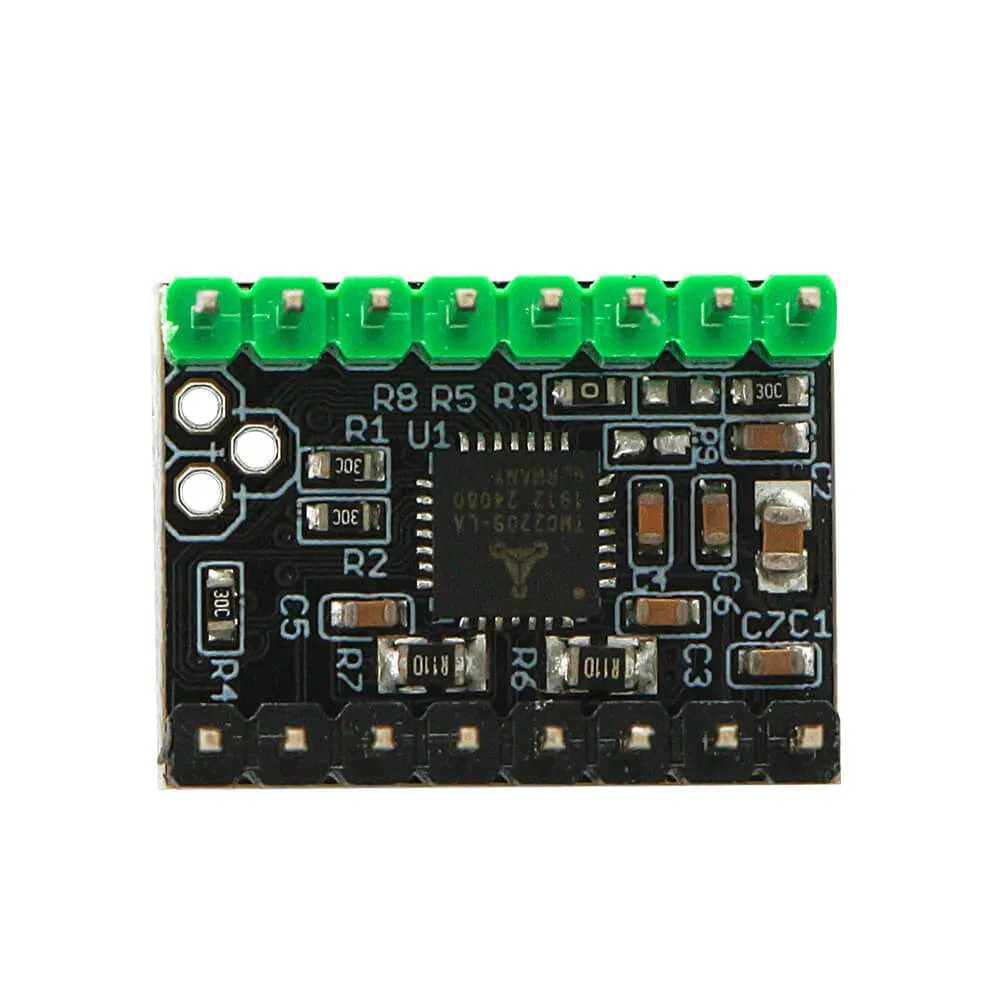

MKS TMC2209 silent stepper МОТОР diver driver Прямая продажа с завода
- Категория: >>>
- Поставщик: Shenzhen Lankeda Technology Co. Ltd.
Сохранить в закладки 1601128289838:
Описание и отзывы
Характеристики
Product Description
Overview:
TMC2209 has all function of TMC2208, can completely replace TMC 2208. At the same time, TMC2209 has better heat dissipation, can support bigger current, support sensorless-homing function.
TMC2209 has all function of TMC2208, can completely replace TMC 2208. At the same time, TMC2209 has better heat dissipation, can support bigger current, support sensorless-homing function.
Shipping list:
Features:
Ultra quiet.
Large heat sink, good heat dissipation.
Support sensorless-homing function.
Support uart mode by set jumper caps instead of welding on mks gen_l V2.0,skr1.3/1.4,mks sgen_l.
Parameter:
Default current: 0.88a
Recommend current: 1.72a(at most)
Max current: 2a
Logic voltage: 3.3v/5v
Input voltage: 5.5v-28v
Microstep: up to 1/256
Mode: dir/step,uart
Microstep set:
Ultra quiet.
Large heat sink, good heat dissipation.
Support sensorless-homing function.
Support uart mode by set jumper caps instead of welding on mks gen_l V2.0,skr1.3/1.4,mks sgen_l.
Parameter:
Default current: 0.88a
Recommend current: 1.72a(at most)
Max current: 2a
Logic voltage: 3.3v/5v
Input voltage: 5.5v-28v
Microstep: up to 1/256
Mode: dir/step,uart
Microstep set:
MO | M1 | STEP |
GND | GND | 8 |
VCC_IO | GND | 32 |
GND | VCC_IO | 64 |
VCC_IO | VCC_IO | 16 |
Driver current regulation:
1.Verf measures the voltage of Gnd and potentiometer middle.
2.Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.
3.Please connect the power supply when measuring voltage as well, do not connect only the USB power.
4.Please pay special attention to the direction, do not insert wrongly!
Driver current algorithm:
1.Verf measures the voltage of Gnd and potentiometer middle.
2.Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.
3.Please connect the power supply when measuring voltage as well, do not connect only the USB power.
4.Please pay special attention to the direction, do not insert wrongly!
Driver current algorithm:
Notice:
1.Pay attention to the connection direction, do not reverse it.
2.The motor direction is opposite to that of A4988 and DRV8825, please adjust the firmware or 3.adjust the motor wiring if you want to change A4988.
4.Dir/step mode used in the printer control board, please pay attention to set the jumper cap MS1 MS2.
Uart mode can be used on mks gen_l(v2.x),mks sgen_l,skr1.3/1.4 by set jumper cap like below:
1.Pay attention to the connection direction, do not reverse it.
2.The motor direction is opposite to that of A4988 and DRV8825, please adjust the firmware or 3.adjust the motor wiring if you want to change A4988.
4.Dir/step mode used in the printer control board, please pay attention to set the jumper cap MS1 MS2.
Uart mode:
Uart mode can be used on mks gen_l(v2.x),mks sgen_l,skr1.3/1.4 by set jumper cap like below:
MKS Sgen_L / MKS Gen_L:
SKR 1.3 & 1.4
Sensorless-homing function:
Used on mks gen_l(v2.x),mks sgen_l,skr1.3/1.4 by set jumper cap like below:
MKS Sgen_L / MKS Gen_L:
SKR 1.3/1.4:
Company Profile
Packing & Shipping
Packaging & Shipping
Package: Neutral Packing- Color box Packing / White Box Packing / Plastic Bag Packing / Shrink Packing / Safe packing with foamed
plastics in hard carton / Customized Packing
Delivery: One to five working days upon receiving payment. Ship by DHL/FEDEX/UPS/TNT/EMS.
plastics in hard carton / Customized Packing
Delivery: One to five working days upon receiving payment. Ship by DHL/FEDEX/UPS/TNT/EMS.
