Роботизированный лазерный сварочный аппарат Cobot mig tig 1 кВт 2 3 6 робот-манипулятор 1400 мм медное Металлическое волокно сварочное оборудование
1 008 172,25-1 423 302,00 ₽
1500 Вт Ручной сварщик волоконно лазерный сварочный аппарат для металла
- Категория: >>>
- Поставщик: Shandong Taibang CNC Equipment Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601128528125:
Описание и отзывы
Характеристики
Laser Welding Machine TB-H1500

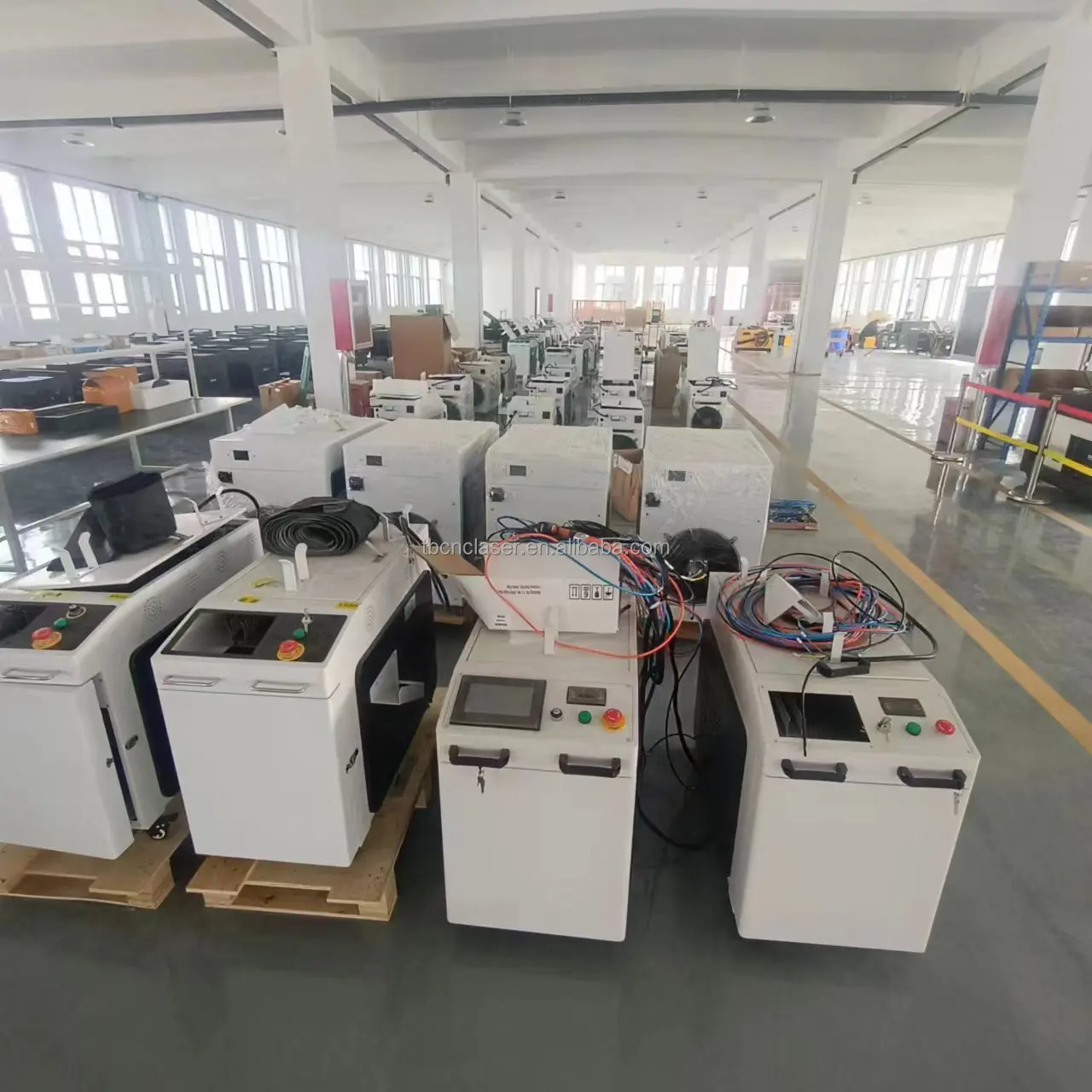

Factory equipment
1. Fast welding speed, 2~10 times faster than traditional welding.
2. Easy operating need no training
3. welding seam beautiful smooth and beautiful, don’t need polish, save your time.
4. No deformation or welding scar, firm welding of the workpiece.
5. Laser welding has less consumables and long service life.
6. Safer, more environmentally friendly.
2. Easy operating need no training
3. welding seam beautiful smooth and beautiful, don’t need polish, save your time.
4. No deformation or welding scar, firm welding of the workpiece.
5. Laser welding has less consumables and long service life.
6. Safer, more environmentally friendly.
Mechanical configuration

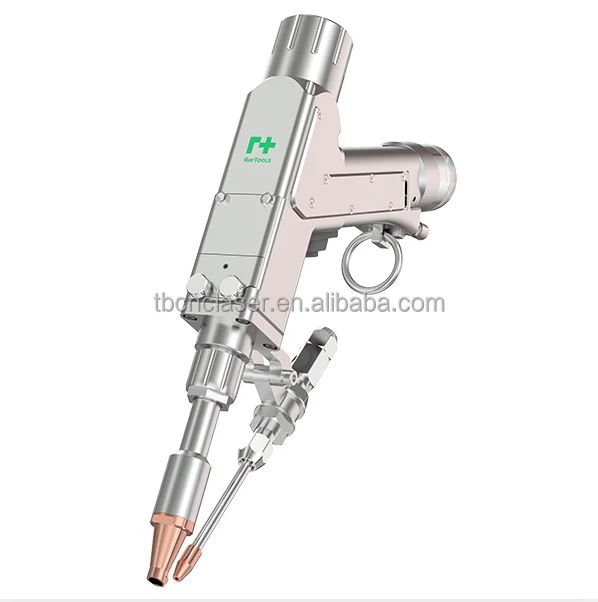

Welding gun head
BW101-GS is a single mirror handheld laser welding head suitable for below 3000W, which combines cutting, weld cleaning, remote cleaning and other functions. The matching laser control system is compatible with robotic arms, platform control, etc. It is widely used in industries such as cabinets, sheet metal, stainless steel door and window hardware.

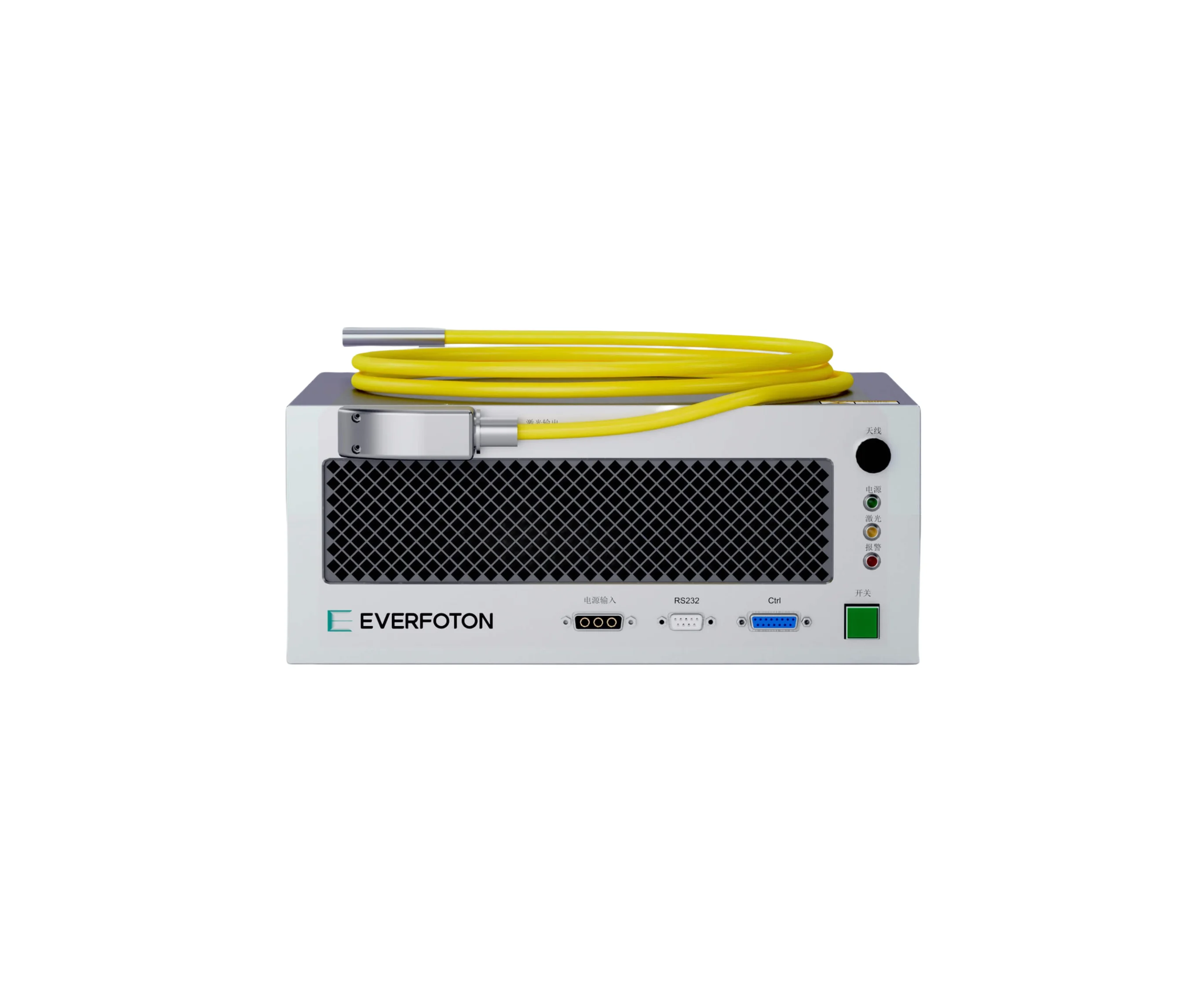

Taibang Laser
Core products include: high-power semiconductor lasers, continuous fiber lasers, quasi continuous fiber lasers, portable fiber lasers, etc. The product is mainly used in laser cutting, laser welding, laser cleaning, laser cladding, 3D printing, as well as communication, automotive, medical and other fields.

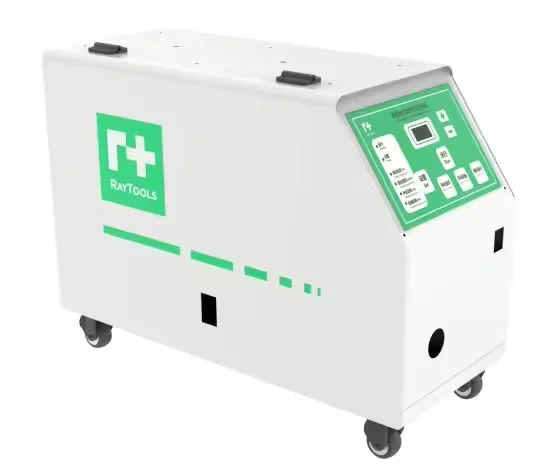

Wire feeder
Please use the wire feeding device in places that meet the following conditions.
This machine is an indoor unit with a protection level of IP2X. Do not use in areas with water droplets or raindrops.
Please use in an environment with a temperature range of -10 ℃ to 40 ℃.
Do not place it on a tabletop that is subject to strong vibrations or significant impacts.
This machine is an indoor unit with a protection level of IP2X. Do not use in areas with water droplets or raindrops.
Please use in an environment with a temperature range of -10 ℃ to 40 ℃.
Do not place it on a tabletop that is subject to strong vibrations or significant impacts.
Specification reference
Hand-held laser welding machine | TB-H1500 |
Laser power | 1500W |
Laser source | MAX/RAYCUS/BWT/Reci |
Laser wave length | 1064nm |
Fiber cable | 10m |

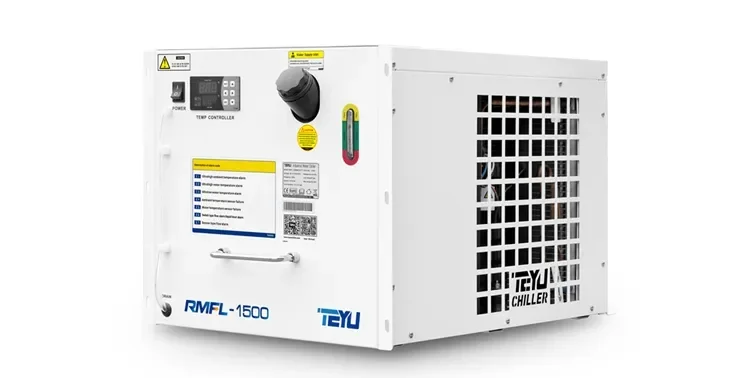

Cooling system | Water cooling/air cooling |
working voltage | 220V/50HZ |
Welding thickness | 0.5-4mm |
Fiber optic interface | QBH |
Optical aperture | 14mm |
Collimator focal length | 60mm |
Focusing lens focal length | 150mm |
Swing amplitude | 0-5mm |
Cooling system | water-cooling |
keyword | Laser welding machine |
function | Laser welding of metal parts |
Application samples
Mainly used for metal welding, carbon steel, die steel, alloy steel, stainless steel, titanium, nickel, tin, copper, aluminum and other metals
Application industry
Application industry: Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, machinery, precision parts, ships, metallurgical equipment, elevators, house-hold appliances, gift products, tool processing, decoration, advertising, external processing, etc.
Package：Plywood box
Lead time：About 7-9 days
Get free replacement parts service and online technical support for 2 year after purchase. (Delivery fees may be charged)
Company Introduction
Company Introduction
Shandong Taibang CNC Equipment CO., LTD. deeply engaged in laser field for many years. With over 50,000 square meter factory, we.have a team of over 400 employees, including over 80% professionals technical and R & D engineers. With an annual output more than 3,500 laser equipment and over 10 independent research and development models, we are committed to innovation and setting industry standards.
We are a leading manufacturer of fiber laser cutting machines, offering a wide range of solutions with cutting-edge technology. We.have professional design, production, sales, and after-sales service teams, with strict quality control and professional customer.service. Our products have obtained European CE certificates, American FDA certificates, etc.
Our machines include fiber laser cutting machines, Tube fiber laser cutting machines, Sheet&Tube fiber laser cutting machines.Hand-held welding machines and laser cleaning machines etc. Our products are widely sold all over the world, more than 80 .countries. Hot selling in Europe, North America, South America, the Middle East, Southeast Asia and other regions, and have earned .very good feedback from our customers. We offer OEM services for the cooperation wholesalers. We expand the international market .share with our high-quality products, awesome services, best prices and timely delivery. Shandong Taibang CNC Equipment warmly looking forward to your cooperation.
Cooperative clients
Common customer questions
1. How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
2. If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long
after-sales service. So any doubts, just let us know, we will give you solutions.
3. Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
2. If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long
after-sales service. So any doubts, just let us know, we will give you solutions.
3. Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
FAQ
1.Q:Why should we choose you ?
A:If you choose us, you will get top quality,best service,reasonable price and reliable warranty.
2.Q:I'm not familiar with the machine,how to choose?
2.Q:I'm not familiar with the machine,how to choose?
A:Just tell us materials, thickness and working size, I will recommend the suitable machine.
3.Q:How to operate the machine?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or WhatsApp or e-mail.
4.Q:Does the machine can be customized according to my requirements?
A:Of course.Please provide your logo or design to us. Our goal is to make you satisfied.
5.Q:Can you arrange the shipment for us?
A:Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
Похожие товары
Многофункциональный ручной 1 кВт 5 2 3 4 в Ручной Волоконно-лазерный сварочный аппарат для металла

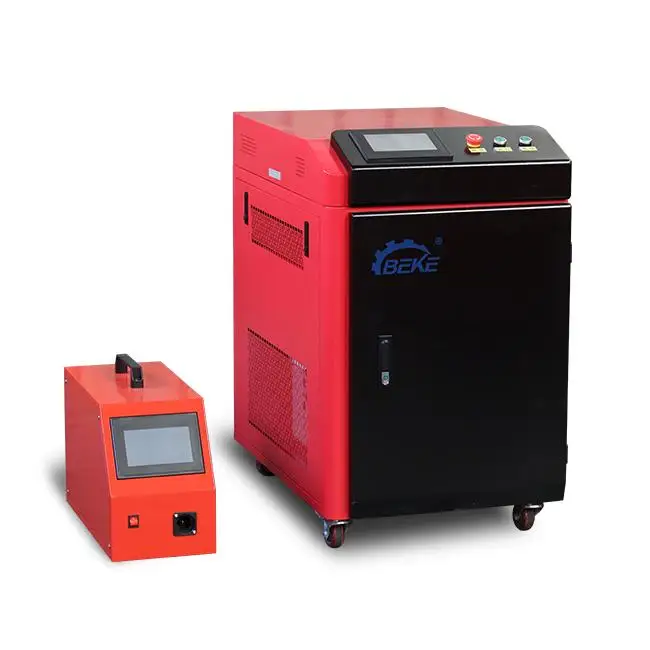

Топ Лазерная 1500 Вт Портативные волоконно лазерный сварочный аппарат лазерной сварки машина 1500W цена TL-HLW1500
687 810,70 ₽
4 в 1 волоконно-лазерные портативные лазерные сварщики 1500 Вт 2000 3000
237 217,00-296 521,25 ₽
Лазерный сварочный аппарат ручной лазерный цена портативный 1500 Вт 2000
569 320,80-687 929,30 ₽
Лазерный сварочный аппарат из нержавеющей стали 2000 Вт с хорошей ценой
687 929,30-806 537,80 ₽

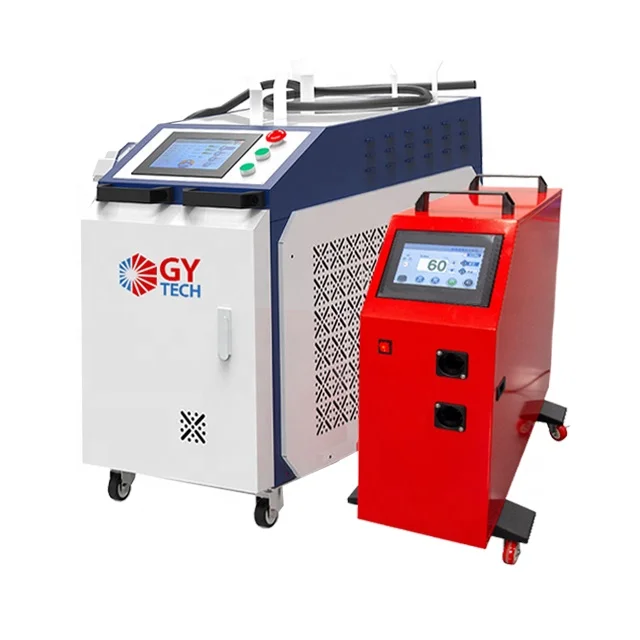

Лазерный сварочный аппарат GY 1500 Вт ручной очиститель три в одном 2000 3000
