JOZOTG 30-80 тонн 2 3 4 оси бортовой 20 футов 40 45-футовый контейнерный полуприцеп или Бортовой Грузовой
925 146,30-1 008 172,25 ₽
40 80 тонн 2 3 4 оси бортовой 20 футов 40 45 футовый контейнеровоз полуприцеп или Бортовой Грузовой
- Категория: >>>
- Поставщик: Shandong Yanggu Flywheel Trailer Manufacturing Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601132808090:
Описание и отзывы
Характеристики

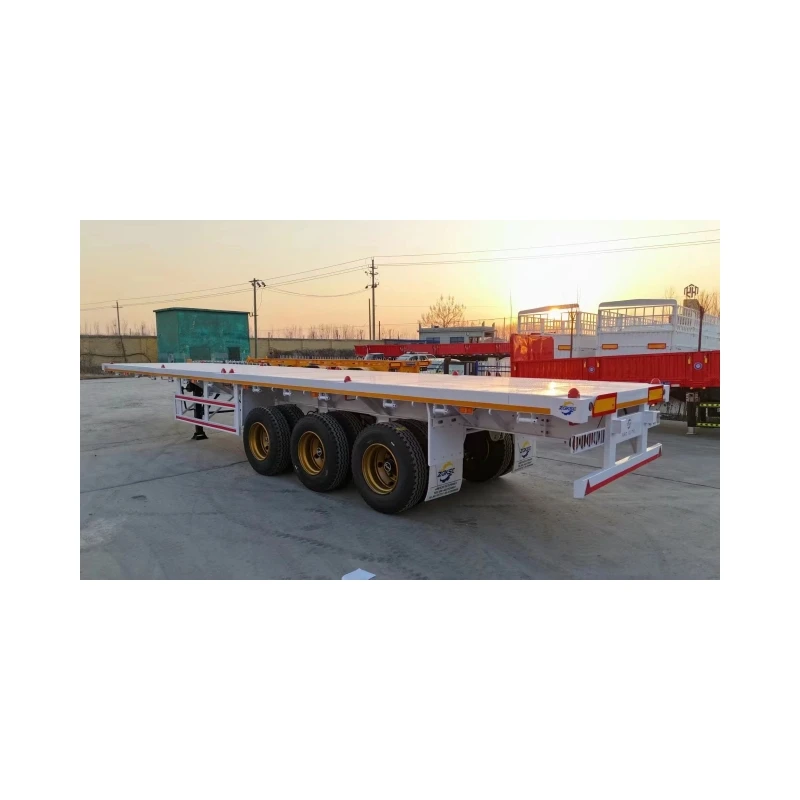

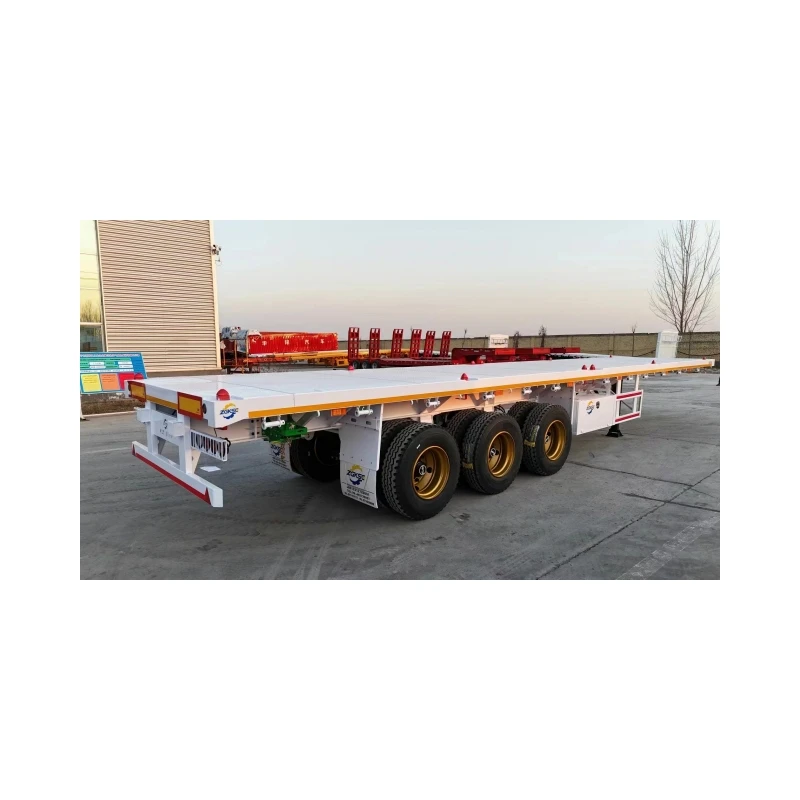

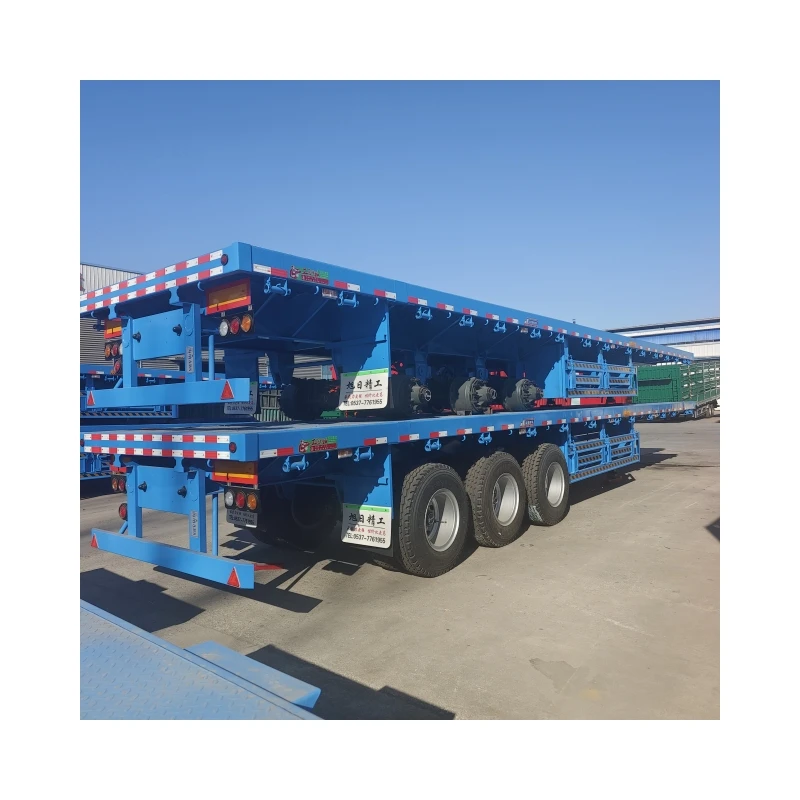

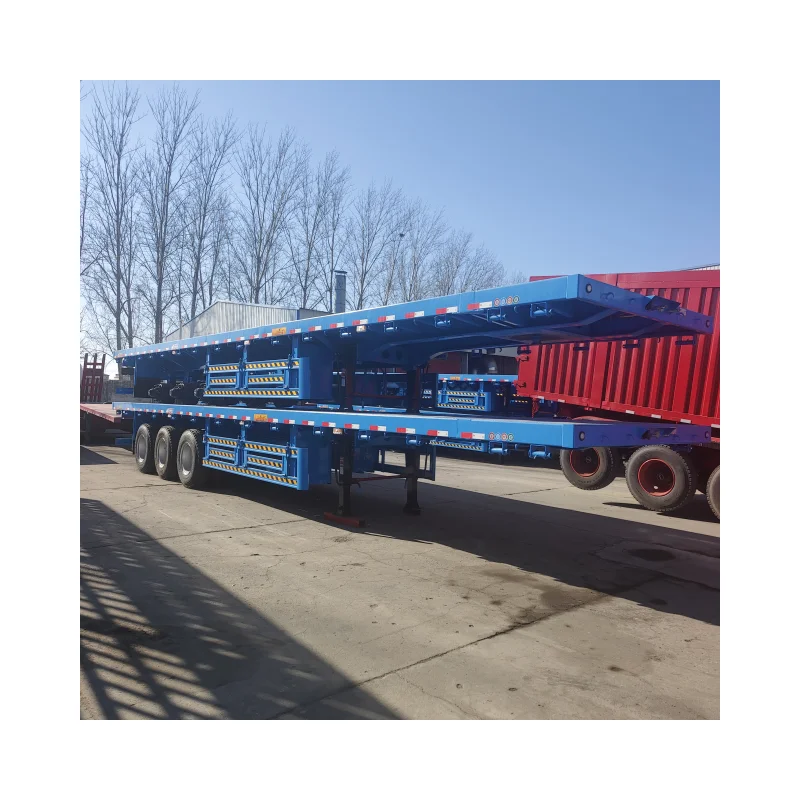

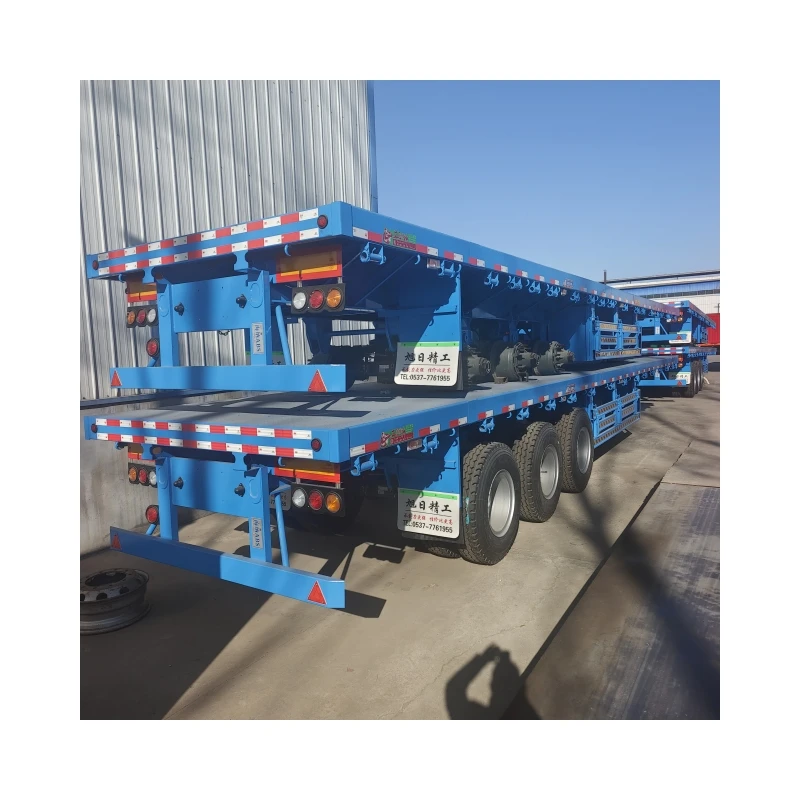

20FT/40FT/45FT Container Chassis Flatbed Semi Trailer
Flatbed Semi-trailer is specially used for the transportation of various containers, and it can also use its platform to
transport ordinary bulk cargo. It has sufficient strength and is mainly used in transportation systems such as ships, ports,
routes, highways, transfer stations, bridges, tunnels and other transportation systems. The 40ft Flatbed Container Trailer can carry 40ft and two 20ft containers. Flatbed trailer capacities range from 20 to 80 tons and are available in 2, 3 and 4 axles. Customers can change the number of locks according to your own needs.
The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.
Flatbed Semi-trailer is specially used for the transportation of various containers, and it can also use its platform to
transport ordinary bulk cargo. It has sufficient strength and is mainly used in transportation systems such as ships, ports,
routes, highways, transfer stations, bridges, tunnels and other transportation systems. The 40ft Flatbed Container Trailer can carry 40ft and two 20ft containers. Flatbed trailer capacities range from 20 to 80 tons and are available in 2, 3 and 4 axles. Customers can change the number of locks according to your own needs.
The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.
40Ton Flatbed Trailer 20/40/45/48ft Container Flatbed Semi-trailer Chassis | ||||||
Product name | 20 FT Flatbed Semi-trailer | 40 FT Flatbed Semi-trailer | 45 FT Flatbed Semi-trailer | |||
Product Size | 7000*2500*1570mm | 12400* 2500*1570mm | 13950*2500*1600mm | |||
Axle | 2 /3 Axles*13Ton FUWA/BPW/other | 2 /3 Axles*13Ton FUWA/BPW/other | 2 /3 Axles*13Ton FUWA/BPW/other | |||
Application | 1*20 ft Container or cargo Loading Loading | 1*40ft/2*20 ft Container/Cargo Loading | 1*40ft/1*45/2*20 ft Container / Cargo Loading | |||
Capacity | 20-60 Tons | 30-80 Tons | 30-80 Tons | |||
Main Beam Material | Q345/T700 | Q345/T700 | Q345/T700 | |||
Upper Plate Thickness | 12mm | 16mm | 16mm | |||
Middle Plate Thickness | 6mm | 10mm | 10mm | |||
Lower Plate Thickness | 14mm | 18mm | 18mm | |||
Height | 500mm | |||||
Platform Thickness | 3mm thick patterned steel plate | |||||
Leaf Spring | 90mm*13mm*10/90mm*16mm*10 | |||||
Kin Pin | 50#(2")/90#(3.5") JOST/Other Brand | |||||
Landing Gear | 28 Tons Two Speed,JOST/Other Brand | |||||
Twist Lock | 4 Sets | 8 Sets | 8 Sets | |||
Suspension System | Mechanical or Air Suspension | |||||
Tire | 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | |||||
Rim | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | |||||
Tool Box | Steel or Aluminum | |||||
Painting | Electrophoresis paint | |||||
If you want to know more details,please contact us directly | ||||||
Specification
1.The Flatbed Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s toughness and strength. The strong Loading Capacity, 30 100 Tons Loading Range.
2.The girder adopts submerged arc welding, the whole vehicle shot blasting and derusting, and the bottom plate is 3mm thick pattern.
3.This kind of flat semi-trailer can be equipped with removable breast boards, columns, number of locks, etc. according to
customer requirements.
customer requirements.
4.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
5.We adopt world famous brand of parts, like Fuwa axle, BPW axles, JOST landing gear, WABCO braking valve etc. The axles are
equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil
and is rated for service from -30°C to 120°C
and is rated for service from -30°C to 120°C
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear
resistance
resistance
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle----BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.
Axle maintenance-free could reach 3 Year/400,000 kilometers.
Axle maintenance-free could reach 3 Year/400,000 kilometers.
Brake System
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
1. who are we?
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Высокобезопасный 12R22.5 Железный новый углеродистая сталь мультимодальный полуприцеп угольный транспорт фургон Грузовые прицепы Максимальная полезная нагрузка
948 749,40-1 067 357,90 ₽

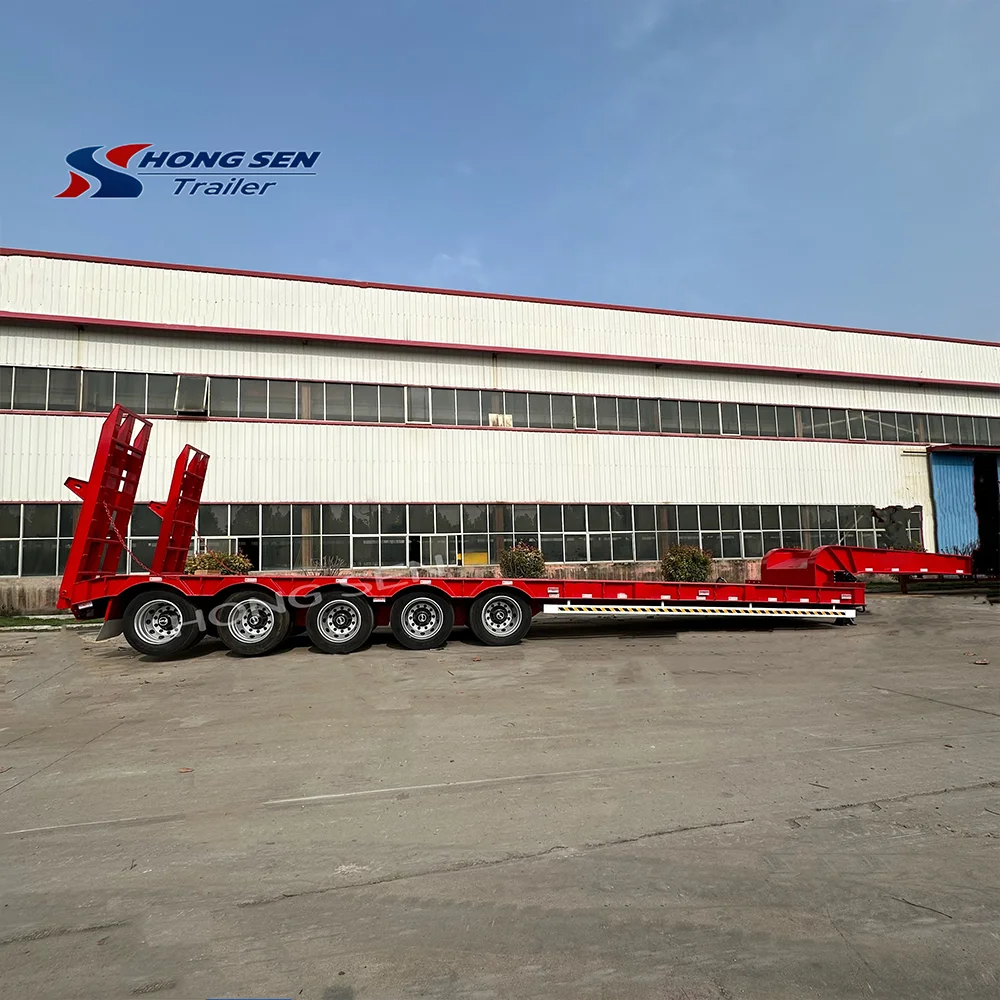

Хонгсен 2024 экспорт 5-осевой 100 тонн низкорамный полуприцеп гидравлический пандус стальной материал
1 999 739,31-2 298 632,73 ₽
Высококачественный автомобильный транспортный полуприцеп алюминиевый пол для полуприцепа
2 787 299,75 ₽
Алюминиевый грузовой бортовой автомобильный прицеп шасси
177 912,75-260 938,70 ₽

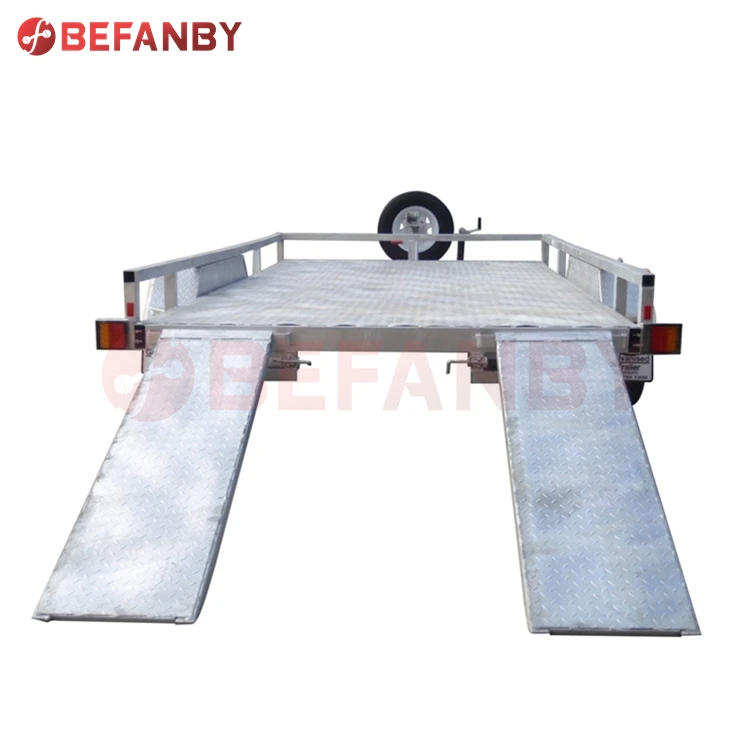

Небольшой 2-осевой Алюминиевый автомобильный транспортный прицеп транспортировщик Грузовые прицепы
2 016 344,50-2 490 778,50 ₽

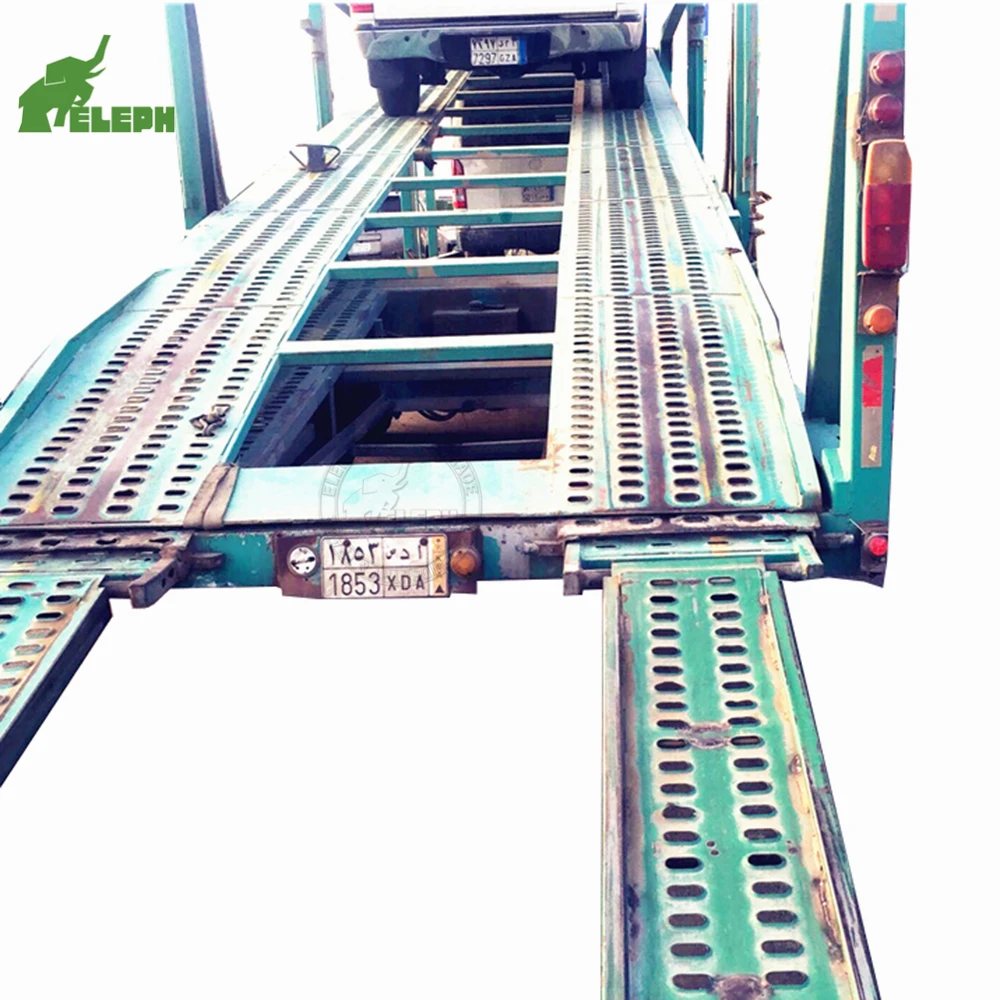

Лидер продаж алюминиевый прицеп для перевозки автомобилей
1 897 736,00-2 194 257,25 ₽

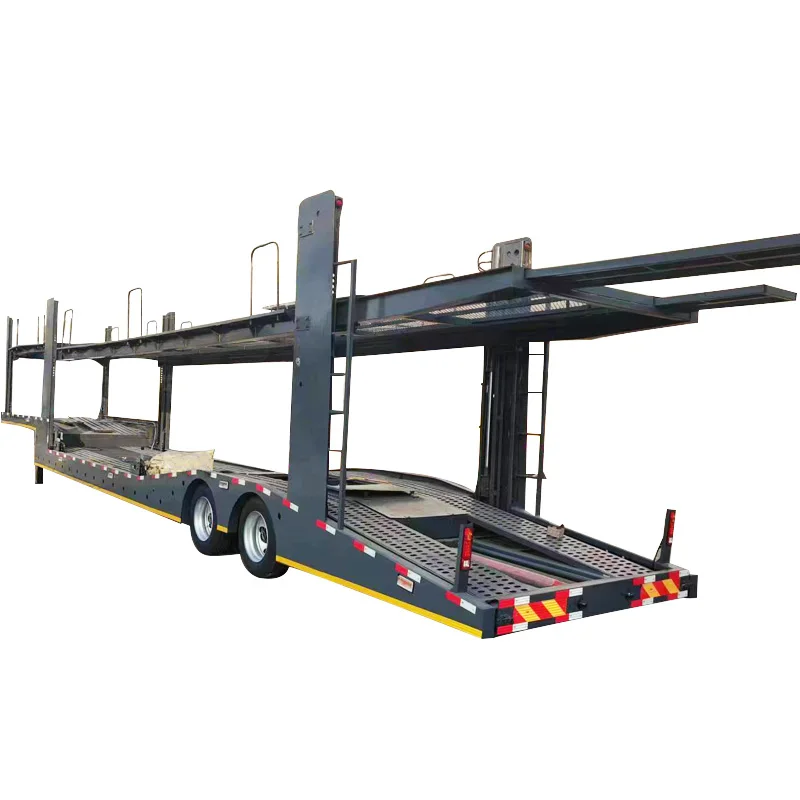

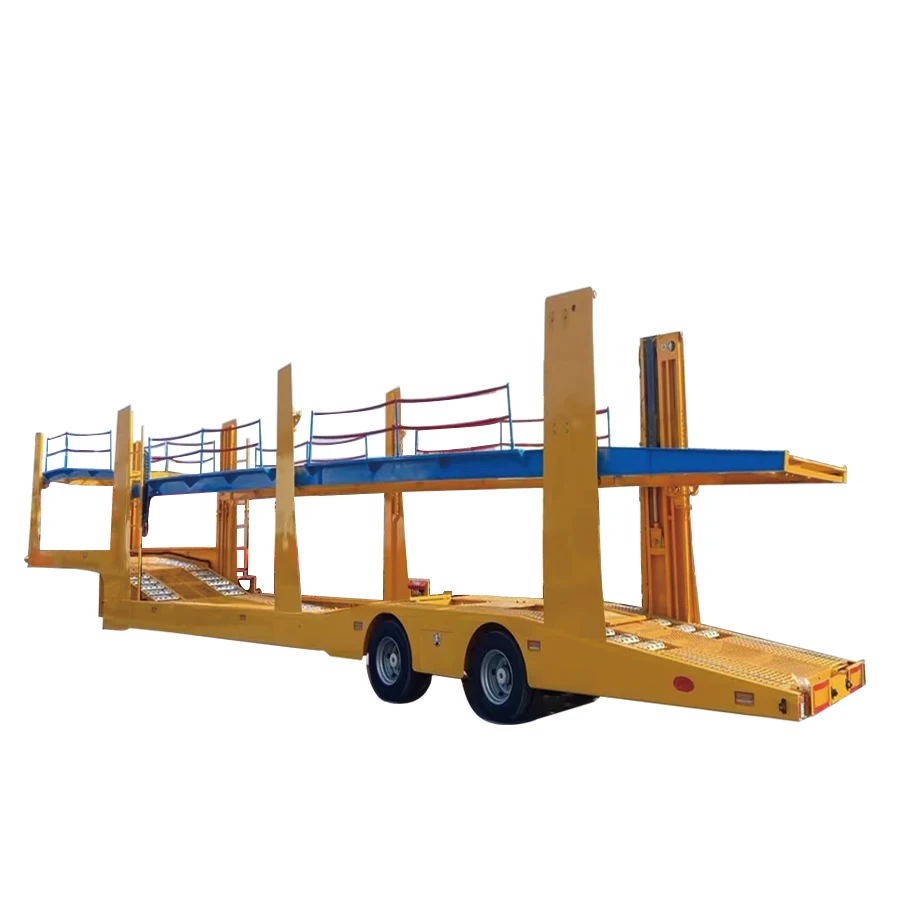

Лидер продаж индивидуальный мобильный металлический Автомобильный перевозчик тандемный прицеп с рампой двухэтажный автомобильный полуприцеп
