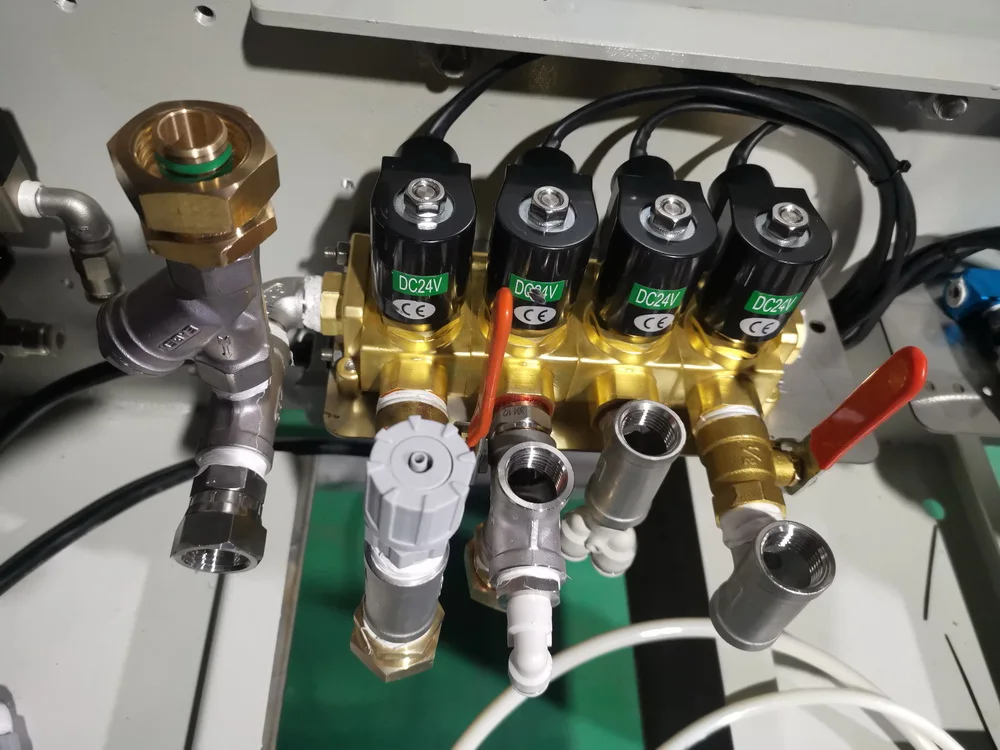

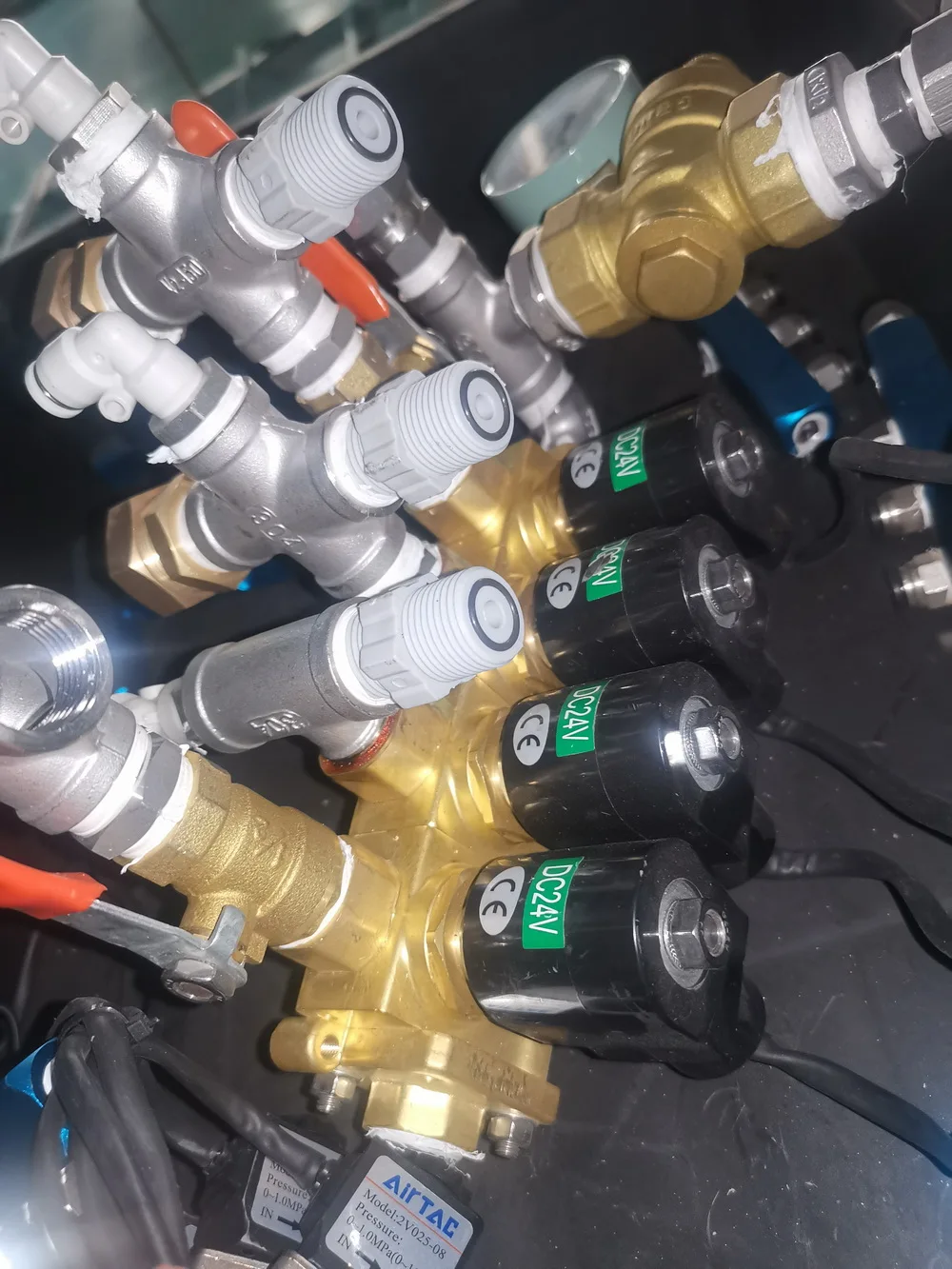

Бесконтактная модель автомойки PE M9 пены и воздушных клапанов 12 шт./комплект DDP Germany 540USD

Contact:Mr. Wiki Wong,Wechat/WhatsApp/Mobile: +86-13738082939  Factory and export office address: Hangzhou, China

Brief Factory Introduction

Main products: Touch Free Car Wash, Tunnel Car Wash and Bus Wash

Factory built date: 2005

Factory size: 20000 square meter

Number of technicians: 12

Number of employees: 90

OEM services: YES

ODM services: YES

Overseas Installation Services: YES

Domestic Sales: 600sets/year

Overseas Sales: 50sets/year  Markets are growing fast.

Welcome to be our distributors!

Brand: Shuifu

Vehicle Washing Video:  //www.tudou.com/programs/view/_iUglaZan_g/

PE-M9 3years warranty Fully-automatic Touchless Car Wash Layout: Max vehicle washing size L*W*H=6000*2500*2080mm.

PE-M9 Touch Free Car Wash Installation Size: L*W*H=8000*3686*3400mm

Fully-automatic Touchless Car Wash Model PE-M9 Advantages

1. Intelligent fully-automatic operating systems, 24 hours self-service card reader payment system.

2. Smart 360 technology for fast cleaning every corner of vehicles

3. Intelligent liquid proportioning system for spraying 3colors foam at same time, shampoo, wax rain on every corner of vehicles.

4. Innovative suspension system without resistance rails.

5. Unique embedded fast drying system.

6. Digital voice security alarm system.

7. Faulty self-checking system.

8. Automatic collision avoidance technology.

9. One key anti-frozen system.

10. E-Chain Utility Routing.

11. Staple Open Wash Bay – without overhead design, no floor steel for customers load car easily.

12. PE-M9 laserwash360 max washing size: L*W*H=6000*2500*2080mm.

 Fully-automatic Touch Free Car Wash Model PE-M9 Functions

1. 100Bar-1430PSI high pressure chassis and car body washing. Factory can produce more pressure water pump according to customers’ requirements.

2. Smart 360 L type arm, Flush car body 360°and spray various washing liquids.

3. High precision proportioning technology: Only 20~50ml washing liquids consumption for washing one car .

4. Thick foam cleans dirt thoroughly; it makes the car painting much brighter.

5. Soft water with crystal wax coating: Crystal wax coating can be generated on the paint   surface layer polymer, the water softener fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.

6. PE-M9 4pieces 5.5kw motors embedded in the washing machine controlling the airflow by four cylindrical outlets.

 7. 28 seconds per circle for L arm rotation, saving 50% water and 60% power cost.

Fine Washing Process: start-chassis and wheel washing-high pressure rinse-three color foam spray-high pressure rinse-shampoo spray-high pressure rinse-wax rain-drying-end

Fast Washing Process:start-chassis and wheel washing-three color spray-high pressure rinse-drying-end

Customized Mode: customers can add or move any single step on touch screen. Customers can set different wash packages on touch screen.

Germany Brand P+F High Pressure Water Pump with 100Bar (factory can supply more pressure pumps or USA&Italy Brand pump according to customers' needs) washing pressure. 304stainless steel pump head.

PE-M9 Touchless Car Wash Main Features

The newest PE-M9 in-bay automatic car wash raises the standard for touchless car wash equipment. With Revenue Enhancement and Total Cost of Ownership improvements being the main focus, this vehicle wash system delivers the industry's best Return on Investment. Smart 360 Technology enables the car wash system to be responsive to the dynamic conditions in the wash bay and allows it to "think for itself", increasing up-time and optimizing the wash process.

Substantially faster wash speeds lead to increases in vehicle throughput and shorter lines that will make your customers happy. Simplified machine design and lower energy and utility usages reduce operating costs leading to a more profitable car wash operation.

Key Features

Staple Open Wash Bay - overhead design with no floor steel

Built-in flash dryer with high efficiency

Virtual Treadle bay loading

Smart 360 Technology

Slip-Free Belt Drive

More Services – 3colors foams, shampoo, wax or customized liquids

Internal Bridge Rollers

E-Chain Utility Routing

Built-in Web Interface for Updating, Reporting & Monitoring

New Technology

Fully-automatic Computer Control Mode: PE-M9 is equipped with advanced intelligent detection system: Built-in central processing unit. Without operator, this system washes cars automatically according to the selected wash packages. The system reminds customers automatically to leave the wash bay after finishing washing and guide the next customer to the wash bay. The whole wash process is controlled by computer to save labor cost and improve work efficiency.

Self-service Mode: Automatic Card Reader System makes 24hours self-service car wash possible. Customers can choose different single item and adjust the price of each item.

 Smart 360 Technology

 The cleaning power of PE-M9 is raised to a new level with the addition of better vehicle chemical coverage with rounded arch corners, smart chemical timing and tilting arch functions. High pressure applications now include the ability to tilt to cover the back of side mirrors and arch oscillation to attack bugs from multiple angles. Combined with your ability to customize services and speeds in infinite combinations and to store favorite or seasonal packages - the cleaning system is a major step forward.

PE-T360 Arch Control System allows for quicker throughput and creates customer confidence and comfort through the entire wash process. The arch is able to rotate 360 degrees while simultaneously moving around the vehicle. Three axis motions provide rounded corner profiling to produce consistent coverage by keeping the nozzles always focused on the vehicle. No more spraying on the floor! Arch control makes every second productive in the wash process - each corner time is reduced from 4 seconds to 1.5. The Smart 360 Arch Control also intelligently operates around the complete vehicle perimeter; monitoring and adjusting to conditions to keep attendant interaction low.

Spray Arm Materials: 304 stainless steel arm and good quality soft rubber cover, standard cover color is Blue.

The spray arm can adjust the washing distance automatically according to the size of car.

When vehicles enter the wash bay, LED sign and Voice System will guide customers to park vehicles in the right position. The system works out the best washing distance according to the detected date from the ultrasonic sensors.

Spray Nozzle: The spray nozzles are designed according to the complicated hydrodynamics and produced by high precision CNC lathe. High hardness materials make sure that spray nozzles does not become deformed under high pressure.

Special Water Knife Design: During high pressure rinse, spray nozzles can concentrate water flow to produce water knife. The upper and lower ectopic water knife structure makes sure that there is no offset pressure between the upper knife and side knife. 80KGS high pressure water can wash every dirty car.

High Efficiency Shampoo Consumption: Multi-function spray nozzles can atomize all liquids to cover and clean every corner of vehicles.

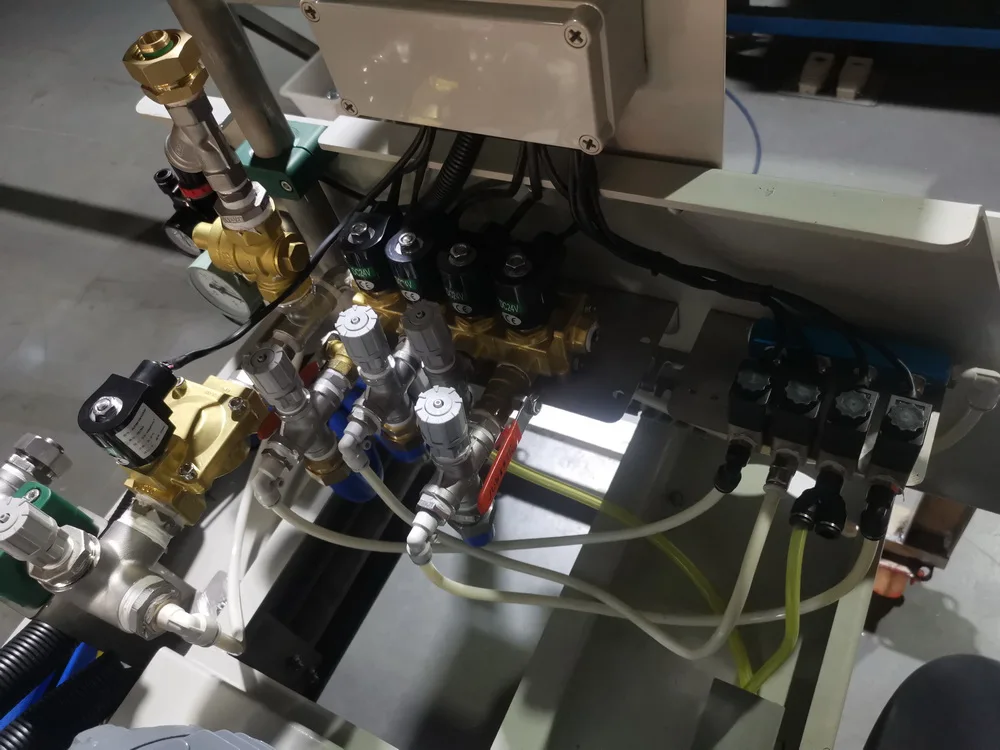

Automatic Chemical System(304stainless steel cover)-controlling 3color foam, shampoo and wax

3 different colors or same color thick foam spray: foam spary is adjustable.

Shampoo Spray

Wax Rain

No manual operation and automatic proportional control according to the degree of dirt on car surface.

100% Accurate Measurement: By using accurate matching technology, the dosing system only supplies 20-50ml shampoo for each car to save the cost.

Fully-automatic Computer Control: Computer controls the mixing and atomization of all chemicals to produce micro particles for uniform covering vehicle surface and clean every corner of vehicles.

User-friendly Operation and Digital Liquids Matching Setting: Customers can adjust the liquid proportion according to the degree of dirt on vehicles.

High Efficiency: Fully-automatic micro control spray can save 1/5 chemicals than traditional spray.

Micro Resistance Sliding Rail
