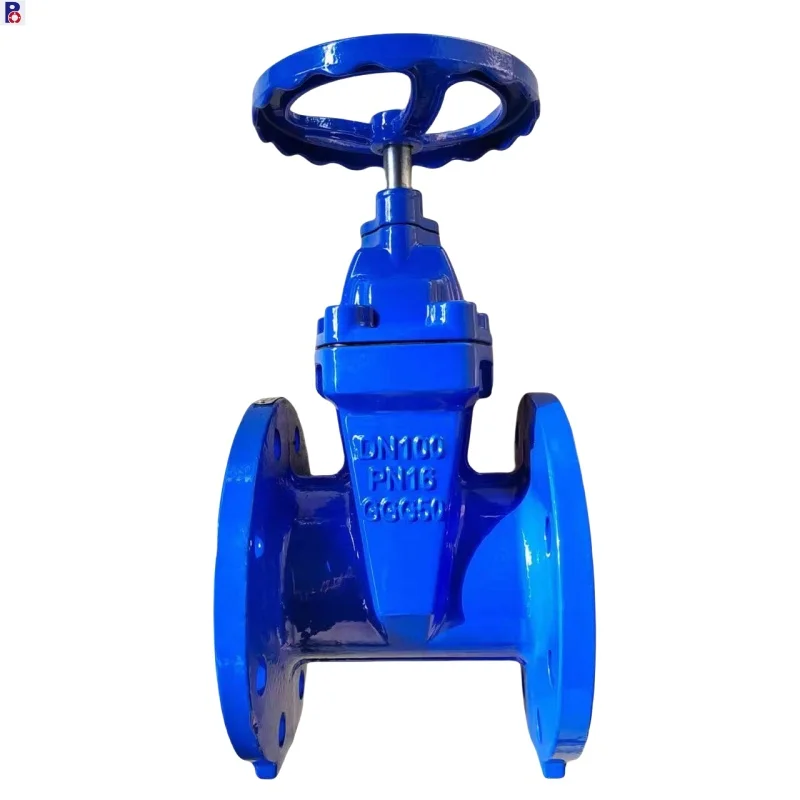

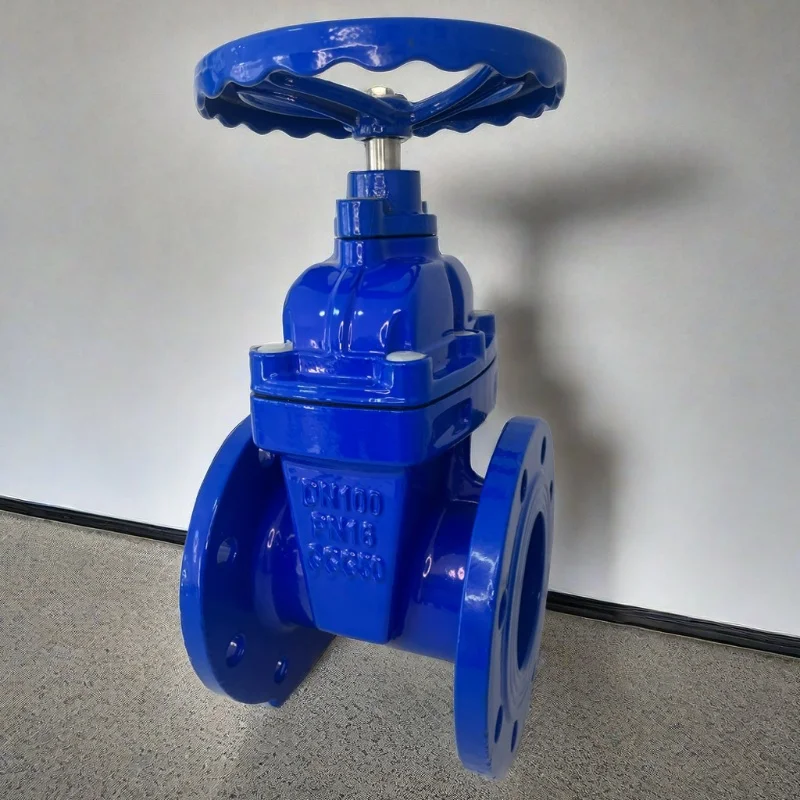

Resilient Seat Gate Valve DIN3352
Feature
1. Such a design as the dustproof ring plus three layers
O-ring makes the sealing reliable and on-lineReplaceable.

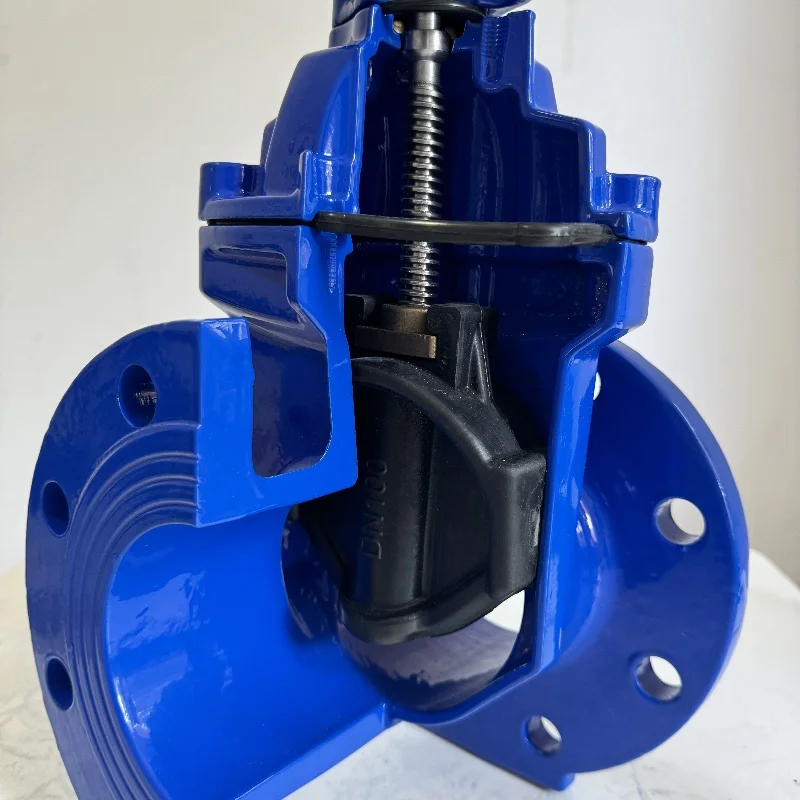

2. The design with an aluminum bronze inlaid in the gate leaves a good self-lubrication
and a high strength The said bearing can be replaced without need to replace the
integral gate when worn out after a long time use. soft seal gate valve.
3. The gate is wrapped with rubber,anti-corrosion and good at tightness.
4. Advanced surface treatment,coated with harmless Epoxy resin static powder,anticorrosion,non-pollution,can be used in a drinking pipeline.
5. The body is gate-slot free designed,the channel is smooth without causing impurties
to be piled up,more suitable for sewage working condition.
6. Reliable integral sealing,zero-leak for high pressure sealing under 1.5 times of PN and
for low pressure sealing under 0.02MPa.
Multiple Choices
Main Dimensions
SIZE | L | PN10 | PN16 | ||||
DN | D | D1 | N-d | D | D1 | N-d | |
DN50 | 150 | 163 | 125 | 4-19 | 163 | 125 | 4-19 |
DN65 | 170 | 183 | 145 | 4-19 | 183 | 145 | 4-19 |
DN80 | 180 | 198 | 160 | 8-19 | 198 | 160 | 8-19 |
DN100 | 190 | 218 | 180 | 8-19 | 218 | 180 | 8-19 |
DN125 | 200 | 248 | 210 | 8-19 | 248 | 210 | 8-19 |
DN150 | 210 | 283 | 240 | 8-23 | 283 | 240 | 8-23 |
DN200 | 230 | 333 | 295 | 8-23 | 333 | 295 | 12-23 |
DN250 | 250 | 403 | 350 | 12-23 | 403 | 355 | 12-28 |
DN300 | 270 | 457 | 400 | 12-23 | 457 | 410 | 12-28 |
Note:please make a call for larger sizes requirements.
Beoncy, be best Choice!!!
Related Hot Sale
Gate valve Wafer butterfly valve Flange butterfly valve
Eccentric butterfly valve Lug butterfly valve Swing check valve
Y- strainer wafer check valve Rubber joint
1.Q: Manufacturer or trading company?
A: Manufcaturer
2.Q: Your main products?
A: Butterfly valve,gate valve,check valve,Y-strainer,rubber joint ,ect.
3.Q: Sample available?
A: Yes, free sample.
4.Q: Pressure test before shipping?
A: We have twice pressure test .
5.Q: Payment term?
A: T/T L/C D/A D/P Western Union MoneyGram
6.Q: Price term?
A: EXW FOB CIF CFR
7.Q: Guarantee?
A: 12-24 months.
8.Q: OEM and ODM?
A: Yes, sure.
9. Q: Delivery date?
A: 7 days to 1 months depends.
