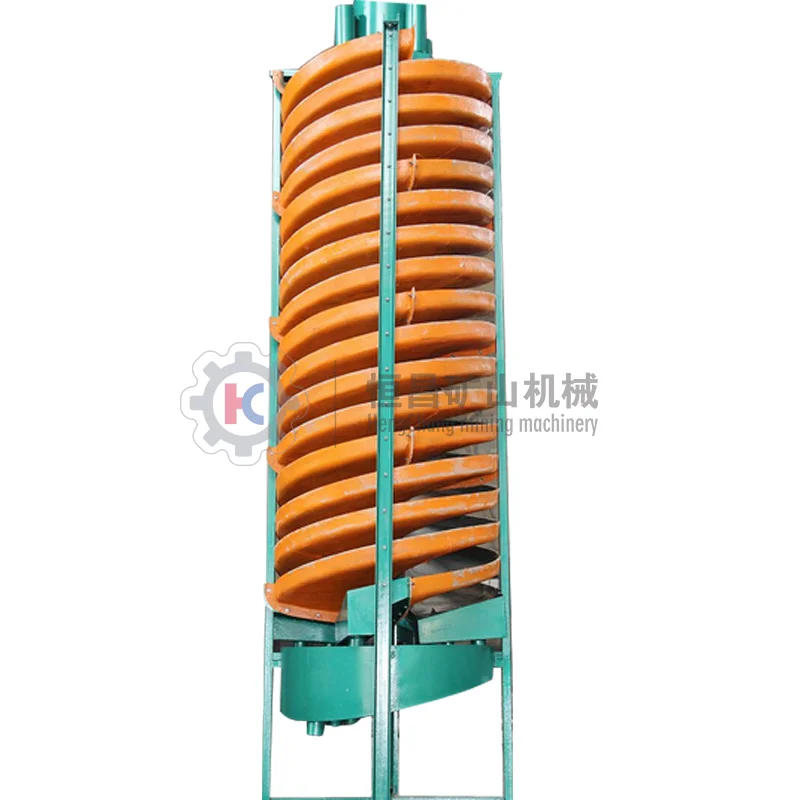

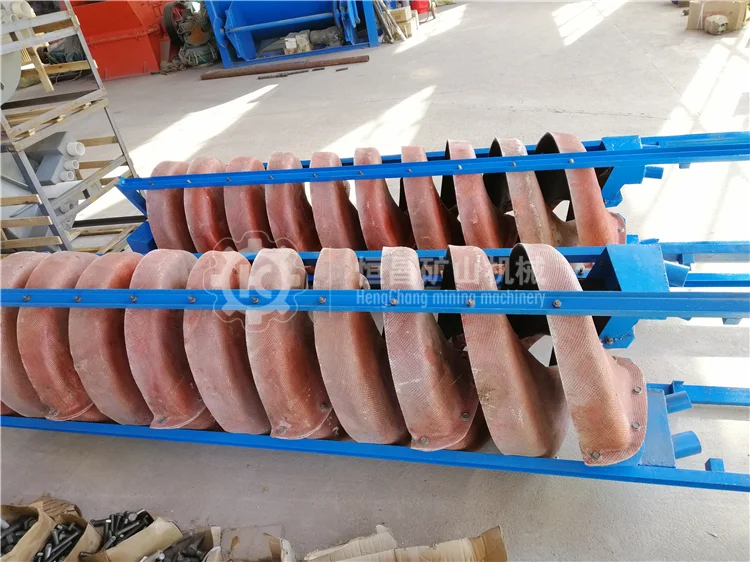

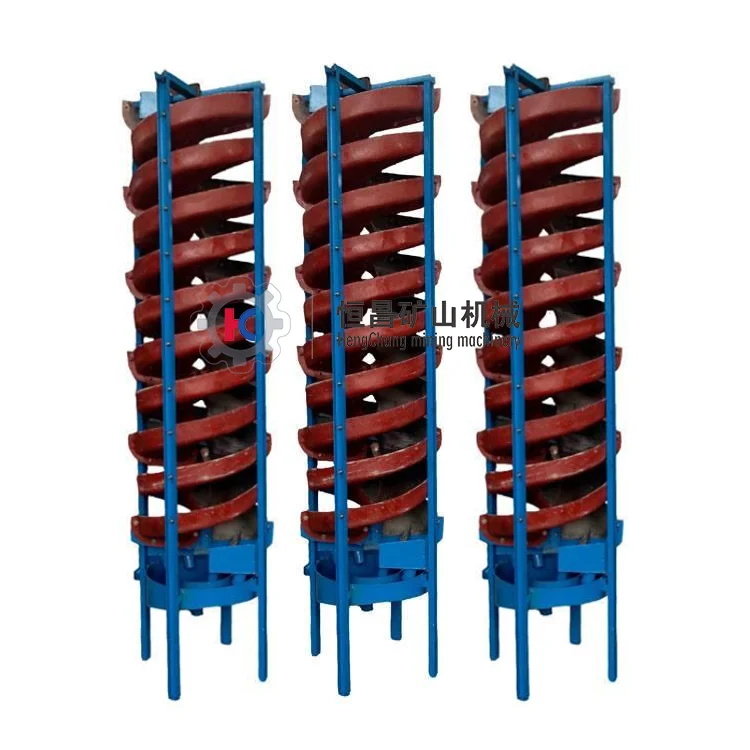

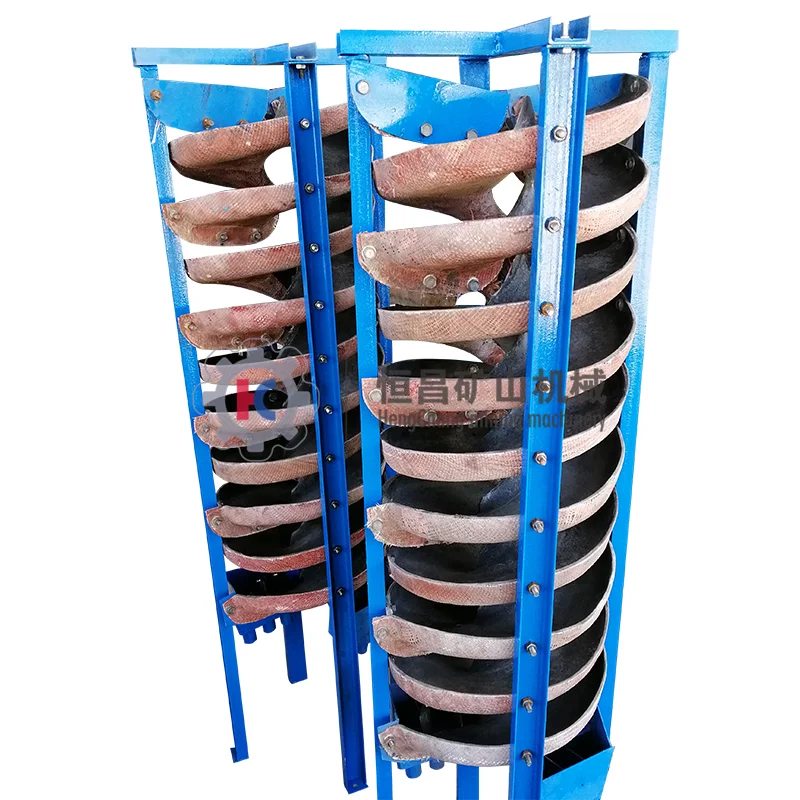

Высокоэффективное спиральное гравитационное оборудование для тантала ниобия железа других низкосортных руд или неметаллических ликовериорезов
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601134808081:
Описание и отзывы
Характеристики
Products Description

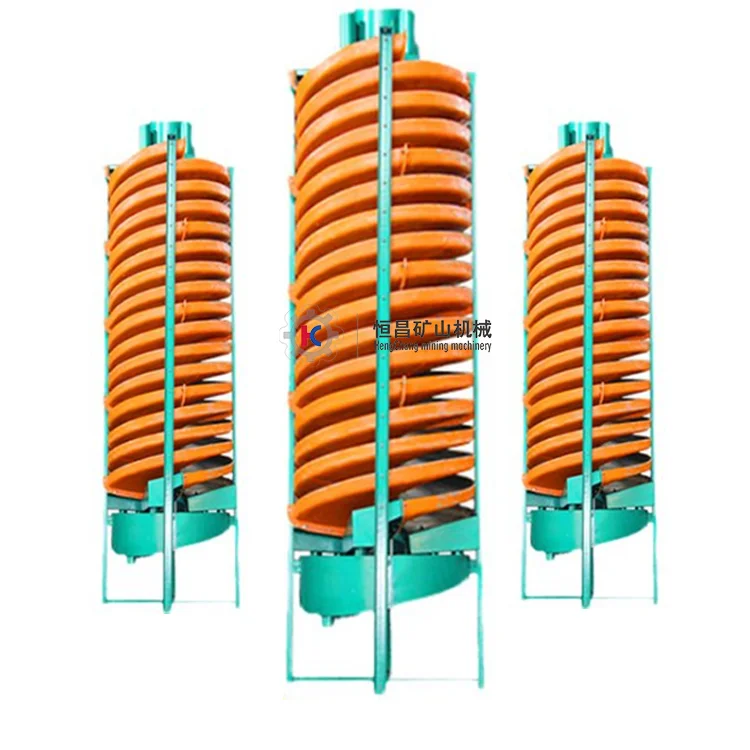

Spiral concentrator is a new gravity separation machine. With the water and action of gravity friction force, minerals would be separated by the different gravity and get heavy, middling and light products.

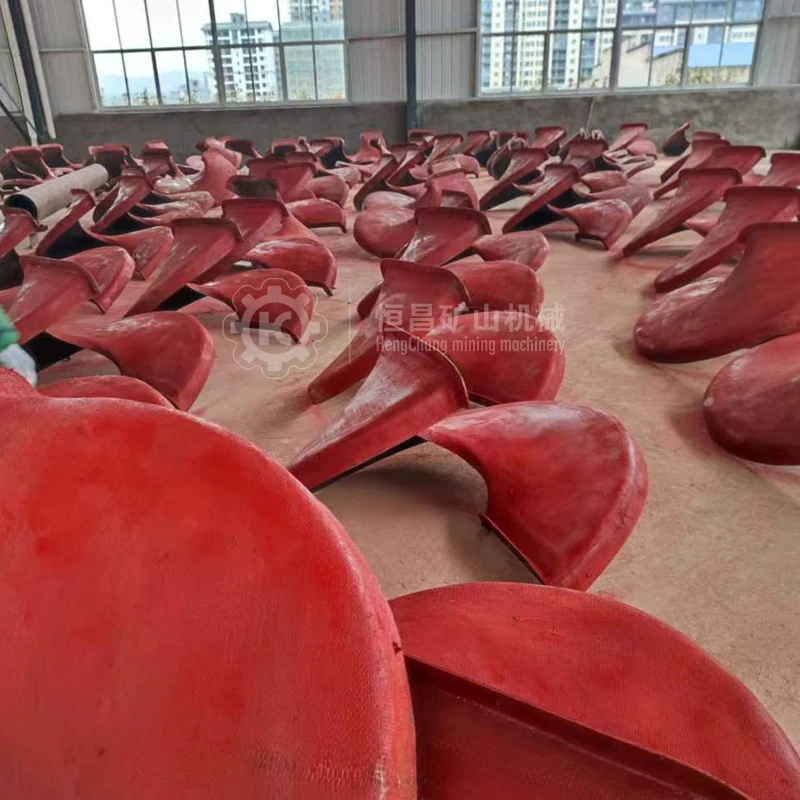

Spiral concentrator is made of the fiberglass lined with wear-resistant polyurethnane and corundum cover, with feature of anti corrosion, rust and wear resistant.
It's the most suitable equipment for mining and ore beneficiation, especially for placer mining at seaside, riverside, sand bank and stream bank. It is of low water consumption, small floor area, high concentration and recovery ratio, high adaptability, etc.
Spiral concentrator is made of the fiberglass lined with wear-resistant polyurethnane and corundum cover, with feature of anti corrosion, rust and wear resistant.
It's the most suitable equipment for mining and ore beneficiation, especially for placer mining at seaside, riverside, sand bank and stream bank. It is of low water consumption, small floor area, high concentration and recovery ratio, high adaptability, etc.
Product Working Principle
When working, particles are fed to the top of the spiral chute and are separated radially on the basis of density and size as the slurry gravitates downward. In order to have a good separation, there should be a difference in specific gravity of at least 1.0.
Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range. All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor.
Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range. All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor.
Product Features
1. Reasonable structure and small occupation area.
2.High recovery, high efficiency, and precise separation.
3.Light in weight, rust and corrosion resistant.
4.Simple installation and Minimal maintenance requirements.
5.Low operating cost and long operating life.
6.Reliable running with minimal operator attention.
7.Strong adaptability to fluctuation of feeding amount, density, size and grade.
2.High recovery, high efficiency, and precise separation.
3.Light in weight, rust and corrosion resistant.
4.Simple installation and Minimal maintenance requirements.
5.Low operating cost and long operating life.
6.Reliable running with minimal operator attention.
7.Strong adaptability to fluctuation of feeding amount, density, size and grade.

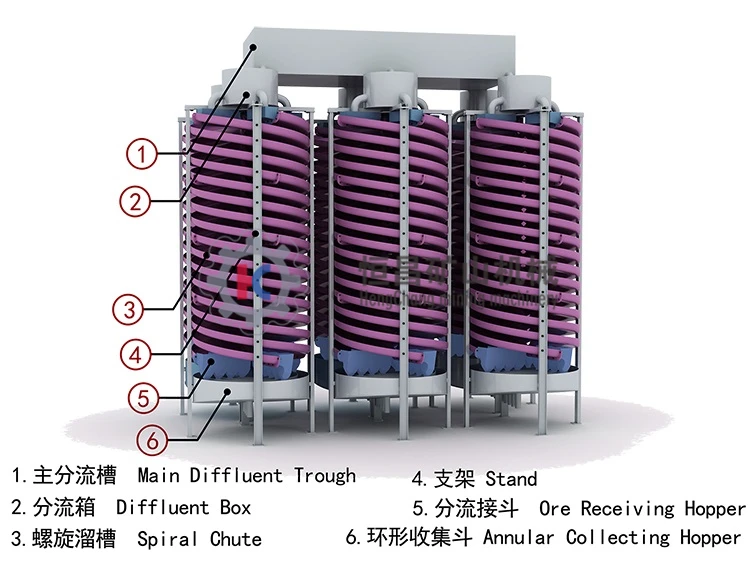

Product Structure
Product Paramenters
Model | BLL-1500 | BLL-1200 | BLL-900 | BLL-600 | BLL-400 |
Outside Diameter (mm) | 1500 | 1200 | 900 | 600 | 400 |
Screw Pitch (mm) | 900, 675 | 900, 720, 540 | 675, 540, 405 | 450, 360, 270 | 240, 180 |
Pitch Diameter Ratio | 0.48, 0.36 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.6, 0.45 |
Lateral slope (degree) | 9° | 9° | 9° | 9° | 9° |
Max. Screw Numbers | 4 | 4 | 4 | 2 | 2 |
Feed Size (mm) | 0.8 ~0.037 | 0.3~0.03 | 0.3 ~0.03 | 0.2~0.02 | 0.2 ~0.02 |
Feed Density (%) | 30 ~55 | 25 ~55 | 25 ~55 | 25 ~55 | 25 ~55 |
Capacity (t/h) | 6~8 | 4~6 | 2~3 | 0.8~1.2 | 0.15~0.2 |
Length (mm) | 1600 | 1360 | 1060 | 700 | 460 |
Width (mm) | 1600 | 1360 | 1060 | 700 | 460 |
Height (mm) | 5300 | 5230 | 4000 | 2600 | 1500 |
Weight (kg) | 850/800 | 700/650/600 | 450/400/350 | 150/120/100 | 50 |

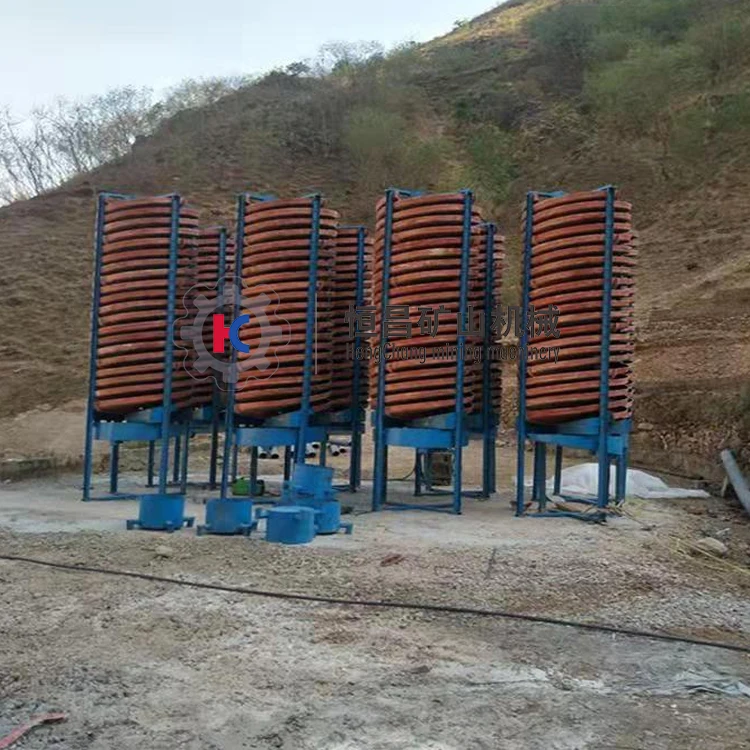

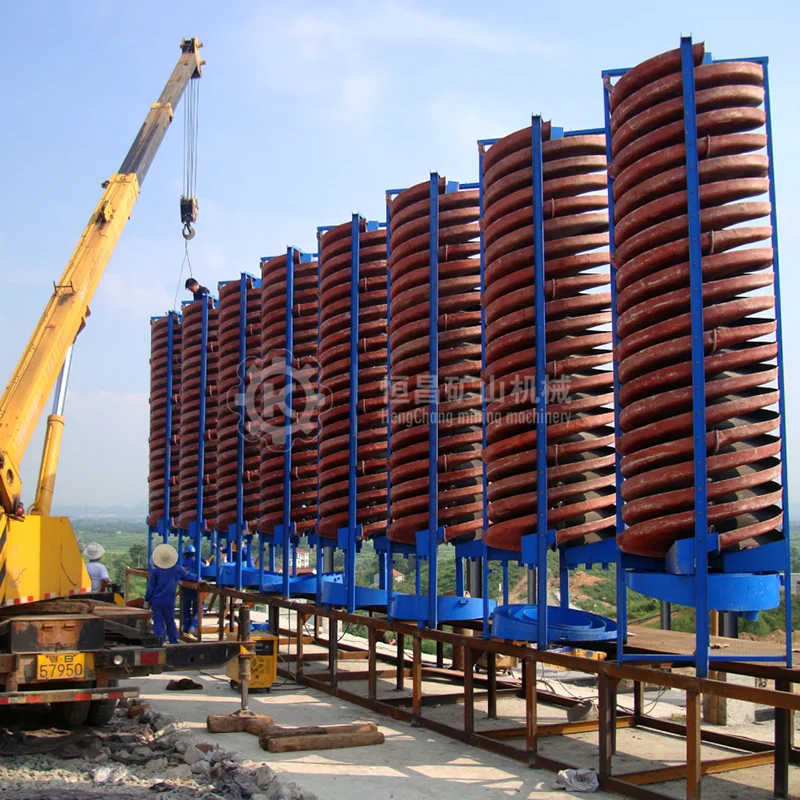

Successful Case

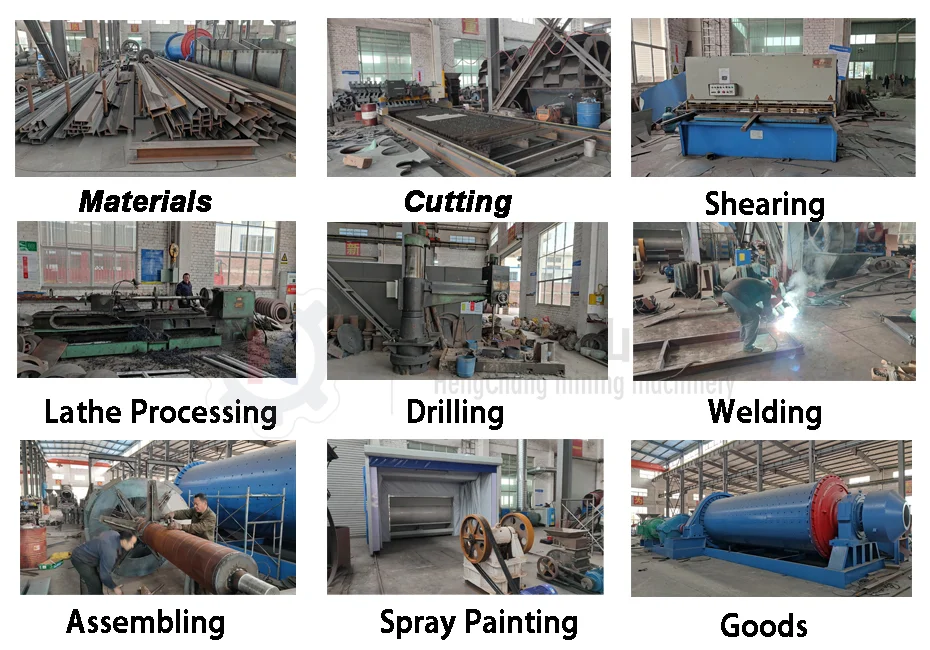

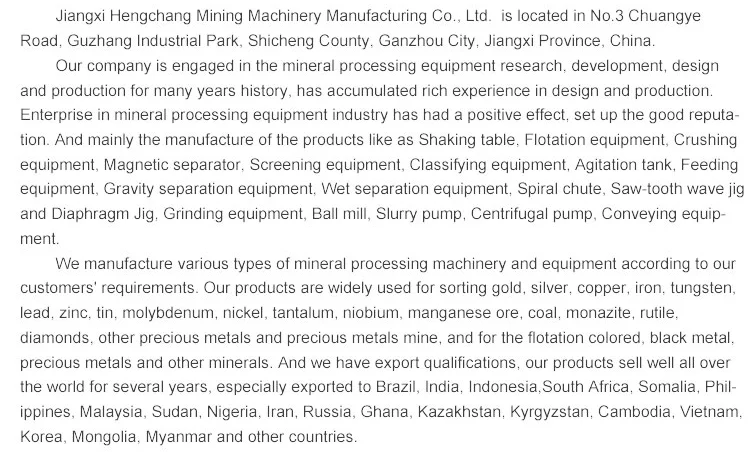

Company Profile
FAQ
Q1: Are you manufacturer or trade company?
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whats app and email address, our sales manager will contact you within 1 hours.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whats app and email address, our sales manager will contact you within 1 hours.
Похожие товары

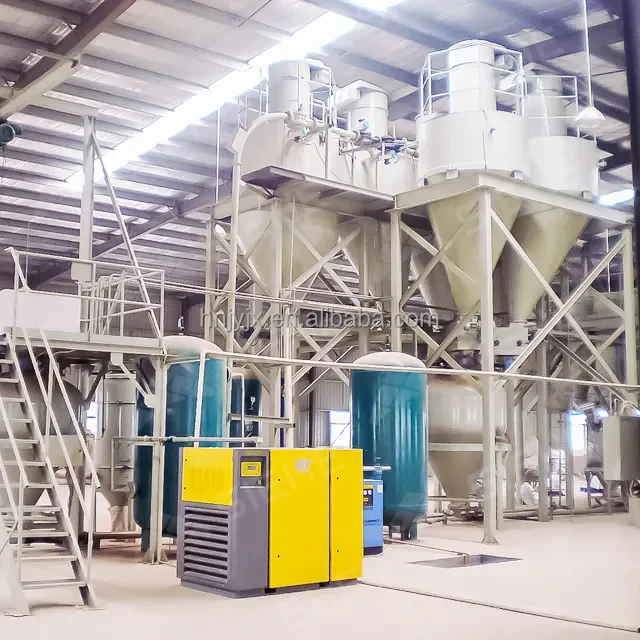

Распродажа воздушный классификатор мельница для разделения пищевых химических порошков минеральной руды сухой порошок Воздушная классификация продажи
Машина для классификации воздуха нового типа сухого порошкового измельчения разделяющего глинозема пищевой минеральный керамический порошок продажи
2024 шаровая мельница для классификации воздуха производственная линия шлифовальный станок
110 525,59 ₽
Широко используемая флотационная машина для установки медной Флотационной Сепарации литиевой/медной руды
622 583,62 ₽

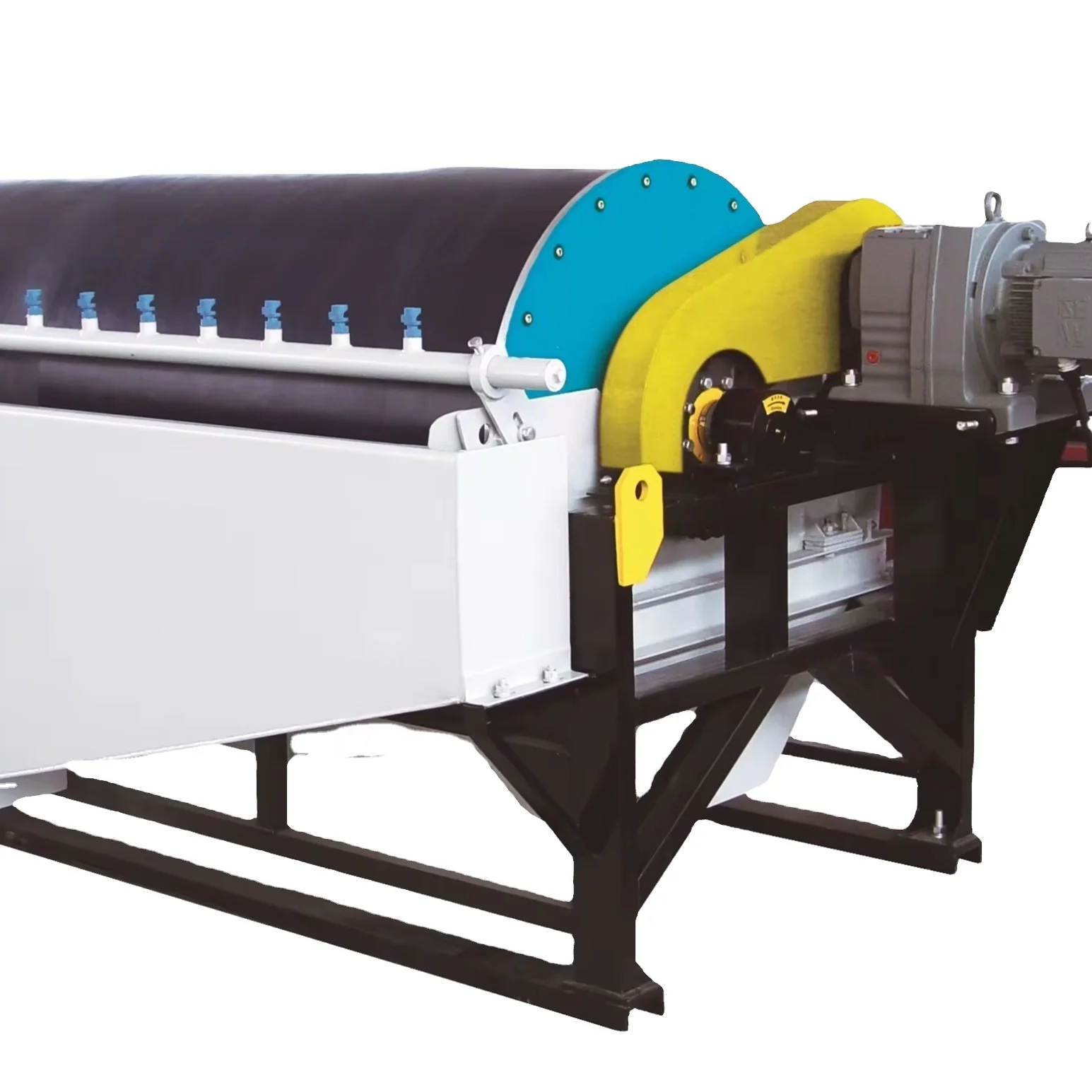

Магнитный сепаратор влажного барабана для металлической шахты минеральная обработка типа магнитный барабанный
