Коммерческая машина для настенной росписи
291 864,05-337 114,29 ₽
TH UP900 Прямая продажа с фабрики 3D вертикальный настенный Декор струйный принтер настенная живопись машина 12 м
- Категория: >>>
- Поставщик: Wuhan Baike Times Laser Technology Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1601134913863:
Описание и отзывы
Характеристики

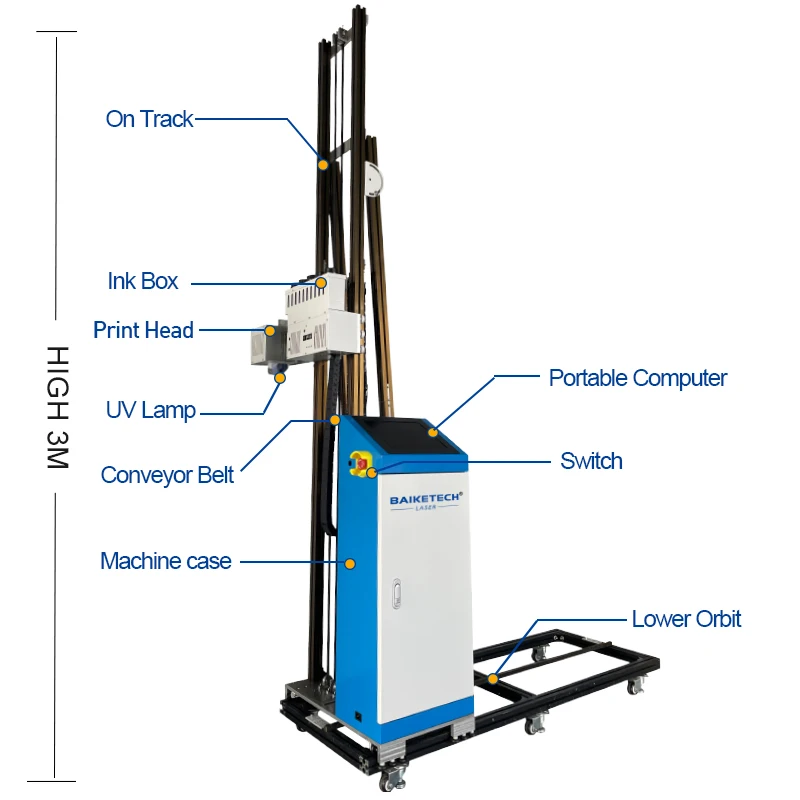

Factory Wholesale 3D Rail Type Mural Printer Wall Painting Machine TH-UP1400R
10 Innovative Core Technologies
1. Wall printing
2. Rail type, equipped with 6m standard ground rail
3. Highest printing accuracy up to 2880 dpi4. Dual print heads, printing speed up to 20-24 m2/h
5. UV ink for indoor and outdoor
6. Equipped with 10.9 inch industry computer
7. CMYKW, 5 color ink, can print on black wall surface
8. Support English and Chinese
9. Print height is 2.5m-3m
10.Support partition printing
Applications
Product Parameters
Equipment model | TH-UP900R | ||
Printing software | Genuine professional | ||
Use ink | UV ink | ||
Control mode | Wired | ||
Transportation carrying | Folding | ||
Power consumption | No load 20W, maximum 250W | ||
Surface tracking | Hyperboloid banner sensor, up-down bidirectional induction | ||
Ink supply system | Positive pressure system ink supply | ||
Print size | 2.5 meters high × Any width, more than 3 m, can be seamlessly spliced | ||
Construction noise | Standby < 20dBA, drawing < 70dba | ||
Support picture | Photos taken by mobile phone / camera and online pictures | ||
Power requirements | Household power 220VAC or 380VAC | ||
Applicable media | White wall, putty wall, ceramic tile, glass, acrylic, metal plate, brick wall, etc | ||
National film format | Including psd.cdr, JPG, JPEG, PNG, BMP, tiff, EPS, AI, PDF and other formats | ||
Color painting technology | Micro piezoelectric jet technology, variable ink drop, high fault tolerance feathering technology, automatic memory recovery technology after construction interruption | ||
Print Resolution | max 2880 dpi | ||
Operating environment | -20°C-50°C(-4F-122F), 10%-70% Relative humidity, non condensing state | ||
Storage environment | -21C-50°C(-22F-140°F), 10%-70% Relative humidity, non condensing state | ||
Nozzle advantages | You can work all day or choose any nozzle | ||
Certification qualification | Green environmental protection certification, national standard inspection qualification (gb18582-2001, gbt9756-2001), CE certification | ||
Overall dimension | Machine : 40cm*32cm*350cm | Package size(cm): 75*71*115 | |
Machine weight | Machine 43.3kg (3m guide rails) | Packed in wooden cases, weighing 115kg | |
Products Description
AUTOMATIC OBSTACLE AVOIDANCE FOR PRINT HEADS
Equipped with dual 4720 Japanese professional print heads
Equipped with dual ultrasonic intelligent sensors automatically detects and avoids obstacles
Prevents accidental collisions during printing
Ensures easy, smooth, and efficient printing
Extends the lifespan of print heads
Equipped with dual ultrasonic intelligent sensors automatically detects and avoids obstacles
Prevents accidental collisions during printing
Ensures easy, smooth, and efficient printing
Extends the lifespan of print heads
10.9 Inch screen for display
Easy to control the printer by equipped industry computer via mouse and keyboard, the printer support English and Chinese.
5-Color UV ink
Apply CMYKW UV ink, secure fast and waterproof, widely used for any surface, such as paper, wall and glass or iron surface.
Infrared labeling Positioning system
Independently developed software and hardware, no need external computer.

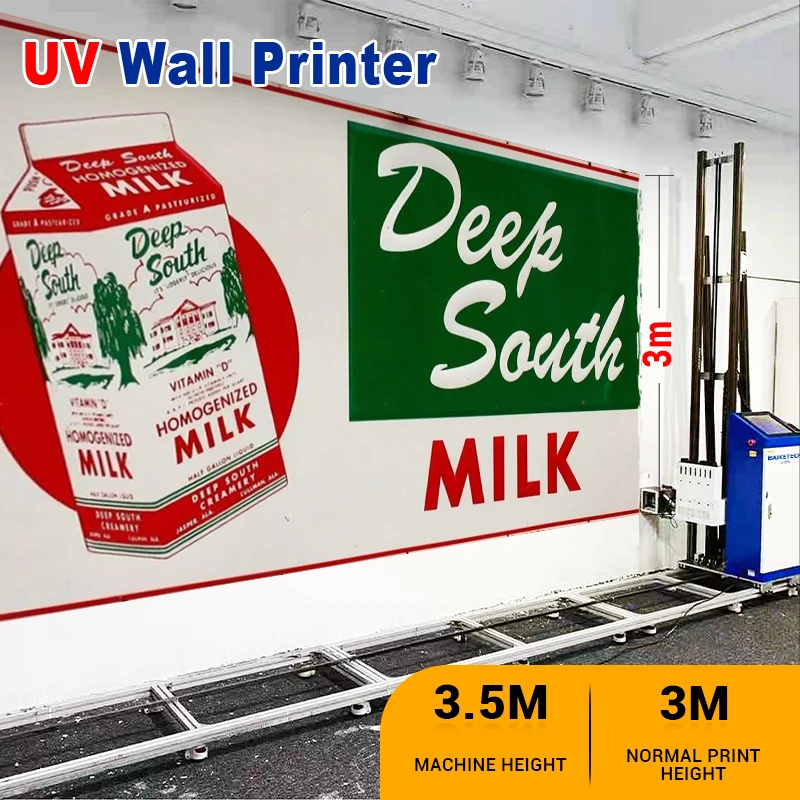

SEAMLESS SPLICING PRINTING
1. Easy to print 3m high, and no limited in length.
For over 3m high picture
For not over 3m high picture, it can be finished by partitioned printing on shelf.
For over 6m picture printing
For over 3m high, 12m long picture, pre-cut the picture into small pieces for printing.
TH-UP900R Printing Surface
The TH-UP900R printer can be widely used for indoor and outdoor printing, flat surfaces of cars, trucks and buses, various materials of glass, tile, iron, PVC, putty wall, painting wall, brick wall, diatom mud wall, shell powder, paper, wood.
Our Advantages
TH-UP900R Advantages
* Light weight: 43.3kg
* High speed: 20-24 square meter per hour
* Low cost: 120-200 square meter per hour per ink group
* UV lamp
* Industrial computer
* High resolution: Up to 2880dpi
* Detachable wheels and path
* Stack disassembly:One meter after folding
* Double heads for clear printing
* Detection function with 1mm accuracy
* Easy operation with pre-installed software
* Power failure recovery system
* Equipment Box: All carry in one case, which weight 30kg
* Light weight: 43.3kg
* High speed: 20-24 square meter per hour
* Low cost: 120-200 square meter per hour per ink group
* UV lamp
* Industrial computer
* High resolution: Up to 2880dpi
* Detachable wheels and path
* Stack disassembly:One meter after folding
* Double heads for clear printing
* Detection function with 1mm accuracy
* Easy operation with pre-installed software
* Power failure recovery system
* Equipment Box: All carry in one case, which weight 30kg
Product packaging
Durable Wooden Package for Shipment
We will pack every machine in a wooden box, ensure every customer receive a perfect machine.

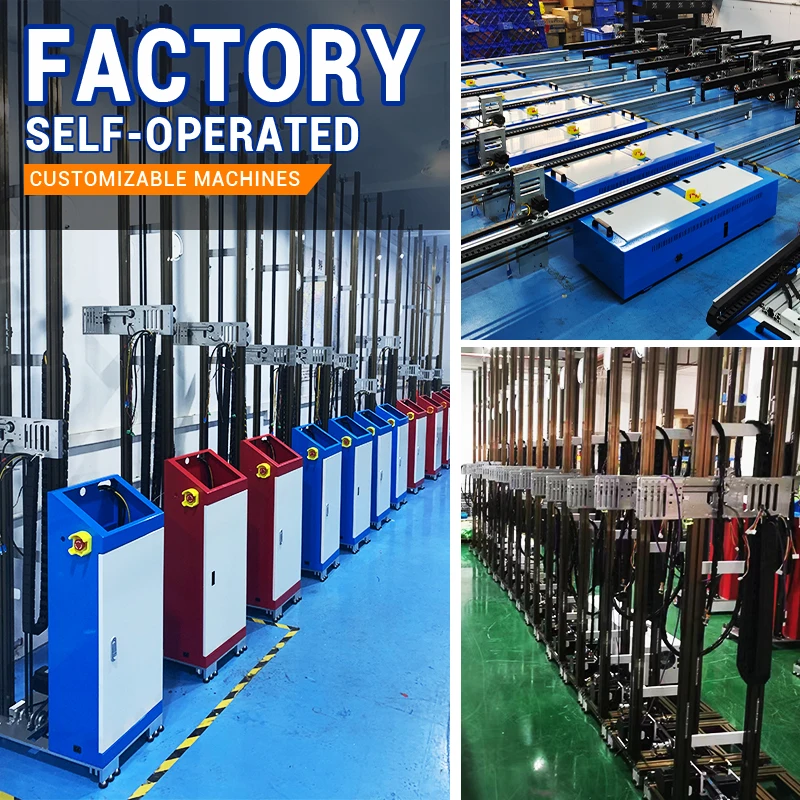

Company Profile
Welcome to visit our factory
Our traditional printer factory located in Hubei province, Wuhan city, the center of laser in China. We welcome to visit our factory to better know about our production ability and achieve better cooperation in future, we welcome you become our baiketech dealer and we can also provide you OEM and ODM service.
FAQ
The 3D inkjet wall printer machines FAQs
1.Factory or trading company?
Factory in Wuhan, China.
2.Warranty period?
One year, excluding human factors.
3.Delivery time after payment?
7-14 days.
4.Lifespan of printed patterns?
Up to three years outdoors, over ten years indoors.
5.Ink consumption?
500ml for 100 sqm, white ink: 500ml for 50 sqm.
6.Changing or removing patterns?
Cover with white ink or use suitable material.
7.Language settings?
English and Chinese.
8.Uneven ground?
Adjustable feet for stability on uneven surfaces.
9.Quality of the machine?
Rigorous quality inspection; spare print heads recommended.
10.Multiple print heads?
Yes, one for four colors, one dedicated to white printing.
Factory in Wuhan, China.
2.Warranty period?
One year, excluding human factors.
3.Delivery time after payment?
7-14 days.
4.Lifespan of printed patterns?
Up to three years outdoors, over ten years indoors.
5.Ink consumption?
500ml for 100 sqm, white ink: 500ml for 50 sqm.
6.Changing or removing patterns?
Cover with white ink or use suitable material.
7.Language settings?
English and Chinese.
8.Uneven ground?
Adjustable feet for stability on uneven surfaces.
9.Quality of the machine?
Rigorous quality inspection; spare print heads recommended.
10.Multiple print heads?
Yes, one for four colors, one dedicated to white printing.
