Ультра тонкий 21 5 Дюймов 1920*1080 IPS ЖК экран H DMI VGA Business Pc МОНИТОР VESA настенный 3000Nits промышленный ЖК дисплей
- Категория: >>>
- Поставщик: Shenzhen Outdoor Special Display Equipment Co. Ltd.
Сохранить в закладки 1601137934888:
Описание и отзывы
Характеристики
Product Overview
This is a 21.5 inch high-brightness industrial LCD display, which is suitable for: indoor and outdoor industrial product terminal display platforms under high temperature, severe cold, high humidity, strong electromagnetic interference, dust and other long-term work and harsh environments. Such as: machine tools , lathe medical equipment, ship, video intercom, monitor
FEATURES AT A GLANCE
Ultra-high brightness: up to 3000cd/m²
Ultra-low power consumption: maximum 24W
With automatic brightness adjustment
Resolution:1920*1080
Ultra-low power consumption: maximum 24W
With automatic brightness adjustment
Resolution:1920*1080
Ultra-thin structure: screen thickness 12mm

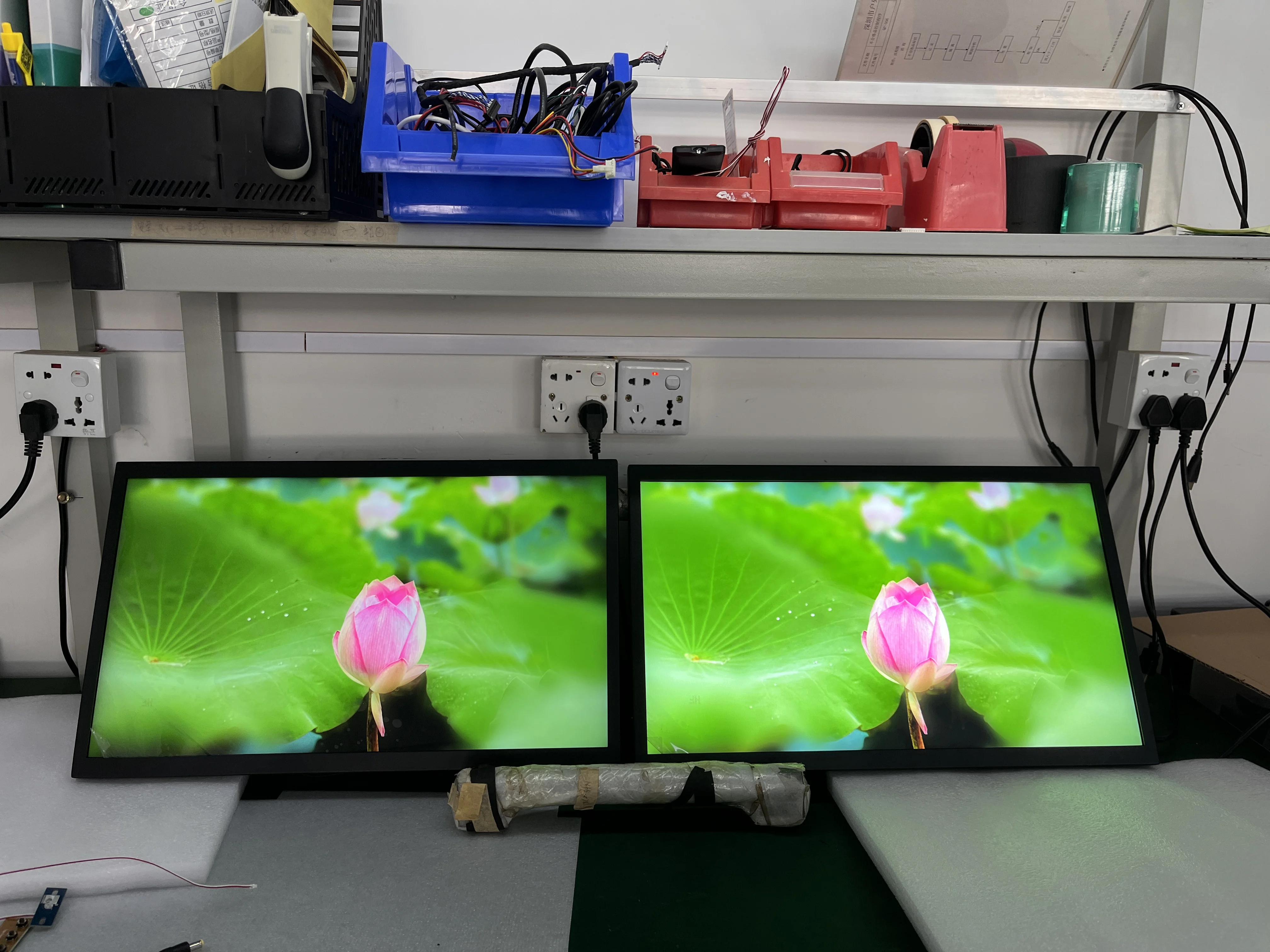

Front
Right elevation

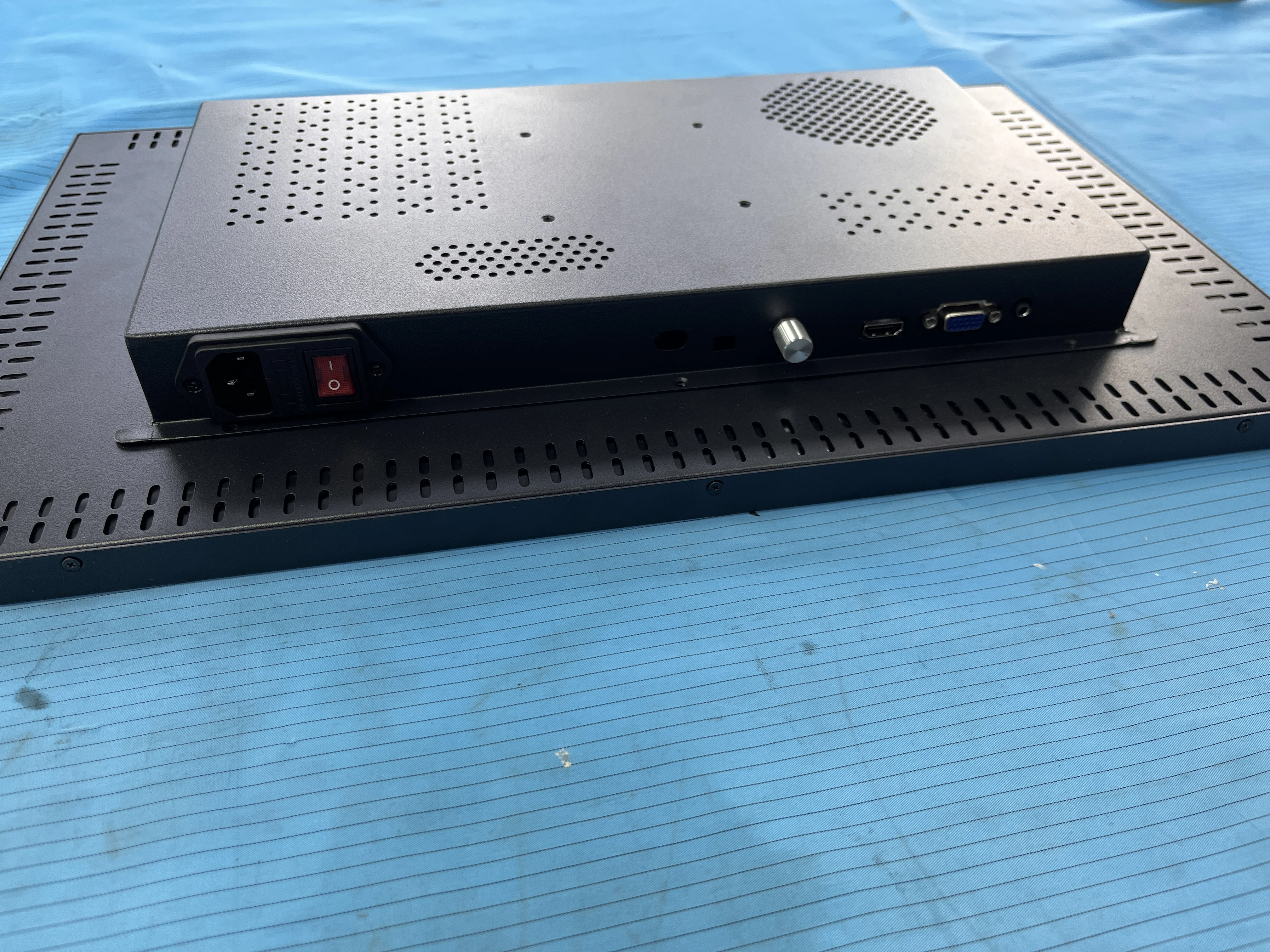

Black elevation
PRODUCT SPECIFICATIONS
Exterior | Appearance color | Black panel with silver frame/customized | |
Dimensions | 527.5*319*60.9mm (including hanger) | ||
Body material | Sheet Metal | ||
Installation method | Wall-mounted | ||
Package | Package Size | 610*410*130mm | |
Total Weight | 5kg (net) 5.5KG (gross) | ||
Display | Size | 21.5" TFT LED | |
Display area/ratio | 4765*268m/16:9 | ||
Maximum resolution | 1920x1080 | ||
Display contrast | 1000cd/m2, automatic linear photosensitivity | ||
Brightness | 1000:1 | ||
Viewing angle | (up/down/left/right):89°/89°/89°/89° | ||
Response time | 14ms | ||
color | 16.7M colors | ||
Power supply and power consumption | 100V~240V AC，<=45W | ||
motherboard interface | RK3288, CPU4 core 1.8GHzGPU4 core Mali-T764 DDR3 running memory 2GB storage space 8GB (expandable) motherboard interface 2 USB external 4 USB built-in 1 SD 1 RJ45 network port 1 LVDS, 1 HDHI2.0 Support wifi | ||
Function | OS | Android 5.1.1 | |
Menu language | Chinese, English, Russian, American, English, French, Spanish and other multi-language menus | ||
Video support format | supports RM/RMVB, MV, TS, FLV, AVI, VOB, MOV, W | ||
Audio support formats | EG-1 Layers I, II, III2.0, MEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAY, 24-bit linear PCH 7.1 | ||
Image support formats | BMP, JPEG, PNG, GIF | ||
Other support formats | PDF, PPT, SF, text, real-time data stream | ||
Screen split | Video area graphic area, rolling subtitles, LOGO area, date area, time area, week area, weather forecast area, real-time picture area, real-time video area. | ||
System upgrade mode | SD card update | ||
System management mode | Unified management, group management, multi-user management, remote management, scheduled power on and off | ||
Remote operation mode | Remote automatic power on and off, remote update, editing, playback program, remote monitoring status | ||
The system playback mode | Supports multiple playback modes such as loop, timing, and insertion. | ||
system structure | Adopt advanced B/S (Browser/Server) management structure | ||
Support network | LAN, WAN, WIFI | ||
Built-in speaker | Built-in mini twin speakers | ||
Other | reliability | 50000h | |
operating temperature | -20℃～70℃ | ||
storage temperature | -20℃～80℃ | ||
operating humidity | 5%～90% | ||
Storage humidity | 5%～90% | ||
Security indicators | Support hardware dongle, login password, control password, hierarchical user rights setter | ||
Environmental protection standards | All components and packaging accessories comply with international environmental standards | ||
PRODUCT CONFIGURATION
HDMI and VGA signal input motherboard
High quality constant current plate
keyboard
SALES AND SERVICE NETWORK
Successful Project

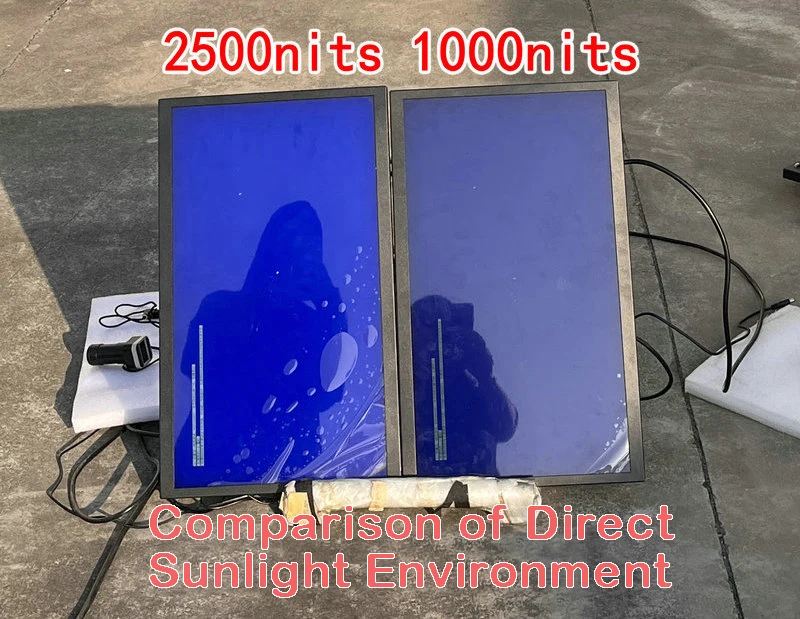

outdoor comparison
outdoor use
shipboard application
SIMILAR PRODUCTS
FAQ
1.Q: Are you a factory?
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q: What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.
7.Q: What’s the packing?
A: For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q: What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.
7.Q: What’s the packing?
A: For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
Похожие товары
32-дюймовый напольный Интерактивный Стол ЖК-панель Цифровой информационный дисплей все в одном ПК киоск с сенсорным экраном самообслуживания
53 179,48 ₽ - 56 797,88 ₽
55 дюймов Windows11Digital Signage цифровой плакат ЖК-дисплей Портативный рекламный плеер Tft для помещений
65 789,04 ₽ - 71 271,46 ₽
16 4 23 1 28/37 дюймов
27 302,46 ₽ - 29 824,37 ₽
43 55 дюймовый напольный стоячий Ultra Wi-Fi ЖК-дисплей сенсорный экран двойной multi Touch Screen Digital Signage Media Player киоск

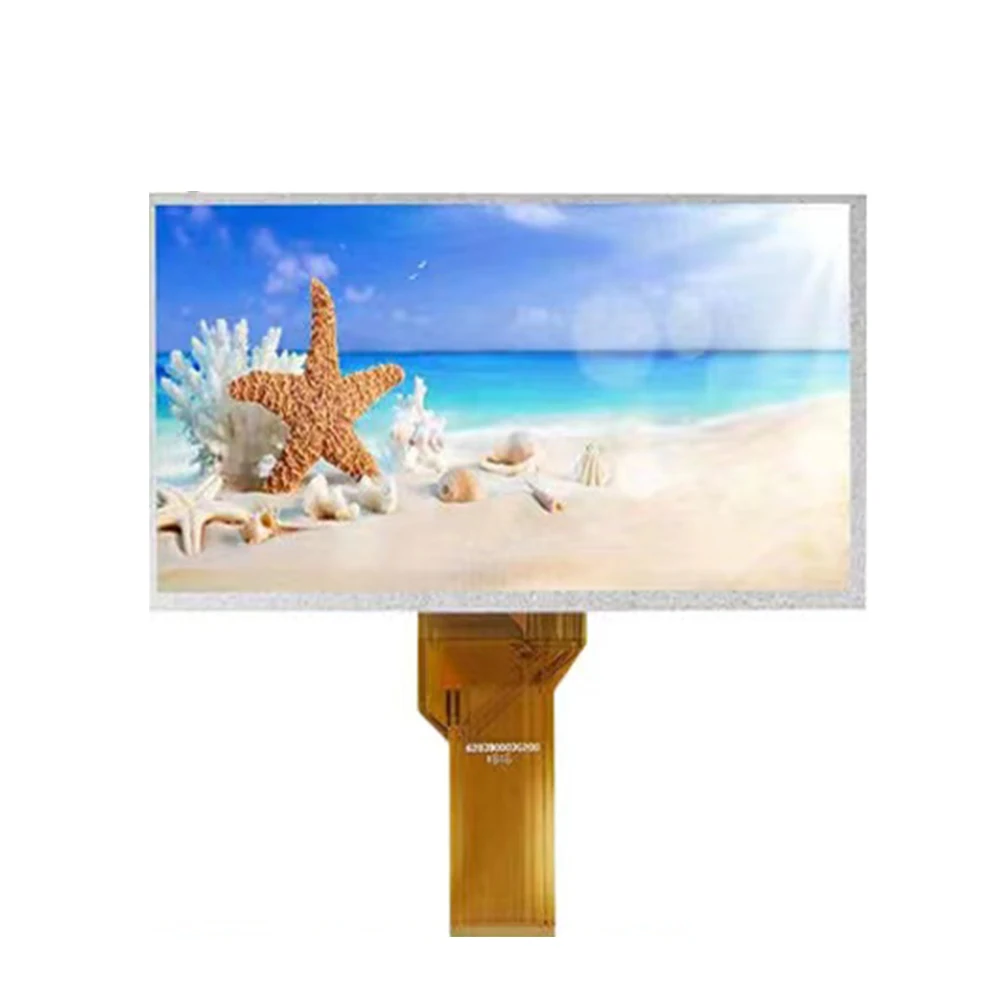

Иннолюкс 7 дюймов IPS G070ACE-L01 LVDS 30pin 800*480 WVGA 70% NTSC TN ЖК-дисплей Промышленный экран с широкой температурой
