Product Description
TAVOL Forklift
1. power, the selection of new diesel engine, in-line 4 cylinder water cooled, four strokes, electronic control VP pump, rated power 36.8Kw, maximum torque 165Nm, emissions meet the requirements of China's four-stage emission standards; Strong power, high reliability, to meet the high load conditions; The whole machine has high reliability, stable quality and long service life.
2.about the power, the selection of new diesel engine, in-line 4 cylinder water cooling, four strokes; The air filter adopts double layer filter element, the intake air is cleaner, and the engine is effectively protected. The hood is opened at a large Angle, easy maintenance, and the cost of using the vehicle is lower.
3. About the gearbox, the first domestic brand Zhongchai hydraulic transmission gearbox is selected. The hydraulic transmission is more stable, the shift is more light and flexible, the driving is light and
2.about the power, the selection of new diesel engine, in-line 4 cylinder water cooling, four strokes; The air filter adopts double layer filter element, the intake air is cleaner, and the engine is effectively protected. The hood is opened at a large Angle, easy maintenance, and the cost of using the vehicle is lower.
3. About the gearbox, the first domestic brand Zhongchai hydraulic transmission gearbox is selected. The hydraulic transmission is more stable, the shift is more light and flexible, the driving is light and
comfortable, and the micro-motion function makes the operation easy and free, greatly reducing the work intensity of the driver.
4. about the frame, the use of integral welding structure, high strength. The frame, door frame and cargo fork frame are made of high-strength materials, and all are homemade by the enterprise to ensure a long service life.
4. about the frame, the use of integral welding structure, high strength. The frame, door frame and cargo fork frame are made of high-strength materials, and all are homemade by the enterprise to ensure a long service life.
Product Paramenters
Model | CPC20/ CPCD20 | CPC25/ CPCD25 | CPC30/ CPCD30 | CPC35/ CPCD35 | CPC40/CPCD40 | CPCD50 | ||
Rated Loading Capacity(kg) | 2000 | 2500 | 3200 | 3600 | 4000 | 5000 | ||
Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 | ||
Max Lifting Speed (Full load)(mm/h) | 400 | 400 | 475 | 450 | 390 | 375 | ||
Max Driving Speed (Empty/Full load)(km/h) | 17/19 | 17/19 | 18/20 | 18/20 | 18/20 | 20/24 | ||
Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | ||
Min. Turning Radius(mm) | 2450 | 2450 | 2530 | 2540 | 2720 | 3000 | ||
Min. Ground Clearance(mm) | 110 | 110 | 135 | 135 | 145 | 170 | ||
Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 | 4100 | 4350 | ||
Width(mm) | 1160 | 1160 | 1230 | 1230 | 1230 | 1400 | ||
Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2105 | 2105 | 2115 | 2330 | ||
Front Overhang(mm) | 451 | 451 | 465 | 465 | 465 | 585 | ||
Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | 1900 | 2150 | ||
Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | 1060 | 1180 | ||
Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | 970 | 1190 | ||
Front Wheel Tyre | 7.00-12 | 7.00-12 | 28*9-15 | 25*9-15 | 250-15 | 300-15 | ||
Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | 7.00-12 | ||
Self Weight(kg) | 3320 | 3600 | 4250/4290 | 4660/4700 | 4810/4850 | 6800 | ||
Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 | 1220 | 1220 | ||
Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 | 62.5 | ||
Engine Speed At Rated Power (rmp) | 2500 | 2500 | 2500 | 2500 | 2500 | 2200 | ||
Engine Maximum Torque(Nm) | 157 | 157 | 165 | 165 | 190 | 320 | ||
Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1600-1800 | 1600-1800 | 1600-1800 | 1800 | ||
Variable speed form | Mechanical / Hydraulic | Mechanical / Hydraulic | Mechanical/ Hydraulic | Mechanical/ Hydraulic | Mechanical/ Hydraulic | Hydraulic | ||
Optional
Packing & Delivery
A forklift can be transported by LCL, and two or more can be loaded into containers.
Company Profile
TAVOL Group was founded in 2011 and is located at the foot of Mount Tai. A Chinese material handling equipment manufacturing brand to help your career rise. The main design, development and manufacture of 1-10 tons diesel forklift, 1-3.5 tons electric forklift,1-4 tons dual gas dual gasoline forklift, lifting height of 3-6 meters; High-altitude lifting equipment.
TAVOL Group is mainly engaged in investment and financing activities and sales of lifting machinery, material handling machinery,construction machinery, construction machinery, agricultural machinery and other mechanical equipment products manufactured by TAVOL Company, its affiliated factories and investment holding companies. Tavol Group has 5 plants, 1 intelligent technology plant and Hainan TAVOL International Trade Co., LTD. TAVOL products have been exported to more than 100 countries and regions in the world, and won the Madrid International trademark, in Southeast Asia and Eastern Europe and other places have a high brand awareness.
Customer visit
FAQ
Q: Are you a manufacturer, trader or agent?
A: We are a manufacturer of diesel forklifts and electric forklifts under 10 tons.
Q: Where is your main market?
A: Southeast Asia, South America, Africa, Europe and all of China.
Q:What is the MOQ?
A: 1 set is okay. More quantity wit nice discount.
Q:How long is your product warranty?
A:The product warranty period is 24 months.
Q: What is the payment item?
A: The terms of payment are negotiable. There are favorable payment terms for long-term customers. Wire transfer or letter of credit depends on time of cooperation, country and contract value.
A: We are a manufacturer of diesel forklifts and electric forklifts under 10 tons.
Q: Where is your main market?
A: Southeast Asia, South America, Africa, Europe and all of China.
Q:What is the MOQ?
A: 1 set is okay. More quantity wit nice discount.
Q:How long is your product warranty?
A:The product warranty period is 24 months.
Q: What is the payment item?
A: The terms of payment are negotiable. There are favorable payment terms for long-term customers. Wire transfer or letter of credit depends on time of cooperation, country and contract value.
Похожие товары

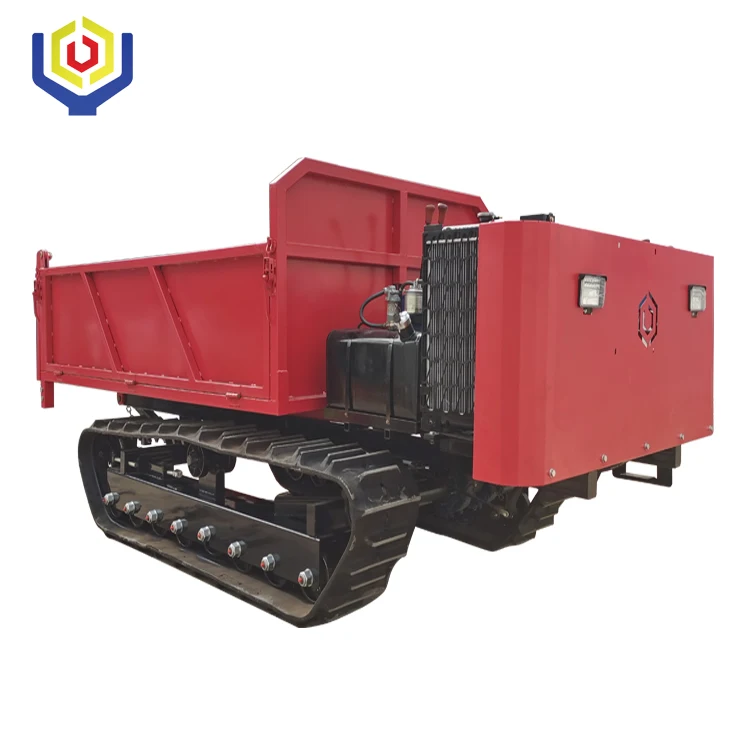

3-тонный самосвал, гусеничный мини сельскохозяйственный транспорт
