Горячая Распродажа 4.0Cbm самозагружаемая Бетономешалка компактная Мобильная

Горячая Распродажа 4.0Cbm самозагружаемая Бетономешалка компактная Мобильная

Категория: >>>
Поставщик: Laizhou Luzun Machinery Co. Ltd.Laizhou Ltd.

Цена:30 500,00-31 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

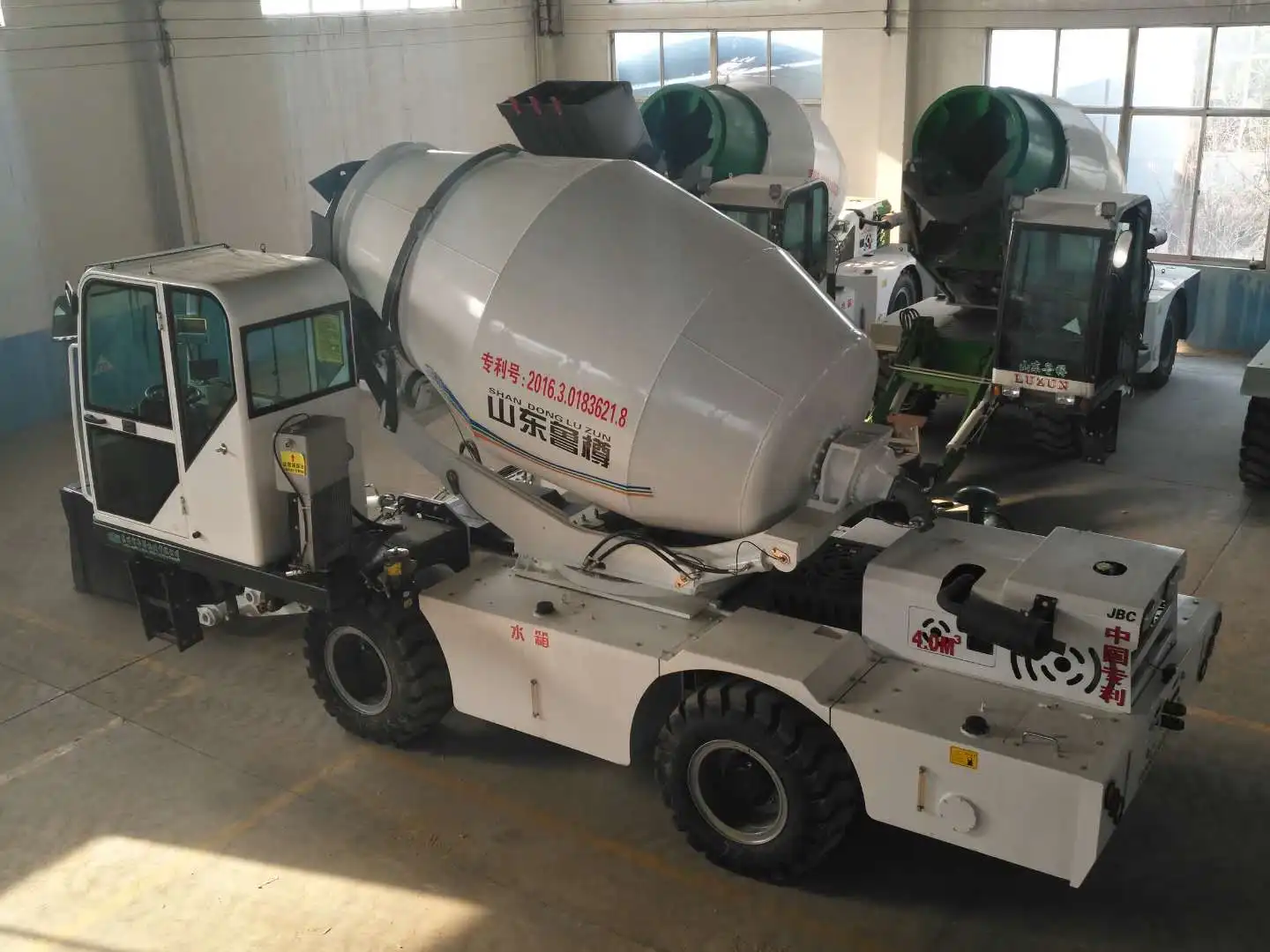

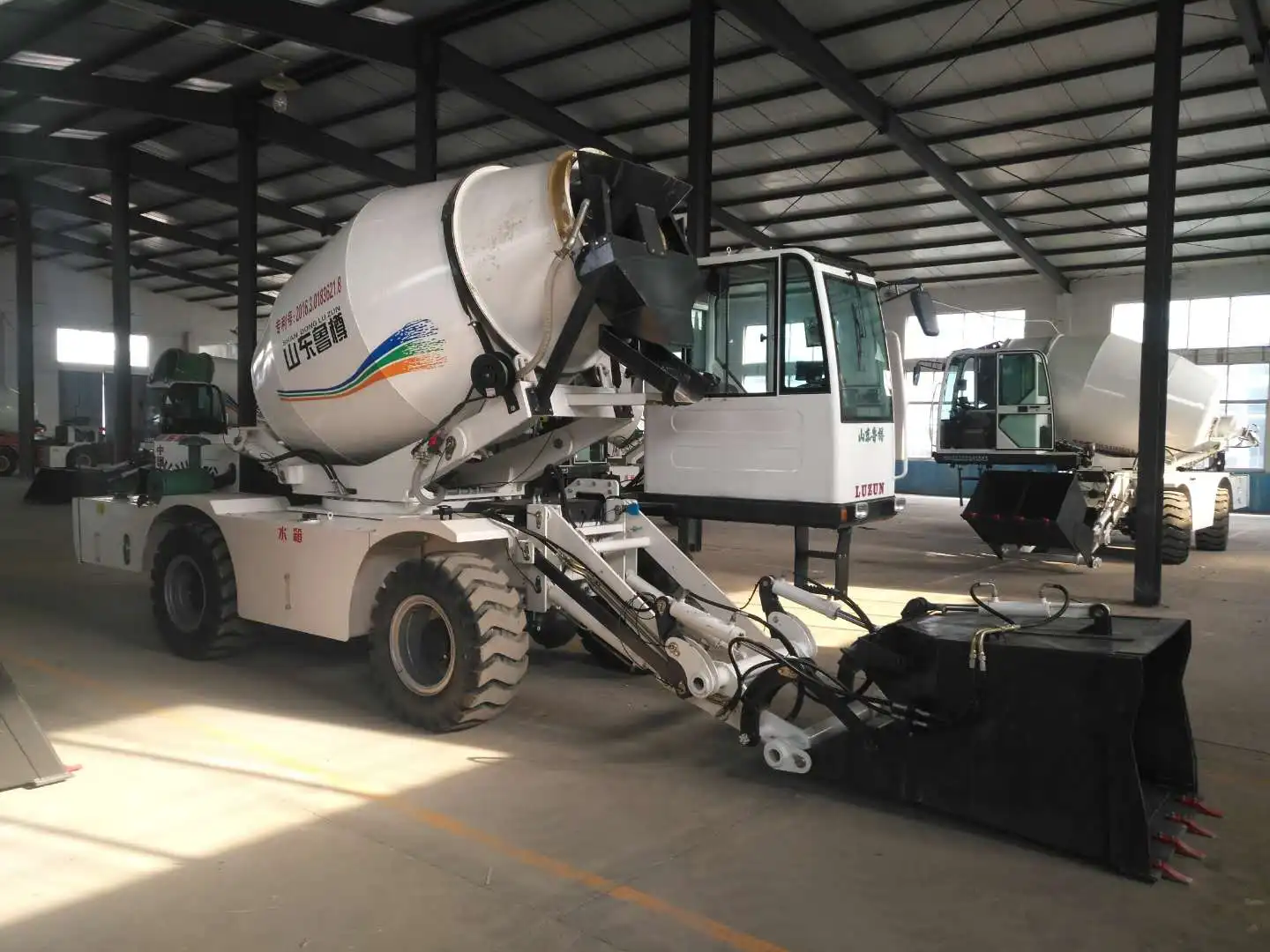

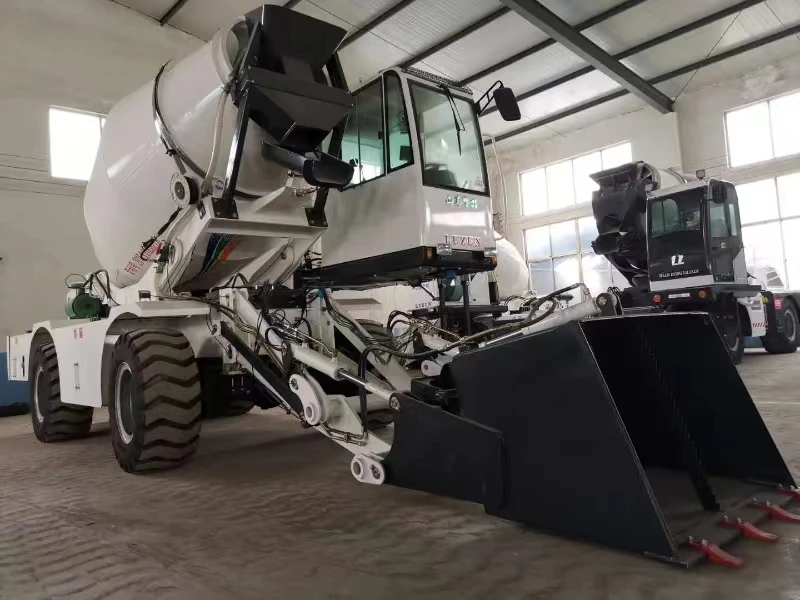

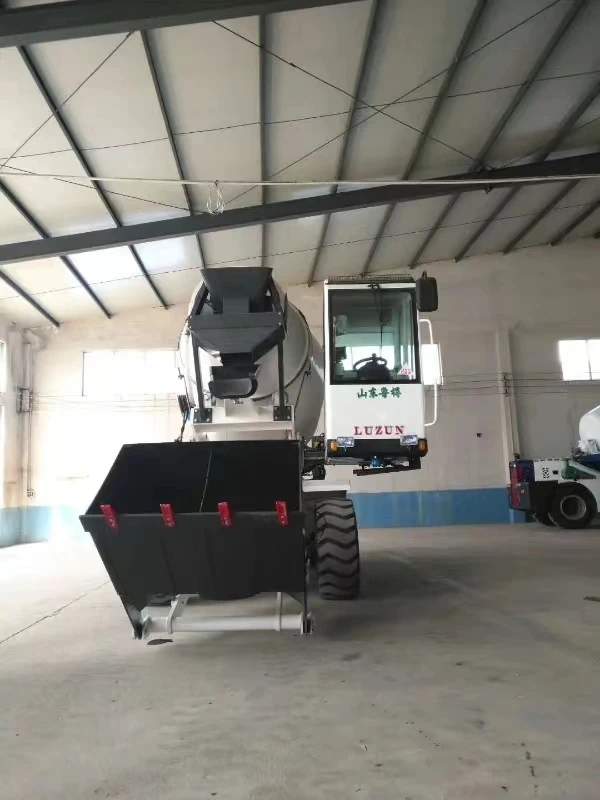

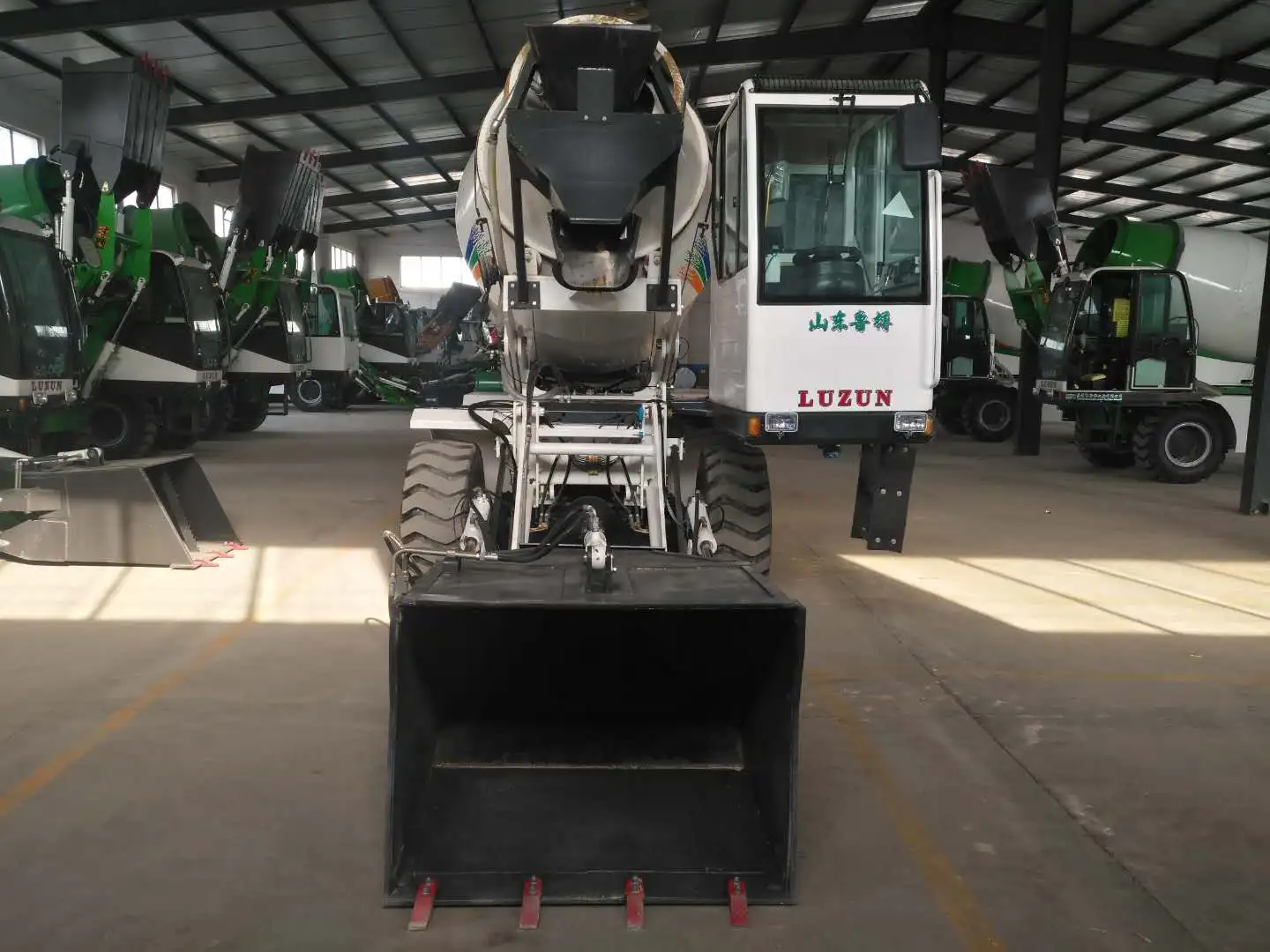

LUZUN self loading mixer truck has the characteristics of narrow body, short wheelbase and small turning radius, thus it has strong advantages in the working environment of limited height, width and length. For projects with narrow construction roads, the machine can realize multi-angle unloading without moving on the ground, as its tank can be rotated by 270°. Therefore, it is very suitable for road construction. It is used for the grouting pump equipment for the mixing of cement slurry, mortar and so on. It can be used in construction and maintenance of construction metallurgy, railway bridges, prestressing, etc. The mixer is small in size, light in weight, easy to install and move, simple to operate, easy to use, and trusted by users.

	Model JBC 4.0/4.0R Parameters
Engine	Engine Brand	Yuchai/Cummins
	Classis	Type	Diesel, 4-cylinder/6-cylinder, turbo charged, water cooled
	Loading&Mixing	Rated Power	85KW(116HP)/92KW(126HP)
		Max Torque	390NM/2800rpm
Classis	Structure	Integrated rigid structure
		Transmission gear	Automatic, 4F+ 4R shift
		Driving wheels	4x4, the rear axle oscillates (±28°)
		Tyre	16/70-20
Loading&Mixing	Hopper volume	700L
		Mixing volume	4.0-4.3M3
		Geometrical volume	6.1M3
		Concrete output	4M3 / batch, 16-20 M3 / hour
		Drum rotating speed	15 rpm
		Drum slewing angle	0°/180°/270°
		Chute	slewing 180°,2 pcs of extensions
Vehicle	Water tank	2x260L,equipped with 24V self priming pump
		Gear pump	Dehong/Permco/Sunny
		Max Speed	35KM/H
		Gradient	Fully loaded 40%
		Overall size (LxWxH)	8200x2850x3400mm
		Weight	8800kg
		Loading capacity	9600kg
		Fuel tank	135L
		Total hydraulic capacity	240L
		Engine oil	16L, automatic lubrication
		Cab	Closed, warm/cool air conditioner

Main Features

1. Technology with improvement provides stable quality and a low malfunction rate (lower than 0.2%).
2. The mixing drum uses wear-resistant alloy steel for longer service life.
3. Its patented obligatory double-spiral mixing screws ensures evenly mixing and complete unloading.
4. Together with the high accuracy electric weighing unit, it can supply various types of qualified concrete for projects of roads, bridges, drainage, houses, water tunnels, etc.
5. The compact design makes it flexible in narrow spaces and suitable for mountainous and country areas.
6. Self loading concrete mixers adopt a 4*4 driving system and off-road tires which enable good pass-ability on rough terrains, thus it is widely used in various projects.
7. High efficiency. The truck only takes 12 minutes to finish one batch of concrete.
8. Convenient. The drum slews 270 degrees when unloading.
9. The truck automatically fulfills loading, mixing, transporting, and discharging, replacing the labor of 4-6 workers.
10. Easy operation. The extensive use of hydraulic systems makes it easy to operate.

Integrated classis

The drum roates 270 degree to discharge

YUCHAI 85/92W diesel engine,CUMMINS can be as optional

Fixing auto lubricating pump,can lubricate the key position automatically

rear lamp and camera

Fixing auto weighing scale to weigh the materials precisely and can print out

Independent radiator

2 or 4 wheels steering, fixing large wheel side reduction axle,which dedicated in mixers truck

Company Profile

Production Process

Customer&Expos

LUZUN self-loading concrete mixer has been continuously exported to dozens of countries like Hungary, Saudi Arabia, Algeria,Panama, Venezuela, Russia, Uzbekistan, Kazakhstan, India, Malaysia, the Philippines, Vietnam, Cambodia, Kenya, Somalia, etc. and has become the most popular mixer trucks in local markets.

Certifications

Successful Project

Recommend Products

FAQ

Q: What is your payment term? A: Our payment term is T/T- 30% deposit, balance paid before delivery. Or 100% irrevocable L/C at
sight. Q: How soon can you deliver the mixer after I place the order? A: We keep fresh inventory. Most orders are delivered in
less than 7 days. If it is OEM, the order will be delivered in 15-20 days. Q: Is your quality good? A: We use advanced Italian
technology and make improvement based on customer feedback. Till now our professional R&D team has launched 13th generation mixers
and registered 24 national patents. Besides, we successfully passed the quality certification of CCC and CE. Q: Do you have
warranty? A: Yes, we offer one year warranty based on the confidence on our quality. Q: Can I be your agent? A: Sure. You are
welcome to be our agent. We will provide necessary support to you. Q: Can I get a discount? A: We sell directly from factory. The
price is better than trading companies. But still discount is available based on the order quantity.
