Products Description
MS Classification
1. Pipeline type ferromagnetic filter
Pipe-type ferromagnetic filter is used to remove small iron impurities in the fluid or slurry transported in the pipeline, so as
to purify the material, ensure product quality and safety, and ensure the safe and efficient operation of downstream equipment.
■ Applicable fields: Food (soup, soy sauce, edible oil, chocolate, dairy products and beverages), paper, pharmaceutical, battery, printing ink, lubricating oil and hydraulic oil.
■ Installation position: Inlet (outlet) port, filtration before loading.
■ Filtering features: The optimized magnetic circuit design can make the medium change the flow direction in the filter, and flow around the magnetic bars to ensure that the material is in full contact with the magnetic bars. The medium passes through the gradient magnetic field formed by the magnetic bars so as to get multiple filtration with good effect. Vertical, oblique, or horizon-tal installation is acceptable.
2. Drawer type magnetic filter
Drawer type magnetic filter is a machine with good effect and wide range of use.Drawer type magnetic filter is designed for removing ferromagnetic impurities, weak magnet pollutants and other free flowing external transport materials (such as particles and powder) and other small paramagnetic particles. It can effectively purify materials, improve material quality, protect downstream equipment from black metal damage, and ensure the efficient operation of processing equipment.
■ Applicable fields: Dry powder and particles, such as medicine, food, chemical, plastic, ceramics, tobacco, glass and other industries.
■ Installation position: Inlet (outlet) port, front or end of the production line.
■ Filtering features: single layer, multilayer optional, multi-layer optimization brings better separation effect.
3. Frame type magnetic filter

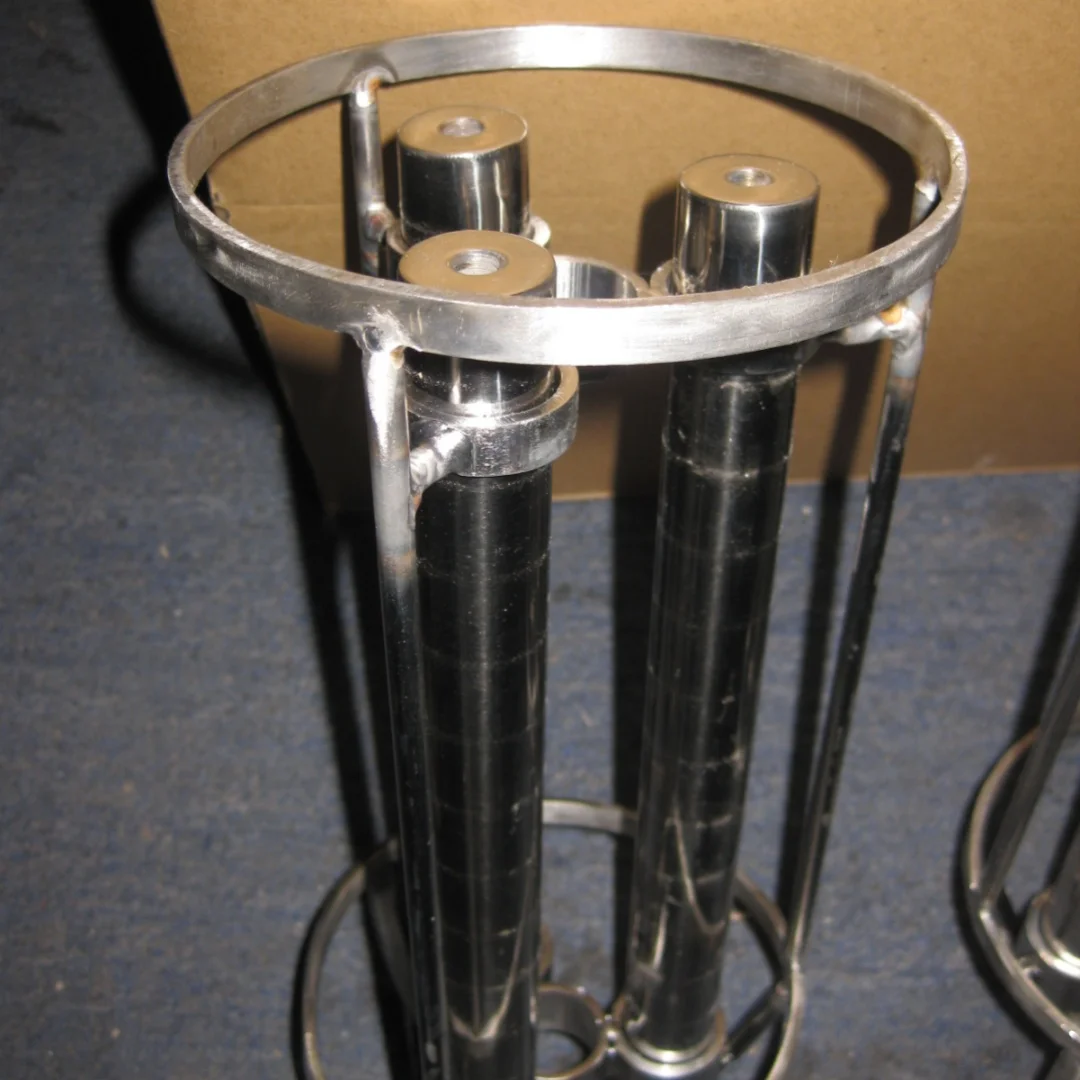

Frame type magnetic filter is composed of magnetic bars, which are interlaced with each other in parallel and fixed on the supports or frames. The magnetic bars can be designed into various shapes, such as square, round, trapezoidal, drawer type, etc., to match different hoppers, sliders, pipes and field environments. Frame type magnetic filter is flexible and efficient magnetic separation device, used to remove ferromagnetic impurities, weak magnet pollutants and other free flow of external transport materials (such as particles and powder) and other small paramagnetic particles, which can effectively purify material, improve the quality of materials, to protect downstream equipment from black metal damage, to ensure the efficient operation of the processing equipment.
■ Applicable fields: Remove ferromagnetic impurities in powder, granular raw materials and liquid or slurry, widely applicable to ceramics, electric power, mining, plastic, chemical, rubber, pharmaceutical, food, environmental protection, pigments, dyes, electronics, metallurgy, tobacco, glass and other industries.
■ Installation position: It can be installed in any position on the production line that can contact with the material.
■ Filtering features: Frame type magnetic filter has no energy consumption, no pollution, and can be installed in any position on the production line that can contact with the material, saving space and convenient installation
1. Pipeline type ferromagnetic filter
Pipe-type ferromagnetic filter is used to remove small iron impurities in the fluid or slurry transported in the pipeline, so as
to purify the material, ensure product quality and safety, and ensure the safe and efficient operation of downstream equipment.
■ Applicable fields: Food (soup, soy sauce, edible oil, chocolate, dairy products and beverages), paper, pharmaceutical, battery, printing ink, lubricating oil and hydraulic oil.
■ Installation position: Inlet (outlet) port, filtration before loading.
■ Filtering features: The optimized magnetic circuit design can make the medium change the flow direction in the filter, and flow around the magnetic bars to ensure that the material is in full contact with the magnetic bars. The medium passes through the gradient magnetic field formed by the magnetic bars so as to get multiple filtration with good effect. Vertical, oblique, or horizon-tal installation is acceptable.
2. Drawer type magnetic filter
Drawer type magnetic filter is a machine with good effect and wide range of use.Drawer type magnetic filter is designed for removing ferromagnetic impurities, weak magnet pollutants and other free flowing external transport materials (such as particles and powder) and other small paramagnetic particles. It can effectively purify materials, improve material quality, protect downstream equipment from black metal damage, and ensure the efficient operation of processing equipment.
■ Applicable fields: Dry powder and particles, such as medicine, food, chemical, plastic, ceramics, tobacco, glass and other industries.
■ Installation position: Inlet (outlet) port, front or end of the production line.
■ Filtering features: single layer, multilayer optional, multi-layer optimization brings better separation effect.
3. Frame type magnetic filter
Frame type magnetic filter is composed of magnetic bars, which are interlaced with each other in parallel and fixed on the supports or frames. The magnetic bars can be designed into various shapes, such as square, round, trapezoidal, drawer type, etc., to match different hoppers, sliders, pipes and field environments. Frame type magnetic filter is flexible and efficient magnetic separation device, used to remove ferromagnetic impurities, weak magnet pollutants and other free flow of external transport materials (such as particles and powder) and other small paramagnetic particles, which can effectively purify material, improve the quality of materials, to protect downstream equipment from black metal damage, to ensure the efficient operation of the processing equipment.
■ Applicable fields: Remove ferromagnetic impurities in powder, granular raw materials and liquid or slurry, widely applicable to ceramics, electric power, mining, plastic, chemical, rubber, pharmaceutical, food, environmental protection, pigments, dyes, electronics, metallurgy, tobacco, glass and other industries.
■ Installation position: It can be installed in any position on the production line that can contact with the material.
■ Filtering features: Frame type magnetic filter has no energy consumption, no pollution, and can be installed in any position on the production line that can contact with the material, saving space and convenient installation
Specification
Model No. | MS Series |
Applicable liquid | Liquid with iron, cobalt and nickel particles, powder and granular materials |
Magnetic field range | 2,000-12,000GS |
Standard design pressure | 0.6MPa/1.0MPa/1.6MPa/2.0MPa，(Higher is customized.) |
Design temperature | 0-80℃ or customized |
Number of magnetic bars | 3-24 or customized |
Seperation type | Magnetic trap |
Magnetic bars material | Nd- Fe-B.super magnetic material |
Layout of magnetic bars | Single, double, triple or customized |
Connection type | Flange, clamp, pipe thread, etc. |
Inler & outlet size | DN25-DN600 |
Connection standard | Flange，HG20592-2009(standard design)，HG20615-2009(ANSI B16.5 Compatible) |
Both ends dedign for magnetic bars | Plane, screw hole, outer screw tooth, handle and so on |
Main classification | Pipe type, drawer type, frame type, etc. |
Inner surface anticorrosive coating | Epoxy coating, etc. |
Housing material | SS304/316L，Special materials can be customized (such as 904L, duplex stainless steel) |
Housing seal material | NBR, Nitrile rubber (standard), fluorine rubber, silicone, ethylene propylene ternary rubber, PTFE, etc. |
Inner surface finish | Polishing, rubber lining, spray paint, etc. |
Outer surface finish | Polishing, painting, sandblasting, etc. |
Working principle
When the liquid enters the iron separator through the main pipe, the iron, cobalt and nickel impurities in the liquid are adsorbed on the magnetic bar inside the iron separator or the tube sleeve of the magnetic bar. Clean liquid is discharged through the filter outlet. When magnetic bar needs cleaning, open the drain valve at the bottom of the main pipe, drain the fluid, open the flange cover, remove the magnetic bar, clean and replace it.
Application
* Applicable liquids: Fluids containing micro amount of iron, cobalt and nickel particles.
* Main separation function: Catching iron, cobalt and nickel particles.
* Separation type: Magnetic trap.
* Main separation function: Catching iron, cobalt and nickel particles.
* Separation type: Magnetic trap.

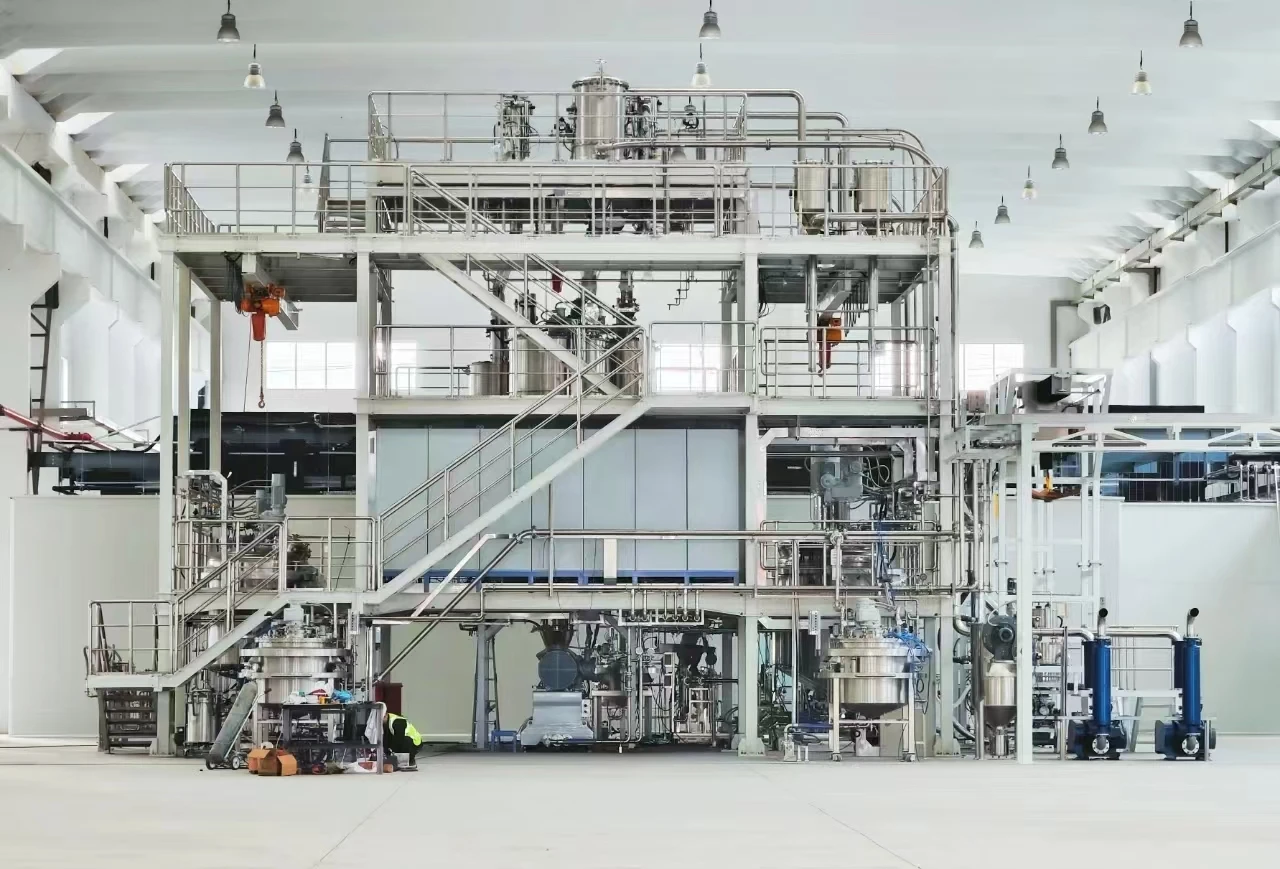

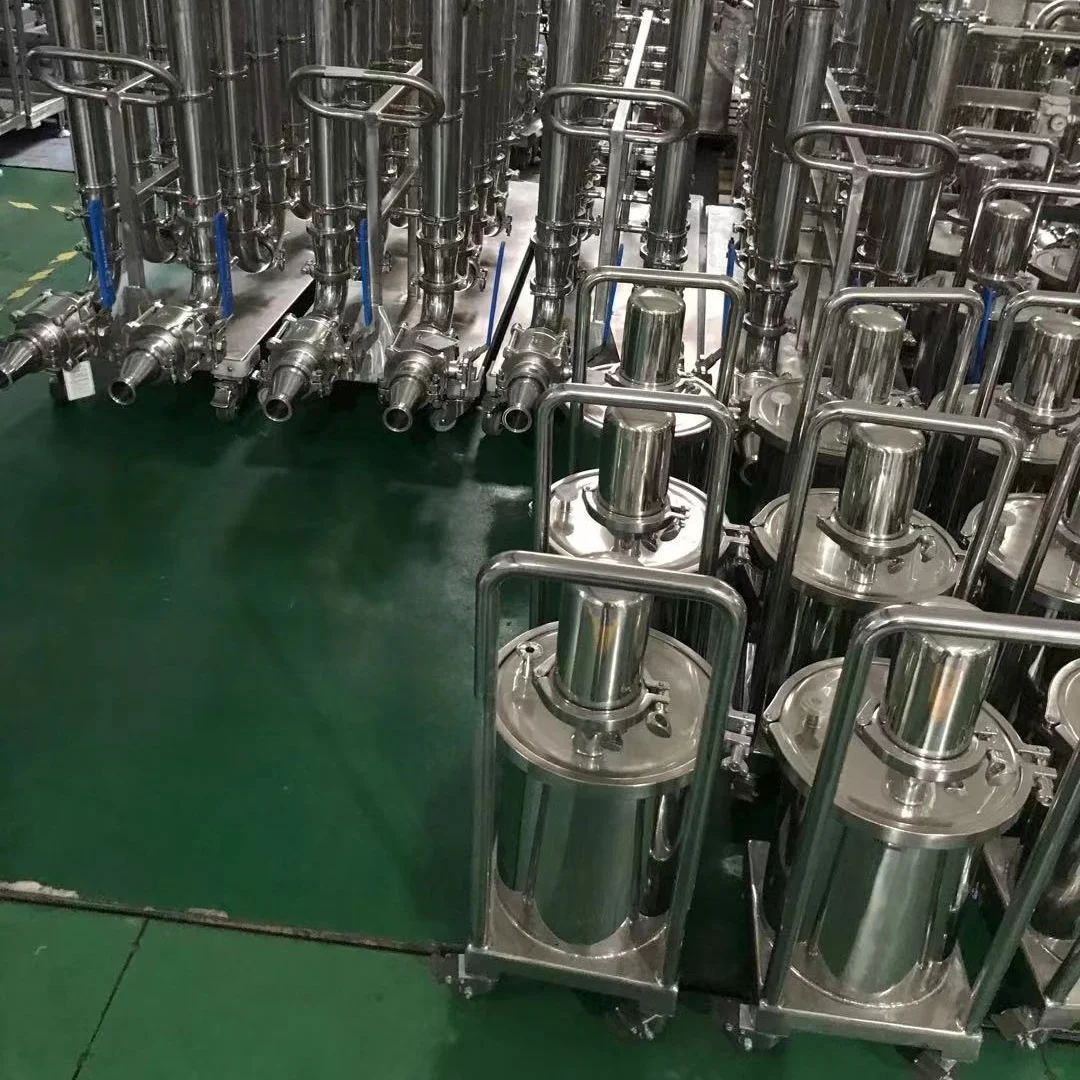

Production Process
Our Advantages
1. The magnetic filters can be installed easily in fluid flow line.
2. They give complete magnetic protection by attracting iron particles as fine as 10 microns into the magnetic trap.
3. The magnets are installed in polished condition for higher life of the rods and ease of cleaning.
4. For different flow rates, different sizes of magnetic filters are available.
5. Maximum operating temperature 80ᵒC. They can be designed to work at temperatures as high as 200°C.
2. They give complete magnetic protection by attracting iron particles as fine as 10 microns into the magnetic trap.
3. The magnets are installed in polished condition for higher life of the rods and ease of cleaning.
4. For different flow rates, different sizes of magnetic filters are available.
5. Maximum operating temperature 80ᵒC. They can be designed to work at temperatures as high as 200°C.
Related Products
Company Information

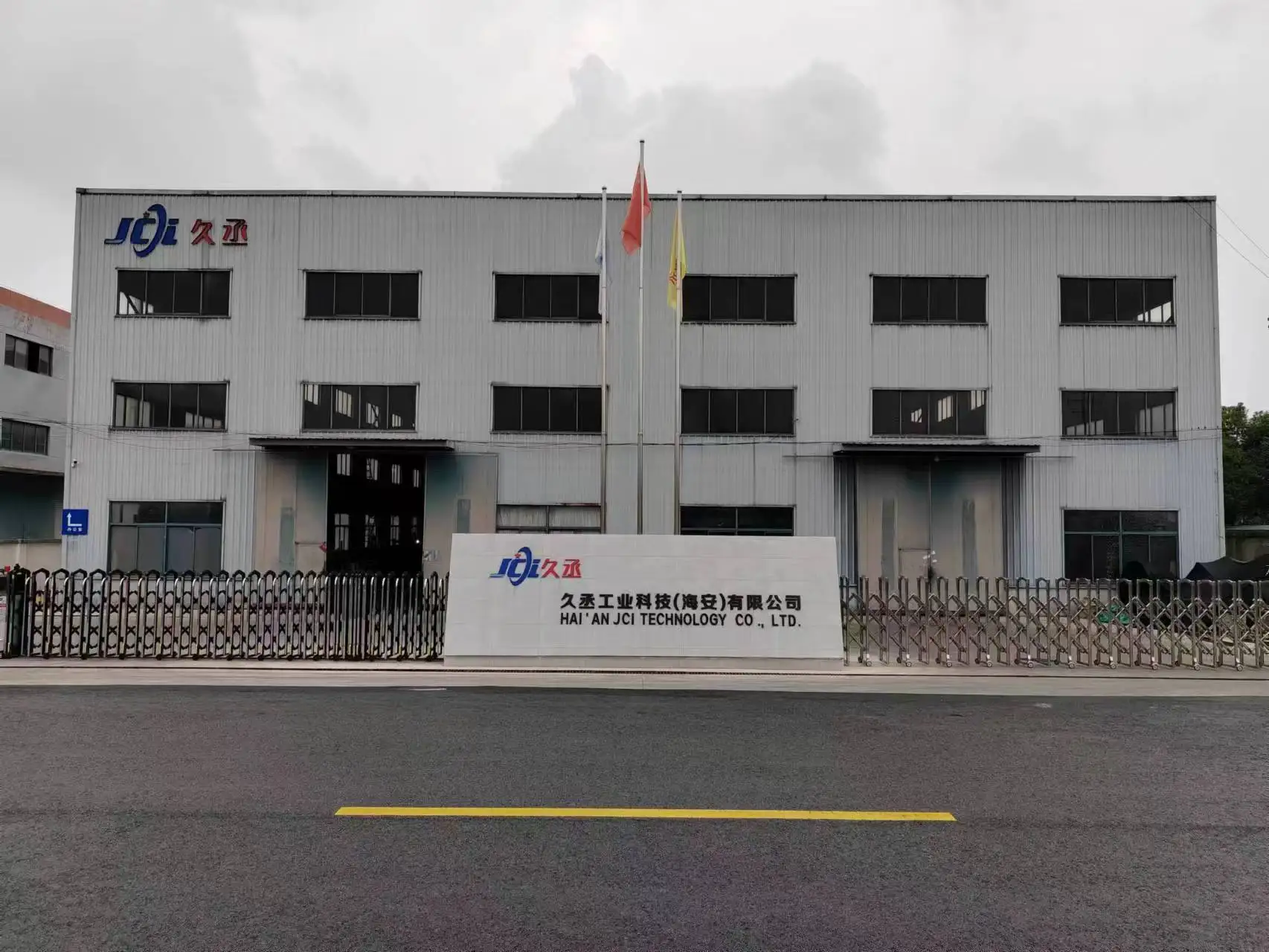

Shanghai JCI is a leading design and manufacturing company in the filtration industry, specializing in high-performance filtration equipment, especially in the field of self-cleaning filtration occupies an important position.Founded in 2014, the company is headquartered in Shanghai, with two production bases in Hai 'an, Jiangsu Province and Taiwan,China, and agents in Russia, the United States, Singapore, South Korea and other places. In March 2021, the company signed an investment and investment agreement with Jiangsu Haian City Government, and officially moved the factory to Nantong Haian in August of the same year. At present, the company has more than 5000 plants, the company currently has more than 40 patents, more than 2 invention patents, of which the company's self-developed self-cleaning and drying slag system fundamentally solves the pain points that have plagued the filtration industry for many years, and has been widely recognized by many customers and the industry.With excellent technical strength, exquisite product quality and excellent service system, JCI has won the trust and praise of many customers. At present, JCI has served more than 25 of the world's top 500 enterprises. In the future, Jiu Cheng will, as always, provide customers with better quality products and services to repay the support and trust of customers.
