Cutting Sample Display
Product Information
The product is an automatic XY cutting machine, which is used to cut the flexible media rolls into sheets with a maximum thickness of 1.5mm. Using a CCD camera, It can read the cutting marks on the printed media, and immediately cut both vertically and horizontally. With the automatic deviation correction system, fully automatic cutting is realized.
The product is an automatic XY cutting machine, which is used to cut the flexible media rolls into sheets with a maximum thickness of 1.5mm. Using a CCD camera, It can read the cutting marks on the printed media, and immediately cut both vertically and horizontally. With the automatic deviation correction system, fully automatic cutting is realized.
Product details

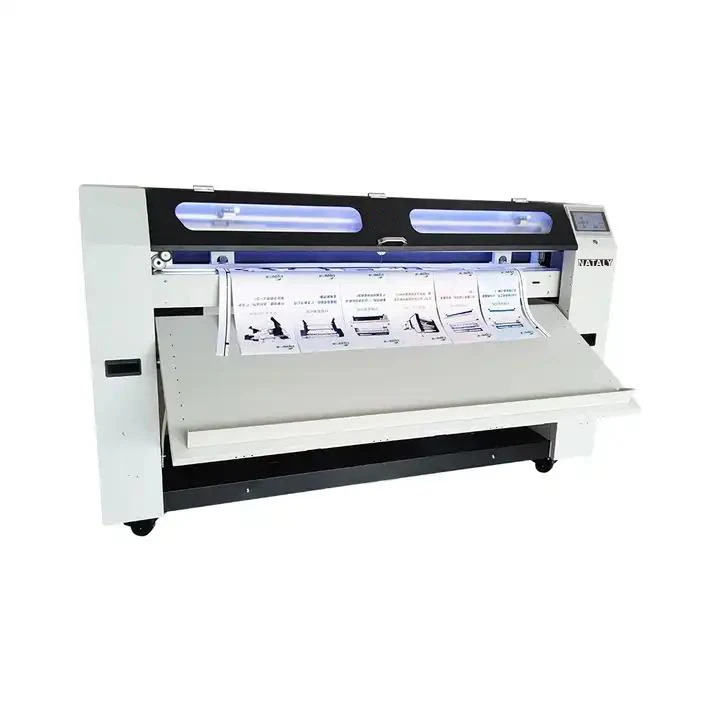

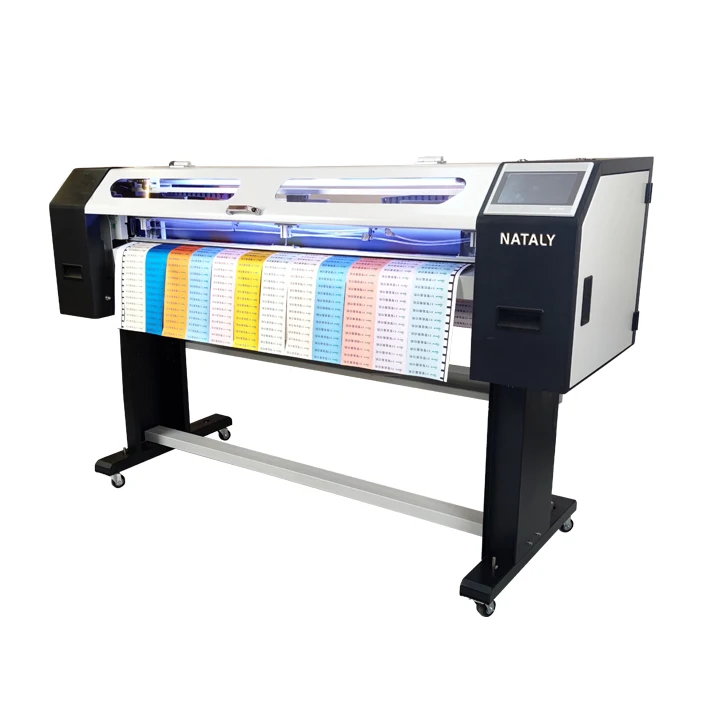

X Y fully automatic cutting machine
Henan Nataly Machinery Co., Ltd
Product Details
1.Standard machine, the maximum cutting material width:1.5m, customized machine can be up to 1.56m. There are many materials the machine could deal with, such as: PVC photo paper, adhesives and other materials, all photo-type roll materials.
2.The machine adopts 750W AC servo motor inside the machine, and adopts domestic well-known brand Jiemeikang, which has long service life and strong power, which can ensure the feeding of heavy rolls.
3. Standard machine is equipped with 10 Y cutters. Customized machines, up to 25 can be added.
4. Standard machine:Around 50m long material can be loaded. If clients have 200 meters or 300 meters of material, inflatable shafts can be used, and thicken the thickness of the body, so, heavier materials can be placed. The height of the shaft is lower, it is convenient to discharge the material, and the maximum
Product Details
coil diameter of 41cm can be placed.

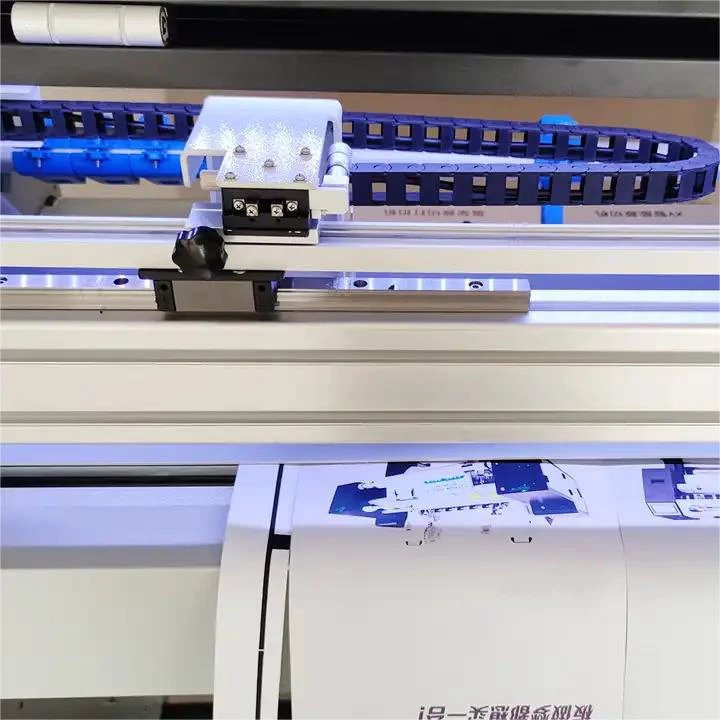

5.CCD camera,
Automatic correction system, make correction more accurate. The accuracy reaches 0.2mm, and the correction range: 3cm. The machine
has high accuracy and low error rate, which greatly saves customers' materials.

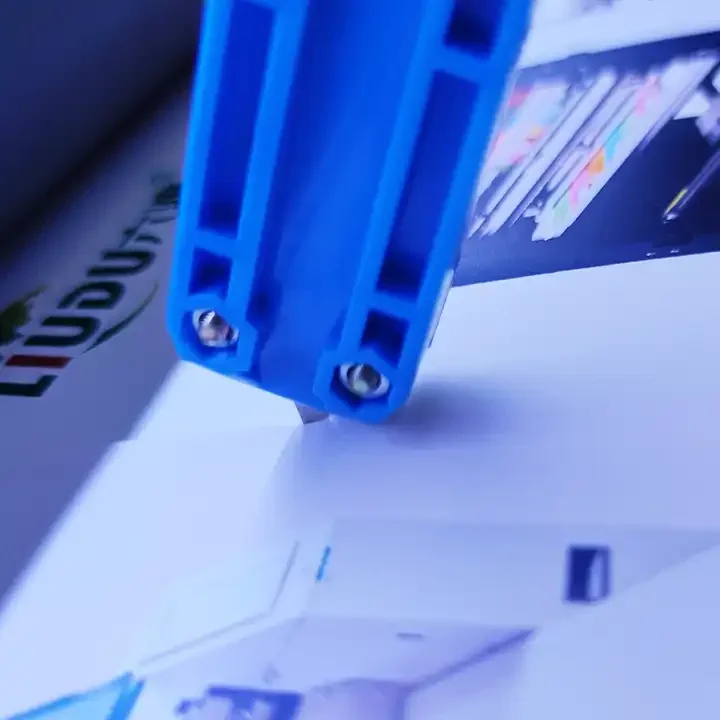

6.For X cutters
We use self-sharpening cutter, two sets of four cutters. Can be adjusted: one-cutter cutting, or double-cutter cutting. The
service life is greatly extended. The scissors-type self-sharpening cutter can cut all kinds of pictures, whether it is PP, photo
material, or pvc ,pe materials, it can be cut perfectly.
7.Advanced color recognition system
More accurate color recognition, vertical line for Y cutting: black is recommended.
Automatic correction system, make correction more accurate. The accuracy reaches 0.2mm, and the correction range: 3cm. The machine
has high accuracy and low error rate, which greatly saves customers' materials.
6.For X cutters
We use self-sharpening cutter, two sets of four cutters. Can be adjusted: one-cutter cutting, or double-cutter cutting. The
service life is greatly extended. The scissors-type self-sharpening cutter can cut all kinds of pictures, whether it is PP, photo
material, or pvc ,pe materials, it can be cut perfectly.
7.Advanced color recognition system
More accurate color recognition, vertical line for Y cutting: black is recommended.
Advantages
1,lateral angle correction: more accurate
2,simple operation: easy to use
3,double sets of self-sharpening X cutters: longer life time
4,CCD industrial camera:higher accuracy of correction and cutting
5,Machine size: machine less than 2 square meters, save space
6,Cutting model: single cutting mode or double cutting mode available
7,Air shaft: easier and more convenient feeding, no material deviation, more accurate cutting
8,Y cutters: customized more slotted cutters, easy to operate, smallest size is 4.5cm
9,Cutting size: the same roll material can be cut to different lengths
10. Servo motor: stronger power, higher efficiency, more precise walking, and guaranteed cutting accuracy
2,simple operation: easy to use
3,double sets of self-sharpening X cutters: longer life time
4,CCD industrial camera:higher accuracy of correction and cutting
5,Machine size: machine less than 2 square meters, save space
6,Cutting model: single cutting mode or double cutting mode available
7,Air shaft: easier and more convenient feeding, no material deviation, more accurate cutting
8,Y cutters: customized more slotted cutters, easy to operate, smallest size is 4.5cm
9,Cutting size: the same roll material can be cut to different lengths
10. Servo motor: stronger power, higher efficiency, more precise walking, and guaranteed cutting accuracy
Model Number | NDL-1600C |
Power | 500W |
Voltage | 230VAC |
Max cutting width | 1540mm |
Max conveying speed | 100m/min |
Frequency | 50-60Hz |
Minimum air pressure | 0.8MPa |
Accuracy | 0.1mm |
Dimension | 2230*930*1540mm |
Weight | 385kg |
Packing&Shipping
Why Choose Us
FAQ
1. Q: Are you Factory or Trading company?
A: We are a factory and the first manufacturer of vibrating knife cutting machines in North of
China with about 10 years experiences in this field.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional
design team, we can give you our professional suggestions according to your requirements
and design a cost-effective machine for your needs.
3. Q: What is the difference between your product and the laser cutting machine?
A: a. Our products are cut with vibrating blades, no laser, no pollution, and create a good
working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: Is your price have a discount for dealers?
A: Yes, we have a favorable policies for dealers. Please tell us your order quantity or annual
purchase quantity. The price will be adjusted according to the order quantity. For details,
please consult our sales staff.
5. Q: How is your after-sales policies?
A: a. The machine warranty is 3 years after shipment date. During the warranty period,
the main accessories(except the wearing parts) are replaced free of charge under the normal operation. Otherswise, under improper operation need to pay.
b.We have an experienced after-sales team 24h online service and a complet after-sale system. Factory training support, Video technical support, online support, Engineers available to service machinery overseas if needed.
c. Inquiries are typically answered within 24 hours.
6. Q: Can you provide ODM and OEM services?
A: Yes, our R&D team with an average of 10 years experiences, the ODM&OEM service are
satisfied with our customers.
A: We are a factory and the first manufacturer of vibrating knife cutting machines in North of
China with about 10 years experiences in this field.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional
design team, we can give you our professional suggestions according to your requirements
and design a cost-effective machine for your needs.
3. Q: What is the difference between your product and the laser cutting machine?
A: a. Our products are cut with vibrating blades, no laser, no pollution, and create a good
working environment for workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: Is your price have a discount for dealers?
A: Yes, we have a favorable policies for dealers. Please tell us your order quantity or annual
purchase quantity. The price will be adjusted according to the order quantity. For details,
please consult our sales staff.
5. Q: How is your after-sales policies?
A: a. The machine warranty is 3 years after shipment date. During the warranty period,
the main accessories(except the wearing parts) are replaced free of charge under the normal operation. Otherswise, under improper operation need to pay.
b.We have an experienced after-sales team 24h online service and a complet after-sale system. Factory training support, Video technical support, online support, Engineers available to service machinery overseas if needed.
c. Inquiries are typically answered within 24 hours.
6. Q: Can you provide ODM and OEM services?
A: Yes, our R&D team with an average of 10 years experiences, the ODM&OEM service are
satisfied with our customers.
