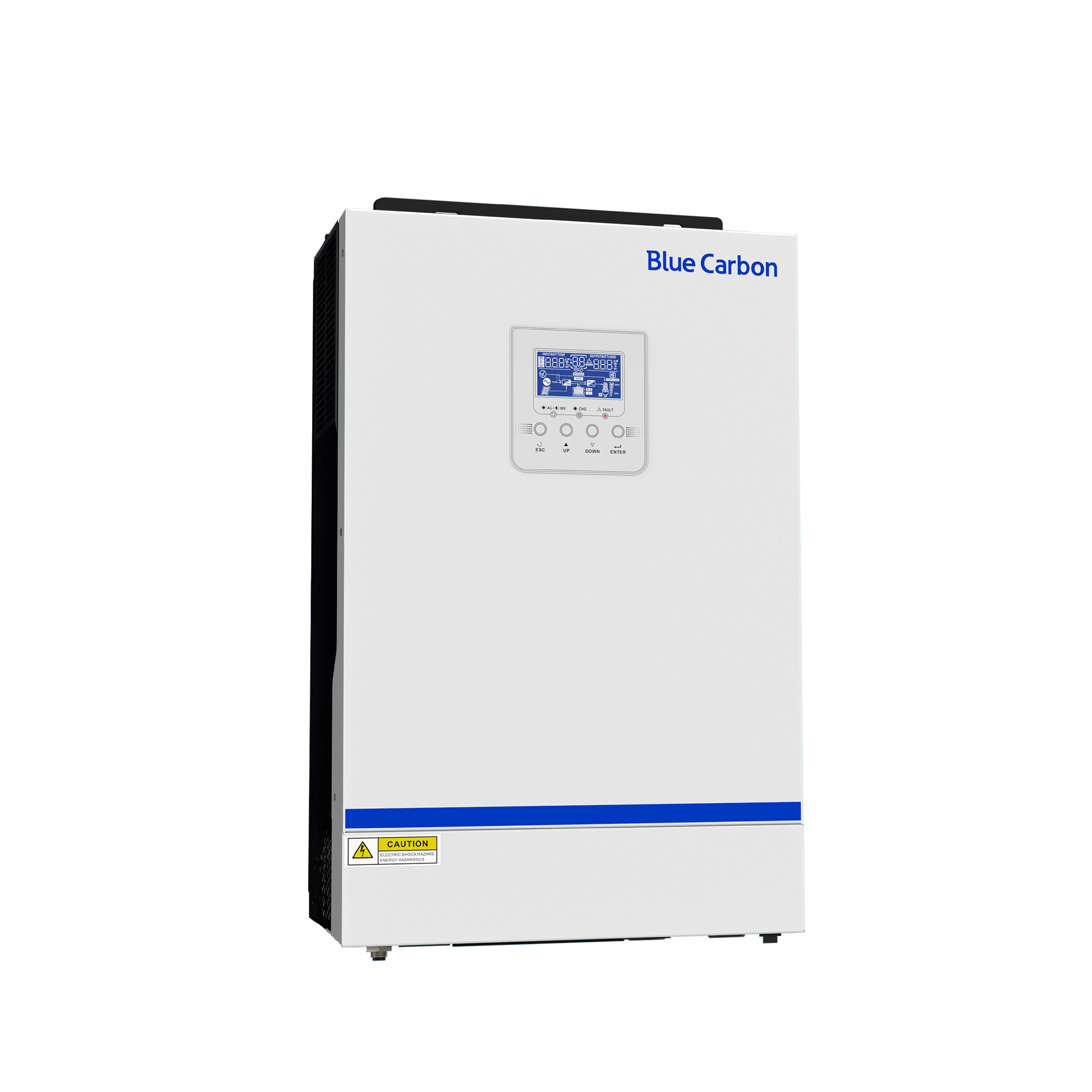

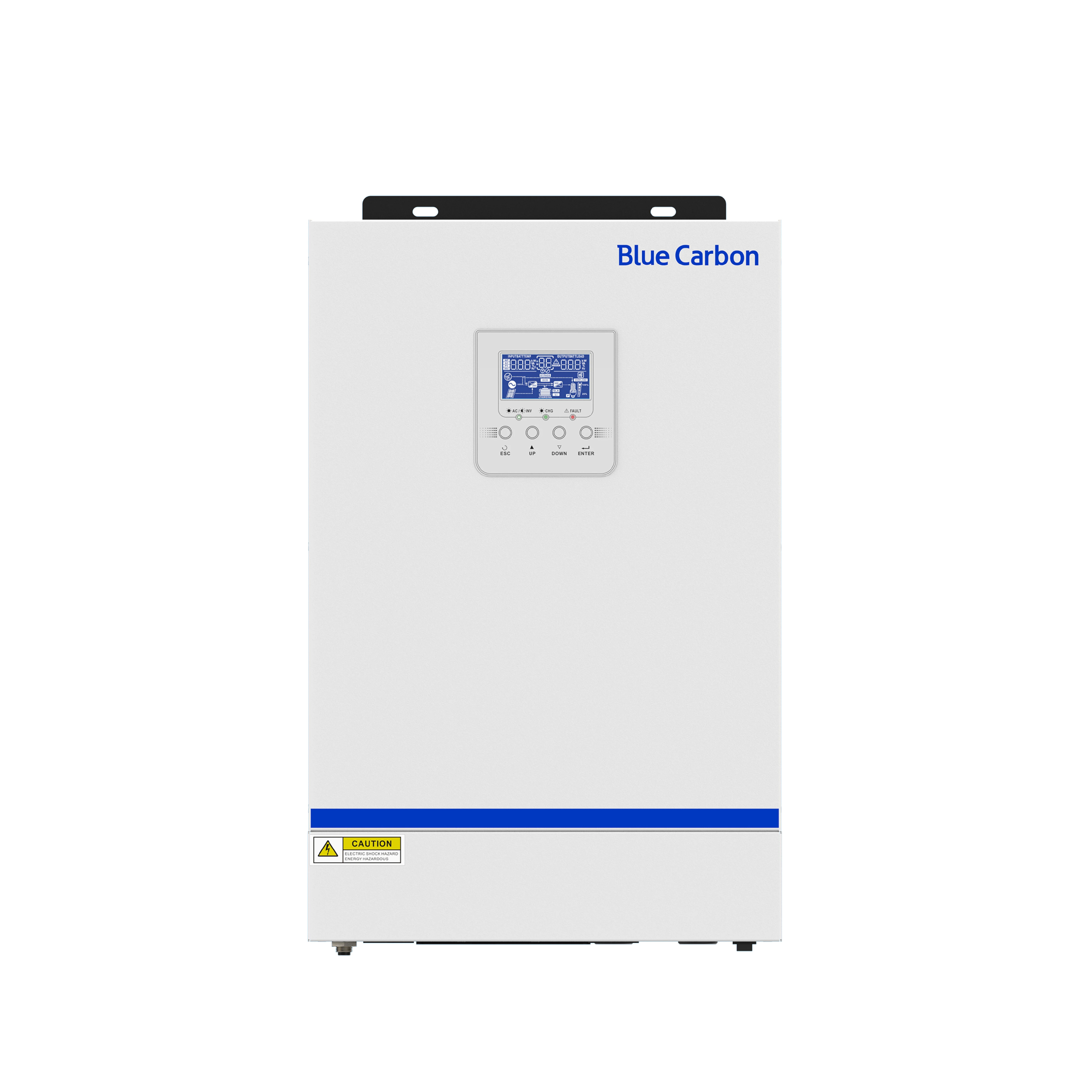

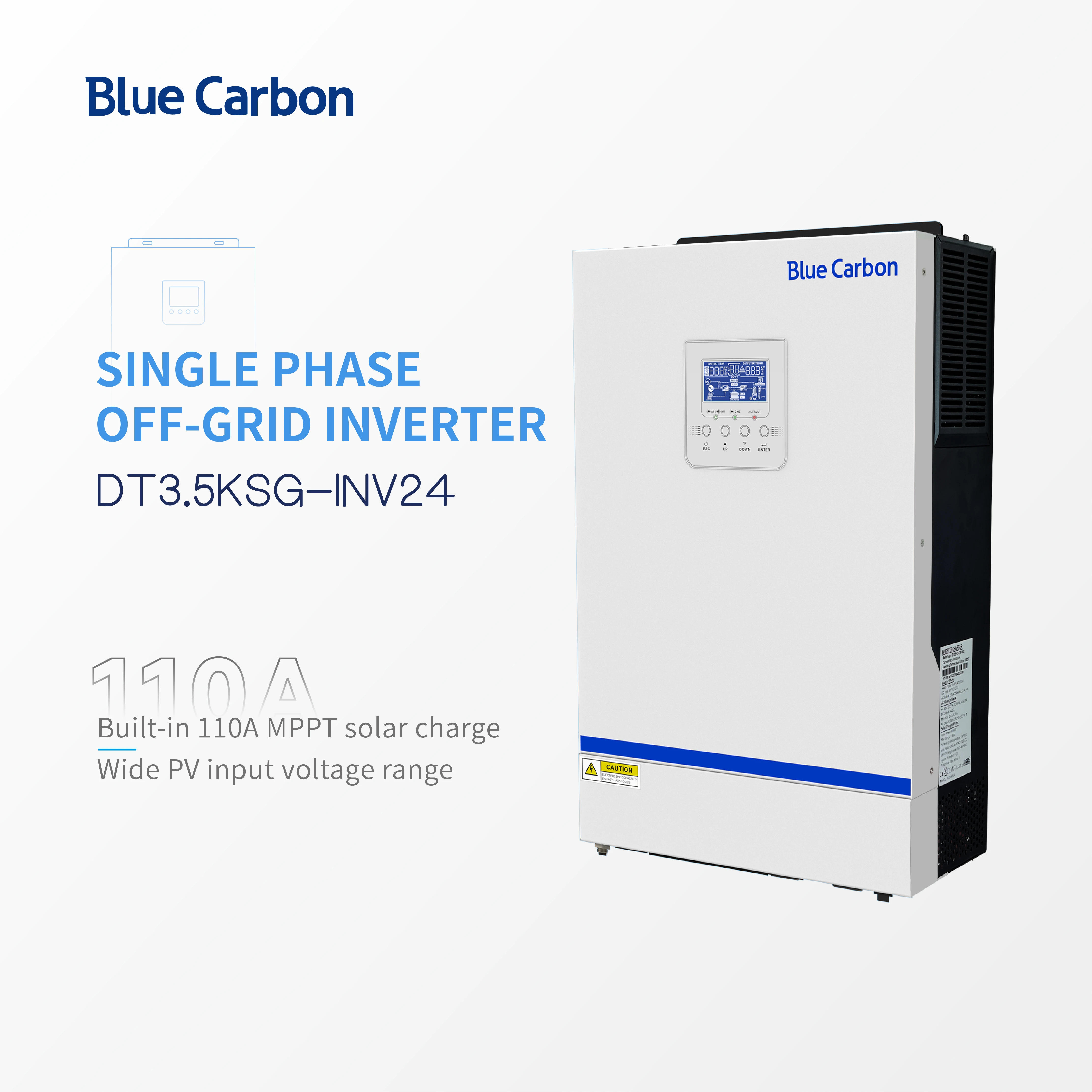

Синий углерод 48 В 3 5 кВт MPPT литиевая батарея система хранения солнечной энергии Солнечный инвертор
- Категория: >>>
- Поставщик: Blue Carbon Technology Inc.
Сохранить в закладки 1601146921828:
Описание и отзывы
Характеристики
Product Parameters
INPUT | OUTPUT | ||||
Rated Power | 3500VA/3500W | AC Voltage Regulation (Batt. Mode) | 230Vac±5% | ||
Voltage | 230Vac | Surge Power | 7000VA | ||
Selectable Voltage Range | 170Vac~280Vac(for personalcomputers);90Vac~280Vac(for home appliances) | Overload Capability | 5s@>150%load;10s@110%~150%load | ||
Frequency Range | 50Hz/60Hz(auto sensing） | Efficiency (Peak) | 97% | ||
SOLAR CHARGER & AC CHARGE | Transfer Time | 10ms(for personal computers);20ms (for home appliances | |||
Solar Charger Type | MPPT | Waveform | Pure Sine Wave | ||
Maximum PV Array Power | 5000W | BATTERY | |||
Rated PV Voltage | 240Vdc | Battery Nominal Voltage | 24Vdc | ||
MPPT Range | 120Vdc~500Vdc | Floatingg Charge Voltage | 27Vdc | ||
Maximum PV Array Open Circuit Voltage | 500Vdc | Overcharge Protection | 31Vdc | ||
Maximum Utility Charge Current | 80A | GENERAL DATA | |||

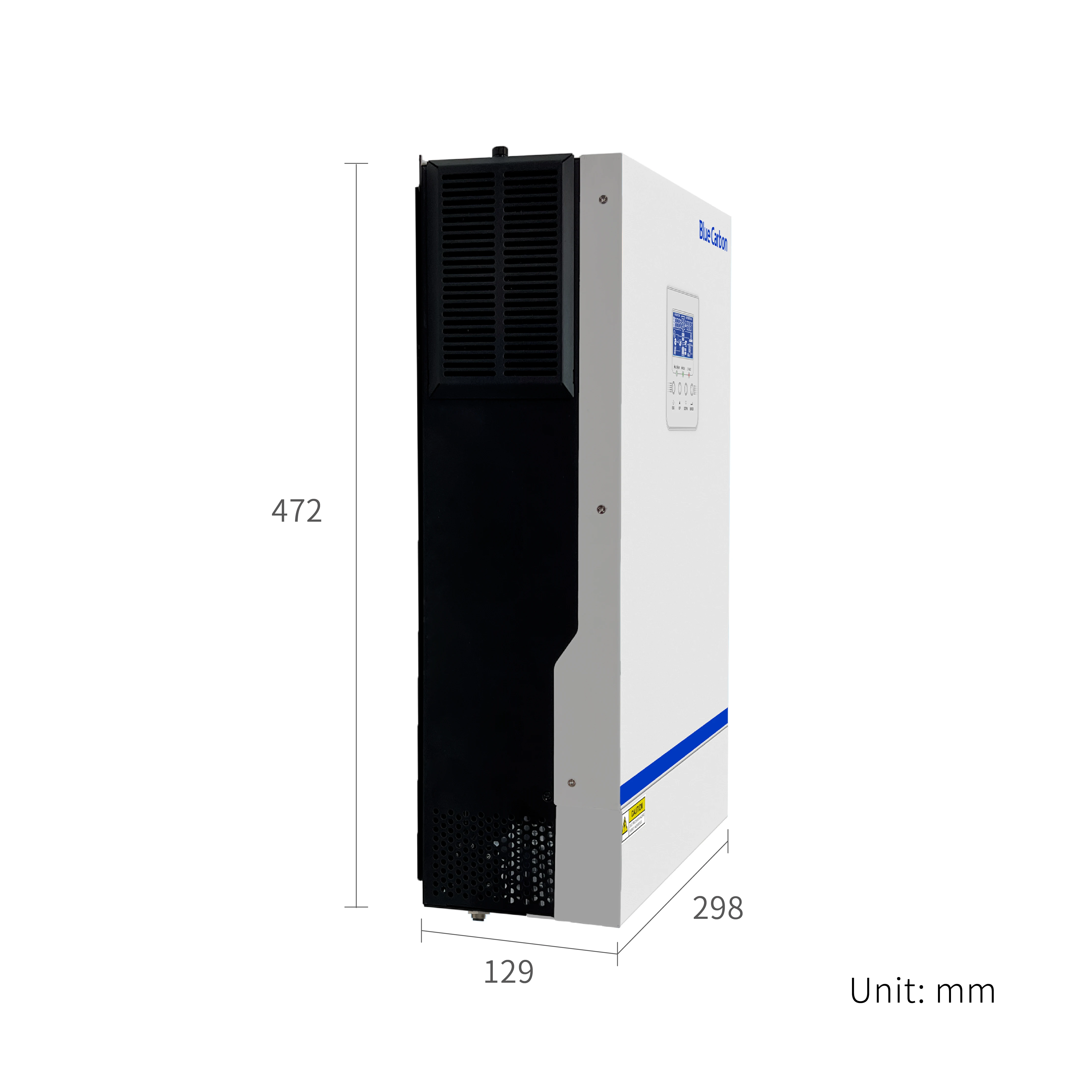

Maximum Solar Charge Current | 110A | Dimension (W*H*D) | 298x472x129mm | ||
PROTECTION | AC Short Circuit Protection, AC Over Current Protection.Over Temperature Protection, etc. | Net Weight | 9.5kg | ||
Display | LCD | Protect Degree | IP21 | ||
Communication Port | RS485 | Operating Temperature | 0°C~+55°C | ||
Safety/ EMC | CE | Storage Temperature | -15°C~ +60°C | ||
Humidity | 5%~95%(non-condensing) | ||||
Product Details
Application Places
1.No power areas: such as deep mountains, remote border areas, to provide electricity of home appliances for families, breeding farms.
2.Nomadic areas: such as Xinjiang, Inner Mongolia, etc, good sunshine, inverter with weight light, easy to migrate, move.
3.Communication base station: to provide a stable backup power supply for the base station.
4.Power instability area: poor power foundation, intermittent power outage. Inverter can provide continuous power supply.
5.Islands: Provide clean electricity for island residents or island electricity facilities.
6.Border guard posts, scenic spot management offices, newspaper kiosks: To provide lighting and other electricity.
7.Supply power to unattended equipment, such as domestic sewage treatment stations, etc.
8.As a power supply equipment for the RV.
9.Battery manufacturer: it can provide the off-grid system matching for the battery manufacturers.
2.Nomadic areas: such as Xinjiang, Inner Mongolia, etc, good sunshine, inverter with weight light, easy to migrate, move.
3.Communication base station: to provide a stable backup power supply for the base station.
4.Power instability area: poor power foundation, intermittent power outage. Inverter can provide continuous power supply.
5.Islands: Provide clean electricity for island residents or island electricity facilities.
6.Border guard posts, scenic spot management offices, newspaper kiosks: To provide lighting and other electricity.
7.Supply power to unattended equipment, such as domestic sewage treatment stations, etc.
8.As a power supply equipment for the RV.
9.Battery manufacturer: it can provide the off-grid system matching for the battery manufacturers.
Installation Case
Why Blue Carbon
Blue Carbon Technology Inc. designs, manufactures and markets of solar module products for residential, commercial and industrial application worldwide. We put customers' needs first, and we are devoted to progress, innovation and ethical choices. Solar energy is about empowerment, and that's something we take very seriously. Our mission is to deliver innovative photovoltaic technologies for building integration to generate renewable solar electric power. Our hope is to secure the health of our planet for future generation by transforming our infinite supply of sunshine into a practical energy for humanity.
Certification
Blue Carbon Team
Our Service:
1. Quick reply within 24 hours.
2. Blue Carbon guarantees all the products are inspected properly before delivery.
3. Blue Carbon provides quality card, detailed installation guide and common problem solution,ensuring the customer to install our products correctly.
4. Blue Carbon promises to provide solutions within 24 hours since quality objection raised by customer. Customer shall cooperate with the supplier to check the cause in order to confirm quality problem.
5. Blue Carbon strictly fulfill the responsibility of after-sales service, being committed to warranty scope, implementing the national regulation for industrial products. We will exchange the defective products for free when quality problem has been confirmed.
2. Blue Carbon guarantees all the products are inspected properly before delivery.
3. Blue Carbon provides quality card, detailed installation guide and common problem solution,ensuring the customer to install our products correctly.
4. Blue Carbon promises to provide solutions within 24 hours since quality objection raised by customer. Customer shall cooperate with the supplier to check the cause in order to confirm quality problem.
5. Blue Carbon strictly fulfill the responsibility of after-sales service, being committed to warranty scope, implementing the national regulation for industrial products. We will exchange the defective products for free when quality problem has been confirmed.
FAQ
Question:What’s the guarantee ?
Answer:
1).Our guarantee for 5 years warranty.
2).24 hour’s technical support by email or calling or video call.
3).English manual and video guide
Answer:
1).Our guarantee for 5 years warranty.
2).24 hour’s technical support by email or calling or video call.
3).English manual and video guide
4).24 hours on line service each day, free technical support.
Question: Can I get a sample?
Answer:Yes, our customers can get our samples, we usually ship the samples to your country by sea.
Question:What is the order process?
Answer:
1).Customers need to determine the product specifications and quantities you need.
2).After confirming the order, the customer pays 50% deposit and we arrange the production.
3).After the production is completed, we will confirm with the customer through video or pictures.
4).After confirmation, packaged and shipped to the port.
Question:What is the MOQ?
Answer:For batteries, our MOQ is 10-20 sets, the specific order quantity needs to be determined according to your needs.
Question:How long is your production time?
Answer:We have stock in our warehouse, we can do delivery within 10-15 days.
Question: Can I get a sample?
Answer:Yes, our customers can get our samples, we usually ship the samples to your country by sea.
Question:What is the order process?
Answer:
1).Customers need to determine the product specifications and quantities you need.
2).After confirming the order, the customer pays 50% deposit and we arrange the production.
3).After the production is completed, we will confirm with the customer through video or pictures.
4).After confirmation, packaged and shipped to the port.
Question:What is the MOQ?
Answer:For batteries, our MOQ is 10-20 sets, the specific order quantity needs to be determined according to your needs.
Question:How long is your production time?
Answer:We have stock in our warehouse, we can do delivery within 10-15 days.
