Мотор тормоза ступицы заднего привода высокой мощности 10-16 дюймов 60 в 500 Вт-3000 Вт Ступицы BLDC
4 971,98-5 492,02 ₽
Профессиональный производитель QSMOTOR 12 дюймов 3000 Вт 205 V1 48V 96V BLDC ступица мотороллер электродвигатели
- Категория: >>>
- Поставщик: Taizhou Tongshuo Trade Co. Ltd.Taizhou Ltd.
Сохранить в закладки 1601147650567:
Описание и отзывы
Характеристики
Products Description

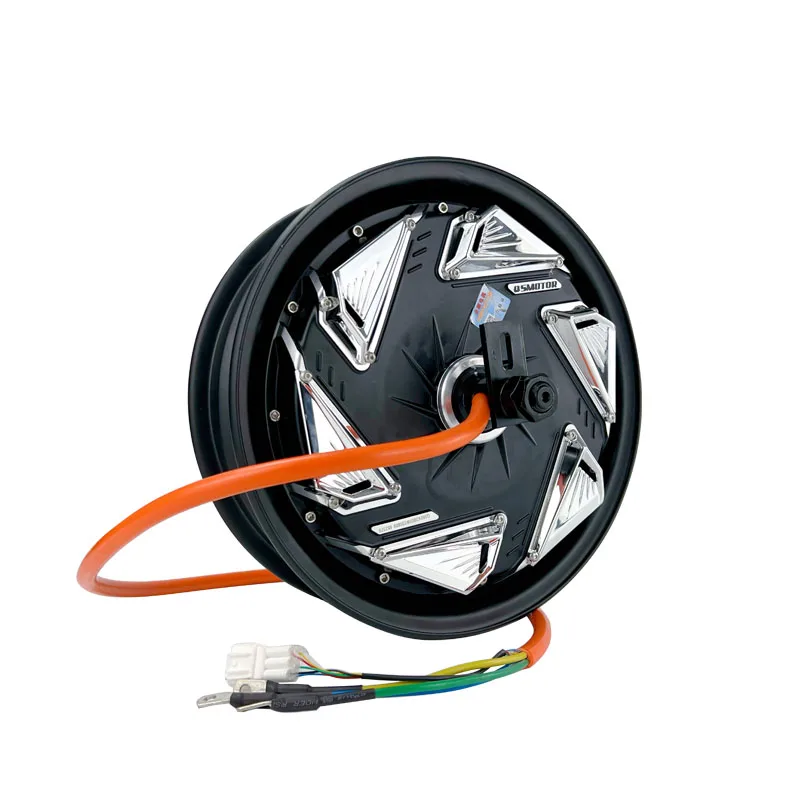

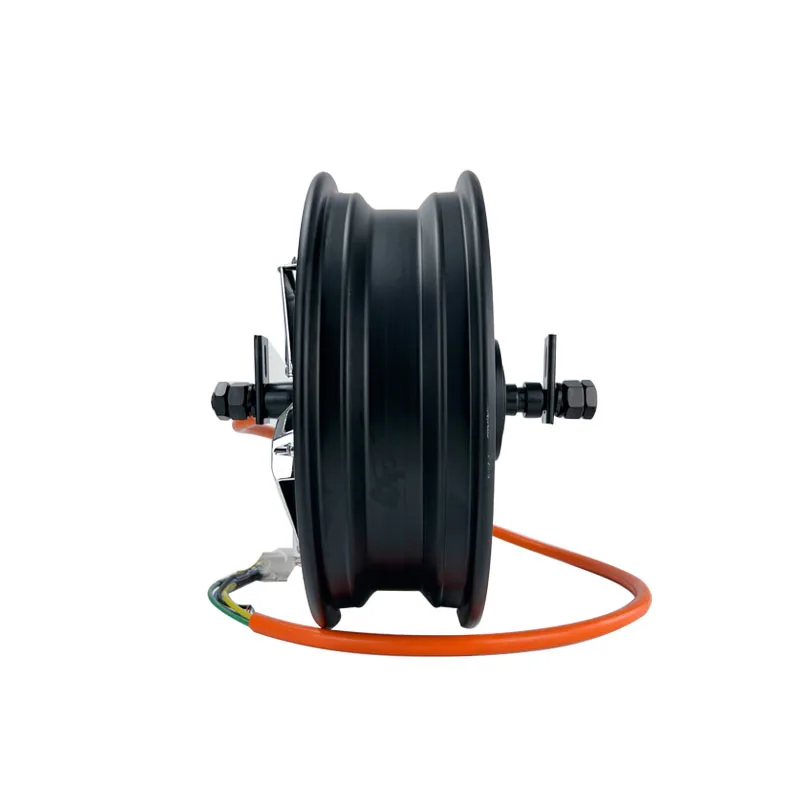

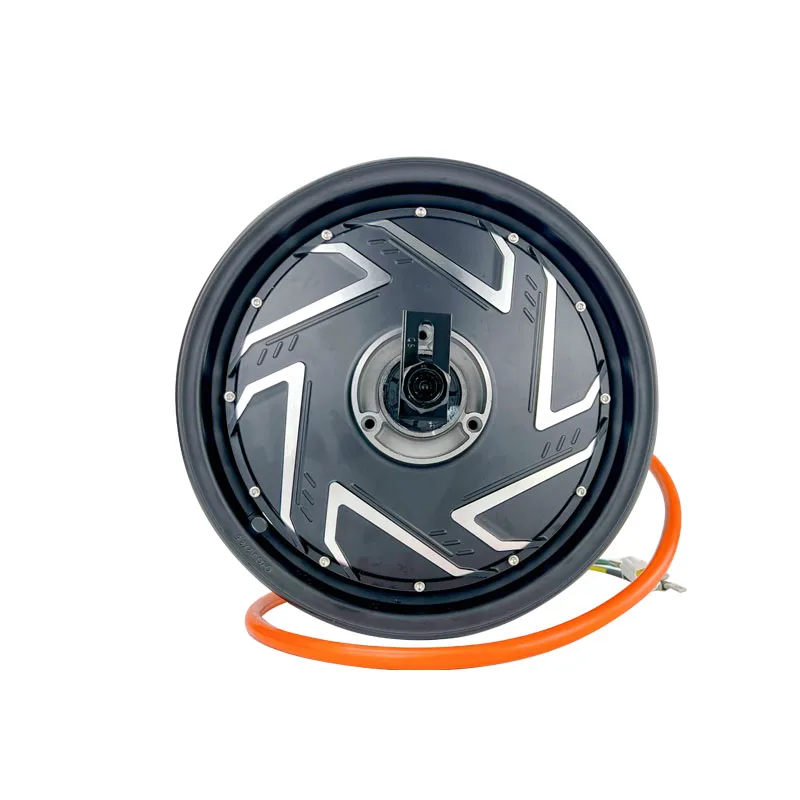

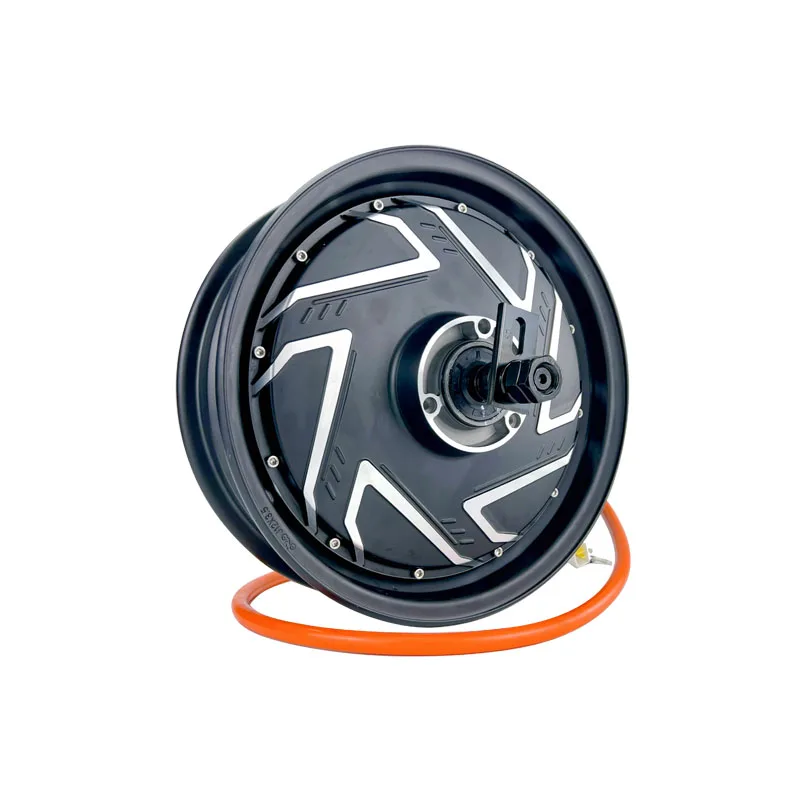

TOP SALE QSMOTOR 12inch 3000W 205 48V - 96V BLDC Hub Motor Electric Scooter Motor |
For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.
There are three width of wheel, 12X2.15inch(500w-4000w),
There are three width of wheel, 12X2.15inch(500w-4000w),
12X3.0inch(500w4000w) and 12x5.5inch(customized type, 1000w-4000w) for choice. We offer narrow tire, 12X2.15inch as default.
For E-scooter wheel hub motor, we also provide the 12-17inch type, you can refer below hyperlink for the detailed information:
1. Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could beinstalled in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
2. Production Description
QS Motor Specification (e.g. 3000W 205 55H V1)
-Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
-Brand: QS Motor,QSMOTOR
-Motor Design: Double axle with 10inch moped rim (integrated)
-Rim size:12x2.15inch(Narrow Tire as default), Matched tire:3.0-10,3.5-10 etc
-12x3.0inch(Wide Tire) and 12x5.5inch(Customized Type)
-Magnet Height: 55mm, 16 pole pairs
-Stator: Aluminum Core
-Rated Power: 2000W
-Speed(customizable):
48v 21km/h~65km/h
60v 26km/h~80km/h
72v 32km/h~80km/h
-Max Torque approx 201N.m
-Thermic Probe: KTY83-122 (as default, optional)
-Max Efficiency approx 88%
-Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
-Drop-outs: 200mm
-Dual Halls with waterproof connectos(One for spare, in case of damage)
-10mm² Phase Wire
-Waterproof Grade: IP54
-Color: Black (as default), Yellow or White/Luminous
-Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
-Brand: QS Motor,QSMOTOR
-Motor Design: Double axle with 10inch moped rim (integrated)
-Rim size:12x2.15inch(Narrow Tire as default), Matched tire:3.0-10,3.5-10 etc
-12x3.0inch(Wide Tire) and 12x5.5inch(Customized Type)
-Magnet Height: 55mm, 16 pole pairs
-Stator: Aluminum Core
-Rated Power: 2000W
-Speed(customizable):
48v 21km/h~65km/h
60v 26km/h~80km/h
72v 32km/h~80km/h
-Max Torque approx 201N.m
-Thermic Probe: KTY83-122 (as default, optional)
-Max Efficiency approx 88%
-Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
-Drop-outs: 200mm
-Dual Halls with waterproof connectos(One for spare, in case of damage)
-10mm² Phase Wire
-Waterproof Grade: IP54
-Color: Black (as default), Yellow or White/Luminous
Differences between V1, V2 and V3
1). Difference between V1 & V2
Holder: Iron(V1), Aluminum (V2)
Hall: One hall with Normal connector(V1), Two halls with Waterproof connector(V2)
Stator: V2 have a stronger configuration, more cooper, thicker section surface, energy saving in usage.
Magnetic Steel Grade: V2 ≥ V1
Efficiency: 84~87%(V1) 86~88%(V2)
In short, normal type is standard configuration, while export type is high configuration.The price differs because of the cost of raw materials.
2). Difference between V2 & V3
The raw materials are alike, main difference in inner construction.
For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire /thicker Cross-sectional area section, bear more current in usage.
Higher torque at same current, lower temperature rise, more stable in high current.
Magentic Steel: V3 is wider and thicker.
Efficiency: 86~88%(V2) 88~92%(V3); Thus, V3 have best performance.
PS. for the same V1 steel/iron stator motors, QS Motor performance better on lifetime & stability becasue of good raw material. So the cost is more than normal hub motor in the market.
Holder: Iron(V1), Aluminum (V2)
Hall: One hall with Normal connector(V1), Two halls with Waterproof connector(V2)
Stator: V2 have a stronger configuration, more cooper, thicker section surface, energy saving in usage.
Magnetic Steel Grade: V2 ≥ V1
Efficiency: 84~87%(V1) 86~88%(V2)
In short, normal type is standard configuration, while export type is high configuration.The price differs because of the cost of raw materials.
2). Difference between V2 & V3
The raw materials are alike, main difference in inner construction.
For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire /thicker Cross-sectional area section, bear more current in usage.
Higher torque at same current, lower temperature rise, more stable in high current.
Magentic Steel: V3 is wider and thicker.
Efficiency: 86~88%(V2) 88~92%(V3); Thus, V3 have best performance.
PS. for the same V1 steel/iron stator motors, QS Motor performance better on lifetime & stability becasue of good raw material. So the cost is more than normal hub motor in the market.
Drawing
3. How to find suitable hub motor
To customized a suitable motor, could you pls. inform below points:
1.E-scooter, E-tricycle or E-car, tire model?
2.Volt and wattage of motor, Speed(kV), and torque/climb angle?
3.Your vehicle weight and loading weight?
4.Lithium or lead-acid Battery?
After confirming the motor, we could try to offer suitable motor kits.
Motor Controller
Wheel RIM
Battery
Charger
Speedometer
Throttle
Brake System
DC-DC converter, etc.
1.E-scooter, E-tricycle or E-car, tire model?
2.Volt and wattage of motor, Speed(kV), and torque/climb angle?
3.Your vehicle weight and loading weight?
4.Lithium or lead-acid Battery?
After confirming the motor, we could try to offer suitable motor kits.
Motor Controller
Wheel RIM
Battery
Charger
Speedometer
Throttle
Brake System
DC-DC converter, etc.
Company Information
FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
