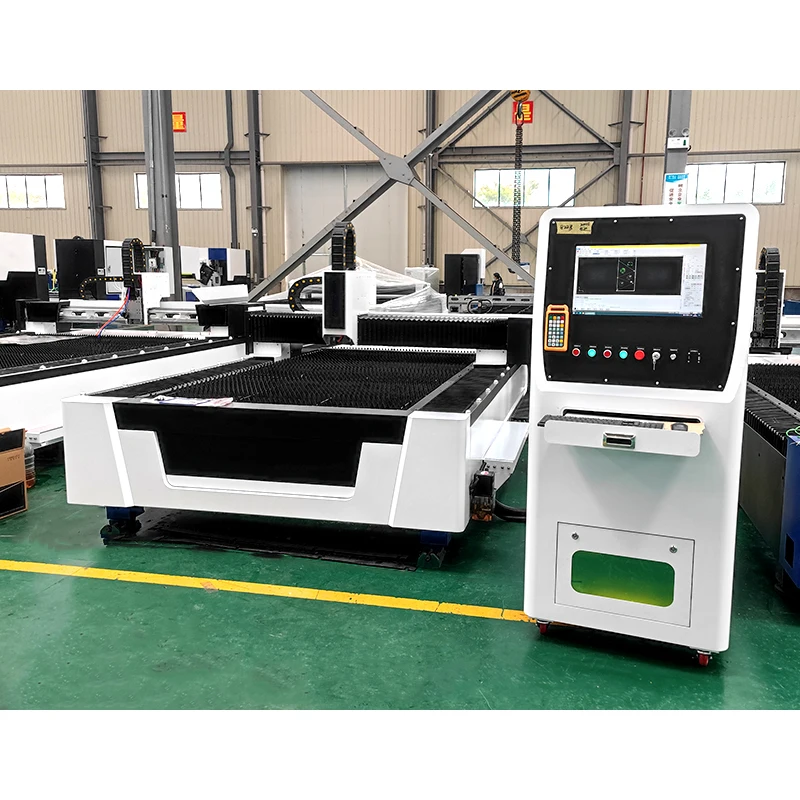

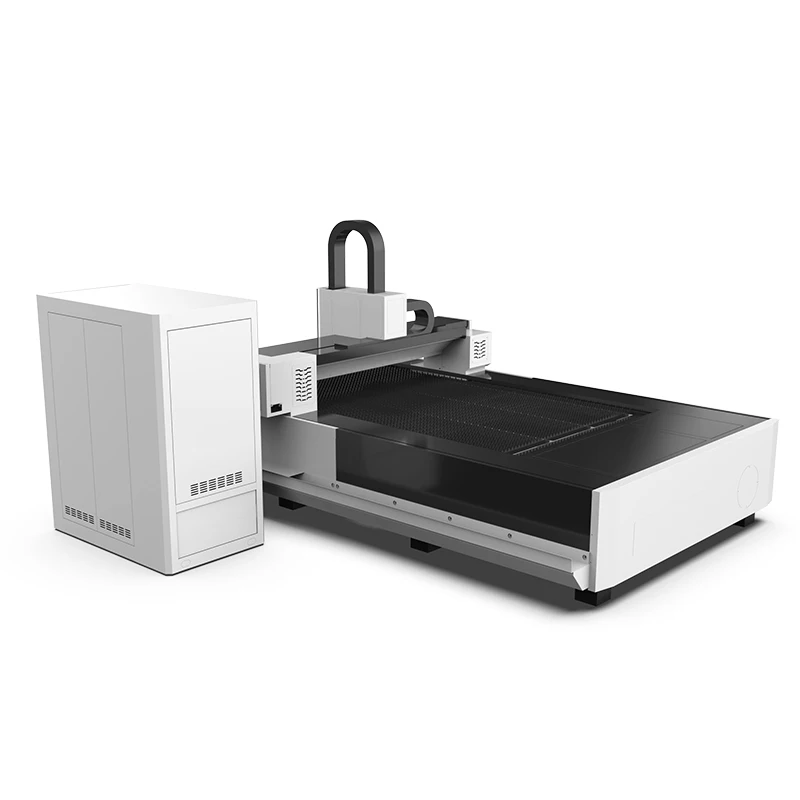

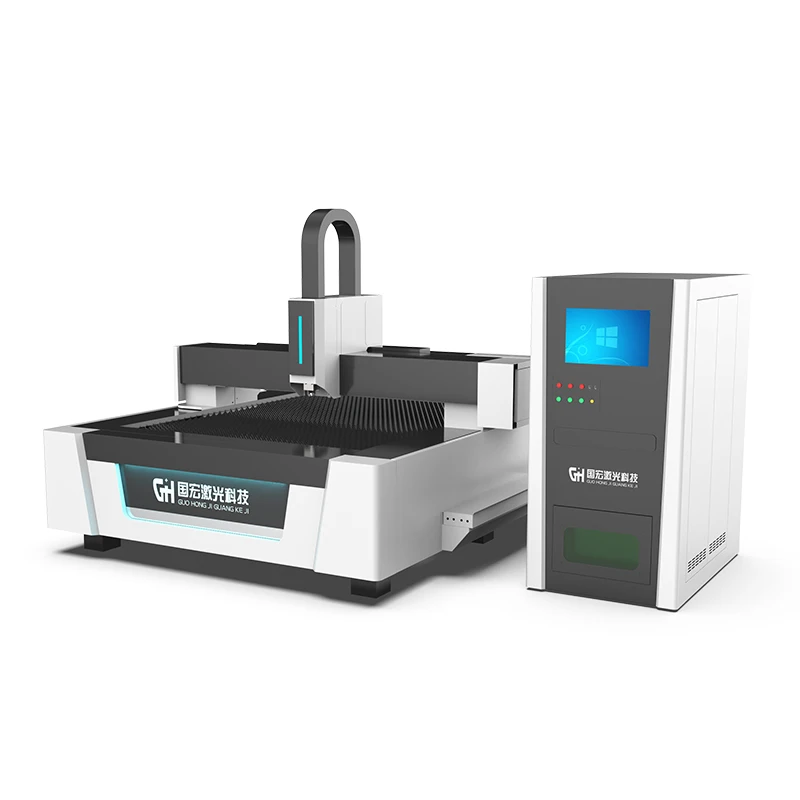

1 кВт ЧПУ волоконно лазерная резка листового металла лазерная машина Производство
- Категория: >>>
- Поставщик: Guohong Laser Technology (jiangsu) Co. Ltd.
Сохранить в закладки 1601149739181:
Описание и отзывы
Характеристики

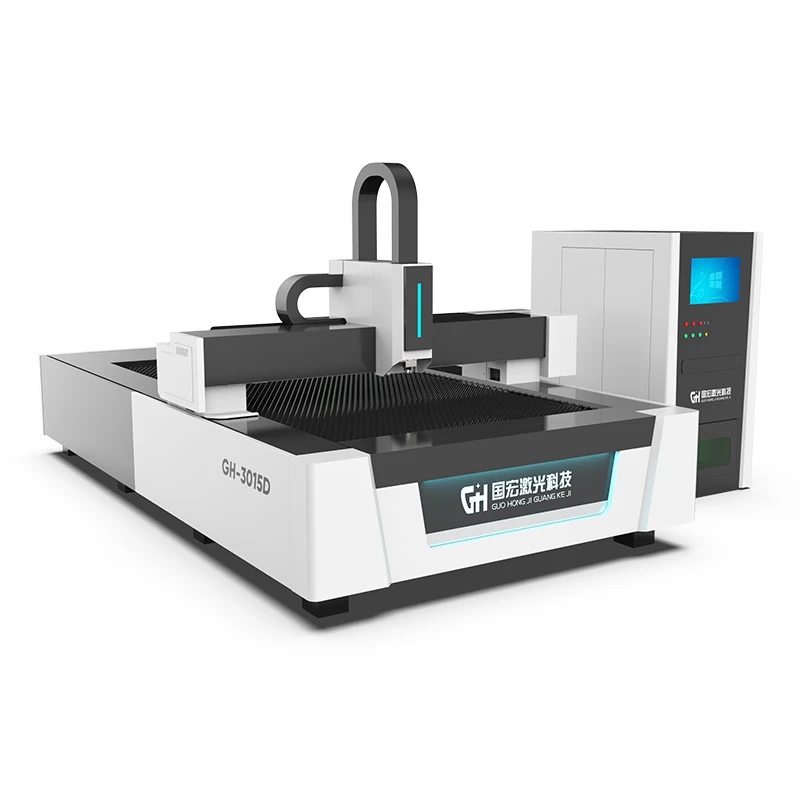

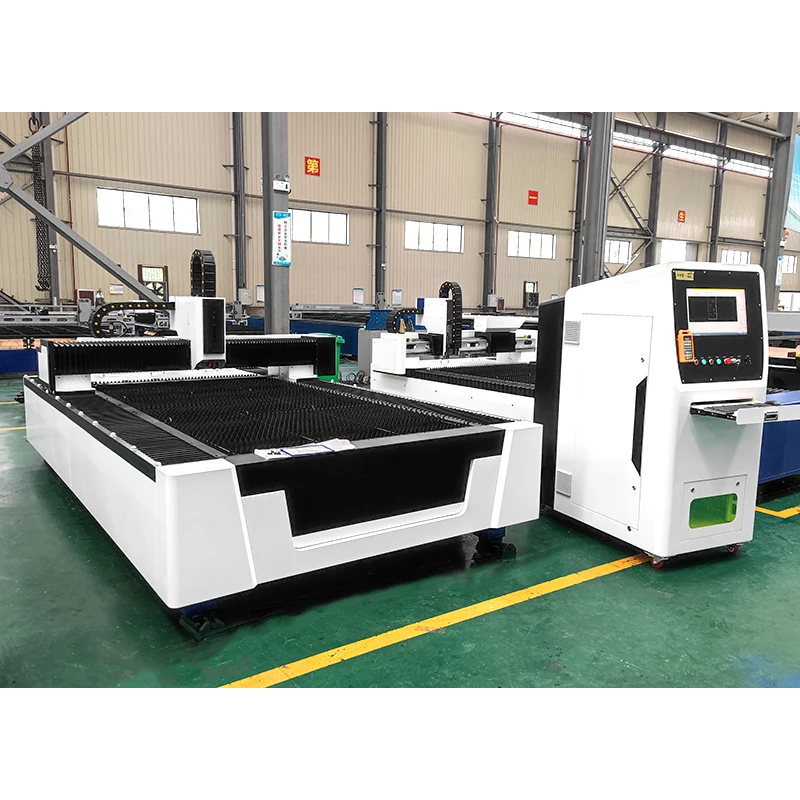

Guohong laser metal laser cutter CNC fiber laser cutting machine sheet metal
Products Description
automation 4020 mopa fiber laser cutting machine 3000w 9000mm
Machine Features：
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
7. It could ut mental in various materials and realize excellent and stable cutting effects.
Specification
Machine model | GH-F3015 丨 GH-F4020 | ||
Working area | 3000x1500mm 丨 4000x2000mm | ||
Max. Movement Speed | 120m/min | ||
Accelerated speed | 1.2G | ||
Positioning accuracy | ±0.03mm | ||
Repeatability | ±0.02mm | ||
Applicable power | 1000w/1500w/2000w/3000w/4000w/6000w | ||
Laser source | Raycus/Max/IPG | ||
Laser head | Raytools/Boci | ||
Cutting materials: | Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal | ||
Transmission: | HIWIN Guide Rails | ||
Other | Processing format and configuration can be customized | ||
Fiber Laser Source
Raycus/MAX/IPG, multiple choice different brands, different laser power are available. The higher power, the thicker cutting thickness. Supply laser power from1kw to 12kw, and more higher 15kw, 20kw, 30kw.
Fiber laser cutting machine head
There is no need to manually adjust the focus, the software automatically adjusts the focus lens, and controls the height of the upper and lower, so as to realize the automatic perforation and cutting of plates with different thicknesses
Aluminum Beam
The beam adopts the cast aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc.
Industrial remote control
One-button wireless control, calibration, blowing, simulation, cutting, pause, etc., magnetic suction design, easy to put and take
Key Transmission Components
Key transmission components adopt most advanced imported configuration, guarantee our machinery has the best transmission performance. Please check the equipment specification datasheet for details configuration.
Server Drive
The domestic high-end servo drive system is adopted, which is stable and reliable, with superior performance and excellent anti-interference ability, which greatly improves the performance of the equipment, with more precise control, higher output parameters, and better reliability and stability.
Sample Display
Applicable Industry:
Sheet metal processing, home appliances and kitchenware manufacturing, refrigeration and environmental
protection equipment, agricultural machinery, elevator equipment, hardware industry, fitness equipment, precision parts and other fields
protection equipment, agricultural machinery, elevator equipment, hardware industry, fitness equipment, precision parts and other fields
Applicable Materials:
Laser Cutting machine is suitable for variety of metal plates, stainless steel, carbon steel,
galvanized sheet,pickling board, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
galvanized sheet,pickling board, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
Packing and shipping
We Support Free Testing Samples for Customers！
If you have any questions about the fiber laser cutting machine or other related questions, please contact us without hesitation.
Company Profile
Guohong Laser
Guohong Laser Group is a large-scale laser cutting machine manufacturer integrating R&D, production and sales. It provides high-quality laser cutting machines, metal cutting machines, laser pipe cutting machines, and three-chuck automatic pipe cutting machines to the world,handheld laser welding machine, laser marking machine.
integral casting bed design and development, non-standard model laser cutting machine, high-power laser cutting machine, Guohong Laser Group has casting capacity, 12 tons of electric furnace and cupola, and multiple CNC gantry Milling's large-scale processing capabilities, from design and production to after-sales service, including product design, product installation, product training, product maintenance, etc., to provide customers with leading technology, reliable quality products and complete technical solutions, and pursue maximum customer satisfaction It is our service tenet. Guohong Laser Group adheres to the business philosophy of "products of shaping people and extension of things. Quality of castings to continue the industry". Guohong Laser adheres to the high-end positioning of the industry and achieves the goal of "making China's laser application technology world-renowned" through continuous technological innovation struggle unremittingly.
integral casting bed design and development, non-standard model laser cutting machine, high-power laser cutting machine, Guohong Laser Group has casting capacity, 12 tons of electric furnace and cupola, and multiple CNC gantry Milling's large-scale processing capabilities, from design and production to after-sales service, including product design, product installation, product training, product maintenance, etc., to provide customers with leading technology, reliable quality products and complete technical solutions, and pursue maximum customer satisfaction It is our service tenet. Guohong Laser Group adheres to the business philosophy of "products of shaping people and extension of things. Quality of castings to continue the industry". Guohong Laser adheres to the high-end positioning of the industry and achieves the goal of "making China's laser application technology world-renowned" through continuous technological innovation struggle unremittingly.
Certificate
Certification
We have CE, SGS, ISO certification, quality management certificate and multiple invention patent certificates, etc.
Exhibition Show
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
5. What's your favourite laser generator brand? laser generator as optional parts, different customer, different choose.
Please tell us, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
5. What's your favourite laser generator brand? laser generator as optional parts, different customer, different choose.
Please tell us, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
Похожие товары
24 В Электрический старт 50 Гц/60 Гц 150 кВт генератор природного

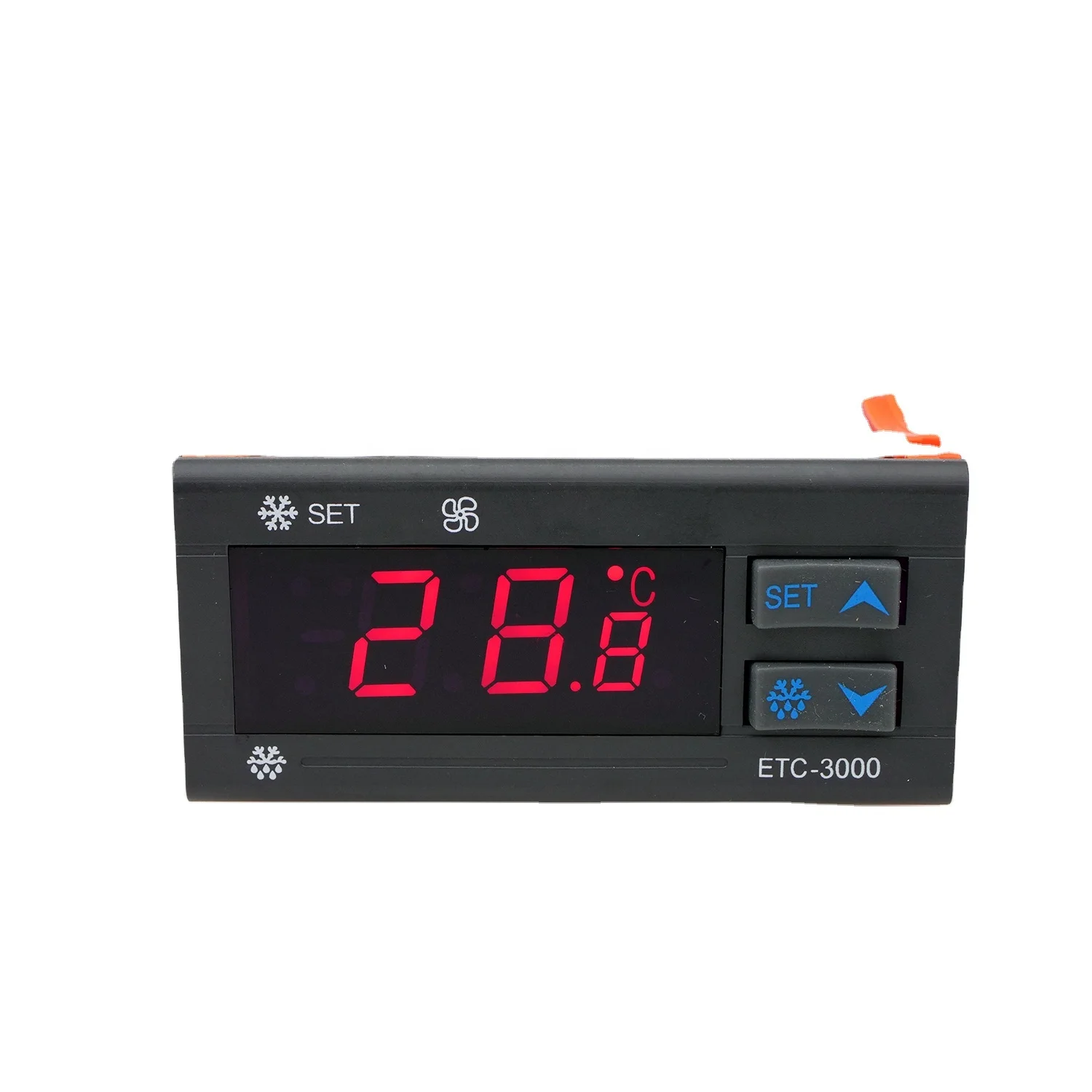

ETC-3000 регулятор температуры холодильника/морозильной камеры
7,50 $ - 9,00 $

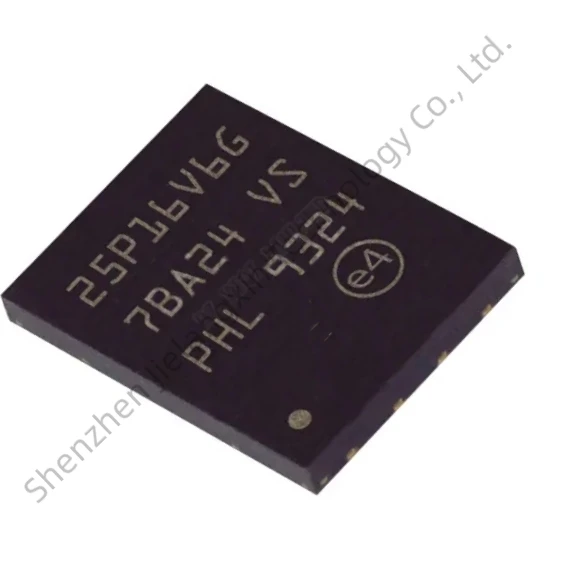

M25P16-VMF6TP новые оригинальные интегральные схемы в наличии NAND флэш-памяти 25P16V6G
0,12 $ - 0,64 $

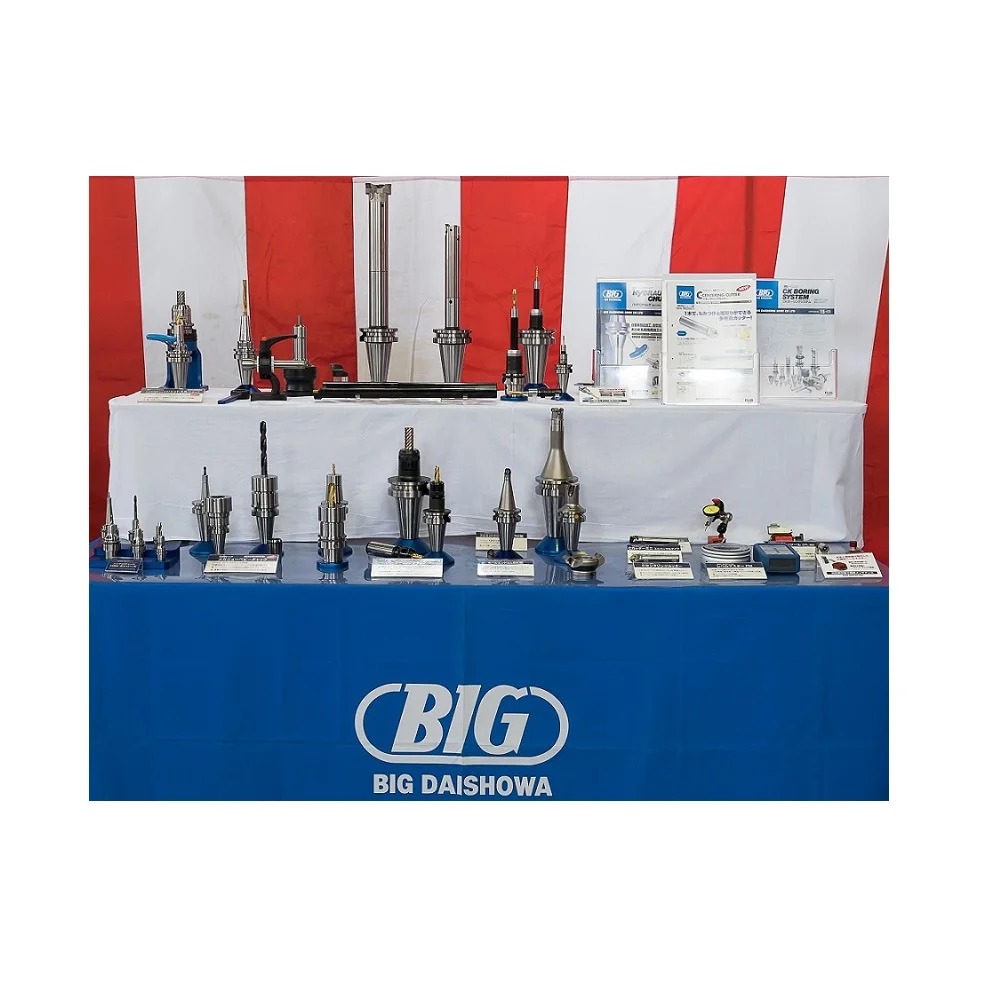

Точная большой Daishowa Kaiser Расточная головка RW100-150CK6, воздушная турбина шпинделя также доступны

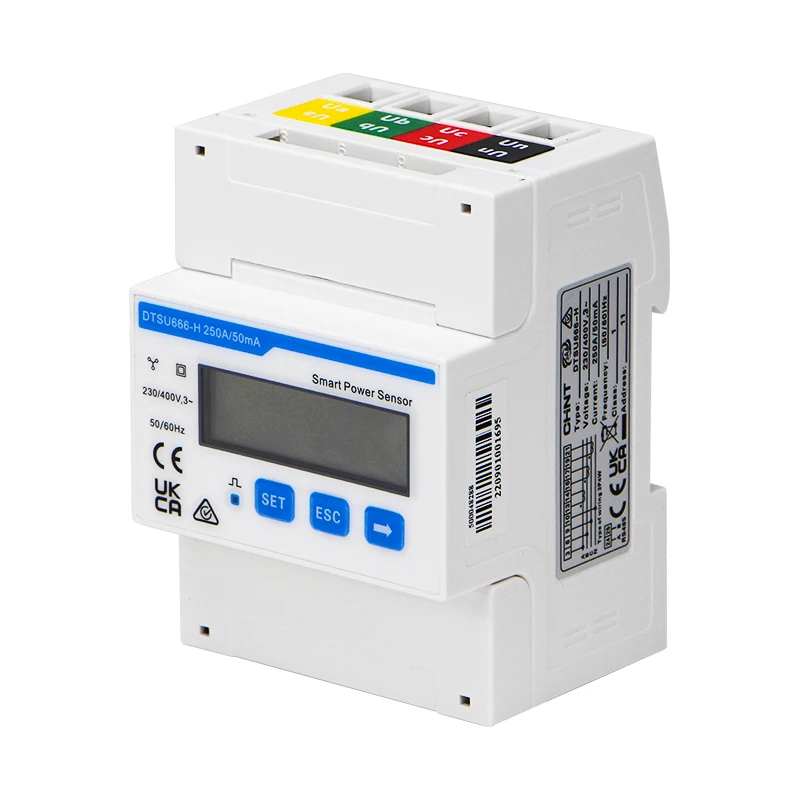

CHINT DTSU666-H 250 A/50 мА трехфазный счетчик энергии умный датчик мощности в RS485 для фотоэлектрических систем

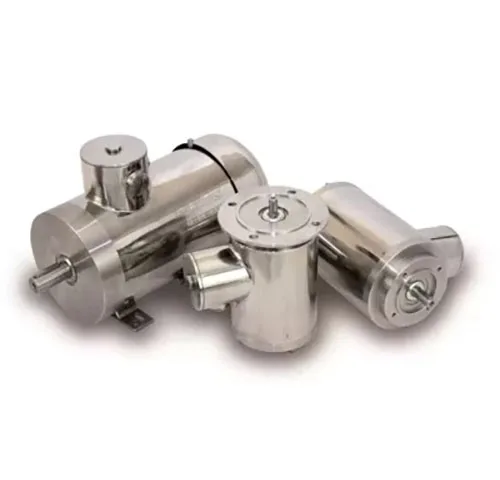

Двигатель IEC B5T с фланцевым креплением, сменный электродвигатель TENV из нержавеющей стали для пищевой промышленности
