Оптовая продажа 400 Вт 500 солнечная панель китайские производители Ватт для дома
10,18-17,80 ₽
AIKO COMET 2N моностеклянная 605W 630W солнечная панель для домашнего использования настенная внутренней стены
- Категория: >>>
- Поставщик: Jiangsu Solarman Technology Co. Ltd.Jiangsu Ltd.
Сохранить в закладки 1601149759320:
Описание и отзывы
Характеристики
* Efficiency: up to 23.9%
* Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
* Premium warranty: 15-year product warranty and 30-year performance warranty
* Better temperature coefficient: -0.26%/°C
* Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
* Premium warranty: 15-year product warranty and 30-year performance warranty
* Better temperature coefficient: -0.26%/°C
* For the same area, the installed capacity is 5.0%+ higher than TOPCon and 12.5%+ higher than PERC.
* For the same area, the power generation is 7%+ higher than TOPCon and 15%+ higher than PERC.
* The BOS cost per watt is 4.76% lower than TOPCon and 11.11% lower than PERC.
* Lower O&M cost High temperature restriction and micro-crack resistance, front grid free, ensuring roof safety, reducing module failure rate.
* For the same area, the power generation is 7%+ higher than TOPCon and 15%+ higher than PERC.
* The BOS cost per watt is 4.76% lower than TOPCon and 11.11% lower than PERC.
* Lower O&M cost High temperature restriction and micro-crack resistance, front grid free, ensuring roof safety, reducing module failure rate.
The same DC capacity with connection points reduced by about 5.5%.
Product specification
Electrical Characteristics(STC:AM1.5 1000W/m² 25℃ NOTC:AM1.5 800W/m² 20℃ 1m/s) Power Tolerance:0~+3% | ||||||||||||
Model type | AIKO-A605-MAH72Mw | AIKO-A610-MAH72Mw | AIKO-A615-MAH72Mw | AIKO-A620-MAH72Mw | AIKO-A625-MAH72Mw | AIKO-A630-MAH72Mw | ||||||
Test Conditions | STC | |||||||||||
Maximum Power - Pmax (W) | 605 | 610 | 615 | 620 | 625 | 630 | ||||||
Open-circuit Current(V) | 54.09 | 54.19 | 54.29 | 54.39 | 54.49 | 54.59 | ||||||
Maximum Power Voltage - Vmp (V) | 44.78 | 44.88 | 44.98 | 45.08 | 45.18 | 45.28 | ||||||
Short Circuit Current-Isc(A) | 14.28 | 14.36 | 14.44 | 14.52 | 14.60 | 14.68 | ||||||
Maximum Power Current - Imp (A) | 13.52 | 13.60 | 13.68 | 13.76 | 13.84 | 13.92 | ||||||
Module Efficiency (%) | 23.0% | 23.2% | 23.3% | 23.5% | 23.7% | 23.9% | ||||||
Mechanical Specification | ||||||||||||
Cell Type | N-Type ABC | |||||||||||
Front Cover Mono glass | 3.2mm tempered glass | |||||||||||
Frame | Anodized aluminum | |||||||||||
Cable | 4mm²(IEC) 12AWG(UL) 1200mm or Customized Length | |||||||||||
No. of Cells | 108(6*18) | |||||||||||
Junction Box | IP68,3 bypass diodes | |||||||||||
Connector | MC4 compatible/MC4 EVO2 | |||||||||||
Weight | 21.6kg±3% | |||||||||||
Dimension | 1722*1134*35mm | |||||||||||
Package Detail | 31pcs per pallet / 186pcs per 20’GP / 806pcs per 40’HQ | |||||||||||
Temperature Ratings(STC) | ||||||||||||
Temperature Coefficient of Isc | +0.05%/℃ | |||||||||||
Temperature Coefficient of Voc | -0.22%/℃ | |||||||||||
Temperature Coefficient of Pmax | -0.26%/℃ | |||||||||||
Installation Guide | ||||||||||||
Operation Temperature | -40℃-+85℃ | |||||||||||
Maximum Series Fuse Rating | 25A | |||||||||||
Protection Class | Class II | |||||||||||
Voc and Isc Tolerance | ±3% | |||||||||||
Maximum System Voltage | DC1500V | |||||||||||
Maximum Static Loading | Front 5400Pa Back 2400Pa | |||||||||||
Hail Test | 25mm diameter hail at 23m/s | |||||||||||
Fair Rating | IEC Class C | |||||||||||
Our factory
Packaging and container loading
Projects cases
FAQ
1. Who are we?
We are a professional manufacturer of solar panels with many years experience. Our factory and business office are located in Wuxi City, Jiangsu Province. We are a first tier distributor of Deye and have been in business for 5 consecutive years.
2. What can we provide?
We can provide solar panel,solar inverter,solar battery,solar energy system.
We are a professional manufacturer of solar panels with many years experience. Our factory and business office are located in Wuxi City, Jiangsu Province. We are a first tier distributor of Deye and have been in business for 5 consecutive years.
2. What can we provide?
We can provide solar panel,solar inverter,solar battery,solar energy system.
We can provide one-stop debugging and usage services.
We can provide local after-sales service.
3. Why choose us?
A.Official dealer of Deye, with guaranteed after-sales service.
B.We provide professional solar system technical support.
C.We have an overseas warehouse in Hamburg, Germany.
D.Customized service
3. Why choose us?
A.Official dealer of Deye, with guaranteed after-sales service.
B.We provide professional solar system technical support.
C.We have an overseas warehouse in Hamburg, Germany.
D.Customized service
Похожие товары

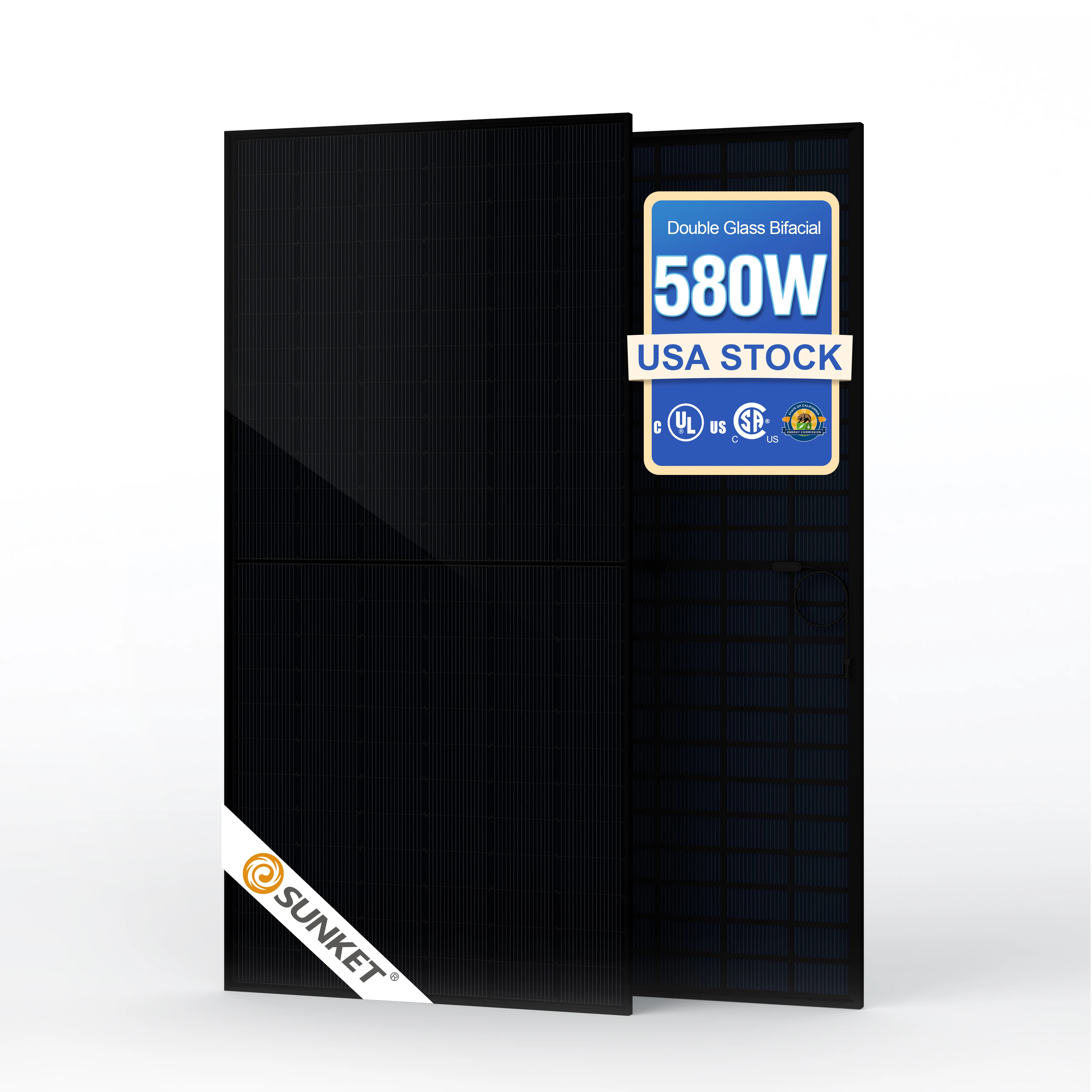

Модуль Topcon Pv Glas 580 Вт солнечные панели и литиевая батарея инвертор аккумулятор склад для домашнего использования
8 191,76-8 648,20 ₽

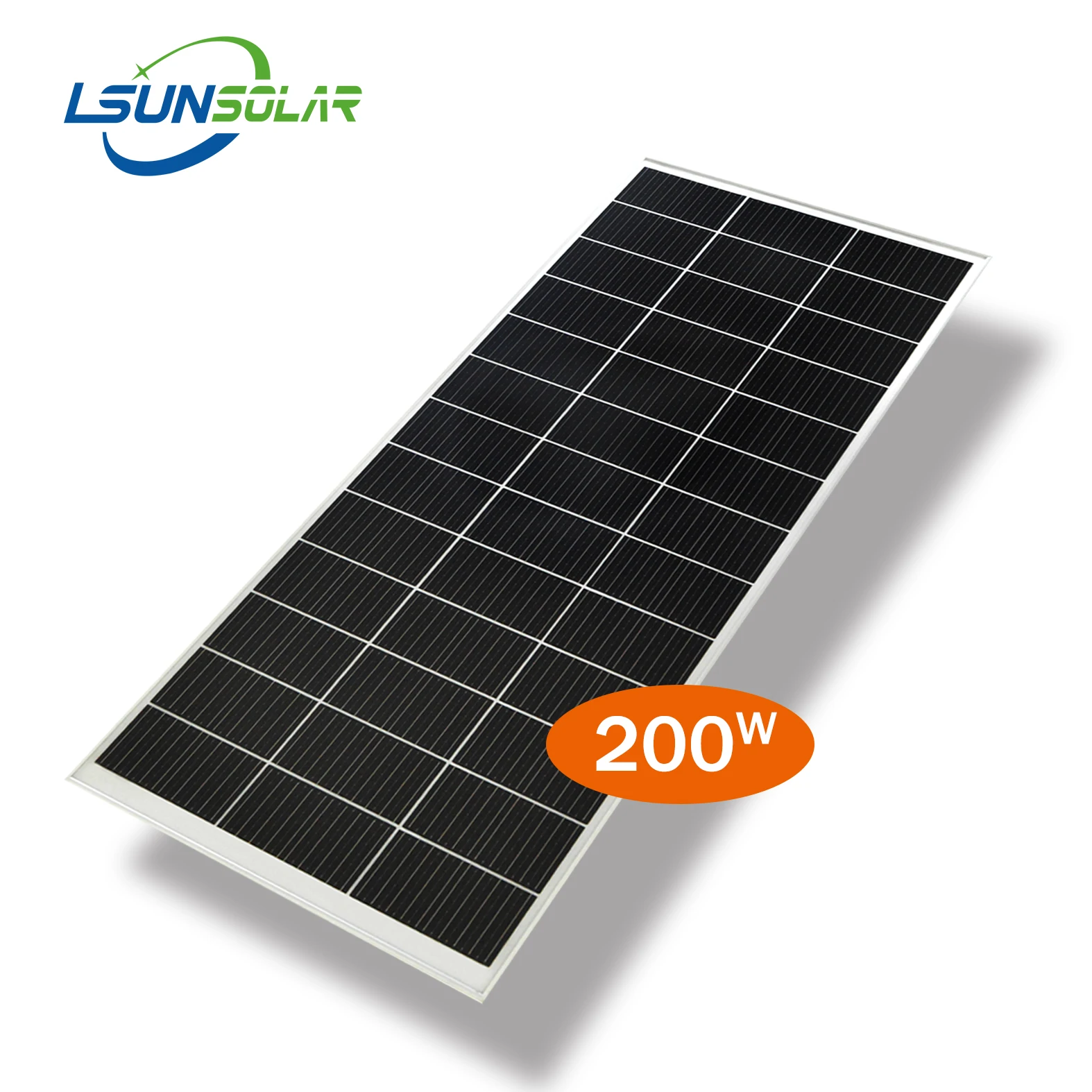

Панели из Китая 200 Вт для небольших поставщиков торговля получерные 150 крыши автомобиля солнечные панели
11,45-12,72 ₽

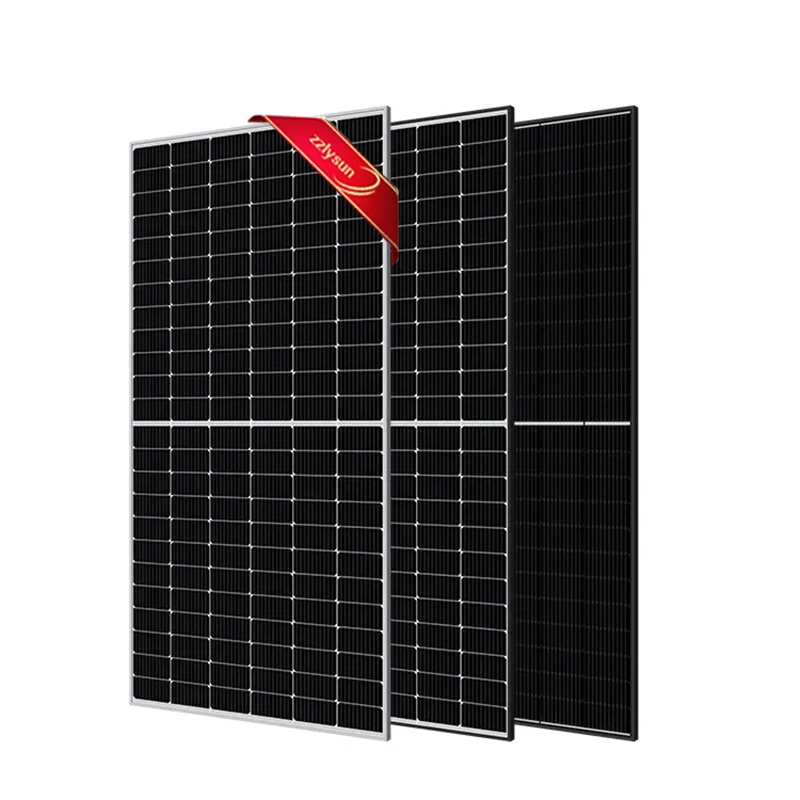

Оптовая продажа европейская Солнечная фотоэлектрическая панель 550 Вт 600
13,99-17,80 ₽

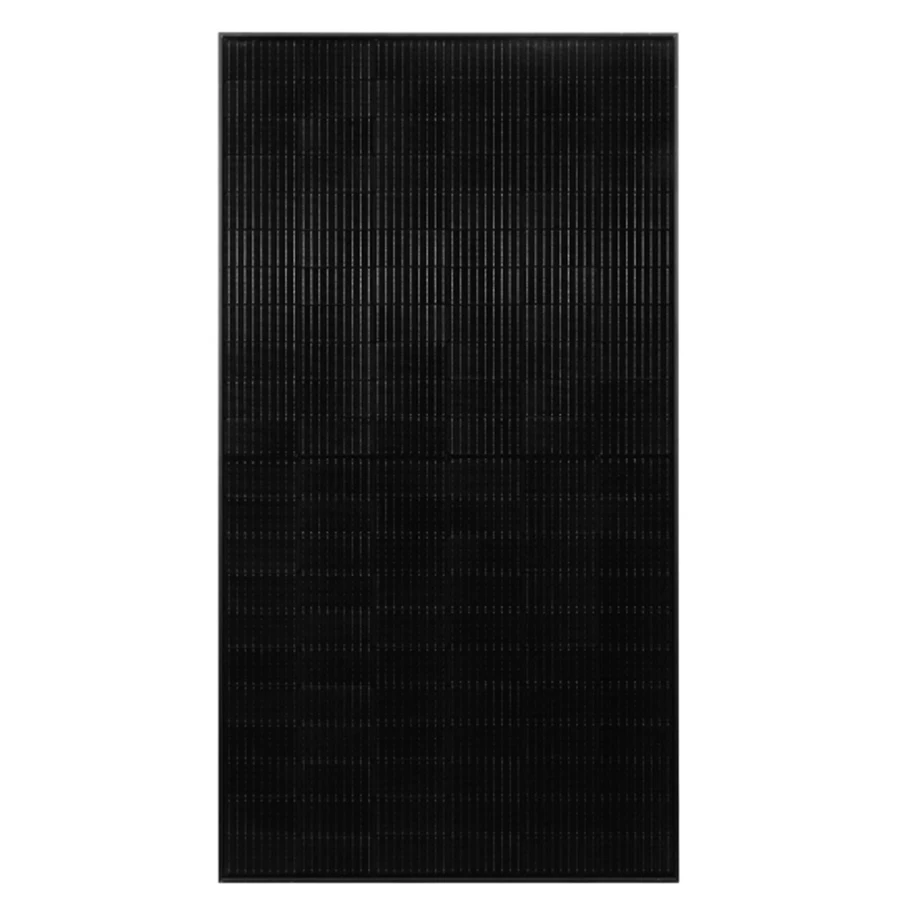

550 Вт 580 600 630 670 700 715
11,45-12,72 ₽

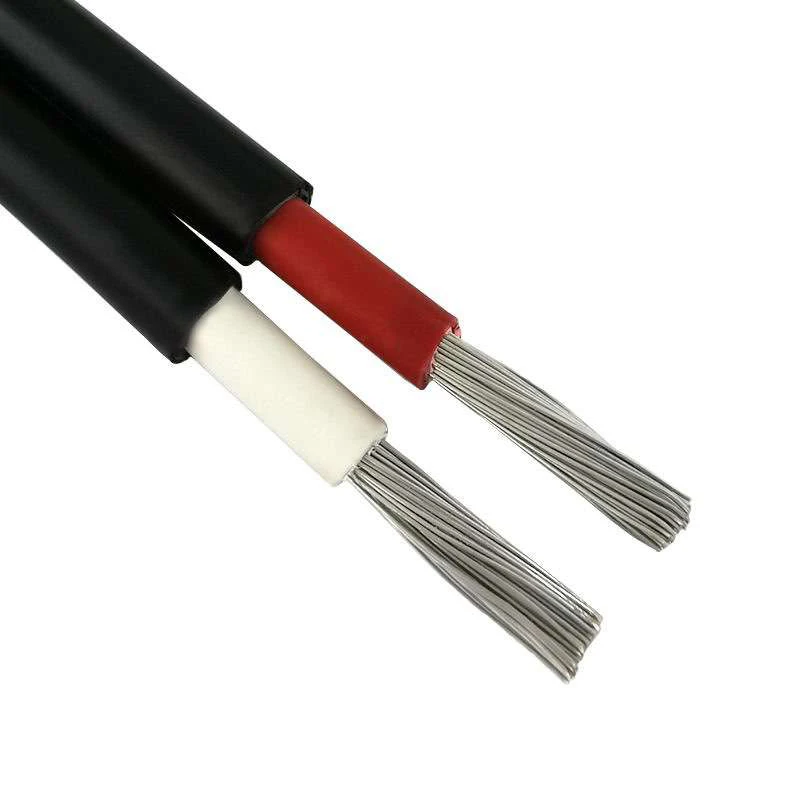

Завод производит силовой кабель низкого напряжения 36 мм двухъядерный Солнечный PV
