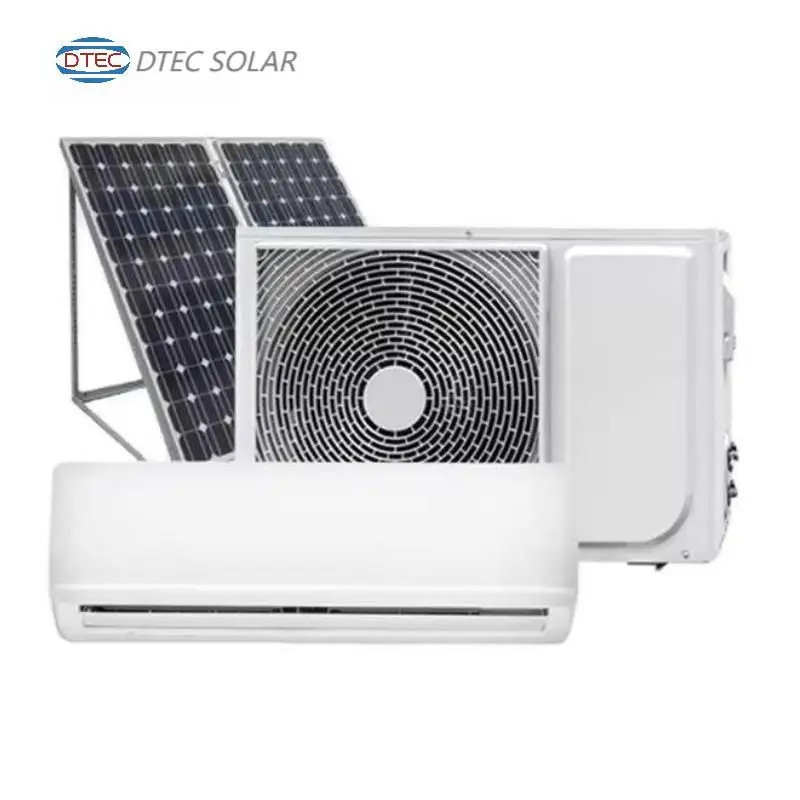

Deye Гибридный dc climatiseur портативный инверторный элемент солнечной энергии 24000 btu кондиционер с панелью
41 879,20 ₽ - 63 920,88 ₽
Аккумуляторный кондиционер 24000 btu 12000 dc солнечный гибридный 5 типа 20 тонн без сетки
- Категория: >>>
- Поставщик: Hefei Sunskypv Co. Ltd.
Сохранить в закладки 1601150294030:
Описание и отзывы
Характеристики
Solar Air Conditioner Description
What Is Off-Grid Solar Air Conditioner：
Sunsky Recreate Series Off-Grid Solar Air Conditioner is engineered from the ground up for use with solar. All electrical
components are DC powered including DC Compressor, high-efficiency DC Fan Motors, DC Valves & Solenoids, etc.
components are DC powered including DC Compressor, high-efficiency DC Fan Motors, DC Valves & Solenoids, etc.

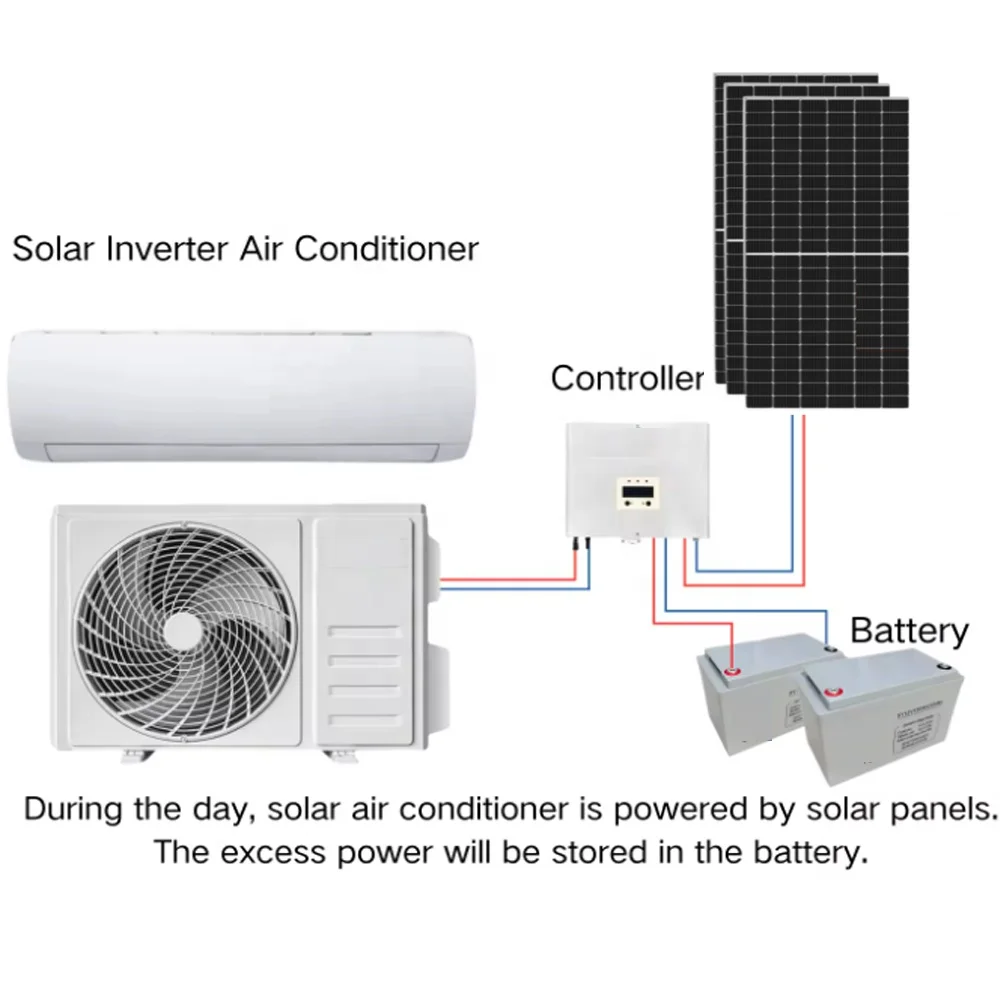

Off-Grid Solar Air Conditioner uses Solar Direct Drive Technology(SDDA) and IPS Model, It combines the feature of AC DC Hybrid Solar Air Conditioner and adds the function of battery backup though the IPS Control Model. So the A/C Unit can use AC, DC, and Battery power according to the customer requirement and the energy situation.

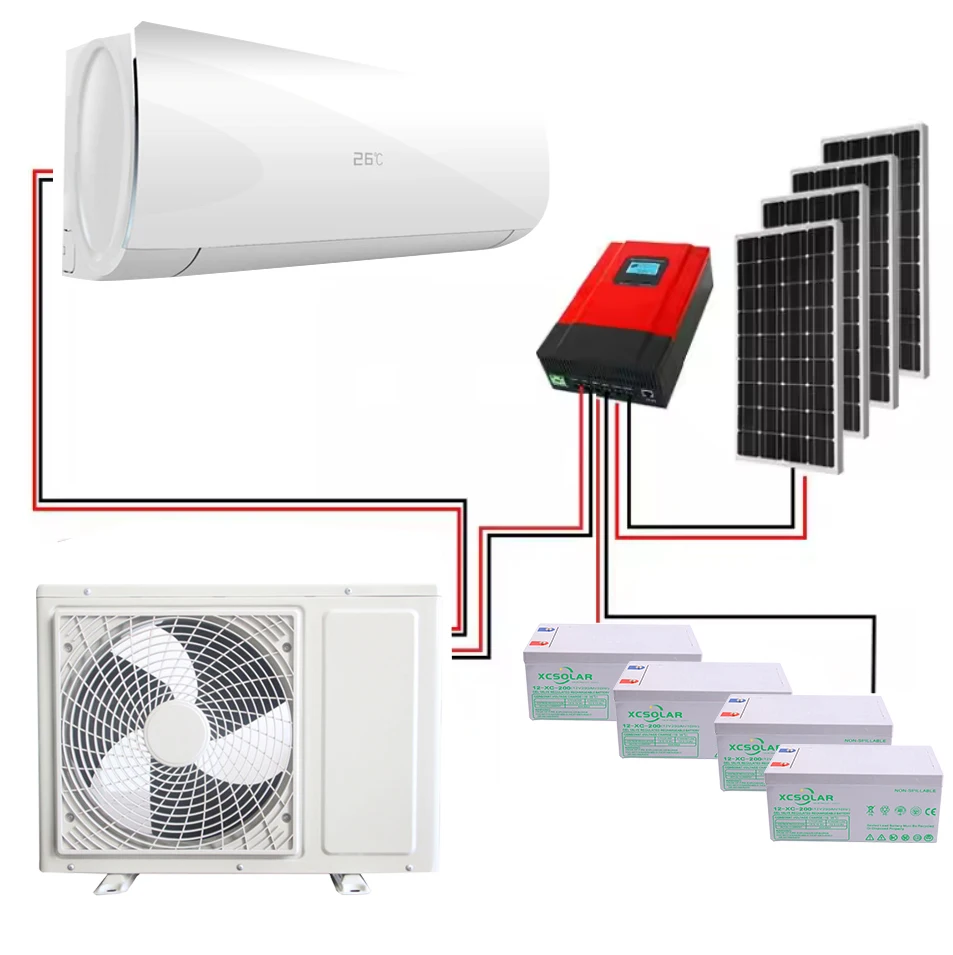

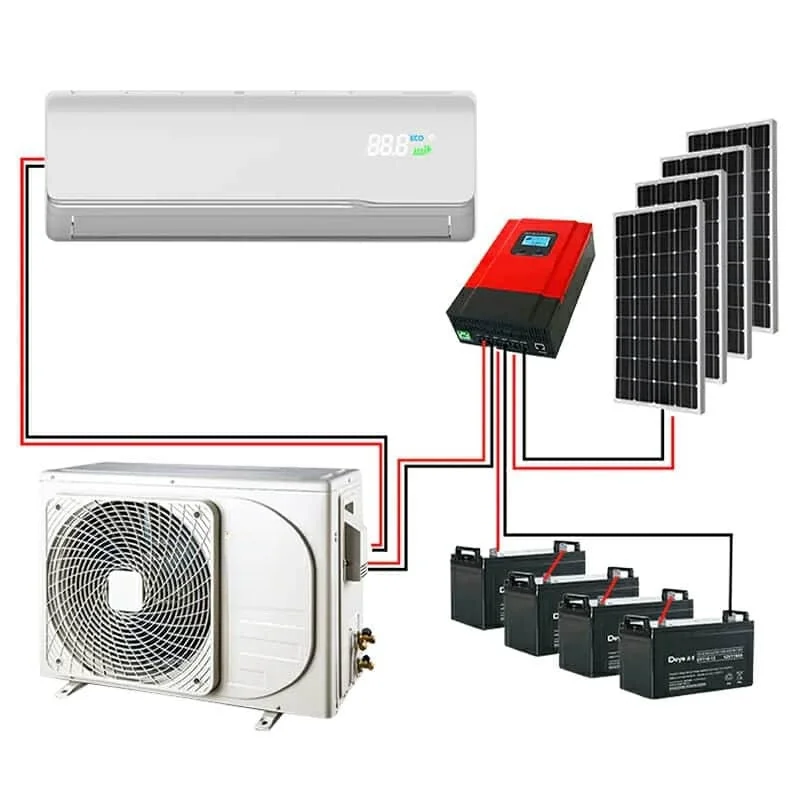

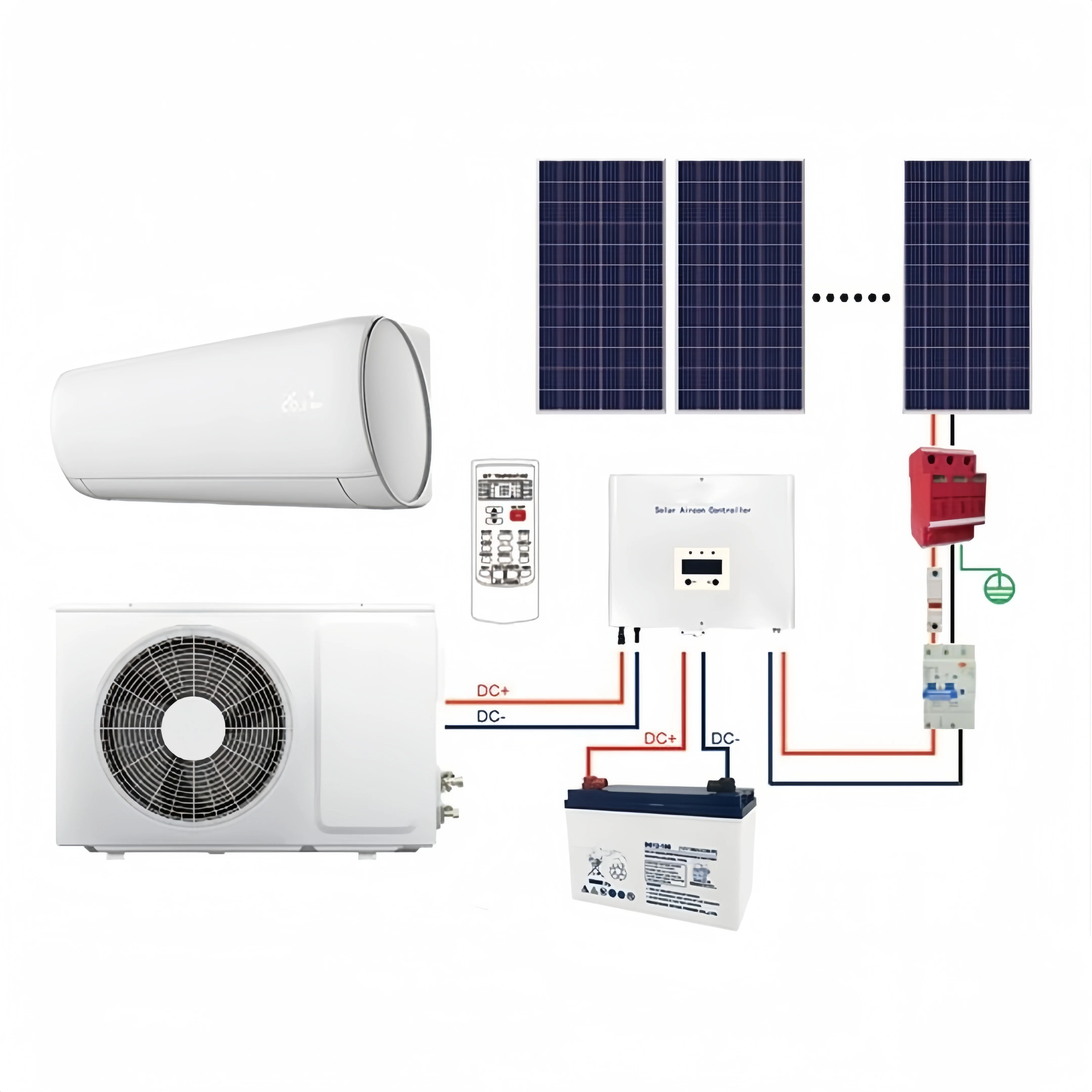

The whole system just contains an A/C Unit, an IPS Model, a few PV panels and batteries. Compare with the regular AC Unit + Off-Grid Solar System, the solar energy utilization rate will enhance 20%-40%.The A/C unit working time will enhance 30-50%, in the same quantity of the battery and solar panel.
1.GRID POWER
During the night, the A/C unit take the power from the grid power and running with same principle of regular air conditioner, the SEER is over 22, it can saving 20-30% energy compare with the regular A/C unit.
2.GRID AND SOLAR
When Sunshine is weak, like the morning or cloudy day. The A/C unit will take the solar as the priority choice, the insufficient power will take from the grid to make sure 24H working.
3.100% SOLAR
When solar energy meet the Min Running requirement of compressor, the A/C unit can start and operate by solar energy only, even the grid off. 100% energy saving. In same time, the system will charge the battery automatically.
4.GRID OFF
When the grid off or the customer turns off the grid power, the system will automatically take the battery energy to run the A/C unit, it will ensure you enjoy cooling summer in any situation.
1.BATTERY POWER
During the night or the solar energy is weak, the A/C unit takes the power from the battery to run the A/C Unit.
2.BATTERY&SOLAR
When Sunshine is weak. The A/C unit will take the solar as the priority choice, the insufficient power will take from the Battery.
3.100% SOLAR
When solar is sufficient, the A/C unit can start and operate by solar energy only. In same time, the system will charge the battery automatically.
A/C Unit Description
Model No. | SUN09GW-XA | SUN12GW-XA | SUN18GW-XA | SUN24GW-XA | |||
Power Supply: | |||||||
Solar Power | DC90-380V | ||||||
Max Solar Charging Current | 15A | ||||||
AC Power Connected | 200-230V (50/60HZ) | ||||||
Cooling: | |||||||
Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000 Btu/h | |||
Inverter Capacity Range | 2808-9536 Btu/h | 3099-1298 Btu/h | 3482-19389 Btu/h | 4294-25280 Btu/h | |||
Power Input | 0.81Kw | 0.98Kw | 1.51Kw | 1.87Kw | |||
SEER/EER | 22/12.3 Btu/W | 22/12.6 Btu/W | 20/12.1 Btu/W | 20/12.1 Btu/W | |||
Heating: | |||||||
Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000 Btu/h | |||
Inverter Capacity Range | 2858-9685 Btu/h | 3099-1298 Btu/h | 3482-19389 Btu/h | 4294-25280 Btu/h | |||
Power Input | 0.87 Kw | 1.12 Kw | 1.29 Kw | 1.82 Kw | |||
HSPF/COP | 12/13.4 Btu/W | 11/12.38 Btu/W | 10/12.41 Btu/W | 11/12.31 Btu/W | |||
Operation Temperature: | |||||||
Indoor Unit | 60.8-89.6 ºF | ||||||
Outdoor Unit | 50-125.6 ºF | ||||||
A/C Unit.
>ACDC Hybrid Indoor Unit Available Capacity 9k, 12k, 18k, 24k Btu ; Digital display

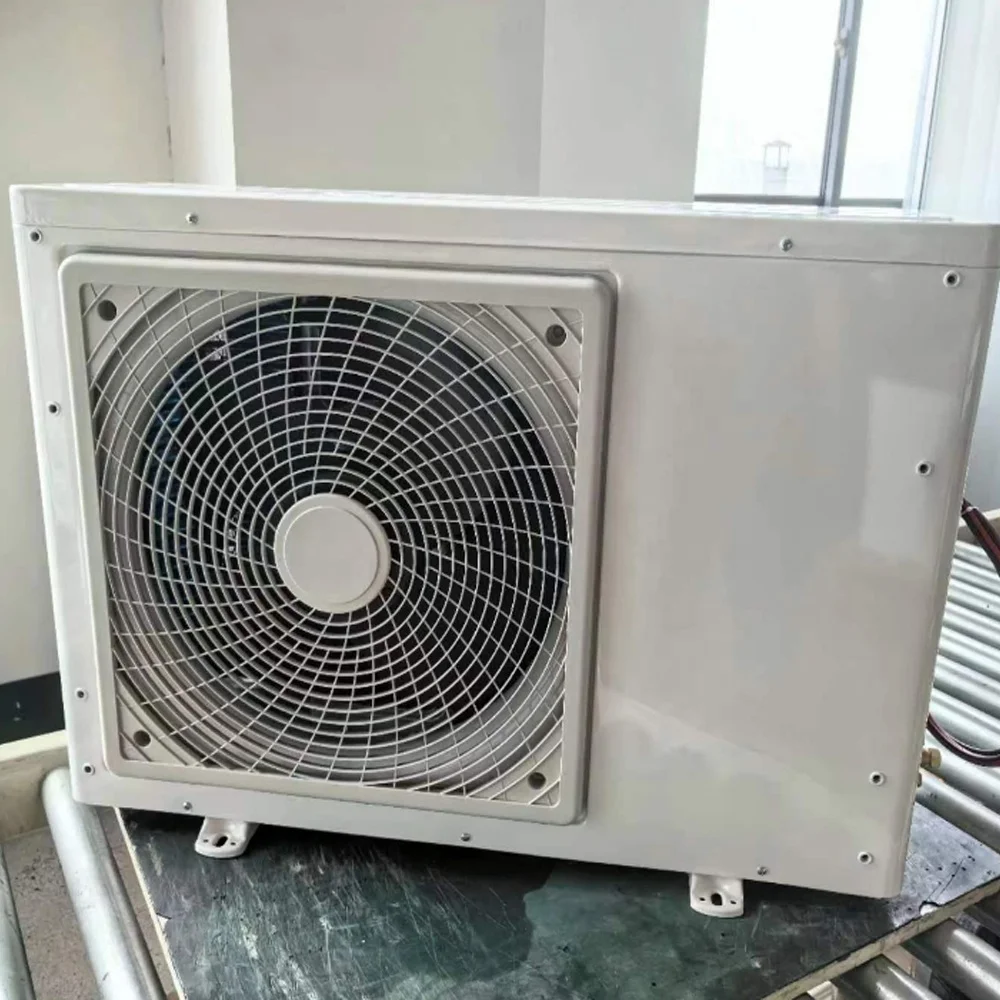

>ACDC Hybrid Outdoor Unit AC Input 180~240V 50/60HZ; R410A;
Low Noise 53~60dB
>Full DC Inverter A/C Unit;
>Eco Friendly R410A
>ACDC Hybrid Outdoor Unit AC Input 180~240V 50/60HZ; R410A;
Low Noise 53~60dB
>Full DC Inverter A/C Unit;
>Eco Friendly R410A

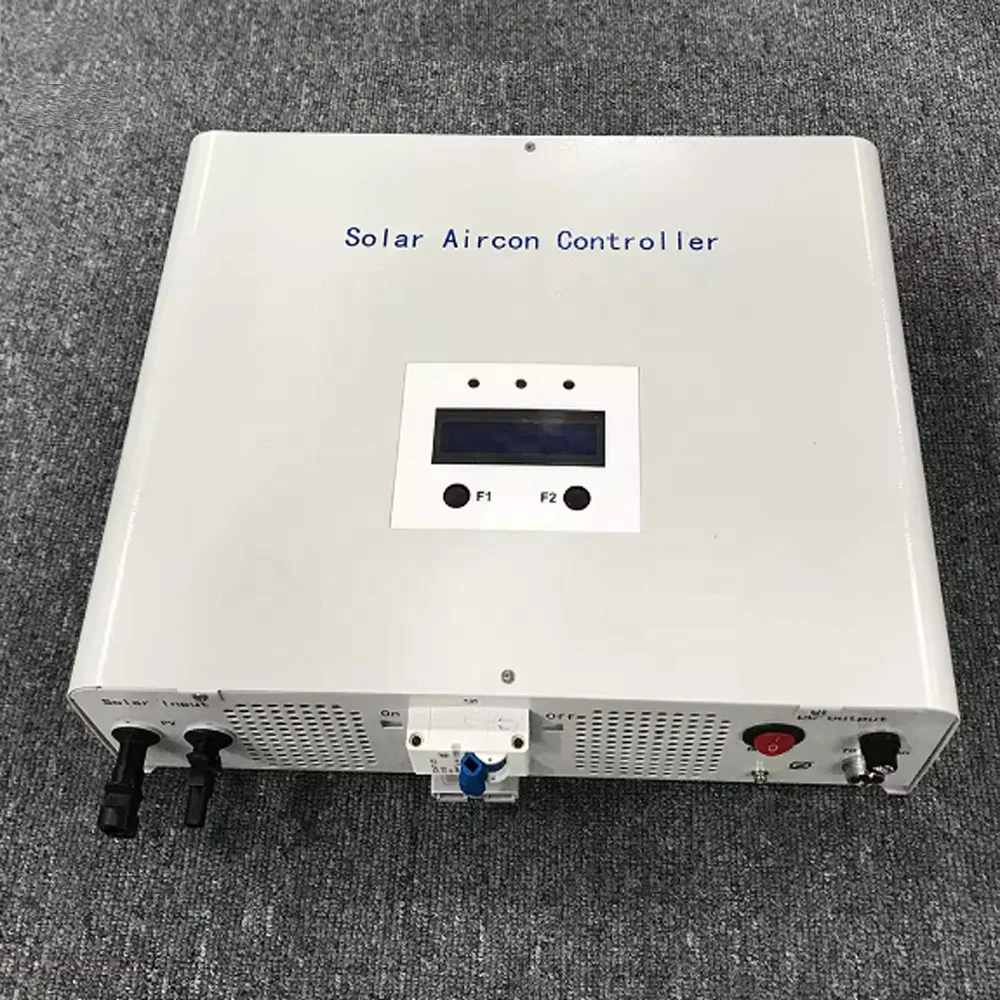

IPS
High-efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole machine conversion efficiency up to 93%; Input PV
voltage:60-145VDC
Output voltage range: 280-360VDC
Charge mode: three stages (fast charge, constant charge, floating charge). It prolongs
service life of the batteries.
Warranty: 2 years.
voltage:60-145VDC
Output voltage range: 280-360VDC
Charge mode: three stages (fast charge, constant charge, floating charge). It prolongs
service life of the batteries.
Warranty: 2 years.
Lead Acid GEL Battery.
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 80-250Ah
Depth of Discharge: 70%
Main Disconnect Box.
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
DC Cable & MC4 Connector.
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years.
Certifications

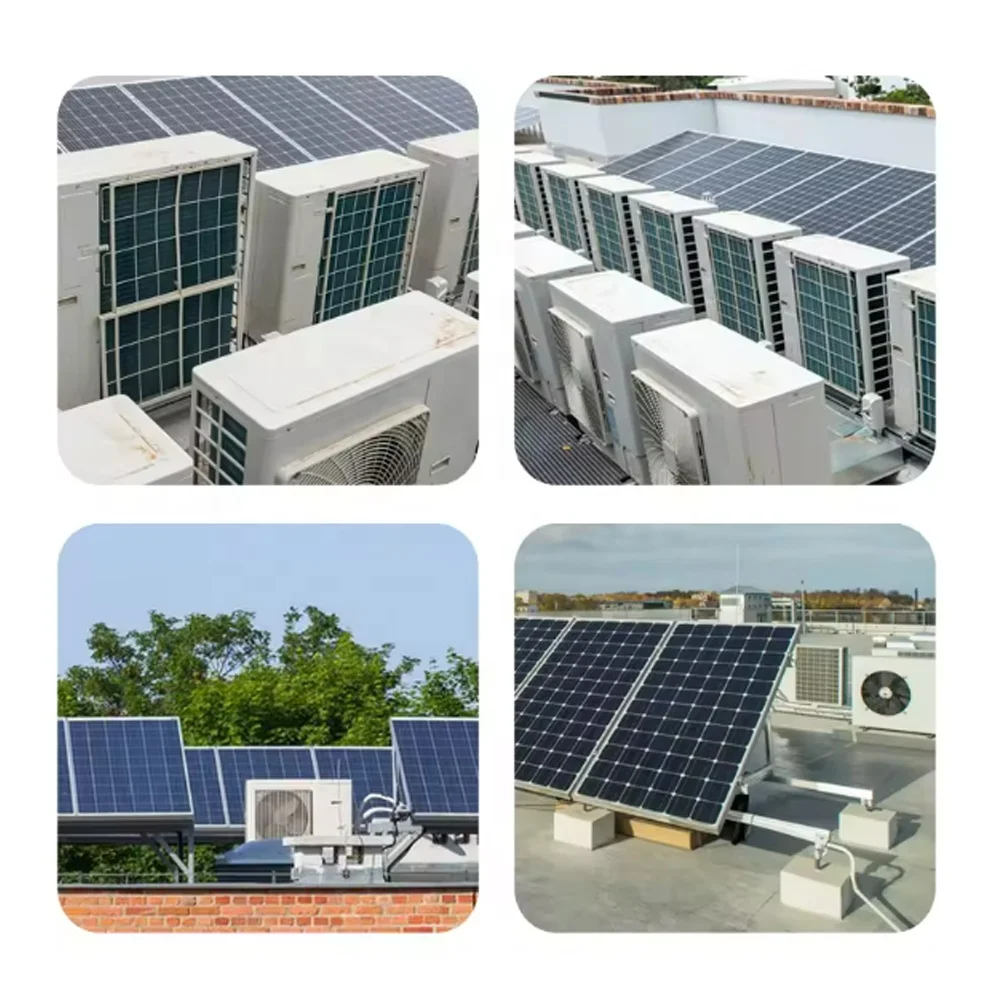

Project Case
Professional packaging
Our Factory
SUNSKY was founded in 2004, specializing in R&D ,manufacturing and sales of solar cells, modules and design PV power generation
systems,sola air conditioners.SUNSKY Solar has adopted international advanced production equipment from Japan and Germany, also integrated the first class manufacturing engineering & management system and dedicated to provide high performance solar modules with competitive cost. Our products are exported to Europe, America and Southeast Asia.
systems,sola air conditioners.SUNSKY Solar has adopted international advanced production equipment from Japan and Germany, also integrated the first class manufacturing engineering & management system and dedicated to provide high performance solar modules with competitive cost. Our products are exported to Europe, America and Southeast Asia.
Quality Control on Parts-Testing Room & Equipment
Electrolytic capacitor life testing room Parts Conformity Verification Room
Parts Reliability Verification Room Parts Reliability Verification Room
FAQ
1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 3-5 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A: Yes, welcome your OEM.
5.Q:What’s your delivery time?
A:1)the sample can be sent to you within 3-5days.
2) the batch order can be shipped to you within 15days after order confirmation.
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 3-5 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A: Yes, welcome your OEM.
5.Q:What’s your delivery time?
A:1)the sample can be sent to you within 3-5days.
2) the batch order can be shipped to you within 15days after order confirmation.
Contact Us
Похожие товары

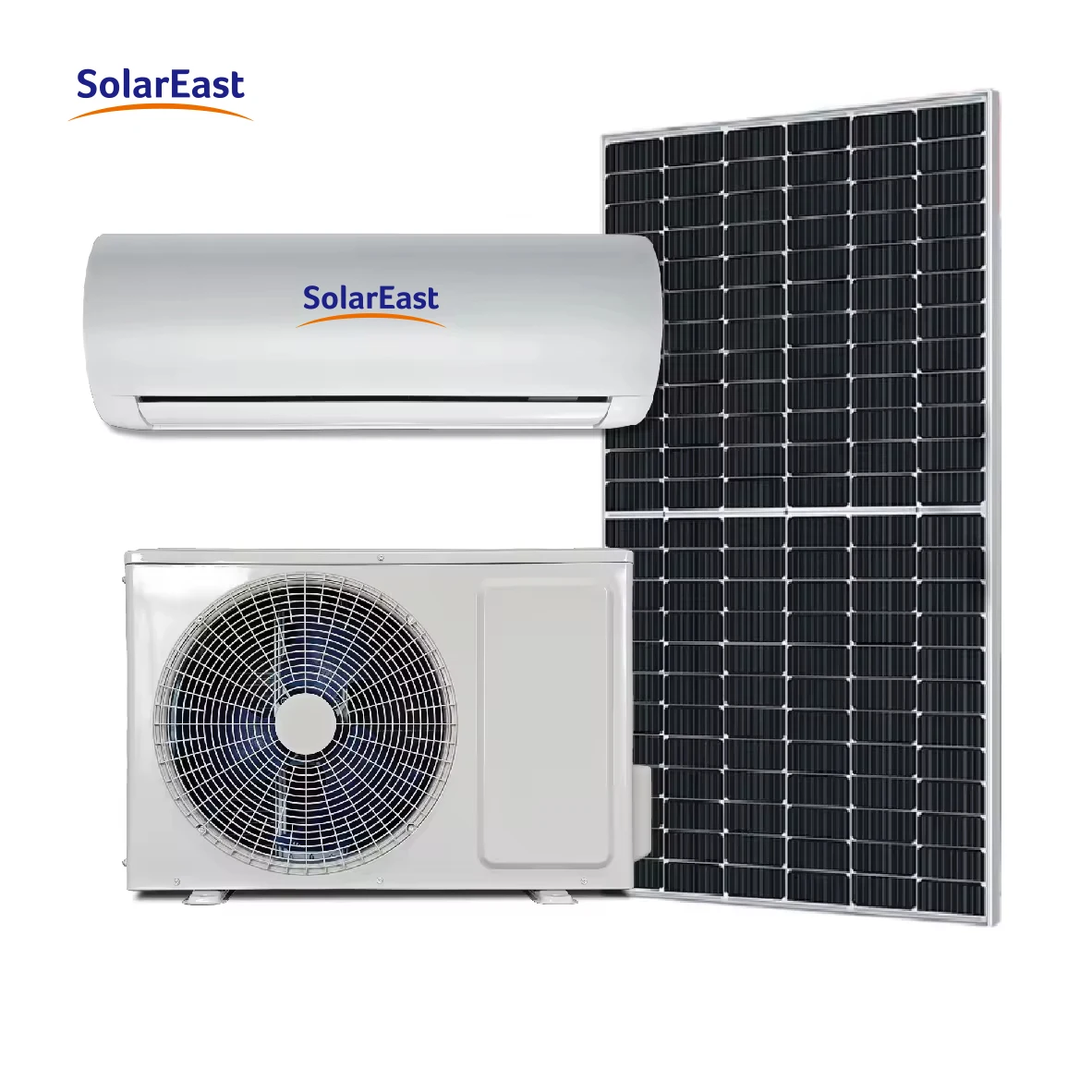

SolarEast PV прямой инвертор на солнечных батареях Кондиционер переменного тока постоянного гибридный кондиционер с возобновляемой энергией 12000 18000 24000 BTU
