Высокое качество HZS120, установка для дозирования бетона
5 482 420,00 ₽ - 6 140 310,40 ₽
Бетономешалка 2 м3
- Категория: >>>
- Поставщик: Henan Zhucheng Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601150911943:
Описание и отзывы
Характеристики

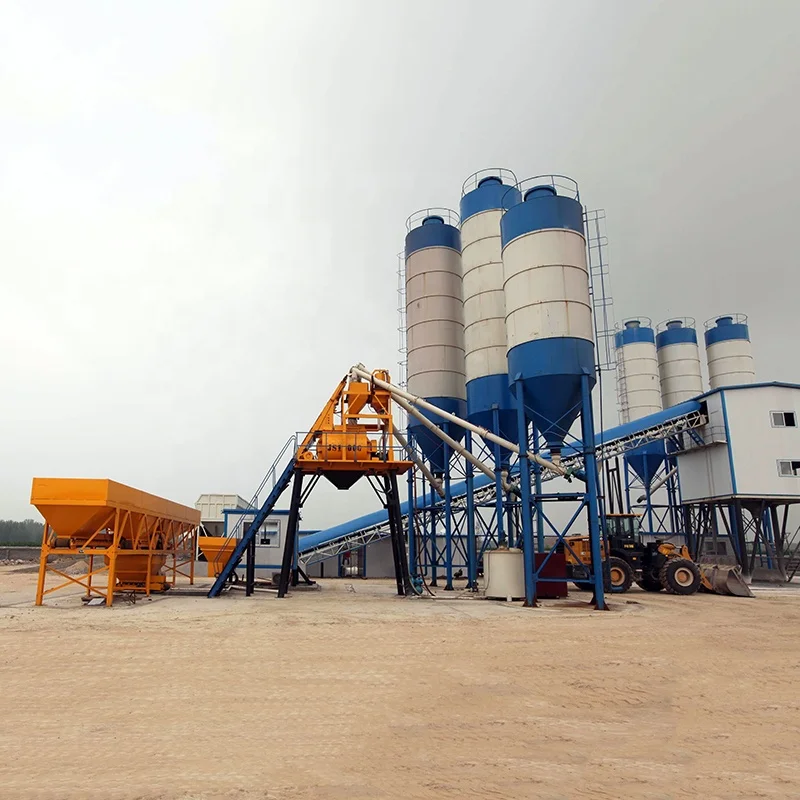

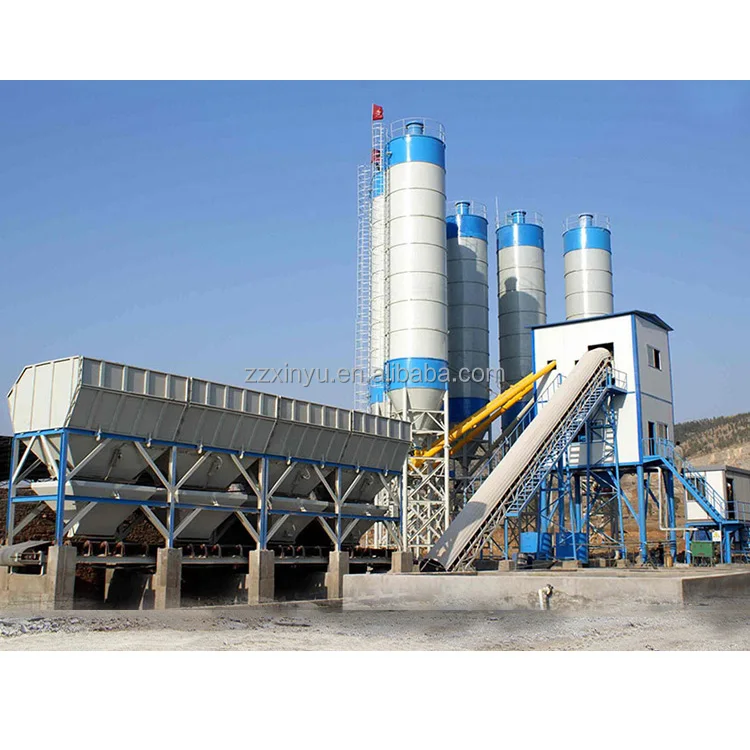

60m3/hr-240m3/hr Belt Type Concrete Batching Plant
Belt Concrete Batching Plant Series are suitable for the commodity concrete and concrete construction in each kind of architectural project, including water conservancy, electric power, railroad, tunnel, arch of bridge, harbor-wharf and national defense project, etc. The application scope is widely spread.
Product Advantages
Mixing System
The mixer with double horizontal shafts is reasonable in structure, good in mixing quality, short in mixing time, energy-saving
and low in noise.
and low in noise.
Batching System
Aggregate Feeding System
There is small gap between the spiral blade and the cylinder, and the transmission efficiency is high.
Easy to maintain and durable.
Intelligent Control System
Adopt new-design of electrical weighing system, can work with computer, SIEMENS PLC, digital display, etc, which will make sure
the measurement accurate and timely.
the measurement accurate and timely.
Cement Screw Conveyor
High revolving speed, large conveying capacity and high precision. Easy assemble, easy connection and reliable sealing.
High revolving speed, large conveying capacity and high precision. Easy assemble, easy connection and reliable sealing.
Cement Silo
Vertical or horizontal cement silo is available for selection. The capacity range from 50T to 300T can be customized. High-quality steel, good sealing, stable support and long service life.
Vertical or horizontal cement silo is available for selection. The capacity range from 50T to 300T can be customized. High-quality steel, good sealing, stable support and long service life.
More details, please contact us by clicking here. Thank you!
Detail Images
Concrete Mixer Blades
Concrete Mixer Electric Oil Pump
Water, Cement, Additives Weighing

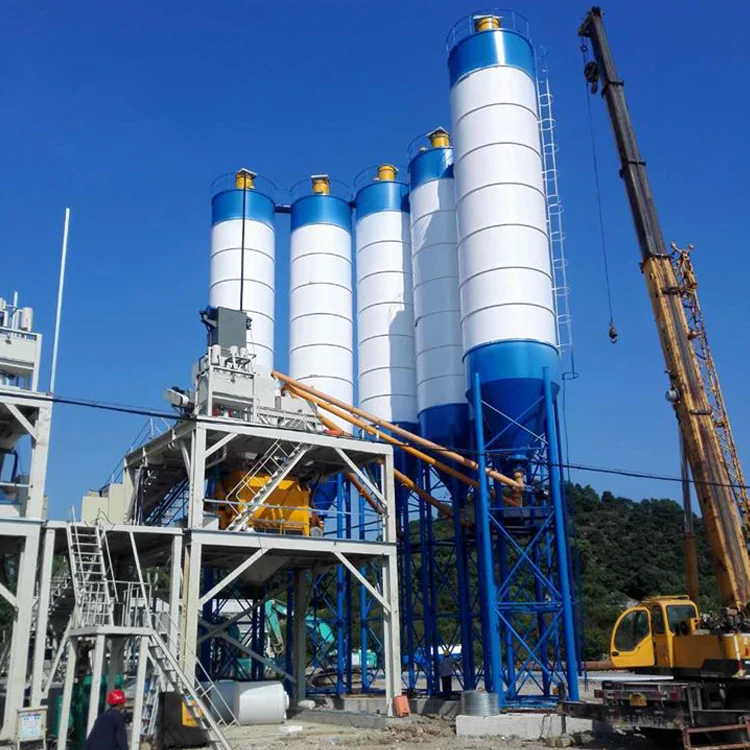

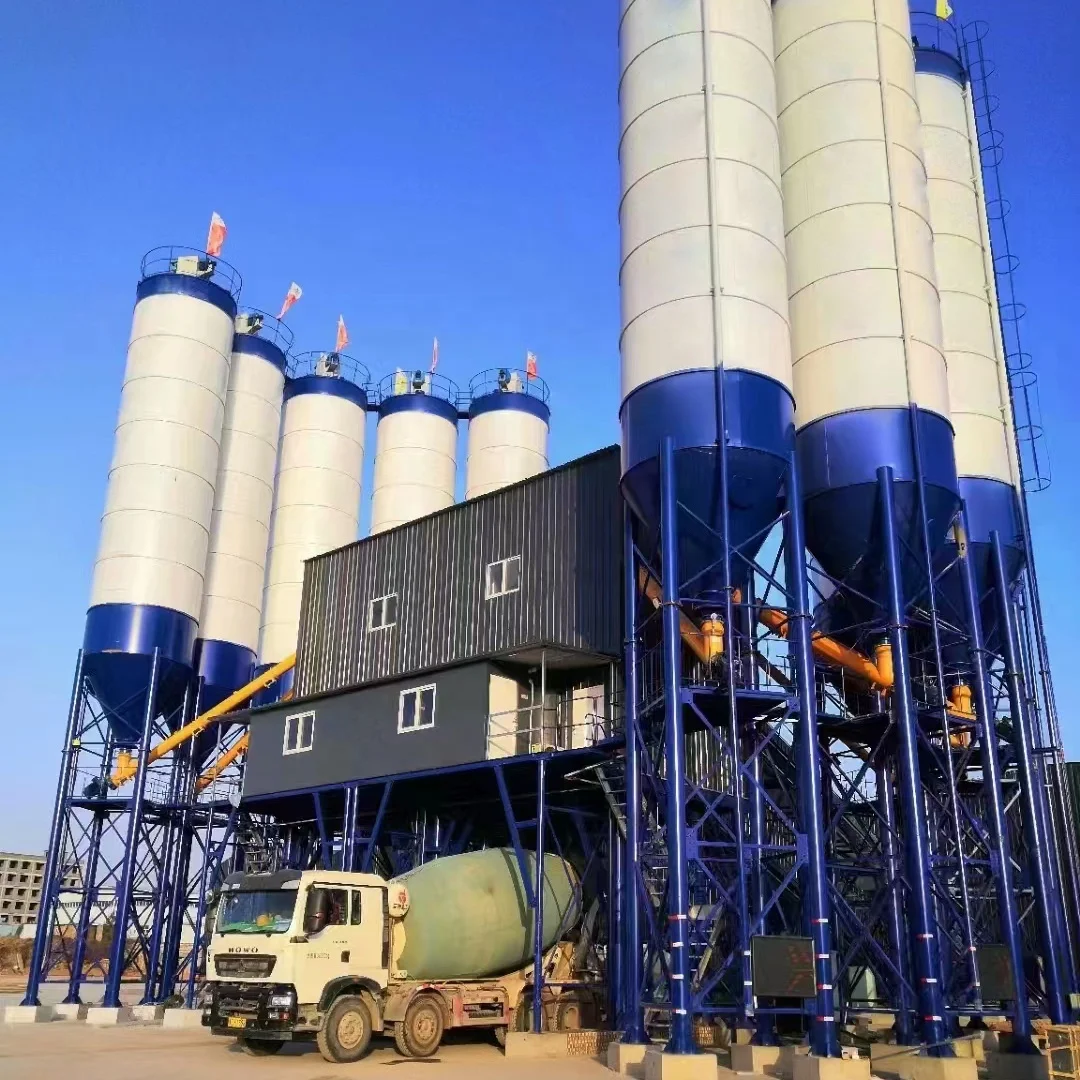

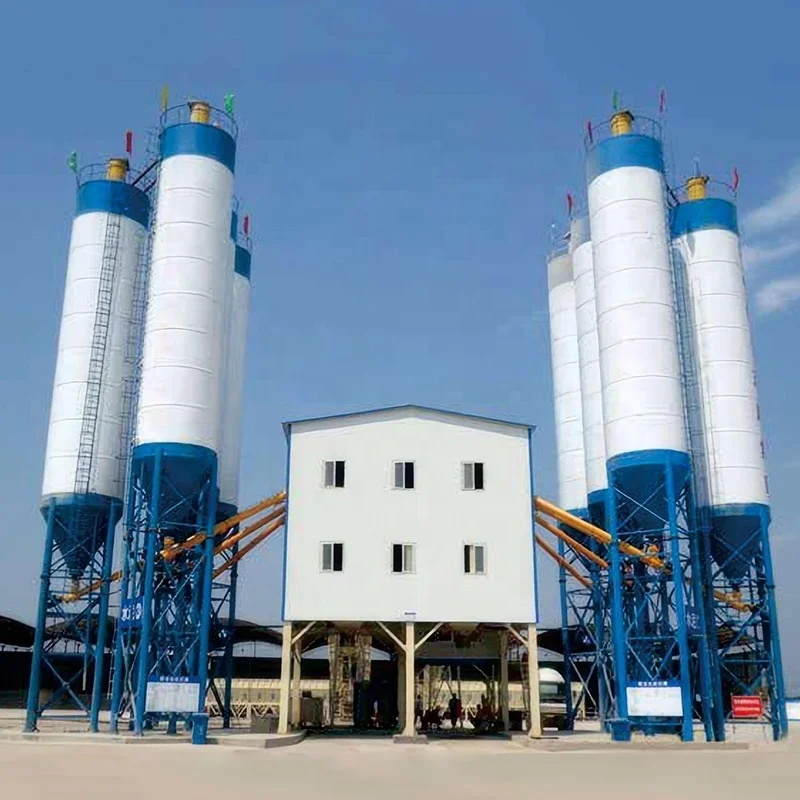

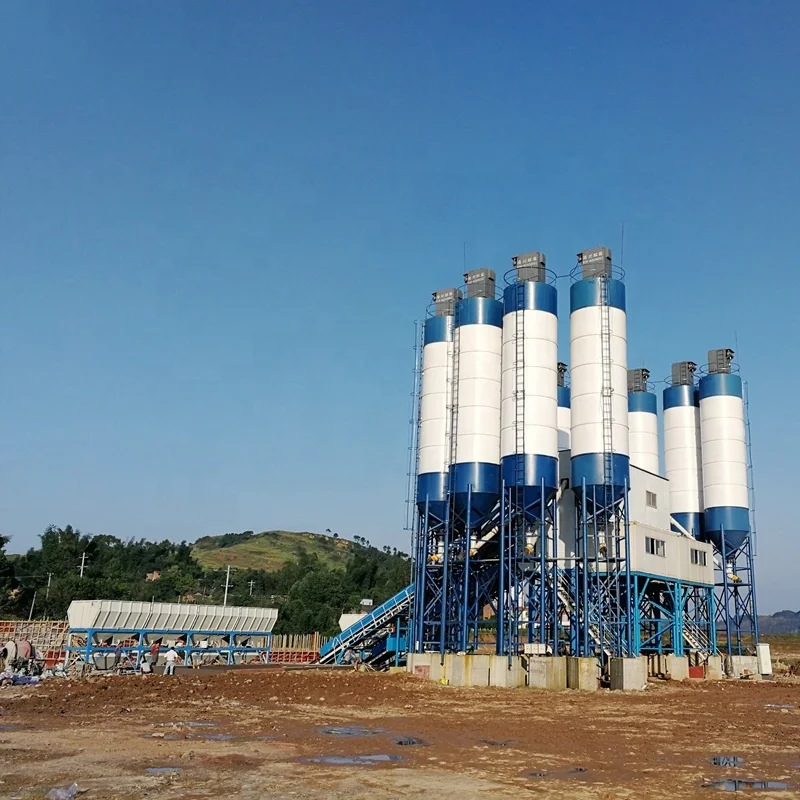

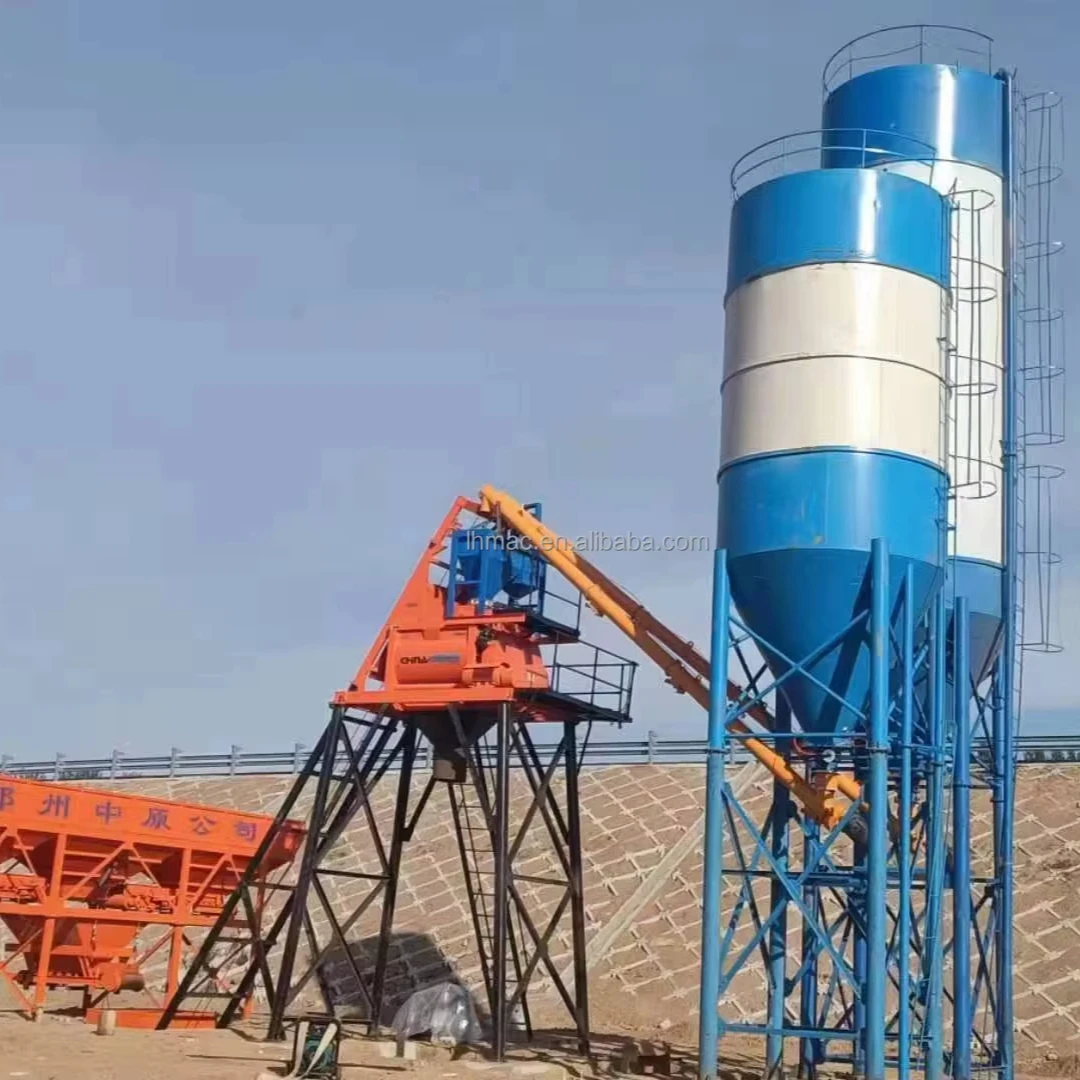

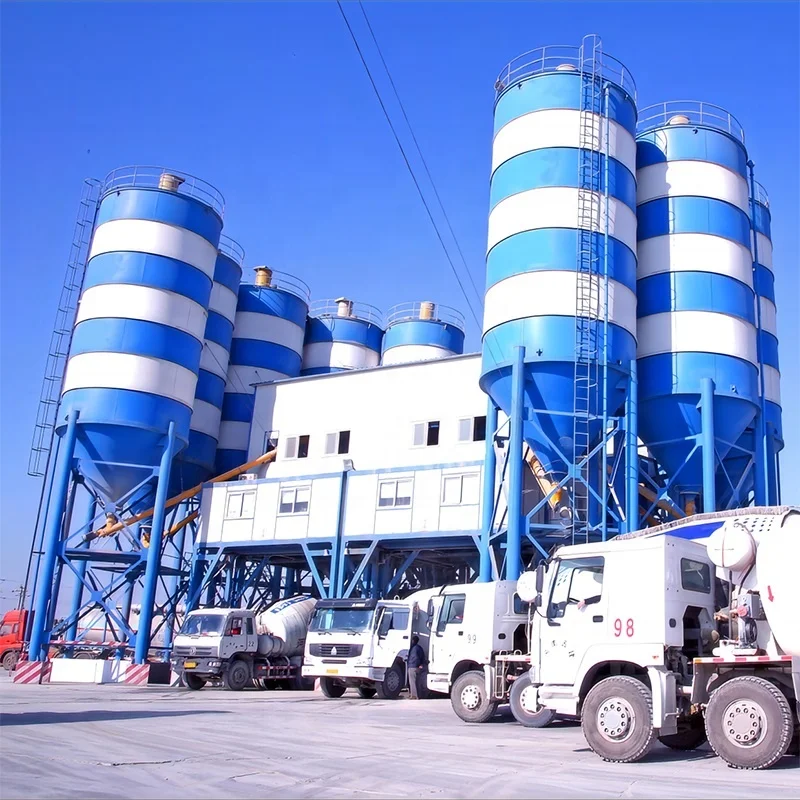

Customer Site
More details, please contact us by clicking here. Thank you!
Packing&Delivery
Packing And Delivery
Through over 20 years hard effort, we have exported to over 40 countries and areas. Establish one complete set of service system and experienced service team, and also build up the golden and valuable ZHUCHENG Brand with top honesty, super quality and intimate service as well as high honor all over the world.
Company Profile
Henan Zhucheng Machinery Manufacturing CO., LTD is one of the scientific and technological enterprises integrated with research and development, manufacture, sales and service.We are the famous manufacturers of large and middle series of concrete batching plant, concrete mixer and stabilized soil mixing plant in China.
ZHUCHENG can not determine the progress of your project, but can help speed up the project: Try out best to keep the continuous supply of concrete for the project.
Raw Material
Machine Finishing
Finished Products For Delivery
Foreign Trade Department
Technology R&D Department
Production Workers
More details, please contact us by clicking here. Thank you!
Customer Visits
Product Paramenters
Model | HZS60 | HZS90 | HZS120 | HZS180 | |||
Capacity | 60m³/h | 90m³/h | 120m³/h | 180m³/h | |||
Mixer Model | JS1000 | JS1500 | JS2000 | JS3000 | |||
Mixer Power | 37Kw | 2*30Kw | 2*37Kw | 2*55Kw | |||
Discharge Height | 3.8-4.2m | ||||||
Discharge Volume | 1000L | 1500L | 2000L | 3000L | |||
Charging Volume | 1600L | 2400L | 3000L | 4500L | |||
Concrete Batching Machine Model | PLD1600 | PLD2400 | PLD3200 | PLD4800 | |||
No. of Storage Hopper | 3/4 | 3/4 | 3/4 | 3/4 | |||
Aggregate Silo Capacity | 9m³ | 15m³ | 18m³ | 22m³ | |||
Weighing Hopper Volume | 1600L | 2400L | 3200L | 4800L | |||
Agg. Weighing Accuracy | 1000Kg±2% | 1500Kg±2% | 2000Kg±2% | 3000Kg±2% | |||
Water Weighing Accuracy | 300±1% | 500±1% | 600±1% | 800±1% | |||
Cement Weighing Accuracy | 600±1% | 1000±1% | 1200±1% | 1800±1% | |||
Additive Weighing Accuracy | 30±1% | 30±1% | 50±1% | 50±1% | |||
Control System | Fully automatic/ Manual(One machine double control) | ||||||
Total Weight | 42t | 50t | 58t | 75t | |||
FAQ
Q1: How to choose the suitable concrete batching plant model?
A: Our professional engineers and sales manager will suggest the best choice according to your needs. Such as the mixing capacity, site planning & design, installation period, and project budget, etc.
Q2: Do you provide overseas service to install and debug?
A: Sure friend. We have overseas after-sale service team to meet customer requires.As a reputable supplier, we provide 24 hours On-site Service.
Q3: How about the fee for the engineer who come to work for installation and debugging?
A: The fees are negotiable. According to geographic location, project scale and complexity, project duration, transportation and accommodation expenses, etc.
Q4: Do you provide free spare parts for concrete batch plant?
A: Yes friend.We will supply the wearing parts before delivery and we have 12 months warranty. If there are any question, feel free to contact.
Q5: Is the Belt conveyor necessary?
A: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor. While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency.
Q6: Is the control system of the concrete mixing station computerized?
A: The electric control system of concrete mixing station can be divided into two types, one is a simple centralized control system, and the other is a fully automatic computer control system.
Q7: How to choose the concrete batching machine of concrete mixing station?
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
Q8: Is the concrete mixing station measured separately?
Q7: How to choose the concrete batching machine of concrete mixing station?
A: Most of the batching machines are PLD series. The number of storage bins in dosing machine is determined according to the types of coarse aggregate such as sand and gravel from customers.
Q8: Is the concrete mixing station measured separately?
A: In the concrete mixing station, water, cement, fly ash and additives are mostly measured separately, among which sand and gravel aggregate can be measured separately or cumulatively.
Q9: What is the service life of your concrete mixing station?
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
Q10: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable).
100% TT in advance (especially for small amount and spare parts etc.)
Q9: What is the service life of your concrete mixing station?
A: A set of concrete mixing equipment, which is made by a large domestic manufacturer with guaranteed quality, has a normal service life of 8-10 years.
Q10: How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment.
L/C at sight (high bank charge, not suggest, but acceptable).
100% TT in advance (especially for small amount and spare parts etc.)
