Европейский Deye низкое напряжение 20 кВт Гибридный солнечный инвертор 3-фазный SUN-20K-SG05LP3-EU-SM2
108 708,95 ₽ - 166 391,25 ₽

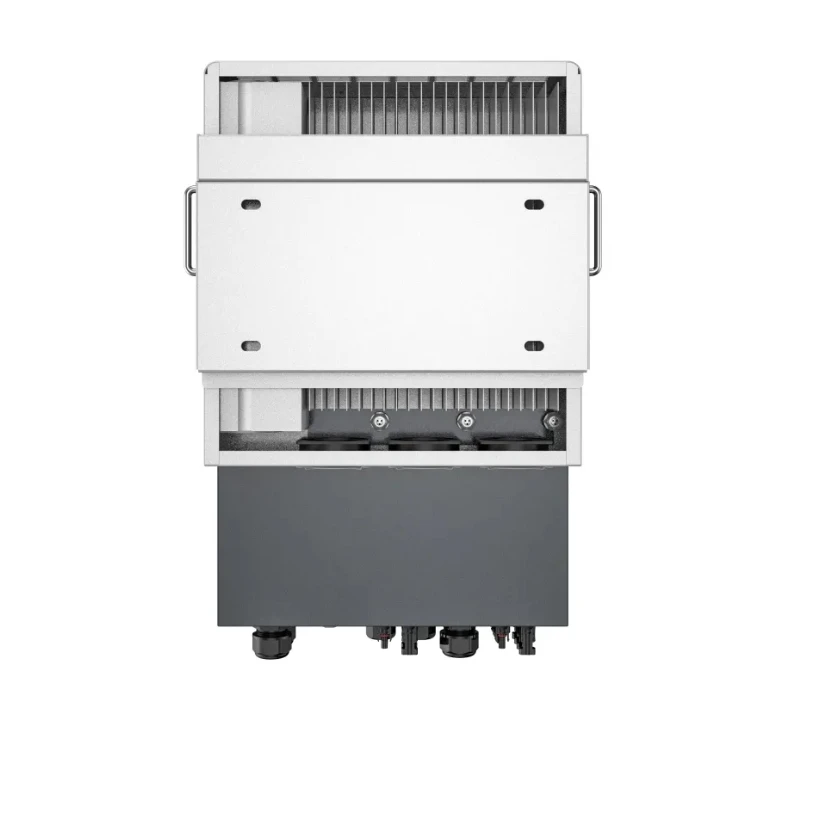

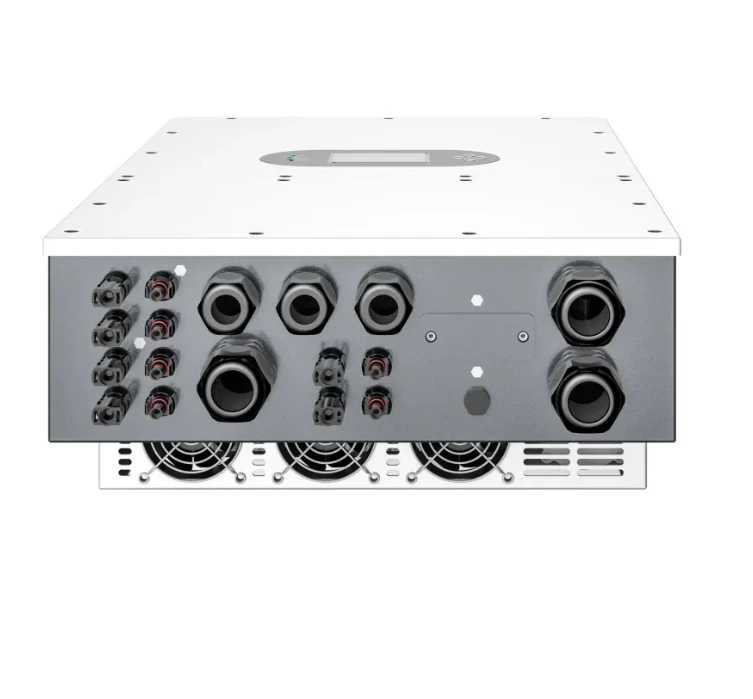

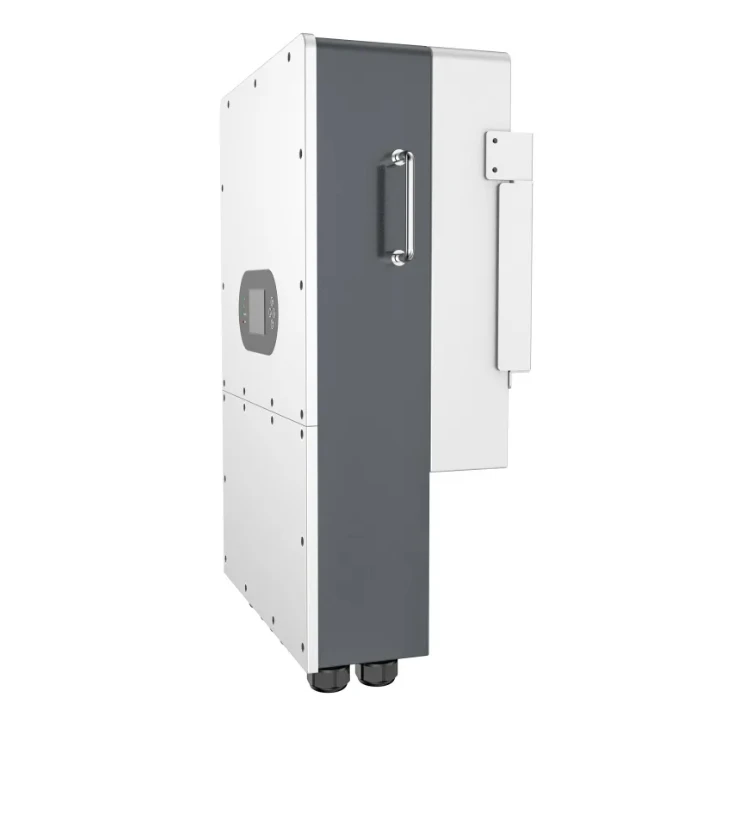

Привод PD0200G TPS EU A IP65 12 кВт 20 Гибридный солнечный инвертор 15 с зарядным устройством mppt
- Категория: >>>
- Поставщик: Green Energy Co. Ltd.
Сохранить в закладки 1601152900437:
Описание и отзывы
Характеристики
Model | PD0100G-TPS-EU-A | PD0120G-TPS-EU-A | PD0150G-TPS-EU-A | PD0200G-TPS-EU-A | |||
Max.DC Input Power (W) | 13000 | 15600 | 19500 | 26000 | |||
Rated PV Input Voltage(V) | 1000 | ||||||
Start-up Voltage (V) | 180 | ||||||
MPPT Voltage Range (V) | 325-850 | ||||||
Full Load MPPT Voltage Range (V) | 600 | ||||||
Full Load MPPT Voltage Range (V) | 20+20 | 26+26 | |||||
Max. DC Short Circuit Current(A） | 30+30 | 39+39 | |||||
No.of MPPT Trackers | 2 | ||||||
No.of Strings per MPPT Tracker | 1+1 | 2+2 | |||||
Rated AC Output Power (W) | 10000 | 12000 | 15000 | 20000 | |||
Max AC Output Power (W) | 11000 | 14400 | 16500 | 22000 | |||
AC Output Rated Current (A) | 15.2 | 18.2 | 22.8 | 30.4 | |||
Max AC Output Current (A) | 16.7 | 19.2 | 25.0 | 33.4 | |||
Max Output short circuit current (A) | 22 | 26.8 | 33.6 | 44.7 | |||
Max. Continuous AC Passthrough(A) | 40 | 48 | 60 | 80 | |||
Peak Power (off grid) | 1.5 times of rated power, 10 S | ||||||
Power Factor | 0.8 leading - 0.8 lagging | ||||||
Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac | ||||||
Grid Type | Three Phase | ||||||
Total Harmonic Distortion (THDi) | THDi<3%(linear load <1.5%） | ||||||
DC Current Injection | <0.5% In | ||||||
Battery Type | Lithium-ion | ||||||
Battery Voltage Range (V) | 160-700 | ||||||
Max. Charging Current (A) | 37 | 160 | 200 | 240 | |||
Max. Discharging Current (A) | 37 | 160 | 200 | 240 | |||
Efficiency | |||||||
Max/Euro/Mppt | 97.6%/97.0%/99.0% | ||||||
Protection | Anti-islanding Protection /PV String Input Reverse Polarity/Insulation Resistor Detection/ Residual Current Monitoring Unit/Output Over Current Protection/Output Shorted Protection /Output overvoltage protection/Photovoltaic input lightning/Surge Protection | ||||||
Grid Regulation | IEC61727/62116,EN50549-1 | ||||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
Operating Temperature Range (℃) | –25 °C ~ +60 °C | ||||||
Cooling | Smart Cooling | ||||||
Noise (dB) | ≤45 dB | ||||||
Communication to BMS | CAN | ||||||
Monitoring mode | Wi-Fi+APP | ||||||
Weight (kg) | 80 | ||||||
Size (W x H x D mm) | 408×638×237 (Excluding Connectors and Brackets) | ||||||
Ingress Protection | Ip65 | ||||||
Installation Style | Wall-mounted | ||||||
Warranty | 5 Years (10 Years Optional) | ||||||
FAQ
1.What is the difference between PWM inverter and MPPT inverter
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum Power Point Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%
2: How to distinguish Low voltage and high voltage inverter
Low voltage, Max PV voltage Voc < 150V. High voltage, Max PV voltage Voc > 450V
3. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
5.How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model: AMPS x 120 = Watt For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum Power Point Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%
2: How to distinguish Low voltage and high voltage inverter
Low voltage, Max PV voltage Voc < 150V. High voltage, Max PV voltage Voc > 450V
3. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
Yes, we accept OEM and ODM service.
5.How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model: AMPS x 120 = Watt For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
Похожие товары

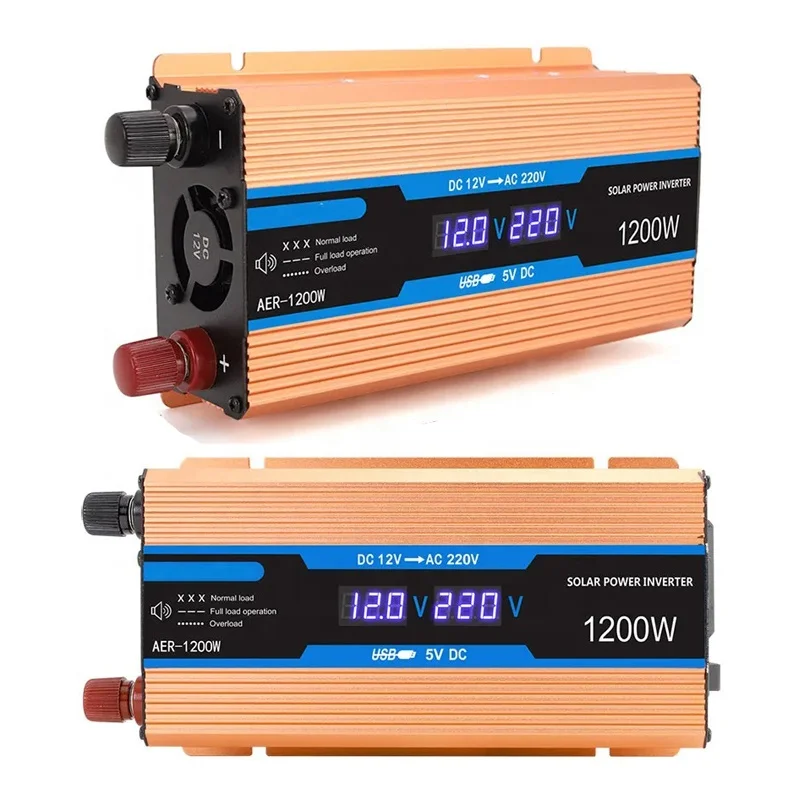

Автомобильный преобразователь высокого напряжения с солнечной батареей от 12 В до 220 постоянного тока переменного 300 Вт 500 600 900 1200 преобразователи ЖК-дисплеем
