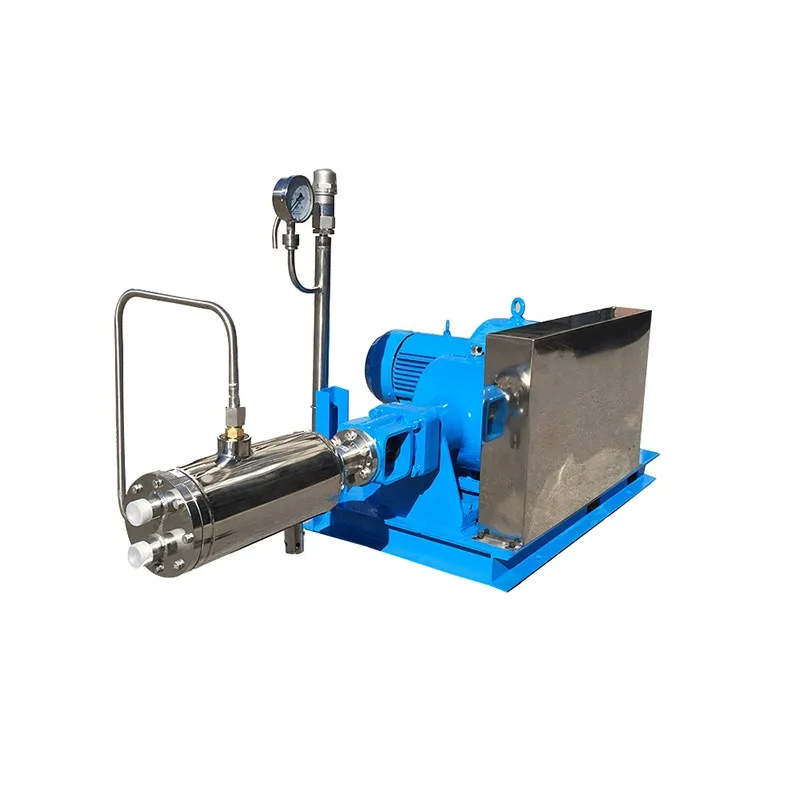

Высококачественный низкотемпературный насос CNCD 100 бар для переноса жидкости Co2
2 676,50-2 706,80 $
Большой поток KCB Шестеренчатый насос для повышения давления чугунный редукторный масляный электрический
- Категория: >>>
- Поставщик: Ocean Pump Co. Ltd.Ocean Ltd.
Сохранить в закладки 1601154185166:
Описание и отзывы
Характеристики
Products Description

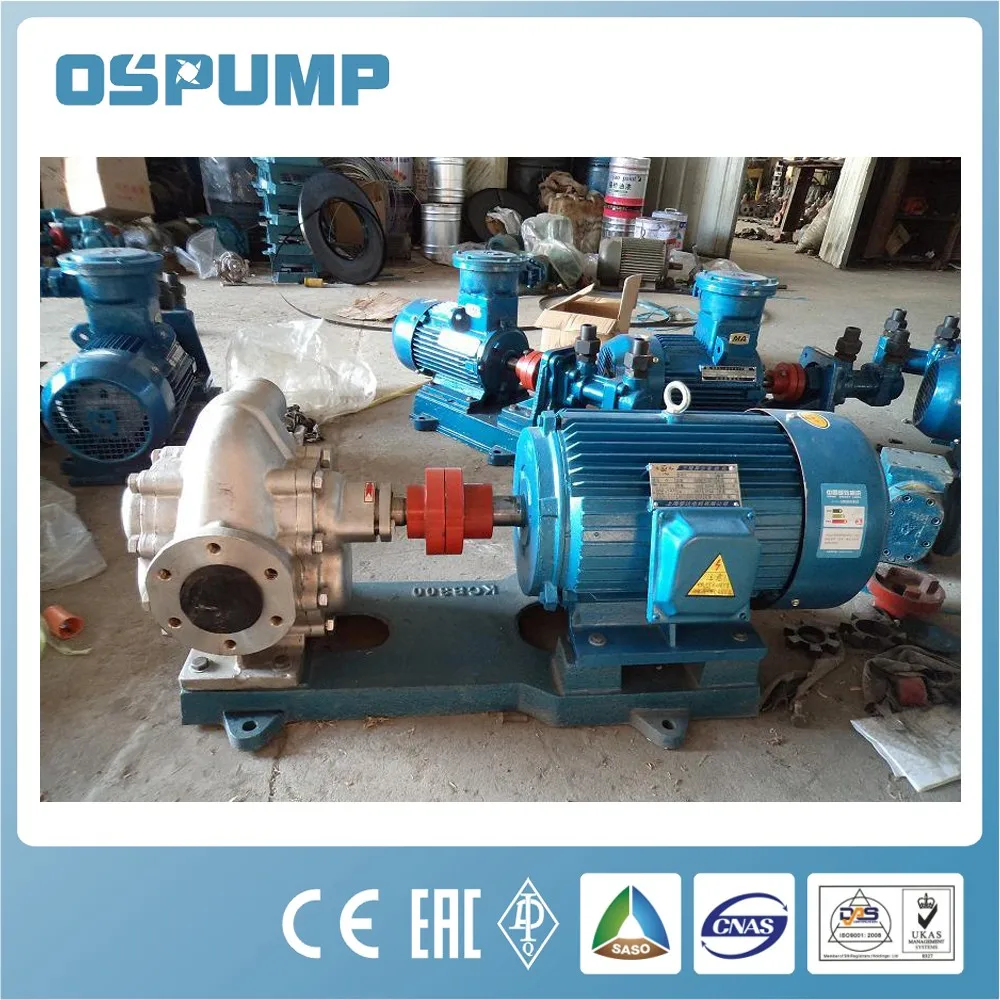

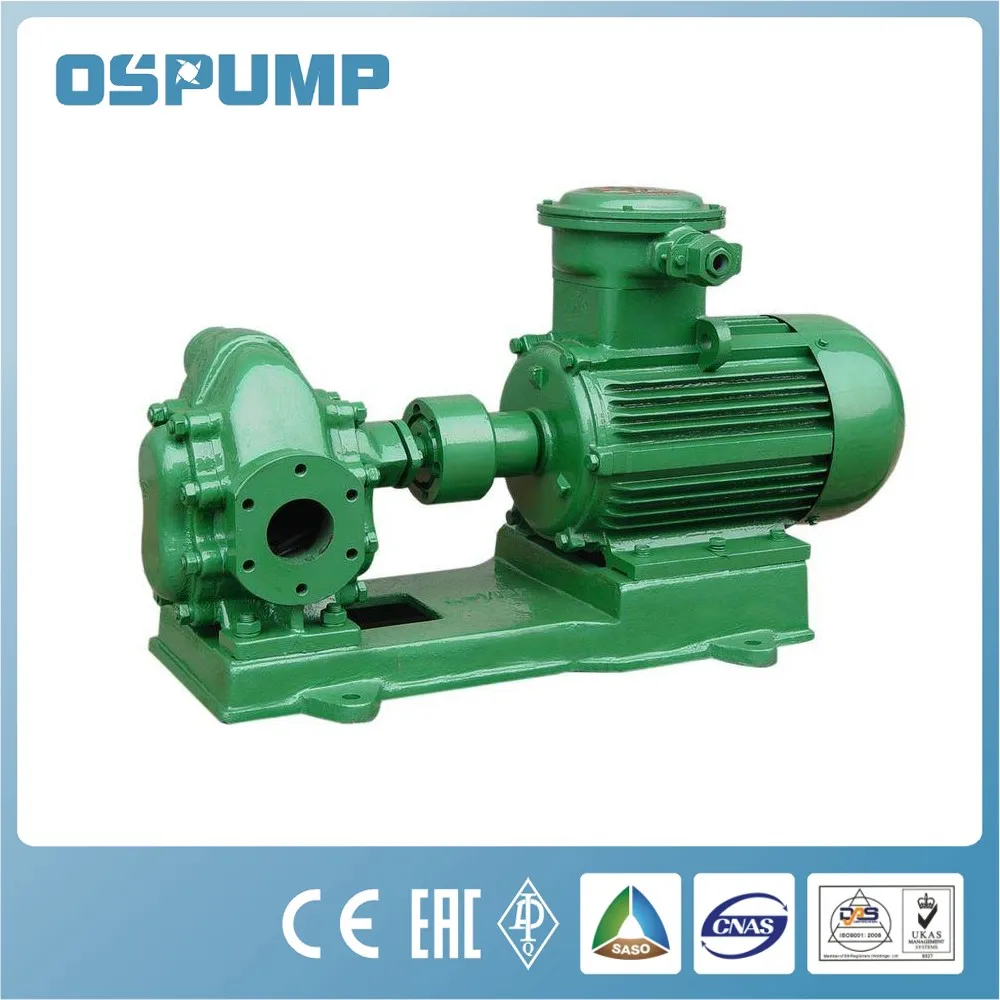

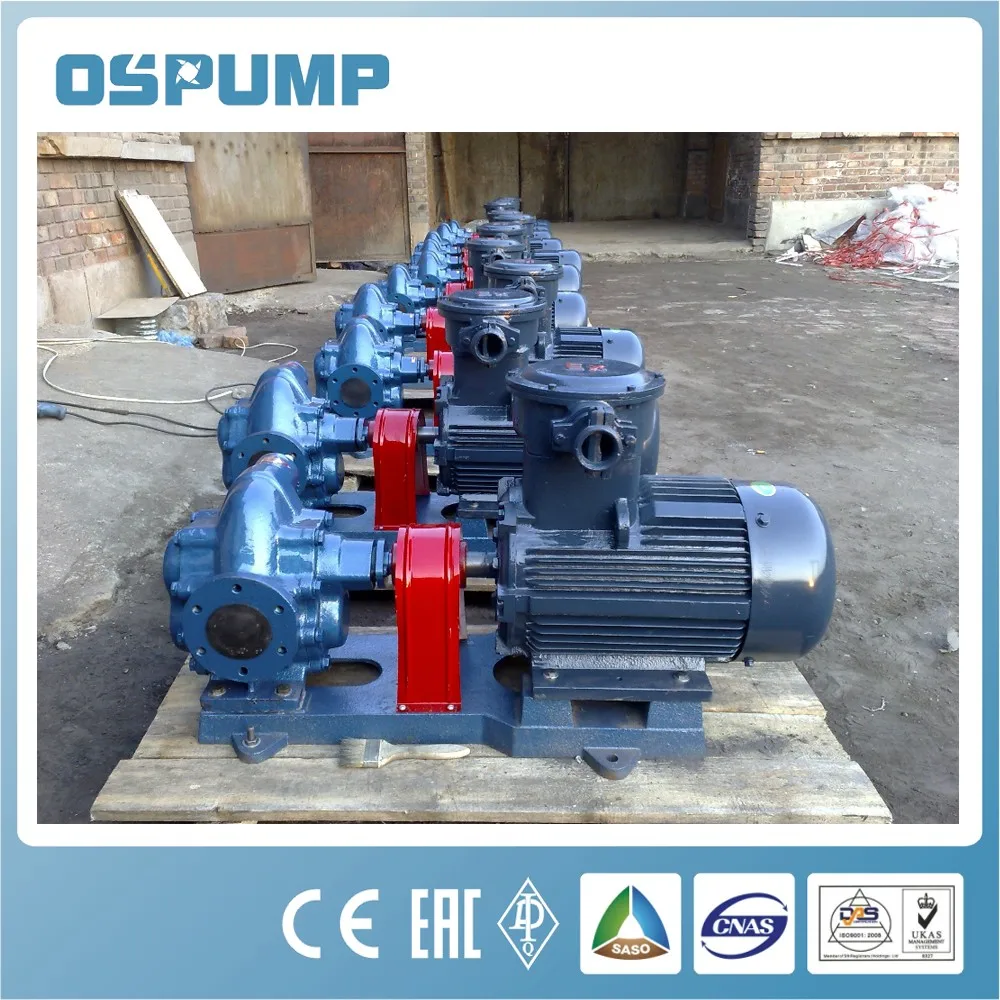

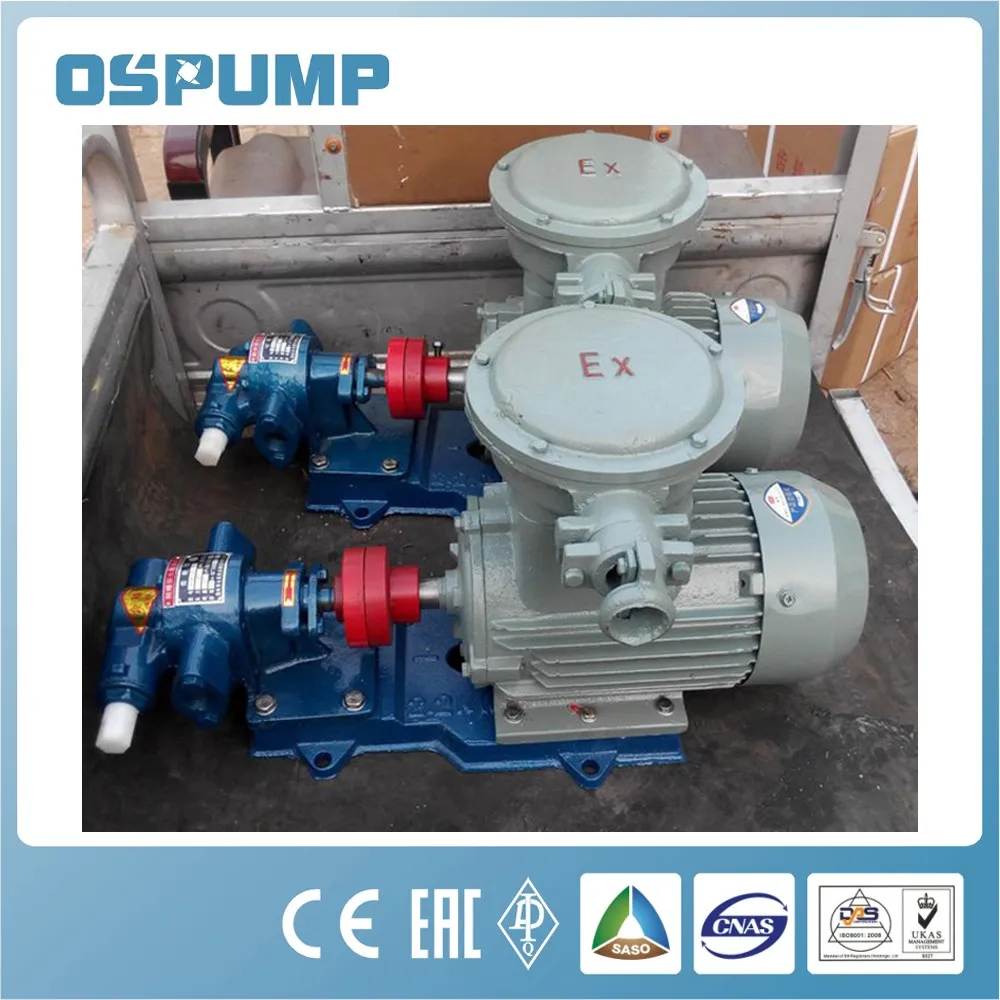

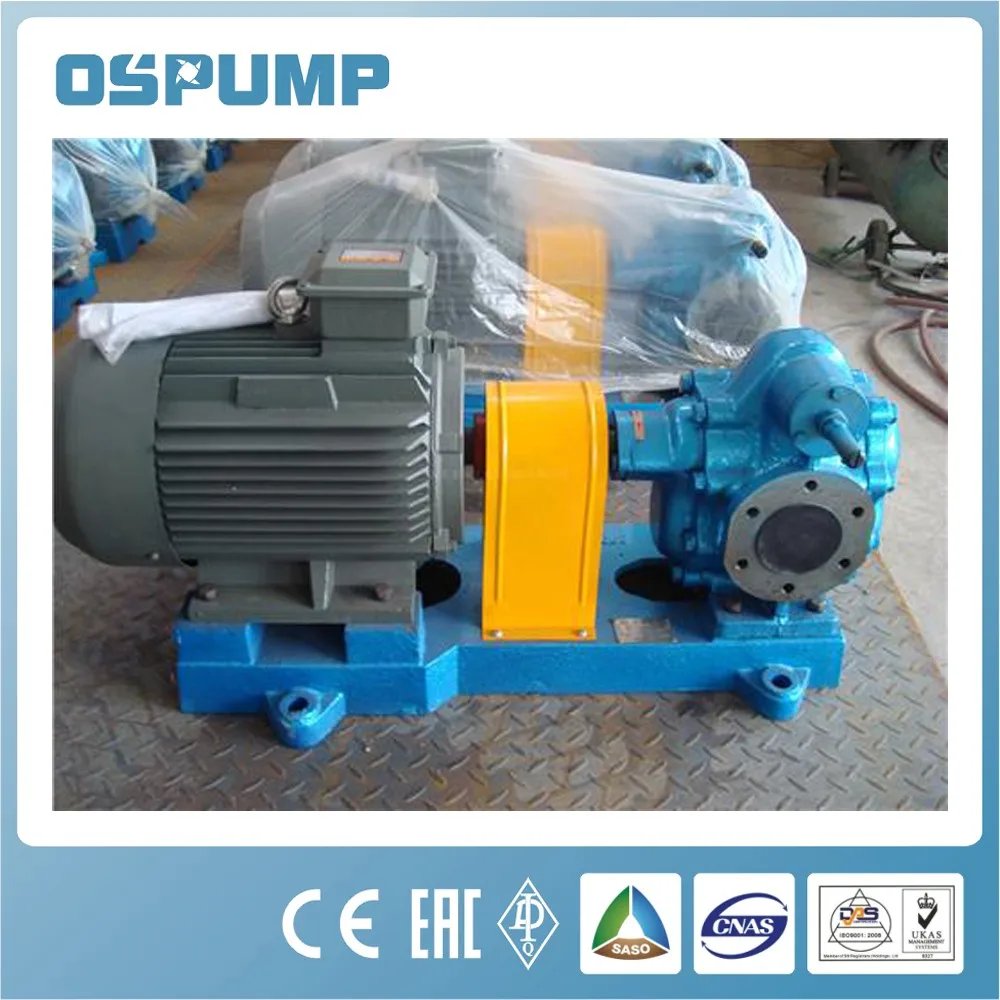

KCB/2CY Gear Oil Transfer Pump
1.Working Principle:
Twin rotary gears are setin the pump body. One is active, the other is passive. Whole working chamber in pump is separated into two independent parts as two mutual joggle (as the picture shows) . A is input chamber, B is output chamber. Active gear drives passive gear to rotate when pump works. When gears rotate from joggle to come away. A turns into part vacuum and liquid is sucked. Suck liquids fill carious gearvale and then are taken in B. Liquids turn into high pressure liquid and are put out of output when gears joggle.
2.Characteristic:
A. Pumps has the advantage of single and compact structure and convenient operation and maintenance,
B. Pump has the good self-oriming performance ,so pumps need not pour liquid when pump starts.
C. Lubrication of tpump is automatic by transported liquid. So in everyday work pump need not add lubrication.
D. Flexible couple driver can settle tolerance for installation . It can relax impact of liquid pressure when pump works.
B. Pump has the good self-oriming performance ,so pumps need not pour liquid when pump starts.
C. Lubrication of tpump is automatic by transported liquid. So in everyday work pump need not add lubrication.
D. Flexible couple driver can settle tolerance for installation . It can relax impact of liquid pressure when pump works.
3.Application:
1. The pump is suitable to transport various lubrication liquid at temperature not higher than 70°C ; If temperature is up to 200°C , anti-high temperature material will be matched . Its viscosity is 5*10- 15*10-3 m²/s.
2.The pump is not suitable to transport liquid such as corrosive or containing hard grain or fibre,high volatility or low flash point ,for example gasoline ,benzene. ( Pump can transport gasoline if copper gear is adopted . And pump can transport ordinary corrosive liquid if stainless steel meatrial adopted.）
2.The pump is not suitable to transport liquid such as corrosive or containing hard grain or fibre,high volatility or low flash point ,for example gasoline ,benzene. ( Pump can transport gasoline if copper gear is adopted . And pump can transport ordinary corrosive liquid if stainless steel meatrial adopted.）
Model | Inlet and outlet | Output capacity | Output pressure | Suction height | Efficiency | Match three phases asynchronous motor | ||||
caliber (Inch) | (L/min) | (MPa) | (m) | (%) | Power(KW) | Model | Rotary Speed | |||
(r/min) | ||||||||||
KCB-18.3 | 3/4 | 18.3 | 1.45 | 5 | ≥85 | 1.5 | Y90L-4 | 1400 | ||
(2CY-1.1/14.5-2) | ||||||||||
KCB-33.3 | 3/4 | 33.3 | 1.45 | 5 | ≥85 | 2.2 | Y100L1-4 | 1420 | ||
(2CY-2/14.5-2) | ||||||||||
KCB-55 | 1 | 55 | 0.33 | 5 | ≥85 | 1.5 | Y90L-4 | 1400 | ||
(2CY-5/3.3-2) | ||||||||||
KCB-8.3 | 1.5 | 83.3 | 0.33 | 5 | ≥85 | 2.2 | Y100L1-4 | 1420 | ||
(2CY-5/3.3-2) | ||||||||||
KCB-133.3 | 2 | 133.3 | 0.33 | 5 | ≥85 | 4 | Y112M-4 | 1450 | ||
(2CY-8/3.3-2) | ||||||||||
KCB-200 | 2 | 200 | 0.33 | 5 | ≥85 | 4 | Y112M-4 | 1450 | ||
(2CY-12/3.3-2) | ||||||||||
KCB-200 | 2 | 200 | 0.6 | 5 | ≥85 | 5.5 | Y132S-4 | 1450 | ||
(2CY-12/6-2) | ||||||||||
KCB-200 | 2 | 200 | 1 | 5 | ≥85 | 7.5 | Y132M-4 | 1450 | ||
(2CY-12/10-2) | ||||||||||
KCB-300 | 3 | 300 | 0.36 | 5 | ≥85 | 5.5 | Y132M2 -6 | 960~1000 | ||
(2CY-18/6-2) | ||||||||||
KCB-483.3 | 3 | 483.3 | 0.36 | 5 | ≥85 | 7.5 | Y132M-4 | 1440~1500 | ||
(2CY-29/3.6-2) | ||||||||||
KCB-483.3 | 3 | 483.3 | 0.36 | 5 | ≥85 | 11 | Y160M-4 | 1450 | ||
(2CY-29/10-2) | ||||||||||
KCB-633 | 4 | 633 | 0.28 | 5 | ≥85 | 11 | Y160L-6 | 960~1000 | ||
(2CY-38/2.8-2) | ||||||||||
KCB-960 | 4 | 960 | 0.3 | 5 | ≥85 | 18.5 | Y180M-4 | 1500 | ||
(2CY-60/3-2) | ||||||||||
KCB-2000 | 6 | 2000 | 0.3 | 5 | ≥85 | 30 | Y250M-8 | 750 | ||
(2CY-120/3-2) | ||||||||||
KCB-2500 | 6 | 2500 | 0.3 | 5 | ≥85 | 37 | Y280S-8 | 750 | ||
(2CY-150/3-2) | ||||||||||
Application Scenarios
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Product classification
Company Profile
Exhibition
Packing and transportation
FAQ
1. Who Are We?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What Can You Buy From Us?
Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump
4. Why Should You Buy From Us Not From Other Suppliers?
Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D.
5. What Services Can We Provide?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What Can You Buy From Us?
Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump
4. Why Should You Buy From Us Not From Other Suppliers?
Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Вертикальный погружной осевой насос с водяным охлаждением двигателя
1 030,00-1 080,00 $

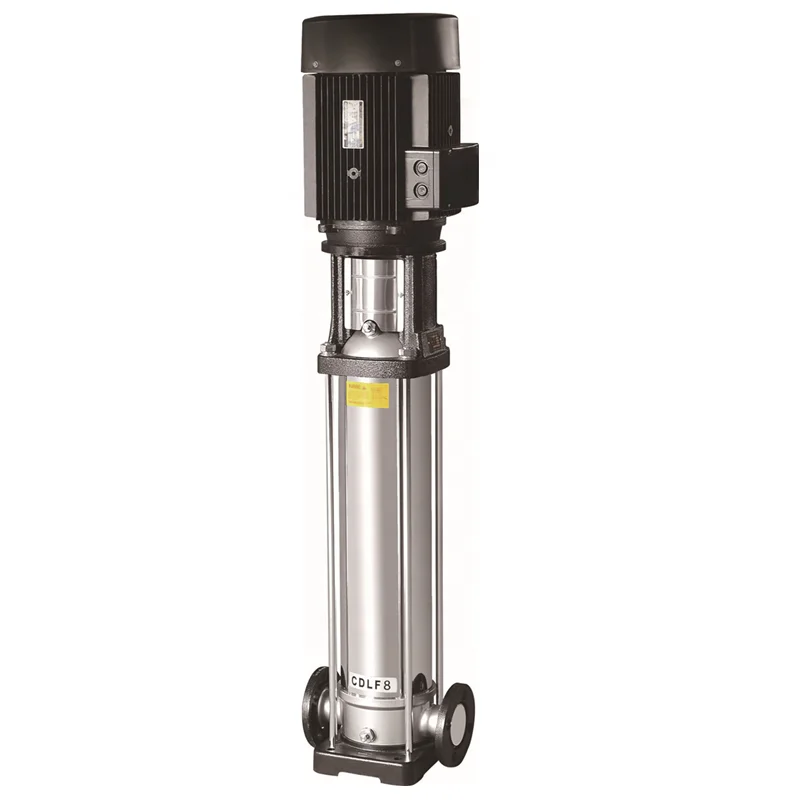

Вертикальный многоступенчатый охлаждающий водяной насос серии CDL
280,00-300,00 $

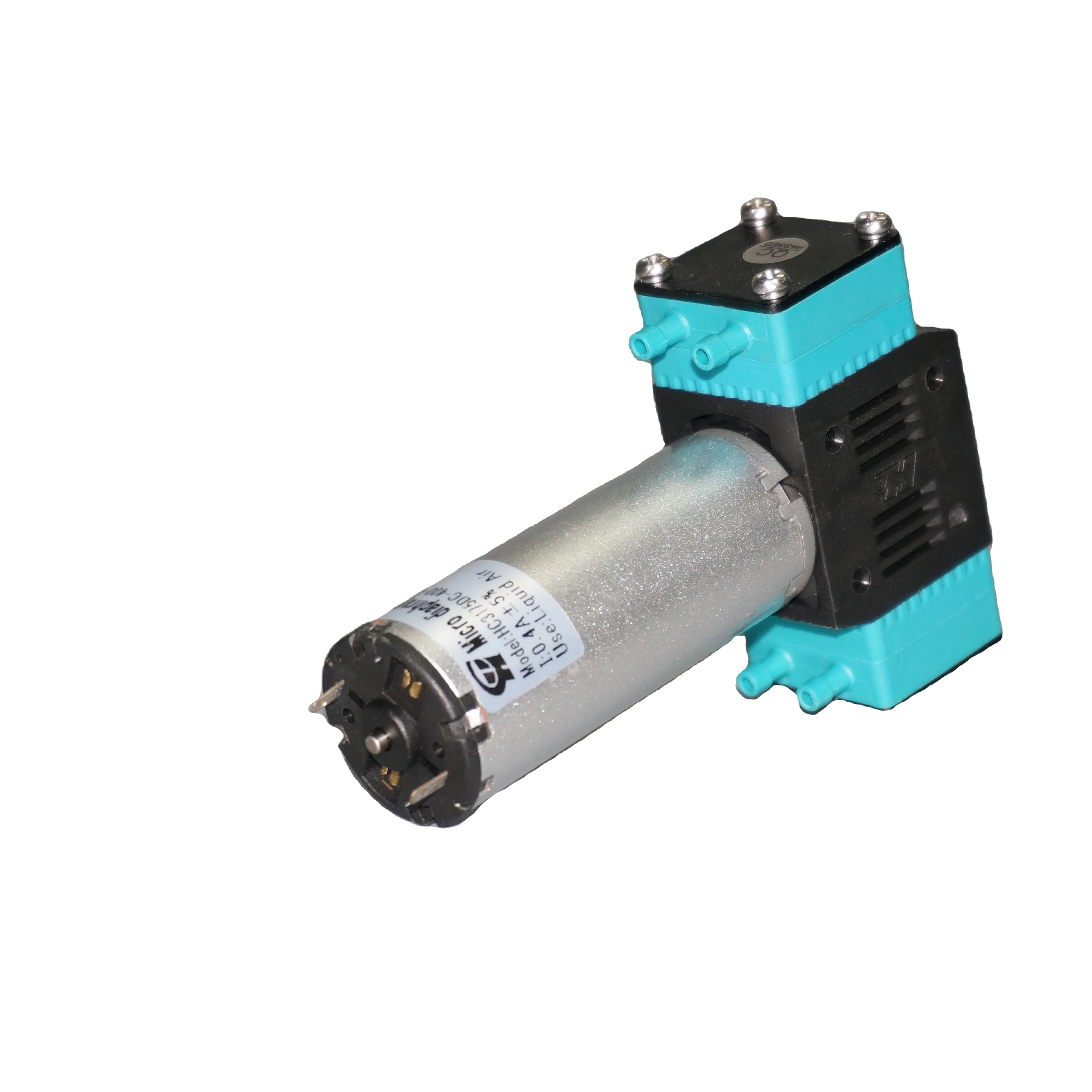

Двухголовый мини-мембранный насос 12 в 24 водяной
51,00-55,00 $
Перистальтический насос NKP-DC-S10B перистальтической кофемашины коксоховый аппарат аквариумный 12 В лабораторный мини-насос
4,07-4,09 $
Водяной насос Aquaponics Mini DC 12- 24 В скорость потока 1 м 180 ЛЧ/ч
5,00-6,00 $

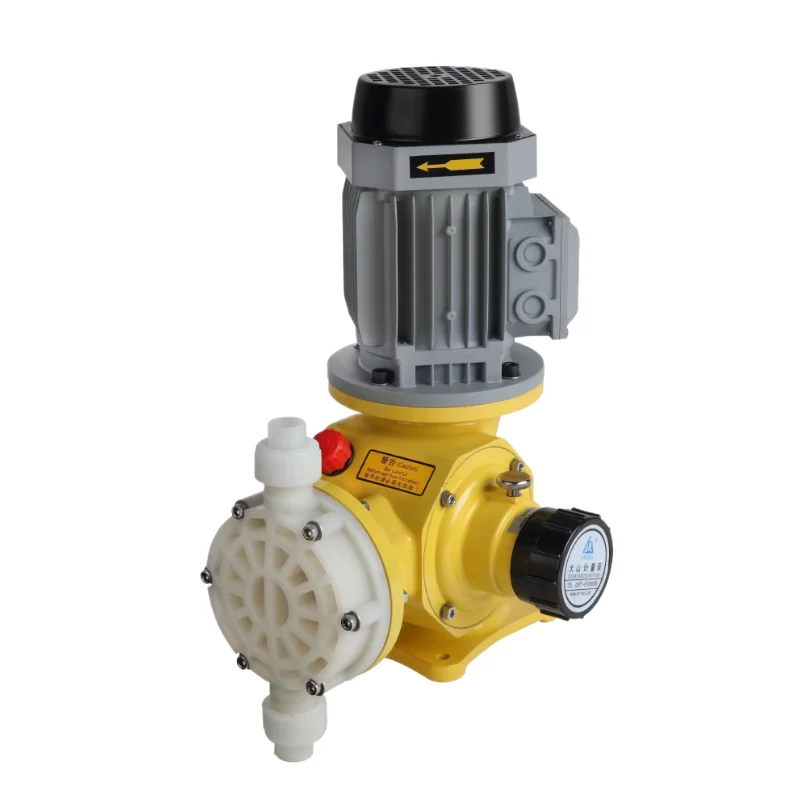

Профессиональный производитель ПВХ насос механический дозирующий для циркуляции воды
