Product Description

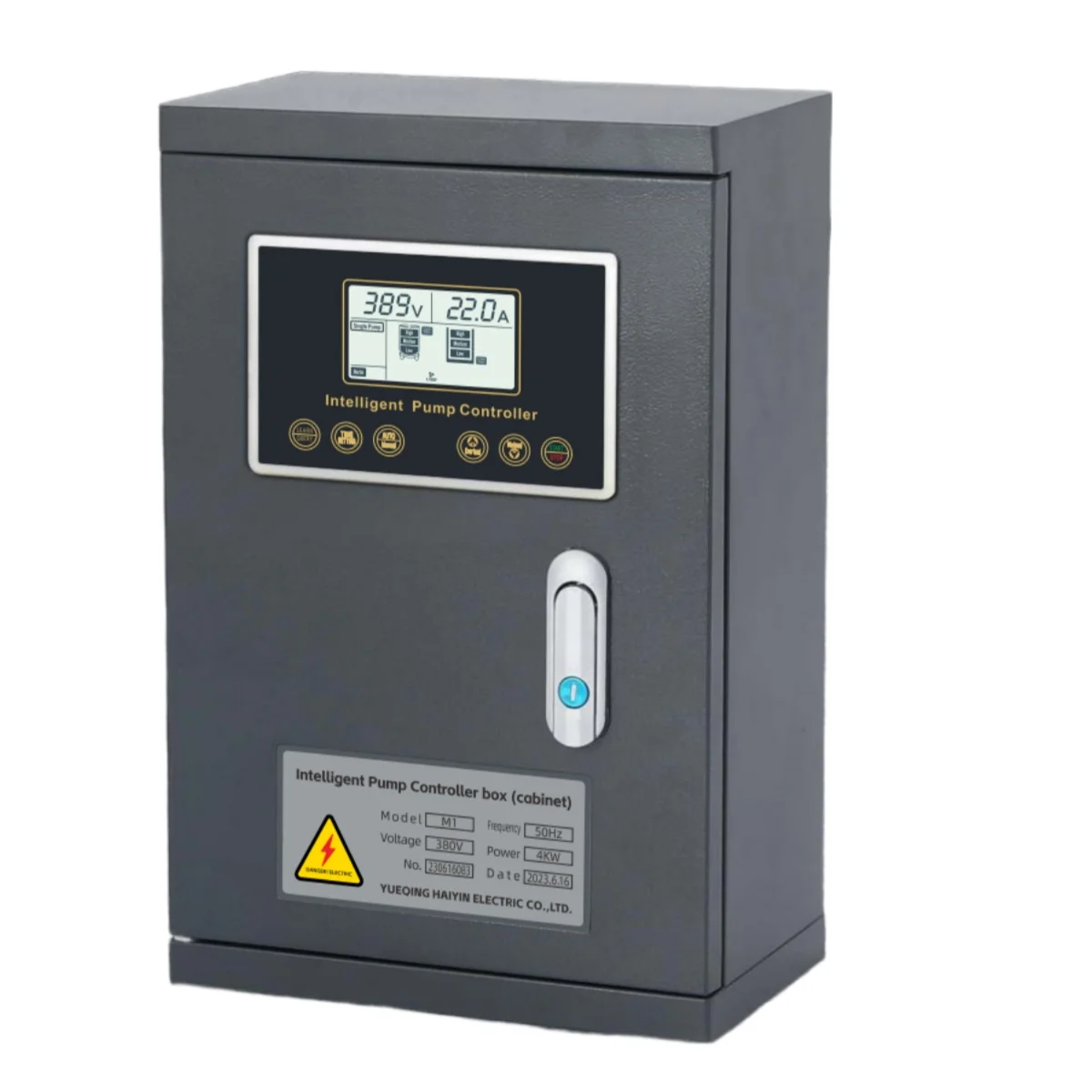

M series steel pump controller adopts the original imported microcomputer single chip technology which guarantees powerful functions, and has the advantage as easy and convenient installation and operation. Unique non-contact induction technology enables no need of probes to achieve shutdown protection when the pump is running dry due to lack of water, thus realizing fully intelligent and unmanned operation.
It is a device designed to control and protect the operation of various water pumps up to 22KW, such as subermersible pump, centrifugal pump, multistage pump, deep-well pump, sewage pump, booster pump, pipeline pump, ground pump and etc.
It is a device designed to control and protect the operation of various water pumps up to 22KW, such as subermersible pump, centrifugal pump, multistage pump, deep-well pump, sewage pump, booster pump, pipeline pump, ground pump and etc.

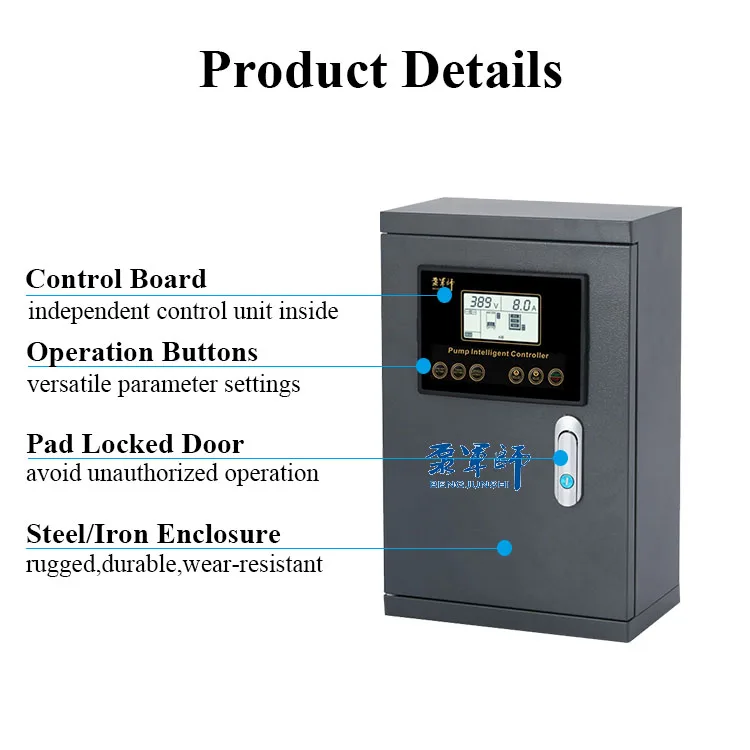

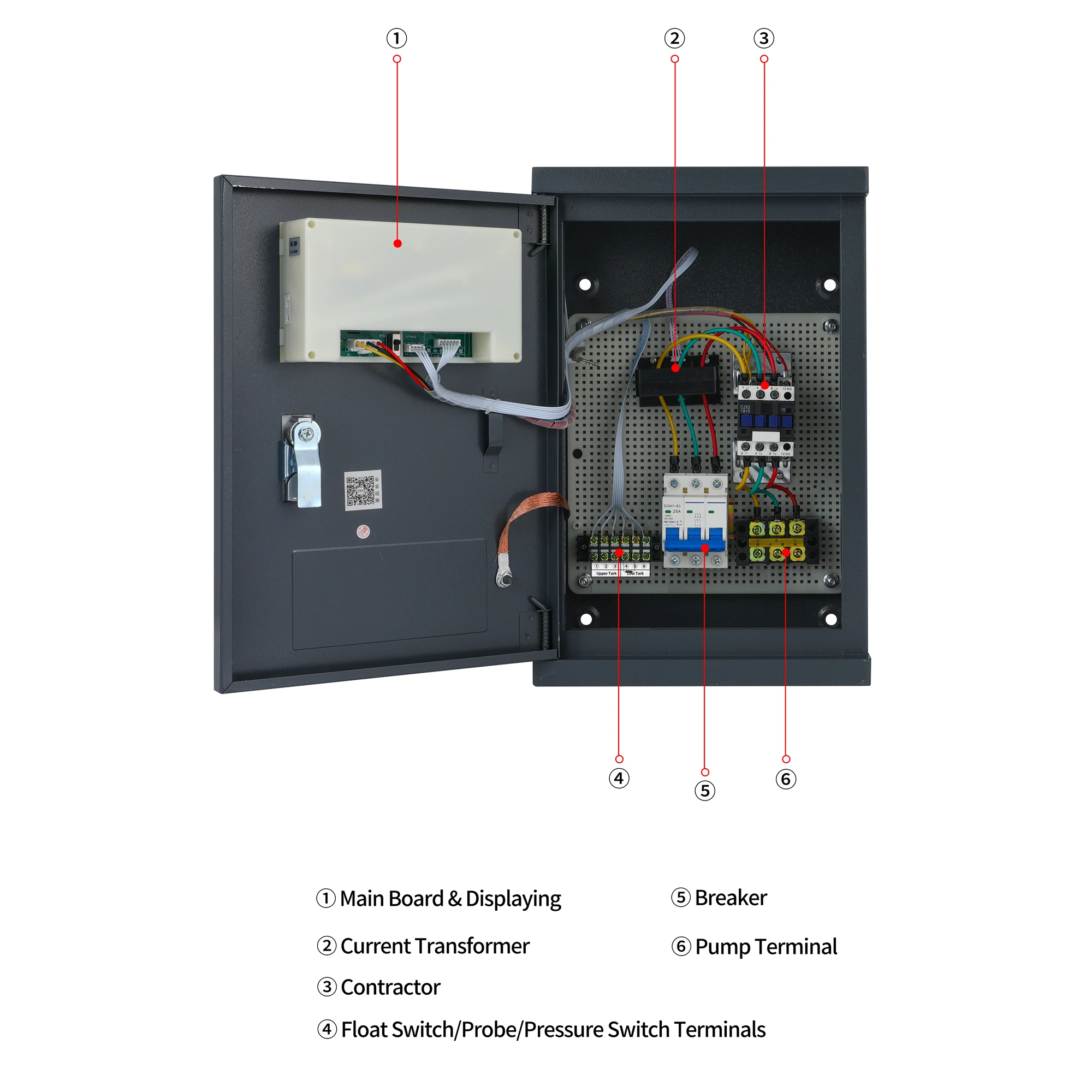

Product Structure Details

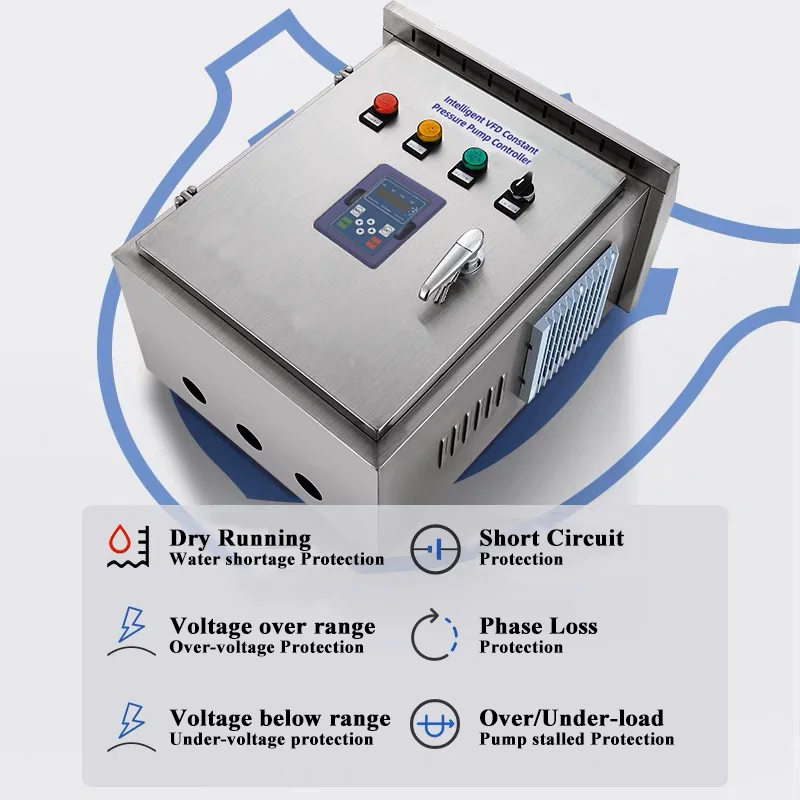

Multiple Protection
2,overload alarm and protection
3, no load alarm and protection
4,water shortage alarm protection 5,over-voltage alarm and protection 6,under-voltage alarm protection 7,pump stalled alarm protection
3, no load alarm and protection
4,water shortage alarm protection 5,over-voltage alarm and protection 6,under-voltage alarm protection 7,pump stalled alarm protection
8,anti-seizing alarm and protection 9,short circuit alarm and protection 10,phase loss alarm and protection
Product Parameters
Type | M1 | ||||||||||
Model | M1-4KW | M1-7.5KW | M1-11KW | M1-15KW | M1-18.5KW | M1-22KW | |||||
Rated Power | 0.75-4KW | 1.1-7.5KW | 1.1-11KW | 2.2-15KW | 3-18.5KW | 4-22KW | |||||

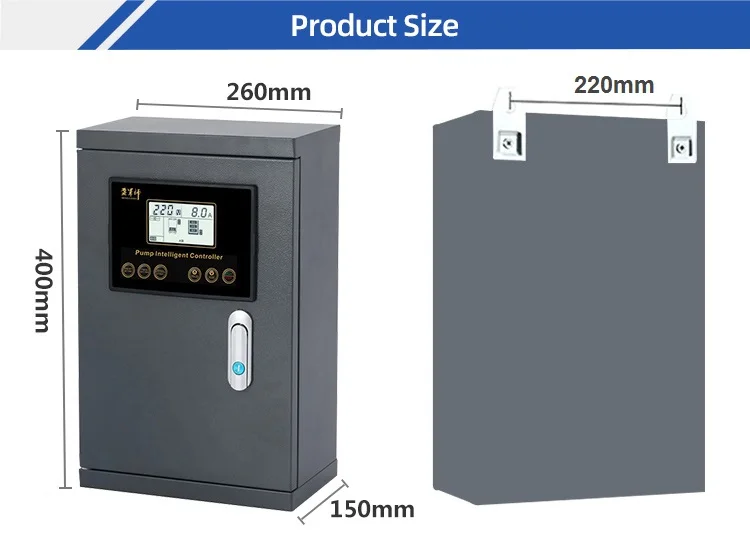

1,Rated voltage:AC380V+10% or AC220V+10% (50Hz-60Hz) 2,Product Size:400x300x190mm 3,Static consumption power:<3W 4,Material: Iron box shell 5,Working temperature:-20ºC-- +80ºC 6,Max. control distance:≤2000m without strong electric and electromagnetic fields 7,Working humidity:20%--90%RH, no drips concreted 8,Qty.of Controlled Pump:Single pump 9,Over-voltage/under-voltage: default AC304V-456V or AC176V-264V (adjustable) 10,Over-voltage/under-voltage trip time: ≤3 seconds 12,Phase loss trip time:<2 seconds 13,IP rating: IP54 | |||||||||||
Main Function | 1,Operation mode: automatic/manual starts and stops 2,Timed start/stop 3,Anti-rust protection, long-term non-use of the pump,15 days to start once for 3 seconds. 4,Setting protection current for motor overload/no-load,no-load delay restart time adjustable. 5,Automatic restart when voltage comes to normal rating after over-voltage/under-voltage protection. 6,Automatic restart after power failure recovery. 7,Automatic re-starting pump from dry running, restart time range 0-720 minutes adjustable. 8,Fault indication:failure record, latest 10 pump failure reasons display, audio/light alarms. 9,Automatic learning of overload and no-load currents | ||||||||||

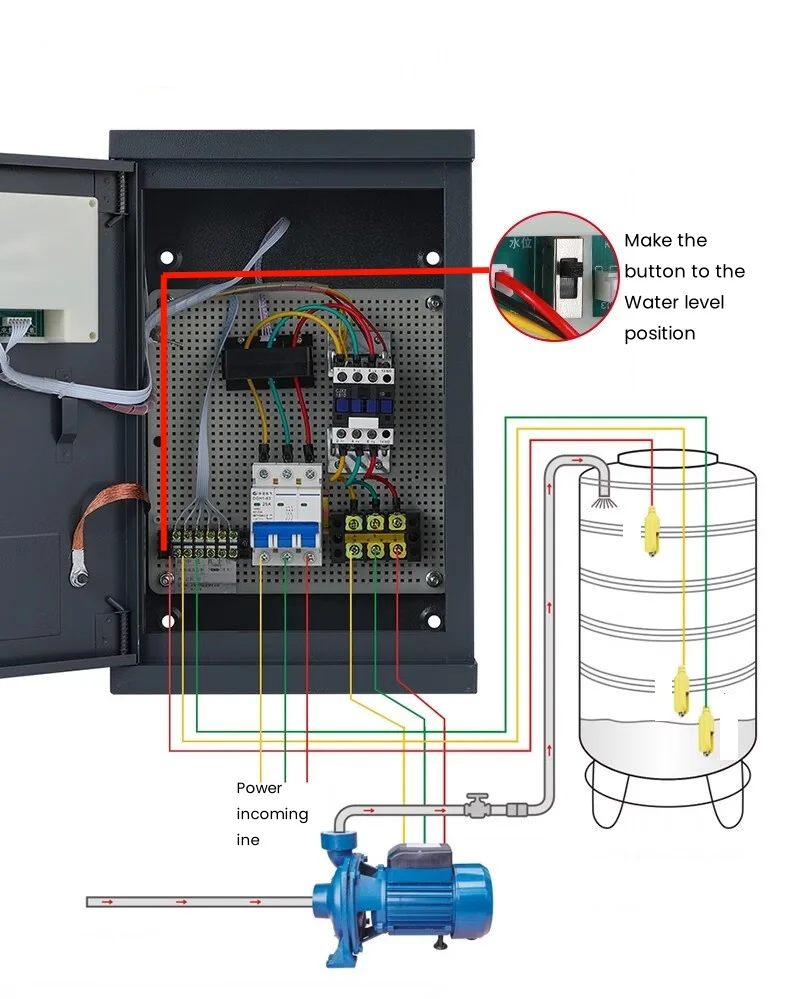

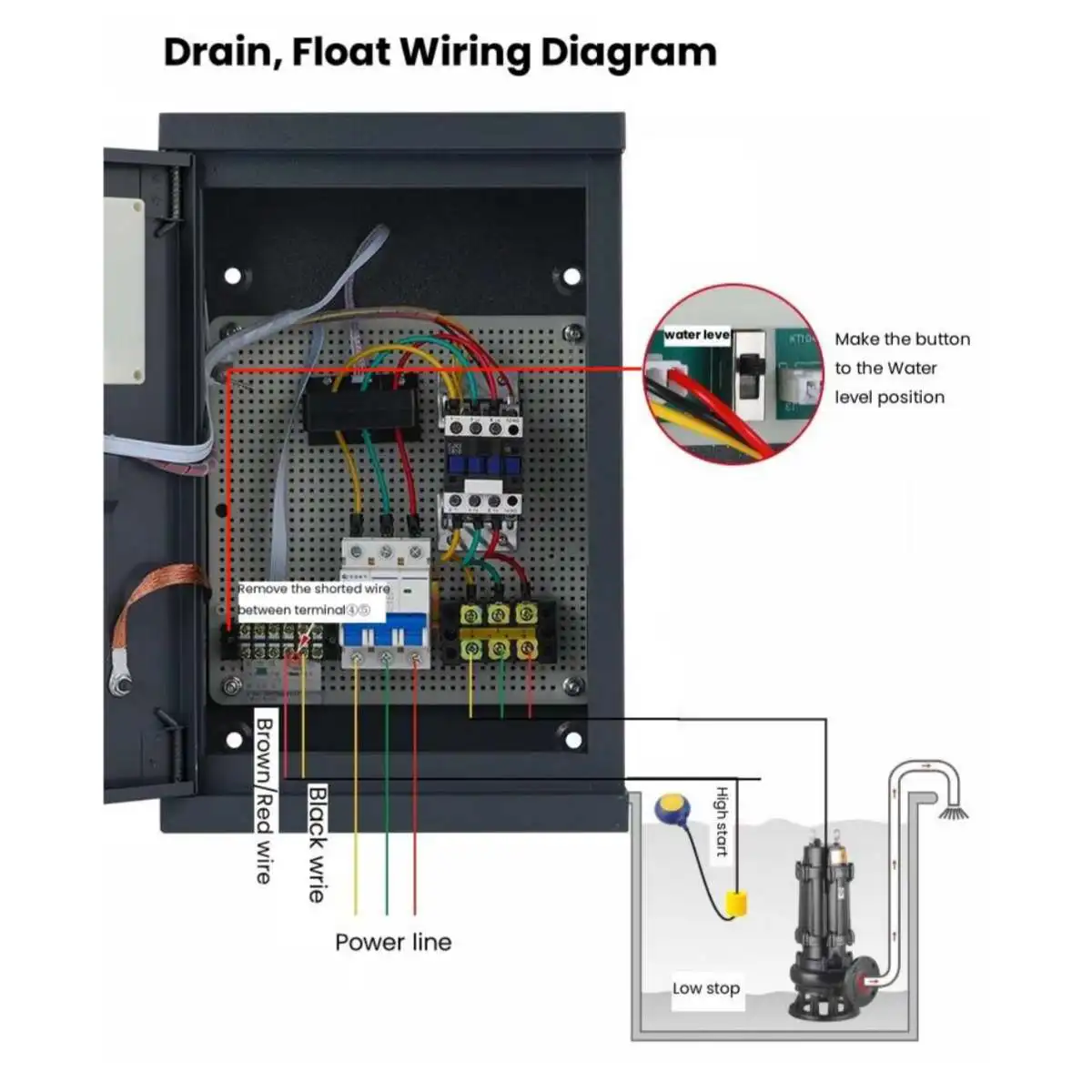

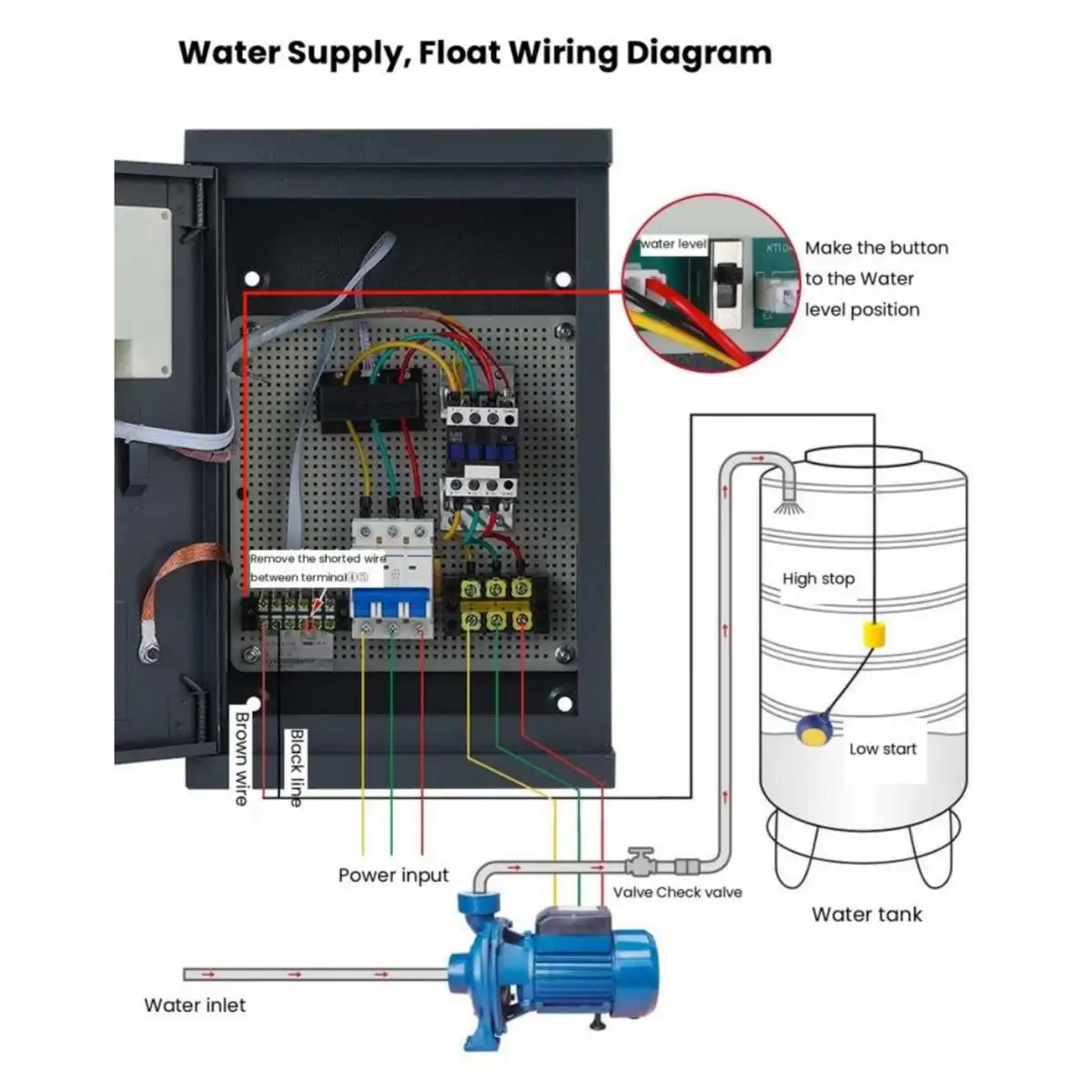

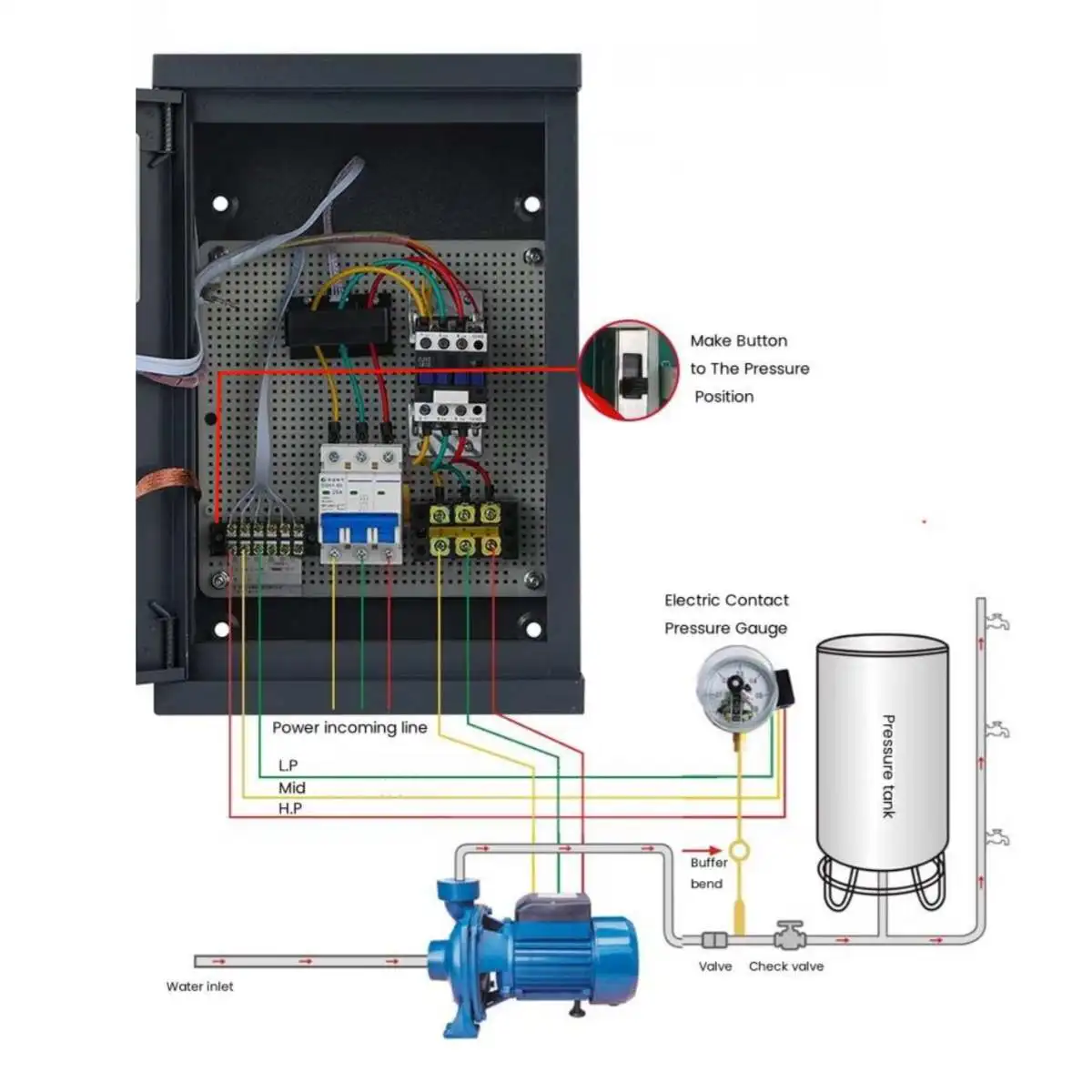

Product Wiring Diagram

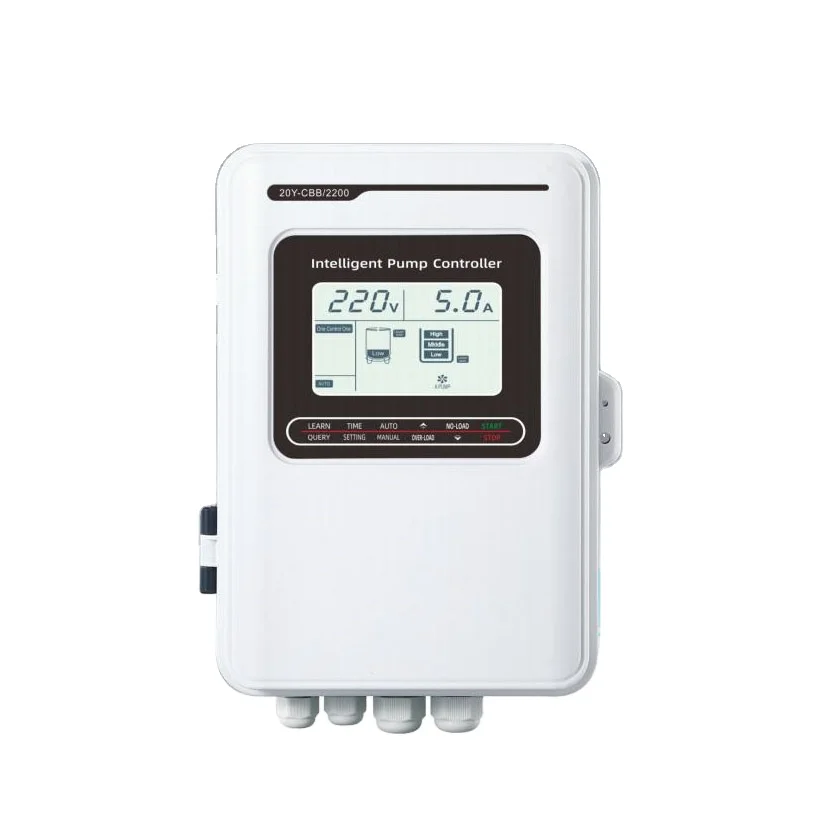

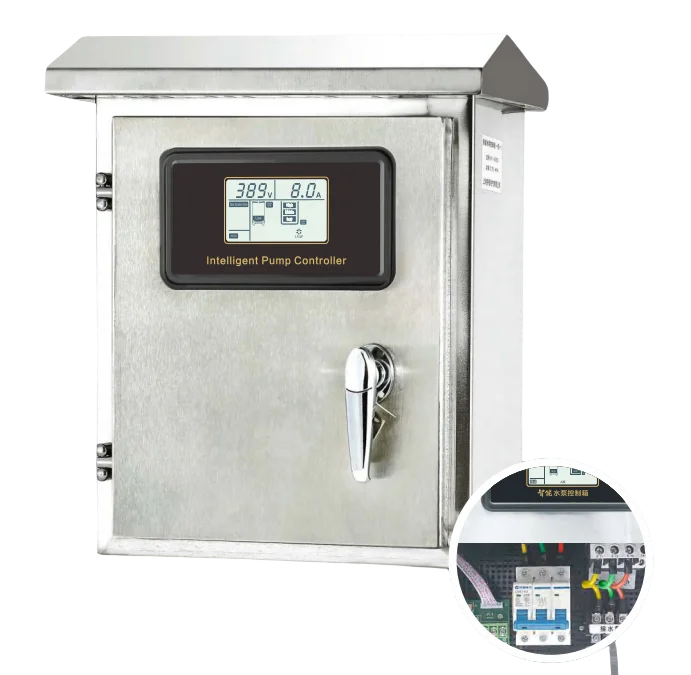

HOT SELLING
Click on the image to see the details

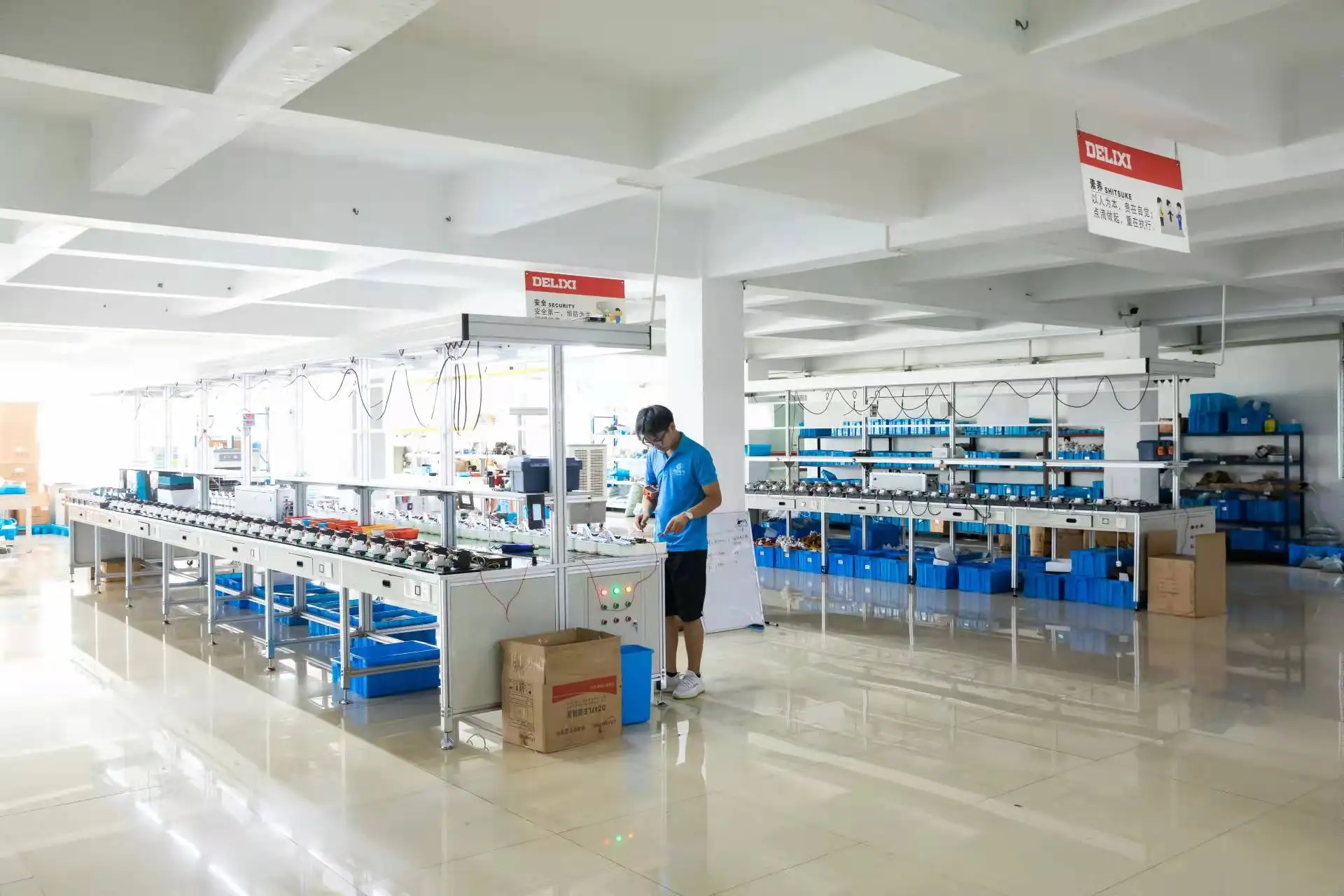

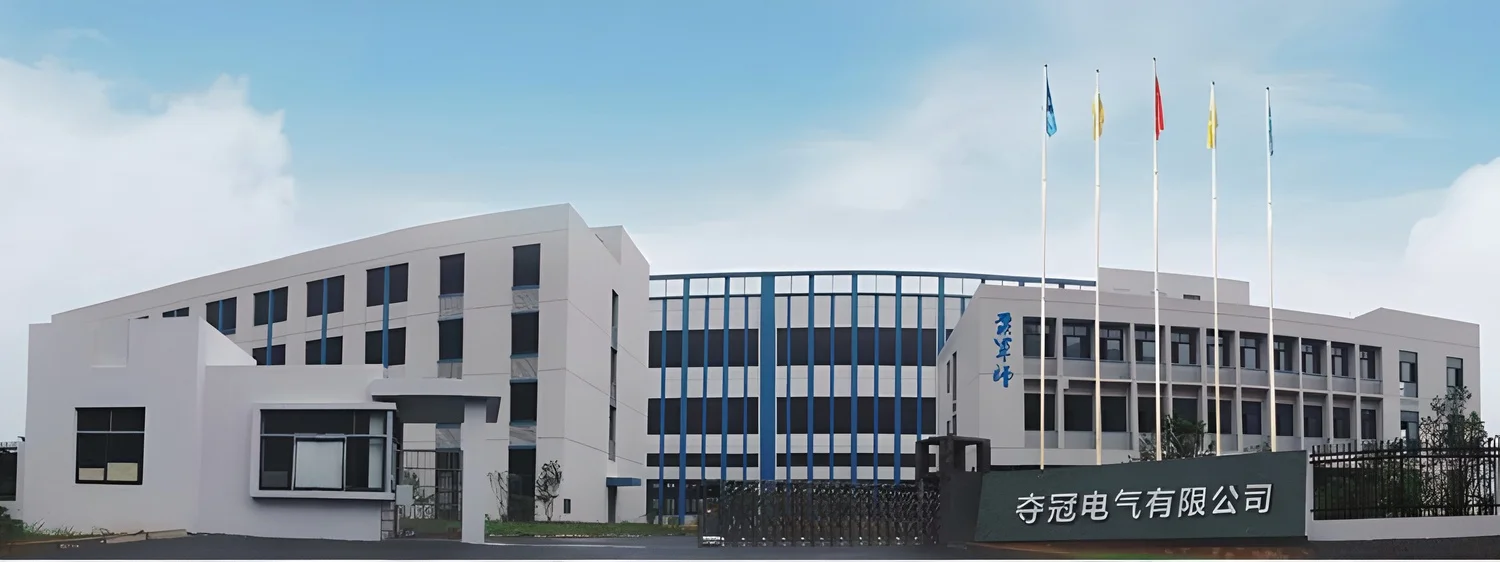

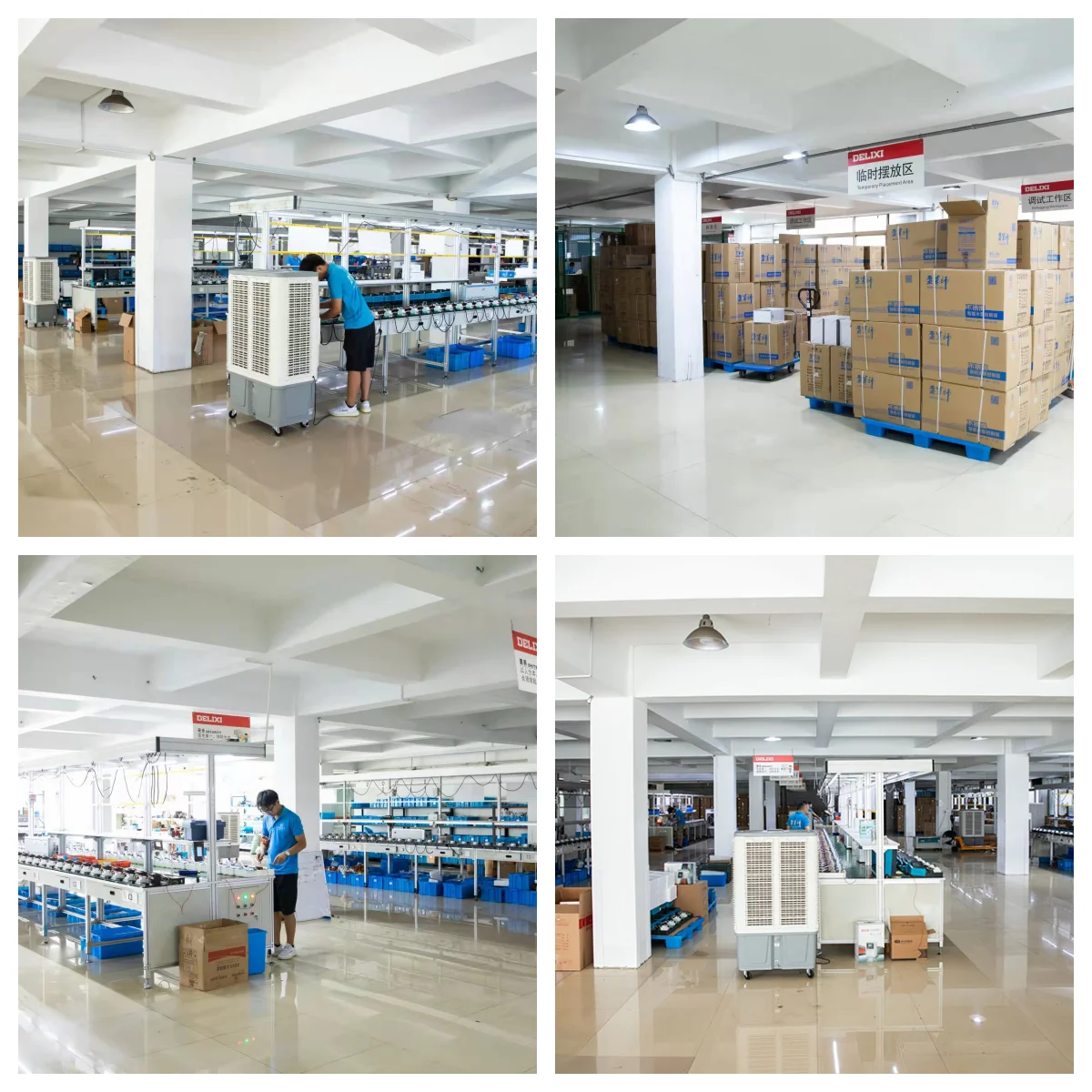

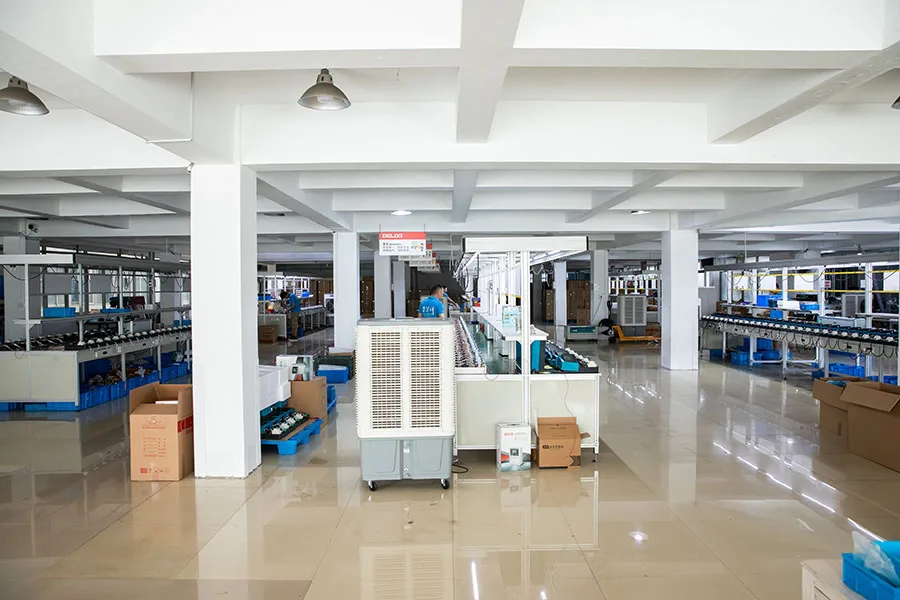

Yueqing Haiyin Electric Co., Ltd.
HAIYIN is the China Main manufacturer of Automatic pump controller .Controller Widely used in municipal water & wastewater,agricultural irrigation,Commercial Buildings and the drainage system .We has made great achievements in Water Pump Controller lines , With Fast delivery (10000pcs/Month), reliable quality and good after-sales service, we win good reputations in
the Middle East ,Asia,Africa,Europe and Americas markets etc.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
the Middle East ,Asia,Africa,Europe and Americas markets etc.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Q:What is your delivery time?
A:For sample order,it takes 1-3 days.Bulky order depends on the quantity.Our monthly ability is 15000pcs,and daily 500pcs.Custom panels depend.
Q:How to match the power between the controller and the pump?
A:The power of controller should be bigger than that of the pump.
Q:What is your warranty?
A:We warrant that panels and equipment will be free from defects in material,workmanship,and title.Each panel is backed by a full 1-year warranty.
Q:How about your quality control?
A: Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load
conditions to exceed our customer's Quality and Functionality requirements.
Q:What are your payment methods acceptable?
A:T/T and L/C
Q:How to match the power between the controller and the pump?
A:The power of controller should be bigger than that of the pump.
Q:What is your warranty?
A:We warrant that panels and equipment will be free from defects in material,workmanship,and title.Each panel is backed by a full 1-year warranty.
Q:How about your quality control?
A: Each panel,whether pre-configured or custom,is 100% factory tested and simulated under load
conditions to exceed our customer's Quality and Functionality requirements.
Q:What are your payment methods acceptable?
A:T/T and L/C
