Ветряная мельница с горизонтальной осью 2 кВт 3 кВт 5000 Вт с 3-фазным синхронным набором ветряной турбины переменного тока
70 096,03 ₽ - 77 656,46 ₽
Заводская индивидуальная Бытовая электрогенераторная система с 1 кВт до 10 горизонтальной и вертикальной осью
- Категория: >>>
- Поставщик: ELEGE NEW ENERGY (ZHANGJIAGANG) CO. LTD
Сохранить в закладки 1601154289324:
Описание и отзывы
Характеристики
Can be customizable 1KW 2KW 3KW 5KW 10KW Horizontal and Vertical Wind Generator Wind Turbine System
Rated power | 1000W | 1000w | 2000w | 3000w | 5000w | 10kw | 20kw | 30kw | |||||||
Maximum power | 1100W | 1500w | 2500w | 3500w | 5500w | 12kw | 22kw | 32kw | |||||||
Rated voltage | 24v-96v | 48v-220v | 120v-380v | 120v-380v | 120v-380v | 300v-380v | 300v-400v | 300v-400v | |||||||
Start wind speed | 2.5m/s | 2.5m/s | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | |||||||
Rated wind speed | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s | |||||||
Rated RPM | 500 | 260 | 300 | 350 | 300 | 200 | 150 | 150 | |||||||
Net weight | 23kg | 170kg | 190kg | 232kg | 350 | 620kg | 1560kg | 1560kg | |||||||
Wheel diameter | 0.6m | 2m | 2m | 2.4m | 4m | 5m | 5m | 5m | |||||||
Blades height | 1.0m | 2.8m | 3.2m | 3.6m | 5m | 6m | 7m | 7m | |||||||
Number of blades | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |||||||
Blades material | Aluminum alloy | ||||||||||||||
Generator type | 3 phase permanent magnet AC synchronous generator | ||||||||||||||
Magnet material | NdFeB | ||||||||||||||
Yaw mode | Electromagnet | ||||||||||||||
Working | -40°C-80°C | ||||||||||||||
Low start-up wind speed, small size, beautiful appearance and low vibration during operation.
Use the humanized flange installation design, which is convenient for installation and maintenance.
Use the humanized flange installation design, which is convenient for installation and maintenance.
The generator adopts the magnet-bearing rotor alternator of Amway technology, equipped with a special rotor design, which effectively reduces the resistance torque of the generator, which is only 1/3 of the ordinary motor, and at the same time makes the wind wheel and generator more powerful. for good matching characteristics.
Low starting wind speed, small size, and beautiful appearance.
•Use humanized flange installation design for easy installation and maintenance:
•The aluminum alloy body and wind turbine blades are made of nylon fiber material, with optimized aerodynamic exterior color design and structural design. The starting wind speed is low, the wind energy utilization coefficient is high, and the annual power generation is increased
•Use humanized flange installation design for easy installation and maintenance:
•The aluminum alloy body and wind turbine blades are made of nylon fiber material, with optimized aerodynamic exterior color design and structural design. The starting wind speed is low, the wind energy utilization coefficient is high, and the annual power generation is increased
Wind Turbine
1. **Dependence on Wind Speed**:
- Due to changes in wind speed, power generation is inconsistent, resulting in unstable home power supply
2. **Simple structure**:
- Relatively simple design and installation compared to more complex systems, which can make them easier and faster to deploy.
3. **Low operating costs**:
- Once installed, wind turbines have lower operating and maintenance costs compared to conventional power plants.

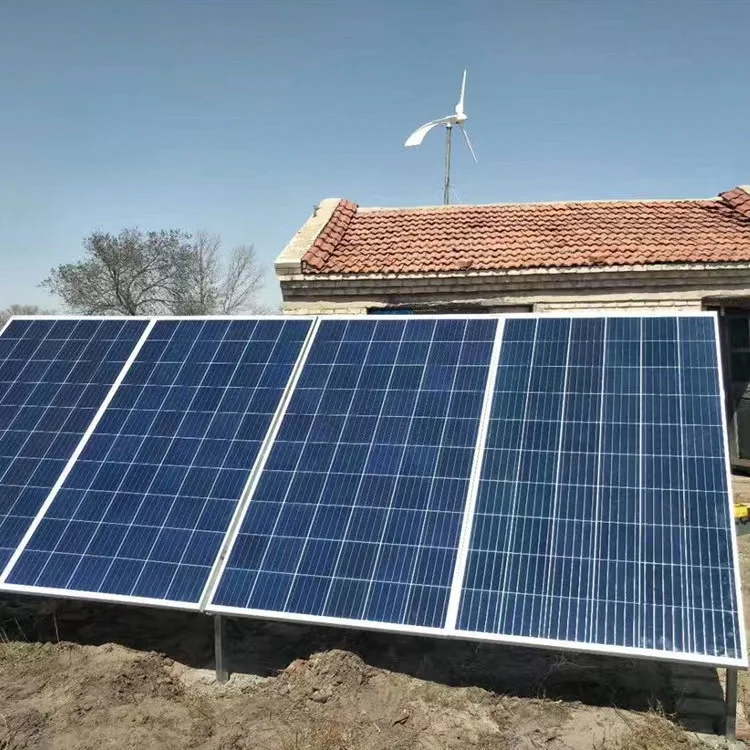

Wind and solar hybrid power generation system
1. **Complementary Energy Sources**:
- Because the availability of wind and sunlight typically occurs at different times, harnessing wind and solar simultaneously can reduce reliance on any single resource, providing a more stable and reliable power supply
2. **Higher initial cost**:
- The additional components required for hybrid systems (such as wind turbines and solar panels, as well as integrated control systems) lead to higher construction costs.
1. **Dependence on Wind Speed**:
- Due to changes in wind speed, power generation is inconsistent, resulting in unstable home power supply
2. **Simple structure**:
- Relatively simple design and installation compared to more complex systems, which can make them easier and faster to deploy.
3. **Low operating costs**:
- Once installed, wind turbines have lower operating and maintenance costs compared to conventional power plants.
Wind and solar hybrid power generation system
1. **Complementary Energy Sources**:
- Because the availability of wind and sunlight typically occurs at different times, harnessing wind and solar simultaneously can reduce reliance on any single resource, providing a more stable and reliable power supply
2. **Higher initial cost**:
- The additional components required for hybrid systems (such as wind turbines and solar panels, as well as integrated control systems) lead to higher construction costs.
• Q: Are you a factory?
A: We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
• Q: Can I get some samples?
A: Yes, sample order is available for quality inspection and market testing, it will be freight collect.
• Q: What is the lead time?
A: It usually takes about 1-3 days to produce samples.
It usually takes about 3-7 days to produce the product.
• Q: What is your payment term?
A: We usually accept PAYPAL, T/T as the main payment method, other payment methods can also be negotiated.
• Q: Quality problem?
A: If there is any quality problem or question, we can provide technical support or return service.
• Q: How can I contact us?
A: Send your inquiry details below, click "Send"! ! ! Free samples and best answers are waiting for you.
A: We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
• Q: Can I get some samples?
A: Yes, sample order is available for quality inspection and market testing, it will be freight collect.
• Q: What is the lead time?
A: It usually takes about 1-3 days to produce samples.
It usually takes about 3-7 days to produce the product.
• Q: What is your payment term?
A: We usually accept PAYPAL, T/T as the main payment method, other payment methods can also be negotiated.
• Q: Quality problem?
A: If there is any quality problem or question, we can provide technical support or return service.
• Q: How can I contact us?
A: Send your inquiry details below, click "Send"! ! ! Free samples and best answers are waiting for you.
