Топ бренд 4 5 м ширина асфальтоукладчика SAP45C-8
120 000,00 $
SHANTUI асфальтобетонный роликовый асфальтоукладчик SRP09 C5 мА дорожный Выравнивающий станок
- Категория: >>>
- Поставщик: Evangel Industrial (Shanghai) Co. Ltd.Evangel Ltd.
Сохранить в закладки 1601154456091:
Описание и отзывы
Характеристики
Contact
Wendy Wang / Sales Manager
Email: wendy@evangelchina.com
Wechat/Mobile: 008619802575976
Whatsapp: 008619821963733
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
Add: 21F Gubei International Fortune Center, No.1438 Hongqiao Road, Changning District, 201103 Shanghai, China
Web: www.evangelchina.com
Wechat/Mobile: 008619802575976
Whatsapp: 008619821963733
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
Add: 21F Gubei International Fortune Center, No.1438 Hongqiao Road, Changning District, 201103 Shanghai, China
Web: www.evangelchina.com
Details Images
Specification
item | value |
Applicable Industries | Construction works , Energy & Mining |
Showroom Location | Thailand, Algeria, Nigeria, Malaysia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2024 |
Warranty of core components | 1 Year |
Core Components | Engine, Gearbox, Motor, Pump |
Condition | New |
Production Capacity | 1000t/h |
Power | 213kw |
Max. Paving Thickness | 500mm |
Place of Origin | China |
Jiangsu | |
Brand Name | top brand |
Dimension(L*W*H) | 7000*9500*3950mm |
Weight | 30000kg |
Warranty | 1 Year |
Engine Brand | top brand |
UNIQUE SELLING POINT | top brand |
Paving speed | 0-25m/min |
Travel speed | 0-3Km/h |
Emission | Eu stage IIIA |
Products Description

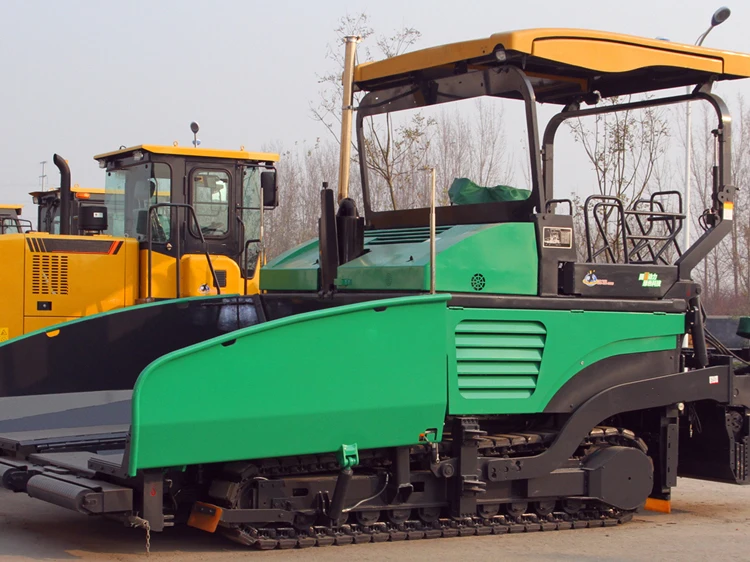

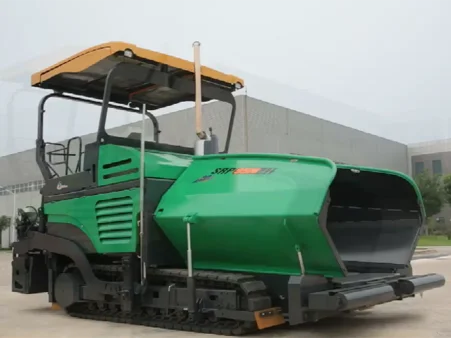

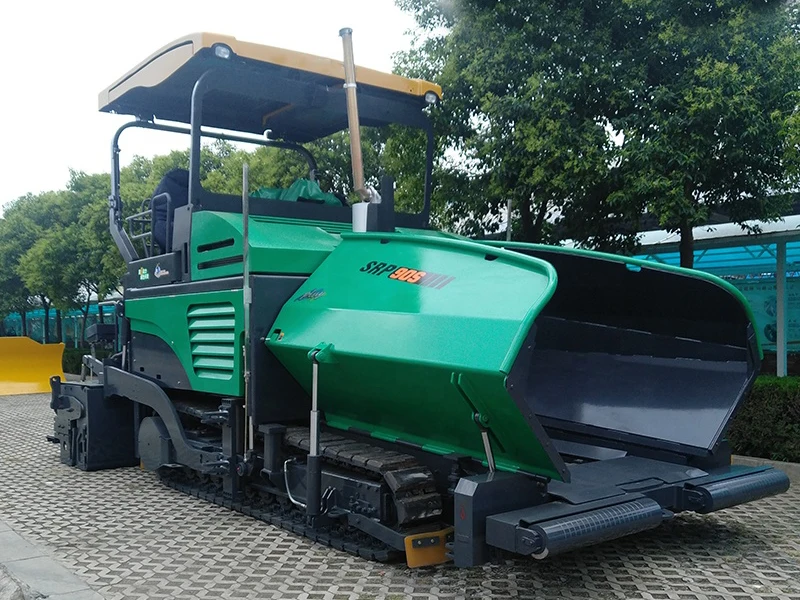

China SHANTUI Brand Asphalt Paver SRP09-C5 MA High Operating Efficiency
Main Features
* Power System
● Such paver is powered by Euro-III diesel engine, featuring low noise and emission, strong power, high reliability and durability, and powerful fuel adaptability.
* Repairs and maintenances
● The integrally openable engine hood and left and right doors make all repair and maintenance points, including all working pumps, control valves, and filter elements, easily accessible.
● The centralized lubrication system supplies lubricating grease automatically to bearings of scraper conveyor and spiral.
* Driving/Riding Environment
● The control console can be laterally slide and vertically adjusted to meet the actual needs of different operators.
● The left and right seats can be rotated to the outer side of machine body and the streamline cab structure provides a good vision.
● The large glass fiber reinforced plastic canopy is easily telescopic in both sides to provide a comfortable driving/riding
environment.
● The canopy and the exhaust tail pipe can be lifted and lowered simultaneously by the manually-operated hydraulic pump to improve the maneuverability and comfort of the operator.
* Feeding device
● The lengthened and widened high-capacity hopper achieves high productivity.
● The spring-cushioned push roller can remarkably reduce the impact of feeder onto the paver and achieve higher operating quality.
* Conveyance/distribution system
● Four sets of independent full-hydraulic left and right material conveyance/distribution systems are adopted and the
ultrasonic sensing control technology is adopted for the material level control to ensure the uniform material supply in
completely proportional manner.
● The large diameter and large pitch spiral distribution structure features power distribution capability, low distribution
speed, and low segregation.
● The left and right spiral distributors can be driven separately and the ground clearance of distributors is steplessly
adjustable to adapt to paving needs of different thicknesses.
● Such paver is powered by Euro-III diesel engine, featuring low noise and emission, strong power, high reliability and durability, and powerful fuel adaptability.
* Repairs and maintenances
● The integrally openable engine hood and left and right doors make all repair and maintenance points, including all working pumps, control valves, and filter elements, easily accessible.
● The centralized lubrication system supplies lubricating grease automatically to bearings of scraper conveyor and spiral.
* Driving/Riding Environment
● The control console can be laterally slide and vertically adjusted to meet the actual needs of different operators.
● The left and right seats can be rotated to the outer side of machine body and the streamline cab structure provides a good vision.
● The large glass fiber reinforced plastic canopy is easily telescopic in both sides to provide a comfortable driving/riding
environment.
● The canopy and the exhaust tail pipe can be lifted and lowered simultaneously by the manually-operated hydraulic pump to improve the maneuverability and comfort of the operator.
* Feeding device
● The lengthened and widened high-capacity hopper achieves high productivity.
● The spring-cushioned push roller can remarkably reduce the impact of feeder onto the paver and achieve higher operating quality.
* Conveyance/distribution system
● Four sets of independent full-hydraulic left and right material conveyance/distribution systems are adopted and the
ultrasonic sensing control technology is adopted for the material level control to ensure the uniform material supply in
completely proportional manner.
● The large diameter and large pitch spiral distribution structure features power distribution capability, low distribution
speed, and low segregation.
● The left and right spiral distributors can be driven separately and the ground clearance of distributors is steplessly
adjustable to adapt to paving needs of different thicknesses.
