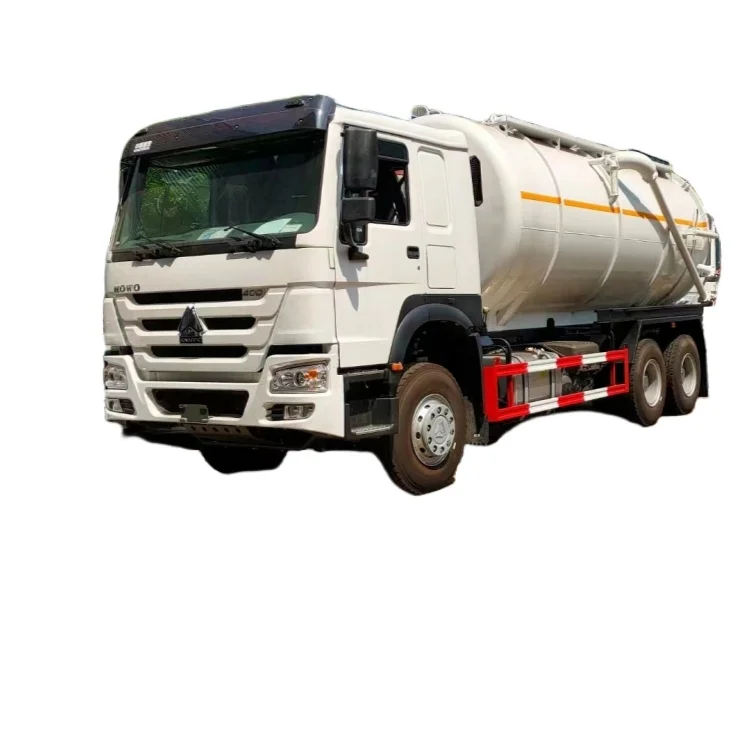

Лидер продаж, грузовик с септическим насосом HOWO 6x4 4800 галлонов, вакуумный резервуар для сточных вод
1 951 846,20 ₽ - 2 168 718,00 ₽
Высококачественная многофункциональная машина для очистки сточных вод и вращающаяся всасывающая труба
- Категория: >>>
- Поставщик: Hubei Churan Special Automobile Co. ltd.
Сохранить в закладки 1601155336798:
Описание и отзывы
Характеристики
Product Description

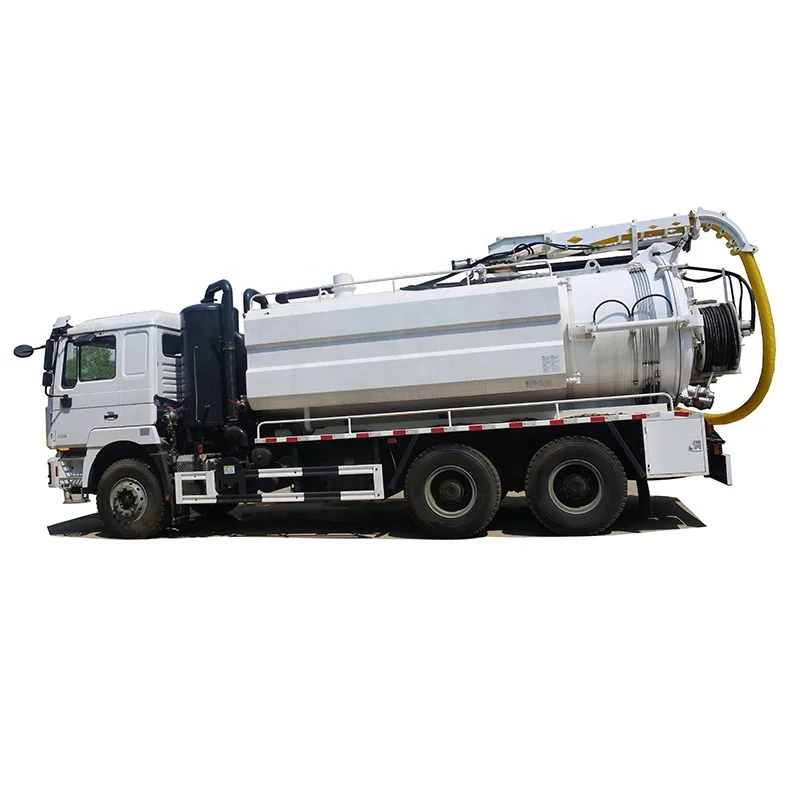

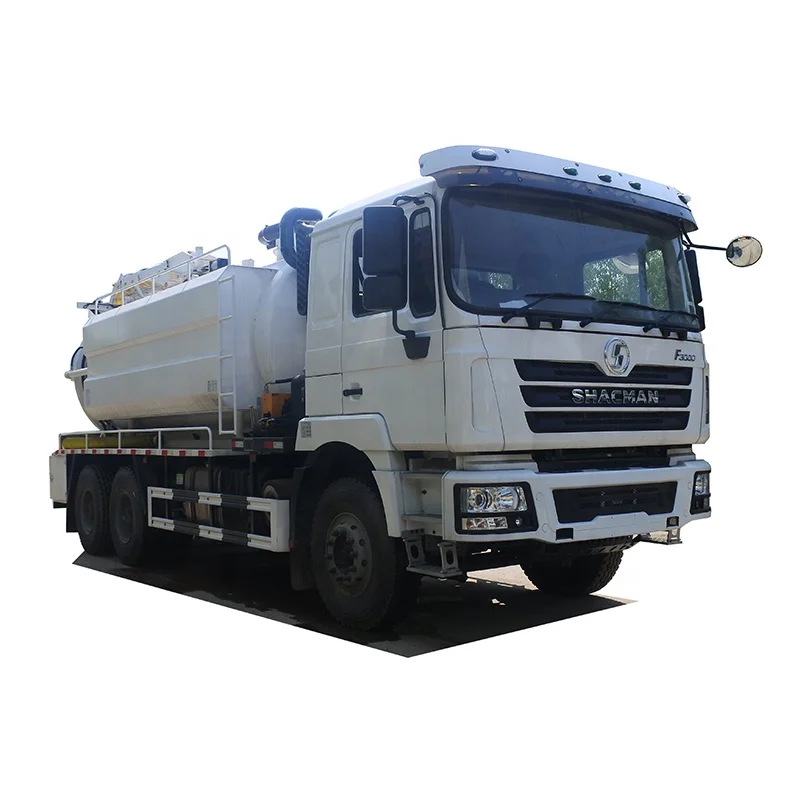

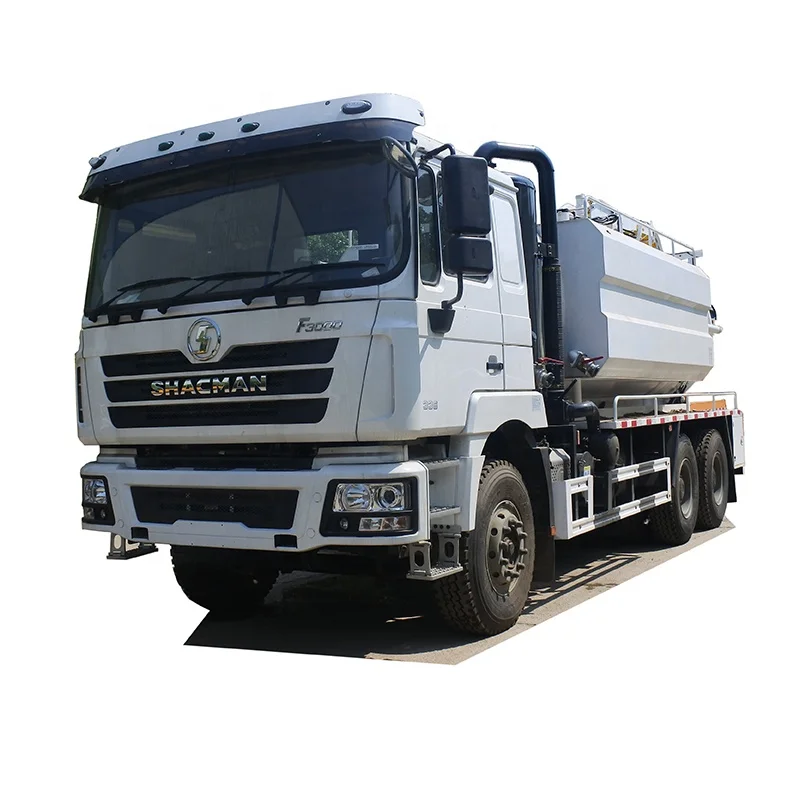

High quality SHACMAN 6X4 RHD Municipal sanitation multi-functional cleaning sewage suction truck and rotating suction pipe
The SHACMAN 6x4 Sewage Vacuum Suction Truck combined jetting tank has the function of sewage suction and water jetting, the vehicle has a huge sewage tank in the middle, and two cuboid water tank are beside the sewage tanker and connected in the bottom. A high quality vacuum pump is installed in the sewage tank and a high-pressure water pump is installed in the water tank.
The volume of sewage tank is 12cbm and the water tanker is 5m3. We also can make the sewage tanker bigger. Please be noted that both two tank cannot be fully loaded at the same time.
The hydraulic system is used to lift the sewage tanker body up , opening and closing the cover of the tank.
The Vacuum sewage cleaning jetting truck is equipped with special equipment such as power take-off, vacuum pump, high-pressure water pump, high-pressure water pipe, hydraulic reel and a rotating boom for Swing the suction pipe.
The vacuum sewage cleaning jetting truck is used to transport industrial waste liquids, polluted urban liquid and construction sludge. It can self-priming and self-discharging.
The volume of sewage tank is 12cbm and the water tanker is 5m3. We also can make the sewage tanker bigger. Please be noted that both two tank cannot be fully loaded at the same time.
The hydraulic system is used to lift the sewage tanker body up , opening and closing the cover of the tank.
The Vacuum sewage cleaning jetting truck is equipped with special equipment such as power take-off, vacuum pump, high-pressure water pump, high-pressure water pipe, hydraulic reel and a rotating boom for Swing the suction pipe.
The vacuum sewage cleaning jetting truck is used to transport industrial waste liquids, polluted urban liquid and construction sludge. It can self-priming and self-discharging.
Specification
Product Name | SHACMAN 18000L vacuum Sewage cleaning jetting truck | ||
Chassis | Chassis Model | SX1259MB4F1C | |
Wheelbase | 4375+1400 | ||
Gross Weight | 25000kgs | ||
Curb Weight | 17450kgs | ||
Engine | Engine Brand | WP10.300E22 | |
Type | Multi cylinder, 4stroke, 4 cylinder water cooled, direct fuel injection, turbo-diesel engine. | ||
Displacement Volume(ml) | 9726L | ||
Net Power(KW) | Min 300 HP at rated RPM | ||
Fuel Type | Diesel | ||
Emission Standard | Eour 3~6 | ||
Clutch System | Model | Single Plate, dry friction | |
Steering System | Power Steering | Left hand driving, RHD is available | |
Transmission System | Manually Operated | 12-speed | |
Brake System | Service Brake | Hydraulic disk brakes | |
Park Brake | Air Brake & Hand Brake | ||
Suspension System(Front & Rear) | Semi-elliptical leaf spring with telessopic shock absorber (both front & rear) | ||
Type | Type Quantity | 10 pcs | |
Type Specification | 315/80R22.5 16PR | ||
Cabin | The cabine of 3 person (including driver), cruise control, ABS, air conditgioning, electric glass, adjustable headlights, USB, etc. | ||
Sewage tanker | Tank Capacity | 12 m3 | |
Tank Material | 6mm high quality carbon steel | ||
Vacuum pump | Italian famous vacuum pump | ||
Vacuum rate | 93% | ||
Suction Head | 8m | ||
Rotation speed | 3300 rpm, | ||
Vacuum pump | Model | PVT400 | |
Max. Pumping volume | 2470m3/min | ||
Suction pressure | 13.5Mpa | ||
Rotate Speed | 970/rpm | ||
Water tanker | Tanker capacity | 5m3 | |
Tanker material | 6mm high quality carbon steel | ||
High-pressure water pump | Type | Plunger type | |
model | PE36 Gemany brand | ||
pressure | 10Mpa | ||
rotating speed | 800r/min | ||
Basic Equipments | Install vacuum pumps ,high-pressure water pump and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 18m flushing water gun. | ||
Optional Equipments | 1.Italy or Spain vacuum pumps 2.Stainless steel tank body | ||
Product Photo
he volume of sewage tanker is 8000L and the water tanker is 4000L.
The vacuum jetting truck installs vacuum pump and high pressure pump.
The sewage tanker can be lifted up by hydraulic system to dump the sewage.

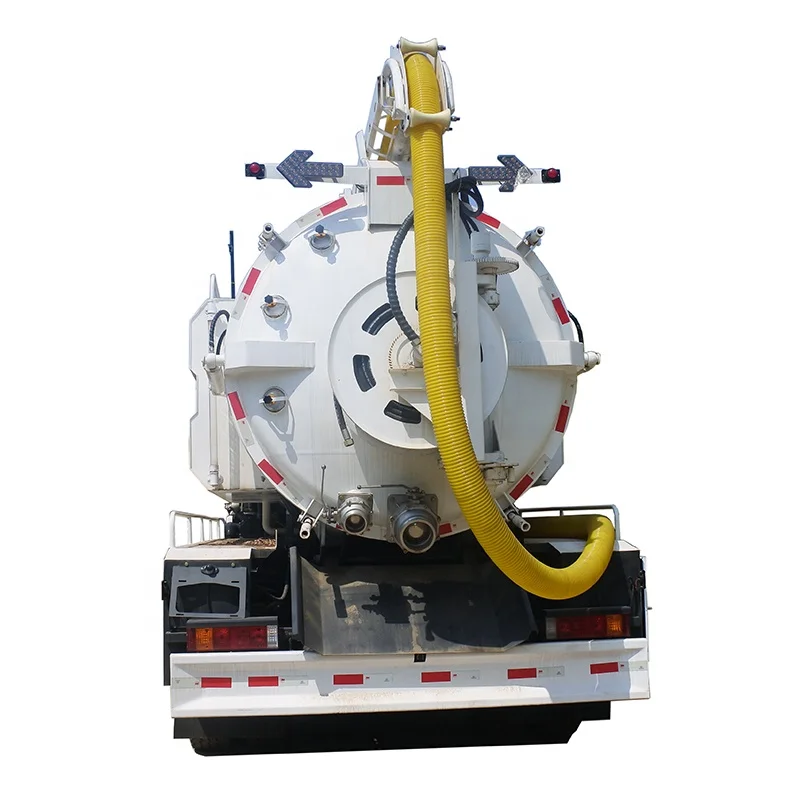

The suction boom can rotate 360 degrees
The suction boom rotation is controlled by remote control.
The reel can be controlled remotely.
Details Images
Company Profile
Churan Special Automobile Co., Ltd, is a manufacturer producing all kinds of special trucks. It’s located in Suizhou city, Hubei Province, experienced engineers with design capabilities, workers with advanced welding technology, excellent management team, quality inspection team, and after-sales team. It has many years of experience in OEM machining. The main production models include heavy-duty tow trucks, flatbed wrecker trucks, fire trucks, refrigerated trucks, compactor garbage truck, sewage suction trucks, cleaning suction trucks, dumper trucks, and other specialized vehicles. Welcome to
visit our factory and looking forward to your cooperation.
visit our factory and looking forward to your cooperation.
Contact
Похожие товары
6000л струйный всасывающий грузовик для сточных вод
1 084 359,00 ₽ - 1 301 230,80 ₽
Лидер продаж, японский двухрядный легкий грузовик с холодной цепью, 6 колес, рефрижератор 4x2
3 144 641,10 ₽

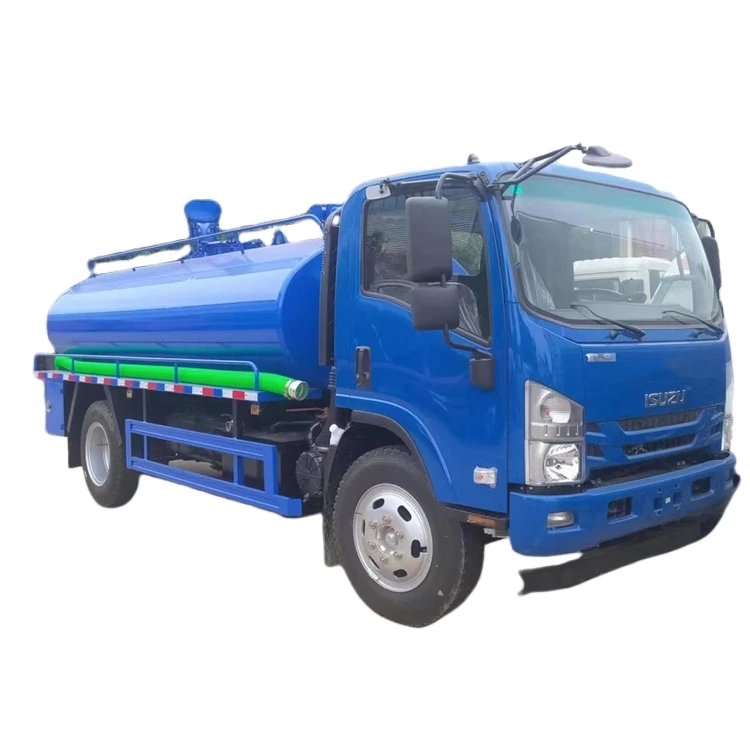

Распродажа сейчас на ISUZU 10 куб. М. 2400 галлон фекалий всасывающий грузовик навоз всасывающий Грузовик септик вакуумный Автоцистерна тележка для всасывания навоза
748 207,71 ₽ - 780 738,48 ₽

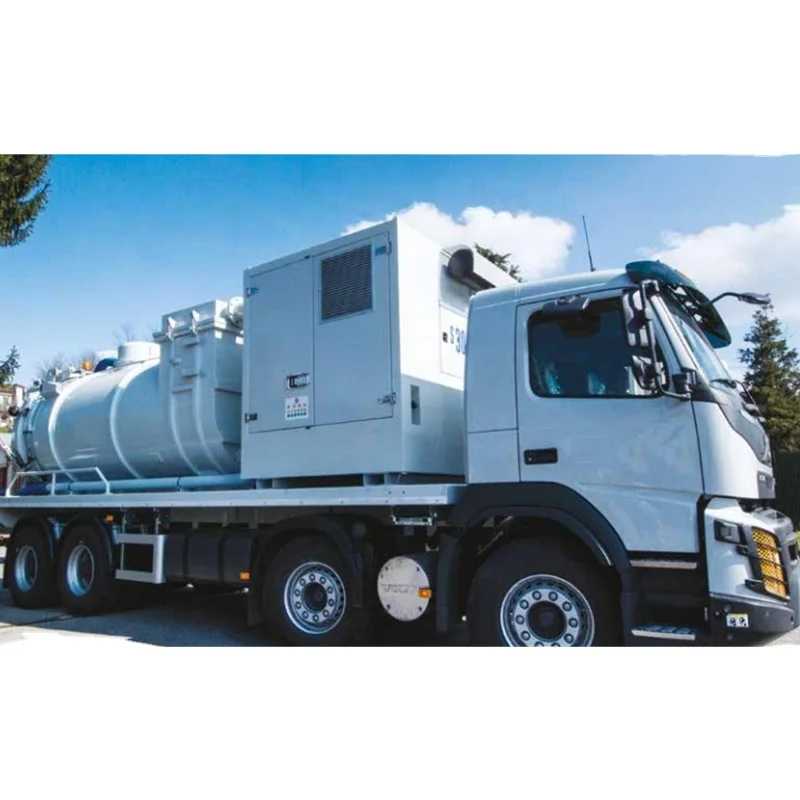

ISUZU HINO 6x6, вакуумная установка вакуумного насоса для вакуумной установки на шасси прицепа
13 012 308,00 ₽ - 13 172 793,14 ₽
Китайский НОВЫЙ 4000 литров, септик, в наличии, левосторонний, 5000л
1 404 244,91 ₽ - 1 504 005,94 ₽

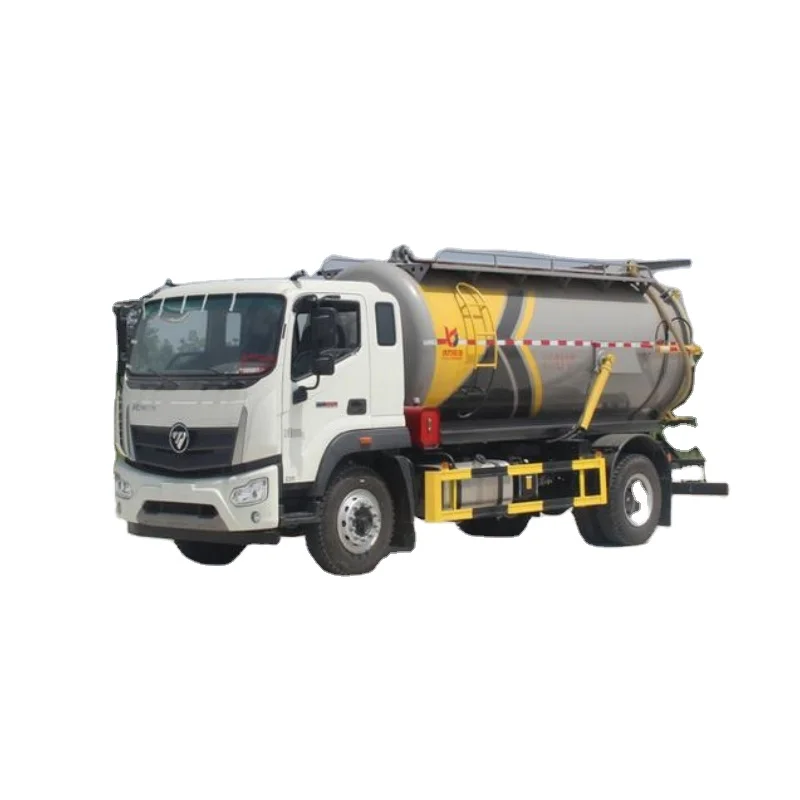

Китайский бренд Foton 10cbm туалетный вакуумный грузовик 4*2 дизельный Евро 3/4/5/6 вакуумный насос для очистки сточных вод для продажи
