Product Overview
Hot Sale Baby Milk Sterilizing Machine Uht Pasteurization
Features:
Introduction Of Sterilizer:

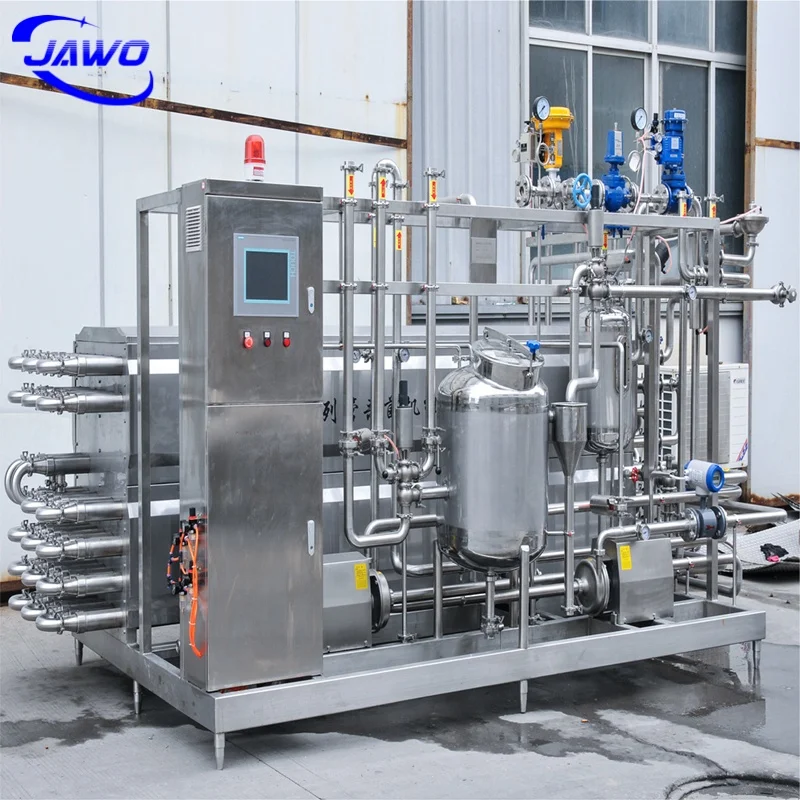

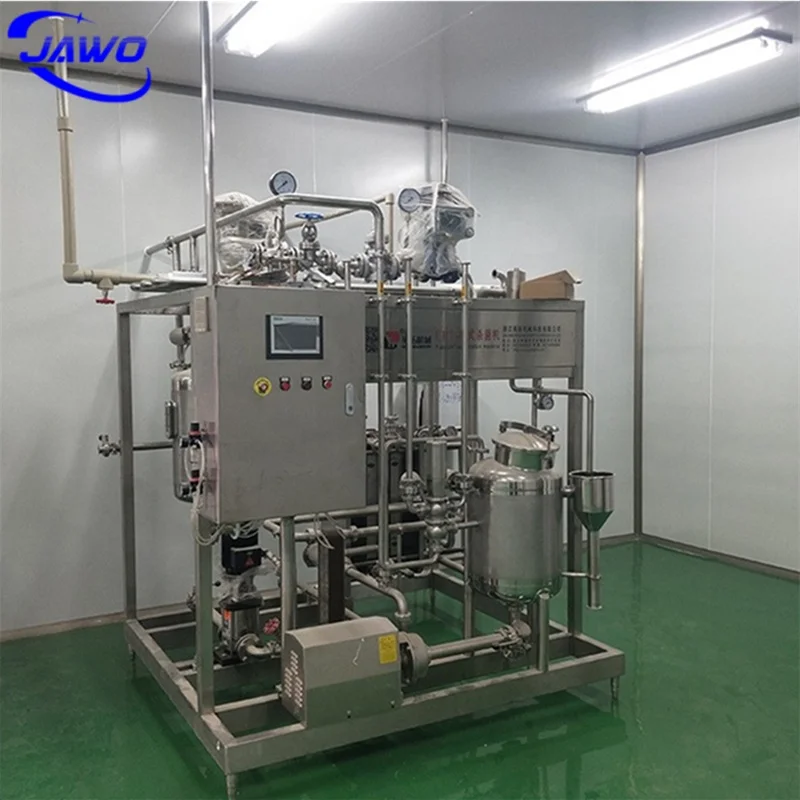

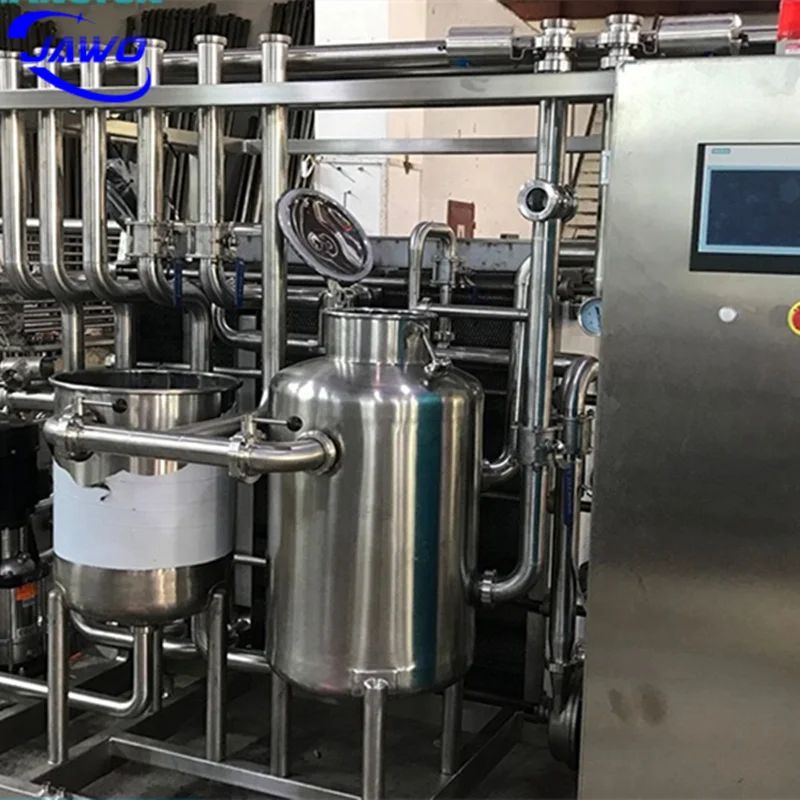

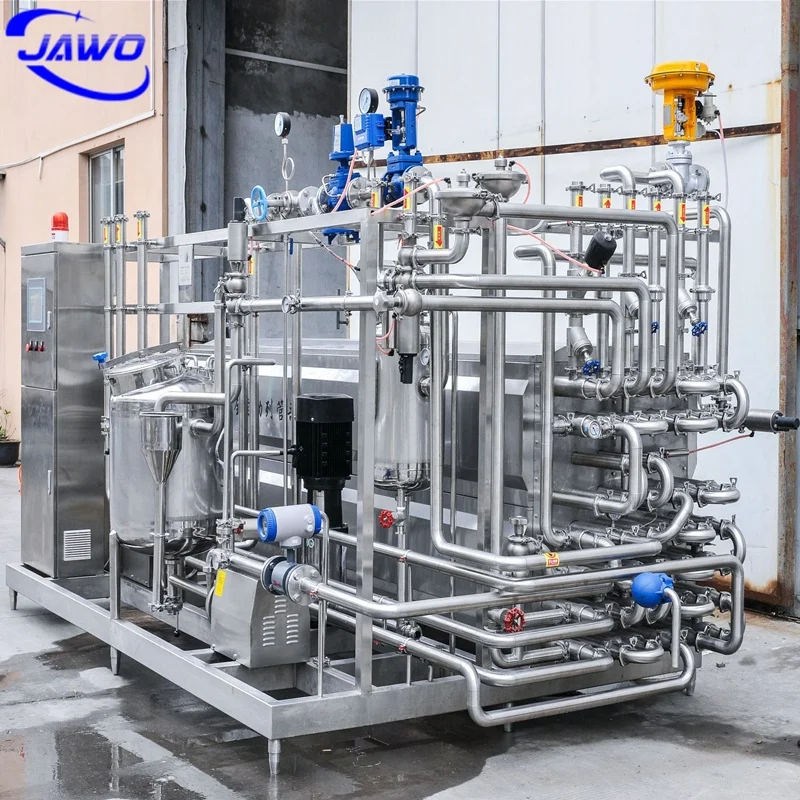

Tubular automatic ultra-high temperature sterilization equipment is professional equipment for an aseptic cold-filling production line. It consists of a plate heat exchanger, tubular heat exchanger, material balance system, material increase system, material cooling system, and steam system. Instantaneous sterilization method, the machine saves energy, the sterilization temperature is constant, the control precision is high, the active ingredient damage is small, and the machine life is long.
Tubular automatic ultra-high temperature sterilization equipment is professional equipment for an aseptic cold-filling production line. It consists of a plate heat exchanger, tubular heat exchanger, material balance system, material increase system, material cooling system, and steam system. Instantaneous sterilization method, the machine saves energy, the sterilization temperature is constant, the control precision is high, the active ingredient damage is small, and the machine life is long.
Core Outstanding Advantages:
1. This machine adopts the latest energy-saving design, the heating, sterilization, and cooling tubes are about 20-50% more than the previous year, the heat exchange area is large, and the steam is saved. Compared with other sterilizers, the heat exchange area is small, and the steam consumption is large. This machine has low steam consumption and high heat recovery. One ton of equipment can save more than 30 kilograms of steam per hour compared to the same period last year, and steam alone can save more than 50,000 yuan a year. According to customer needs, a high-temp condensate recovery device can be added to save energy.
2. This machine has a large heat exchange area, so the sterilization temperature difference is small. Even if it is shut down due to a fault, it will not cause the material to be damaged due to high temperature. Compared with other domestic models, the temperature difference is large. At the same time, the inner wall cannot be cleaned thoroughly.
3. Due to the small temperature difference, the machine can better protect the active ingredients of the material from being damaged. If the temperature difference is large, it is easy to become unstable due to the large temperature difference when heating up, thereby destroying the excellent active ingredients of the material.
4. Due to the small temperature difference of this machine, the pressure of the material is always greater than the pressure of the superheated water. Even if there is leakage, there will be no risk of the superheated water being mixed into the material. Compared with other domestic models, the temperature difference is large, and the pressure of the superheated water is greater than the pressure of the material. , at any time there is a risk that the hot water will be mixed into the material.
5. The machine is designed with sufficient heat exchange margin, the core heat exchange link is matched with a proportional control valve, the heating curve of the machine can easily achieve constant unity, the operating range and frequency of all valves are minimized, and the valve life can be increased by more than three times, and the overall maintenance of the machine The rate & failure rate are greatly reduced, and the maintenance cost is greatly reduced.
6. The heat recovery and cooling after sterilization adopts a large heat exchange area, which is more energy-saving.
1. This machine adopts the latest energy-saving design, the heating, sterilization, and cooling tubes are about 20-50% more than the previous year, the heat exchange area is large, and the steam is saved. Compared with other sterilizers, the heat exchange area is small, and the steam consumption is large. This machine has low steam consumption and high heat recovery. One ton of equipment can save more than 30 kilograms of steam per hour compared to the same period last year, and steam alone can save more than 50,000 yuan a year. According to customer needs, a high-temp condensate recovery device can be added to save energy.
2. This machine has a large heat exchange area, so the sterilization temperature difference is small. Even if it is shut down due to a fault, it will not cause the material to be damaged due to high temperature. Compared with other domestic models, the temperature difference is large. At the same time, the inner wall cannot be cleaned thoroughly.
3. Due to the small temperature difference, the machine can better protect the active ingredients of the material from being damaged. If the temperature difference is large, it is easy to become unstable due to the large temperature difference when heating up, thereby destroying the excellent active ingredients of the material.
4. Due to the small temperature difference of this machine, the pressure of the material is always greater than the pressure of the superheated water. Even if there is leakage, there will be no risk of the superheated water being mixed into the material. Compared with other domestic models, the temperature difference is large, and the pressure of the superheated water is greater than the pressure of the material. , at any time there is a risk that the hot water will be mixed into the material.
5. The machine is designed with sufficient heat exchange margin, the core heat exchange link is matched with a proportional control valve, the heating curve of the machine can easily achieve constant unity, the operating range and frequency of all valves are minimized, and the valve life can be increased by more than three times, and the overall maintenance of the machine The rate & failure rate are greatly reduced, and the maintenance cost is greatly reduced.
6. The heat recovery and cooling after sterilization adopts a large heat exchange area, which is more energy-saving.
Product Paramenters
modle | JW-UHT-1 | JW-UHT-2 | JW-UHT-3 | JW-UHT-4 |
Production capacity(L/H) | 1000 | 2000 | 3000 | 4000 |
Inlet temperature | 5°C | 5°C | 5°C | 5°C |
Holding time(s) | 4-15s | 4-15s | 4-15s | 4-15s |
Sterilize temperature | 105~143°C | 105~143°C | 105~143°C | 105~143°C |
Product outlet temperature | 20 | 20 | 20 | 20 |
Icewater inlet temperature | ≤2°C | ≤2°C | ≤2°C | ≤2°C |
Steam pressure | 0.5MPa | 0.5MPa | 0.5MPa | 0.5 MPa |
Steam consumption | ~150Kg/h | ~210Kg/h | ~280Kg/H | ~350Kg/h |
Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption | 50L/H | 50L/H | 60L/H | 60L/H |
External dimension | 3500×2000×2500 | 3500×2000×2500 | 4500×2500×2200 | 5000×2000×2200 |
(homogenizer excluded) | ||||
Total weight of machine | 1700kg | 2000Kg | 2200 Kg | 2500Kg |
Details Images
Product packaging
Related Products
Company Profile
Introduction
1.Zhengzhou Jawo Machinery Co., Ltd is very professional in Manufacturing and exporting machines, and we established our factory since 1998, so, we are the senior leader already in China in machinery line.
2. And we start to trade since 2018. In order to let more clients enjoy good machines and service, we join in Alibaba 2021.
3.We are factory, so, our advantages are supplying common machines in short delivery time and customizing machines according to client's require. We have our own excellent quality control department and well-trained skilled workers, all machines will be tested well before delivery,we will send machine pictures and videos before delivery.
4.We are gold member of Alibaba.Our machines have been exported to more than 100 countries, including countries in EU. Most machines have been passed through the CE certification, and we can accept any type of Inspection before shipment. We look forward to a Double-win cooperation with you.
