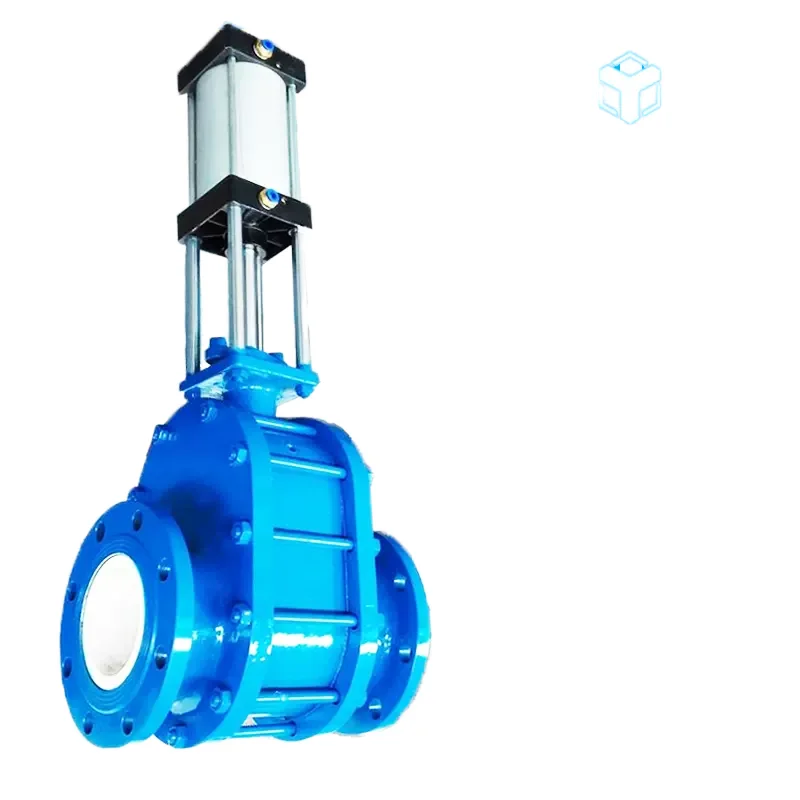

4 дюймовый пневматический керамический двойной запорный клапан Z644TC 10 подачи золы

Сохранить в закладки 1601156185768:


Цена:18 625,22 ₽ - 31 850,23 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Overview


Brief
Ceramic double gate valve, also known as ceramic parallel double gate valve or dry ash valve, is a kind of ceramic gate valve. Therefore, its structure and working principle are consistent with the ceramic gate valve, and its opening and closing body (valve plate) is driven by the valve stem to the sealing surface of the valve seat for lifting movement, which can be connected or cut off the fluid channel.
Ceramic double gate valve is mainly used for dry powder material inlet, discharging and conveying pipeline, as a cut-off and connecting medium channel, as a warehouse pump discharge valve, balance valve, exhaust valve, blockage valve, can also be used as a pipeline switching valve and ash warehouse discharge valve, with good sealing performance, small starting load, less ash and ash accumulation phenomenon, wear resistance, long service life characteristics.




Product features:
1. The design concept of the valve has the incomparable characteristics of ordinary valves. As a fluid control system, the valve sealing surface damage and leakage caused by debris can be effectively solved for a long time.

2. The valve adopts a spring self-sealing structure and a special sealing surface, so that the sealing pair is always consistent at any position, can completely scrape the residual dirt (such as sediment, welding slag and other attachments), the sealing surface is not damaged, because the sealing surface is surfacing with high hardness corrosion resistant alloy material, After being used by many manufacturers, it is proved that the structure can not only scrape all kinds of dirt on the sealing surface, but also cut off the stainless steel welding rod of Phi 5mm, and the sealing surface is not damaged at all, and it works normally.

3. Because the self-sealing structure of the spring in the valve can automatically compensate for the normal wear of the sealing surface, on the one hand, due to the strong leakage rate of the seal, on the other hand, the working life of the valve is greatly improved, and the cost is saved for the enterprise.

4. The valve adopts a wedge roller type switch mechanism, which can switch the valve easily and make up the early warning device of a small amount of leakage on the sealing surface. If there is a small leak in the valve, as long as the handwheel is closed, the valve can be kept without leakage, and ordinary valves do not have this skill.

5. Due to the use of special switching mechanism, to prevent the ordinary gate due to large temperature changes, the gate plate stuck, and can not open the phenomenon.

6. The valve has an automatic blow-down system at the bottom to keep the body cavity clean and residue free at all times.

Seven. A dust-proof mechanism is provided in the valve body to ensure that there will be no dirt immersed in the valve cavity, and the internal mechanism will fail


PRODUCT SPECIFICATIONS


product name
Pneumatic double disc knife gate valve
Applicable temperature
- 10-350 ℃
Connection mode
Francois
Suitable medium
material, dust, slag discharge
Body material
Cast steel stainless steel
Nominal pressure
0~1.6MPA




Principle of action:
The working principle of ceramic parallel double gate valve: with the external power provided by the cylinder or hand wheel, the valve stem drives the valve plate to move up and down to realize the valve opening and closing. During the valve opening and closing process, the valve plate and the seat are closely connected to achieve sealing. Among them, the working principle of the pneumatic ceramic double gate valve is: when the air source enters from the upper air port, the valve stem drives the valve plate to move downward, and the valve is closed. When the air source enters through the lower air inlet, the valve stem drives the valve plate to move upward and the valve opens. The spring is loaded between the valve plate and the seat, and the spring spring always makes the valve plate pressure to the seat to ensure the sealing of the valve, and allows the valve plate to move in the vertical up and down direction, which helps to compensate the thermal expansion of the valve parts, and can overcome the impact of any change in back pressure on the seal and prevent the particle medium from entering between the two sealing surfaces. In the process of opening and closing, the valve plate can produce rotation, causing grinding and polishing between the sealing surface, and because the valve body is eccentric to the channel, eddy currents will be generated when the material is opened and discharged, and the formed material vortex will clean the valve cavity by itself. All these characteristics make this valve have a very long service life.

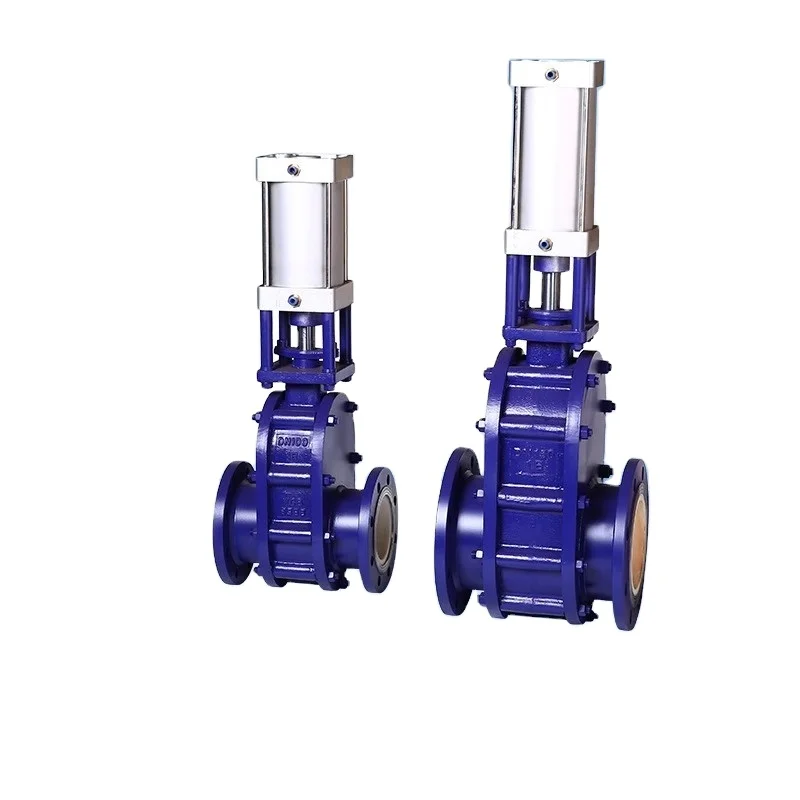

Physical display












Dear customer:
Our product quality assurance, if you still have questions after reading the product introduction, welcome to consult us at any time, we will respond with the fastest speed!


SALES AND SERVICE NETWORK






BREF INTRODUCTION
Shandong Ding Liang Group consists of five branches:Shandong Ding Llang Casting Co,Ltd,Shandong Ding Liang Biotechnology Co,Ltd.,Shandong Ding Liang Real Estate Co.,Ltd.,Weifang Jinlihui Standard Products Co.,Ltd.,Weifang
Mingkun Rubber Products Co.,Ltd.
Shandong Ding Liang Casting Co.,Ltd,formerly known as Welfang Ding Liang Trade Co.,Ltd.,is large-scale private enterprises including research and development,processing and sales.Our company located in the beautiful Kite Capital of the wortd—Welfang city.
Our company was established in 2008,coving 150,000 square meters,construction area nearly 100,000 square meters. Our company has an annual production capability of 200,000 tons,more than 800 employees (including 100 technicians-1 doctor,3 masters,and 8 senior engineers).Our company is adjacent to Weijtao road and only 10 kilometers to Wel Lai high way and Qing Yin high way.The transportation is very convenient.
Our company is one of the largest grooved fitings manufacturers in China even in Asia.Grooved fittings are used in fire-fighting,water supply and drainage system,electric power,petroleum and chemical industry.Our company owns modern technological advanced mould R&D center,large-scale casting and painting workshops.To ensure the quality of products,the company introduced the German spectrometer,advanced carbon and silicon analyzer,metallographic analyzer,gasket ring testing equipment,casting sand testing equipment,foundry iron composition analysis equipment,working pressure testing equipment,providing fast and accurate ways of detection for the large-scale production.The company owns 8 advanced casting production lines and one world advanced open type production line for producing grooved fittings.
The company has got ISO9001 certification,China Compulsory Certification,FM,UL and ULC quality system certification.Our company has developed more than 3000 kinds of products.The company Introduced three sets of shot-biasting cleaning equipment,more than 200 sets of advanced automated CNC machines,6 advanced product's surface treatment lines and large stereoscopic storage facilities.The sales
