REOO визуальное позиционирование PLC направляющий манипулятор точно разбирать тестовый комплект разряжной машины для автоматической линии
42 500,00 $ - 42 800,00 $
Высококачественная солнечная панель PVSolar линейное оборудование автоматическая PV блок производства рамы Лучшая цена
- Категория: >>>
- Поставщик: Zhonghao (wuxi) International Trade Co. Ltd.
Сохранить в закладки 1601157184725:
Описание и отзывы
Характеристики
Product Overview
Solar Panel Automatic Turnkey Line Solution
Zhonghao professional R&D team can customize personalizede Semi-automatic or fully automatic production lines based on different customer needs,including factory layout,equipment deployment and production line planning,to improve the automation level of the solar panel production,increase production efficiency,and reduce the manpower.
Details Images
PRODUCT SPECIFICATIONS
No. | Equipment name | Description |
1 | Solar Cell sorting machine | 1. Capacity: 720pcs/h; 2. Applicable cell type: 4BB~6BB MBB,max cell size: 210mm*210mm, 3. Breakage ratio: ≤0.1% Grade A solar cell 4. Solar cell thickness: 140-300μm 5. Solar Simulator light level:A+A+A+ 6. Spectral range: 300-1200nm 7. Flash time: 10-150ms 8. The range of irradiance: 200-1200W/m² |
2 | Automatic solder strip cutter | 1. Usage: Solder strip cutting 2. Cutting precision: ±0.1mm 3. Cutting Length: 20-999mm 4. Cutting Efficiency: 6-8km/H 5. Max cutting width:8mm 6. Power: 180W |
3 | Solar cell stringer | 1. Applicable Cells: 26~156x156mm 26~166x166mm, 30~182x182mm 30~210x210mm Cell thickness: not less than 160μm 2. Applicable Solder strip: thickness: 120μm~250μm Width: 0.6~2.0mm (0.6~0.9 for 9bb cells~10bb cells, 1.0mm for 6bb cells, 1.2mm for 5bb cells) 3.String parameter : Max length of the string: 2000mm (Negotiable) Cell interval: 1.0-5.0mm ±0.2mm adjustable Bus bar number: 5bb, 6bb, 9bb, 10bb,12bb 4. Soldering speed: 1800pcs/h |
4 | Automatic EVA/TPT cutting machine | 1. Feeding speed:70m/min 2. Cutting length: 1mm-100m 3. Cutting Width: 0.1mm-1400mm 4. Precision: 0.1mm |
5 | Solar module defector tester (EL) | It's used for defect inspection of crystalline silicon, which can mark the artificial defects 1. Max module dimension:2400*1400mm 2. Production Capacity: 5s/pc 3. Camera resolution: 2400W 4. The camera type: COMS 5. Exposure time: 1~30s(Adjustable) |
6 | Automatic solar module laminator | 1. Annual Capacity: 550w/pc*1pc/times*3.3times/h*22h/day*330days≈13MW/year x 4set≈50MW/year. 2. Effective dimension: 2600*1500 3.Power:13.5KW 4. Voltage: 380V, three phase, five wire 5. Heating method: Electric heating |
7 | IV tester | Measurable parameters: I-V curve, short circuit current, open circuit voltage, peak power, peak power point voltage, current, constant voltage point current, fill factor, conversion efficiency, series resistance, parallel resistance 1. Max. Illuminated Area: 2400mm×1400mm 2. Production Capacity: 6s/Pcs (Typical value) |
SALES AND SERVICE NETWORK

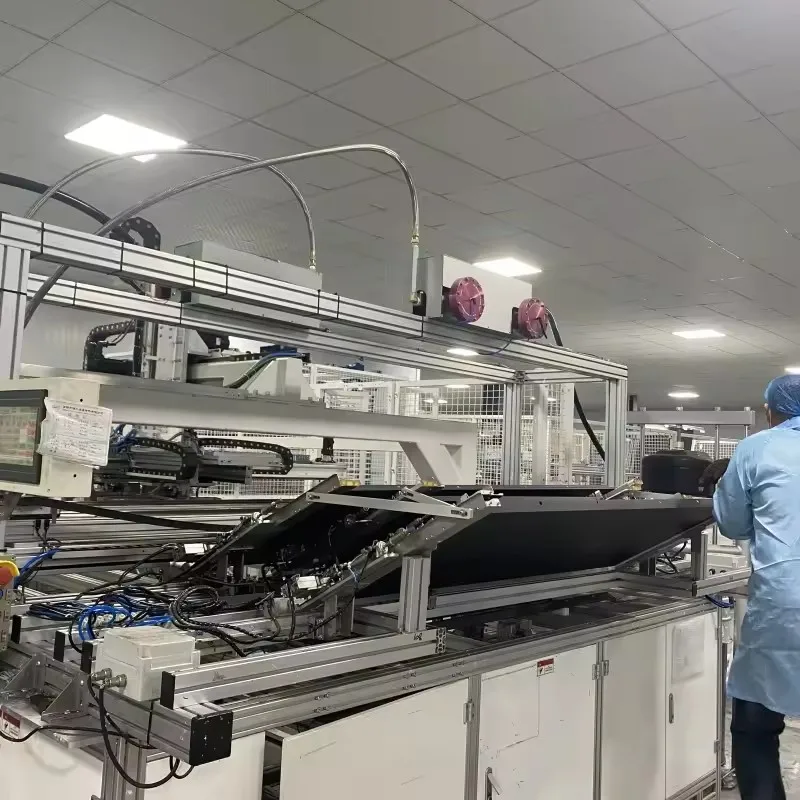

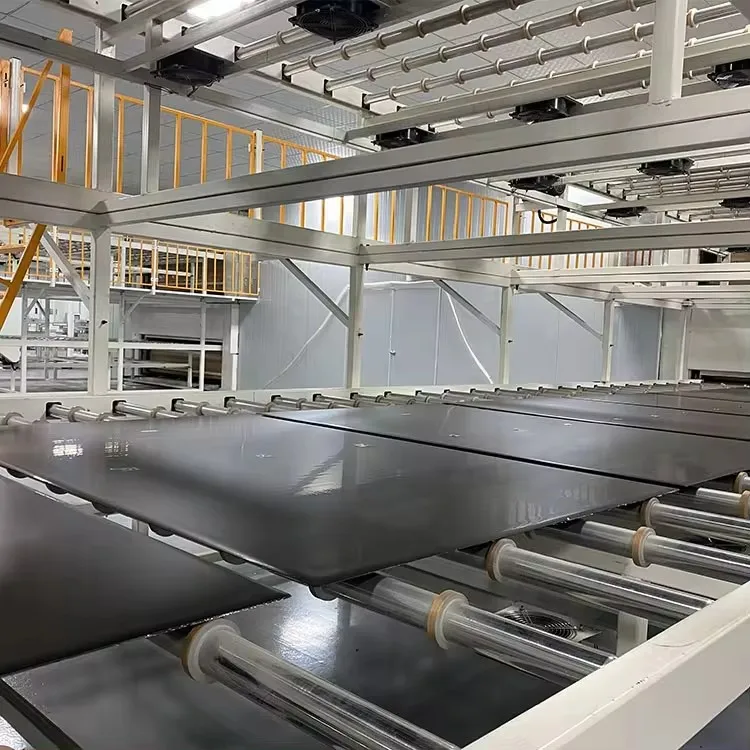

Successful Project
Project in Thailand
Project in China
Project in Vitnan

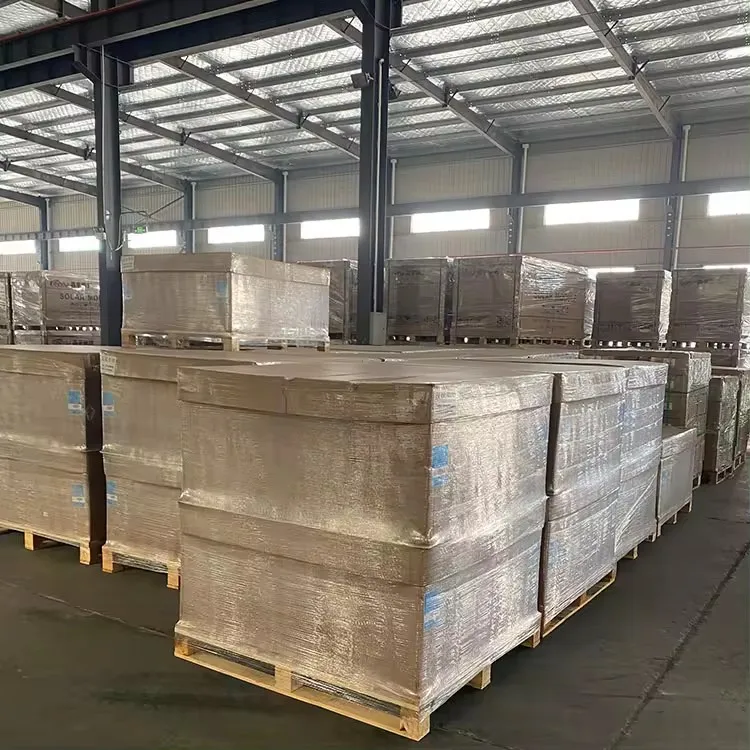

Product packaging

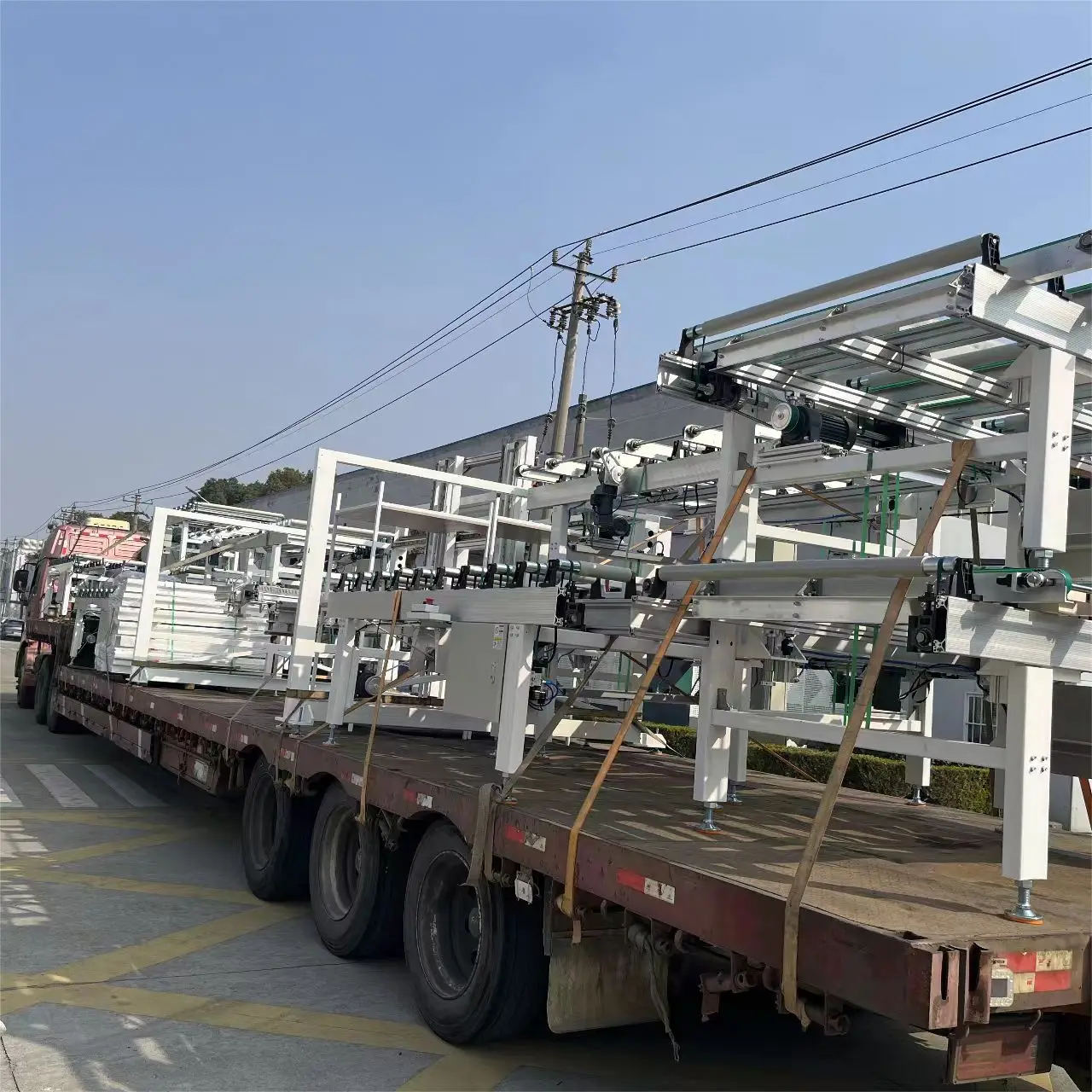

Packing
Delivery time:
Around 45~90 days after received the advance payment.
Quality assurance : 1 year
Operational and maintenance manuals of all equipment are in English.
Around 45~90 days after received the advance payment.
Quality assurance : 1 year
Operational and maintenance manuals of all equipment are in English.
About us
Zhonghao (Wuxi) International Trade Co., Ltd
Zhonghao (Wuxi) International Trade Co., Ltdwas founded in November 2020, located in the pearl of Taihu Lake,Xishan District, Wuxi City, Jiangsu Province, is a leading manufacturer of photovoltaic module equipment. As an industrial automation production equipment enterprise in the field of new energy, Zhonghao (Wuxi) , focuses on industrial robot additive manufacturing equipment, hydrogen fuel cell assembly line and intelligent photovoltaic production line, and can be applied to industrial automation and photovoltaic intelligent equipment; Continuous reform and innovation are the source of development of Zhonghao, providing smart factory solutions, promoting the deep integration of informatization and industrialization, and accelerating the development of new energy intelligent manufacturing equipment engineering and industrialization are the consistent corporate purposes of Zhonghao.
At present, the company's main products are: automatic edging machine, automatic glass machine, servo overflow frame mounting machine, automatic adhesive tape machine, double glass edge sealing machine.
Since the development of Zhonghao, the company has accumulated more than 100 independent invention patents and utility model patents. And rated as Wuxi City to keep good faith advanced enterprises. With the goal of excellent quality control, customer satisfaction and rapid response, we have provided more than 50 component manufacturing lines worldwide.
At present, the company's main products are: automatic edging machine, automatic glass machine, servo overflow frame mounting machine, automatic adhesive tape machine, double glass edge sealing machine.
Since the development of Zhonghao, the company has accumulated more than 100 independent invention patents and utility model patents. And rated as Wuxi City to keep good faith advanced enterprises. With the goal of excellent quality control, customer satisfaction and rapid response, we have provided more than 50 component manufacturing lines worldwide.
Advantages
1. The machine has four linkages, which are input level, lamination level, curing level, output level.
2. A hydraulic lifting systems is used, imported linear guide rail, low noise, smooth operation.
3. The whole equipment control system, highly precise temperature control, convenient to operate and stable performance.
4. Nice shape, high performance and high automation make it easy to operate the automatic encapsulation of solar modules
2. A hydraulic lifting systems is used, imported linear guide rail, low noise, smooth operation.
3. The whole equipment control system, highly precise temperature control, convenient to operate and stable performance.
4. Nice shape, high performance and high automation make it easy to operate the automatic encapsulation of solar modules
FAQ
Q1: Who are we?
A: We are located in Wuxi City, Jiangsu Province, China. After years of development, we have our own technical R&D department and can improve our products continuously.
Q2: How can we guarantee the quality?
A: Always executing rigorous final Inspection and testing before shipment; We accept on-site checking by Third party before shipment.
Q3: If we do not know how to use the machine, can you teach us?
A: Yes, we will. We will offer Operation Manual along with our goods.During installation, we will train your staff to operate the machine.
Q4: When the machine can't work well, what should I do?
A:Please inform us once you got the failure report, our engineer will reply you within 24-hours. If remote instruction couldn’t solve the problem. We also could assign our engineer to your site under our agreement.
Q5: What else can you buy from us?
A1:Specific functional equipment, such as: Automatic Stringer, Automatic cell string laying machine, Automatic bussing machine, EL tester, IV tester and so on.
A2: Semi-automatic production line, full-automatic production line and Turnkey solutions of Solar module production line.
